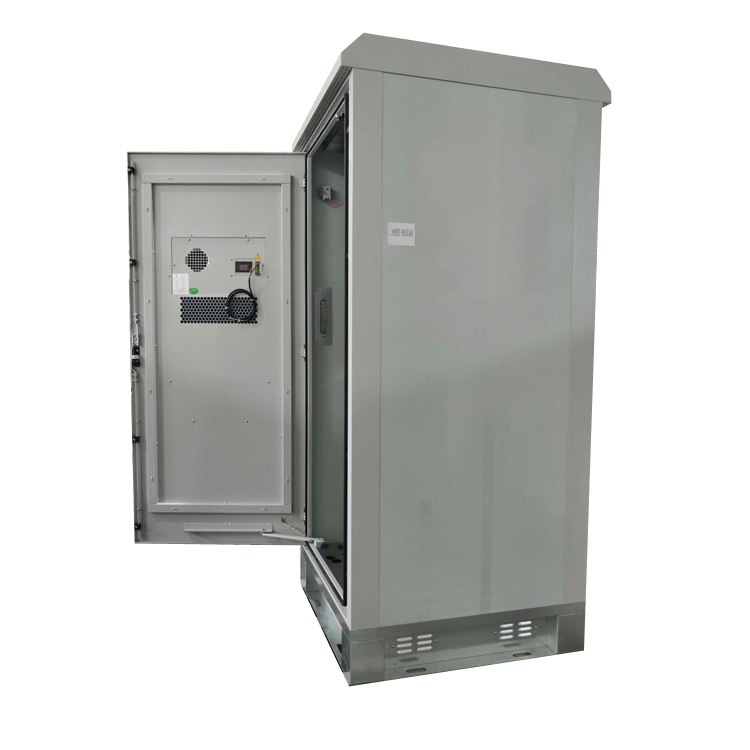

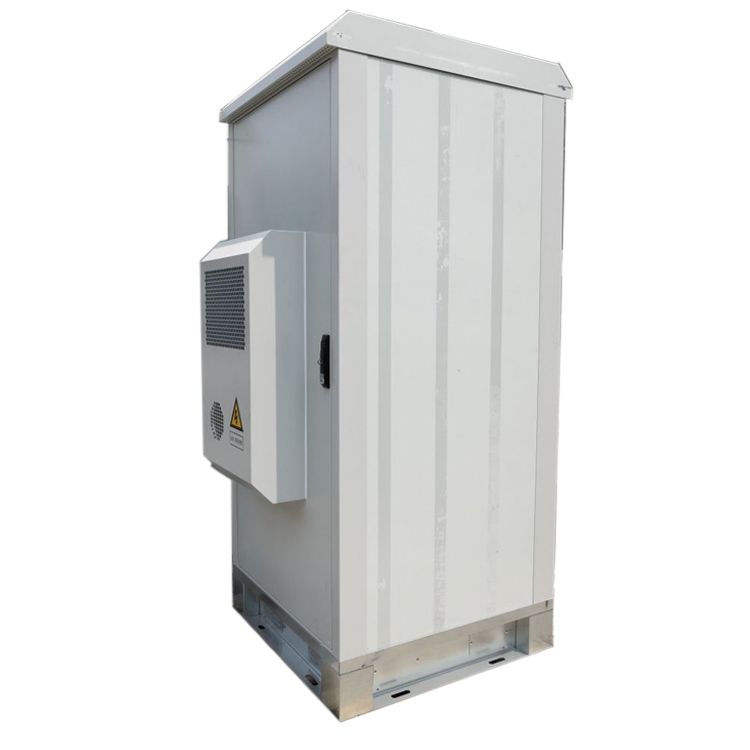

Ip55 Waterproof Outdoor Solar System Electrical Power Storage Cabinet With Ac
Ip55 Waterproof Outdoor Solar System Electrical Power Storage Cabinet With Ac
Ip55 Waterproof Outdoor Solar System Electrical Power Storage Cabinet With Ac
Ip55 Waterproof Outdoor Solar System Electrical Power Storage Cabinet With Ac
Ip55 Waterproof Outdoor Solar System Electrical Power Storage Cabinet With Ac
1 / 5
Ip55 Waterproof Outdoor Solar System Electrical Power Storage Cabinet With Ac
Ip55 Waterproof Outdoor Solar System Electrical Power Storage Cabinet With Ac
Ip55 Waterproof Outdoor Solar System Electrical Power Storage Cabinet With Ac
Ip55 Waterproof Outdoor Solar System Electrical Power Storage Cabinet With Ac
Ip55 Waterproof Outdoor Solar System Electrical Power Storage Cabinet With Ac

Ip55 Waterproof Outdoor Solar System Electrical Power Storage Cabinet With Ac

Send Inquiry

Product Description

Product Description

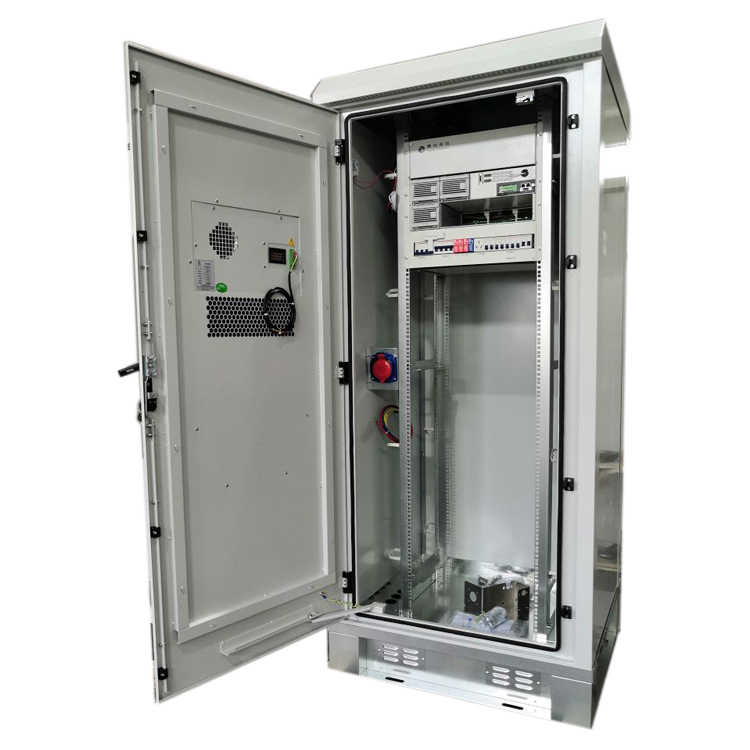

Telecom Cabinet

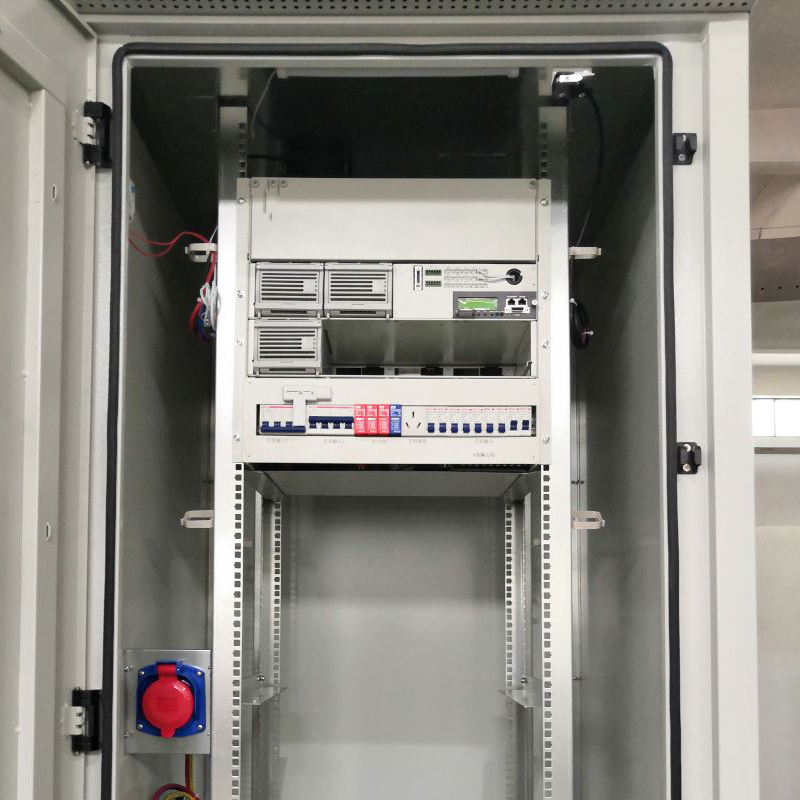

Telecom Cabinet Detail

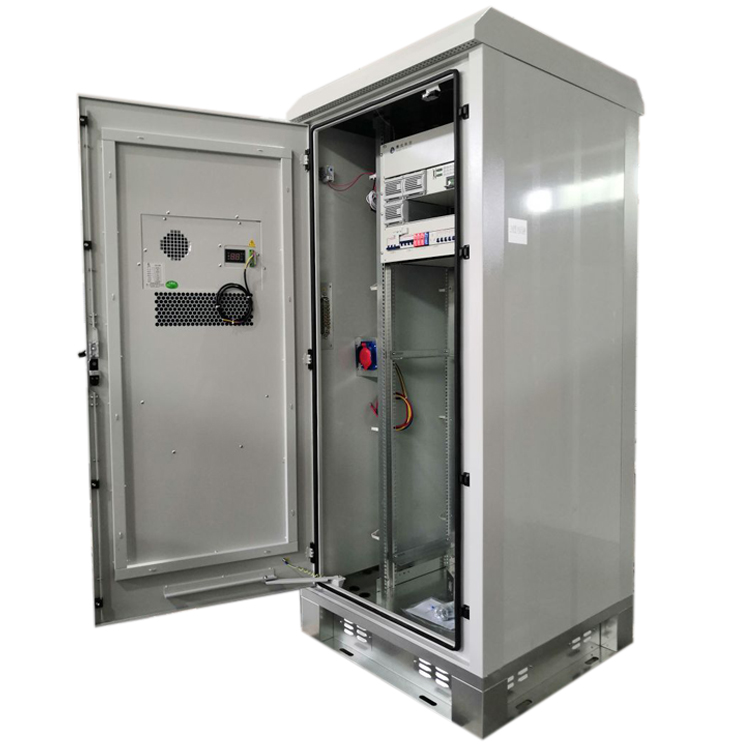

Cabinet View
  • Strong rack inside to be equipped with telecom equipments, power source, battery, temperature control device and other attachments.
  • Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information.
  • Cabinet made of low thermal conductivity and fireproof material for heat insulation fireproof.
  • Can be installed in any difficult places include the top of mountain and the roof of buildings.
  • Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP55.
  • Attractive powder coat finish.
  • Galvanized steel base.
  • Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device.
  • High performance Air-conditioning unit for heat removal.
  • Door stopper to hold door open at service.
  • Pass earthquake intensity 8 anti-seismic performance test.
Technical Data Sheet

Structure: 19" rack mount

Internal Dimension(H*W*D): Standard 40U *800*800mm

External Dimension(H*W*D): Standard 2100*900*900mm

Ingress Protection: IP55

Temperature Control: 1500W, 220VAC air conditioner + DC48V fans

Material: Color steel plate, Galvanization plate, insulation thickness 45mm (PEF cotton)

No. Item Specifications
1FanDC48V, START WORK AT 35°C
2Power Distribution (PDU)GRADE B LIGHTNING PROOF; AC INPUT: 63A/2P*1; AC OUTPUT: 16A/1P*4; DC OUTPUT: 16A/1P*4
3Environment Monitoring48VDC; Communication port: RS485, TCP/IP, SNMP optional
4SensorsDoor, Water, Tilt & Shock, Temp & Humidity, Smoke sensors
5Ground BarResistance value: 0.021Ω
Product Application

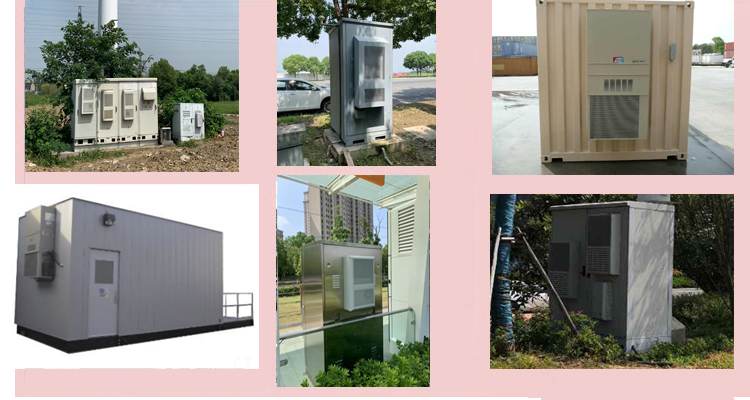

Application
Packing & Delivery
Packing
Delivery
Our Exhibition
Exhibition 1
Exhibition 2
Exhibition 3
Exhibition 4
Exhibition 5
Exhibition 6
FAQ
Q1. Do you have any MOQ limit for telecom cabinet?
A: Low MOQ, 1pc for sample checking is available.
Q2. What is your payment terms?
A: Normally our payment term is 50% advanced by T/T, Balance before shipment.
Q3. Are your products can be customized?
A: Yes, We can customize products according to customer needs.
Q4. Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty for our products. If any problem happen in warranty period, we will reply your technical questions in 24 hours, and remote video support is available.
Q5. Where the application?
A: Our products have been widely used in many industries, like data processing, indoor/outdoor telecommunications, base station, steel, metallurgy, petrification, cars and war industry etc.
