PowerSTN Energy
1 / 5

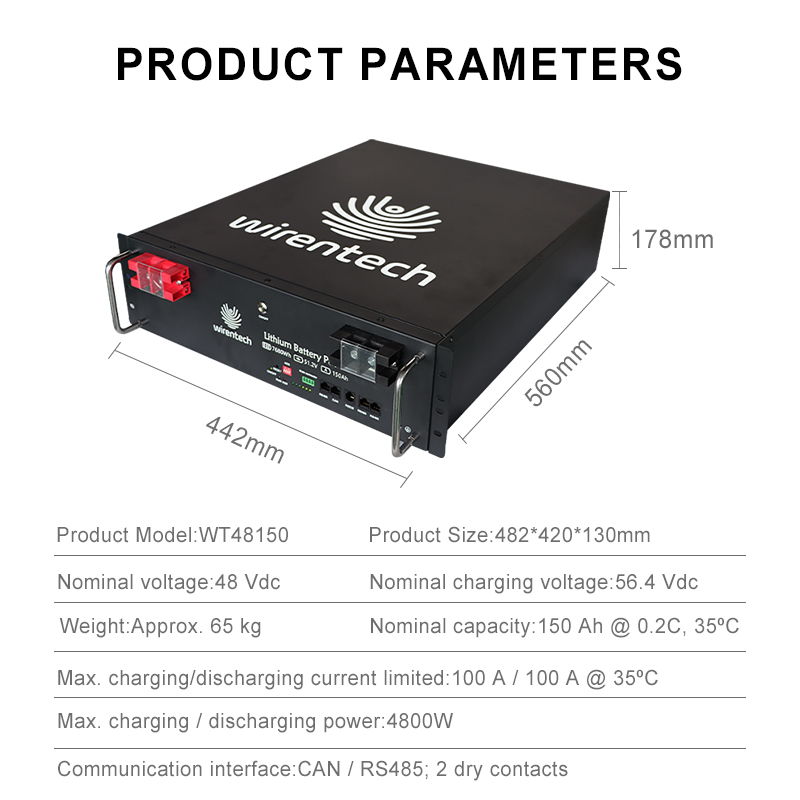

| Energy | 48V150Ah(7.20KWh) | Weight | 65KG |

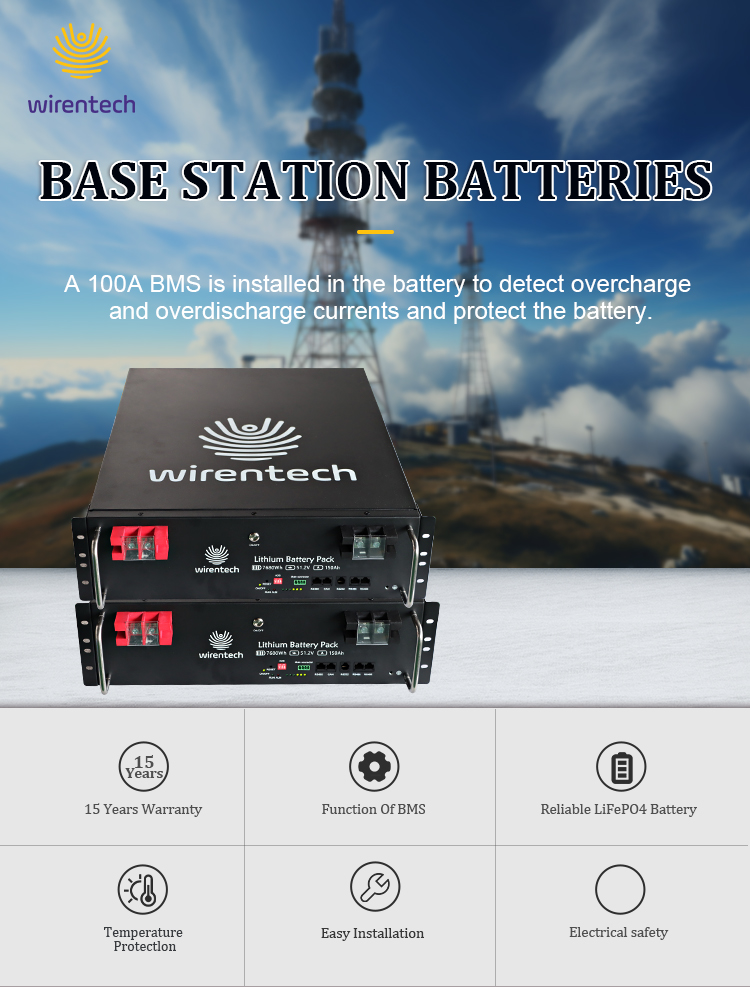

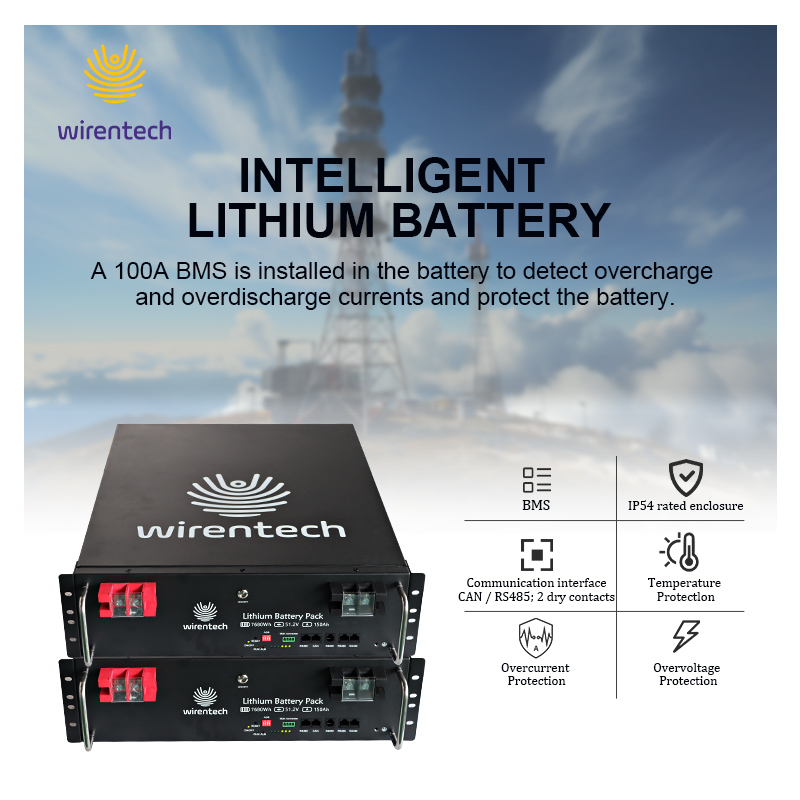

| Builtin BMS | 100A | Cathode material | LiFePO4 |
| Nominal voltage | 48 Vdc | Nominal charging voltage | 56.4 Vdc |
| Max. charging | 100 A / 100 A @ 35ºC | Max. charging | 4800 W |
| Cycle life | 3500 cycles @ 0.5C, 85% DOD, 70% EOL, 35ºC | Nominal capacity | 150 Ah @ 0.2C, 35ºC |

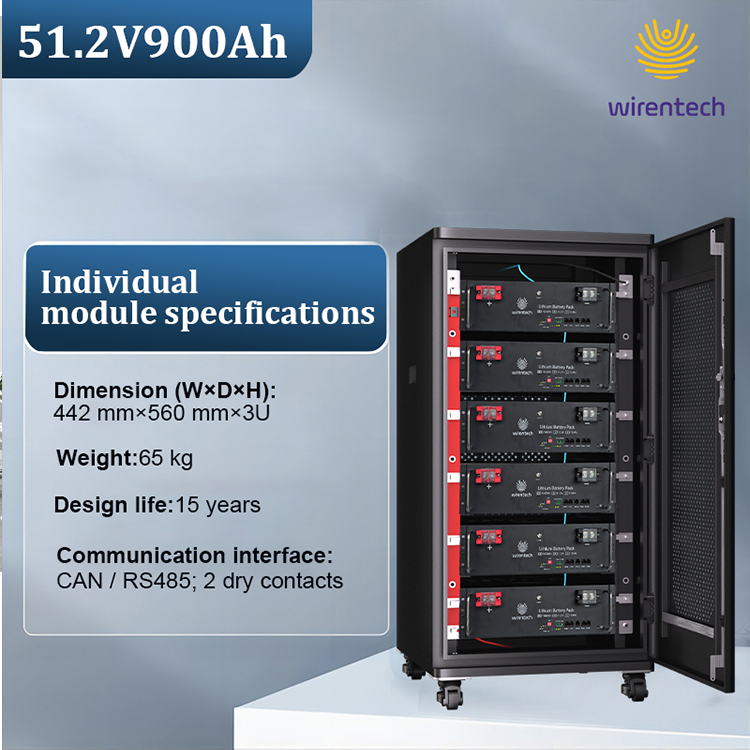

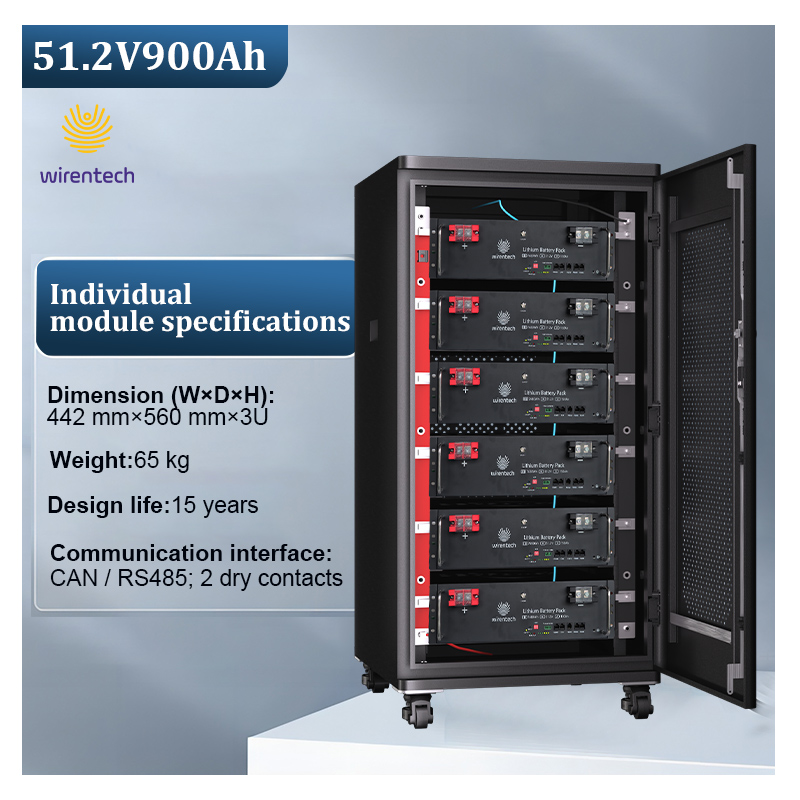

| Weight | Approx. 65 kg | Dimension (W×D×H) | 442 mm×560 mm×3U |
| Installation type | Standard 19” rack, Air conditioning system or direct ventilation cabinet | Self discharge @ 25ºC | Less than 5% after 90 days storage |
| Communication interface | CAN / RS485; 2 dry contacts | Max. Quantity of Parallel Connection | CAN: 32; RS485: 16 |
| Terminal | M6, torque 4 N·m | Protection & Alarm | Over temperature, overcurrent, short circuit, overcharge, overdischarge, etc. |
| Certification | CE, UN38.3 | Design life | 15 years |
Yes, welcome to order sample, we have warehouses in the United States and Europe, some samples can be quickly shipped.
Yes, intelligent BMS including JBD/PACE/SmarTec built-in to ensure batteries are under smartly managed.
Yes sir, our packs are compatible with more than 20 inverter brands on the market including Victron, Goodwe, Solis, Growatts, Voltronics, Deye and other famous brands.
5 years upto its usage.
CE, UN38.3 and MSDS, Pack UL1973 is under processing.
Overseas warehouse(USA & Euro) will make quick delivery for small order. 30-50 days for customized order. Monthly production capacity 6x40HQ for standard models.
