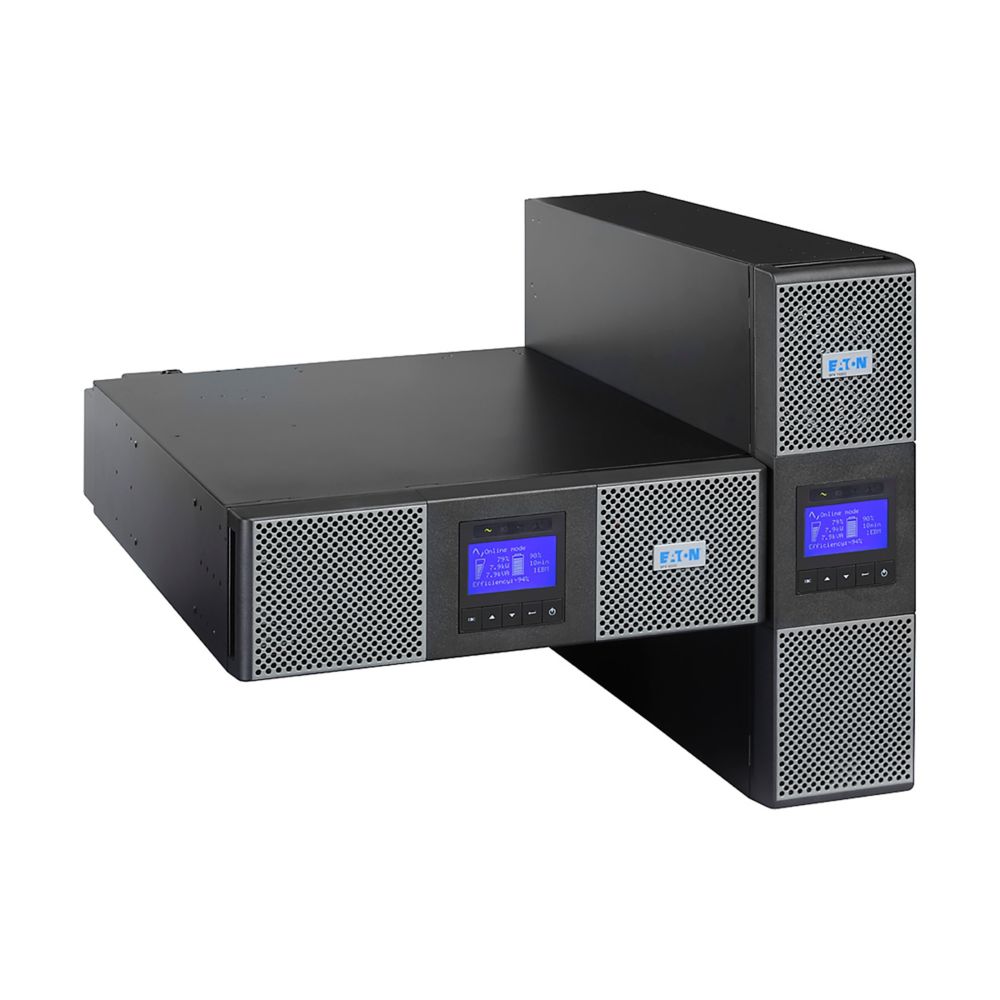

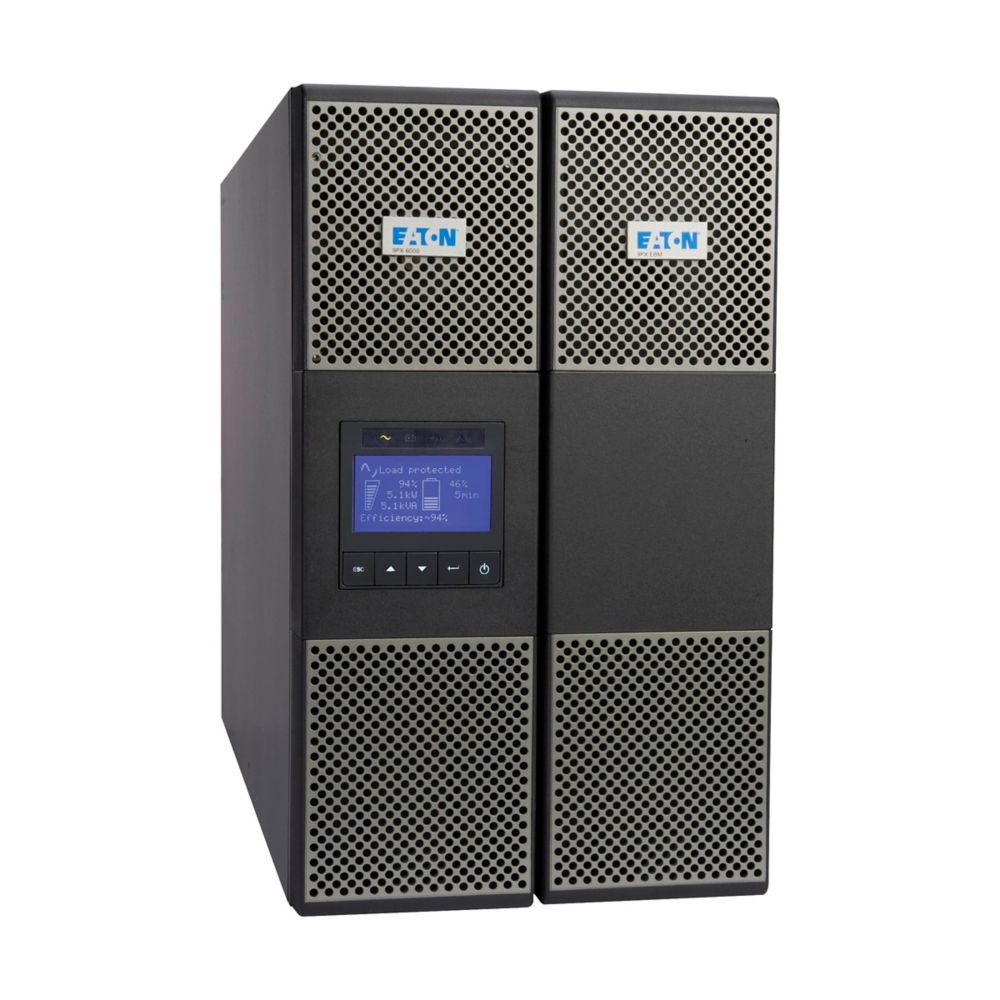

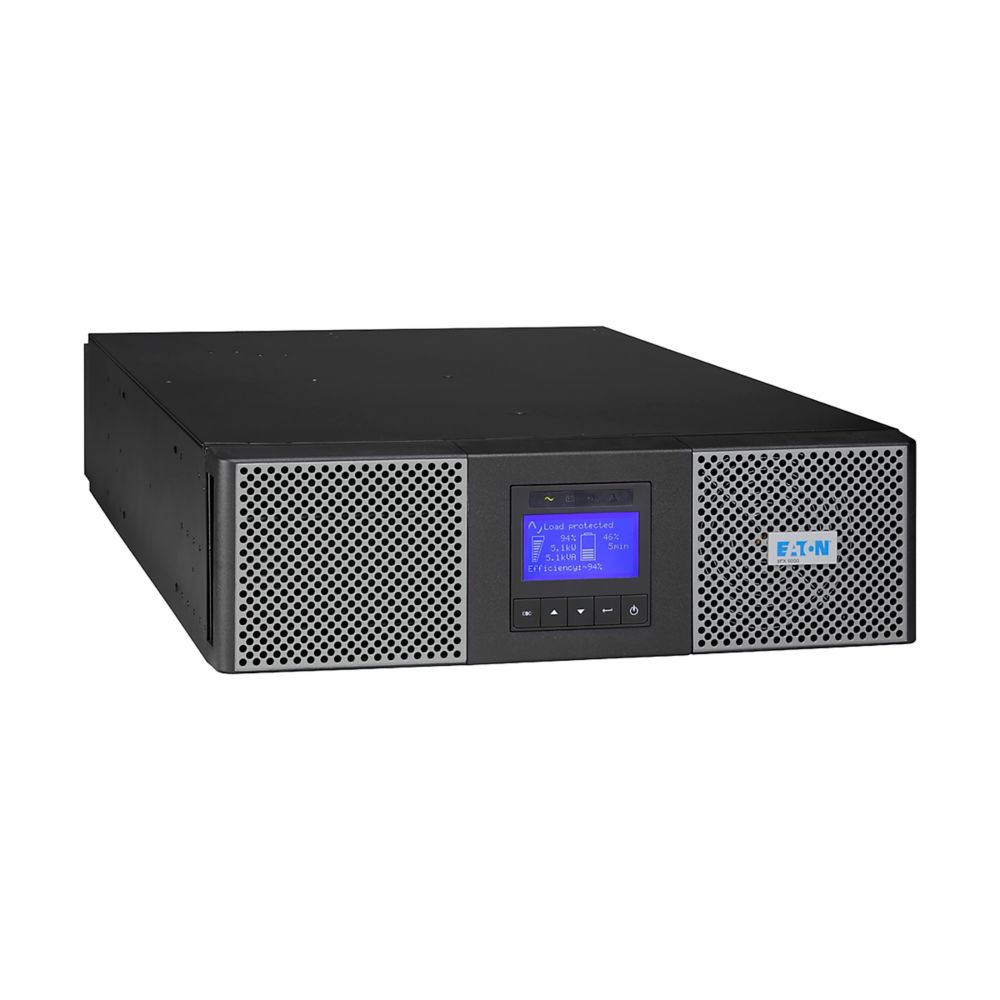

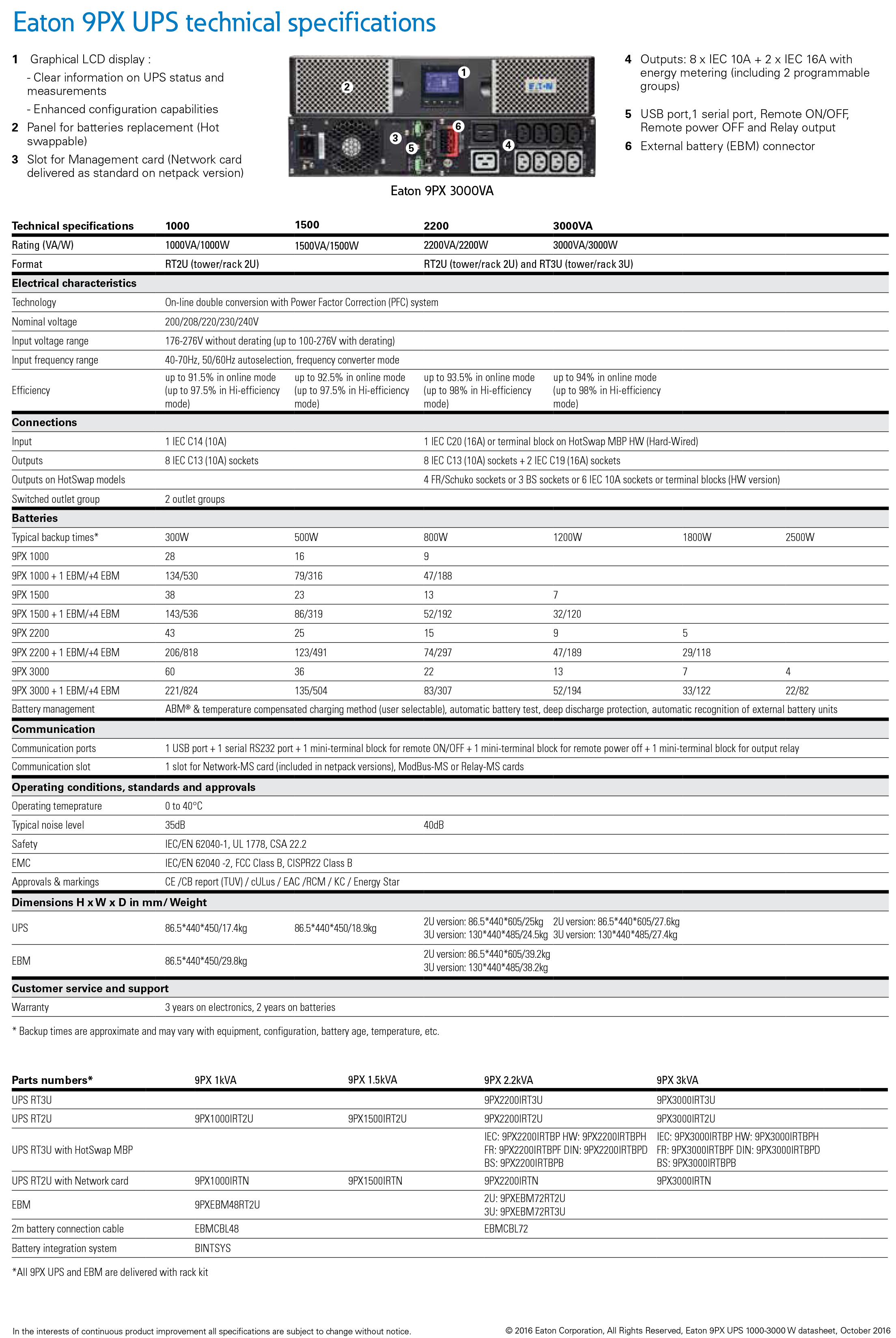

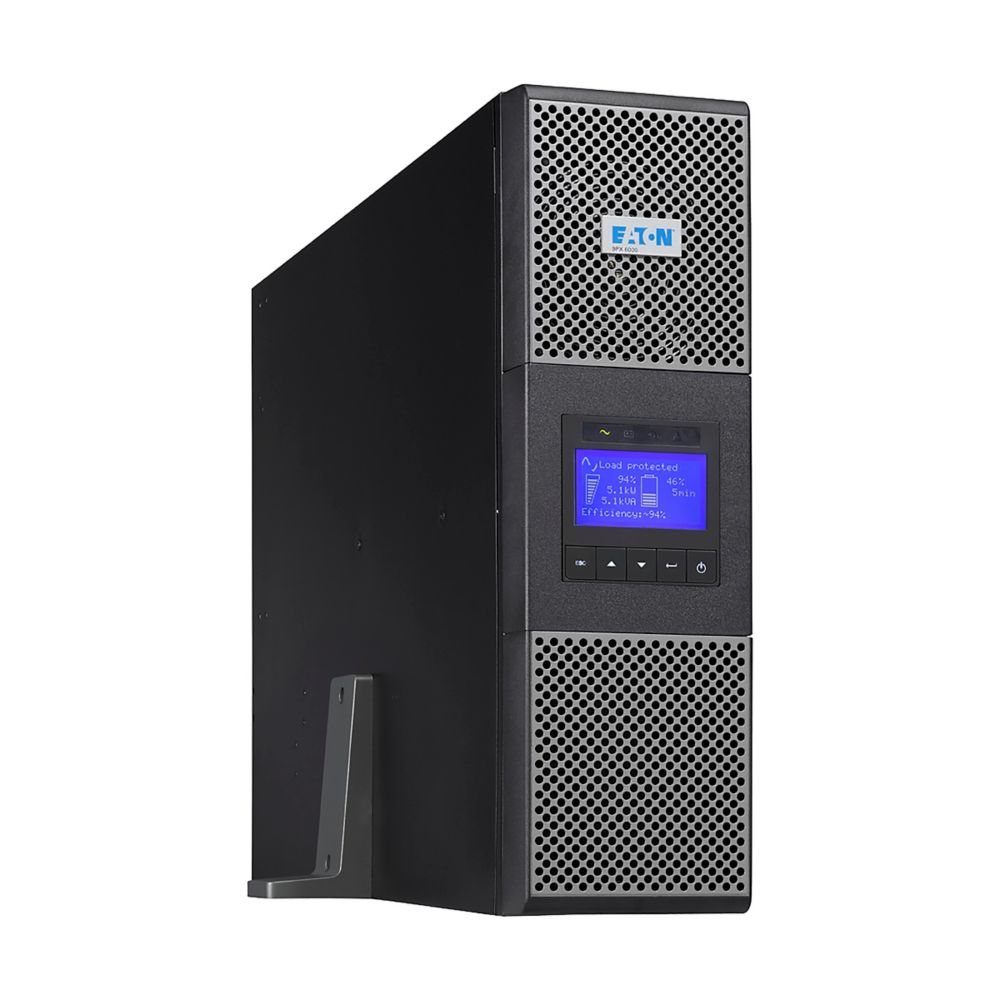

| Product name | Eaton 9PX UPS |
| Catalog number | 9PX3000iRT3U |
| Power level | 3000 VA | 3000 W |
| Rated voltage | 220/230/240 Vac |
| Installation type | Rack/tower |
| Topology | On line double conversion with Power Factor Correction (PFC) system |
| Input | output phase | Single |
| Dimension | 130*440*485 (3U) mm |
| Extended battery capability | Yes |
| Battery type | Lead acid maintenance free (replaceable) |

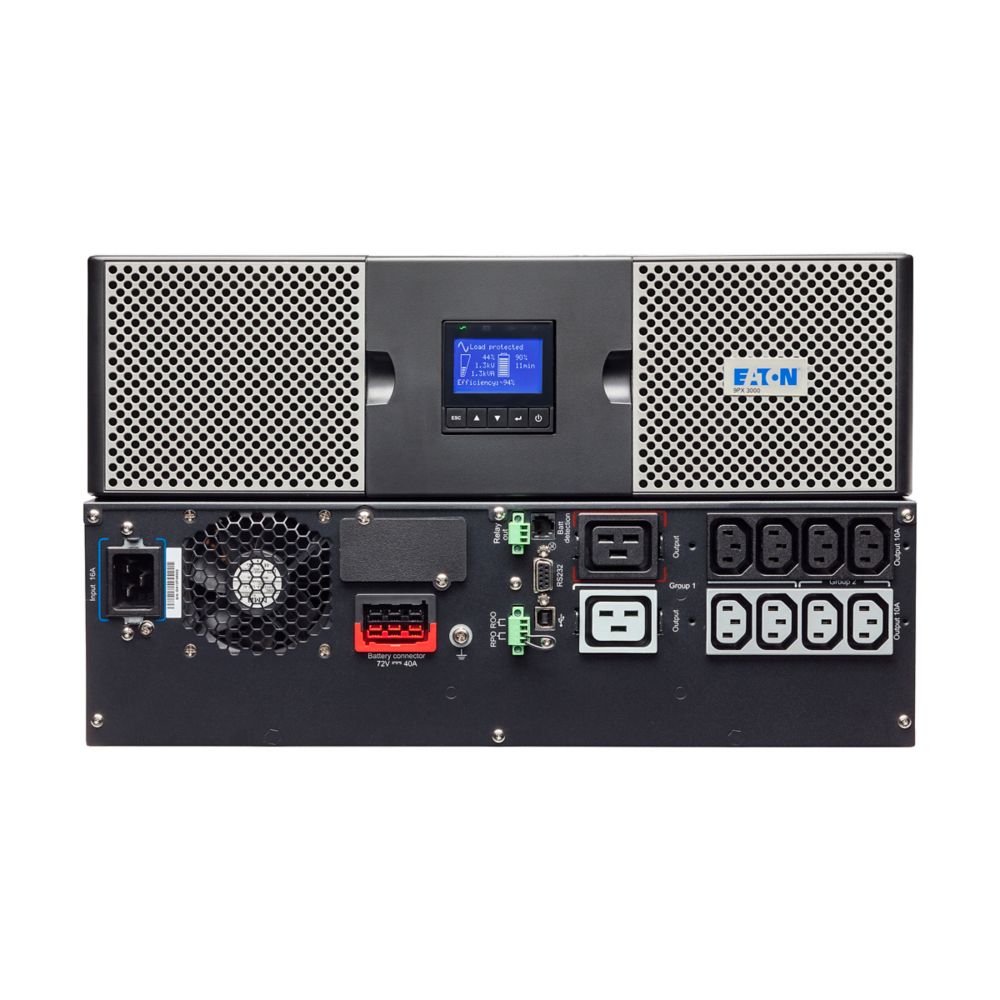

| Communication ports | 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay |
| Communication Slot | 1 slot for Network-MS card (included in netpack versions), ModBus-MS or Relay-MS cards |
| Battery management | ABM® & temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units |
| Input connection | 1 IEC C20 (16A) or terminal block on HotSwap MBP HW (Hard-Wired) |
| Receptacle | 8 IEC C13 (10A) sockets + 2 IEC C19 (16A) sockets |
| Noise level | < 40 dB |
Since 2012, our team has engaged in the development, manufacturing, and sales of highly reliable and cost-effective uninterruptible power supplies (UPS), including offline, line-interactive, and online types, to global customers. By 2018, the factory grew into a high-tech enterprise that has passed ISO9001, ISO14001, and ISO45001 certifications.

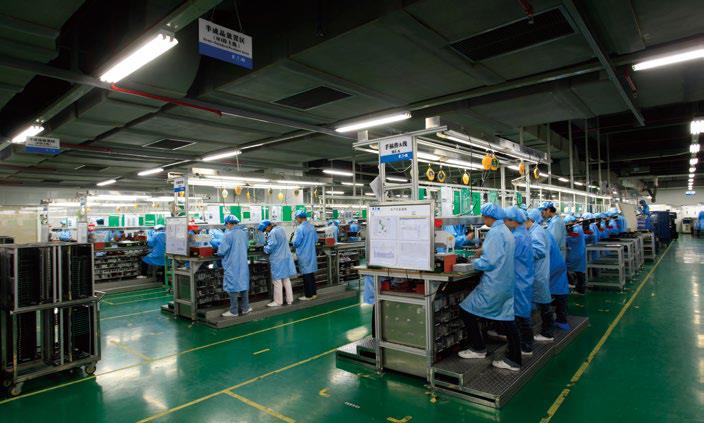

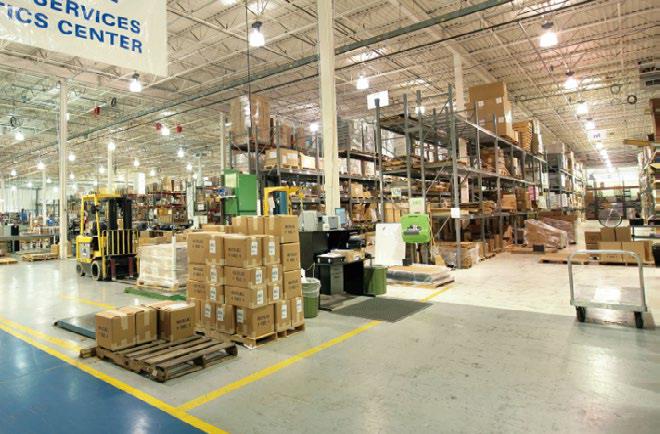

Nowadays, the factory has a total area of 15,000 square meters with 7 assembly lines, producing approximately 10,000 units of equipment each month with power levels from 500 VA to 200 kVA. Just-in-Time (JIT) resource planning and inventory control are optimized to support our customers with minimized lead times and flexible delivery schedules.

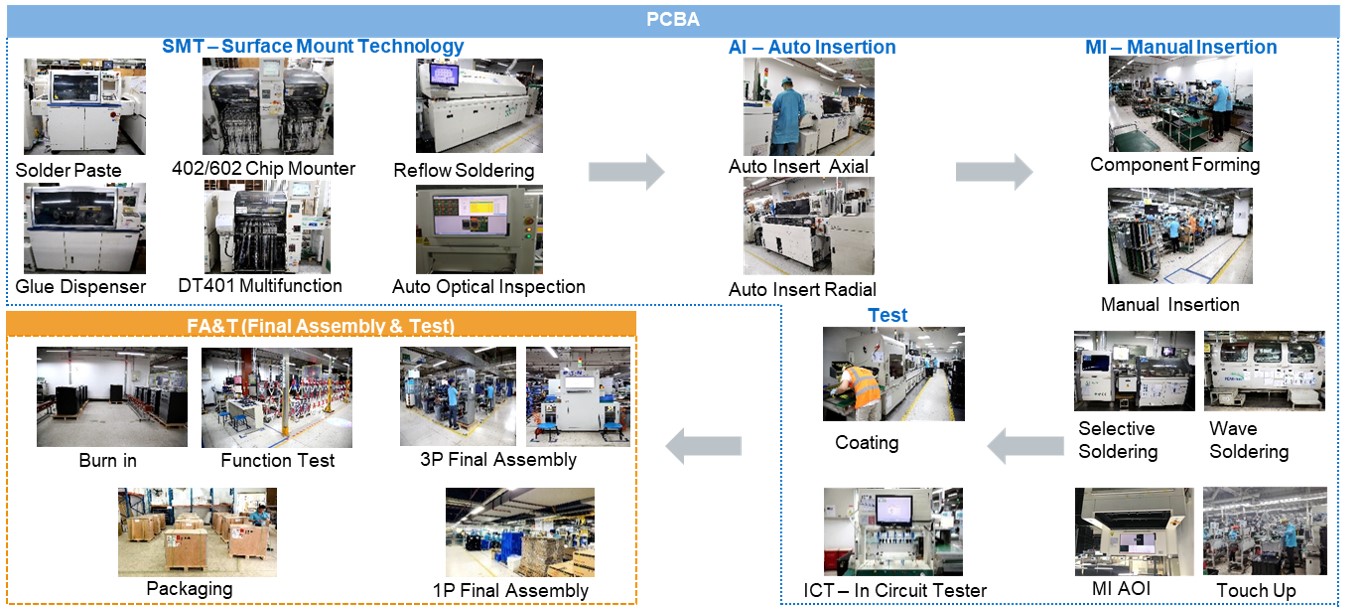

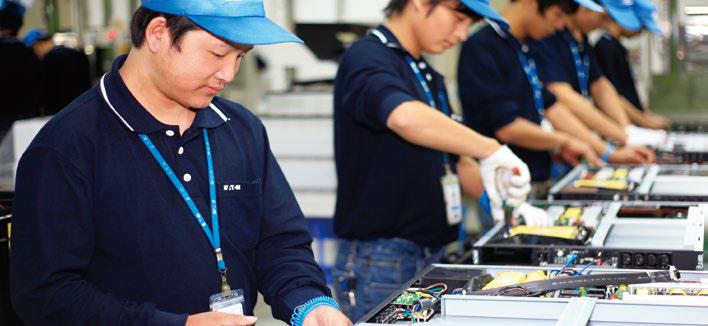

Products are recognized by CE, RoHS, UL, TUV, CSA, FCC, etc., to assure quality and safety. Modern facilities incorporate world-class manufacturing capabilities and technologies to produce high-quality power supplies, utilizing:
We continue to excel towards providing perfect power management solutions, and we are confident in being your outstanding supplier through:
We take pride in our expertise to offer high-quality power supplies for all-purpose applications. You are invited to visit the plant to see how we design and manufacture, and you are welcome to contact us to obtain professional technical assistance.
We look forward to cooperating with you and establishing a long-term, win-win relationship.
