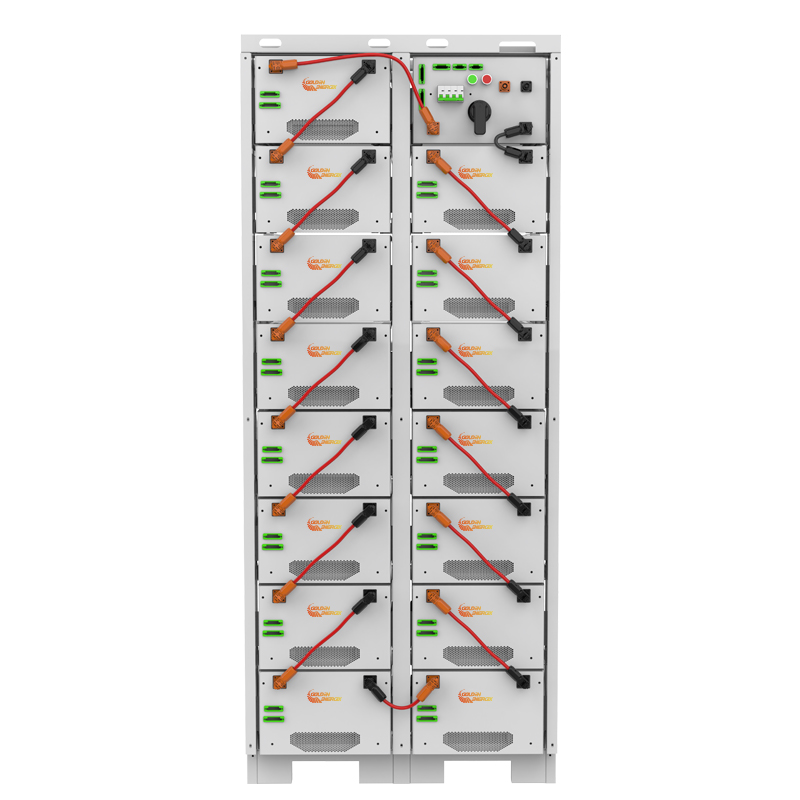

ESS Container Solar Energy Storage System Photovoltaic Power-Cooled Air for Industrial & Commercial Use
ESS Container Solar Energy Storage System Photovoltaic Power-Cooled Air for Industrial & Commercial Use
ESS Container Solar Energy Storage System Photovoltaic Power-Cooled Air for Industrial & Commercial Use
ESS Container Solar Energy Storage System Photovoltaic Power-Cooled Air for Industrial & Commercial Use
ESS Container Solar Energy Storage System Photovoltaic Power-Cooled Air for Industrial & Commercial Use
1 / 5
ESS Container Solar Energy Storage System Photovoltaic Power-Cooled Air for Industrial & Commercial Use
ESS Container Solar Energy Storage System Photovoltaic Power-Cooled Air for Industrial & Commercial Use
ESS Container Solar Energy Storage System Photovoltaic Power-Cooled Air for Industrial & Commercial Use
ESS Container Solar Energy Storage System Photovoltaic Power-Cooled Air for Industrial & Commercial Use
ESS Container Solar Energy Storage System Photovoltaic Power-Cooled Air for Industrial & Commercial Use

ESS Container Solar Energy Storage System Photovoltaic Power-Cooled Air for Industrial & Commercial Use

Send Inquiry

Product Description

Energy Storage System

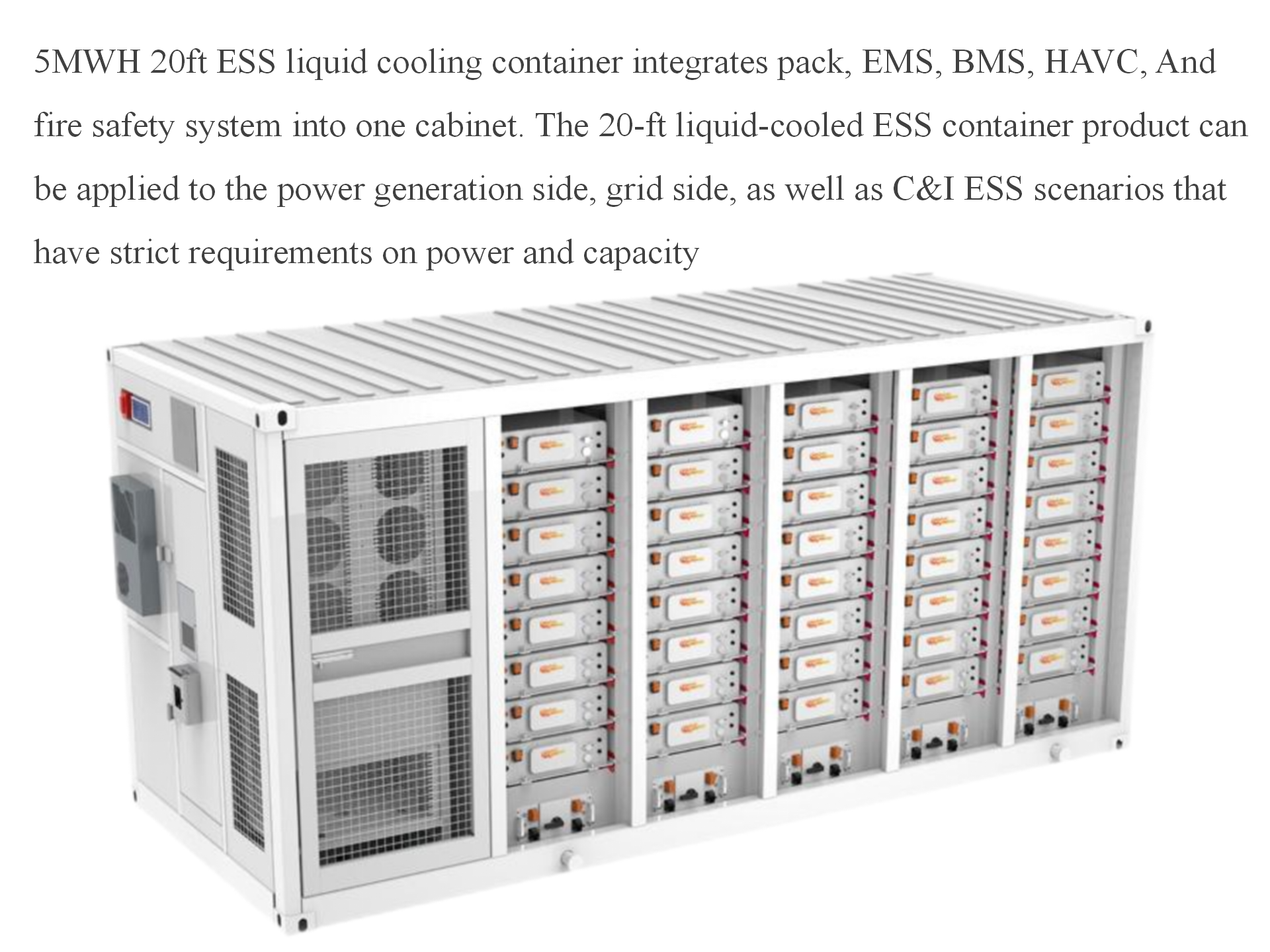

Product Overview
Product Overview

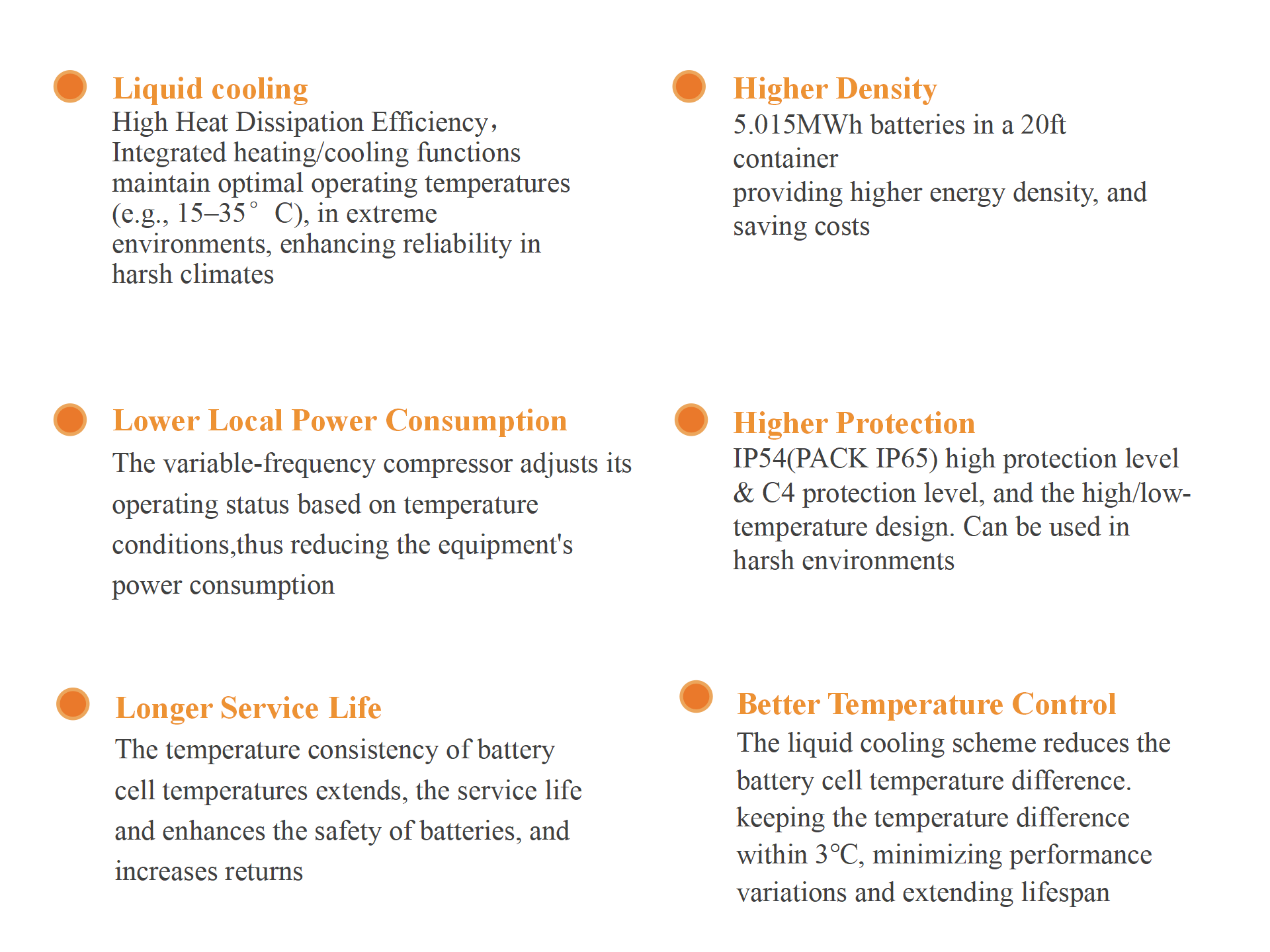

Key Features
Key Features

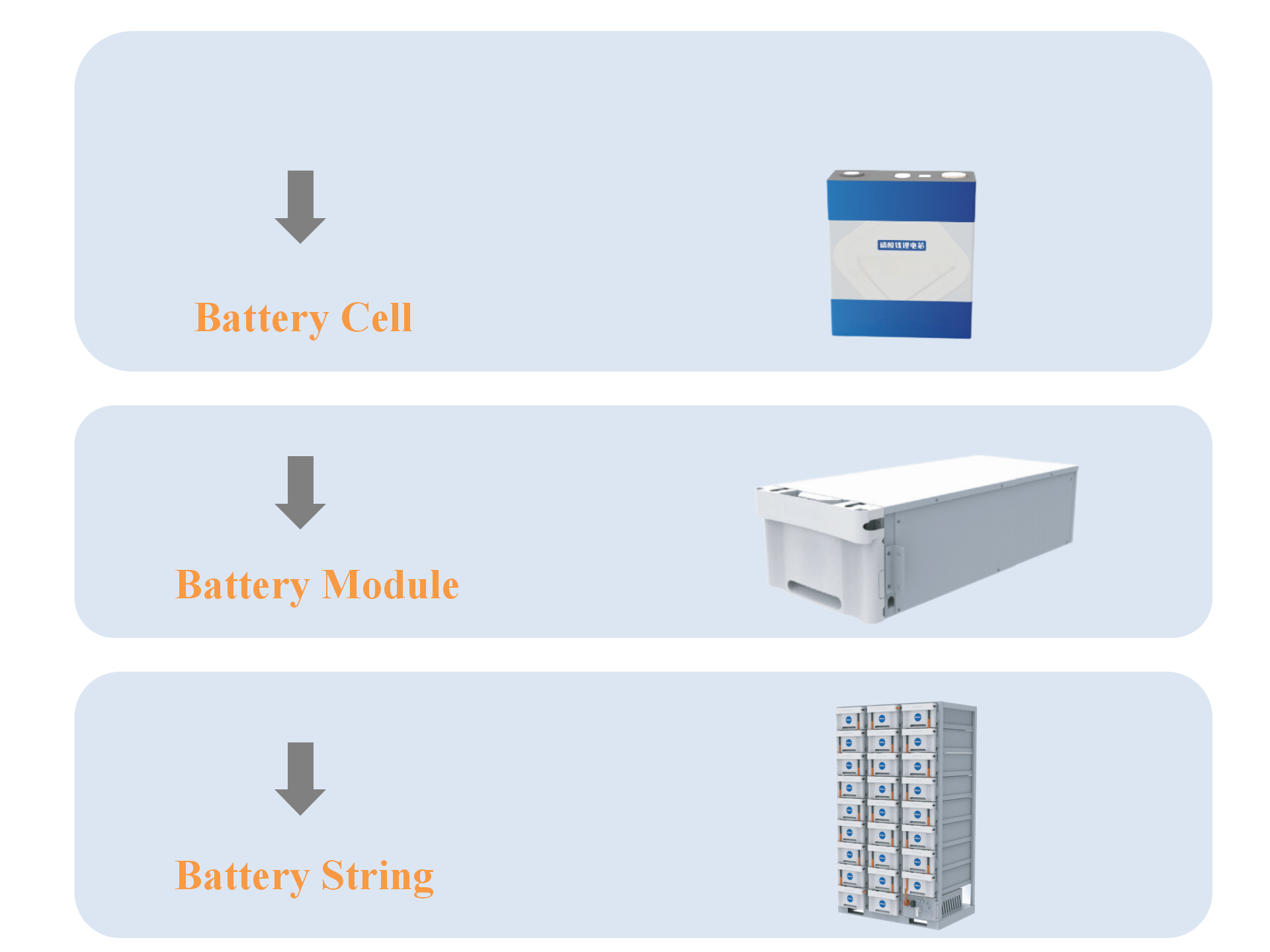

Product Components

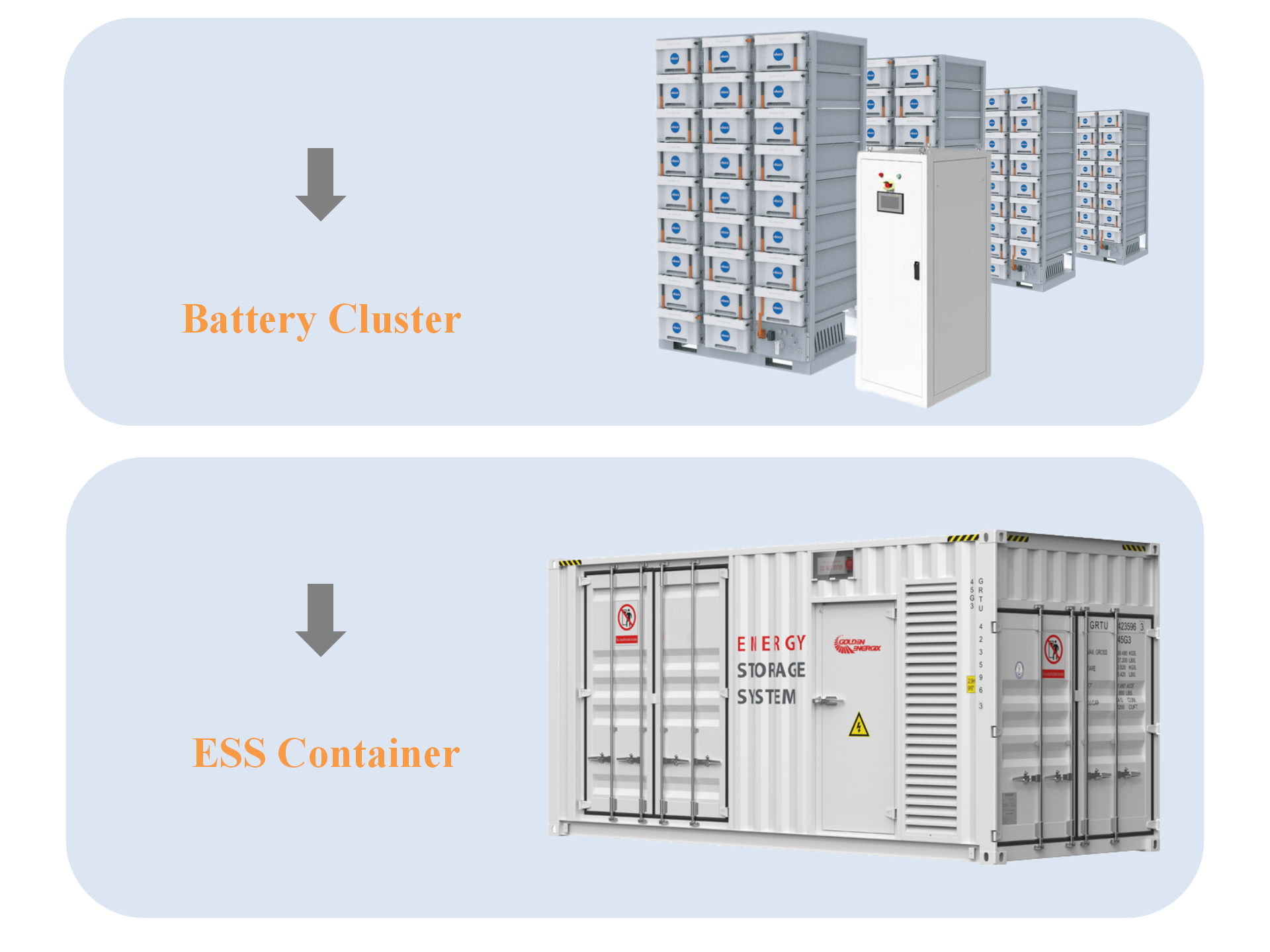

Product Component Diagram Internal Component Details

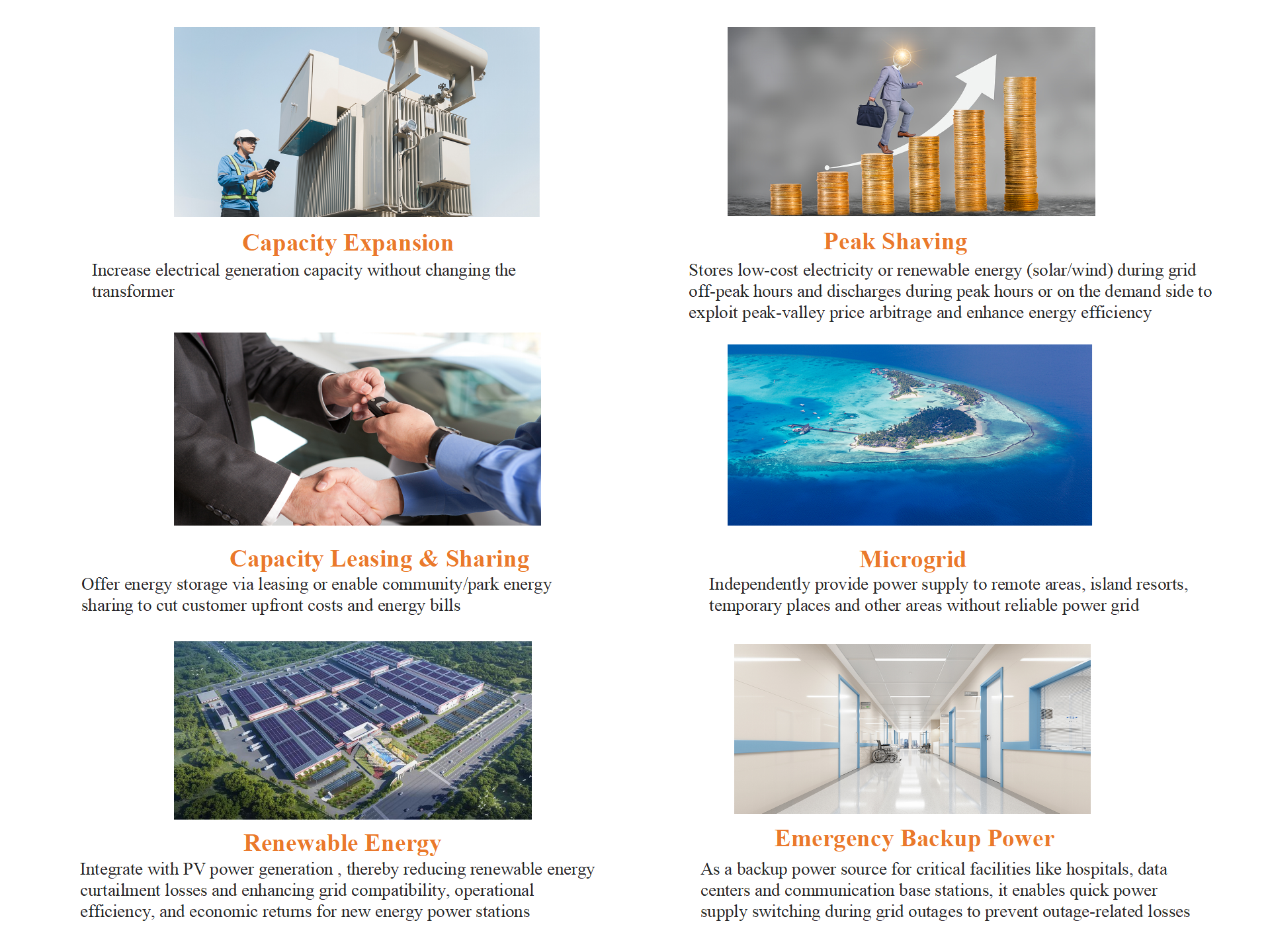

Functionality
System Functionality

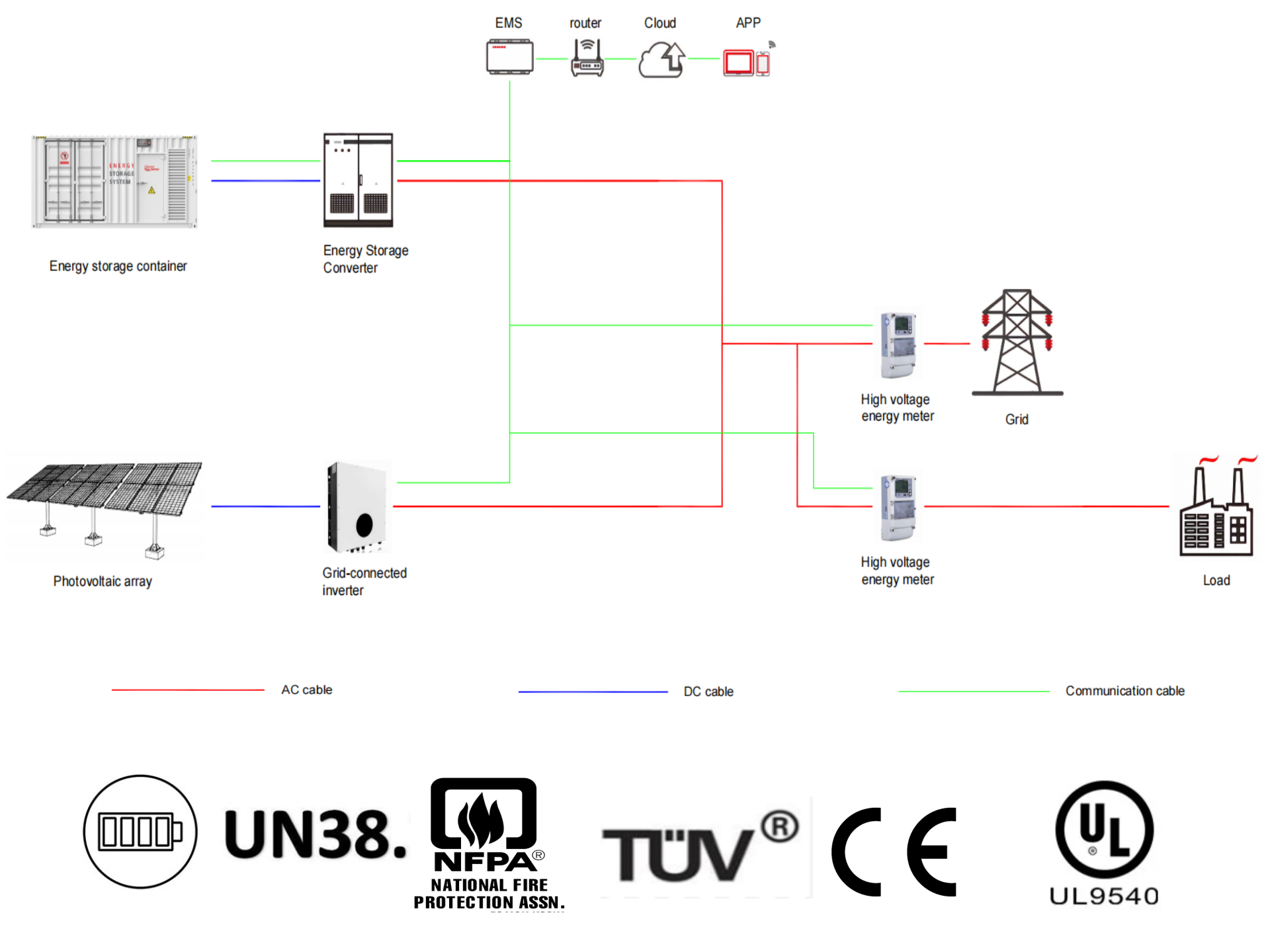

Wiring Diagram
Wiring Configuration Diagram
Product Datasheet
Model GE-20FT5MWH
Configuration 416s12p
Rated Energy 5015.9KWH
Rated Voltage 1331.2V
Operating Voltage Range 1040~1500V
Rated Charge / Discharge Rate 0.5C
Cycle Life ≥6000@(0.5P 25℃)
Dimension(L×W×H) 6058mm×2438mm×2896mm
Weight 44000kg
Operating Temperature -30~60℃
IP Level IP54
Efficiency ≥93.8%@0.5P ≥95.2%@0.25P
Cooling And Heating Type Liquid cooling / heating
Refrigerating Power 60kW @ Ambient temp 35℃ / 55kW @ Ambient temp 45℃
Heating Power 27kW
Auxiliary Power Supply 27kW @ Ambient temp 35℃ / 33.5kW @ Ambient temp 45℃
Communication Agreement CAN, RS485, TCP/IP
Certificate UN38.3, EU, UL9540, EN62477-1, NFPA68, NFPA69, IEC62933, EN629033
Our Projects
Project Implementation 1 Project Implementation 2 Project Implementation 3

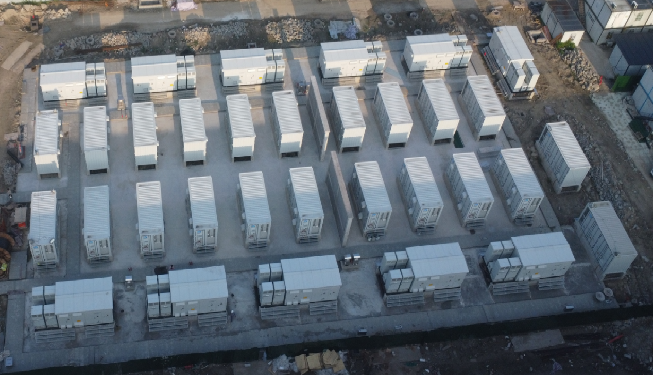

Project Implementation 4 Project Implementation 5 Project Implementation 6
Project Implementation 7 Project Implementation 8
Frequently Asked Questions
1. What is the capacity and configuration of the GE-20FT5MWH system?
The GE-20FT5MWH features a rated energy capacity of 5015.9KWH (approx. 5MWh) with a standard configuration of 416s12p. It provides a robust, high-density energy storage solution within a standardized 20-foot container format.
2. How does the thermal management system work in this battery storage container?
This energy storage system features an integrated liquid cooling and heating system. It supports 60kW of refrigerating power at an ambient temperature of 35℃ (55kW at 45℃) and 27kW of heating power, ensuring optimal cell temperature control for longevity and safety.
3. What is the expected cycle life of the system?
The system delivers a reliable cycle life of ≥6000 cycles when operated under standard conditions of 0.5P rate at 25℃, making it highly suitable for long-term industrial and utility scale energy applications.
4. What international certifications does the GE-20FT5MWH comply with?
The system complies with major global standards, including UN38.3 for safe transport, EU compliance certifications, UL9540 for energy storage systems safety, and other critical fire protection and safety standards such as NFPA68, NFPA69, IEC62933, and EN62477-1.
5. What communication protocols are supported for system integration?
For seamless connection with local Energy Management Systems (EMS) and monitoring setups, the system supports CAN, RS485, and TCP/IP communication protocols.
6. What environmental protection level and temperature tolerances does this system offer?
It is built with an IP54 protection class rating, making it suitable for tough outdoor installations. The system has a wide operational temperature range, performing efficiently from -30℃ up to 60℃.
