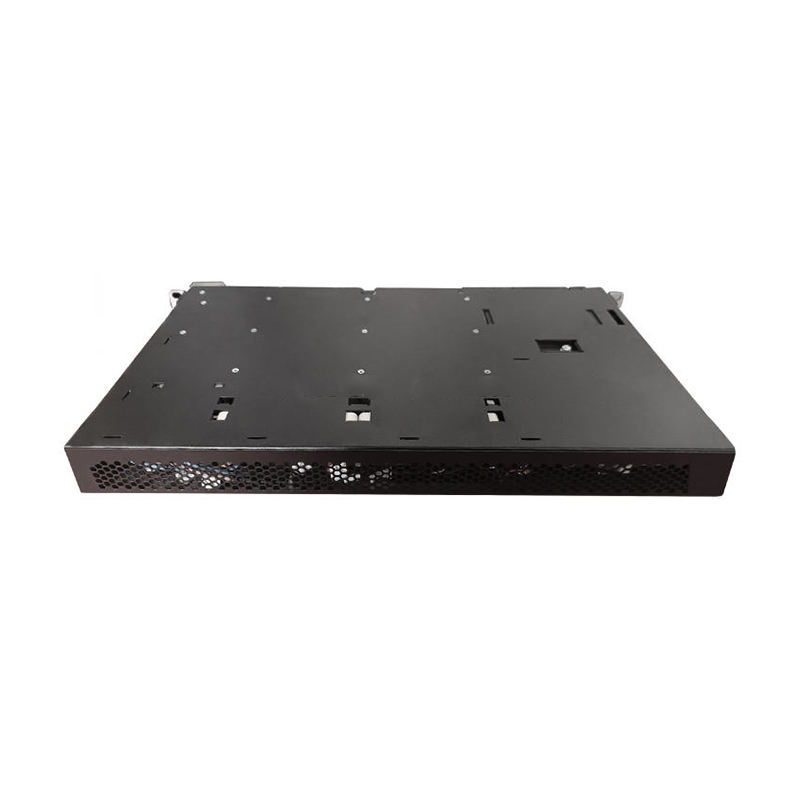

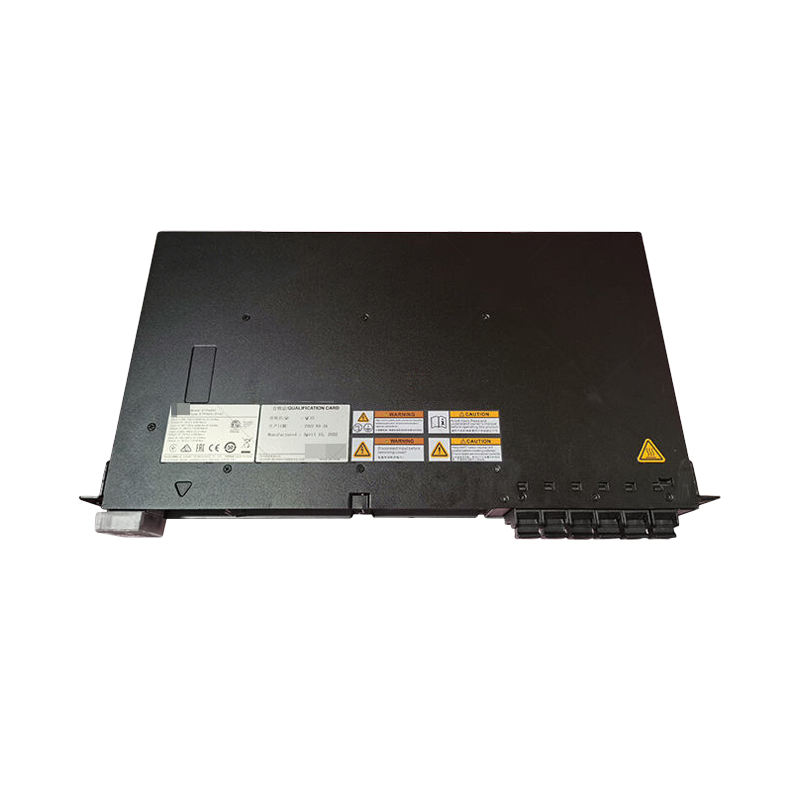

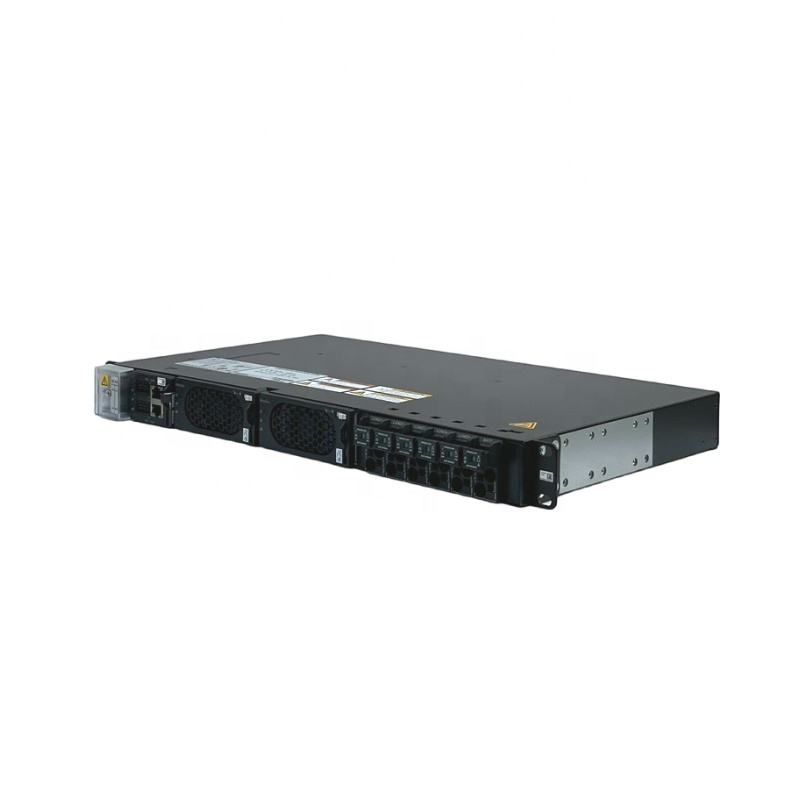

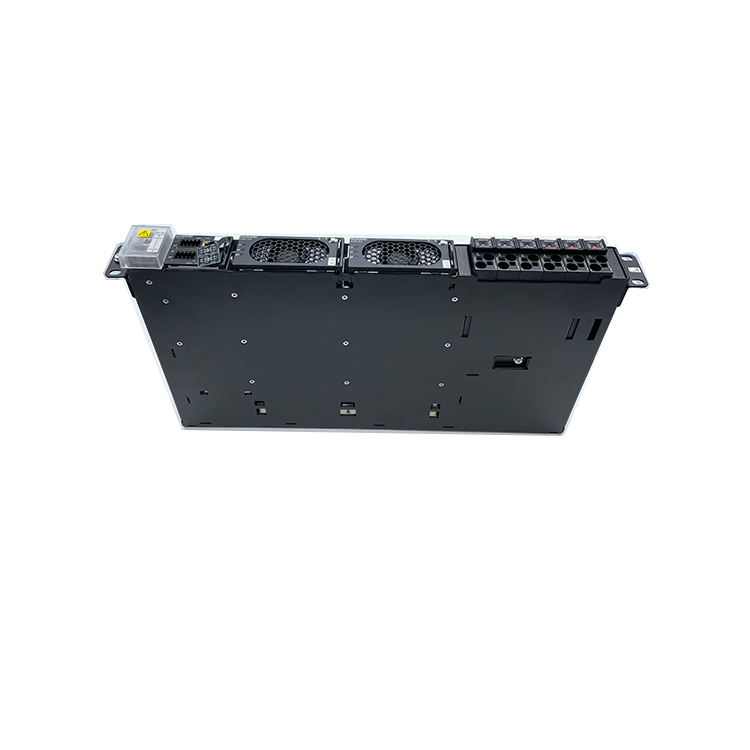

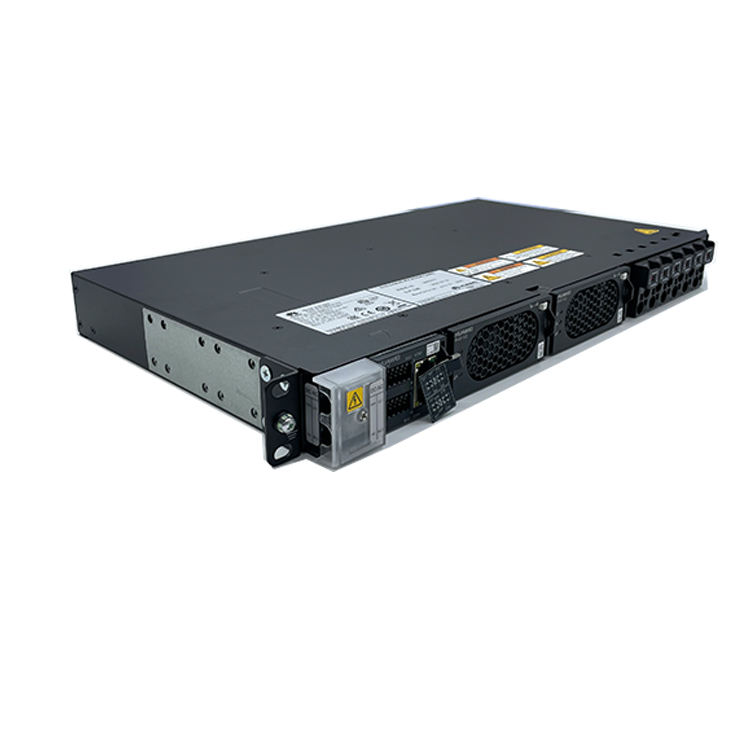

| ETP4860-B1A2 Power System Specifications | ||
|---|---|---|
| System | Dimensions (Width x Depth x Height) | 442mm (W) x 255mm (D) x 43.6mm (1U, H) Natural heat dissipation |
| Weight | 4 kg (Rectifier module is not included) | |
| Temperature Control Mode | Natural heat dissipation | |
| Installation Method | 19-inch rack or recessed cabinet mounting | |
| Routing Mode | Forward out | |
| Maintenance Mode | Class of pre-maintenance | |
| Class of Protection Level | IP20 | |
| AC Power Distribution | Input Format Voltage Frequency | 220 V AC single phase, 110 V AC double live wire |
| Input Power | M4 OT type terminal | |
| Distribution Input | 85~300V AC, rated voltage: 220VAC | |
| Voltage Frequency | 45~66Hz, rated frequency: 50/60Hz | |
| DC Power Distribution | Output Voltage Battery Power Down | 42~58V DC, rated voltage: 53.5V DC |
| Maximum Capacity | 4 kW (2*2KW) | |
| Battery Empty | 1x50A/1P | |
| Battery Power Down | 4x32A/1P, 1x16A/1P | |
| Monitoring Module | Type | SMU11C |
| Communication Interface | RS485 (master-slave protocol) | |
| Environment | Working Temperature | -40 °C ~ 65 °C (if it is used at an altitude of 2000~4000 meters, the maximum working temperature will be reduced by 1 °C for every 200 meters) |
| Storage Temperature | -40 °C to +70 °C | |
| Relative Humidity | 5%~95% (No condensation) | |
| Elevation | 0~4000m | |
