| DC Parameter | |||
| Battery Type | LFP | Voltage Range | 672V - 864V |
|---|---|---|---|
| Configuration | 1P240S | Cooling Mode | Air Conditioning Cooling |

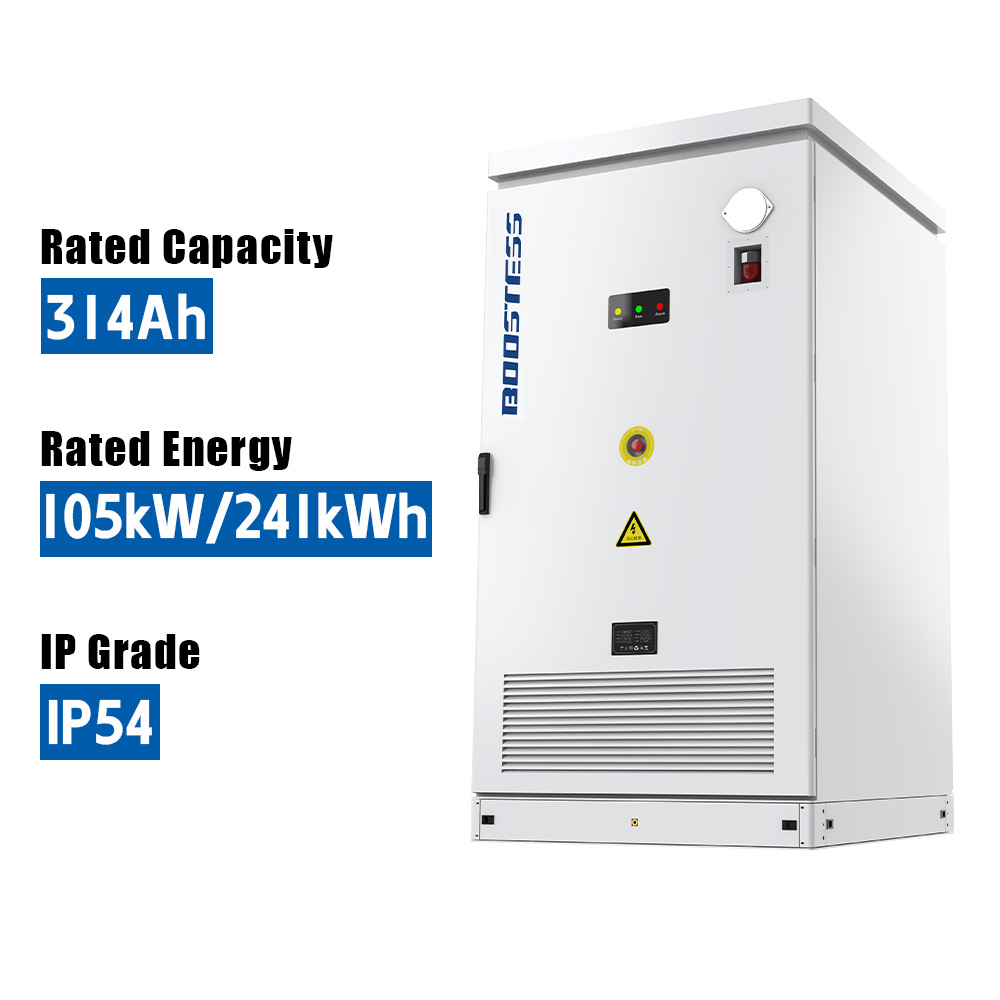

| Rated Capacity | 314Ah | Battery Cycle | 8000 @ 25°C, 80% DOD 0.5P |
| Rated Energy | 241.152kWh | Fire Protection | Aerosol Extinguishing*13, Water |
| Rated Voltage | 768V | Sensor | Flammable gas, smoke, temperature, water leak |
| Rated Power | 120.576kW | Rated Charge/Discharge Rate | 0.5P |
| AC Parameter | |||
| Rated Output Power | 105kW | ||
| Rated Voltage | 203V / 400V (-15% ~ +15%) | ||
| Frequency | 50Hz / 60Hz | ||
| Max. Output Current | 167A | ||
| Power Factor | 0.99 / -1 ~ 1 | ||
| System Parameter | |||
| Operating Temp. | -20°C ~ 55°C (>45°C derating) | ||
| Noise | ≤75dB | ||
| Size (W*D*H) | 1200 * 1600 * 2300 mm | ||
| Weight | About 2.4t | ||
| Protection | IP54 | ||
| Humidity | 0 - 95% (no condensation) | ||
| Altitude | ≤4000m (degraded above 2000m) | ||
| Communication | CAN, Ethernet ModbusTCP, MQTT | ||
| Application | Peak shaving, VPP, Solar regulate, Off-grid | ||
| Certification | IEC62619, IEC60730, IEC62477, IEC63056, IEC61000, UN38.3 | ||
| Units Expansion | On-grid: up to 10 units in parallel | Off-grid: up to 6 units in parallel | ||
| AC Parameter | |||
| Rated Voltage | 230V / 400V | Max. Current | 167A |
|---|---|---|---|
| Voltage Range | ±15% | Power Factor | 0.99 / -1 ~ 1 |
| Rated Frequency | 50 / 60Hz | Current Distortion | <2% (rated power) |
| Wiring Method | Three-phase Three-wire / Three-phase Four-wire | DC Component | 0.5% |
| Rated Power | 105kW | Overload Capacity | 110% long term |
| Max. Power | 115.5kW | Max. Efficiency | 98.5% |
| DC Parameter | |||
| Voltage Range | 615V ~ 950V (3W+PE) / 650V ~ 950V (3W+N+PE) | ||
| Maximum Current | 170A | ||
| General Parameters | |||
| Dimension (W*H*D) | 500 × 270 × 770 mm | ||
| Weight | 58kg | ||
| Altitude | 4000 m (derate above 2000m) | ||
| Operating Temp. | -30°C ~ 55°C | ||
| Humidity | 0% RH ~ 95% RH, non-condensing | ||
| Cooling Method | Intelligent air cooling | ||
| IP Rating | IP20 | ||
| Communication | CAN / RS485 / Ethernet | ||
| Storage Temp. | -45°C ~ 70°C | ||
| Battery Pack Parameter | |||
| Battery Type | LFP 314Ah | ||
|---|---|---|---|
| Battery Capacity | 20.096kWh | ||
| Configuration | 1P20S | ||
| Rated Voltage | 64V | ||
| Voltage Range | 56 ~ 72V | ||
| Weight | 135kg | ||
| Dimensions (W*H*D) | 490 * 896.5 * 230 mm | ||
| Rated Charge | 157A | ||
| Relative Humidity | 0 ~ 95% RH (non-condensing) | ||
| Max. Altitude | 4000m (derate above 2000m) | ||
| Ingress Protection | IP20 | ||
| Certifications | IEC 62619, EN/IEC 61000, UN38.3 | ||
Normally we do not have an MOQ request for most of our products. However, the delivery time depends on the specific inverter model required:
If you have an urgent schedule for low-quantity deliveries, we suggest purchasing from local distributors.
Our battery products are certified to meet strict global standards, including:
These certifications ensure complete compliance with international import regulations, guaranteeing safety, quality, and product reliability in most countries.
Yes, we provide comprehensive OEM and ODM services. Please note that a minimum order quantity (MOQ) is required for custom solutions.
Absolutely. We work with long-term, highly experienced freight forwarders who specialize in battery shipments, ensuring safe, compliant, and efficient global transportation.
Our products come with an industry-leading warranty of up to 10 years, ensuring long-term reliability and support.
We offer comprehensive after-sales support through overseas branches, allowing us to handle system diagnostics, repairs, and replacements promptly.
