PowerSTN Energy
1 / 5

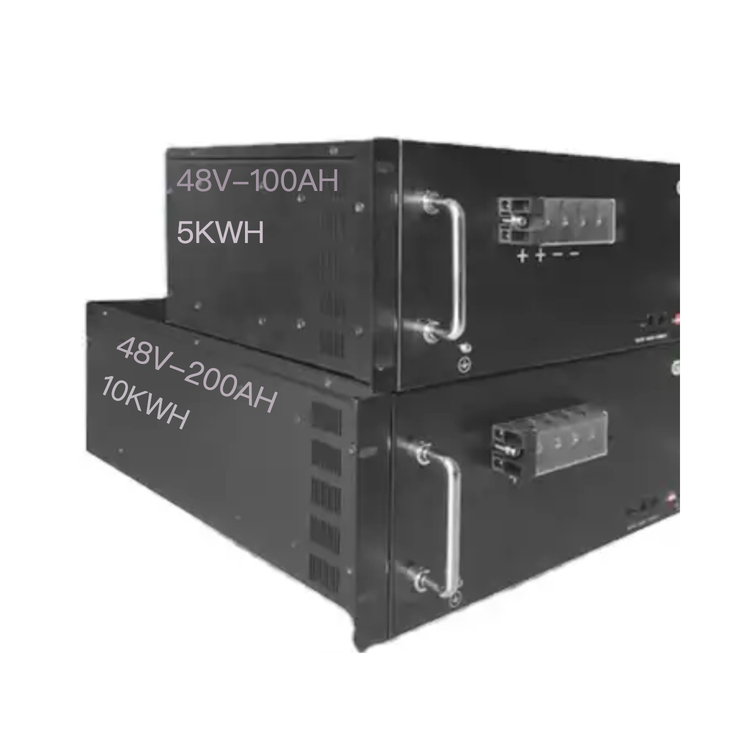

| Model | EPR48V-50AH | EPR48V-100AH | EPR48V-200AH | EPR48V-500AH | EPR48V-1000AH |
|---|---|---|---|---|---|
| Nominal Voltage (V) | 48V | ||||
| Nominal Capacity (Ah) | 50 | 100 | 200 | 500 | 1000 |
| Working Voltage Range (V) | 42-56.25 | ||||
| Recommended Charging Voltage (V) | 52.5 | ||||
| Recommended Discharging Cut-off Voltage (V) | 45 | ||||
| Standard Charging Current (A) | 25 | 50 | 100 | 250 | 500 |
| Max. Constant Charging Current (A) | 50 | 100 | 200 | 500 | 1000 |
| Standard Discharging Current (A) | 25 | 50 | 100 | 250 | 500 |
| Max. Discharging Current (A) | 50 | 100 | 200 | 500 | 1000 |
| Operating Temperature Range | -30°C ~ 60°C (Recommended: 10°C ~ 35°C) | ||||
| Allowable Humidity Range | 0 ~ 85% RH | ||||
| Storage Temperature Range | -20°C ~ 65°C (Recommended: 10°C ~ 35°C) | ||||
| Protection Level | IP20 | ||||
| Cooling Method | Natural air cooling | ||||
| Maximum Dimension (W*D*H) for rack type (mm) | 483*360*175 | 483*535*175 | 750*780*350 | 550*483*175*5 | 550*483*175*10 |
| Net Weight | 30KG | 56KG | 114KG | 280KG | 560KG |
| Battery Cell | A Grade Prismatic Cell | ||||
| Protection | Built-in Smart BMS | ||||

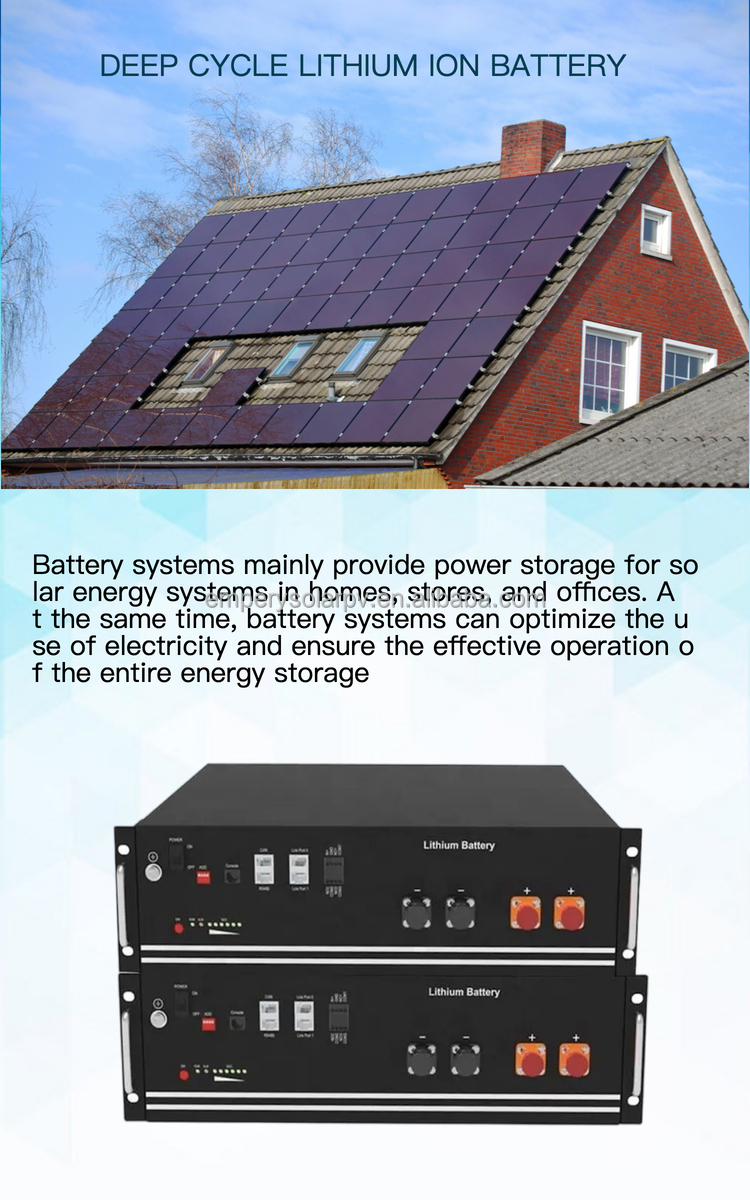

Lithium ion batteries have been deployed in varied places. From small electronics batteries to large energy storage and power driving batteries used in solar systems, golf carts, medical equipment, electric mobility, power backup, UPS, and other applications, lithium iron phosphate batteries are available in all shapes and sizes. This makes them the perfect option for power needs irrespective of the size of the application devices.

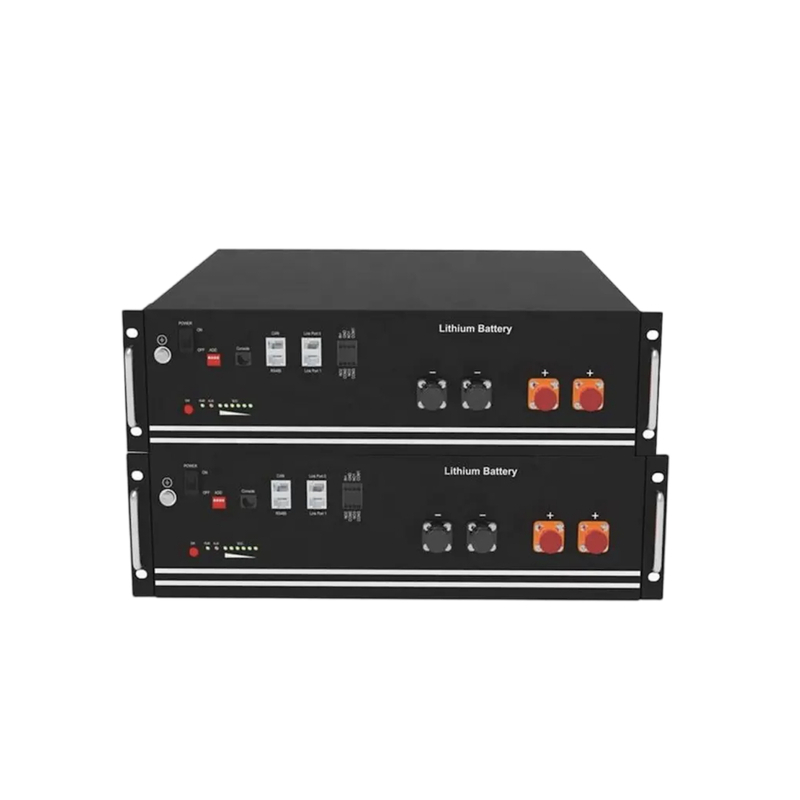

This battery cell cycle life is 5000 times at 80% DOD. What we use is a smart BMS with multiple functions. In the front of the battery, you can see it has ON/OFF buttons, a running light, an alarm light, and an SOC light, which displays the battery capacity when discharging and charging the battery.
| Packaging Details | Lithium ion battery 10kwh 200ah 3kva ups battery |
| Supply Ability | 150000 Piece/Pieces per Month Lithium ion battery 10kwh 200ah 3kva ups battery |

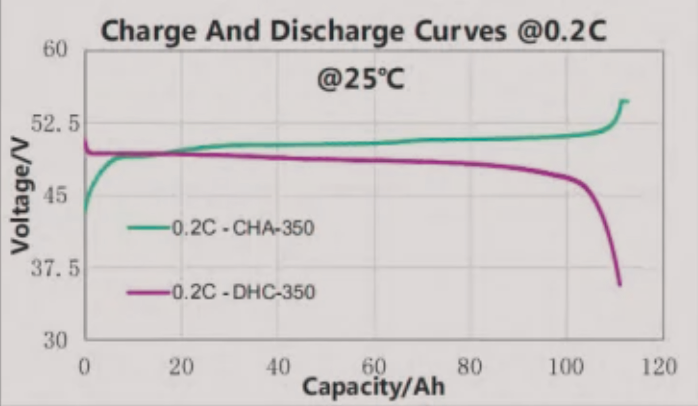

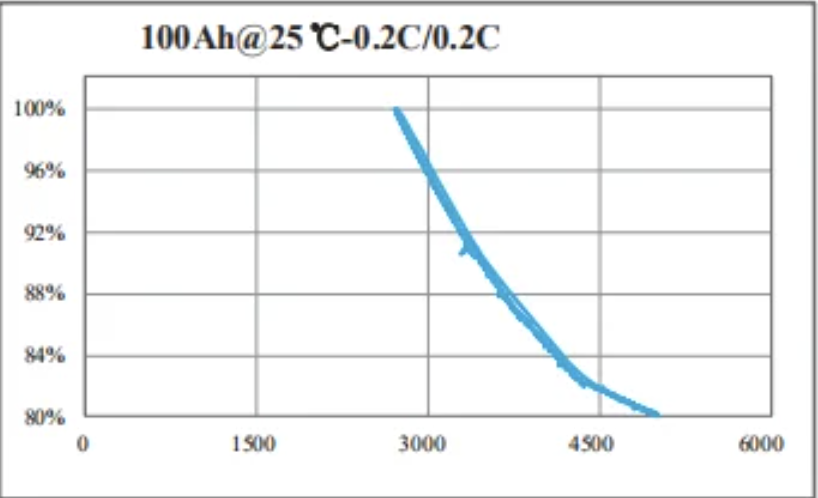

At 25°C, 0.2C constant current charge to 53.25V, constant voltage to 0.05C cut-off; after 30 minutes of storage, 0.2C discharge power to 42V, cycle to 80% SOC cut-off.
The battery pack is placed in a 25°C environmental chamber, 0.2C constant current and constant voltage to 54.65V, 0.05C cut-off, put it aside for 60 minutes; then 1C discharge to 37.5V.
Our battery packs utilize high-quality A-grade prismatic cells, providing a cycle life of over 5000 times at an 80% Depth of Discharge (DOD).
The integrated Smart BMS actively monitors the system, protecting the battery cells against overcharge, over-discharge, overcurrent, short circuits, and extreme temperature variations.
The standard working temperature range is -30°C to 60°C, and storage temperature range is -20°C to 65°C. For optimal performance and longevity, we recommend maintaining temperatures between 10°C and 35°C.

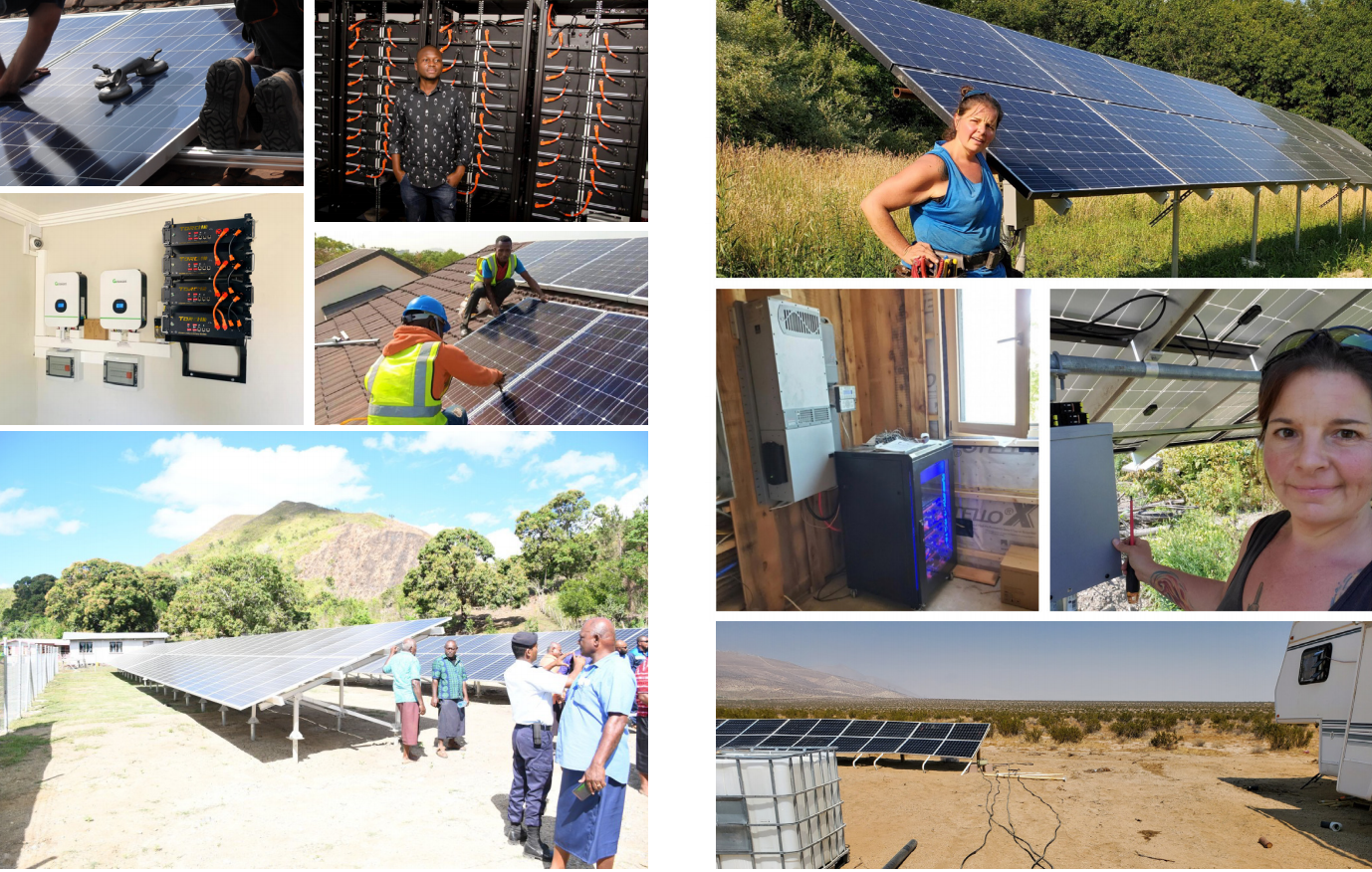

Yes, these lithium iron phosphate batteries are highly versatile and ideal for solar storage systems, UPS power backups, medical devices, electric vehicles, and other large-scale applications.
We offer multiple capacities to fit different energy demands, including 50Ah, 100Ah, 200Ah, 500Ah, and 1000Ah models.
