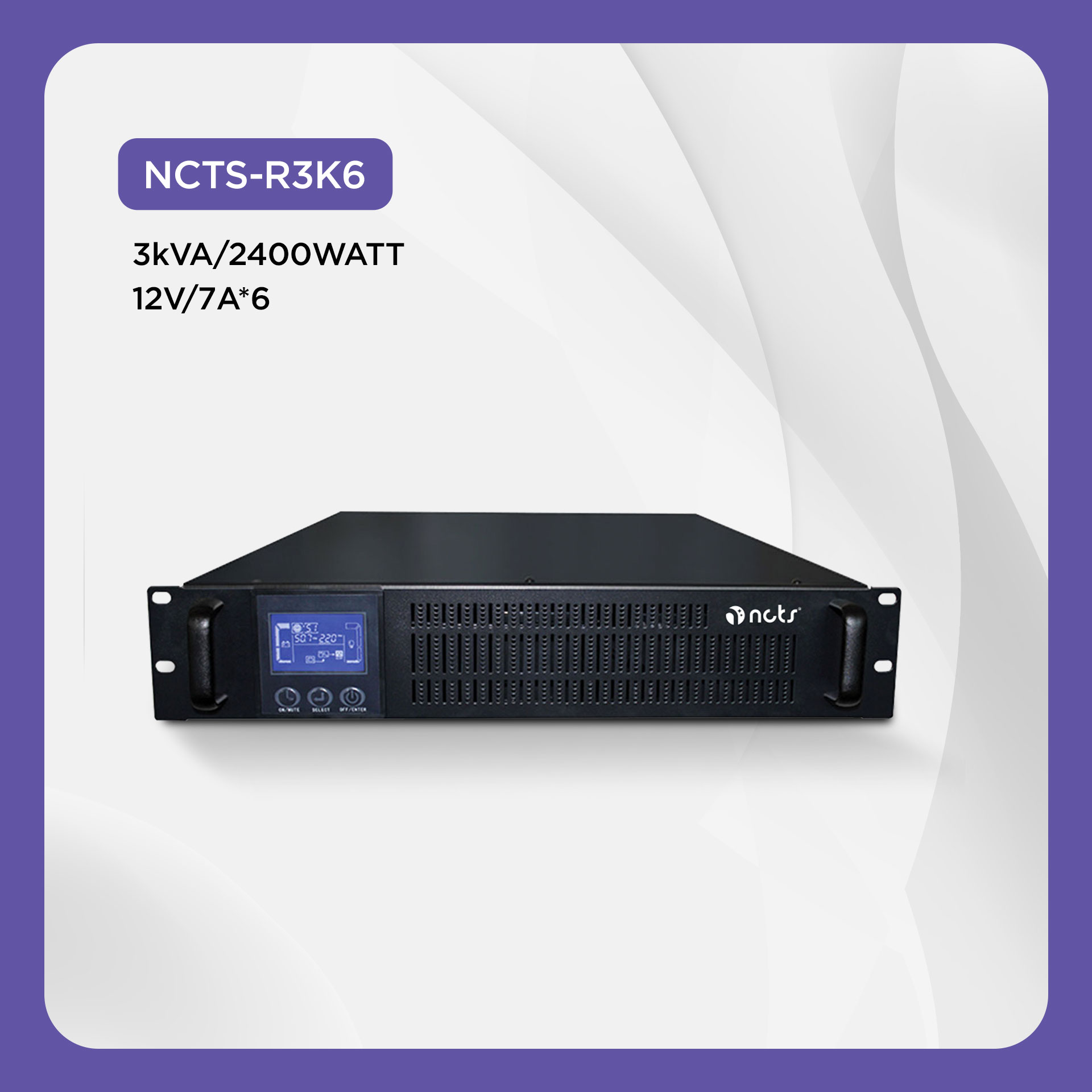

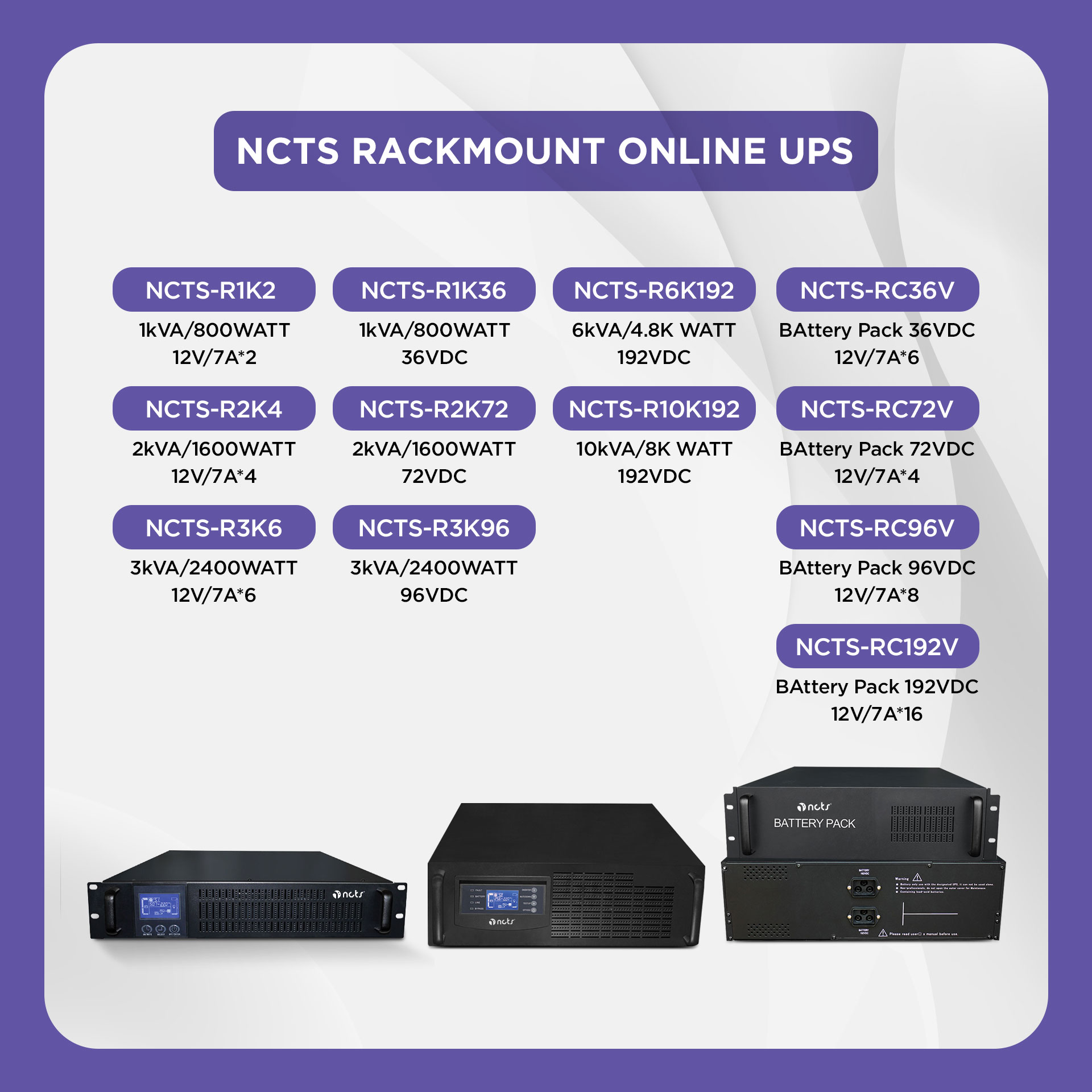

| Rated capacity | 3KVA / 2400W |
| Format | 2U |
| Input Voltage Range | 115 - 300 VAC ± 5 |
| Input Frequency Range | (45 -55) ± 0.5Hz |
| Input Bypass Range | 80VAC x (1 ± 5%) – 285VAC x (1 ± 5%) |
| BATTERY Voltage | standard72VDC |
| BATTERY Capacity and Quantity | 12V 7AH x6pcs |
| BATTERY charge current | 1A |
| Output Voltage | 220VAC ± 1% (invert output) |
| Output Frequency | 46 - 54Hz (normal AC output); 50Hz ± 1% (abnormal AC output) |
| Output Wave Form | Sine wave THD < 3% (linear load); sine wave THD < 8% (nonlinear load) |
| Overload | 105 - 125%: convert to bypass after 1 minute |
| Output Power Factor | 0.8 |
| Output Current Peak Factor | 3 : 1 |
| Communication & monitoring | RS232 / USB+software+cable , SNMP slot |
| N.G. (KG) | 22.2 |
| Unit size | 440*590*89mm |
| Package Size (mm) | 725*530*180 |
| Application area | OFFICE, IT ROOM, INDUSTRIAL ENVIRONMENT, Security and Protection System, Communication System and Computer Network System |
| Certification | ISO9001, ISO14001, CE, ROHS |
True double-conversion technology converts incoming AC power to DC, and then back to clean, isolated AC power. This guarantees zero transfer time and complete power protection against all input disturbances, making it ideal for critical IT and networking applications.
Yes, the UPS features a wide input voltage range (110V – 300VAC) and input power factor correction, which makes it fully compatible with generators and capable of handling unstable power sources.
The system supports smart SNMP communication, which works seamlessly with either USB or RS-232 ports. It also includes an SNMP slot for remote web-based monitoring and preventative diagnostics.

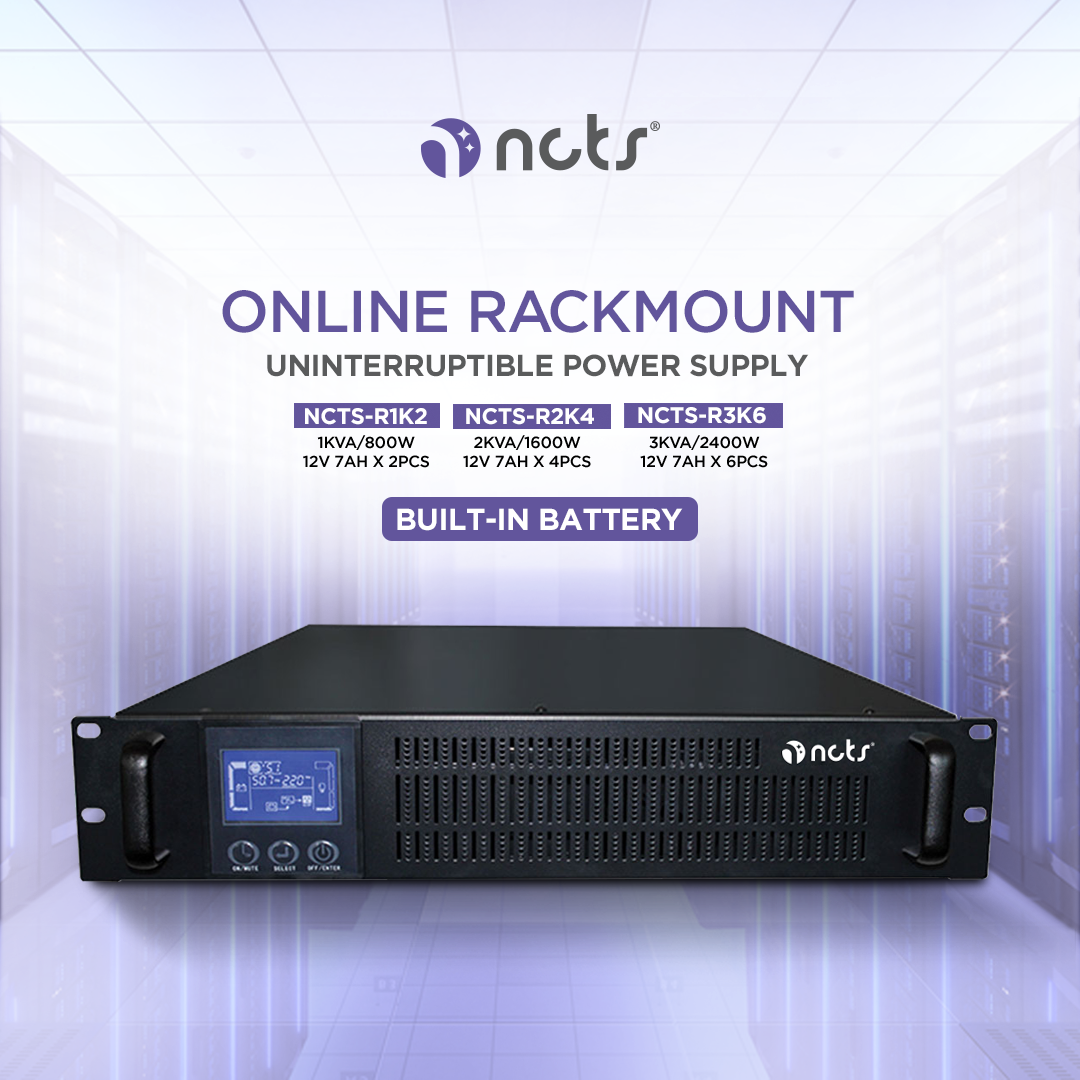

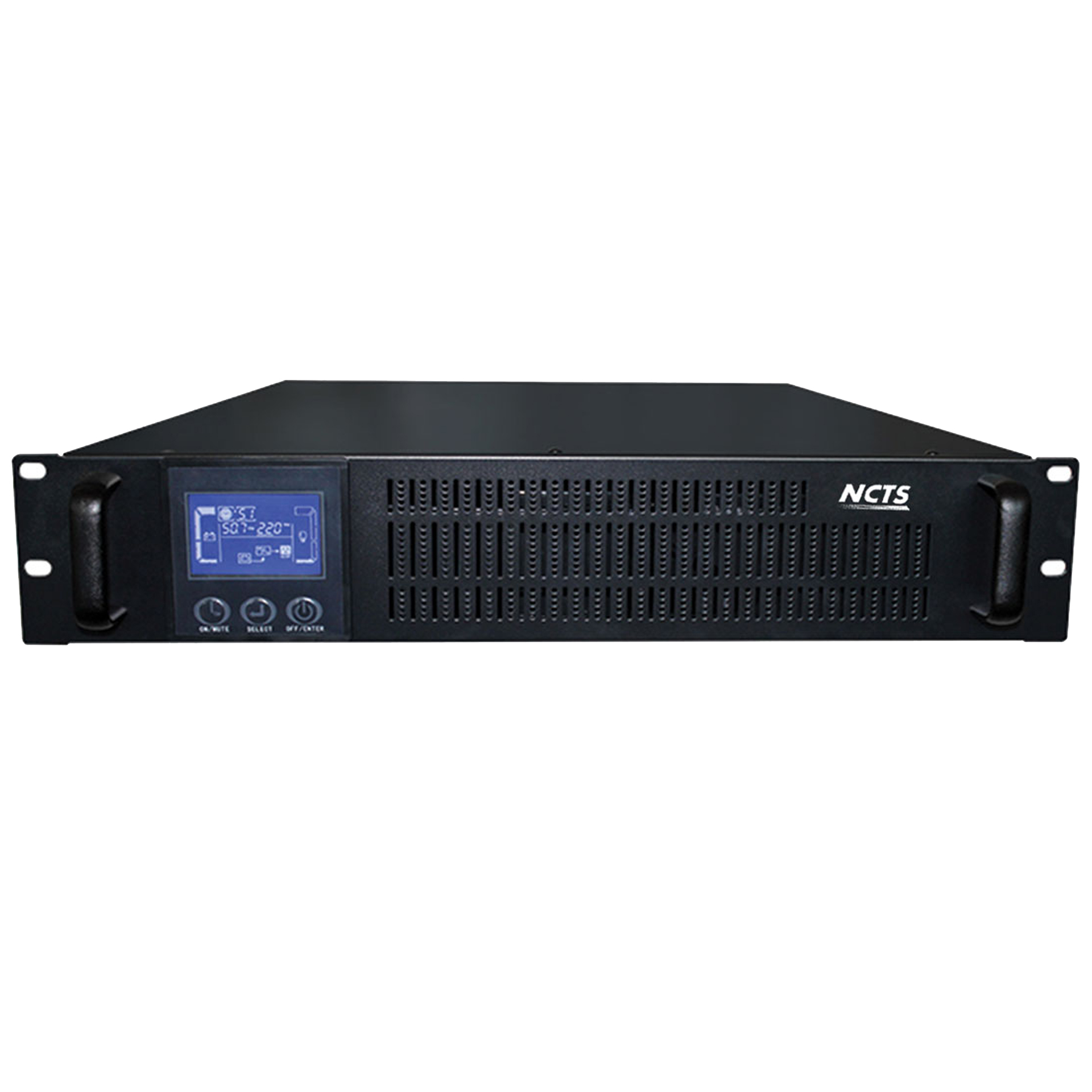

This UPS has a standard 2U rackmount format. The physical unit size is 440*590*89mm, which is designed to fit standard IT room racks and server cabinets.
It uses a standard 72VDC battery setup consisting of six 12V 7AH batteries, featuring a 1A charging current and support for extended backup time capacities.
Our products are manufactured under strict quality standards and carry ISO9001, ISO14001, CE, and ROHS certifications to ensure maximum safety, reliability, and environmental compliance.
