CE 200kwh Outdoor Commercial Lithium Battery Cabinet Energy Storage System

Still deciding? Get samples of $ !
Order Sample

Product Description

  • Overview
  • Why us
  • Our Services
  • FAQ
Basic Info
Model NO.
200kWh
Energy Capacity
100kWh-500kWh
Power Configuration
100kW-250kW
Cycle Life
8000 Cycles (80%DOD)
Cooling Method
Air Cooling System
Nominal Voltage
716.8V
Nominal Capacity
280ah
Cabinet Size (mm)
1626*1245*2175
Weight (Kg)
2200kg
Max. Charge/Discharge Power
140A
Protection Class
IP55
Type of Firefighting
Aerosol
Communication
RS485/Can
Working Temperature
0ºC~50ºC (Charge); -10ºC~50ºC (Discharge)
Design Life
10 Years+
Transport Package
Carton Package
Specification
200kWh
HS Code
9405409000
Production Capacity
50000 Pieces Years
Packaging & Delivery
Package Size
16.00cm * 12.00cm * 21.00cm
Package Gross Weight
2.200kg
Product Description

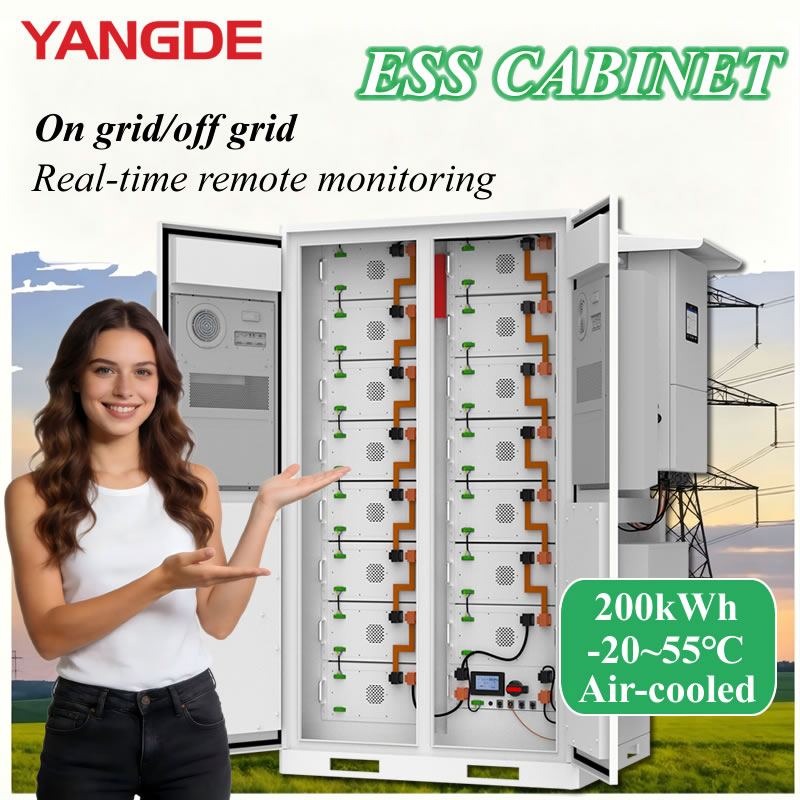

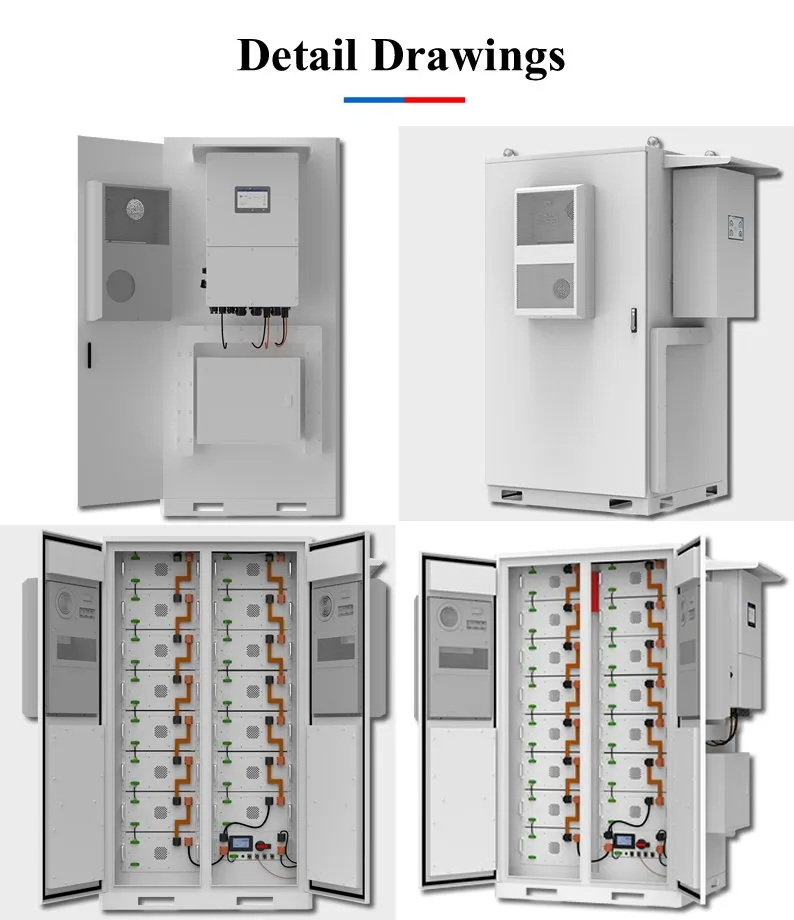

Specification for 200kWh Outdoor Energy Storage Cabinet
MODEL YD-200K
Product HV200K
Nominal Voltage 716.8V
Nominal Capacity 280AH
Cabinet Size (mm) 1626*1245*2175
Weight (kg) 2200KG
Max. Charge/Discharge Power 140A
Protection Class IP55
Type of Firefighting Aerosol
Battery Specifications
Battery Types 51.2V-280AH
Nominal Energy (kWh) 200kWh
Recommended Charge/Discharge Current 100A
Max. Charge/Discharge Current 140A
Communication RS485/CAN
Working Temperature 0ºC~50ºC (Charge); -10ºC~50ºC (Discharge)
Design Life 10 years+
Cycle Life >6000 cycles (0.5C/0.5C, 80% DOD)
Cooling Method Air-cooled
Certification UN38.3 / MSDS / ROHS
AC Specifications
Rated Power 125kW
Overload Capacity 110%
Rated AC Voltage 400V
Rated Frequency 50/60Hz
Communication Ethernet / Modbus / TCP/IP

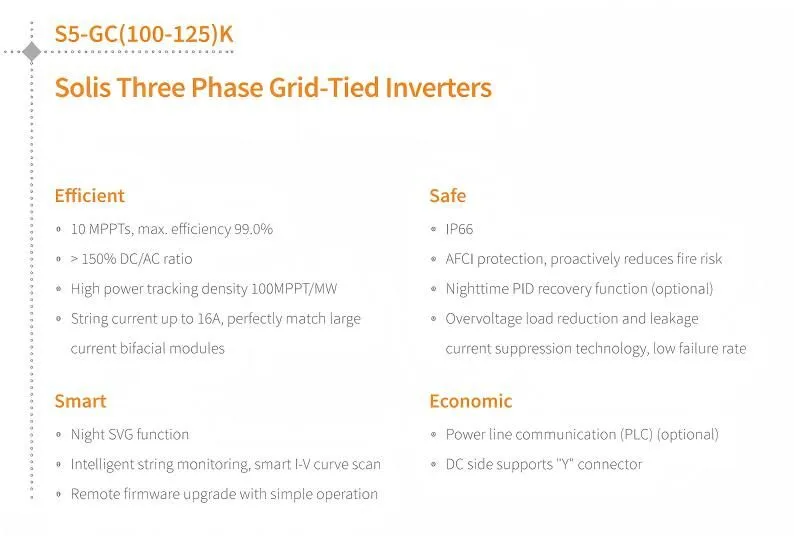

Inverter Type Deye / Solis / Megarevo / Other
Models 100K 110K 125K-HV
Input DC
Max. input voltage 1100V
Rated voltage 600 V 600 V 720 V
Start-up voltage 195 V
MPPT voltage range 180 - 1000 V
Max. input current 10 × 32 A
Max. short circuit current 10 × 40 A
MPPT number / Max. input strings number 10/20
Output AC
Rated output power 100 kW 110 kW 125 kW
Max. apparent output power 110 kVA 121 kVA 137.5 kVA
Max. output power 110 kW 121 kW 137.5 kW
Rated grid voltage 3/N/PE, 220 V / 380 V, 230 V / 400 V 3/PE, 480 V
Rated grid frequency 50 Hz / 60 Hz
Rated grid output current 152.0 A / 144.3 A 167.1 A / 158.8 A 150.4 A
Max. output current 167.1 A 183.8 A 165.4 A
Power factor > 0.99 (0.8 leading - 0.8 lagging)
THDi < 3%
Efficiency
Max. efficiency 98.70% 98.70% 99.00%
EU efficiency 98.30% 98.30% 98.60%
Protection
DC reverse-polarity protection Yes
Short circuit protection Yes
Output over current protection Yes
Surge protection DC Type II / AC Type II (AC Type I optional)
Grid monitoring Yes
Anti-islanding protection Yes
Temperature protection Yes
Strings monitoring Yes
I/V Curve scanning Yes
Integrated AFCI 2.0 Optional
Integrated PID recovery Optional
Integrated DC switch Yes
Integrated AC switch Optional
General Data
Dimensions (W × H × D) 1065 × 567 × 344.5 mm
Weight 91 kg
Topology Transformerless
Self-consumption (night) < 2 W
Operating ambient temperature range -30 ~ +60ºC
Relative humidity 0 - 100%
Ingress protection IP66
Cooling concept Intelligent fan-cooling
Max. operation altitude 4000 m
Grid connection standard VDE-AR-N 4105, VDE-AR-N 4110, VDE V 0124, VDE V 0126-1-1, UTE C15-712-1, NRS 097-1-2, G98, G99, EN 50549-1/-2, RD 1699, TOR, UNE 206006, UNE 206007-1, CEI 0-21, IEC61727, DEWA
Safety / EMC standard IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
Features
DC connection MC4 connector
AC connection OT terminal (max. 185 mm²)
Display LCD
Communication RS485, Optional: Wi-Fi, GPRS, PLC
Why Us
1Fully Integrated In-House Supply - No More Piecemeal Sourcing
We provide complete solutions for PV power plants and energy storage systems, covering solar PV modules, storage batteries, power conversion systems (PCS), battery management systems (BMS), energy management systems (EMS), and all related electrical equipment. We design and supply virtually all core components ourselves, eliminating the complexity of coordinating multiple vendors.
2Both System Integrator and Original Manufacturer
We are not only a professional system integrator for PV and storage solutions - crucially, we also manufacture most core components in-house. This means our customers enjoy both one-stop system-level service and the cost advantages and quality assurance that come from working directly with the original factory. We completely avoid middleman markups and outsourced core components.
3Vertically Integrated Manufacturing - Control Over Quality and Cost
From battery cells (or battery packs), BMS, and PCS to mounting structures and distribution cabinets, we insist on in-house production of core components. This vertical integration allows us to control product consistency and reliability from the source, while passing cost optimizations directly to our customers.
4Over a Decade of Technical Expertise - Beyond Surface Imitation
Since 2012, we have accumulated extensive experience in power electronics, battery pack engineering, and system integration. We possess proven expertise and a large portfolio of real-world projects in core areas such as battery thermal management, system protection strategies, and energy scheduling algorithms.
5Professional R&D Team - Continuous Innovation
Our R&D team of over 60 engineers continuously advances key technologies in energy storage systems, PV inverters, and intelligent control. We hold more than 20 national patents, demonstrating our strong technological foundation.

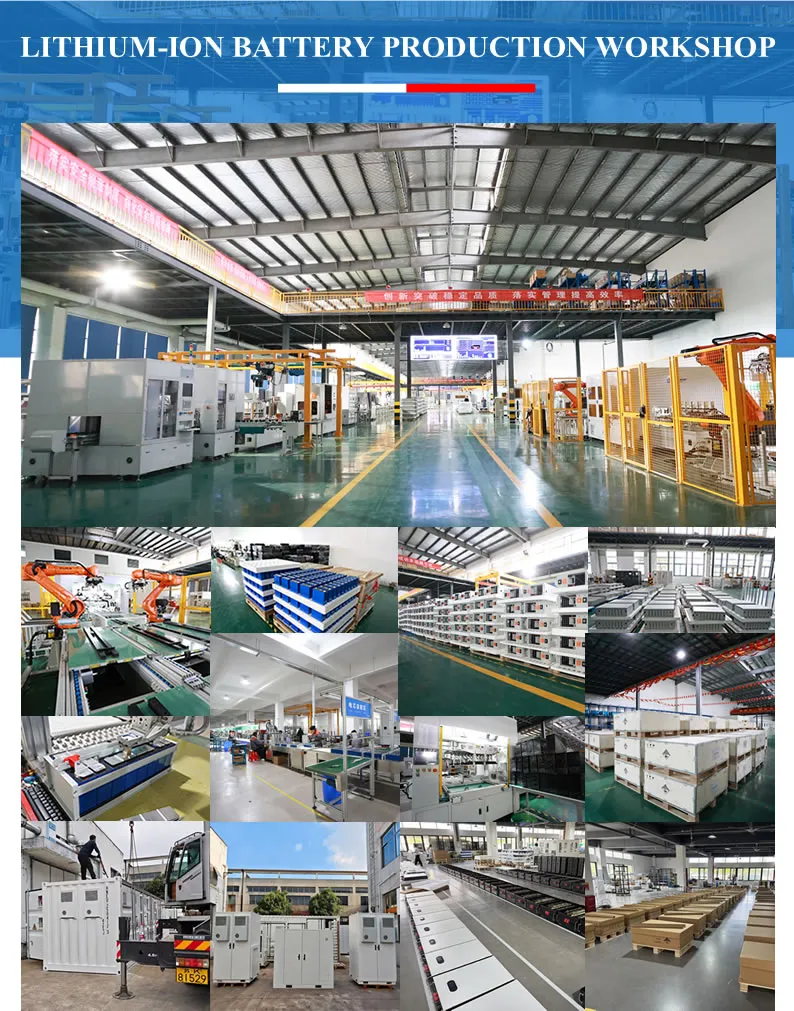

6Large Factory with Full In-House Production and Testing Capabilities

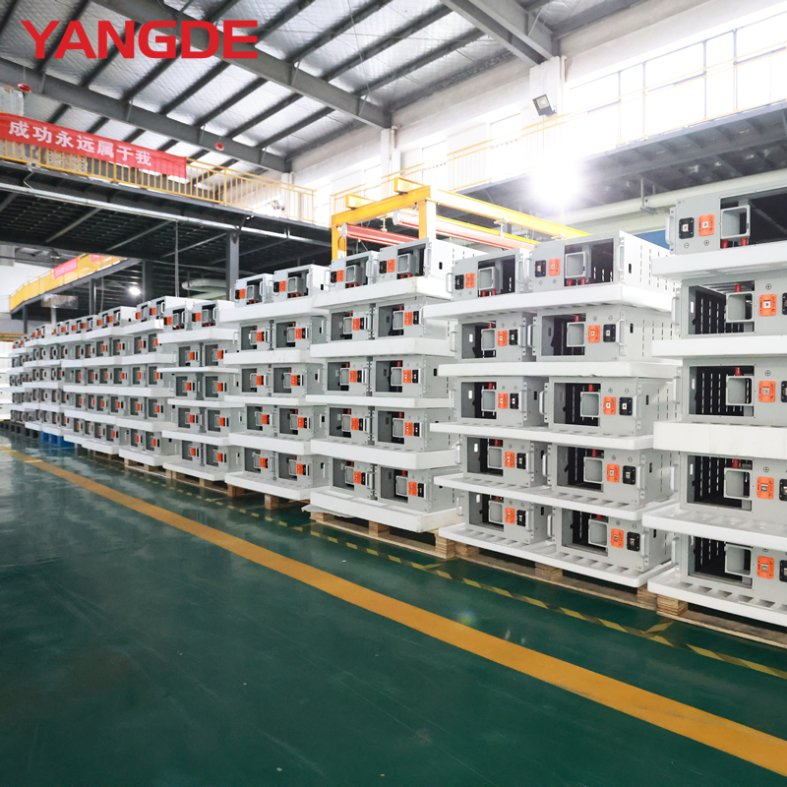

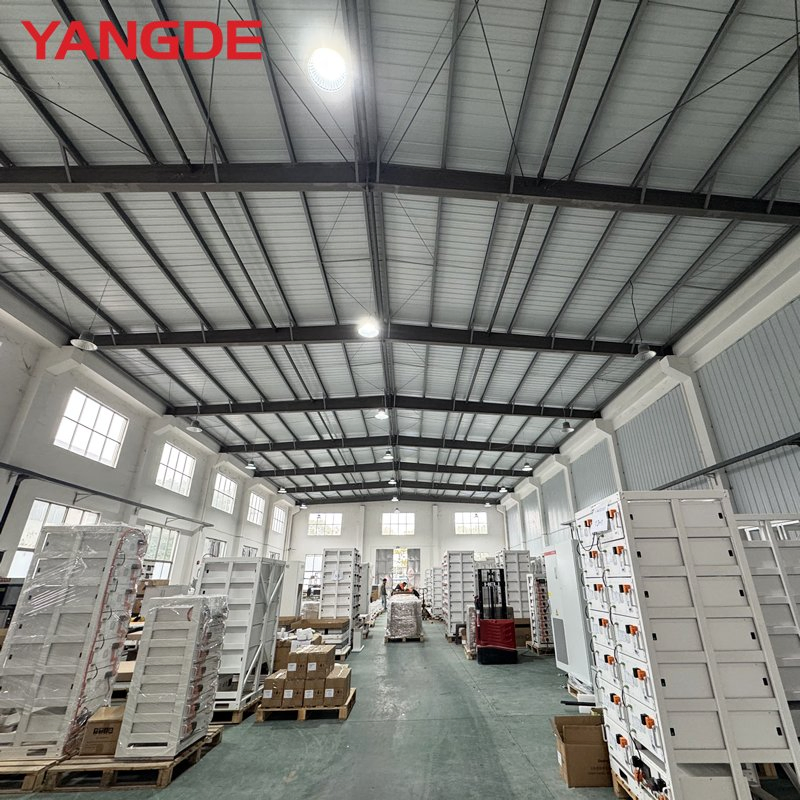

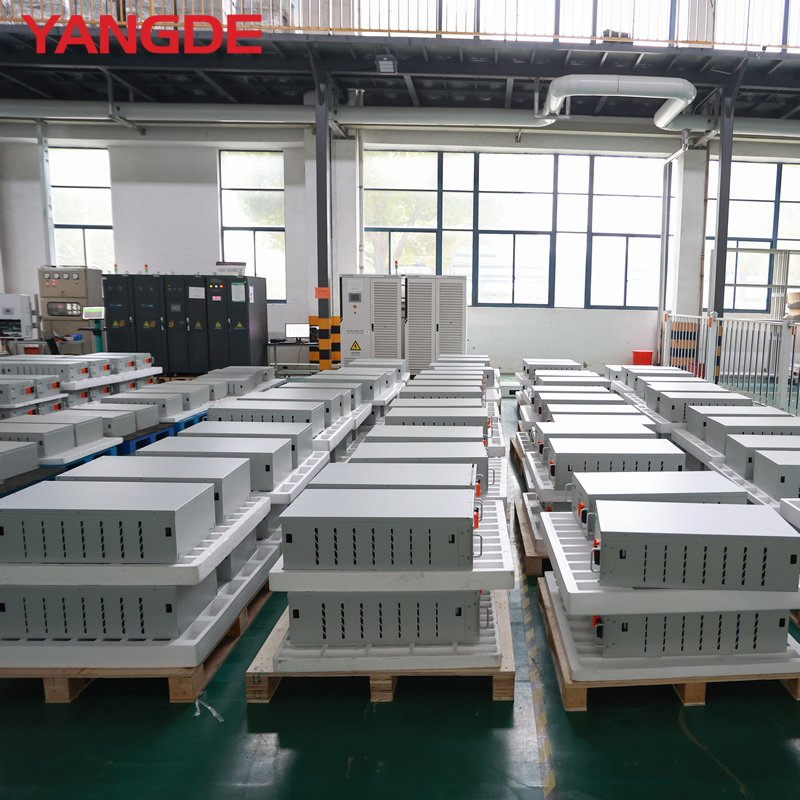

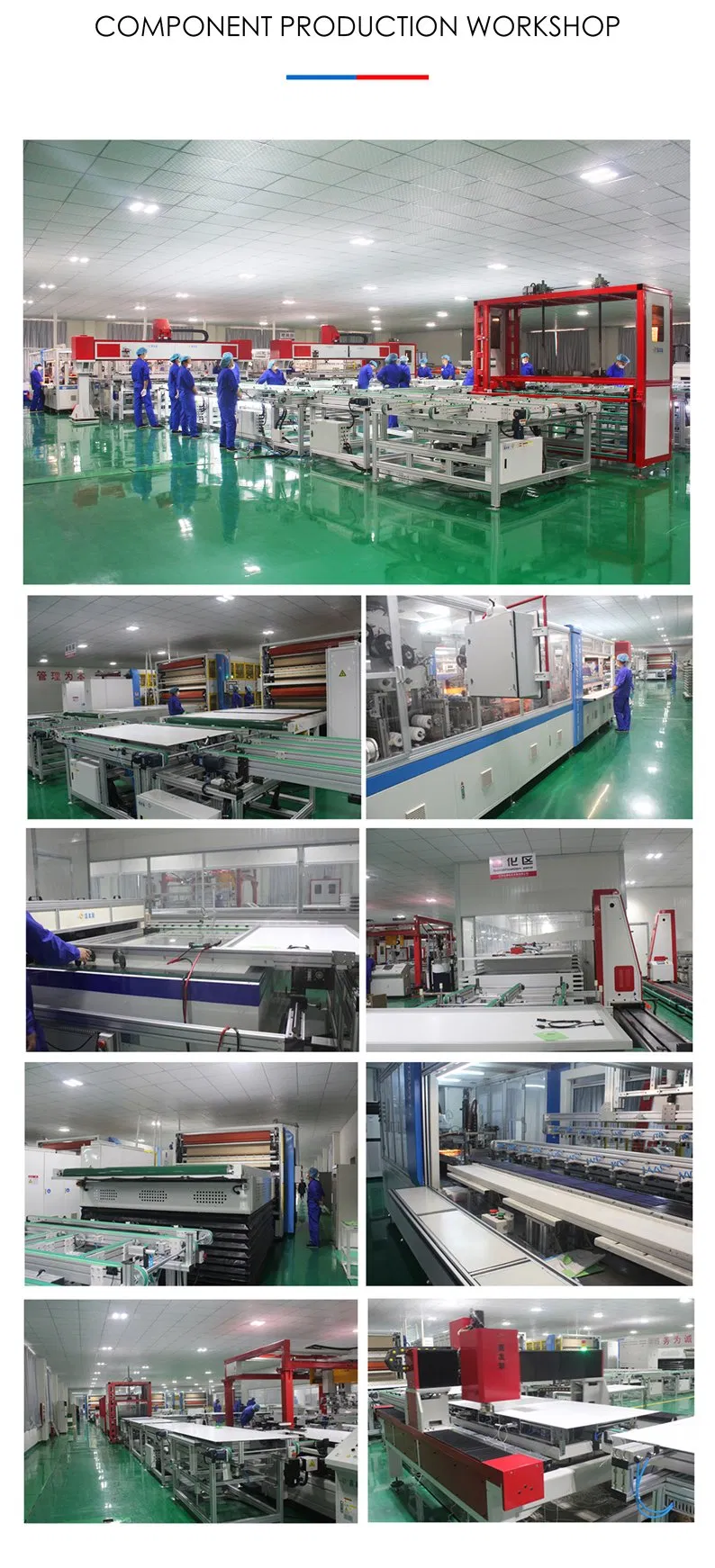

Our 6,000㎡ facility is staffed by a team of 400. We are equipped with battery pack assembly lines, PCS test benches, aging test systems, charge/discharge testers, insulation withstand voltage testers, and more. From cell sorting to final system assembly, every step is performed and rigorously tested in-house.
7Transparent Cost - No Middleman Markups
By manufacturing core components in-house and optimizing overall costs through scale and system-level integration, we offer competitive pricing without compromising quality. As an original manufacturer, we sell directly to customers with no middleman markups. Additionally, our system integration capability further reduces customers' total cost of ownership (TCO).
8One-Stop Solutions for Residential, C&I, and Utility-Scale Storage
We offer a complete product matrix for PV and energy storage, covering:
1. Residential Storage: All-in-one PV storage systems for homes and small commercial applications
2. Commercial & Industrial (C&I) Storage: Modular energy storage systems for factories, industrial parks, shopping malls, and other commercial sites
3. Utility-Scale Storage: Containerized energy storage systems for grid-side, generation-side, and large-scale commercial projects
Regardless of project size, customers receive consistent technical support and service guarantees.
Our Services
Clear Warranty - No Empty Promises
We guarantee that our PV modules, storage batteries, and energy storage systems will be free from defects in materials and workmanship for a period of two (2) years from the date of purchase. We provide clear repair or replacement policies. For storage batteries, we can also offer additional warranty terms based on cycle life.
Professional System Design and Integration Services
Based on each customer's actual electricity demand, solar irradiation conditions, and application scenario (residential / C&I / utility-scale), we provide customized PV storage system designs. From capacity planning to equipment selection and system integration, every step is handled by our professional engineering team to ensure optimal system efficiency and safety.
Installation Guidance and On-Site Technical Support
We provide detailed installation instructions, electrical wiring diagrams, and commissioning videos. For commercial & industrial and utility-scale storage projects, our technical team can provide on-site installation guidance, system commissioning, and grid connection support free of charge to ensure smooth project deployment.
Spare Parts Included - Reducing Maintenance Pressure
Based on the transaction amount, we provide 0.5% to 1% of key spare parts (including battery modules, BMS boards, PCS modules, control units, etc.) free of charge. This helps customers establish an initial spare parts inventory.
After-Sales Support and Lifetime Service
We provide lifetime technical support and repair services for our PV storage systems. Any questions or issues raised by customers will be responded to within 24 working hours. Additionally, we can provide remote monitoring and maintenance support (requires compatible EMS system) to help customers monitor system performance in real time.
Recommended Maintenance to Extend System Life
Although our PV storage systems are designed for high reliability, the following routine maintenance is recommended:
1. Monthly: Check system operating data via the monitoring platform (if available), paying attention to key parameters such as battery voltage, temperature, and state of charge (SOC).
2. Quarterly: Inspect battery connection terminals for looseness, clean dust from equipment surfaces, and ensure proper ventilation and heat dissipation.
3. Semi-Annually: Perform battery balancing maintenance (depending on BMS functionality) and check the operating status of the PCS and distribution equipment.
4. Every 3 to 5 Years: Evaluate whether additional or replacement battery modules are needed based on battery degradation, ensuring system capacity continues to meet operational requirements.
ODM & OEM Customization Services
We have complete in-house capabilities from battery cell packaging, BMS development, PCS design, to full system integration. We provide ODM and OEM services for PV storage products. We help customers create truly differentiated, cost-effective energy storage products with solutions built from the ground up.
Frequently Asked Questions (FAQ)
Q1: What is the cycle life of this outdoor energy storage cabinet?
The system features a robust design offering a cycle life of 8,000 cycles at 80% Depth of Discharge (DOD) or over 6,000 cycles under standard 0.5C/0.5C operating conditions.
Q2: How does the cooling system function in this cabinet?
The energy storage cabinet is equipped with a high-efficiency Air Cooling System designed to maintain optimal operating temperatures for all battery components.
Q3: What safety and protection ratings does the cabinet have?
It features an IP55 ingress protection class, making it highly dustproof and waterproof for outdoor installations. Additionally, it integrates a safe Aerosol firefighting system.
Q4: Which inverter types are compatible with the system?
The AC specifications allow seamless integration with leading inverter brands including Deye, Solis, Megarevo, and other major manufacturers.
Q5: What standard warranty is provided for the storage units?
We offer a clear two (2) year warranty from the date of purchase covering material defects and workmanship. Extended battery module warranties can also be arranged based on cycle-life requirements.
Q6: What routine maintenance is recommended to extend the design life?
Recommended routine maintenance includes monthly remote monitoring checkups, quarterly connection terminal inspections, semi-annual battery cell balancing, and general system capacity evaluations every 3 to 5 years.
