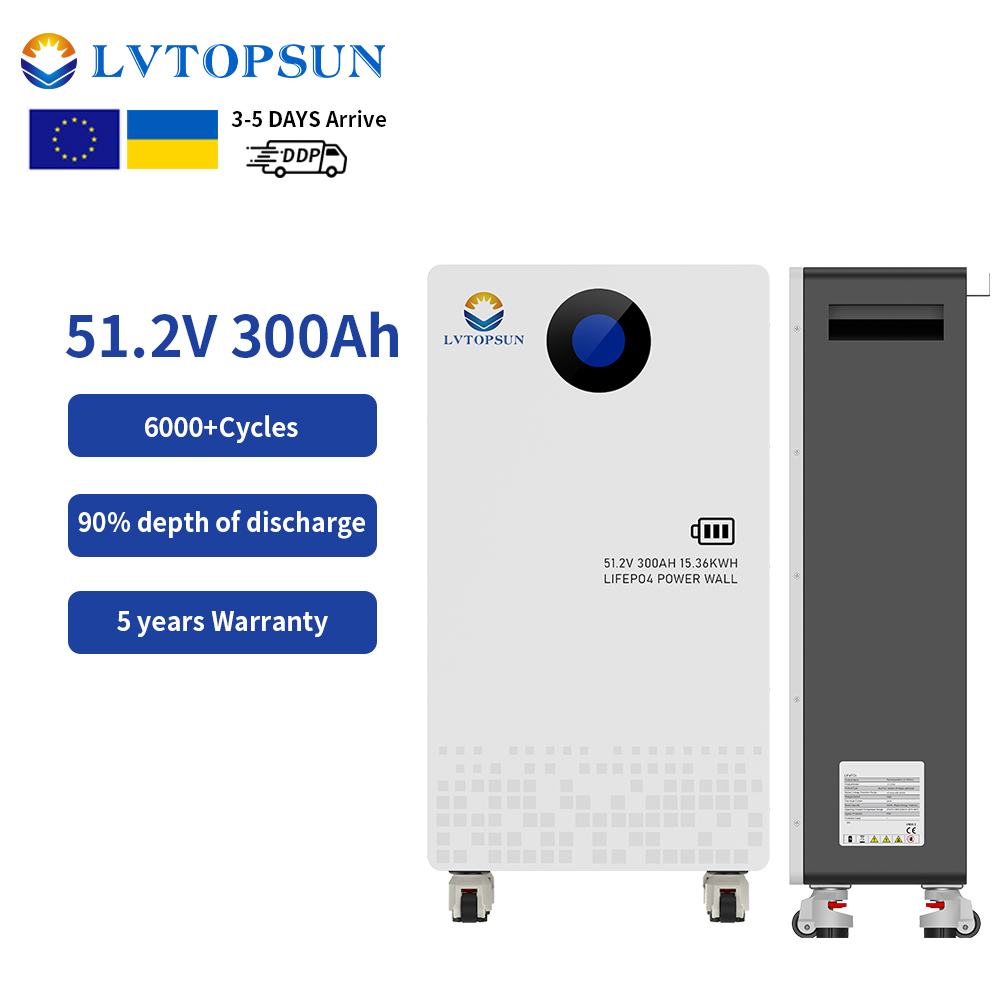

Best Certificated CE UN38.3 UL 51.2V 300AH 15KWH for Home Solar Energy Power Storage Battery Backup System

Send Inquiry

Product Description

When purchasing lithium batteries, solar batteries, or energy storage systems, do you also face these frustrations?

Specification

Model	LVTS-512300-G3
Nominal Voltage	51.2Vdc
Nominal Capacity	300Ah
Battery Energy	15.36kWh
Charge Current	150A
Charge Power	7680W
Discharge Current	200A
Discharge Power	10240W
Short Circuit Current	540A
Display	SOC status indicator, LED indicator, LCD Display
Communication	RS232, RS485, CAN
Dimension	866x450x230 mm
Weight	117 Kg
Installation	Floor Stand
Working Temperature	-20°C - 55°C
Operating / Storage Humidity	≤95%RH
Max Operating Altitude	≤2000m
IP Rating	IP20
Cell Technology	LiFePO4, Lithium Iron Phosphate
Cycle Life	8000 Cycles @90% DOD / 25°C / 0.5C
Scalability	MAX 63 BATTERY IN PARALLEL
Warranty	5 YEARS
Certification	CE, UN38.3
Product Ordering Part	LVTS-512300 BATTERY (Cable Included)

Product Description

FAQ

Q1 What’s the life of the wall mounted battery?

80% DOD more than 6000 cycles.

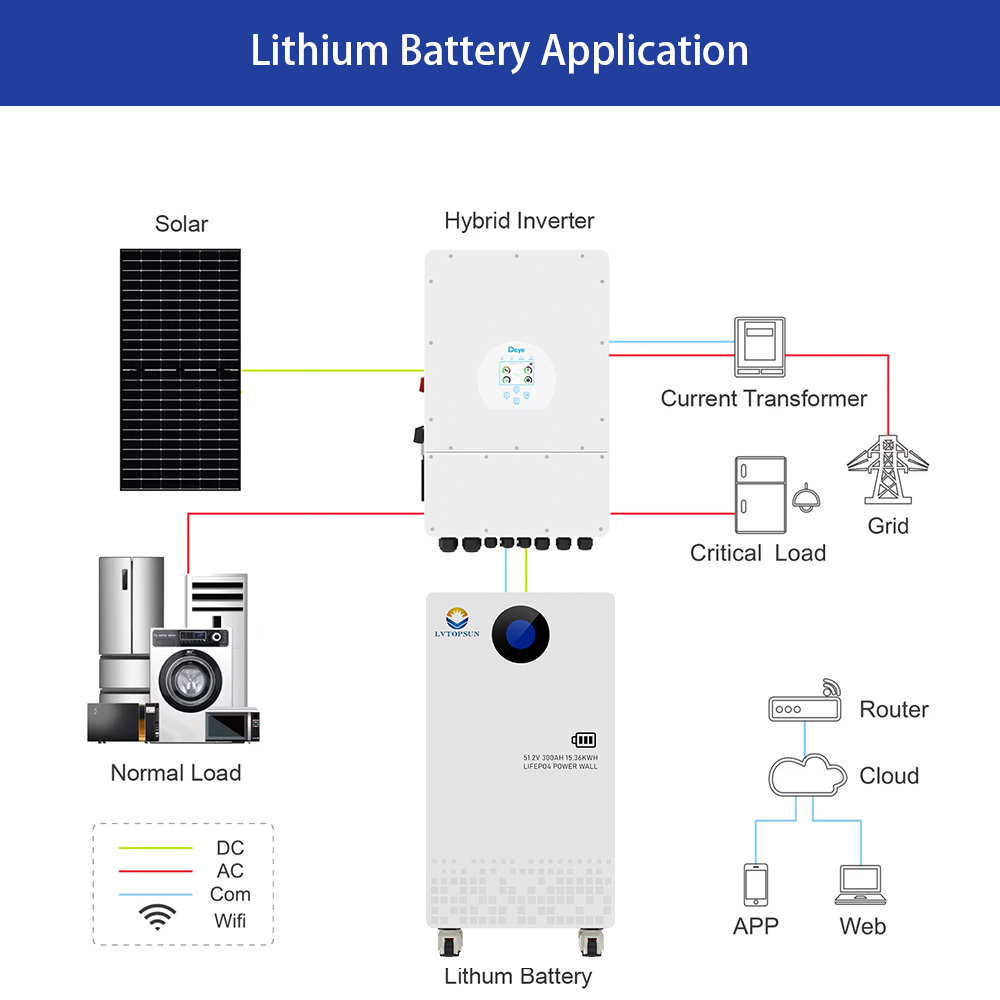

Q2 Can the wall mounted battery work with my hybrid inverter?

Yes, the wall mounted battery is suitable for all off-grid and hybrid inverters.

Q3 What’s the warranty of the wall mounted battery?

5 years, and we support extended warranty services.

Q4 Does the wall mounted battery include an inverter?

No, it is the battery only, so it is more flexible to work with different brands of inverters preferred by customers.

Q5 Does the wall mounted battery have communication functions?

Yes, the wall mounted battery supports RS485 & CAN communication with PC and a smart LCD for monitoring.

Q6 What is the scalability and cycle life capacity under standard conditions?

It features high scalability supporting up to 63 batteries in parallel, with a cycle life of 8000 cycles at 90% DOD, 25°C, and 0.5C.
