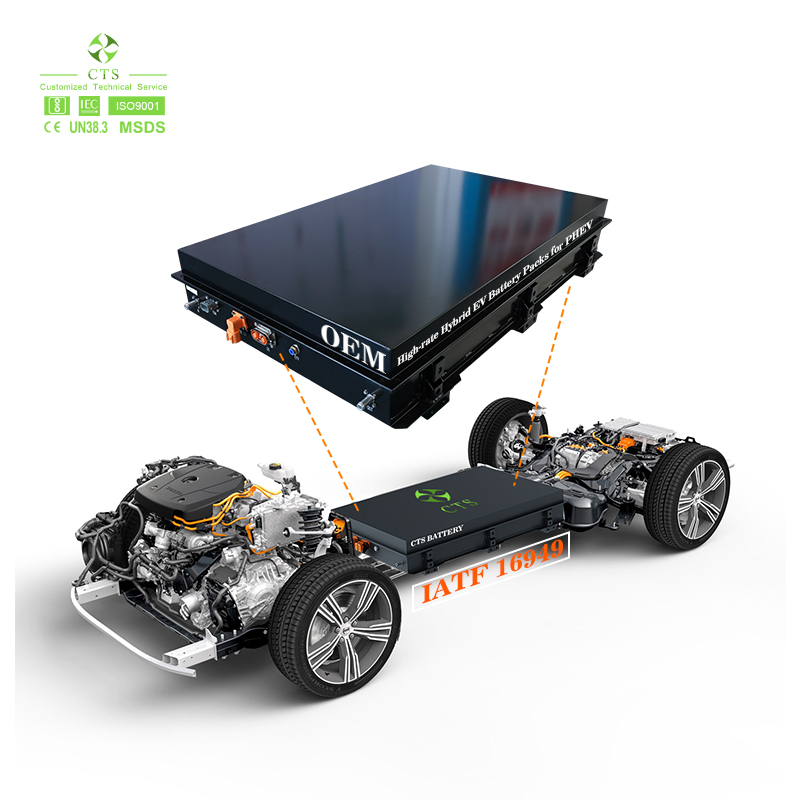

PHEVs commonly use lithium-ion (Li-ion) batteries as their primary energy storage system. Li-ion batteries offer a good balance between energy density, power output, and weight, making them suitable for PHEV.
The battery capacity of a PHEV determines the electric driving range. PHEVs usually have a smaller battery capacity compared to fully electric vehicles. The capacity normally ranges from 10 to 20 kWh.
PHEVs, like other hybrid vehicles, utilize regenerative braking technology. When the driver applies the brakes or decelerates, the electric motor functions as a generator, converting kinetic energy into electrical energy and storing it in the battery pack.

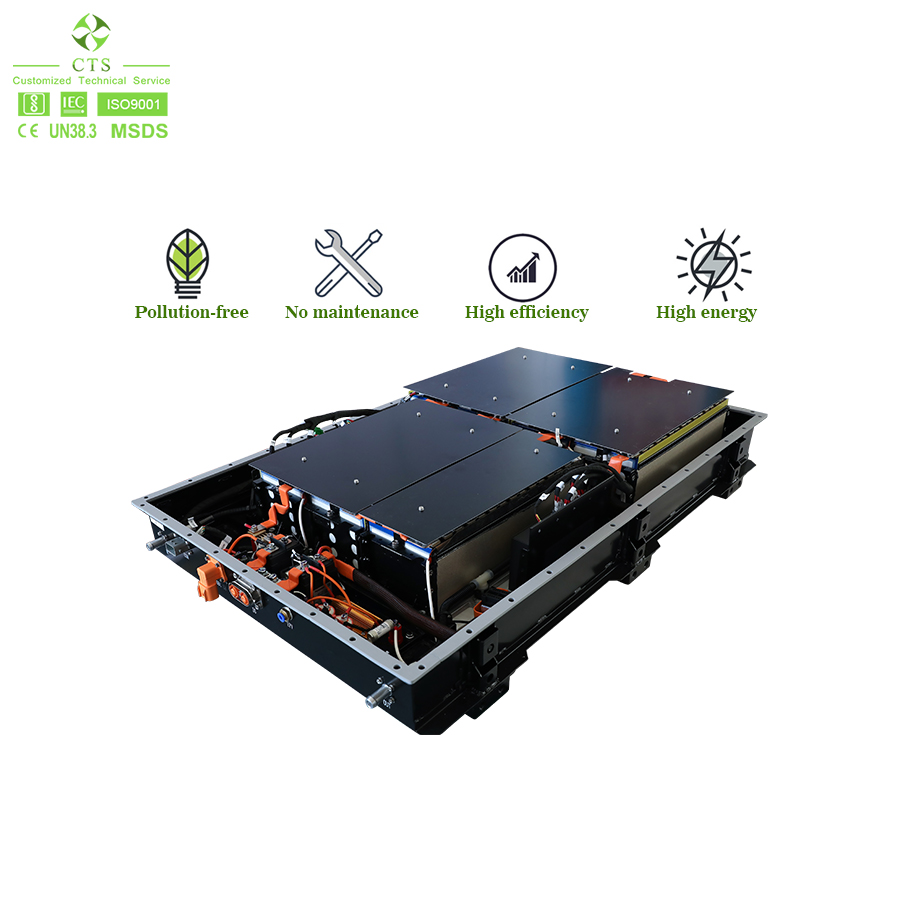

PHEV batteries are designed to be lightweight and compact to minimize the impact on the overall vehicle weight and space. This allows PHEVs to maintain good fuel efficiency and practicality while still providing an electric driving option.
PHEV batteries are rechargeable and can be charged by plugging the vehicle into an external power source.

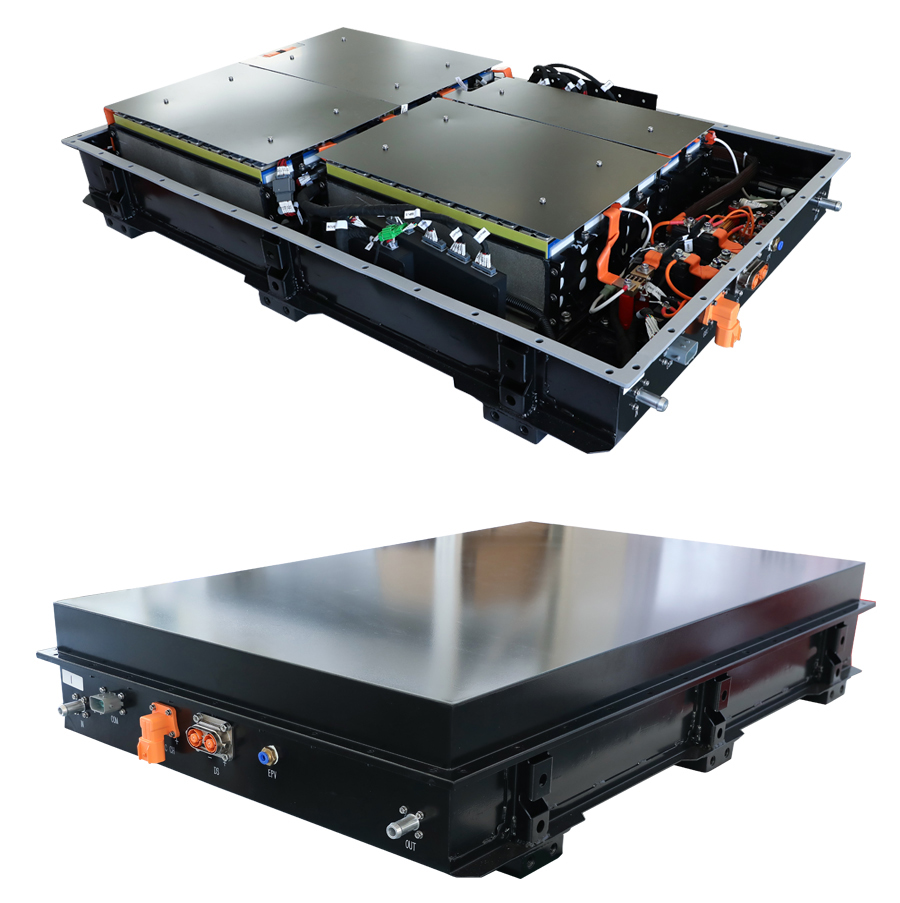

The battery can pass the anti-vibration test and thermal runaway test, meeting the requirements of IEC62619, R100, and other related testing standards.
| Items | Model-33640 | Model-52540 |
|---|---|---|
| Model Number | R-NT-345210-2 | R-NT-345210-2 |
| Voltage | 336V | 525.6V |
| Capacity | 40Ah | 40Ah |
| Energy | 13.44kWh | 21.02kWh |
| Battery cells | 3.2V 40Ah-105S1P | 3.2V 40Ah-144S1P |
| Working voltage | 265V~383V | 360.0~604.8V |
| Continuous/peak discharge power | 40kW/70KW | 55kW/85KW |
| Continuous/peak charge power | 30kW/60KW | 40kW/80KW |
| Size/weight | 1200*750*184mm, 150kg | 1320*450*270mm |
| Enclosure Protection | IP68 | IP68 |
| Working Temperature Range | -35~55°C With Liquid cooling and liquid heating | |
| Recommended Operating Temperature | 15~35°C | |
| Life cycles | >3000 | |
| Models | Model-H25C01JC | Model-H25C07Y | Model-H25C08Y | Model-H25C09Y |
|---|---|---|---|---|
| Capacity (25°C, 1C) | 25Ah | |||
| Cell Configuration | 1P148S | 2P72S | 1P162S | 2P88S |
| Energy | 13.61kWh | 13.24kWh | 14.90kWh | 16.19kWh |
| Normal voltage / Voltage ranges | 544.6V (407.0~621.6V) | 264.96V (198.0~302.4V) | 596.16V (445.5~680.4V) | 323.84V (242.0~369.6V) |
| Peak charge/discharge power (25°C, 30s, 50% SOC) | 98kW/104kW | 96kw/101kw | 108kw/114kw | 117kw/124kw |
| Continuous charge/discharge power (25°C, 50% SOC) | 55kW/69kW | 53kw/67kw | 60kw/75kw | 65kw/81kw |
| Size (mm) | (1060±10)*(630±10)*(235±5)mm | |||
| Thermal management | Liquid cooling/electric heating | |||
| Working Temperature Range | -35~55°C | |||
| Models | Model-48C07Y | Model-48F04Y | Model-48F05Y | Model-48F05Y_v2 |
|---|---|---|---|---|
| Capacity (25°C, 1C) | 48Ah | |||
| Cell Configuration | 2P72S (C) | 3P42S (C) | 1P172S (F) | 2P86S (F) |
| Energy | 25.22kWh | 22.07kWh | 30.13kWh | 30.13kWh |
| Normal voltage / Voltage ranges | 262.8V (180.0~302.4V) | 153.3V (105.0~176.4V) | 627.8V (430.0~722.4V) | 313.9V (215.0~361.2V) |
| Peak charge/discharge power (25°C, 30s, 50% SOC) | 83kW/83kW | 73kW/73kW | 99kW/99kW | 99kW/99kW |
| Continuous charge/discharge power (25°C, 50% SOC) | 53kW/55kW | 47kW/48kW | 63kW/66kW | 63kW/66kW |
| Size (mm) | 1060*630*235mm | 1360*630*235mm | ||
| Thermal management | Liquid cooling/electric heating | Liquid cooling/electric heating | ||
| Working Temperature Range | -35~55°C | |||
These batteries utilize advanced Lithium-Ion (Li-ion) chemistry, which provides an optimized balance of energy density, weight, and power output perfect for plug-in hybrid electric vehicles.
The typical capacity range for these battery solutions is between 10 kWh to 20 kWh, which helps maintain fuel efficiency while offering sufficient pure-electric range.
Yes. The designs are equipped with active liquid cooling and electrical heating, allowing the battery to operate safely and efficiently within a wide temperature range of -35°C to 55°C.
The battery packs meet strict quality and safety criteria, successfully passing anti-vibration and thermal runaway tests in compliance with IEC62619, R100, and other relevant standard requirements.
The battery packs are designed for longevity, offering a cycle life of more than 3000 cycles under recommended operating conditions.
