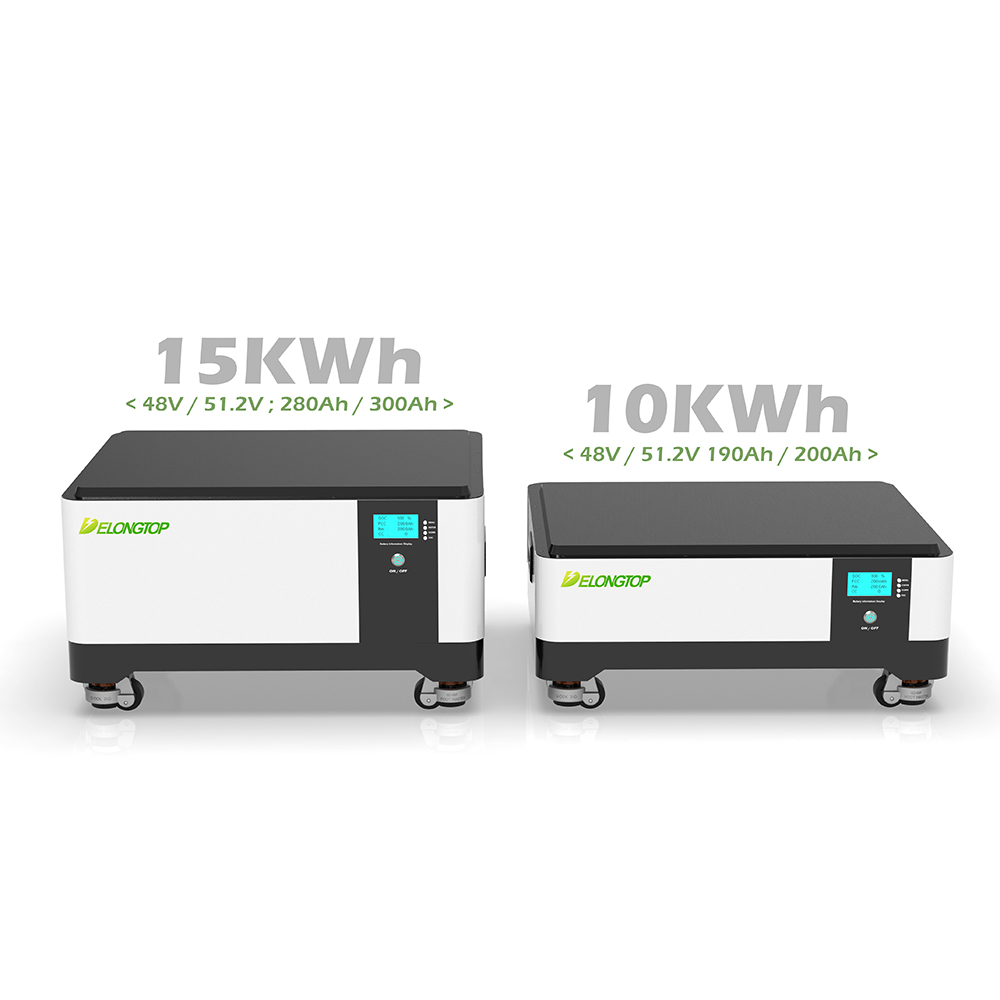

| Model | 48V 51.2V 300Ah LiFePO4 Battery | 48V 51.2V 280Ah LiFePO4 Battery |
| Size | 690x590x258mm (27.1*23.2*11.2in) (L*W*H) | 690x590x258mm (27.1*23.2*11.2in) (L*W*H) |

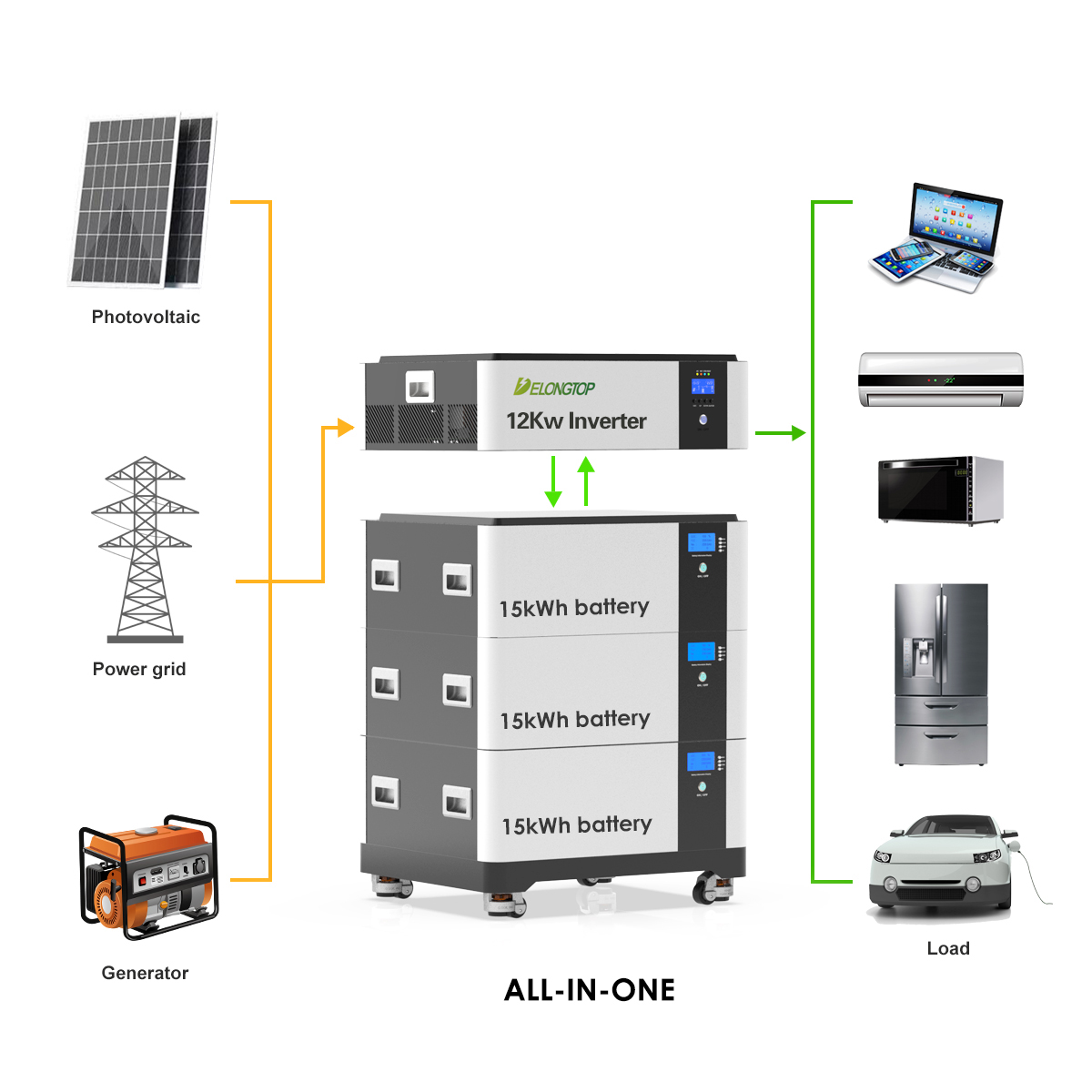

| Power(Watt) | Use on 5Kwh 10Kwh 15Kwh Solar System | Use on 5Kwh 10Kwh 13Kwh Solar System |
| Cycle Life | 6000 Cycle Times (85% DOD) | |
| Warranty |
10 Years Warranty (Quality problem can be changed for free within 1 year) 1st to 5th Year: Offer free repair parts + free tech. support. 5th to 10th Year: Offer free tech. support with our engineers. |
|
| Components | 15S1P 15S3P / 16S1P 16S3P (15S = 48V / 16S = 51.2V) | |
| Weight | 132KG (290lbs) Gross Weight | 130KG (286lbs) Gross Weight |
| BMS Protection | Built-in 200A or 250A BMS (Bestway or Peicheng brand) | |
| Cell Type | Lithium Iron Phosphate (LiFePO4) Cell | |

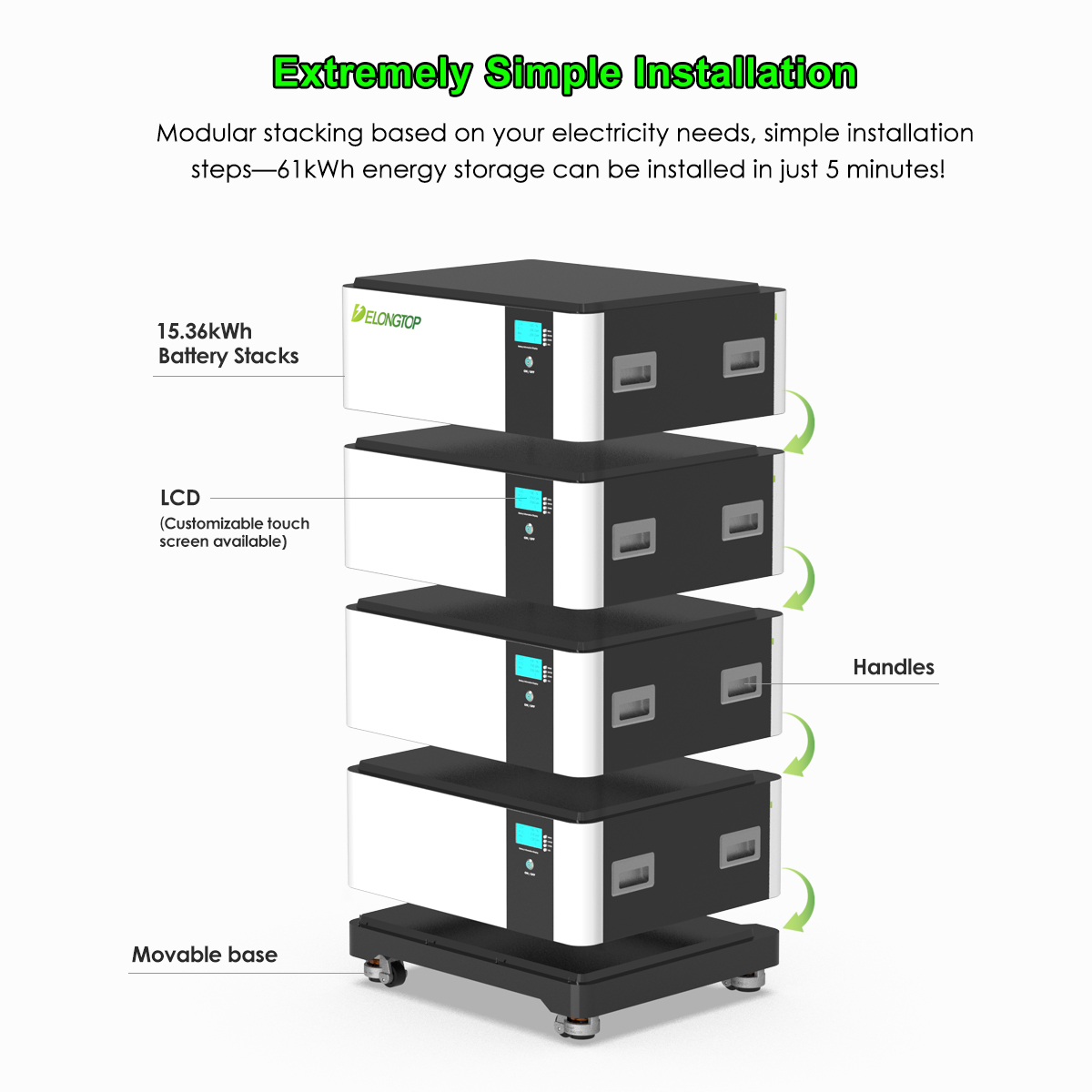

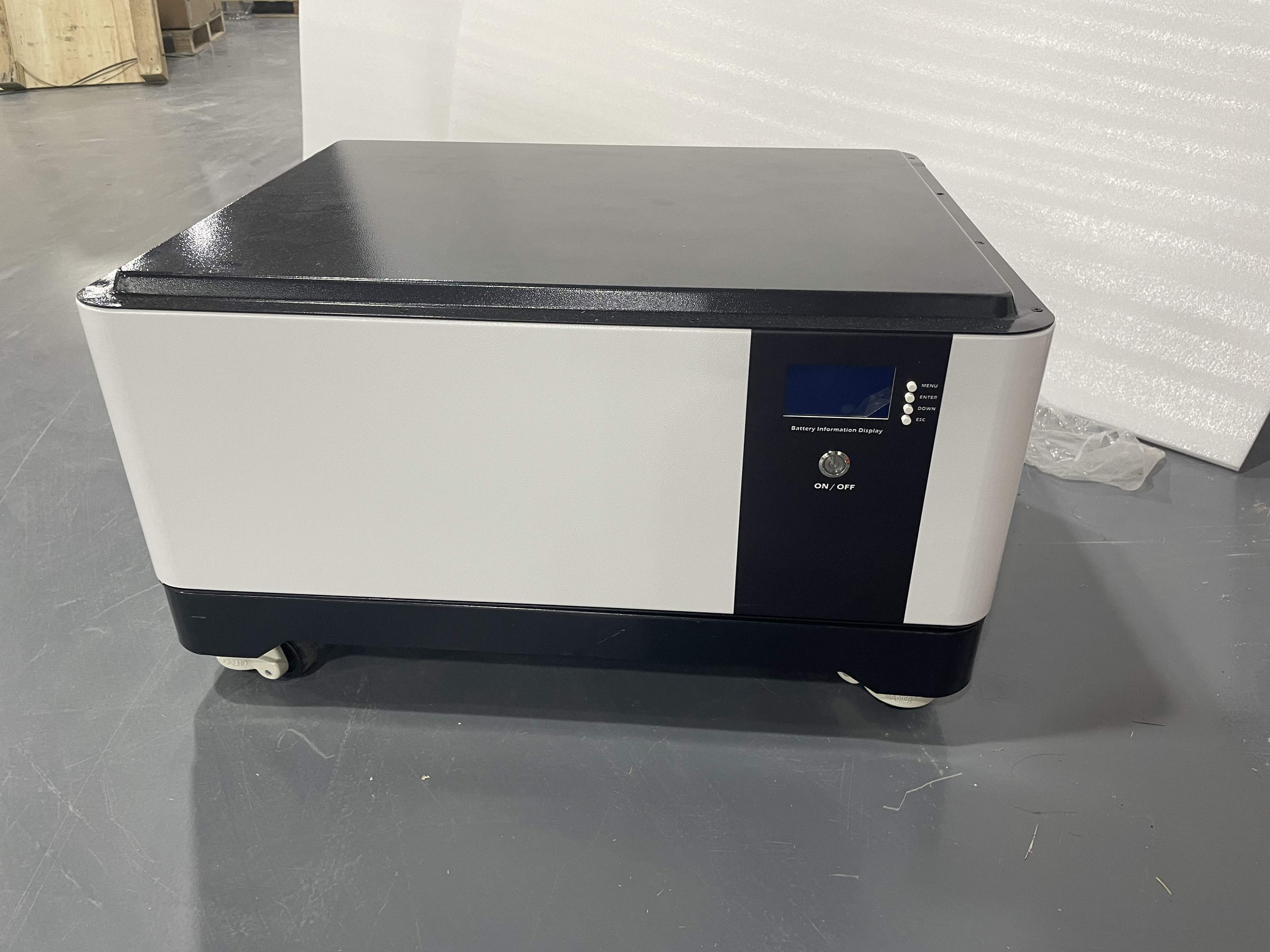

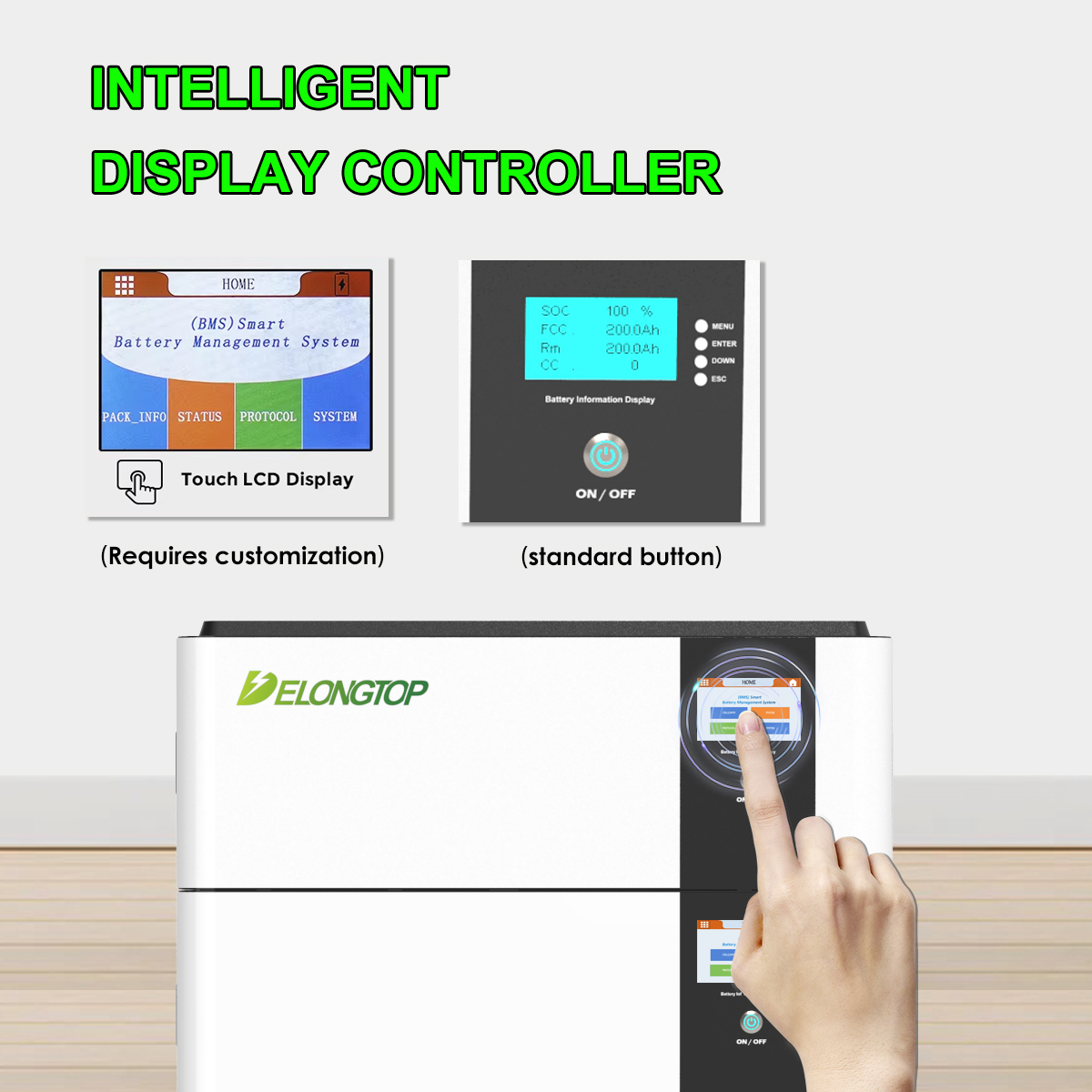

| Display Meter | Capacity % / Voltage V | |
| Peak Charging | 250Ah @5 Seconds (One battery 200A BMS) | 300Ah @5 Seconds (One battery 250A BMS) |

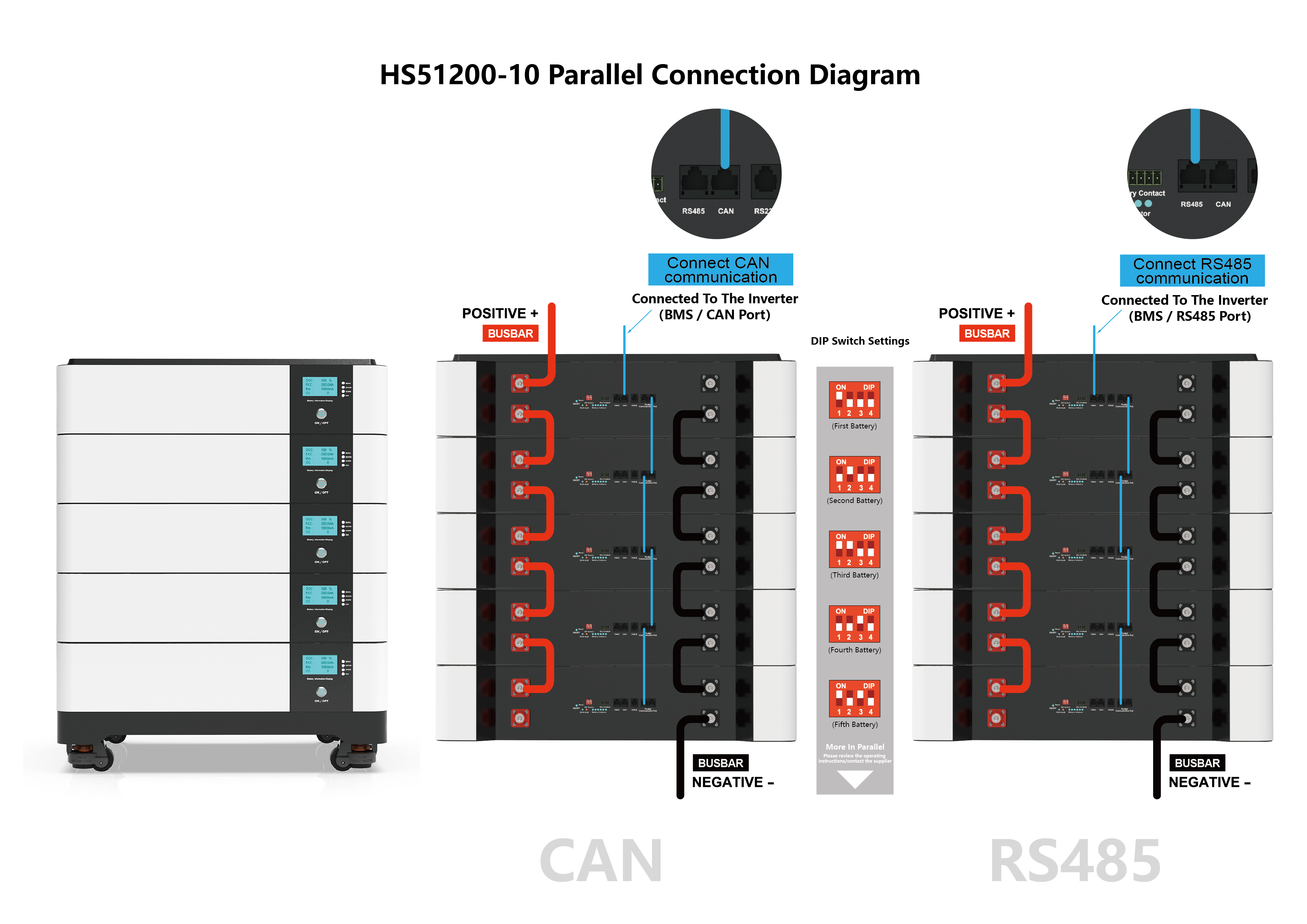

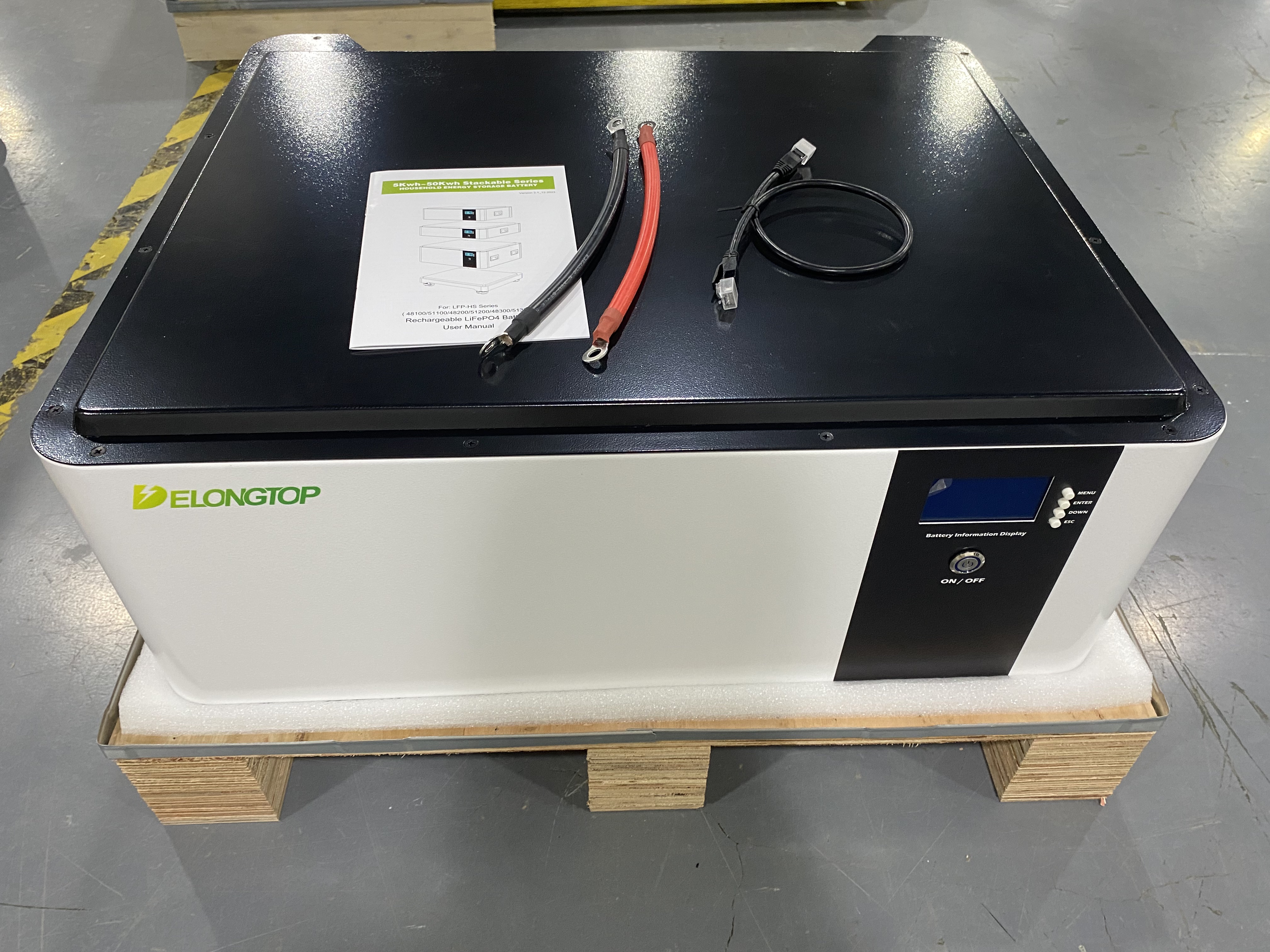

| Connector to Inverter | Red to Red Cable (Positive+), Black to Black Cable (Negative-) | |
| Support Communication | RS485/RS232/Canbus (WIFI/Bluetooth Optional) | |

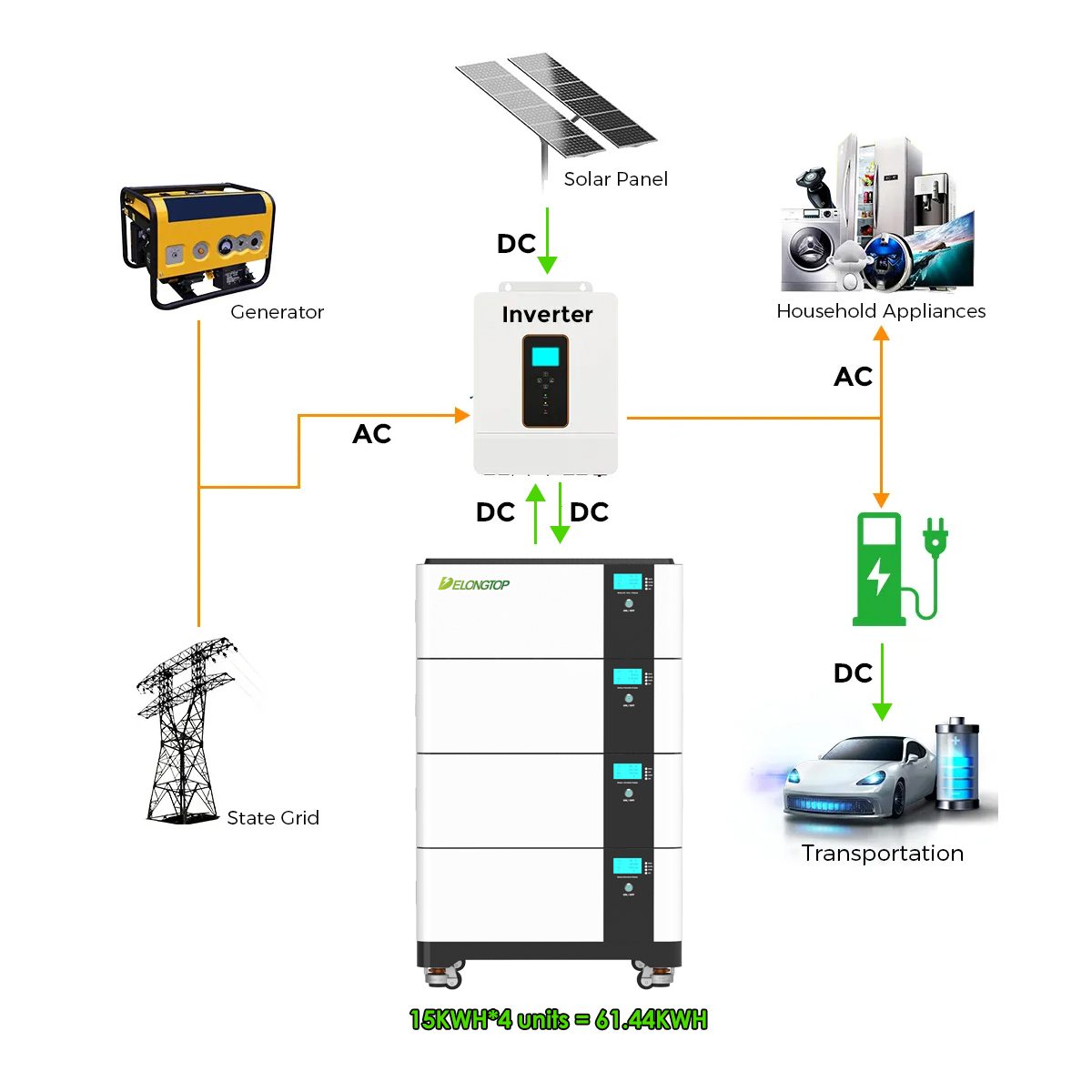

| Support Inverters | Deye, Growatt, Victron, Hongenergy etc. (On grid inverter, off grid inverter, on-off grid inverter) | |
| BMS Function |
Automatic Functions: Low Voltage Disconnect | Short Circuit Protection | Over Voltage Protection | Over Current Protection Over Charge Protection | Over Discharge Protection | Over Temperature Protection | Internal Cell Balancing |
|
| Certificate | CE MSDS UN38.3 EMC ISO9001:2015 FCC ROHS Germany France Certificates | |
| Product Model | LFP4850 | |
| Temperature Range |
Charge Temp: 0℃ to 50℃ (32℉ to 122℉) Discharge Temp: -20℃ to 60℃ (-4℉ to 140℉) Storage Temp: 0℃ to 50℃ (32℉ to 122℉) |
|
