| Model | GSL-100(DC50)(215kWh)(EV120) |
| Grid Port | |
| Rated Power | 100kW |
| Max. Power | 110kW |
| Rated Current | 144A |
| Max. Current | 158A |
| Rated Voltage | 440Vac,3W+PE |
| Rated Frequency | 50-60Hz (±5Hz) |
| PV Side | |
| Max. PV Input Voltage | Battery voltage-30V |
| PV Input Power | 50kW |
| MPPT Number | 1 |
| Battery Side | |
| Battery Rated Capacity | 261kWh |
| Battery Voltage Range | 768V |
| Input Voltage | 400V (-15%~+10%) |
| Battery Type | Lithium iron phosphate battery (LFP) |
| Cell Capacity | 280Ah |
| Battery Series Parallel Connection Mode | 1P*20S*12S |
| Max. Charge and Discharge Current | 140A |
| Charging Side | |
| Rated Output Power | 60kW*2 |
| Rated Output Current | 120A*2 (500Vdc) |
| Measuring Accuracy | <±0.1% |
| Number of Charging Guns | Dual Guns |
| Gun Line Length | 5m |
| Starting Method | Scan code, Swipe card, APP |
| Charging Method | Auto-fill, by amount, by power, by time |
| Display Method | LED display light |
| Basic Parameters | |
| Cooling Method | Intelligent air cooling |

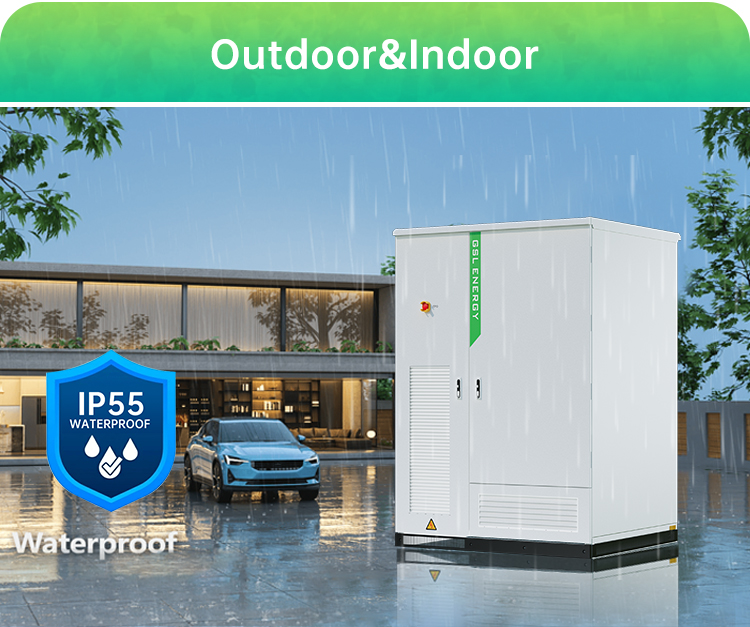

| Protection Level | IP55 |
| Power Consumption During Shutdown | <0.1% rated power (excluding transformer) |
| Relative humidity | 0~95% (no condensation) |
| Noise | <70db |
| Ambient Temperature | 25°C~60°C (derating above 45°C) |
| Altitude | 3000m (derating > 2000m) |
| BMS Communication | CAN |
| EMS Communication | Ethernet / 485 |
| Emergency Stop Protection | Equipped with emergency stop button, with emergency stop protection function |
| Protection Characteristics | Input over-under-voltage protection, input over-current protection, anti-surge protection, output short-circuit protection, over-temperature protection, Anti-reverse irrigation protection, battery active protection, emergency shutdown and other protection functions. |

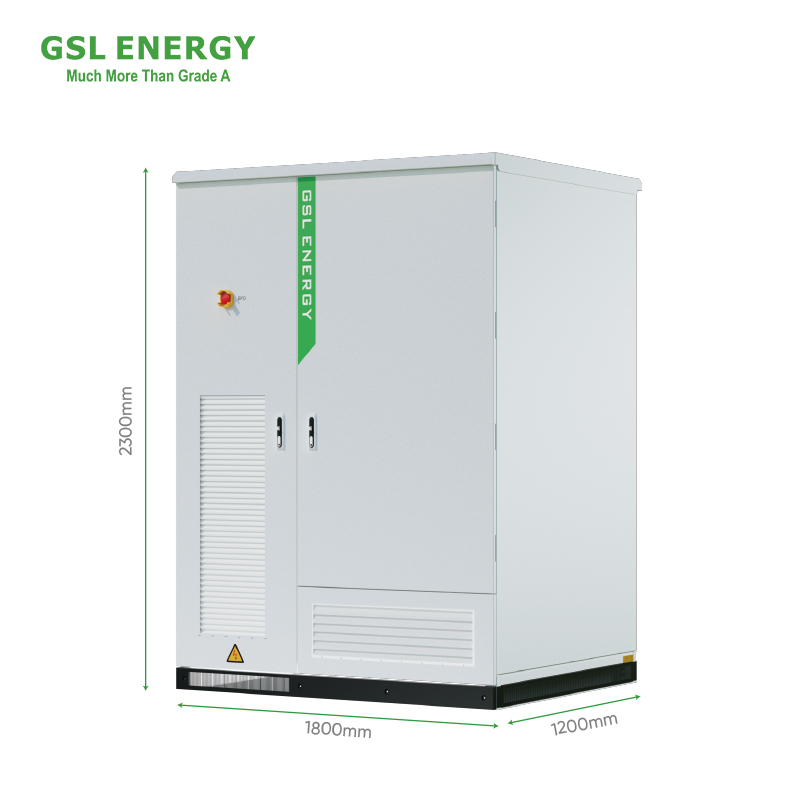

| Dimensions (W*D*H) | 1800*1200*2300mm |
| Weight (approx.) | 2500kg |
