Product Description

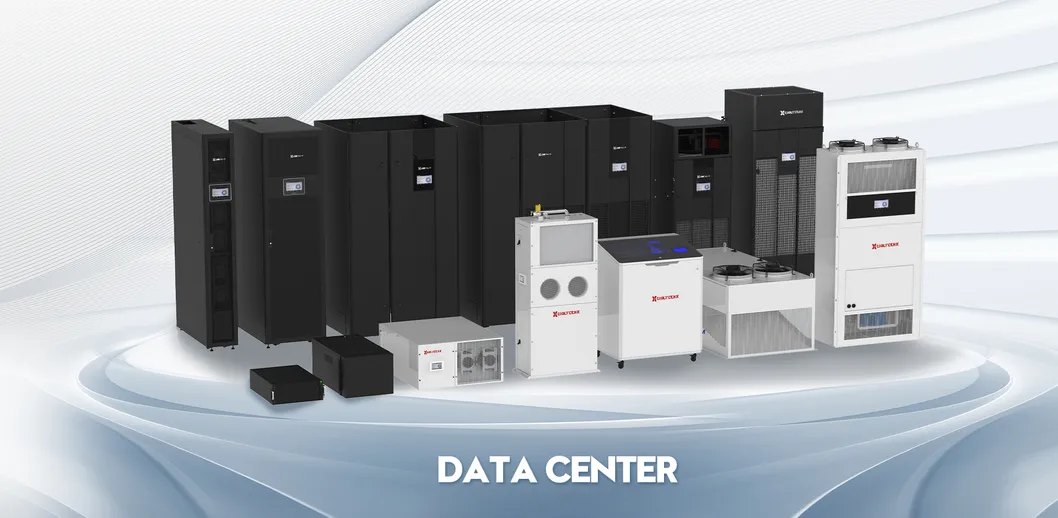

EnergyCool - Data Center Temperature Control Solution

Industrial Power Air Conditioner Data Center Cooling & Heating System

Product Features

ESS Liquid Cooling Temperature Control Solution

Our specialized liquid cooling integrated system is designed to directly regulate the temperature within the battery pack. It efficiently dissipates heat from the battery cells, minimizing cell temperature rise and reducing temperature variations between cells. This significantly reduces the risk of thermal runaway in the battery, ensuring safety and reliability.

We offer a comprehensive liquid cooling solution for energy storage systems, including the following products and services:

Liquid Cooling Integrated System
Piping Assemblies
Solution Design
System Integration

ESS Air Cooling Temperature Control Solution

Our container-level air cooling temperature control solution is specifically designed for energy storage systems. It offers a variety of product forms and air return methods to meet diverse and flexible application requirements.

We have optimized the control system for our air cooling integrated system, effectively addressing challenges that conventional air cooling systems struggle with, such as large temperature fluctuations and humidity control difficulties. This optimization enhances the reliability of the energy storage system and extends the battery lifespan.

We provide a comprehensive air-cooling solution for energy storage systems, including the following products and services:

Air Cooling Integrated System
Solution Design

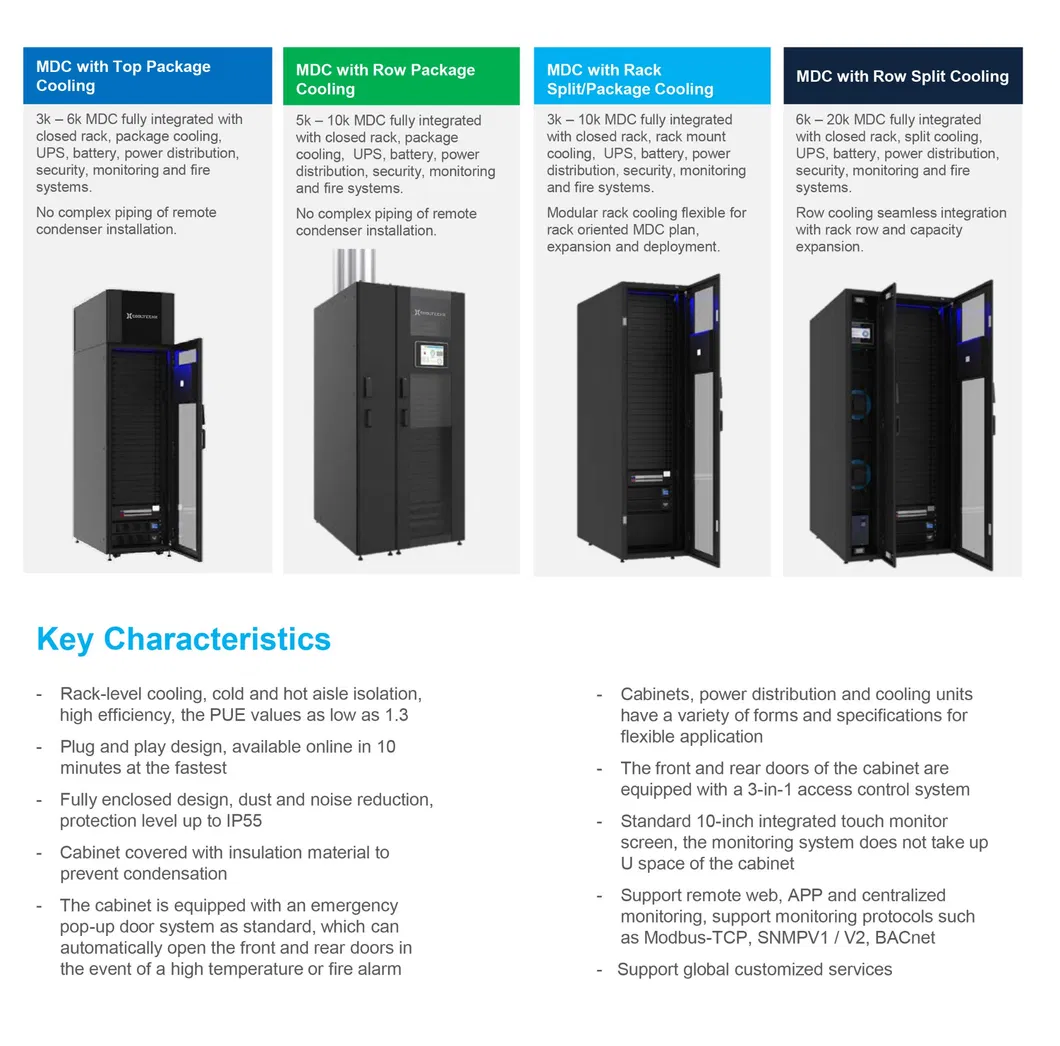

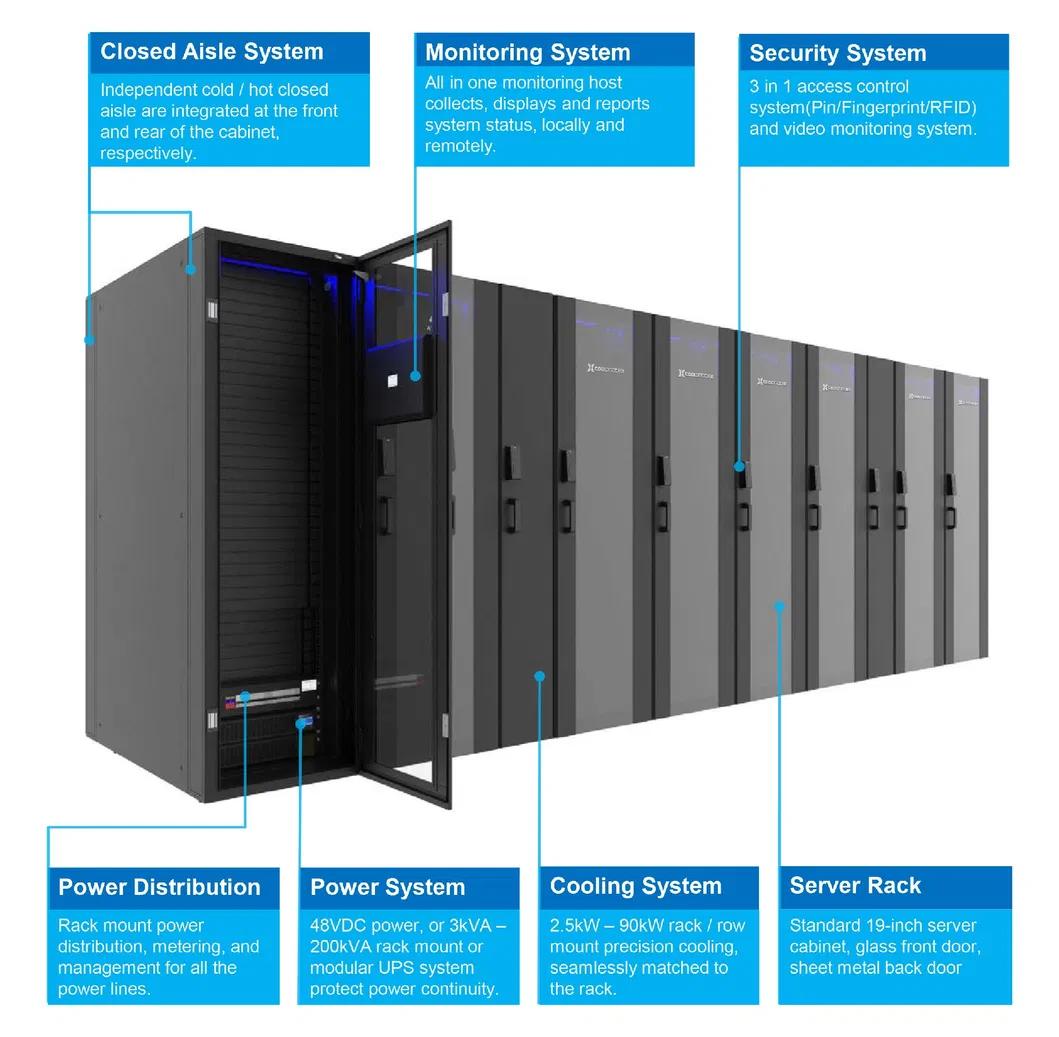

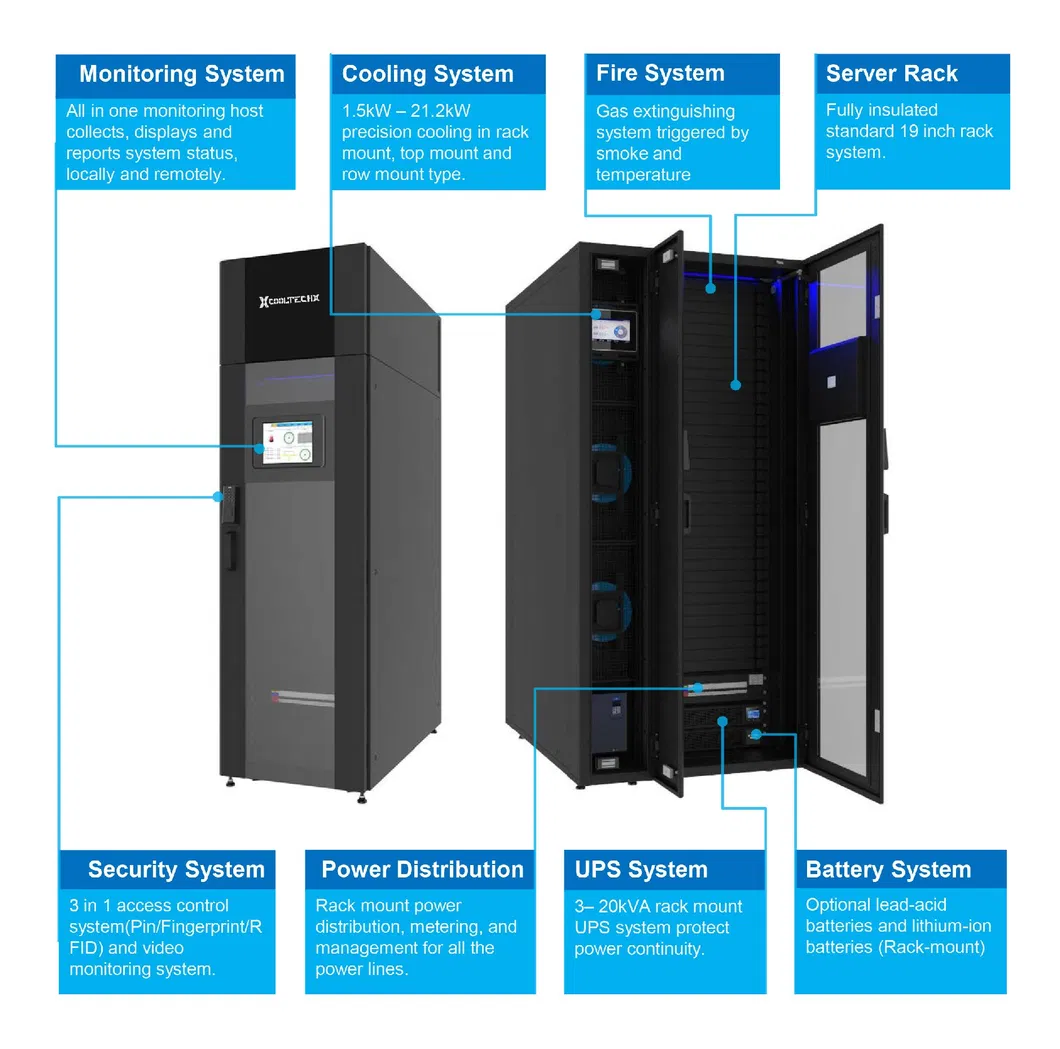

Product Overview

Technical Parameters

Technical Data - IEC Power Type
Product Model	ATM-03N	ATM-03W	ATM-06E	ATM-06M	ATM-06T	ATM-06F	ATM-06K	ATM-10S	ATM-10G
Available Space for IT-U	18U	19U	26U	27U	29U	35U	35U	35U	35U
Available Power for IT-kw	2.0	2.4	3.0	3.5	3.5	5.0	5.0	7.0	7.0
Redundancy	N	N	N	N	N	N	N	N	N
Width-mm	600	600	600	600	600	900	900	900	900
Depth-mm	1100	1100	1100	1400	1400	1400	1400	1400	1400
Height-mm	1200	1590	2000	2000	2000	2000	2000	2000	2000
Weight-kg	166	180	310	362	352	501	511	505	515
IP LEVEL	IP5X	IP5X	IP5X	IP5X	IP5X	IP5X	IP5X	IP5X	IP5X
Input Power	220-240V/1P/50Hz
Recommended Breaker	16A	32A	63A	63A	63A	63A	63A	63A	63A
Power Section
UPS -kVA	3.0	3.0	6.0	6.0	6.0	6.0	6.0	10.0	10.0
UPS Type	Rack
Standard Battery	12V/9AH 6Pcs		12V/9AH 16Pcs
Surge Protection	√	√	√	√	√	√	√	√	√
Power Panel	√	√	√	√	√	√	√	√	√
PDU	Basic 8 Slots		Basic 16 Slots
Cooling Section
Cooling Type	Fan Ventilation	Packaged DX	Packaged DX	Packaged DX	Split DX	Split DX	Packaged DX	Split DX	Packaged DX
Mount Type	Top	Top	Top	Rack	Rack	Row	Row	Row	Row
Capacity-kW	2	3.5	3.5	3.5	3.9	5.6	5.6	7.6	7.6
Emergency Ventilation	√	√	√	√	√	√	√	√	√
DCIM Section
Local Display	Touch Screen
Remote Access	Web Access
Reporting Protocol	Modbus-TCP
UPS Mgmt / Cooling Mgmt	Yes
Sensors	Temperature Humidity Sensor (Yes) / Fire Sensor (Smoke) / Water Sensor (Yes) / Door Sensor (Front/Rear)
Security & Fire Fighting Section
Access Control	RFID/Finger/PIN
Video Surveillance	Optional
Fire Extinguisher	FM200 (Opt)	FM201 (Opt)	FM202 (Opt)	FM203 (Opt)	FM204 (Opt)	FM205 (Opt)	FM206 (Opt)	FM207 (Opt)	FM208 (Opt)
Early Detection	Vesda (Opt.)

High-Quality Accessories

To ensure the supreme quality of our products, we integrate components from world-class suppliers:

1. Control Items: Same high standard suppliers as big brands

2. Compressor: Highly / Panasonic / Hitachi

3. Fan: Fanstech / Kaku / EBM

4. Heat Exchanger: Pure copper-aluminum

5. Critical Parts: Pure Platinum

About Our Manufacturing & Quality Standards

We are a high-tech enterprise integrating R&D, manufacturing, sales, and service. Our main products focus on industrial air conditioners and chillers. The core R&D team comes from a famous industrial refrigeration enterprise in the US, equipped with world-leading industrial refrigeration technology.

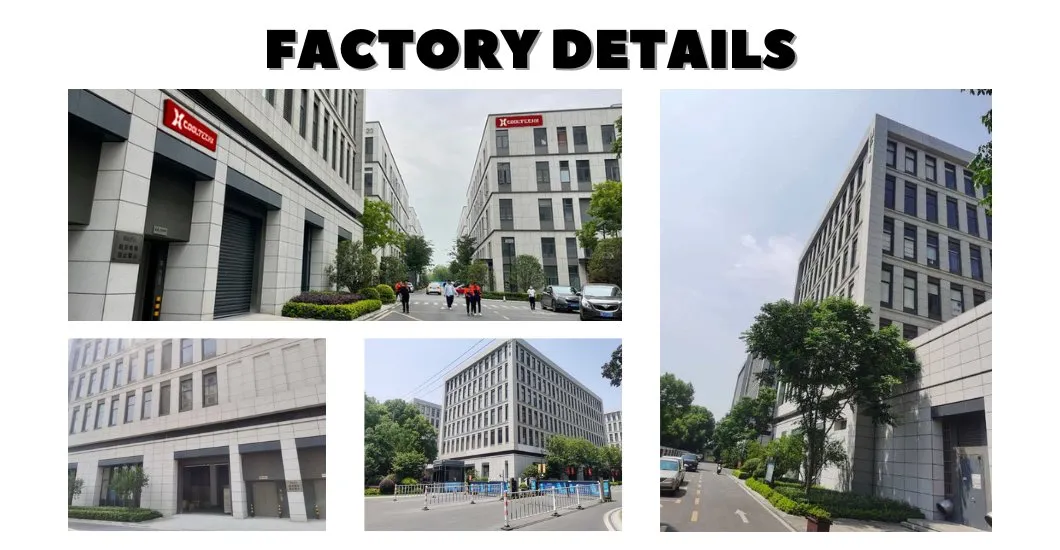

Self-owned Industrial Air-Conditioning Production Factory:

Support air conditioning OEM and industrial air conditioning solution customization
Providing 5 rigorous equipment quality inspection processes
Double-checked with manual quality inspections to ensure 100% compliance

Why Choose Our Temperature Control Solutions?

Rich Professional Experience

Our core R&D and production team is composed of experienced engineers from Fortune 500 companies with more than 20 years of background in the industrial air-conditioning industry.

OEM Customization Support

Our dedicated technical team supports high-end customization. No matter how specific your performance requirements or structural standards are, we provide the most cost-effective and optimal cooling design.

Flexible Sample Orders

We support sample order delivery for quality verification, ensuring fast lead times to save you valuable project scheduling time.

First-Class After-Sales Support

We provide robust technical protection for end-users, alongside empowerment training, market development, and promotional support for our dealers.

Frequently Asked Questions (FAQ)

Q1 Do you have any MOQ limit for cabinet air conditioners?

We offer a low MOQ. A single piece (1pc) is available for sample evaluation and testing.

Q2 What are your standard payment terms?

Normally, our standard payment term is 50% advance payment via T/T, with the remaining balance settled before shipment.

Q3 Are you a manufacturer?

Yes, we are an experienced manufacturer with our own professional design team and fully equipped production lines.

Q4 Can we customize products with specific designs or logos?

Yes, full OEM and ODM services are supported to tailor products to your specifications and branding.

Q5 What is the delivery time and shipping method?

For small orders, we usually ship via air or express courier (EMS, UPS, FedEx, TNT, DHL), taking about 5-12 days. Bulk orders are transported via sea freight, taking 1-2 months depending on the destination.

Q6 How long is the warranty period for your products?

We provide a comprehensive 12-month warranty coverage on all of our refrigeration and temperature control systems.
