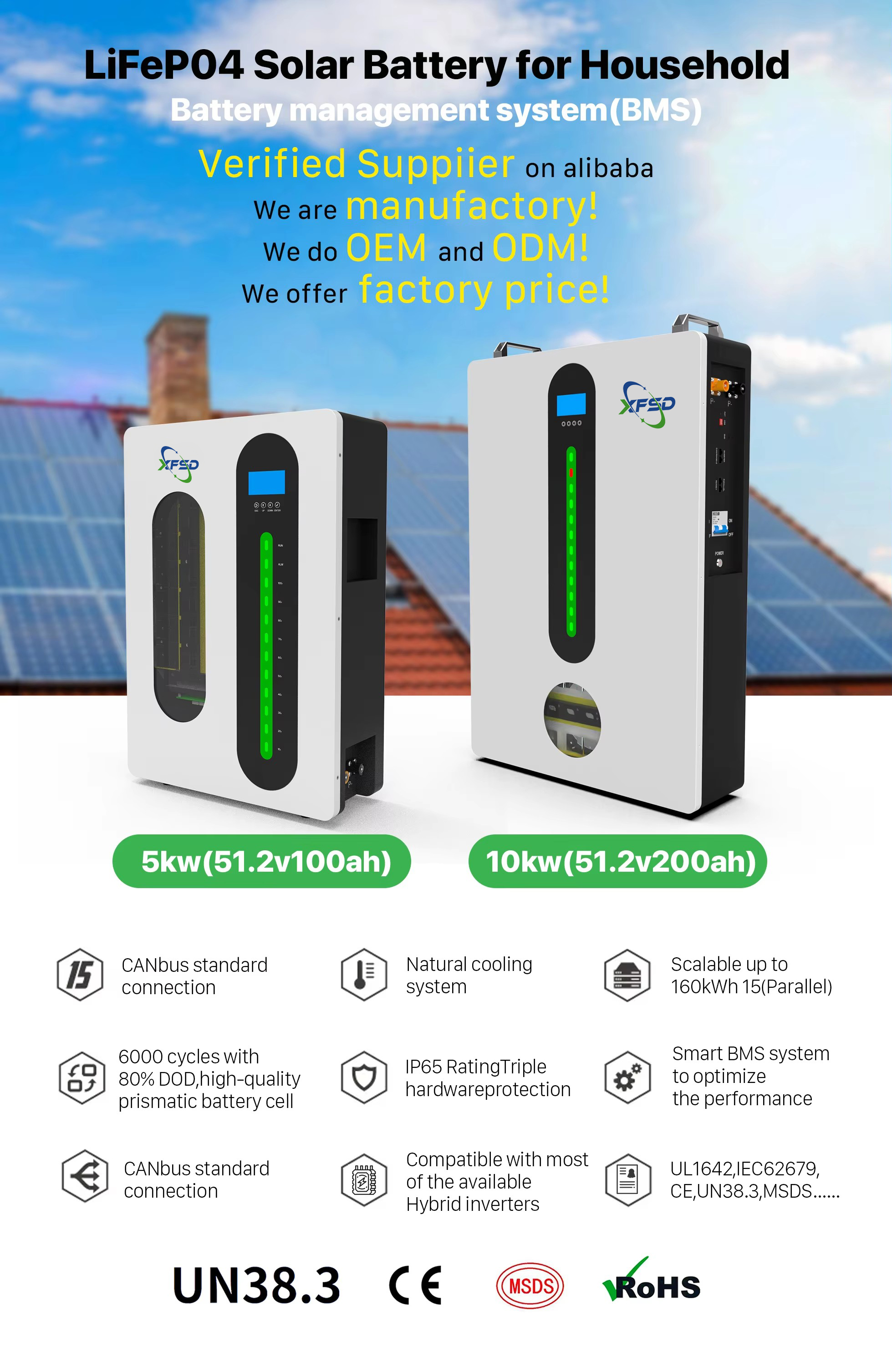

| Mode | HTE-W51100 | HTE-W51200 | HTE-M51300 |
| Nominal Voltage | 51.2V (16 series) | 51.2V (16 series) | 51.2V (16 series) |
| Capacity | 100Ah | 200Ah | 280AH / 304AH / 314AH |
| Energy | 5.12KWh | 10.24KWh | 15KWH / 16KWH |
| Internal Resistance | ≤ 40mΩ | ≤ 40mΩ | ≤ 40mΩ |
| Voltage Range(Vdc) | 44.8V ~ 58.4V | 44.8V ~ 58.4V | 44.8V ~ 58.4V |
| Design Life | ≥ 15 years | ≥ 15 years | ≥ 20 years |
| Warranty | 10 years | 10 years | 12 years |
| Charge Cut-off Voltage | 58.4V | 58.4V | 58.4V |
| Max. Continuous Work Current | 100A | 200A | 200A |

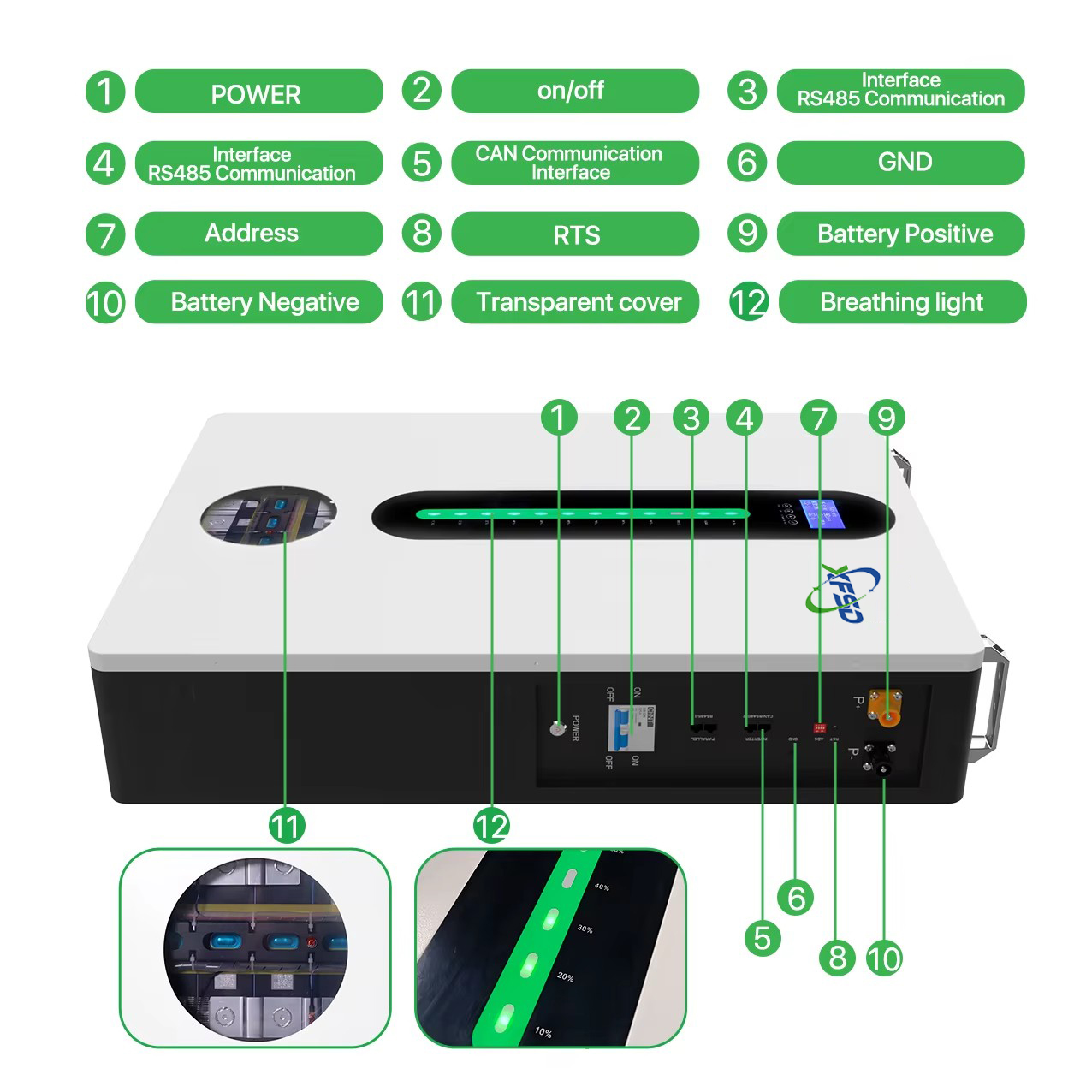

| Communication | CAN / RS485 / RS232 / Bluetooth / WiFi | ||
| Charge Temperature | 0°C ~ 45°C | ||
| Discharge Temperature | -20°C ~ 60°C | ||

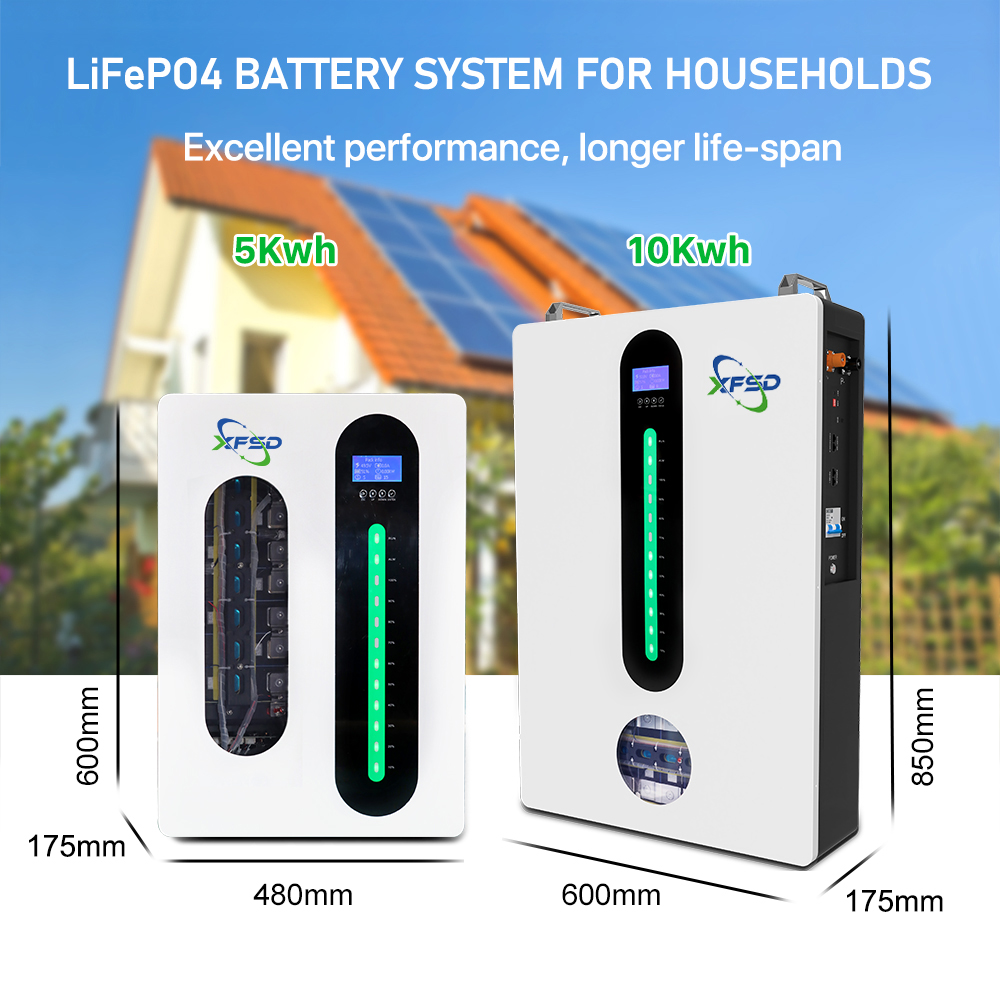

| Dimensions | 640 * 440 * 175mm | 850 * 440 * 175mm | - |
| Weight | ≈ 51KG | ≈ 100KG | - |
| Cycle Life | ≥ 6000 cycles | ≥ 6000 cycles | ≥ 8000 cycles |
| Certification | CE + RoHS + UN38.3 + MSDS + TÜV | ||

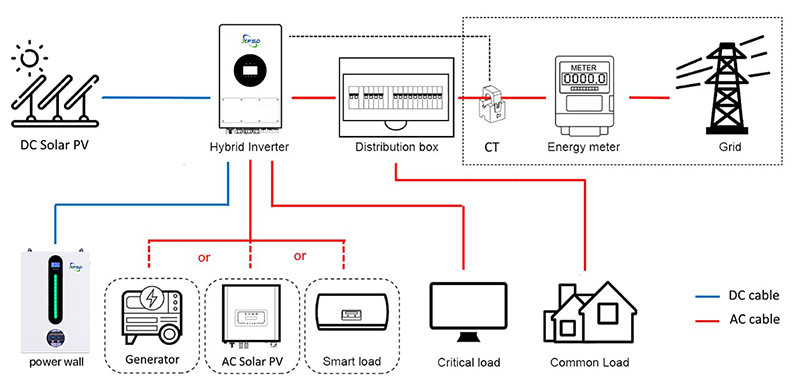

| Pros | Applied in off-grid and hybrid system, Compact Design, Modular Expansion | ||
| OEM/ODM | Sticker / Logo / Package / Connector | ||

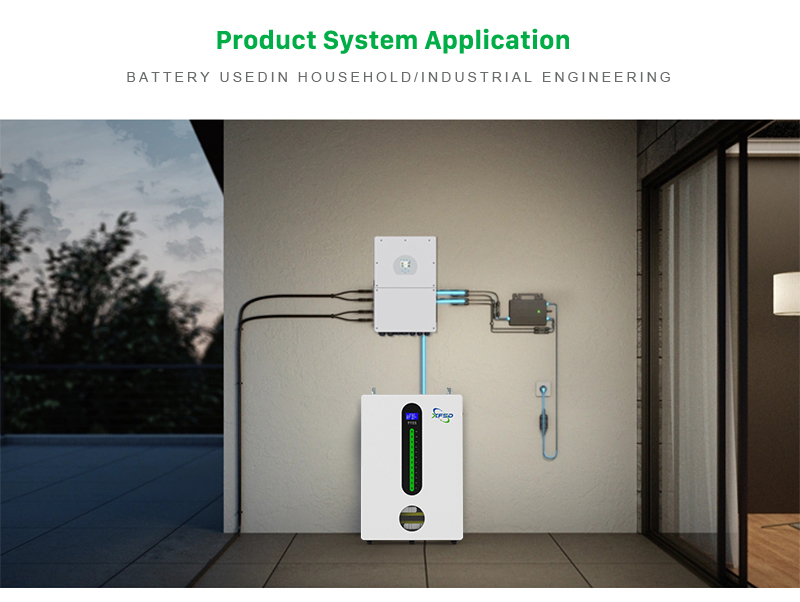

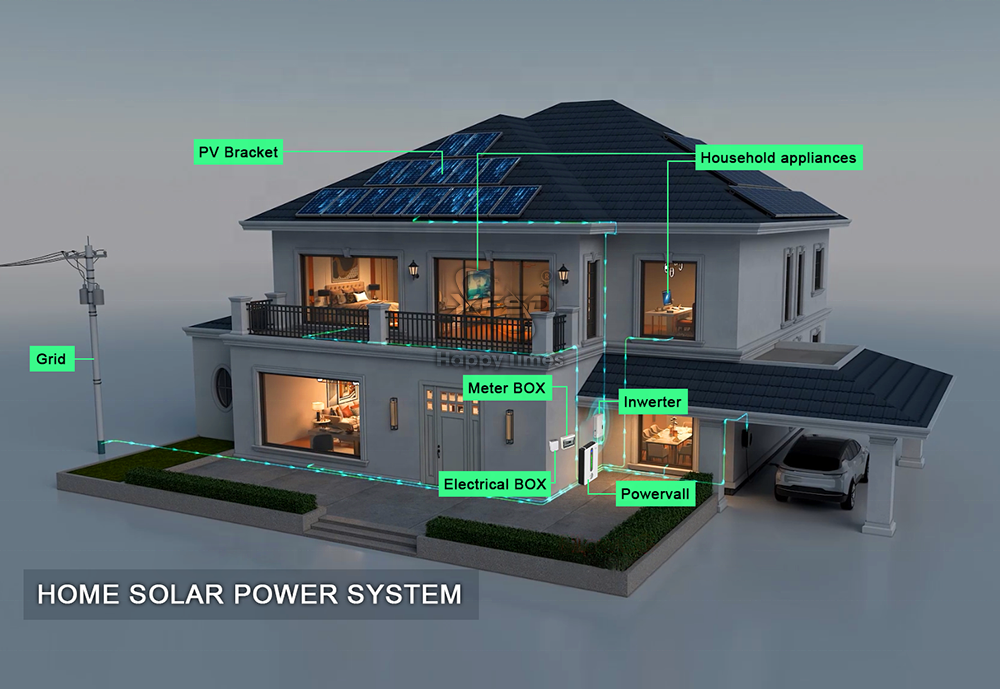

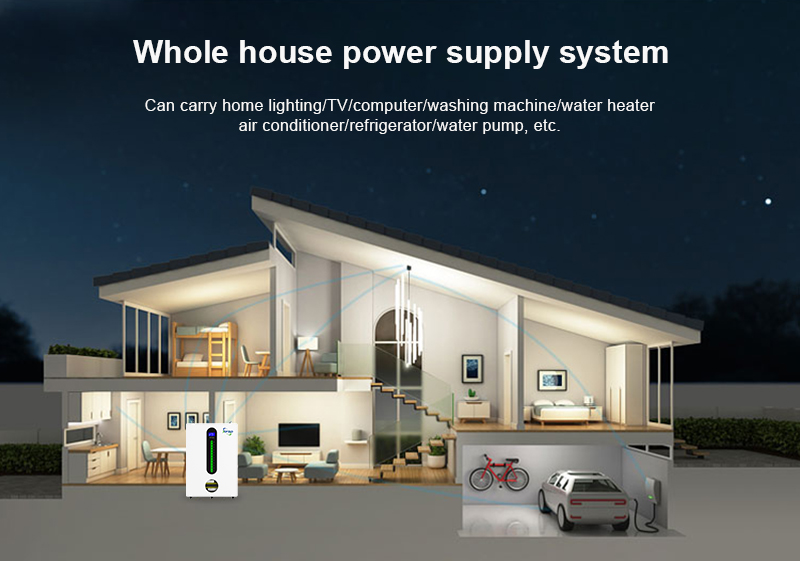

| Application | Solar Energy, Wind Energy, Household Energy, Marine, Trolling Motor, Replace lead-acid batteries, Backup battery, Power battery... | ||

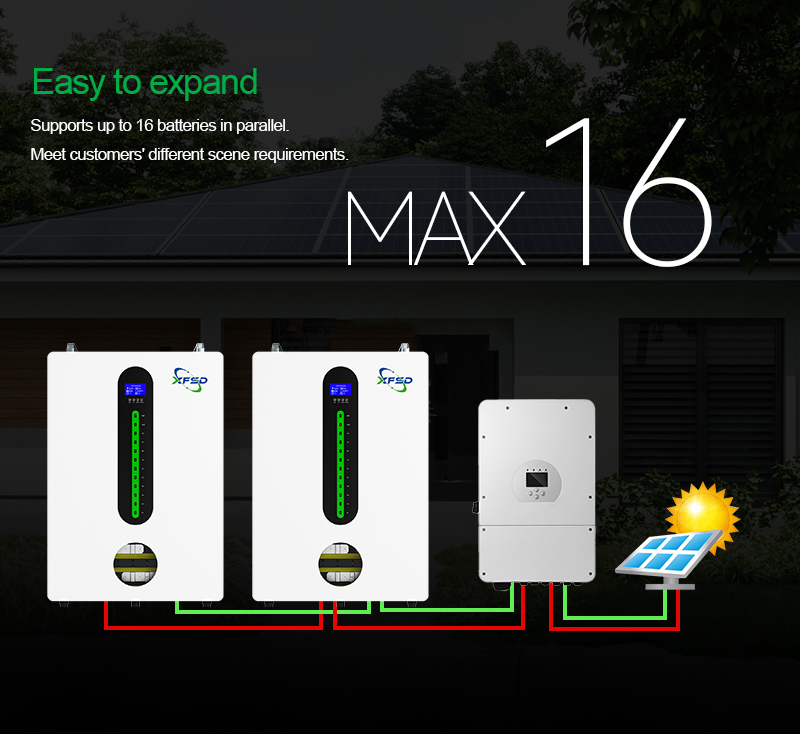

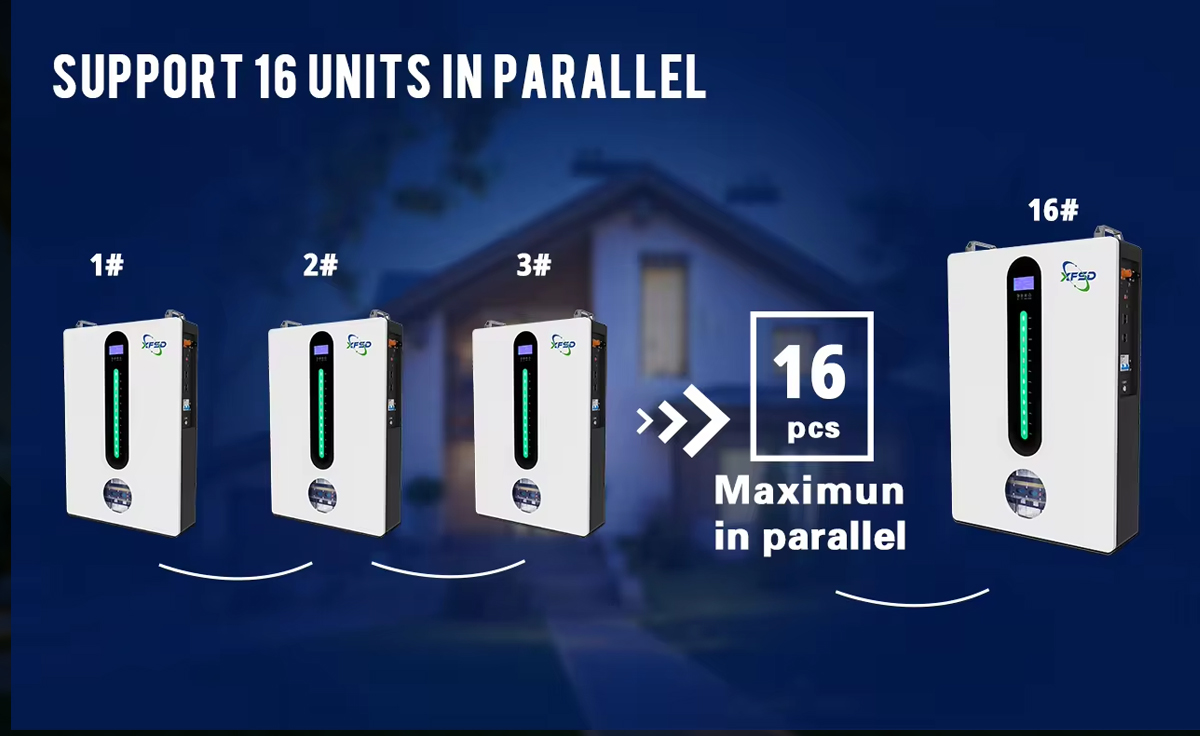

| Parallel Connection | Max support for 16 units parallel connection to meet flexible capacity expansion needs | ||

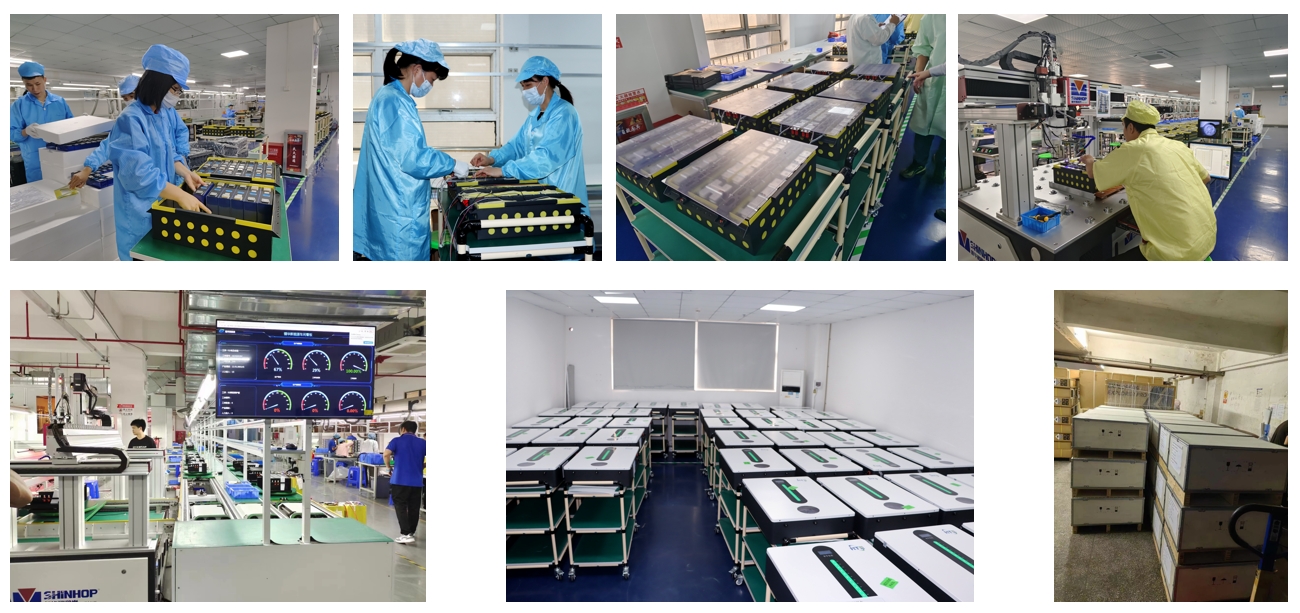

100% testing before shipment, stable and reliable long-term quality. Custom logo, packaging, and connector designs supported.

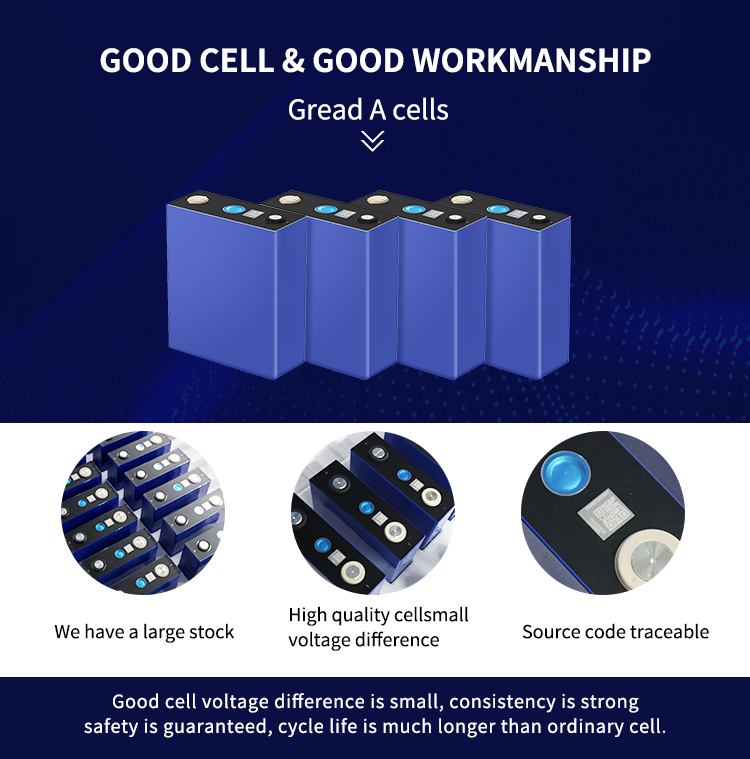

Most safe LFP battery technology without cobalt. Long lifetimes and easy replacement for original lead acid batteries.
Built-in protection against short circuits, over current, over voltage, and over temperature. App monitoring available on request.
