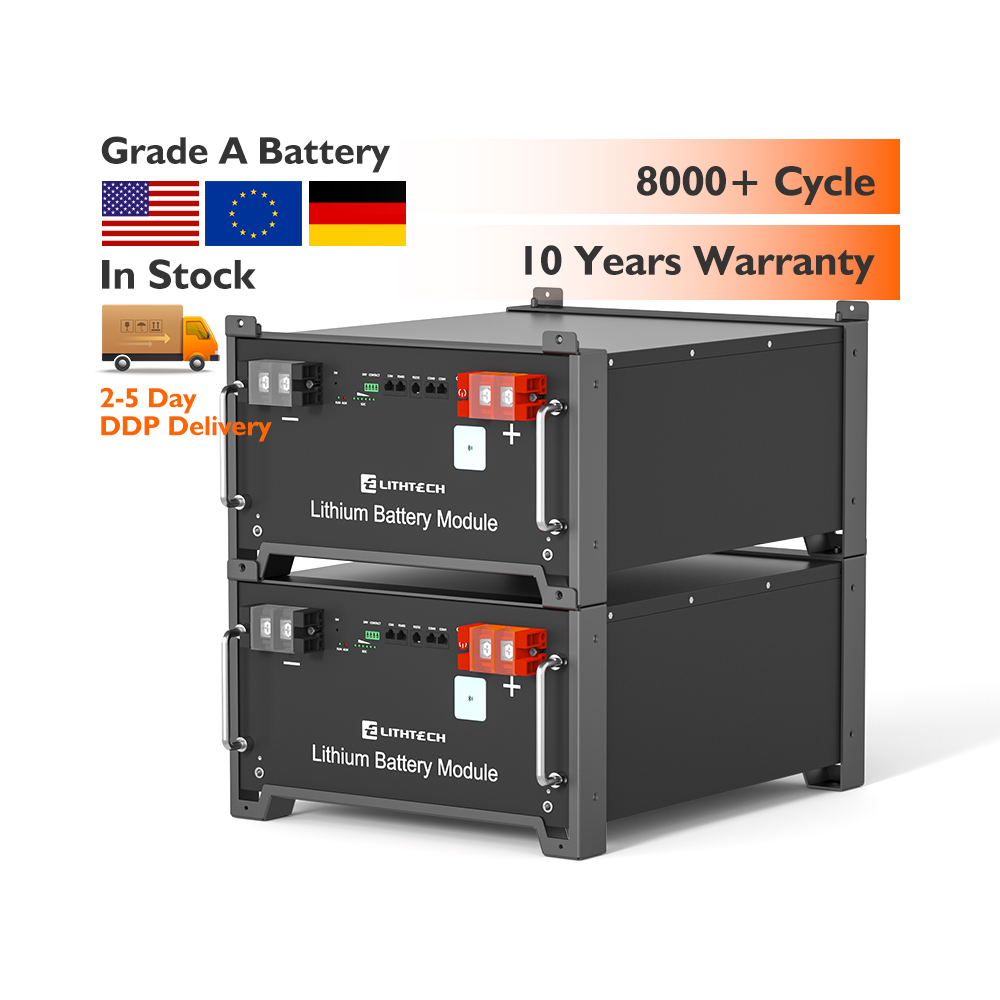

48V 100Ah Lifepo4 Lithium Iron Phosphate Battery Solar Home Energy Storage System With Smart BMS for RV Marine Off Grid
European, German, Polish, American, Romanian, Philippine, Vietnamese, Iraqi, and China Warehouses In Stock.
Products Description
ISO9001, MSDS, UN38.8, CE, UL1973, UL9540, UL9540A, RoHS, IEC62619, EMC, CEC, MSDS and Other Certificates
Technical Specifications
PERFORMANCE SPECIFICATIONS
Model
TB4000X
TB6000X
TB8500X
Rating Voltage
48 V/51.2V
48 V/51.2V
48 V/51.2V
Cell model/Configuration
3.2V100Ah/16S1P
3.2V100Ah/16S2P
3.2V314Ah/16S1P
Rating Capacity
100Ah
200Ah
314Ah
Rated Energy (kWh)
5.12kWh
10.24kWh
16.08KWH
Max.Charge/Discharge Current(A)
100A
200A
200A
Voltage Range (Vdc)
44.8V~58.4V
Scalability
Up to 15 parallel
Communication
CAN/RS485/RS232/Bluetooth/WIFI
Cycle Life
≥8000 Cycles @ 25°C
Design Life
≥15 Years (25°C)
Warranty
10 Years
MECHANICAL SPECIFICATIONS
Weight (Net/Gross)(KG)
42KG
82KG
121KG
Dimension (W/D/H)(mm)
482*420*178
482*533*226
442*751.2*225
Installation Mode
Rack Battery
IP Grade
IP54 (optional)
SECURITY AND CERTIFICATION
Safety (Pack)
UN38.3, MSDS, IEC62619(CB), CE-EMC
Safety (Cell)
UN38.3, MSDS, IEC62619, CE, UL1973, UL2054
Protection

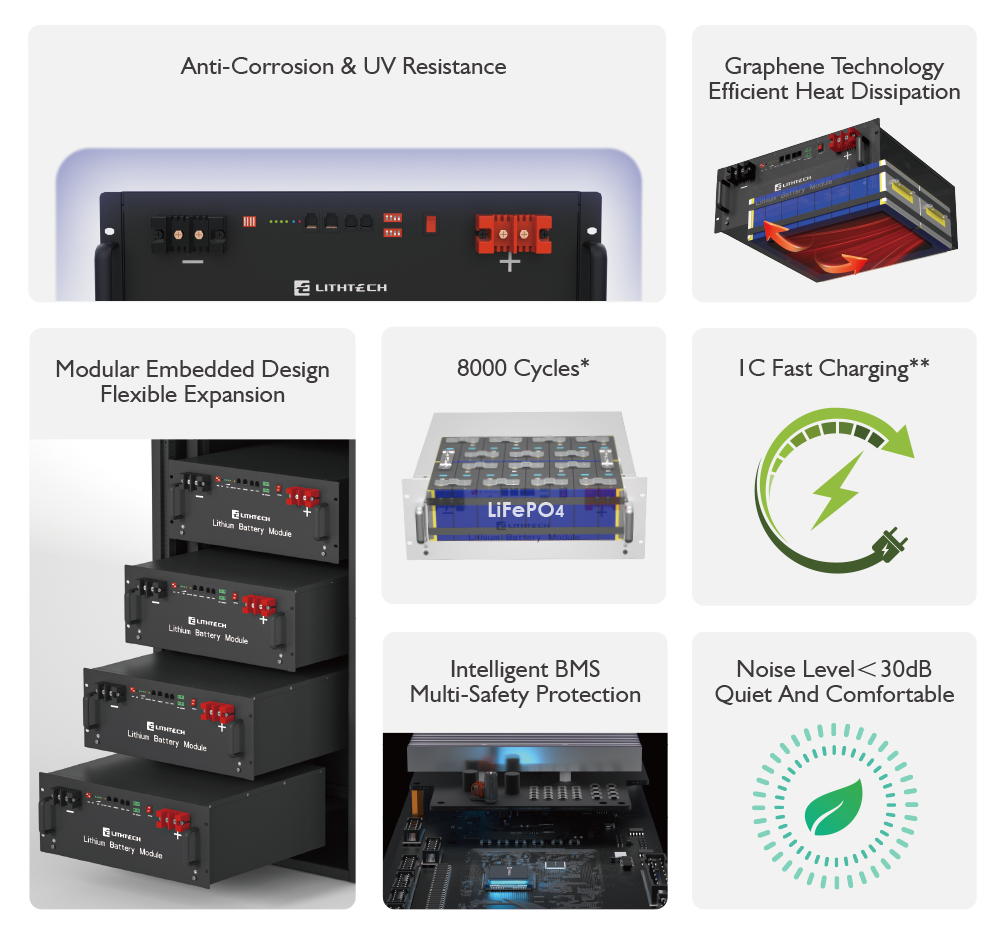

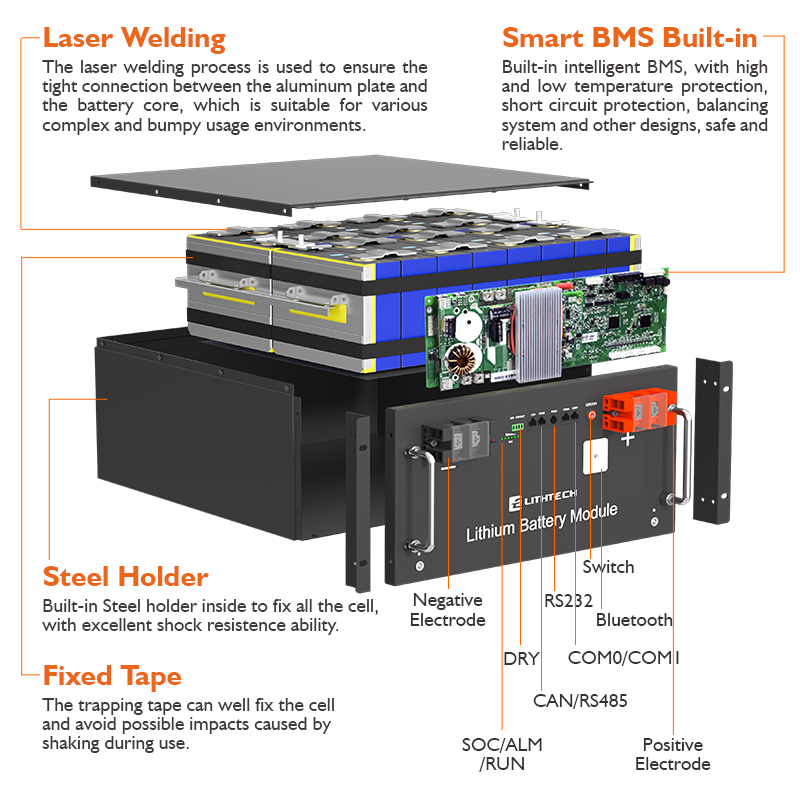

Smart BMS, Breaker and Aerogel Fireproofing (optional)
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature (°C)
Charge 0°C ~ 65°C; Discharge -20°C ~ 65°C
Altitude (m)
≤3000m
Humidity
≤95% (Non-condensing)

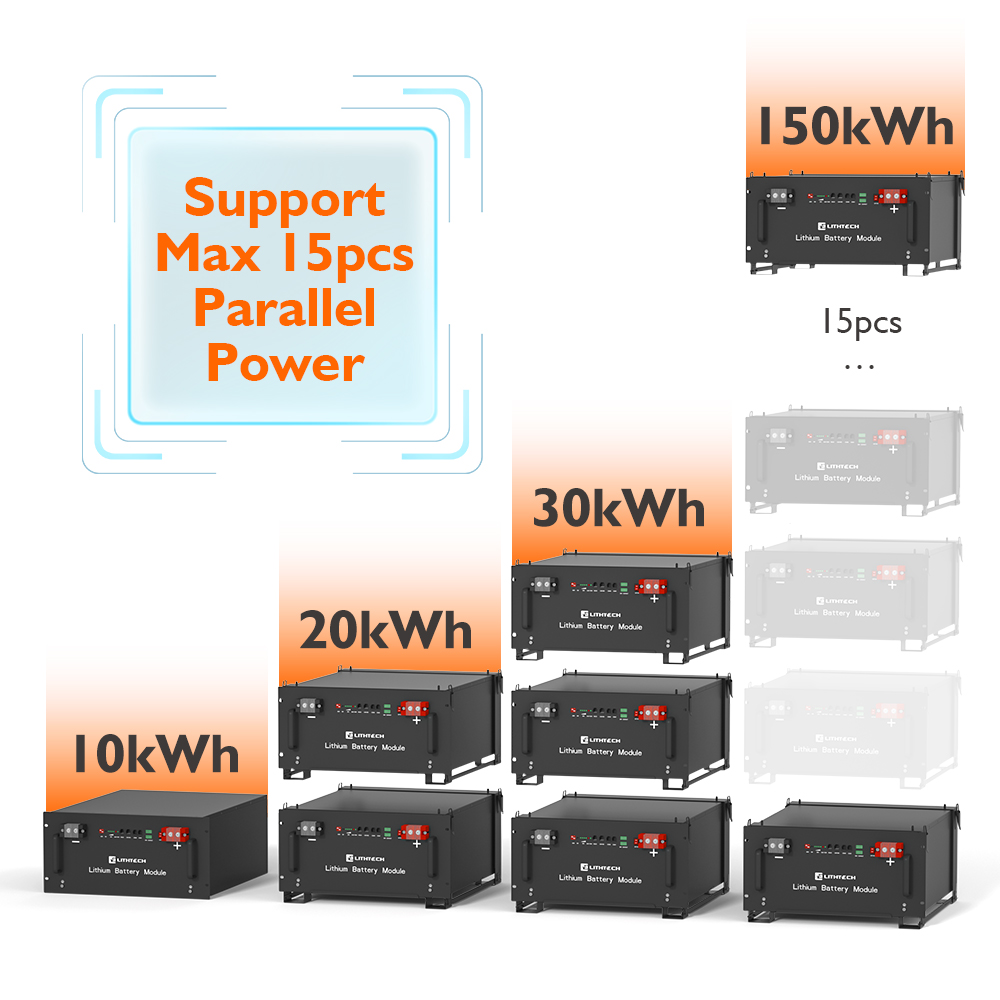

Max 15PCS In Parallel
Up to 15pcs can be connected in parallel to add/remove batteries online without going offline. It can meet the requirements of redundant system design, and the failure of a single module will not affect others, achieving an ultra-high online rate. (except module No. 1)
10KWh supports 15pcs capacity up to 150kWh.
Delivery Time
Item
1-50 PCS
50-100 PCS
1000+ PCS
10000+ PCS
Need Dangerous Goods Transport Certificate
5 Days
10-15 Days
20 Days
30 Days
Do Not Need Dangerous Goods Transport Certificate
5 Days
7-15 Days
15-20 Days
30 Days
After-Sales Response Time
Time Zone (Beijing Time 9:00-22:00)
Weekday
Saturday
Sunday
Chinese Statutory Holidays
Sales Support
≤ 1 Hour
≤ 2 Hours
≤ 4 Hours
/
Management Team
≤ 1 Hour
≤ 2 Hours
≤ 4 Hours
≤ 1 Day
Why Choose Us
We are a premier lithium battery manufacturer with 20 years of industry experience and our own factory, specializing in OEM and ODM services as a professional battery maker offering 48-hour sampling and 5-day delivery with 24-hour customer support, supported by 9 overseas warehouses for fast delivery including European, German, Polish, American, Romanian, Philippine, Vietnamese, Iraqi, and China main warehouses, mainly dealing in home energy storage, 48V/51.2V 100ah 200ah 300ah 280ah 314ah LiFePO4 lithium battery, solar batteries, 12V/24V 50ah 100ah 120ah 150ah 200ah 314ah 400ah LiFePO4 lithium battery, BESS, ESS, outdoor battery cabinets, rack batteries, wall-mounted batteries, commercial and industrial energy storage, and energy storage systems, holding major certificates including ISO9001, MSDS, UN38.8, CE, UL1973, UL9540, UL9540A, RoHS, IEC62619, EMC, CEC, MSDS and Other Certificates, having served over 10 million customers across more than 100 countries and providing energy services to Fortune 500 companies.
Regional Agent
Frequently Asked Questions
How long is the delivery time of your products?
Overseas Warehousing: Up to 3 days delivery. From China: Usually about 30 days.
What kind of certificates do your products have?
Our battery products have acquired CE, UL, UN38.3, MSDS, CEC, RoHS and other certificates, satisfying most countries' importing requirements.
Are your batteries compatible with Deye and other inverters?
Yes, our batteries are compatible with most major inverters on the market, including Solis, Deye, Sinexcel, and more.
Are your energy storage products manufactured in your own factory?
Yes! We have a 100% owned factory and offer direct factory sales. This ensures complete control over product quality from production to delivery.
Do you have Europe warehouse support?
Yes, we have Europe warehouses located in Germany, Poland, and Romania, supporting fast EU delivery within 3-7 days for stock models.
Can you supply OEM & ODM services?
Yes, we provide comprehensive OEM and ODM services. Please note that a minimum order quantity (MOQ) is required for customization.
