GBS All-In-One 50KWh High Voltage LiFePO4 Battery 512V 100AH Inverter 40-50KW CAN Communication 6000 Cycles 5-Year Warranty Home
GBS All-In-One 50KWh High Voltage LiFePO4 Battery 512V 100AH Inverter 40-50KW CAN Communication 6000 Cycles 5-Year Warranty Home
GBS All-In-One 50KWh High Voltage LiFePO4 Battery 512V 100AH Inverter 40-50KW CAN Communication 6000 Cycles 5-Year Warranty Home
GBS All-In-One 50KWh High Voltage LiFePO4 Battery 512V 100AH Inverter 40-50KW CAN Communication 6000 Cycles 5-Year Warranty Home
GBS All-In-One 50KWh High Voltage LiFePO4 Battery 512V 100AH Inverter 40-50KW CAN Communication 6000 Cycles 5-Year Warranty Home
1 / 5
GBS All-In-One 50KWh High Voltage LiFePO4 Battery 512V 100AH Inverter 40-50KW CAN Communication 6000 Cycles 5-Year Warranty Home
GBS All-In-One 50KWh High Voltage LiFePO4 Battery 512V 100AH Inverter 40-50KW CAN Communication 6000 Cycles 5-Year Warranty Home
GBS All-In-One 50KWh High Voltage LiFePO4 Battery 512V 100AH Inverter 40-50KW CAN Communication 6000 Cycles 5-Year Warranty Home
GBS All-In-One 50KWh High Voltage LiFePO4 Battery 512V 100AH Inverter 40-50KW CAN Communication 6000 Cycles 5-Year Warranty Home
GBS All-In-One 50KWh High Voltage LiFePO4 Battery 512V 100AH Inverter 40-50KW CAN Communication 6000 Cycles 5-Year Warranty Home

GBS All-In-One 50KWh High Voltage LiFePO4 Battery 512V 100AH Inverter 40-50KW CAN Communication 6000 Cycles 5-Year Warranty Home

Send Inquiry

Product Description

Energy Storage System Showcase
Energy Storage System Interface
Energy Storage System Operations
Product Specifications
System Voltage 51.2V
Output Power Range 40-50KWH
Grid connection off grid, Hybrid grid
Battery Type LiFePO4
System Type Floor-standing
Model Number CN3050
Dimension (L*W*H) 1030*900*2200mm
Weight 750KG
Type Split
Communication Port Rs485, CAN
Protection Class IP23
Warranty 5 Years
Cycle life 6000 Cycles
Product Details & Features
Detail Image 1

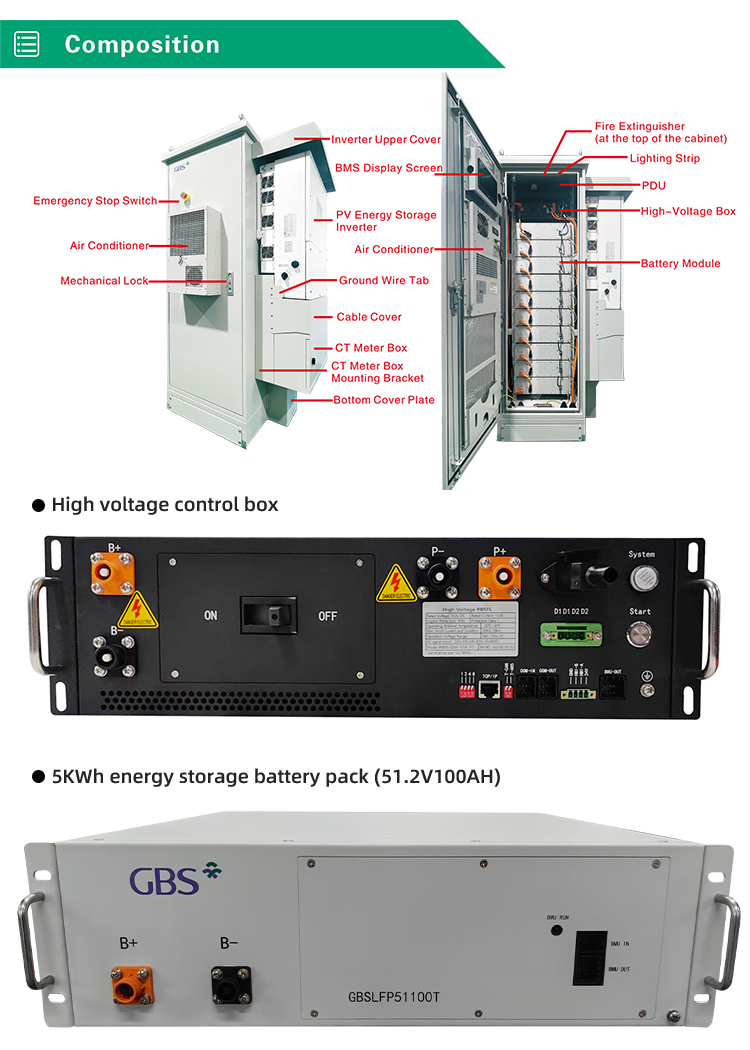

Detail Image 2

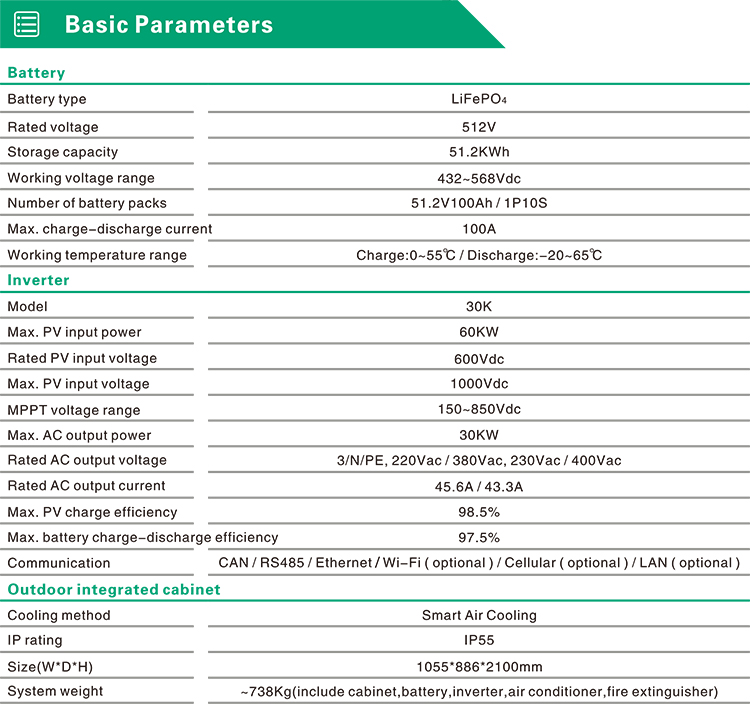

Detail Image 3
Detail Image 4
Detail Image 5
Detail Image 6
Detail Image 7
Detail Image 8
Frequently Asked Questions
Q
What type of battery chemistry does this system use?
This energy storage system uses LiFePO4 (Lithium Iron Phosphate) battery chemistry, which is renowned for its superior thermal stability, enhanced safety profile, and long service life.
Q
What is the expected cycle life of the battery system?
The system is designed to sustain up to 6000 cycles, providing reliable and long-term performance for high-demand applications.
Q
Does the system support grid-connected operations?
Yes, this system supports versatile setup configurations, allowing connection to both off-grid installations and hybrid grid applications.
Q
What are the system's dimensions and installation type?
The system features a floor-standing, split design with external dimensions of 1030 * 900 * 2200 mm and a total weight of 750 KG.
Q
What communication protocols are integrated for monitoring?
It is equipped with Rs485 and CAN communication ports, facilitating easy integration with various external monitoring systems and controllers.
Q
What warranty and protection class does the product feature?
This system is built with an IP23 protection class rating and is covered by a standard 5-year hardware warranty.
