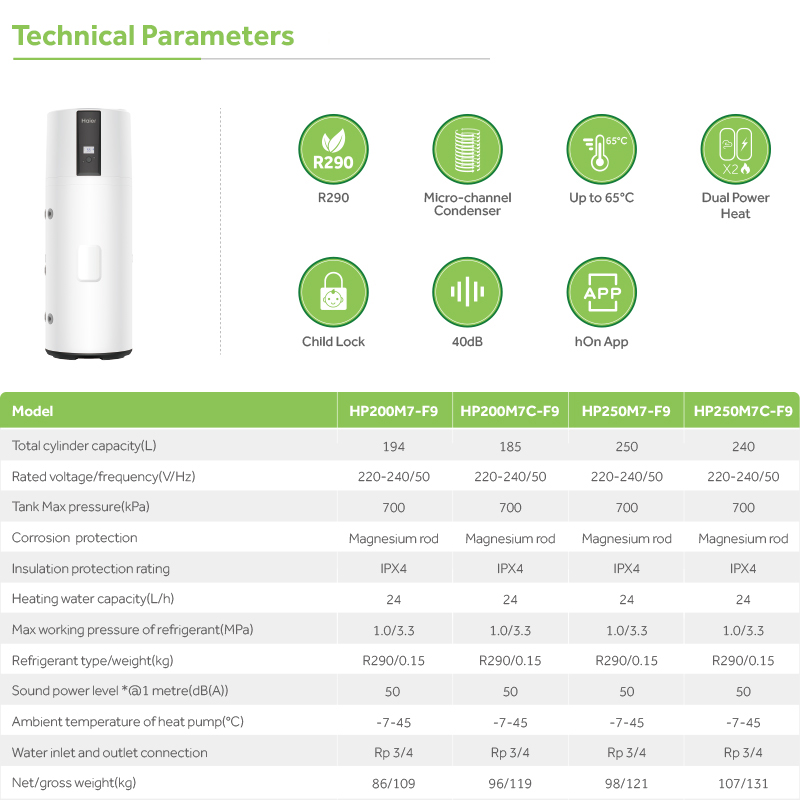

| Model | HP200M7 | HP200M7C | HP250M7 | HP250M7C |
|---|---|---|---|---|
| Tank | ||||
| Total cylinder capacity(L) | 194 | 185 | 250 | 240 |
| Tank Max pressure(kPa) | 700 | |||
| Rated voltage/frequency(V/Hz) | 220-240V/50Hz | |||
| Corrosion protection | Magnesium rod | |||
| Insulation protection rating | IPX4 | |||
| Performance | ||||

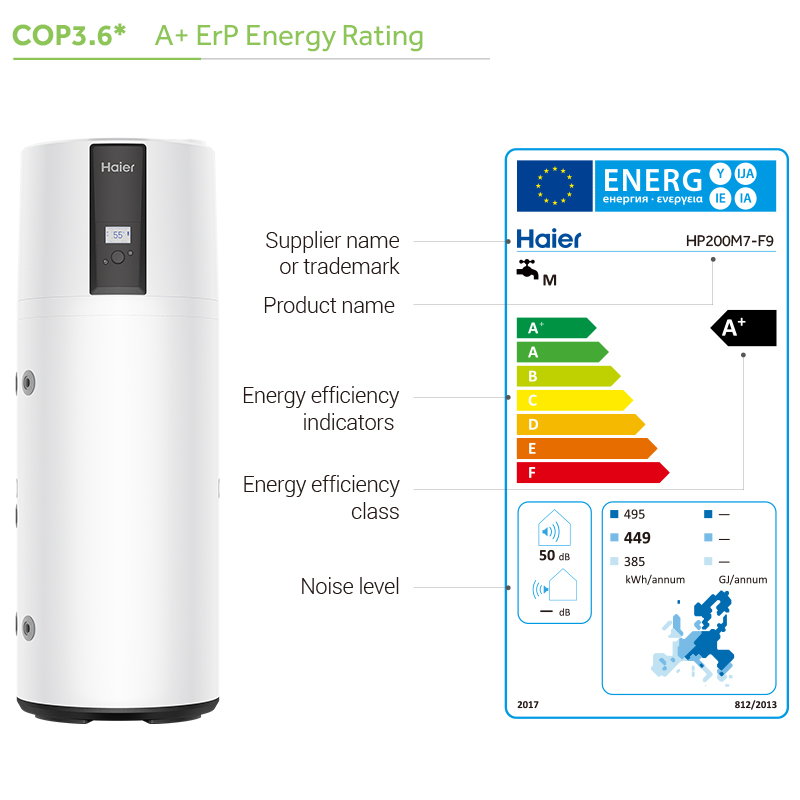

| COP@7°C(EN16147) | 3.2 | 3.2 | 3.23 | 3.21 |
| COP@14°C | 3.6 | |||
| Power input by electric backup(W) | 1500 | |||
| Rated power input by heat pump(W) | 320 | |||
| Maximum power input by heat pump(W) | 535 | |||
| Maximum power input(W) | 2035 | |||
| Heating water capacity(L/h) | 24 | |||
| Heating up time(10°C/55°C)@7°C(h) | 7 | 6.8 | 10.5 | 10.3 |
| Default temperature setting(°C) | 65 | |||
| Temperature setting range with heater(°C) | 35-75 | |||
| Maximum temperature output for the heat pump only(°C) | 65 | |||
| Max working pressure of refrigerant(MPa) | 1.0/3.3 | |||
| Refrigerant type/weight(kg) | R290/0.15 | |||
| Sound power level *@1 metre(dB(A)) | 50 | |||
| V40(L) | 239 | 228 | 307 | 295 |
| Ambient temperature of heat pump(°C) | -7~45 | |||
| Dimensions and connections | ||||
| Water inlet and outlet connection | Rp 3/4 | |||
| TPR valve connection | Rp 3/4 | |||
| Drain & water inlet connection | Rp 3/4 | |||

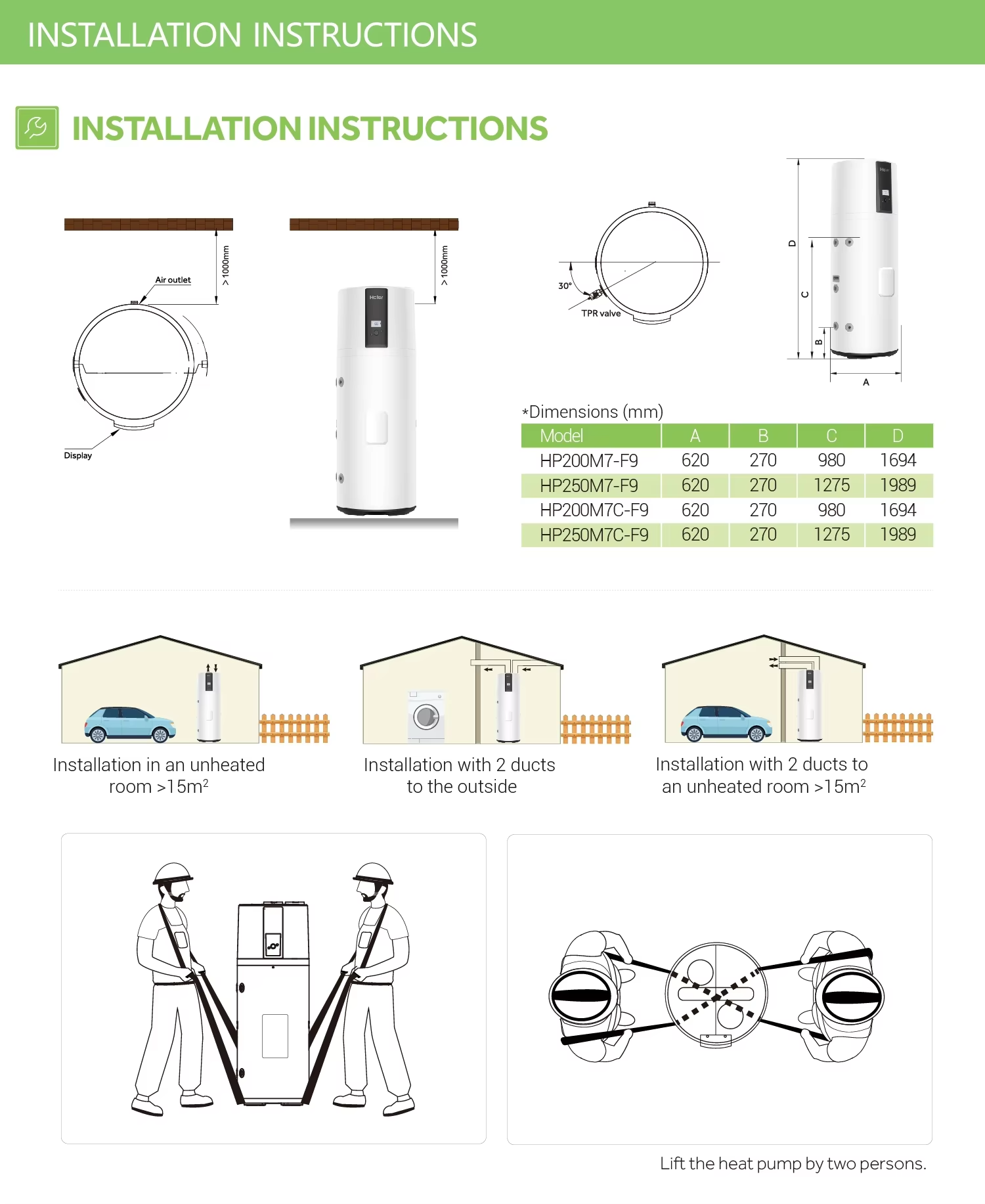

| Product dimensions(mm) | 600*620*1694 | 600*620*1694 | 600*620*1989 | 600*620*1989 |
| Packing dimension with pallet(mm) | 736*695*1940 | 736*695*1940 | 736*695*2250 | 736*695*2250 |
| Net/gross weight(kg) | 86/109 | 96/119 | 98/121 | 107/131 |
| Filled weight of the appliance(kg) | 281 | 282 | 347 | 349 |
|
*The COP and noise level data was tested in the lab. The COP values obtained with external air temperature of 7°C and 14°C, inlet water temperature of 10°C and set temperature of 55°C (according to EN 16147). |
||||

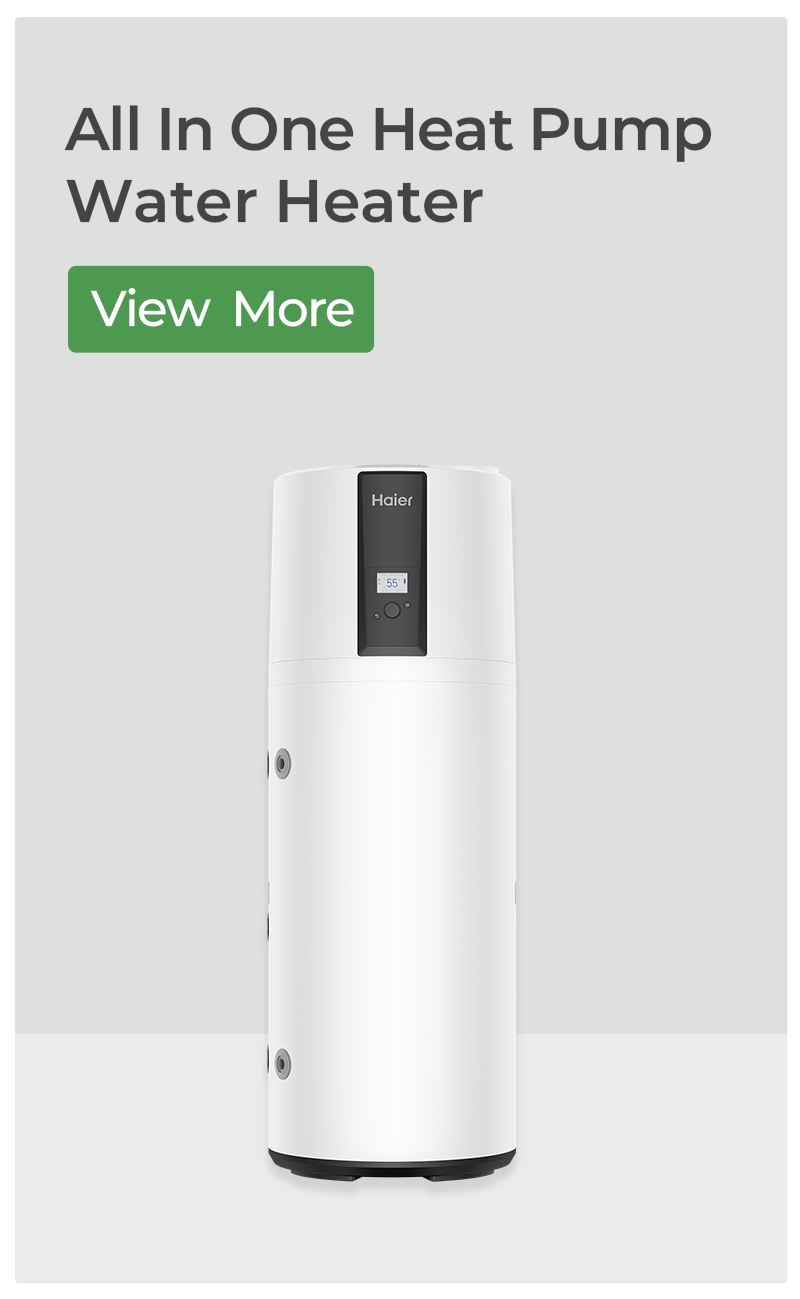

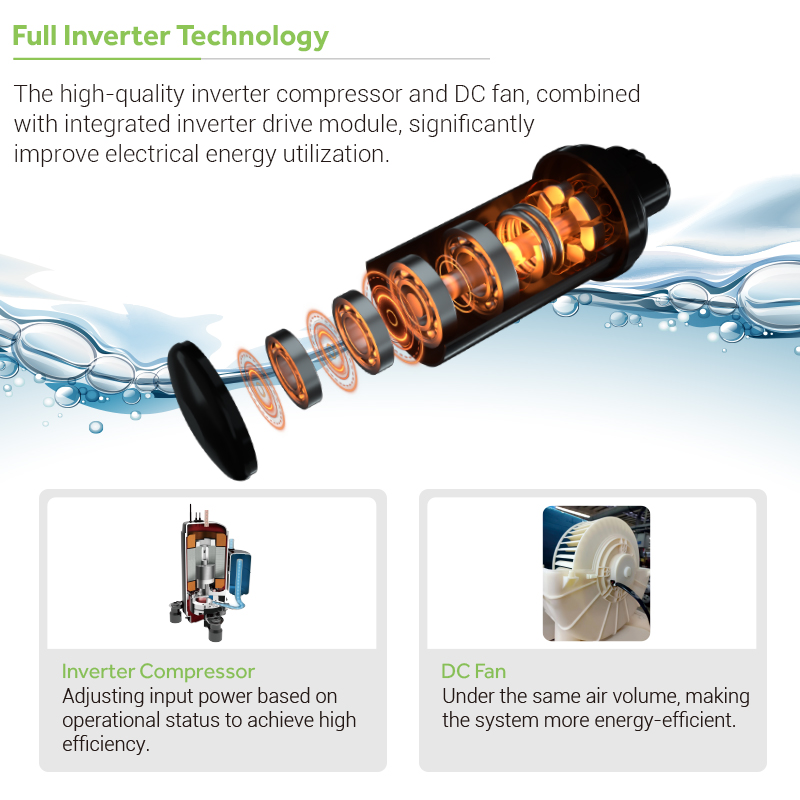

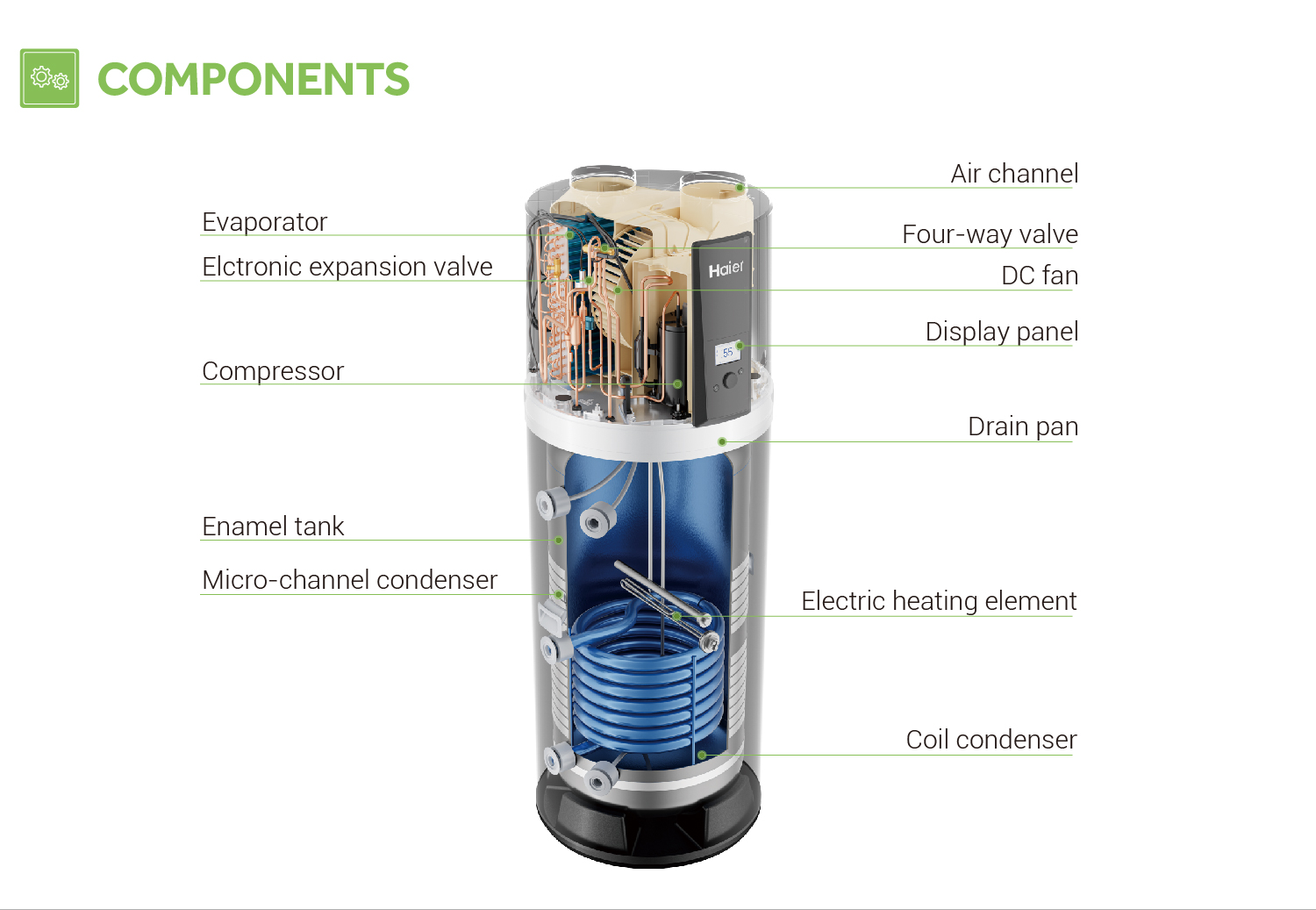

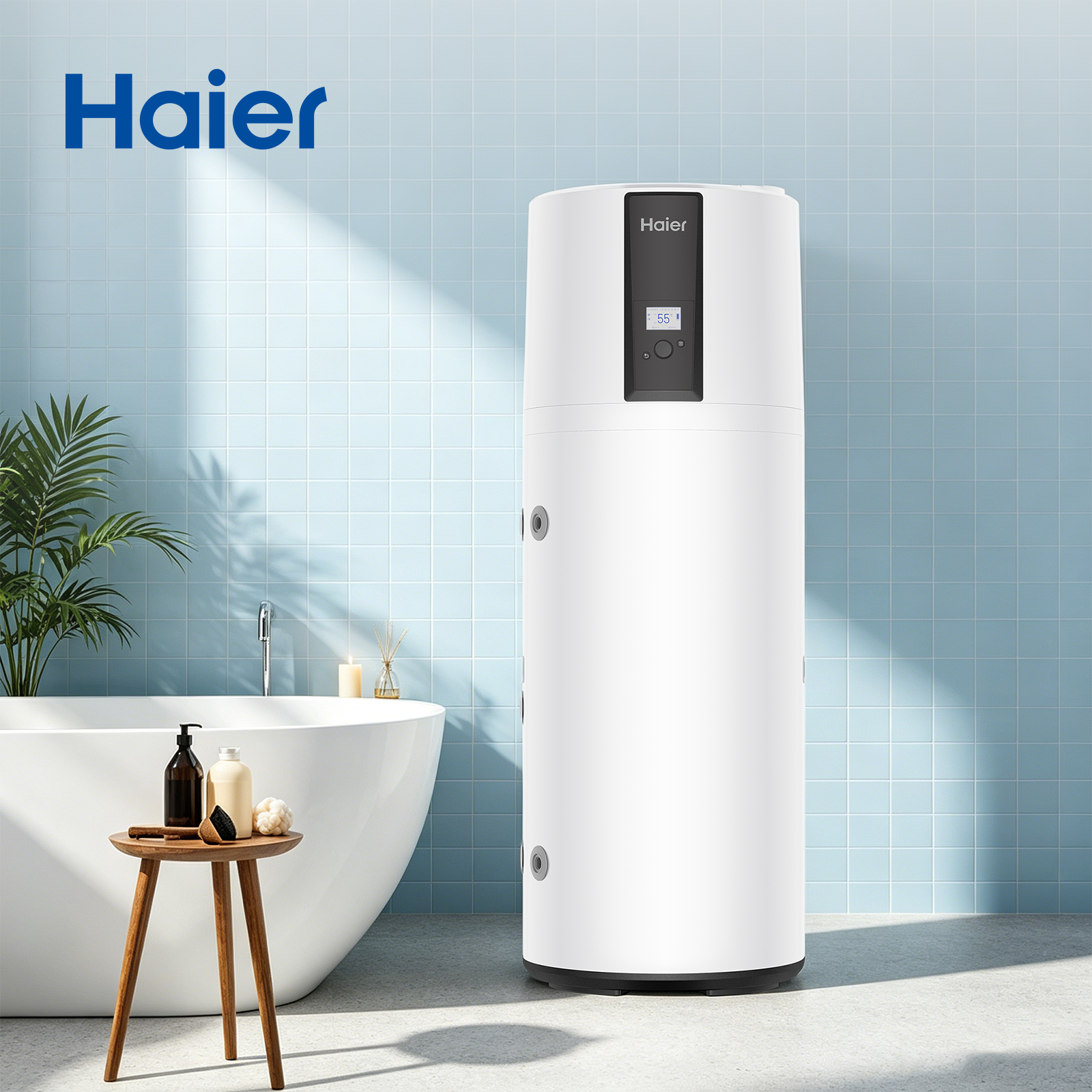

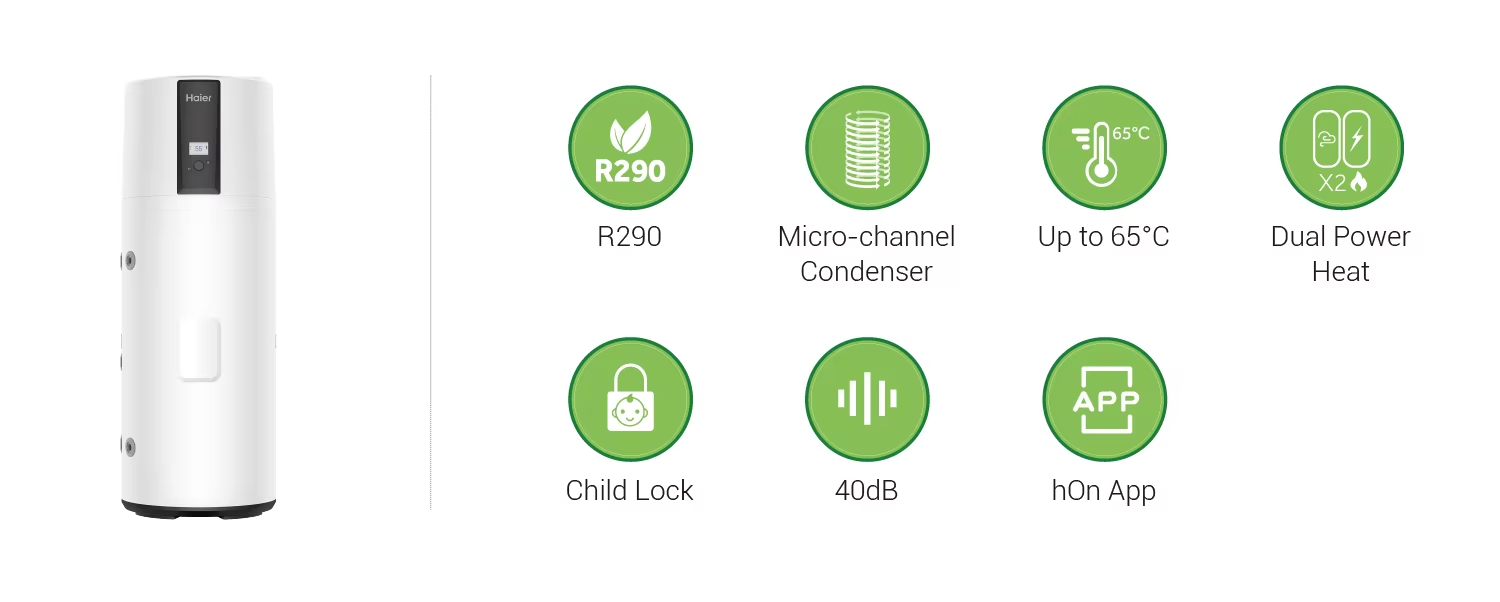

1. High-performance heat pump water heater, featuring a precise electronic expansion valve, efficient four-way valve, powerful compressor, and a well-designed enamel tank for durability.
2. Micro-channel condenser, electric heating element, DC fan, and magnesium rod work together to enhance energy efficiency, extend the unit's lifespan, and deliver reliable performance for your home.
3. Intuitive display panel and control features make it easy to monitor and adjust settings.
A comprehensive enterprise specializes in the research, development, and manufacturing of solar energy systems, heat pumps, and refrigeration equipment, providing innovative and energy-efficient solutions for both domestic and international markets.

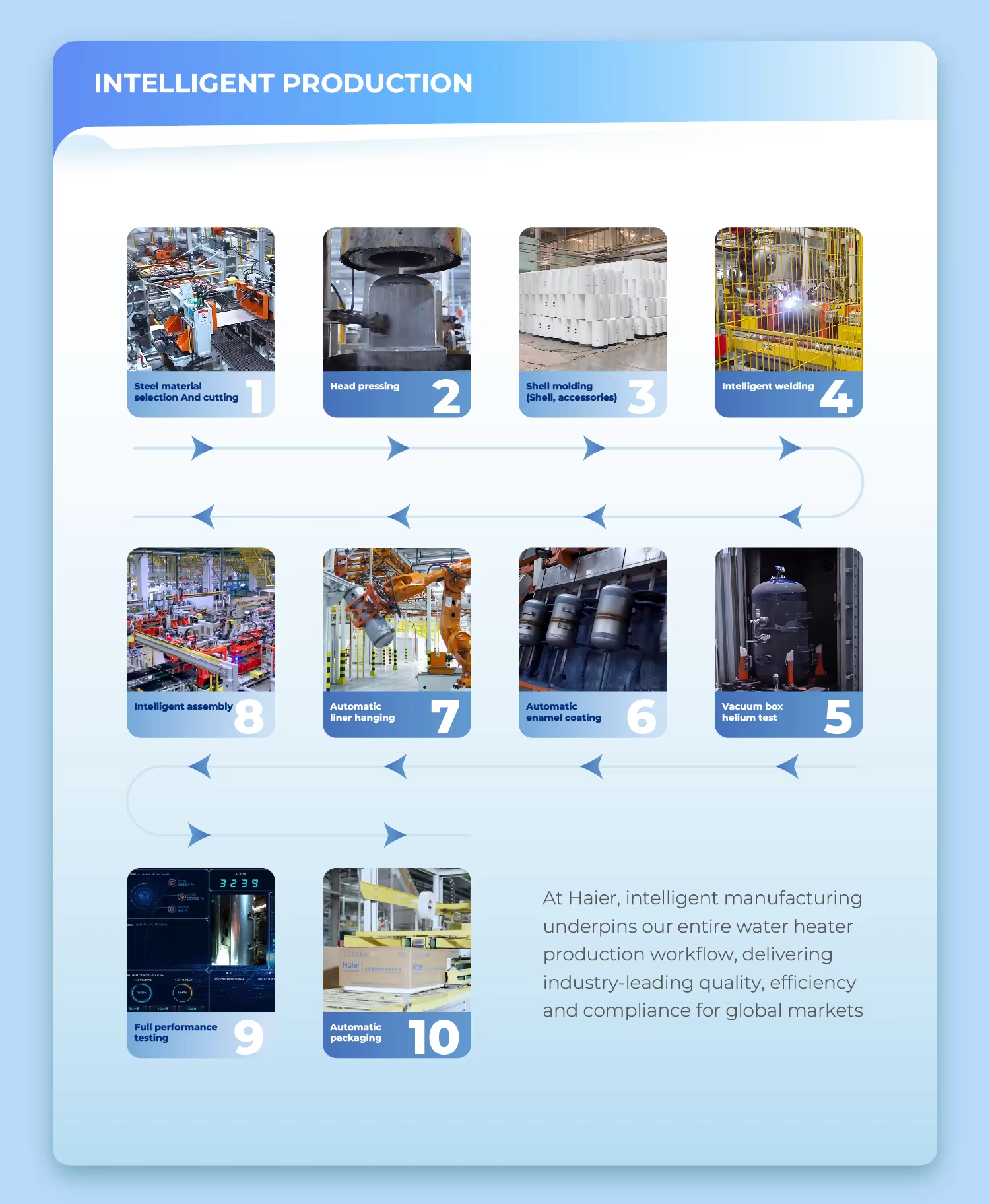

Our extensive production capabilities are supported by advanced facilities, including seven assembly lines and seven welding lines. Covering an area of 52,889 square meters, our factory employs 484 skilled professionals, among whom 40 are experienced R&D engineers holding postgraduate and undergraduate degrees, driving continuous innovation and technical excellence across all operations. We continuously drive innovation, introducing new products in just ten days to quickly meet evolving market demands. Our rigorous quality control system, carefully managed by a dedicated team of 10 experienced QA/QC inspectors, ensures every product meets the highest international standards.
