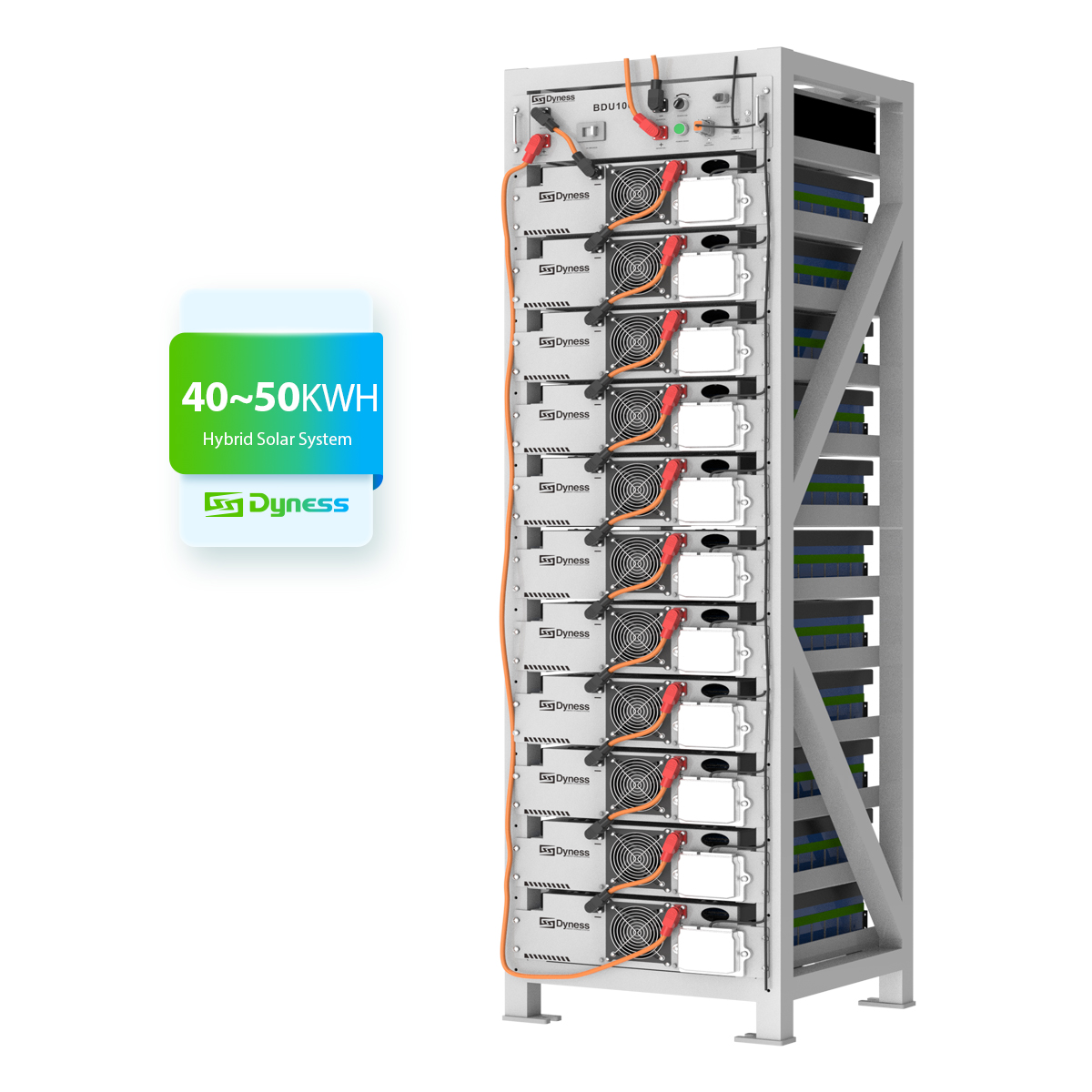

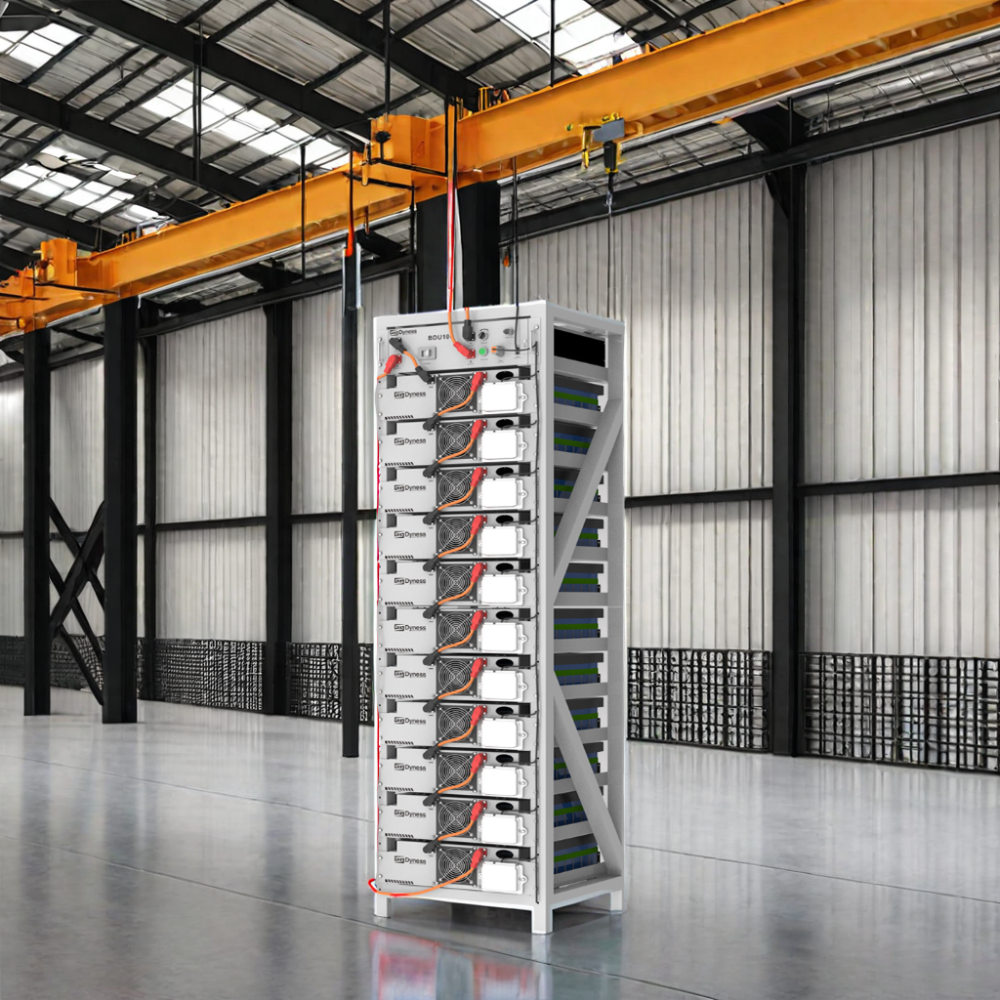

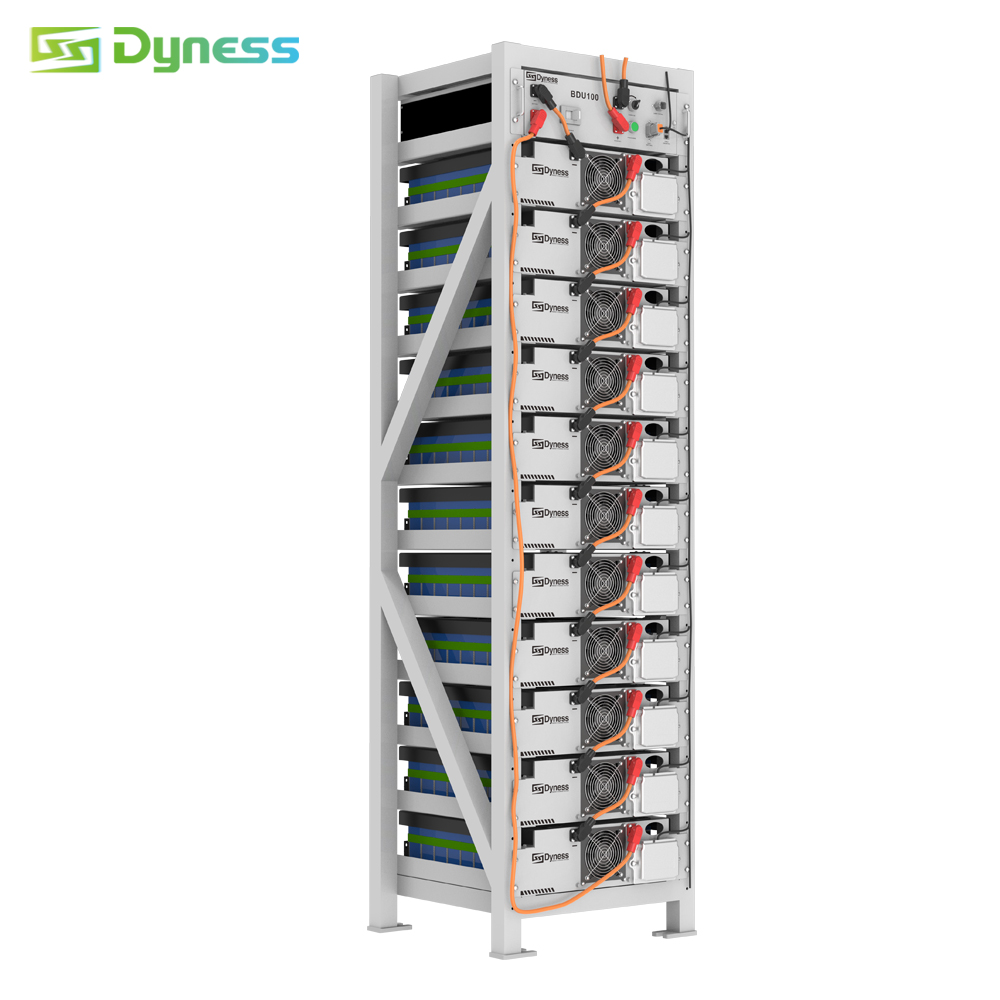

Dyness PowerRack HV4F 40kwh 50kwh High Voltage 1C Discharge Lifepo4 Battery System Home Industrial Use Rack Mounted Off-Grid

Product Description

Specification

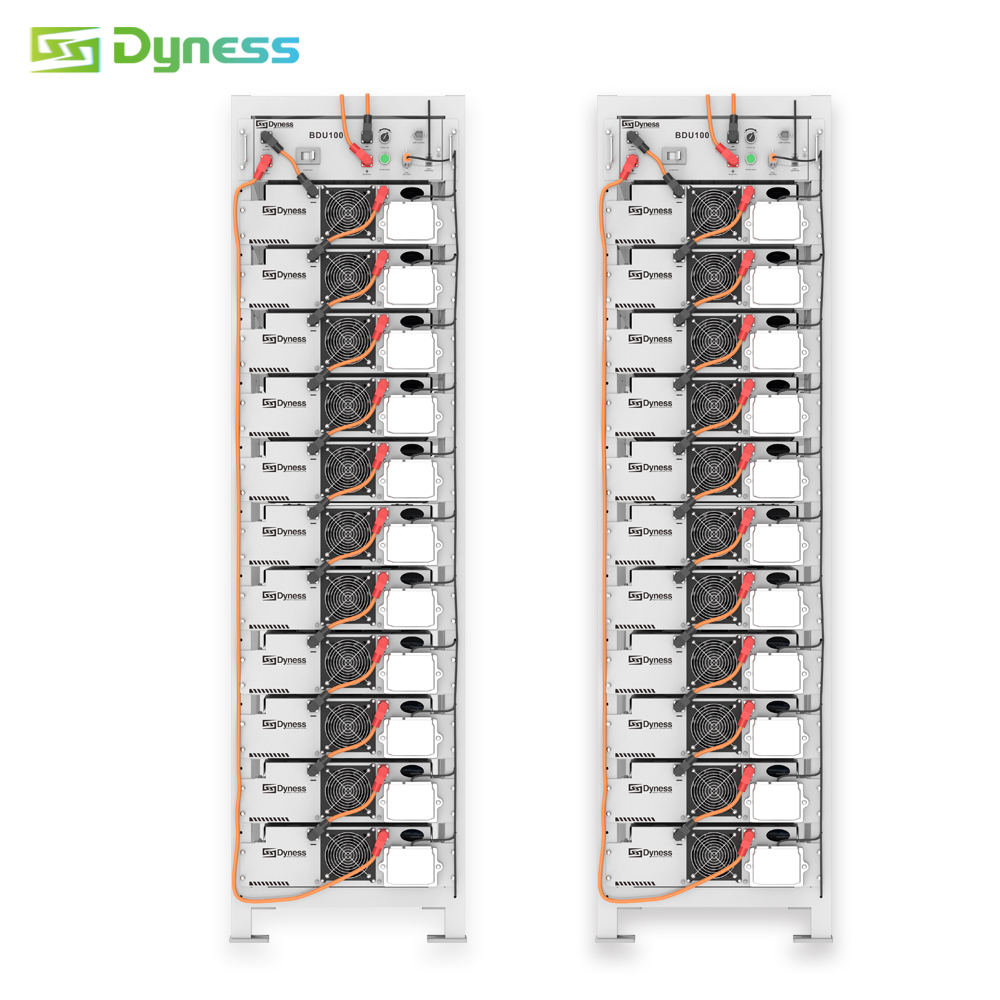

Specification Image 1 Specification Image 2

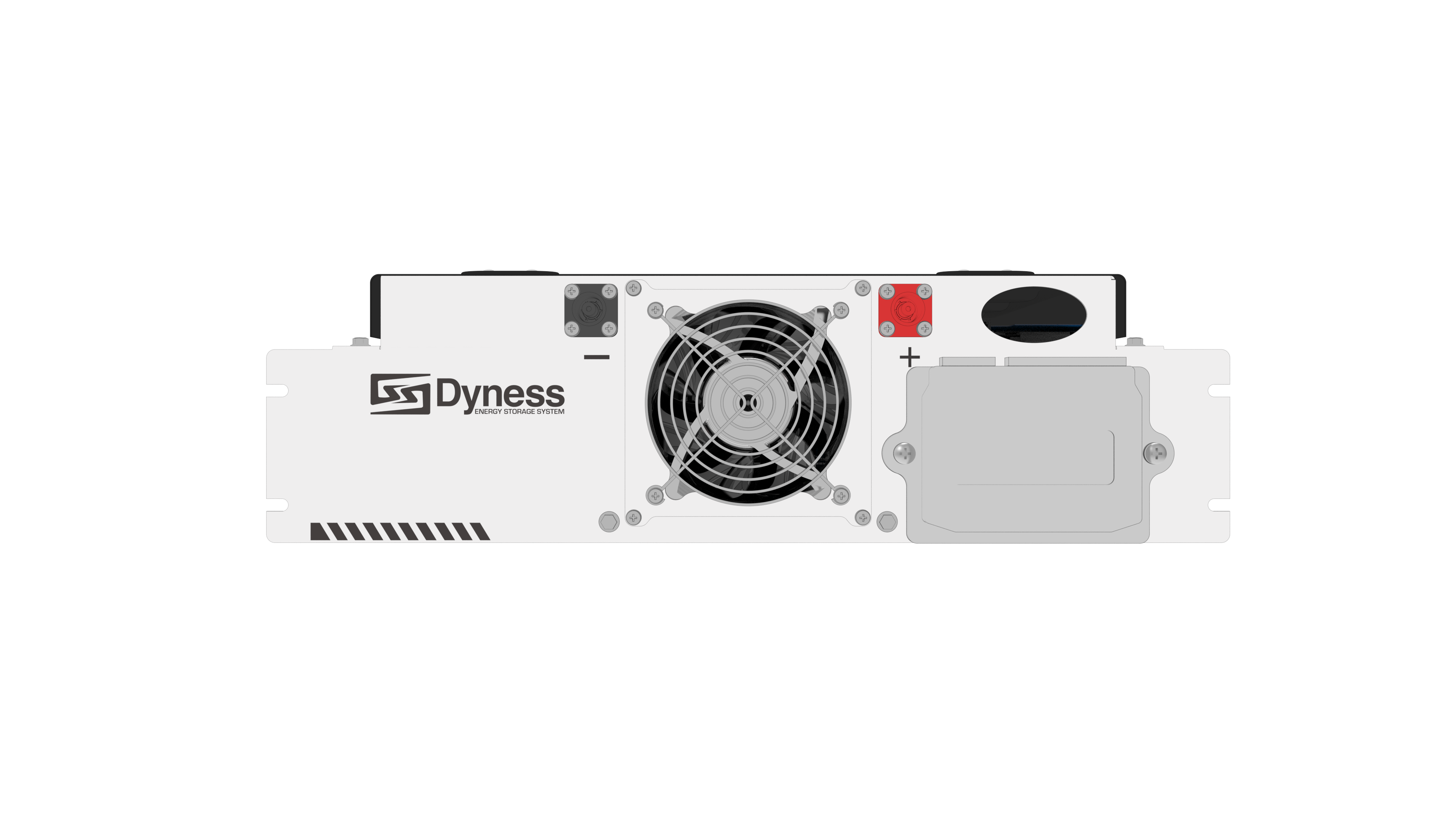

Pack HV51100F
Battery type Lifepo4 battery
Nominal Battery Energy 5.12kwh
Nominal Capacity 100ah
Nominal Voltage 51.2v
Net Weight 47kg
Dimension 548*554*152.8mm
Charging Temp 0~55
Discharging Temp -10~55
Communication Can/RS485
Cycle Life >6000cycle
Protection Level IP20
Expension 7~15UNITS
cetification UN38.3
Item Value
Key Words PowerRACK HV4F
Application Lithium ion Battery, Power Tools, Home Appliances, Consumer Electronics, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies

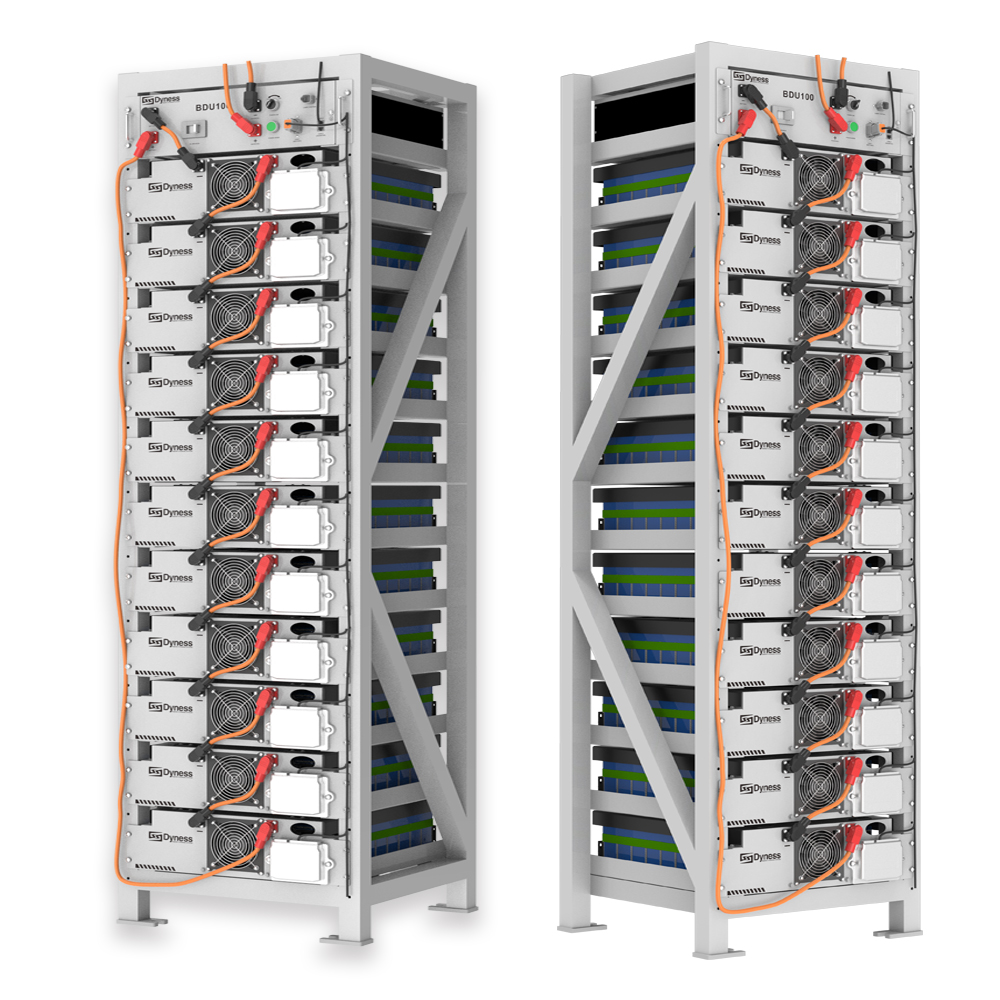

Model Number PowerRack HV4F
Battery Type LiFePO4
Nominal Voltage 409V (8 UNITS) 563V (11 UNITS)
Modules 8 UNITS 11 UNITS
Capacity 100Ah
Nominal Energy 40KWH 56kWh
Cycle Life >6000 Times
Size 594*558*1663 mm 594*558*1663 mm
Weight 296kg 447kg
Protection Level IP20
Rack system Control Unit type BDU100 BDU100
OEM/ODM Warmly Welcomed
Warranty 5~10 Years
Product Description

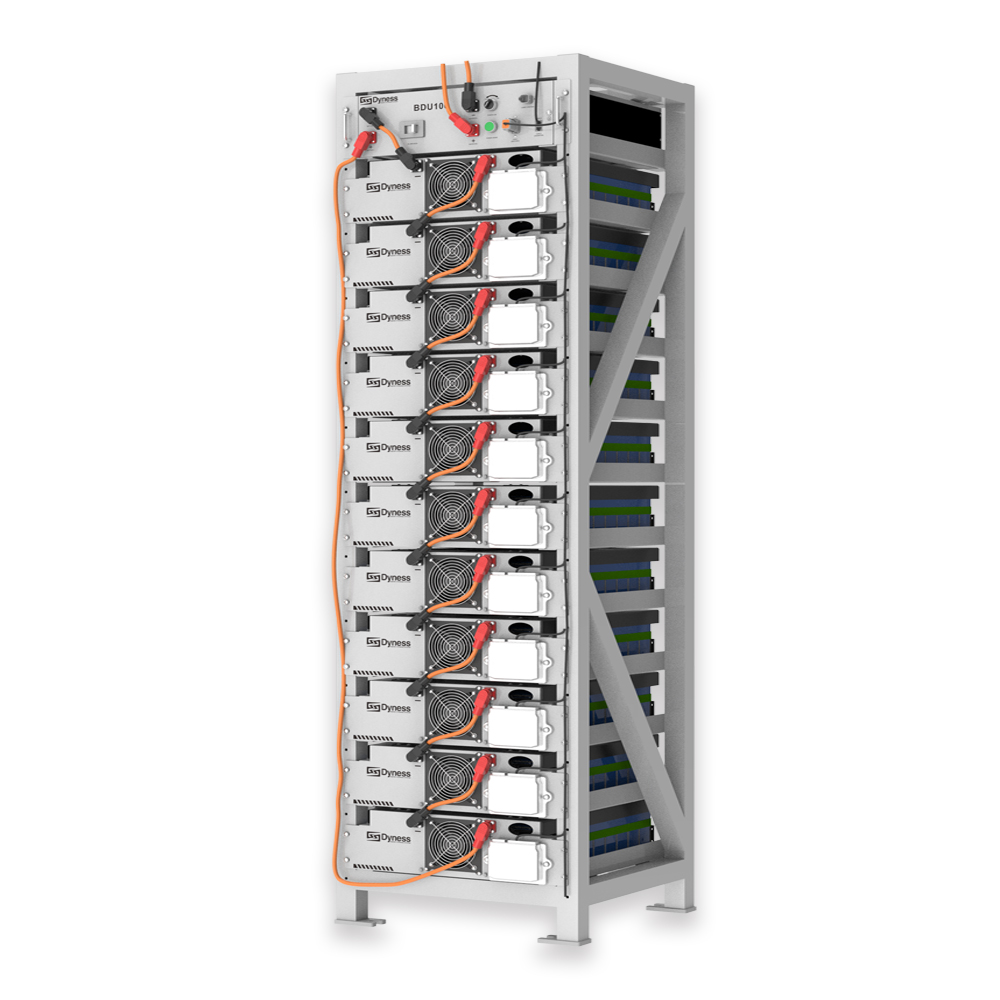

Product Image 1 Product Image 2 Product Image 3 Product Image 4 Product Image 5 Product Image 6 Product Image 7 Product Image 8 Product Image 9 Product Image 10
FAQ
Q How long is the warranty period?
A Our limited warranty is valid for a period of 5 years after delivery. It is restricted by specifications and warranty terms.
Q Can we print our logo on products?
A Of course, we can provide one to one customized OEM with a MOQ demand.
Q How long is the estimated delivery time?
A The delivery time is usually 28 days after receiving the payment.
Q Are you able to handle shipment transportation?
A Sure, we can arrange the shipment to most places as required.

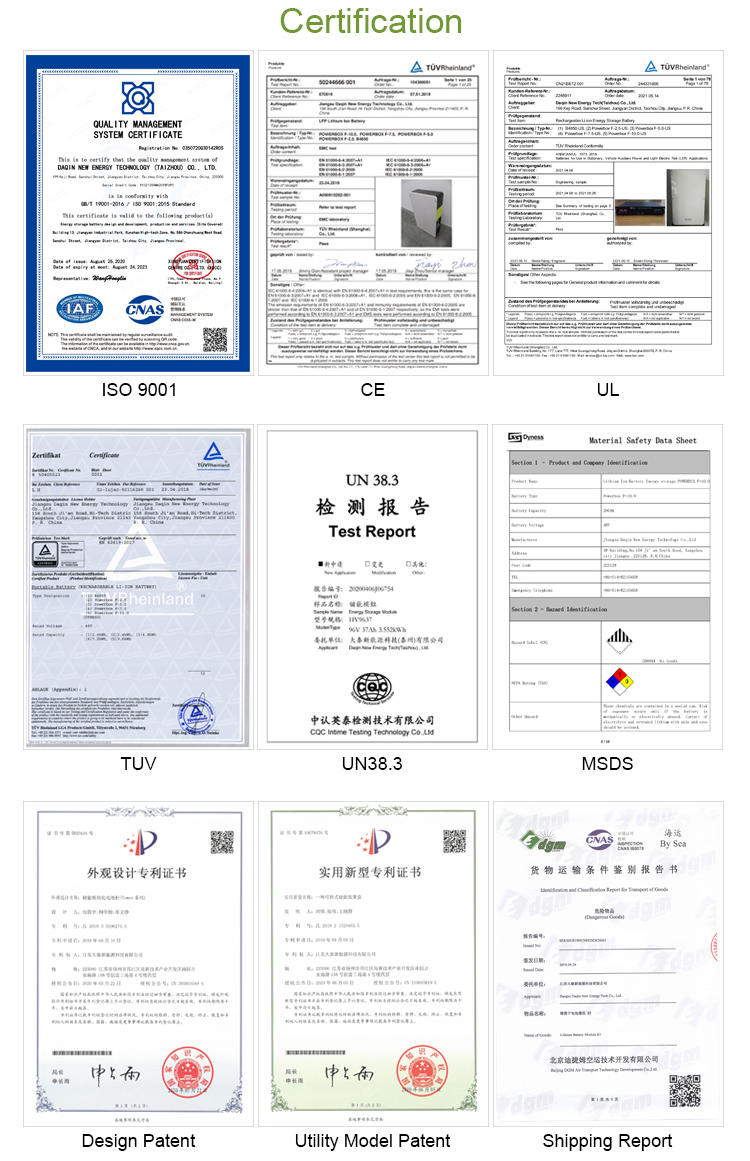

Q What kind of certification do you have?
A In general, we have SGS TÜV Saar, IEC 62040-1, IEC 62109-1, IEC 62109-2, IEC 62619, UN38.3, IEC 62133, CEC, UL, MSDS, ISO 9001 certifications, but each product may be different.
