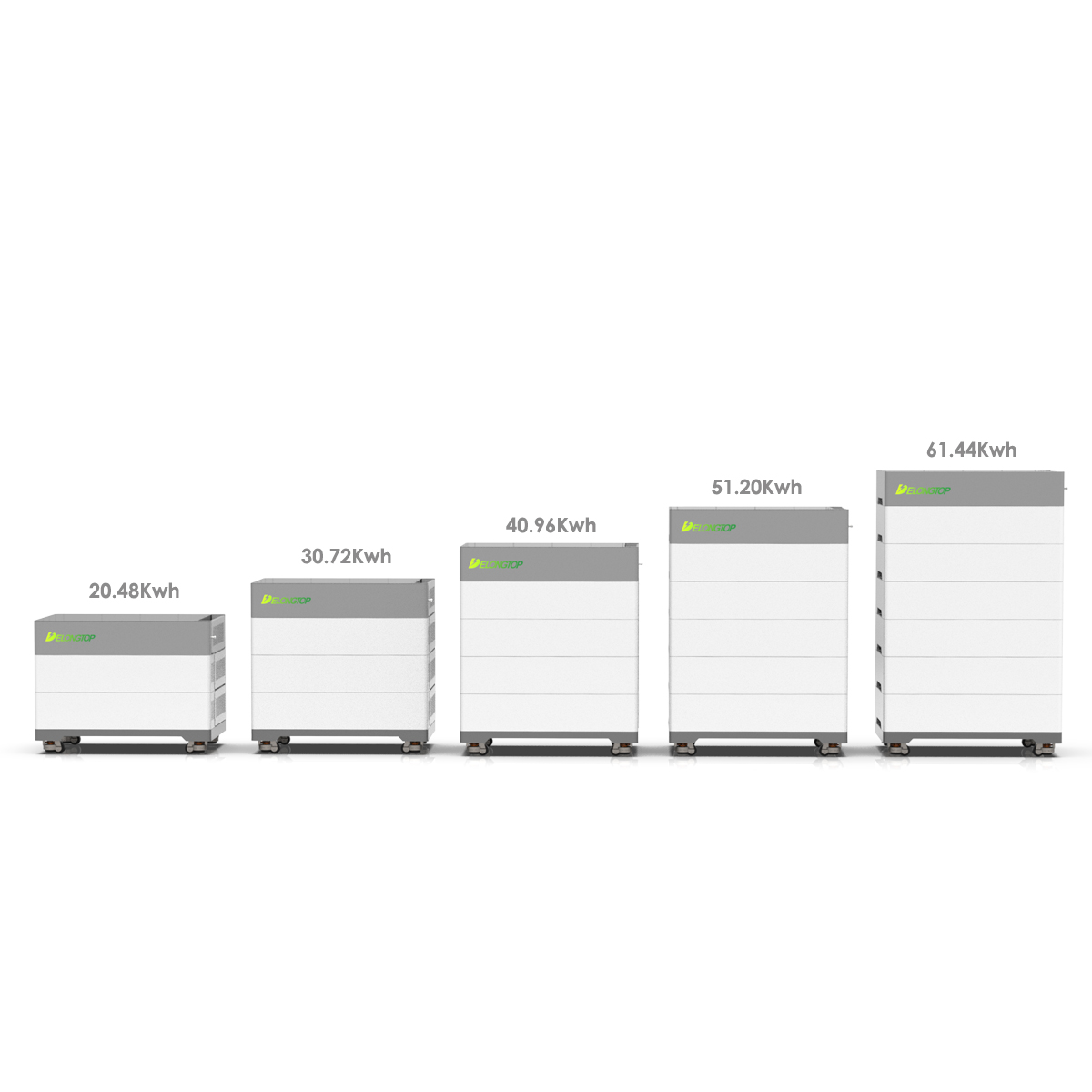

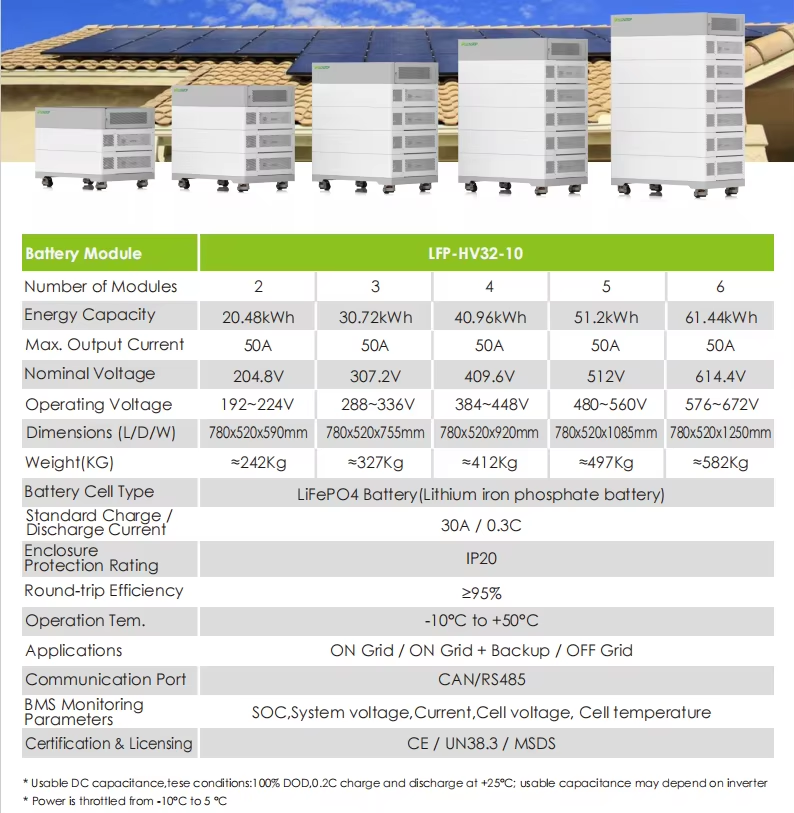

| Single Flat Stackable High Voltage Lithium Ion LiFePO4 Battery 102.4V 100AH = 10KWH (Model: HV32-10) | |||||
|---|---|---|---|---|---|
| Number of Modules | 2 | 3 | 4 | 5 | 6 |
| Energy Capacity | 20.48kWh | 30.72kWh | 40.96kWh | 51.2kWh | 61.44kWh |
| Nominal Voltage | 204.8V | 307.2V | 409.6V | 512V | 614.4V |
| Operating Voltage | 192~224V | 288V-336V | 384~448V | 480~560V | 576-672V |

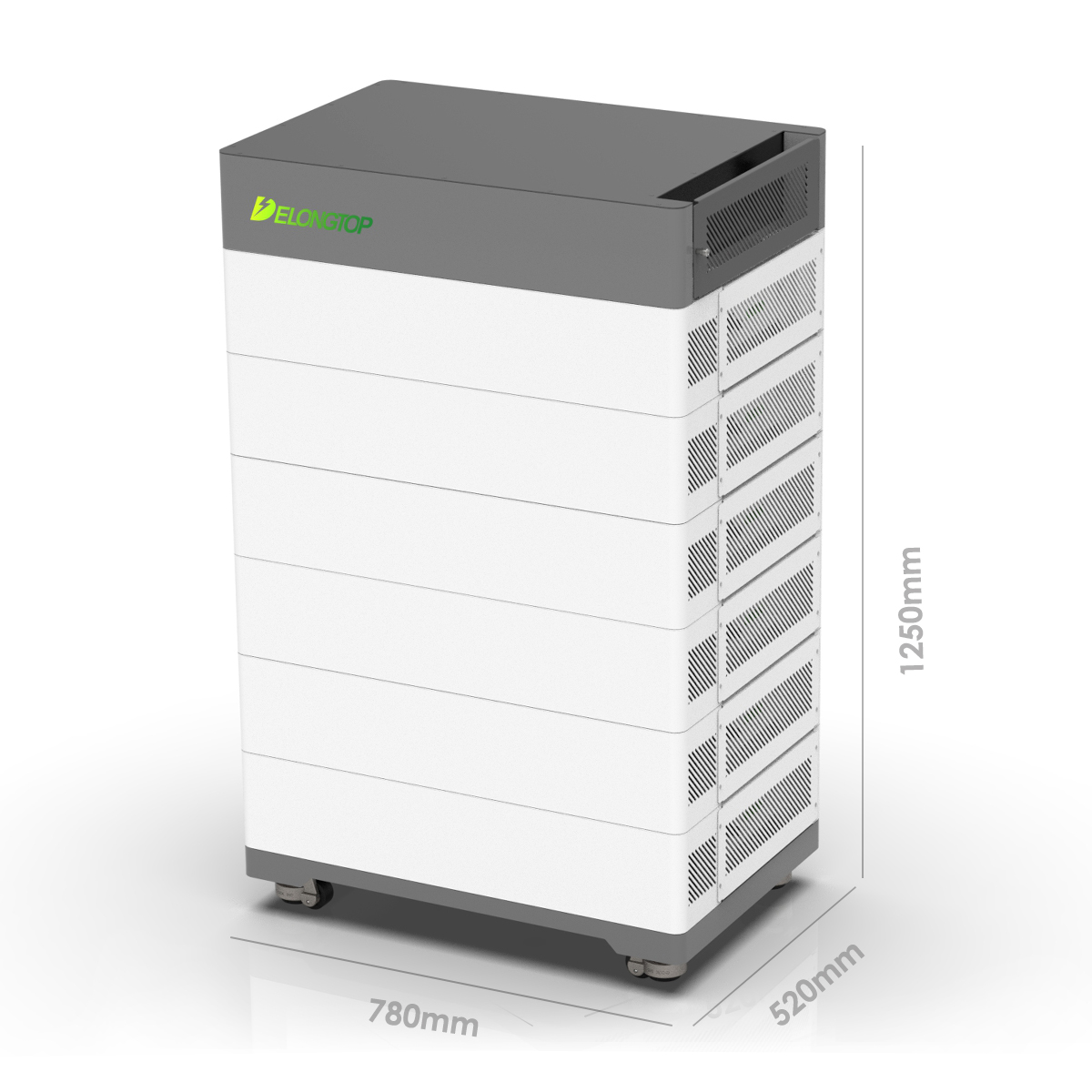

| Dimensions (mm) | 780*520* 590 | 780*520*755 | 780*520* 920 | 780*520 *1085 | 780*520 *1250 |
| Weight | ≈242KG | ≈327KG | ≈412KG | ≈497KG | ≈582KG |
| Max. Output Current | 50A | ||||
| Battery Cell Type | LiFePO4 Battery (Lithium iron phosphate battery) | ||||
| Standard Charge / Discharge Current | 30A / 0.3C | ||||
| Enclosure Protection Rating | IP65 | ||||
| Round-trip Efficiency | 99% | ||||
| Operation Temp. | -10°C to +50°C | ||||

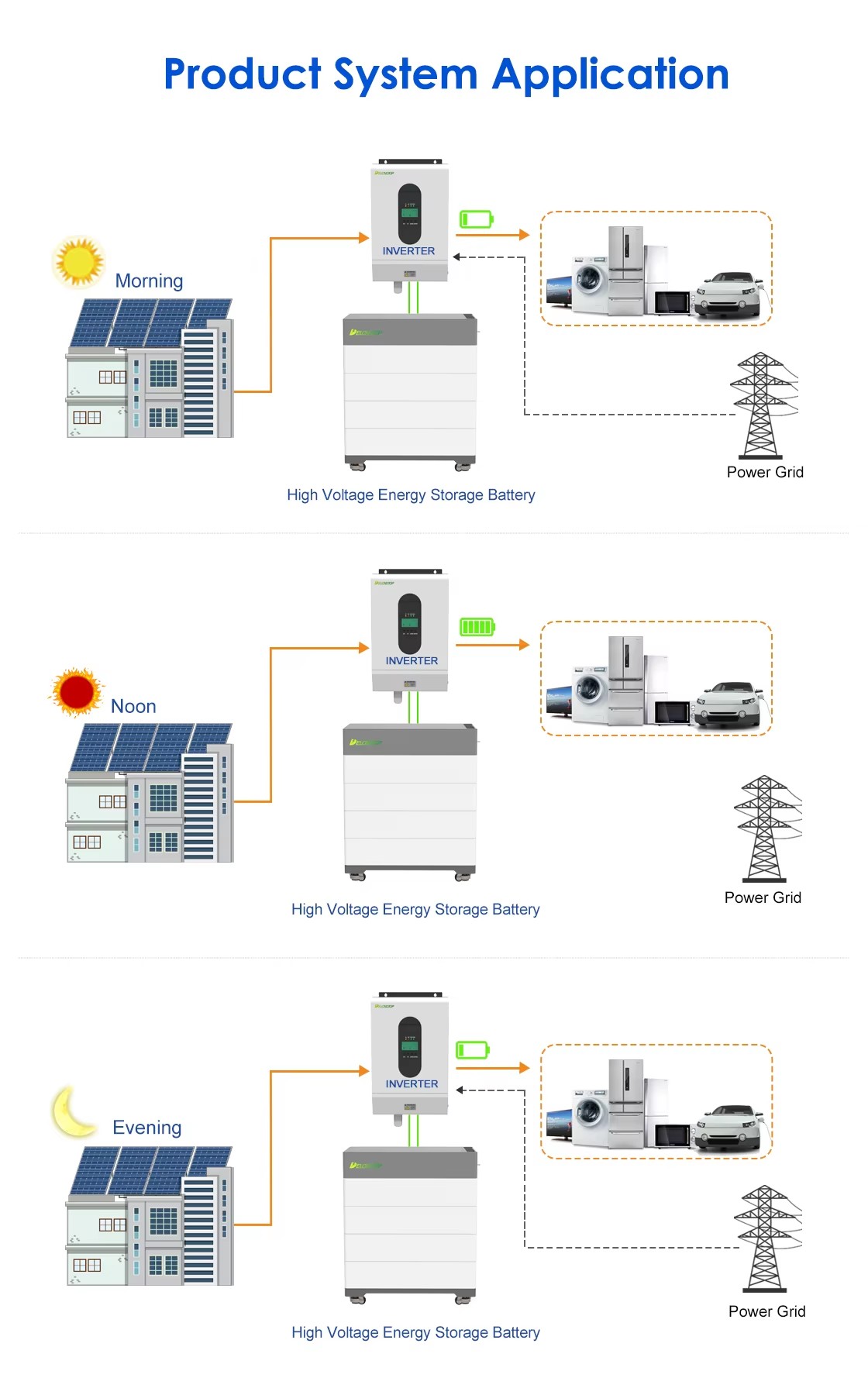

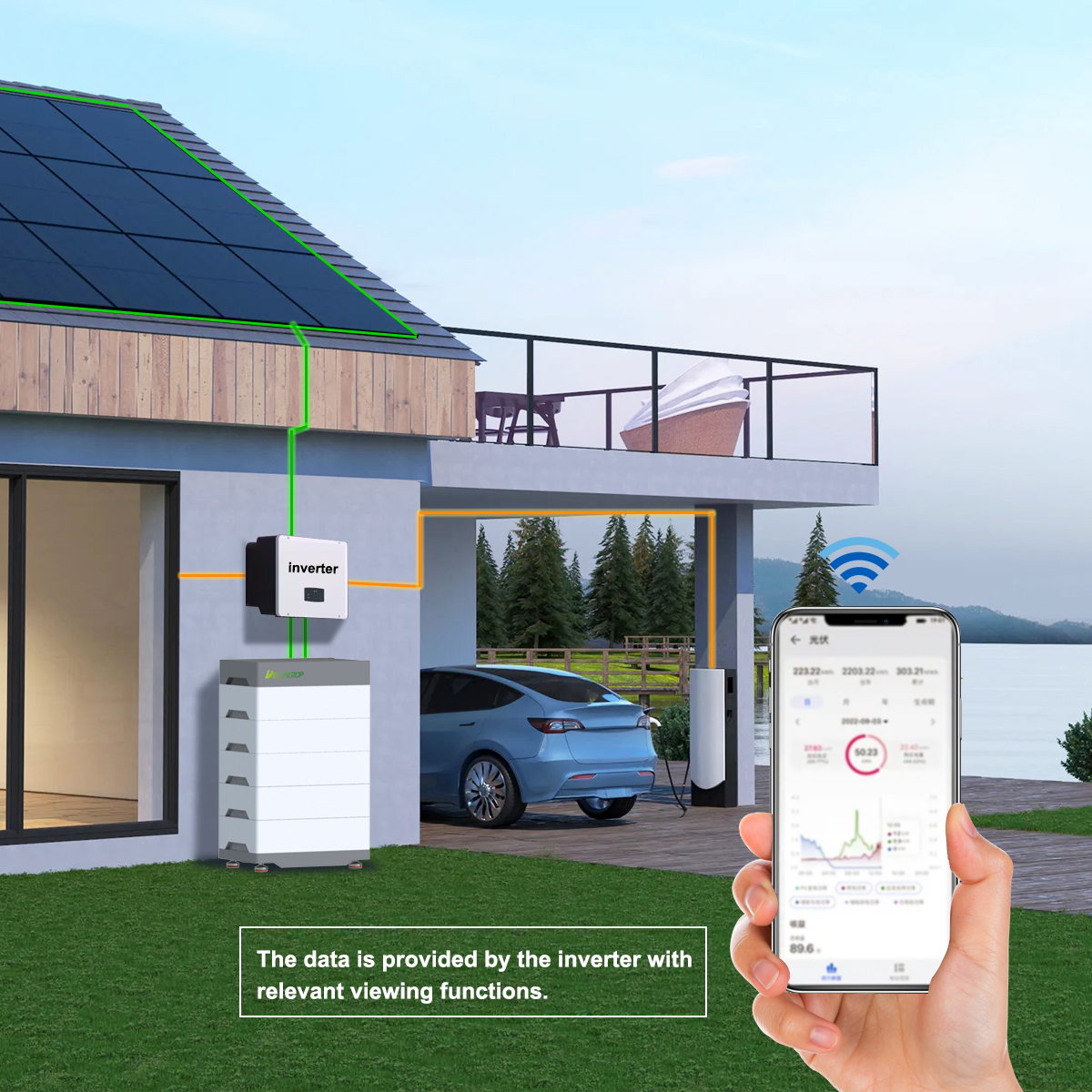

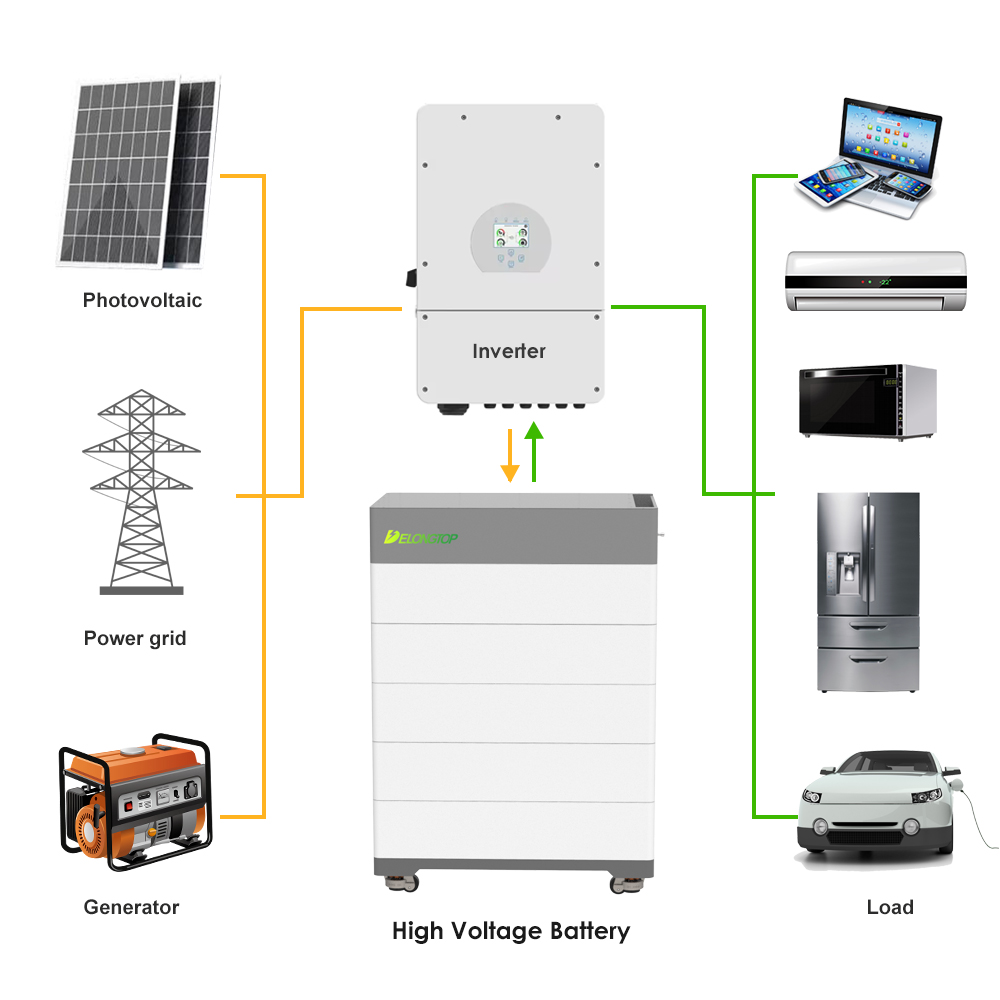

| Applications | ON Grid / ON Grid + Backup / OFF Grid | ||||
| Communication Port | CAN/RS485 | ||||

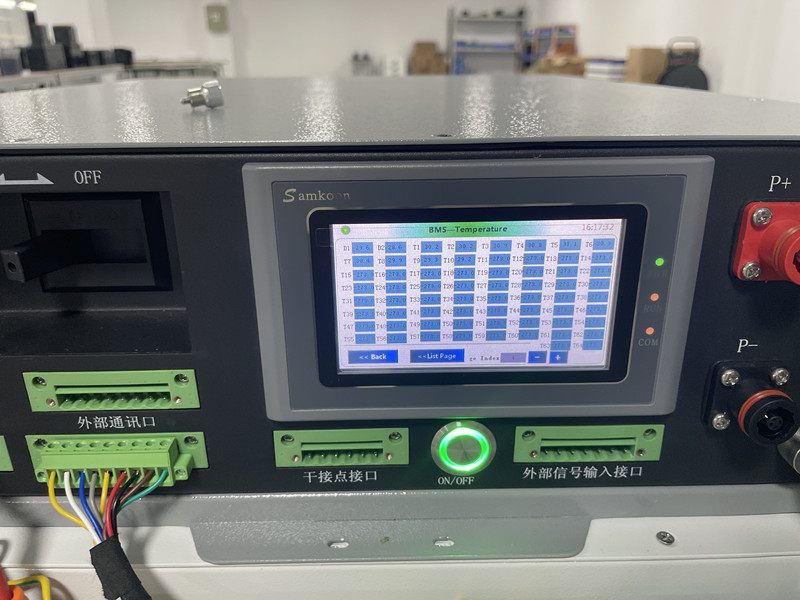

| BMS Monitoring Parameters | SOC, System voltage, Current, Cell voltage, Cell temperature | ||||
| Battery Standard | CE-EMC, UL1642, IEC62619, REACH, RoHS, UN38.3, MSDS | ||||
| Warranty | 10 YEARS | ||||

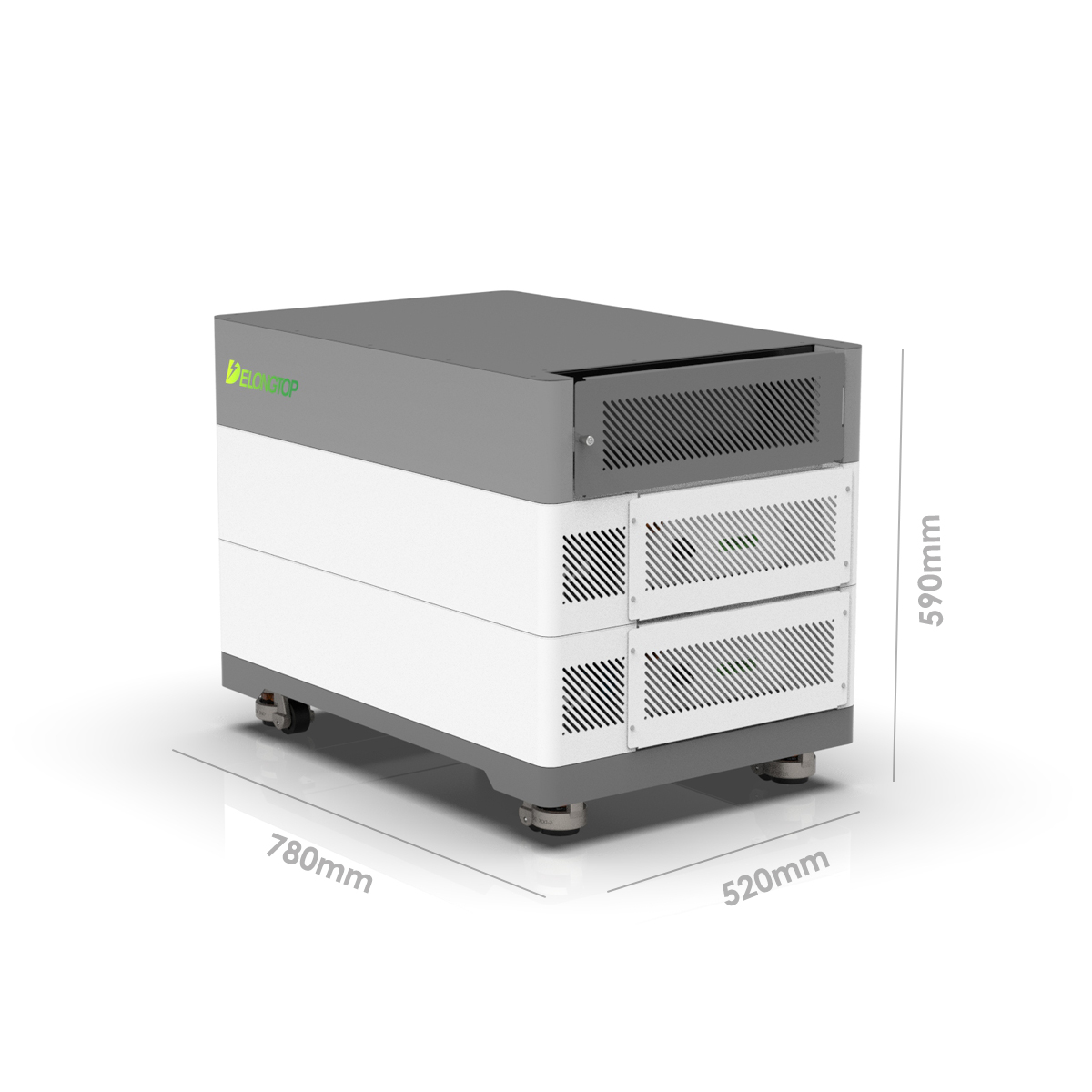

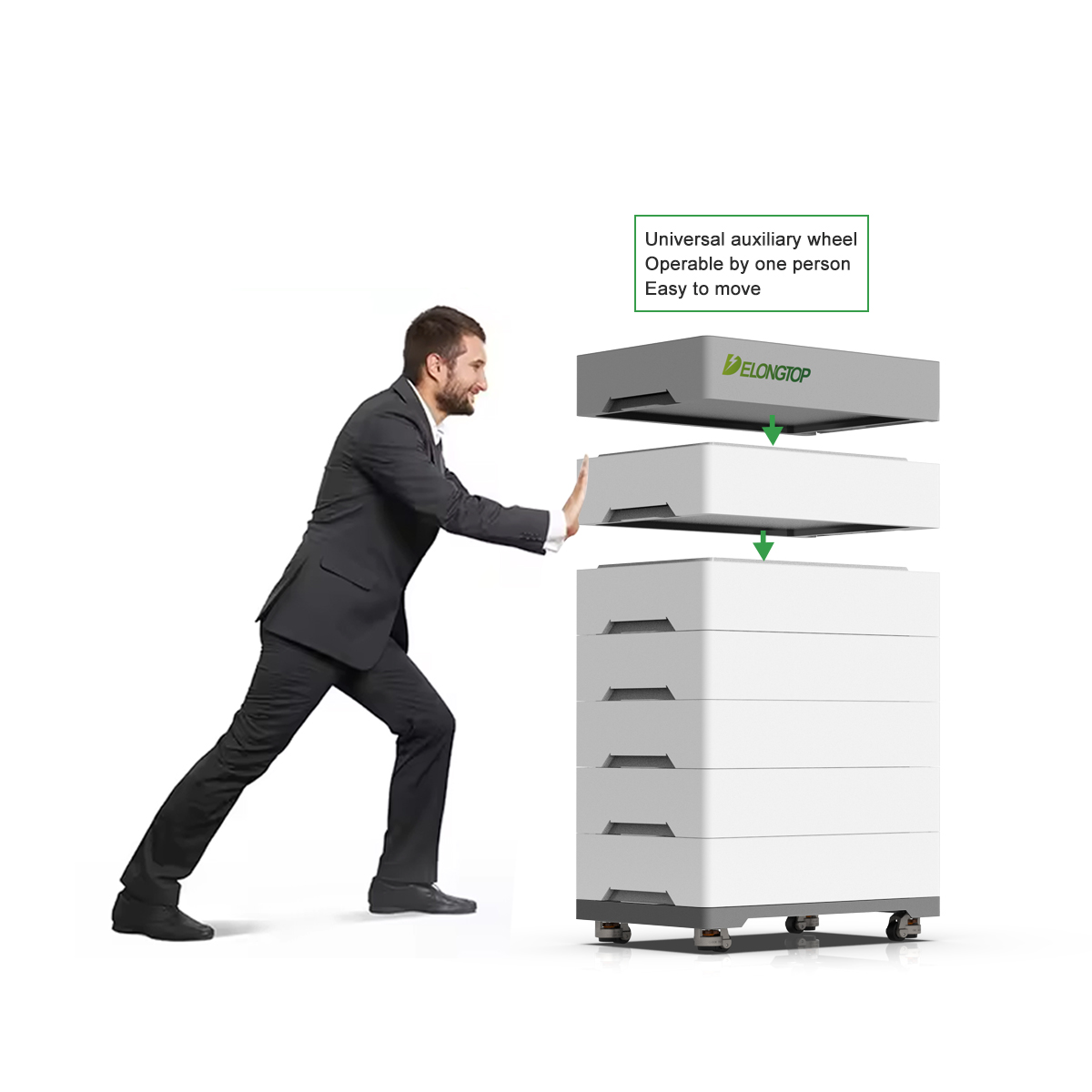

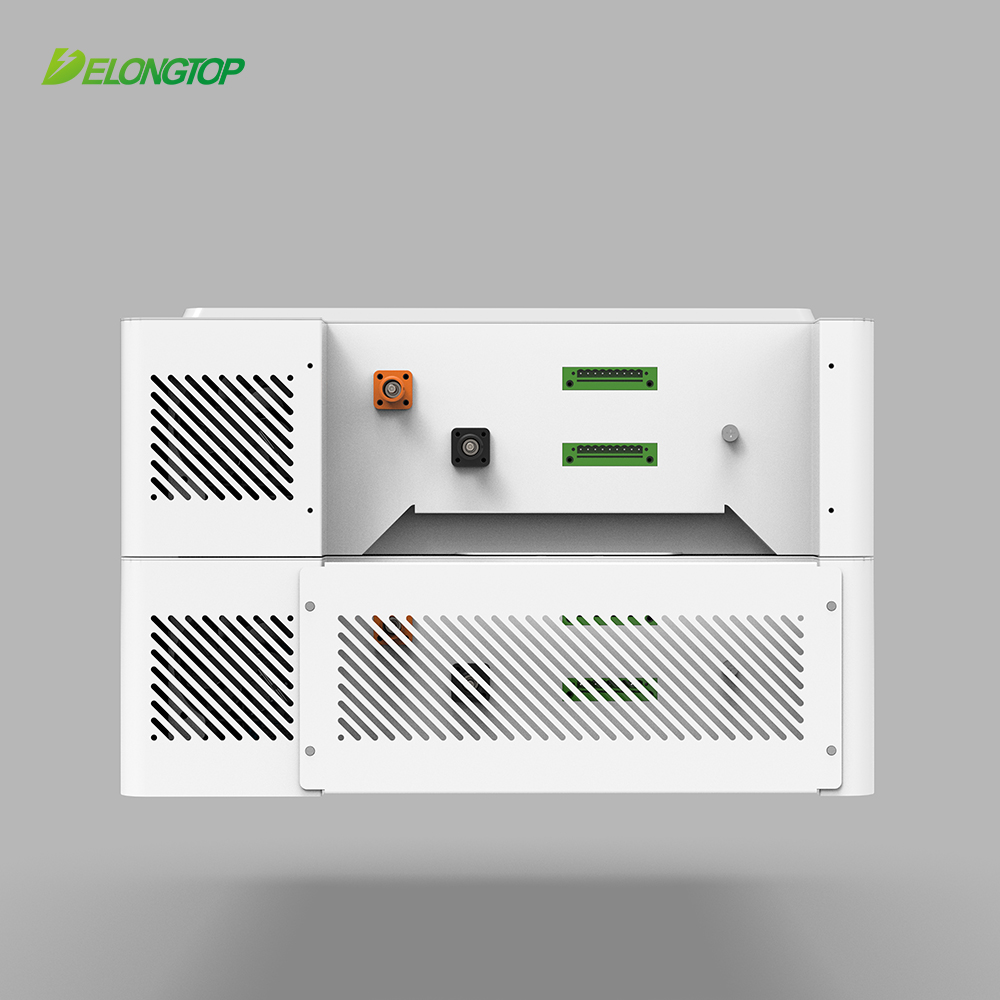

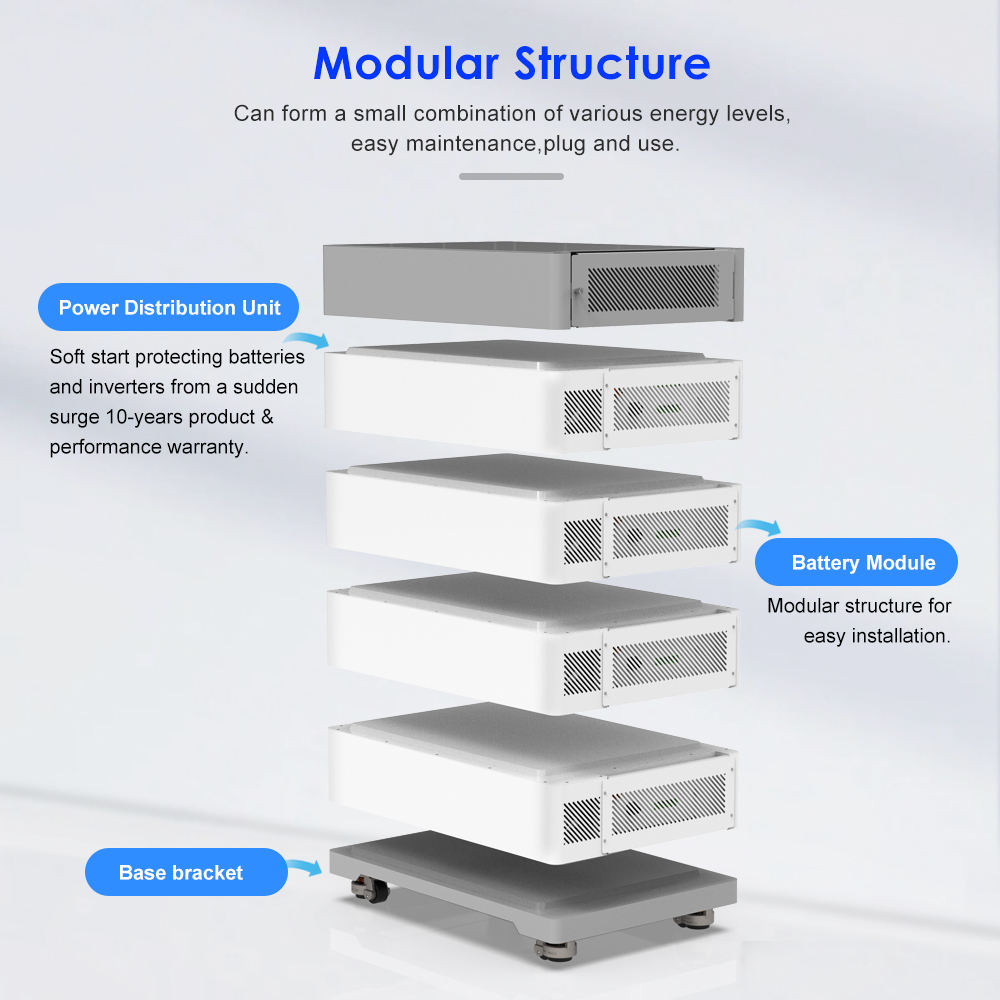

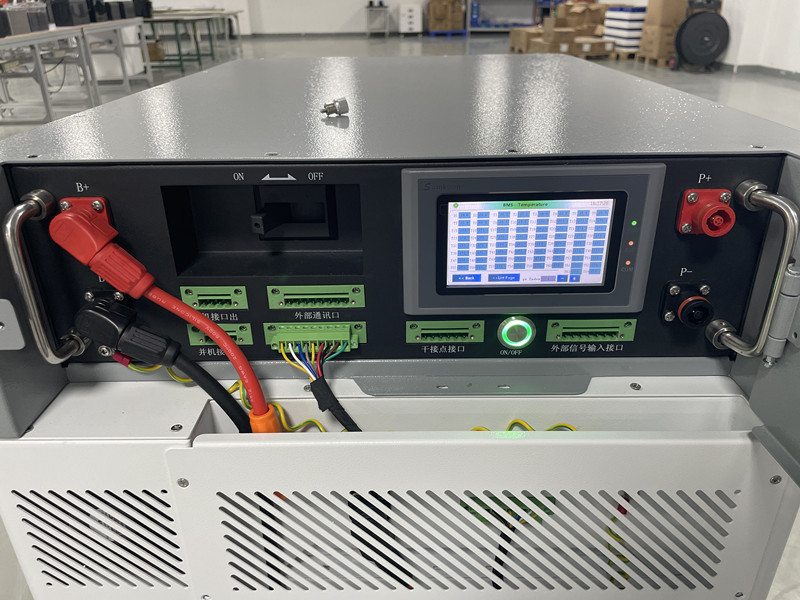

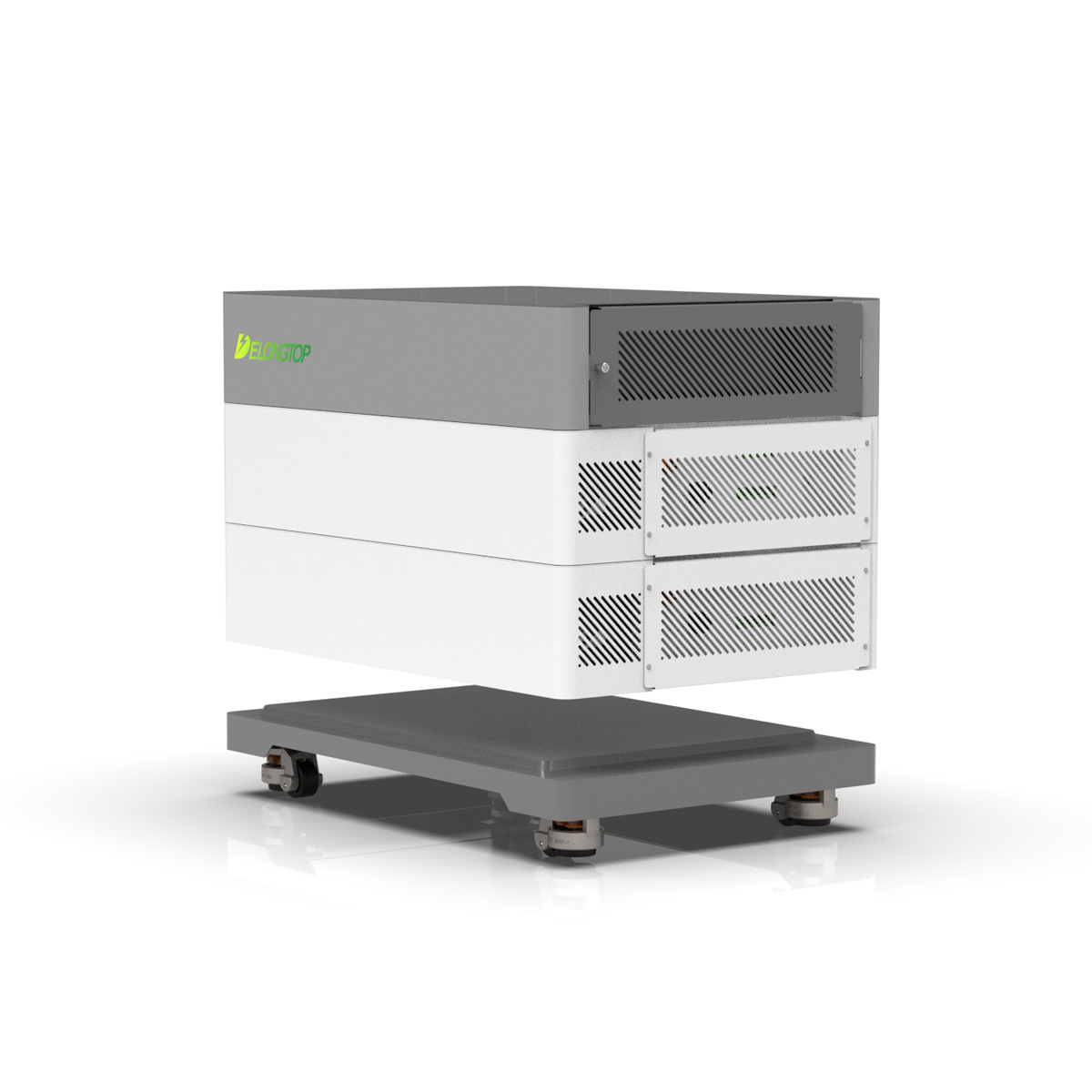

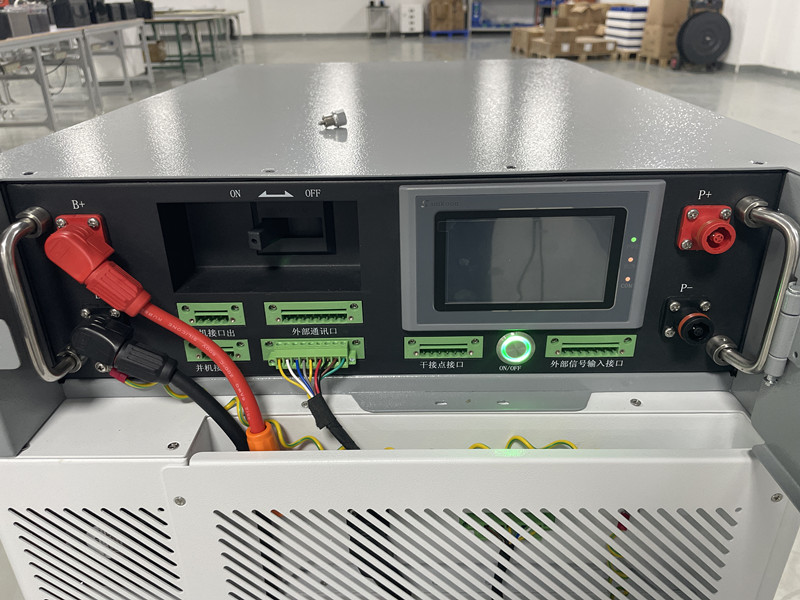

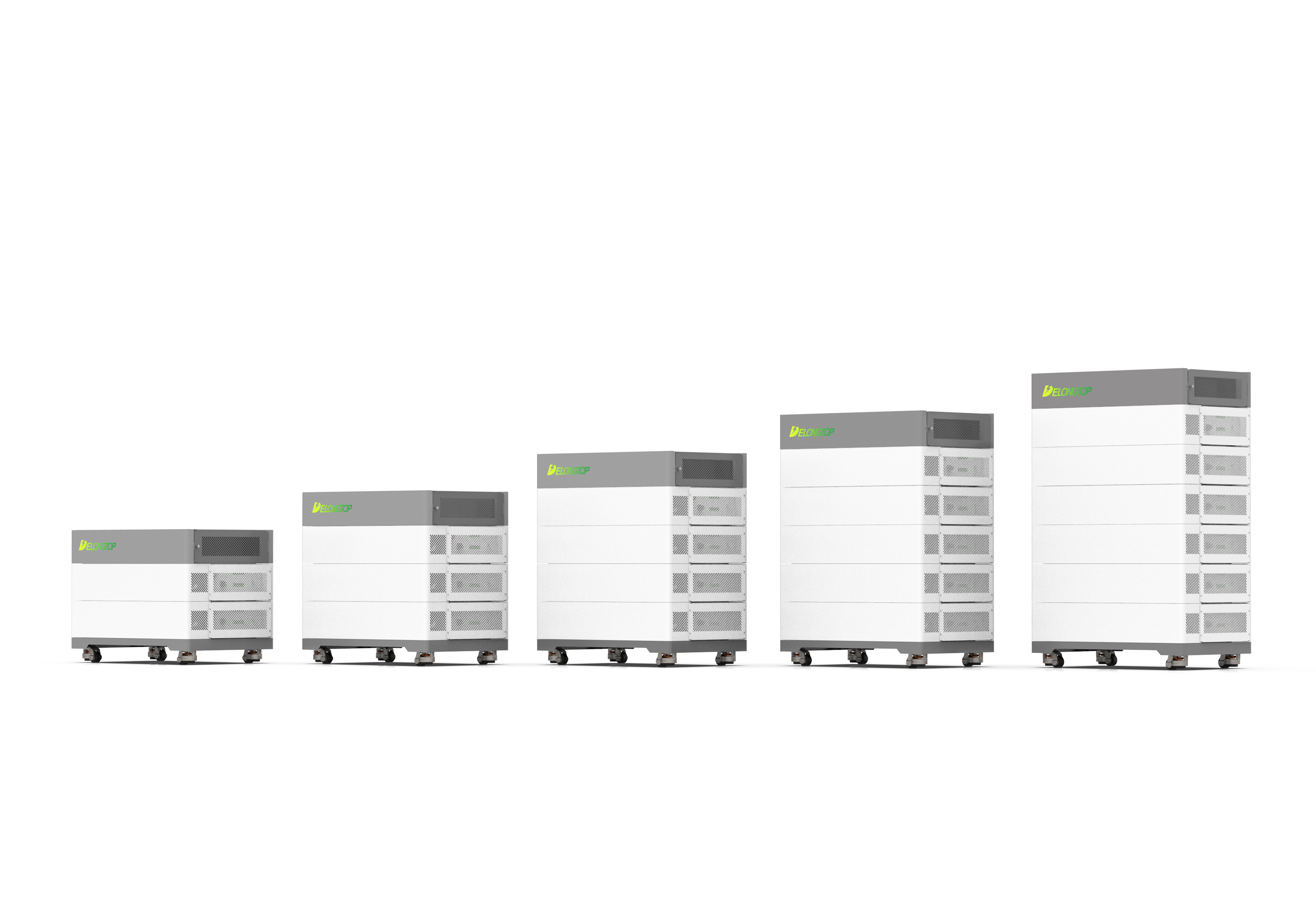

Single Module is 102.4V 100AH = 10KWH. 2PCS 10KWH Stacked in Series to Get 204.8V 20KWH + Control Box on the top + Moveable Base.
Accessories: Communication Cables, Connection Cables, Earth Cable with User Manual.

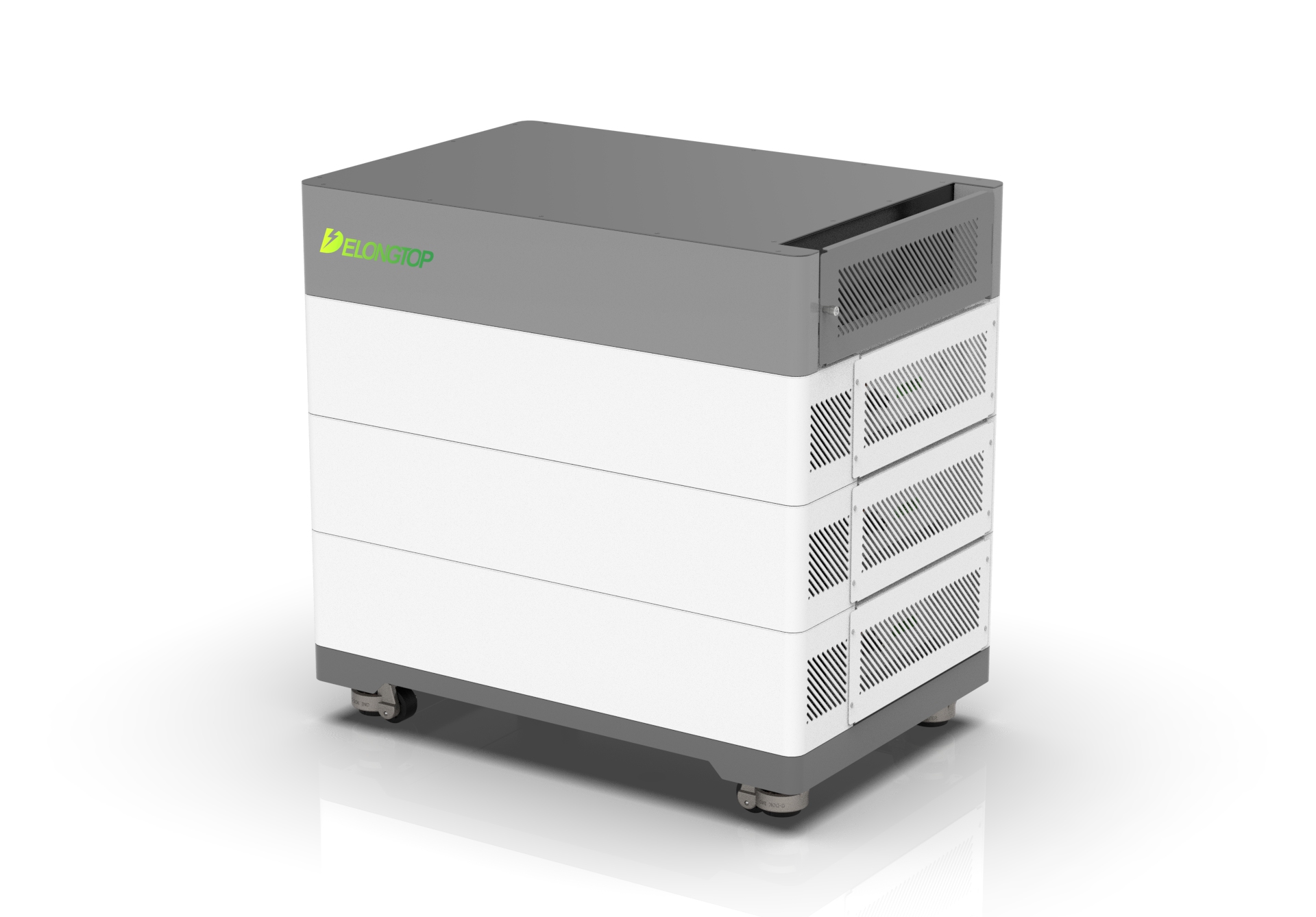

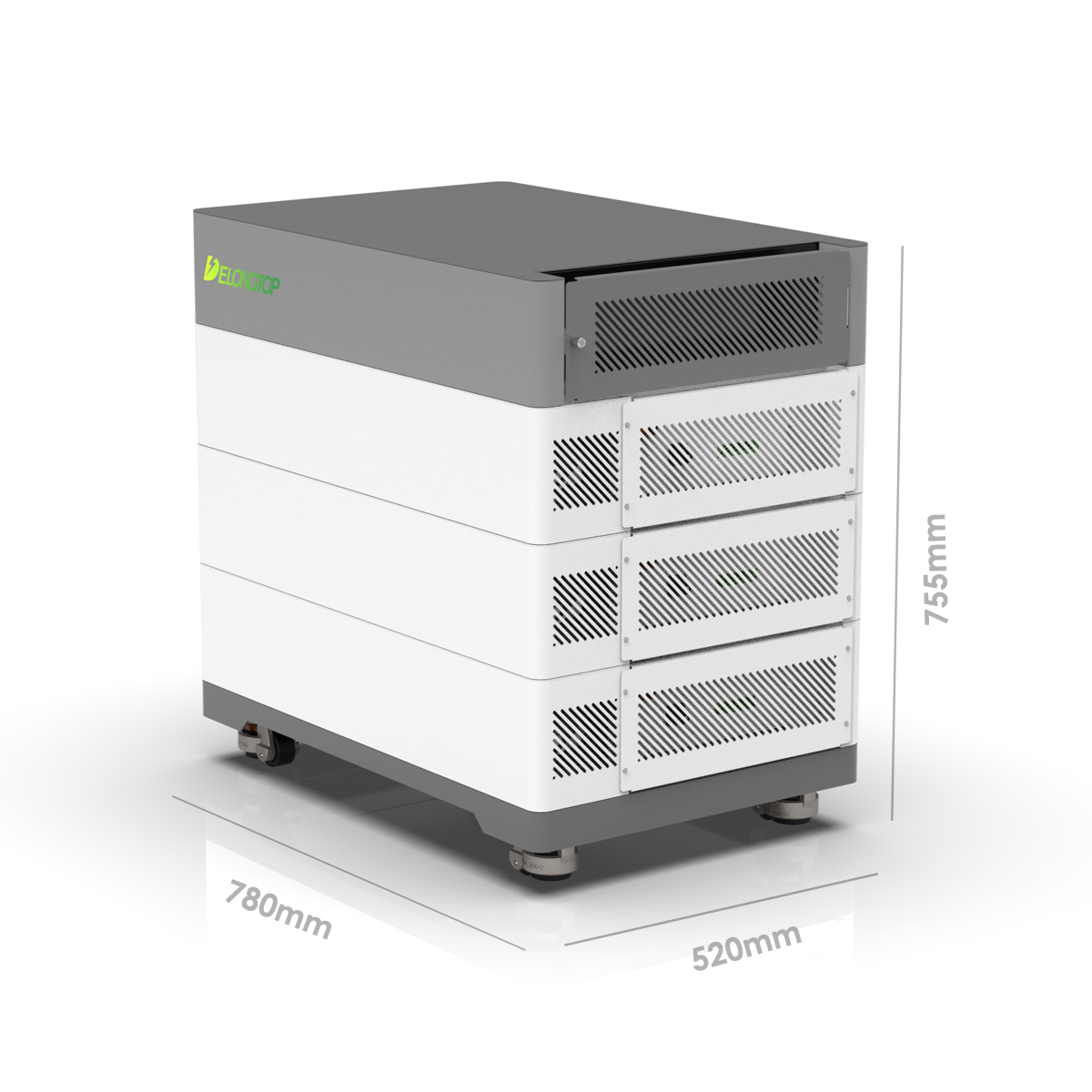

Single Module is 102.4V 100AH = 10KWH. 3PCS 10KWH Stacked in Series to Get 307.2V 30KWH + Control Box on the top + Moveable Base.
Accessories: Communication Cables, Connection Cables, Earth Cable with User Manual.

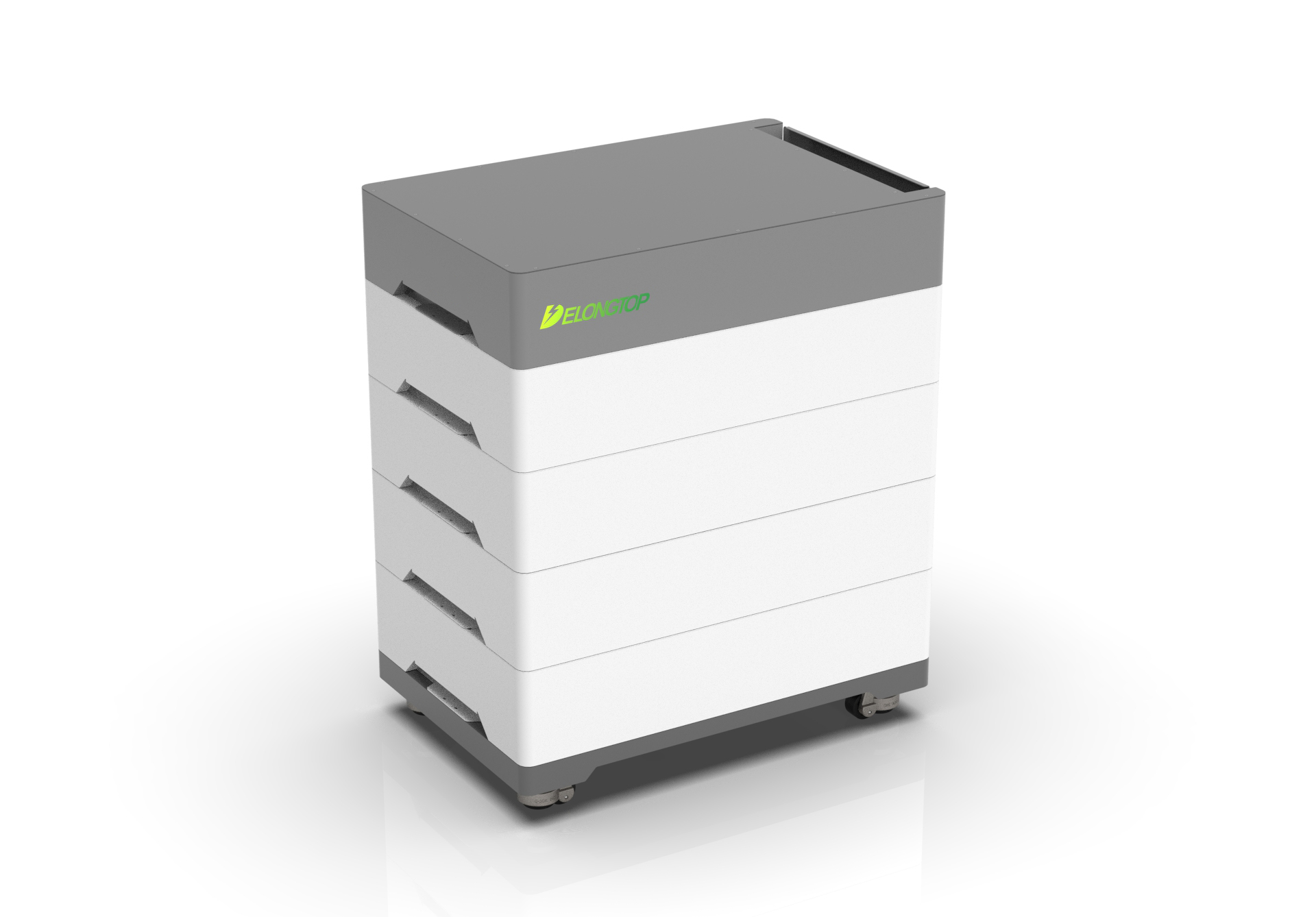

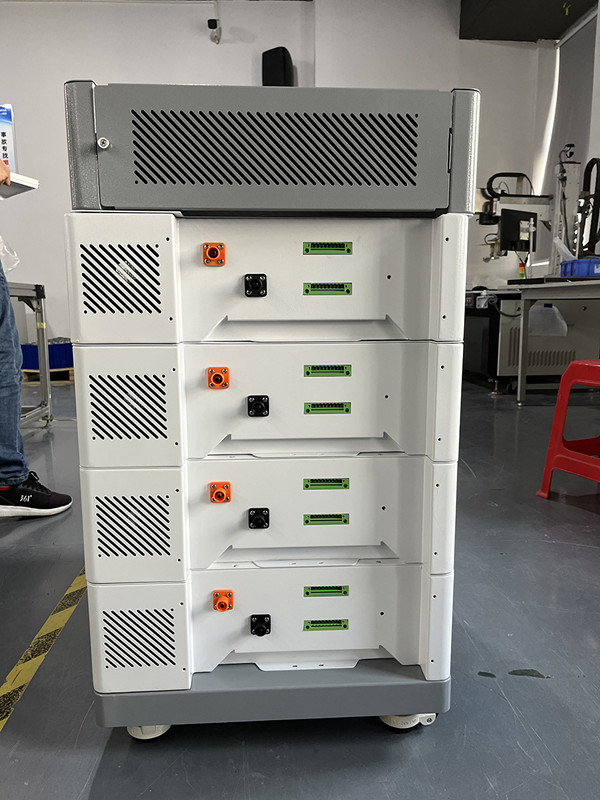

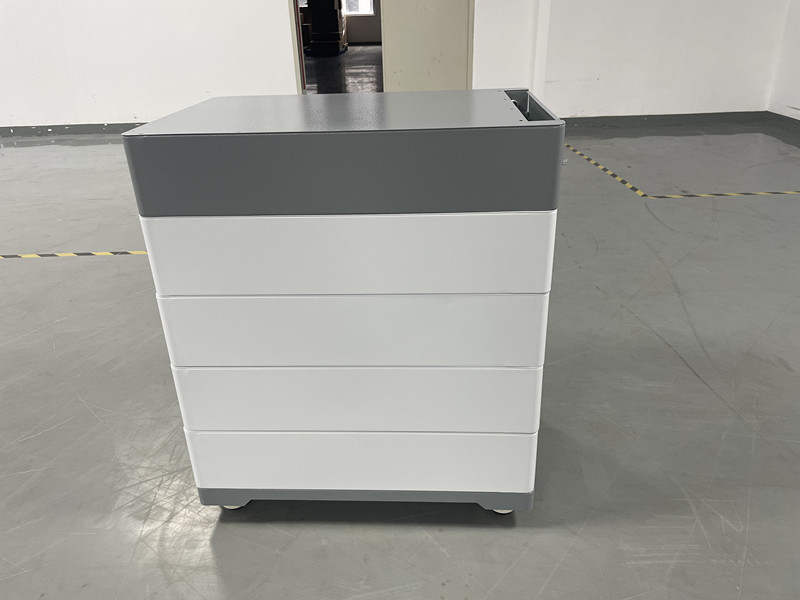

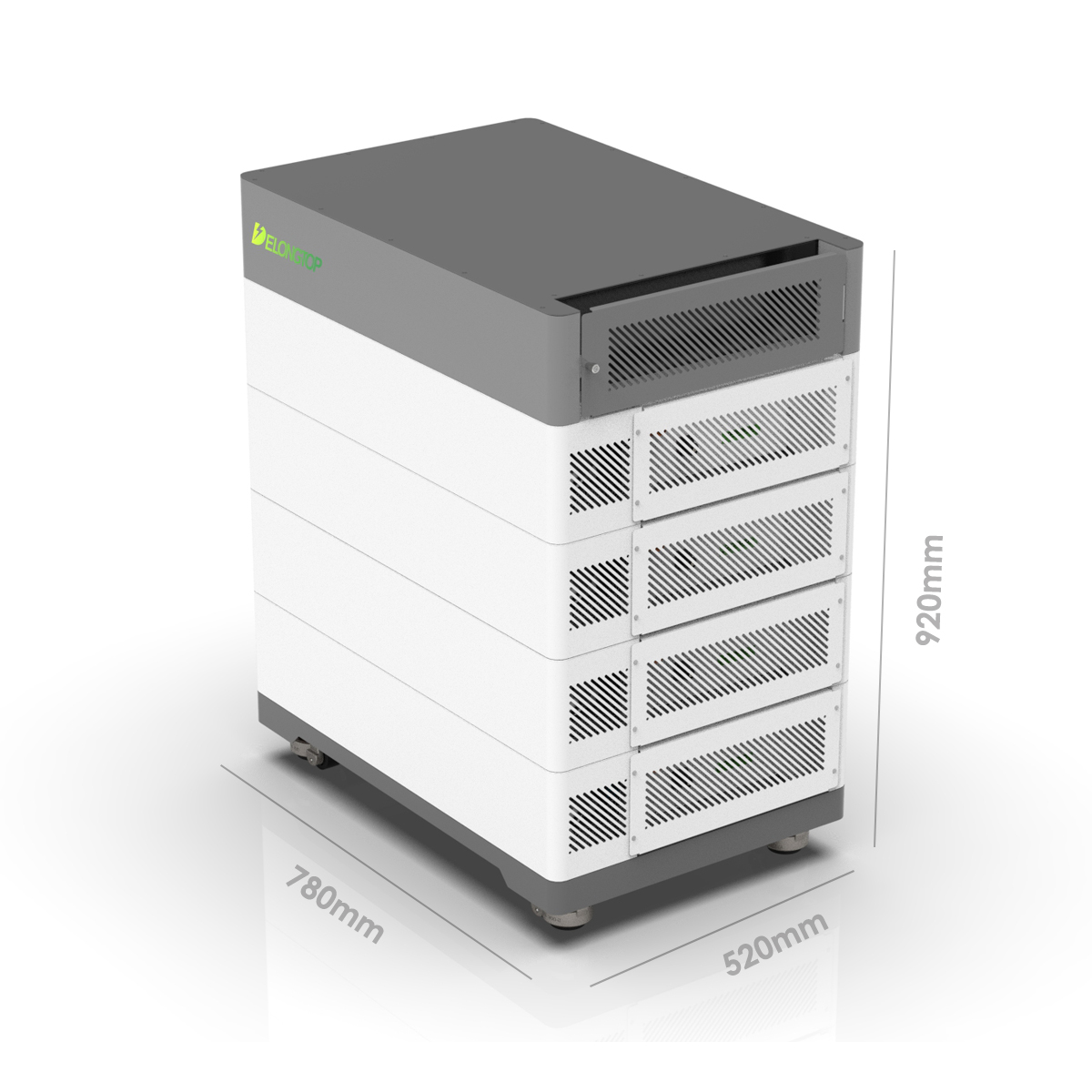

Single Module is 102.4V 100AH = 10KWH. 4PCS 10KWH Stacked in Series to Get 409.6V 40KWH + Control Box on the top + Moveable Base.
Accessories: Communication Cables, Connection Cables, Earth Cable with User Manual.

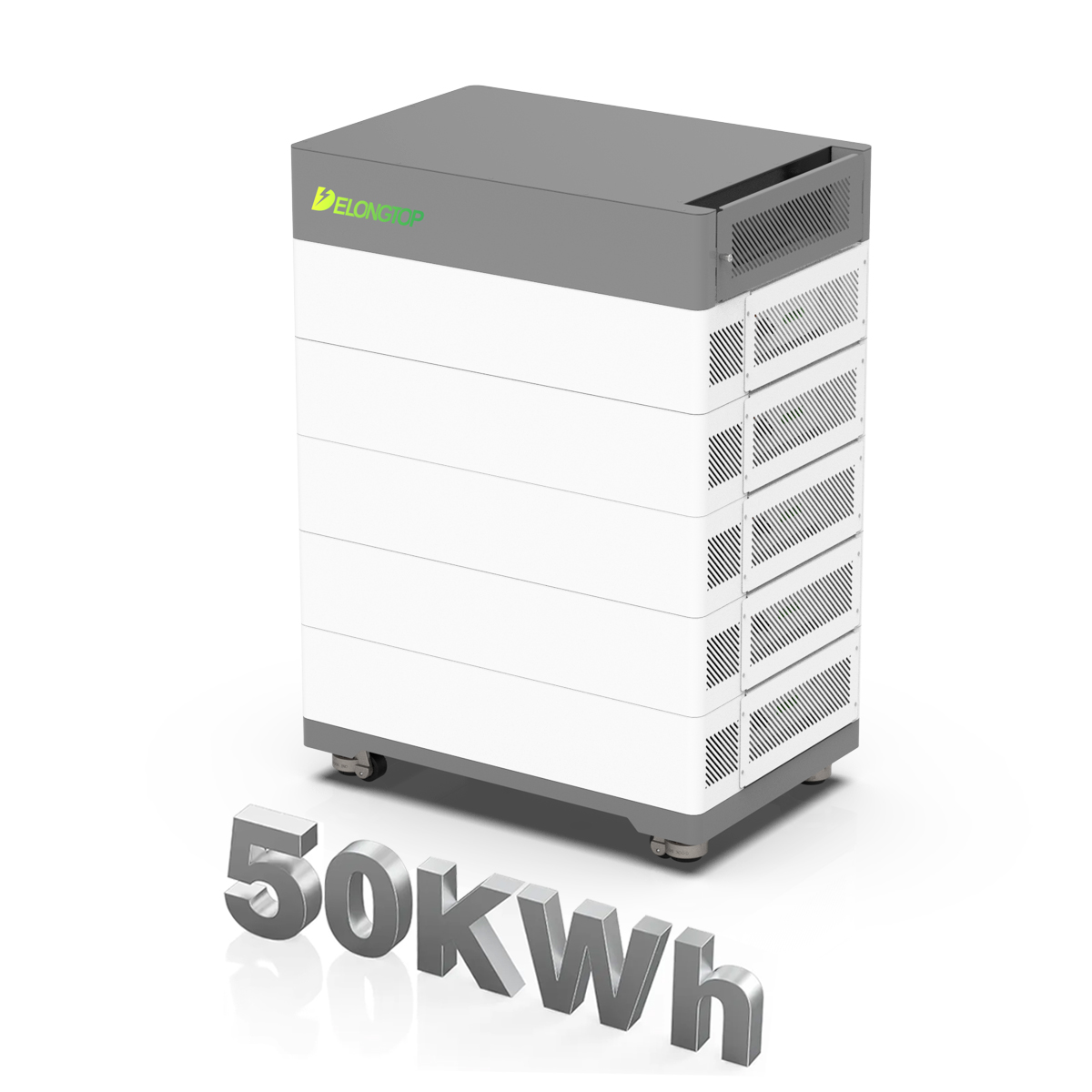

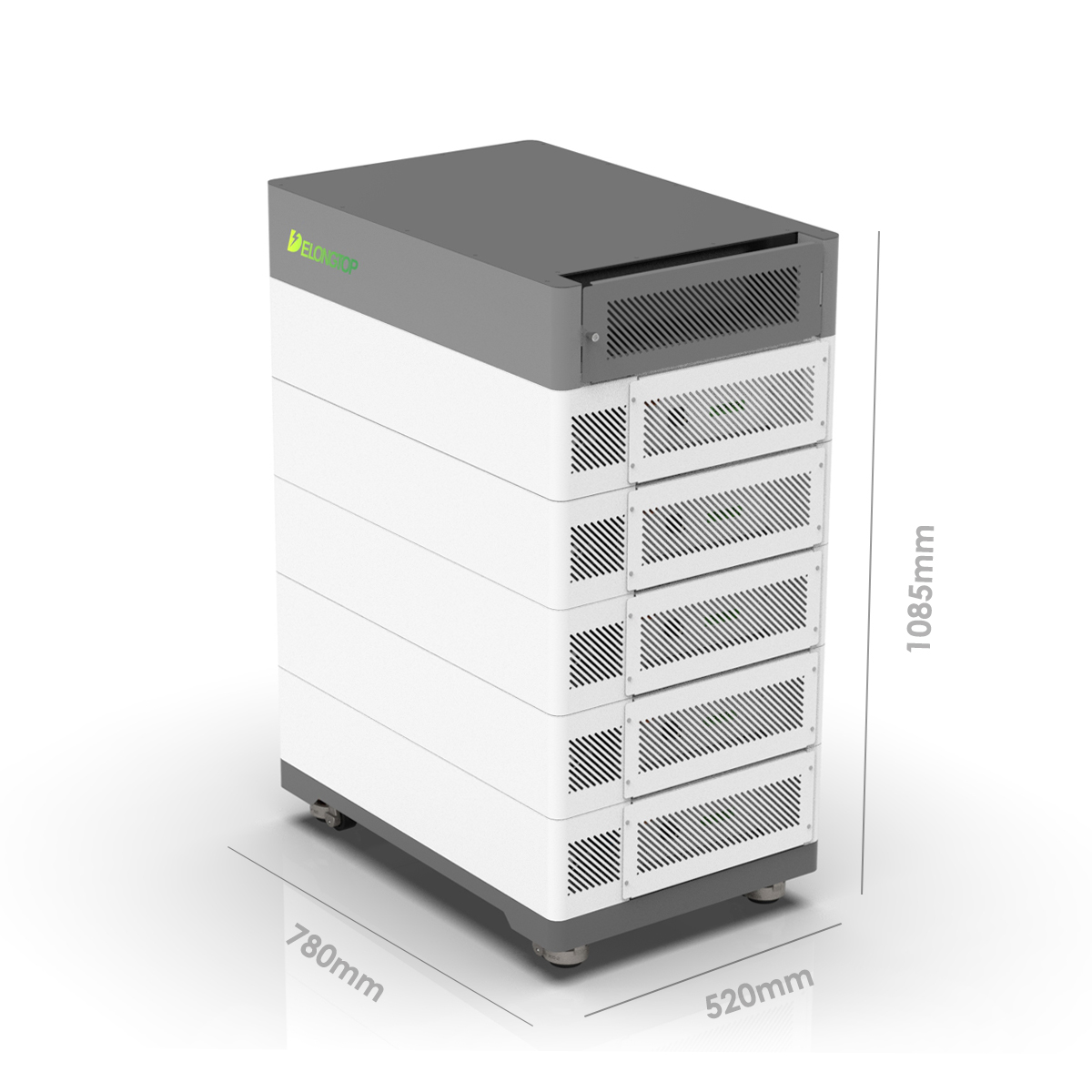

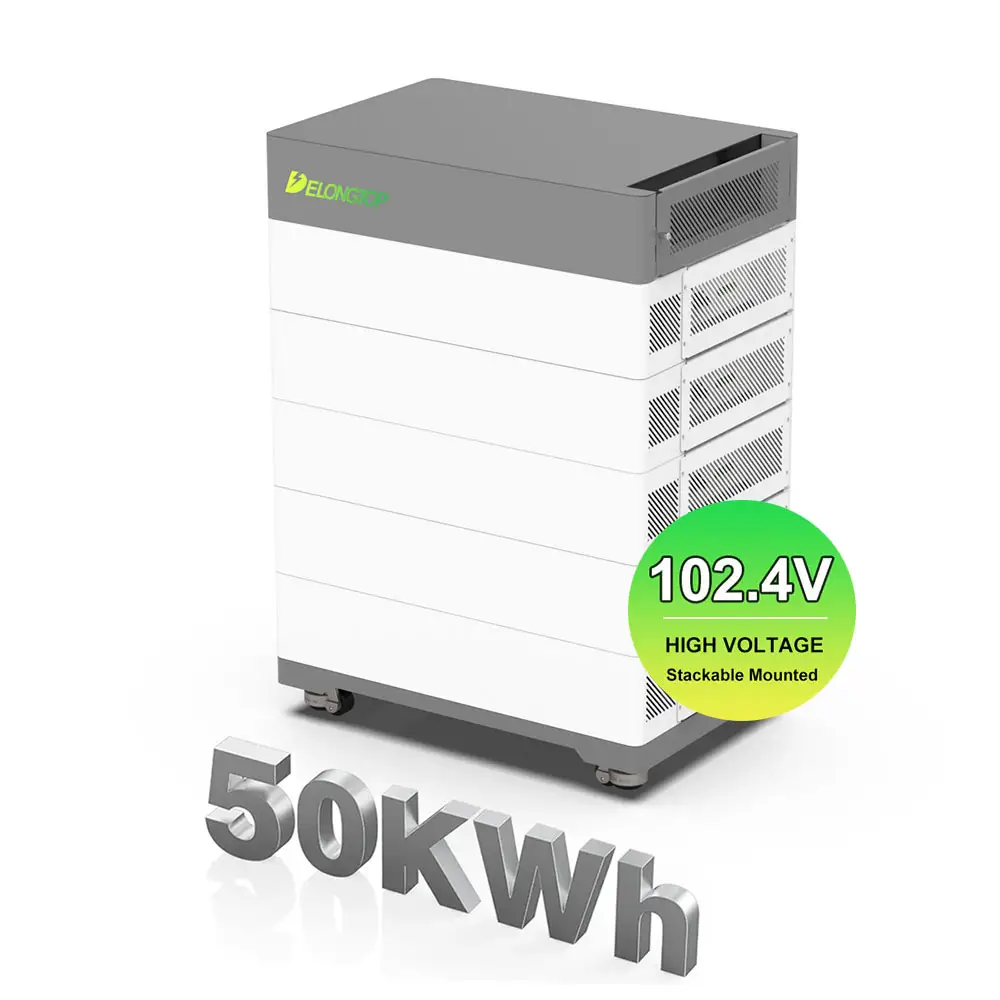

Single Module is 102.4V 100AH = 10KWH. 5PCS 10KWH Stacked in Series to Get 512V 50KWH + Control Box on the top + Moveable Base.
Accessories: Communication Cables, Connection Cables, Earth Cable with User Manual.

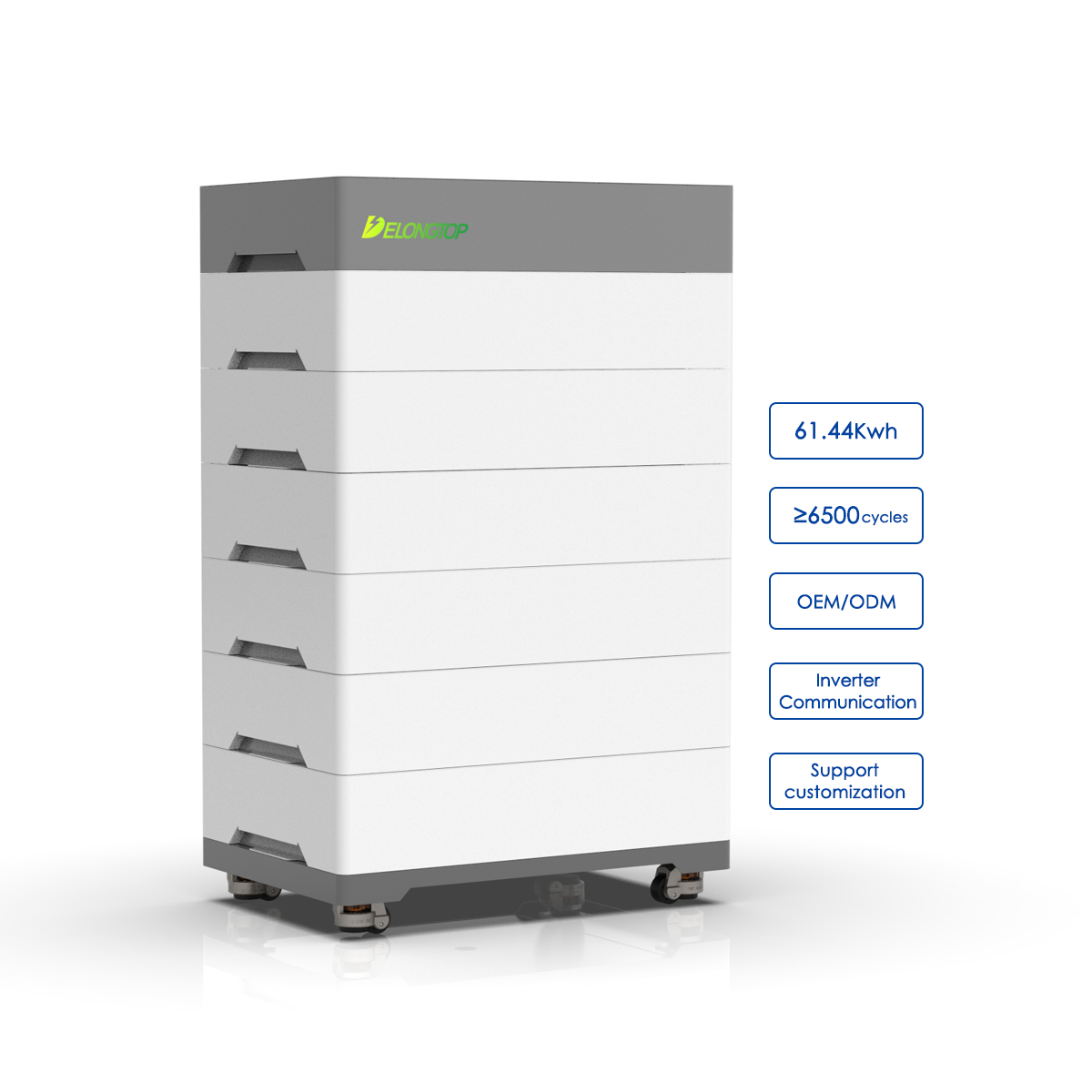

Single Module is 102.4V 100AH = 10KWH. 6PCS 10KWH Stacked in Series to Get 614.4V 60KWH + Control Box on the top + Moveable Base.
Accessories: Communication Cables, Connection Cables, Earth Cable with User Manual.
Our Solar batteries support all mainstream inverter brands.
1. Compatible Inverter Brands: DEYE, Solis, LuxPower, Growatt, Victron, Goodwe, Solaredge, Sofar, Megarevo, SMA, Voltronic, Axpert, Pylontech, LTW, Solplanet, Sorotec, Must, SAJ, SRNE, Syrio power, Sungrow, Solarmax etc.
2. How to Pair Batteries with Inverters:

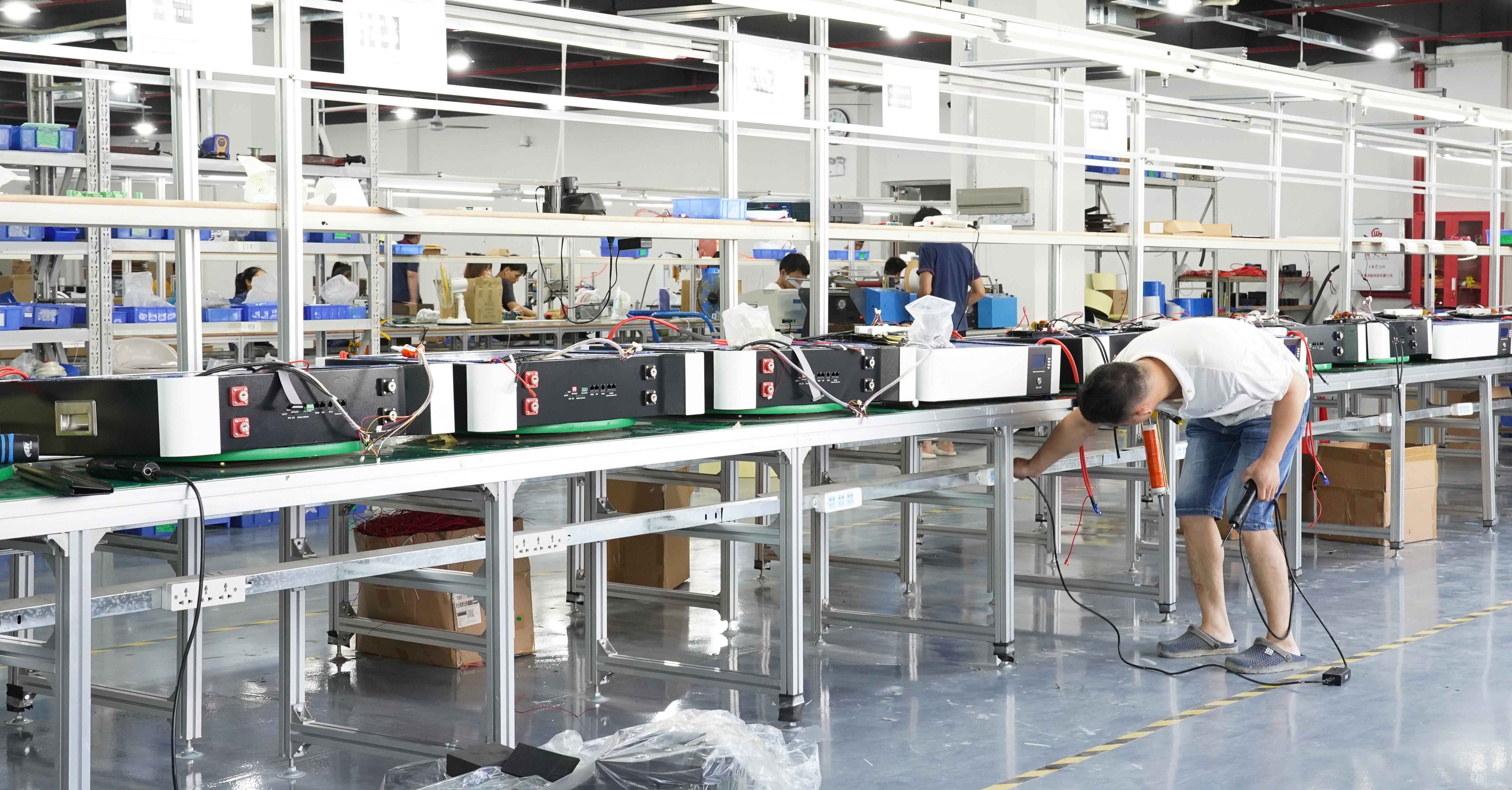

We deliver high-performance, reliable lithium battery solutions by combining top-brand cells, stringent testing, and in-house manufacturing expertise.

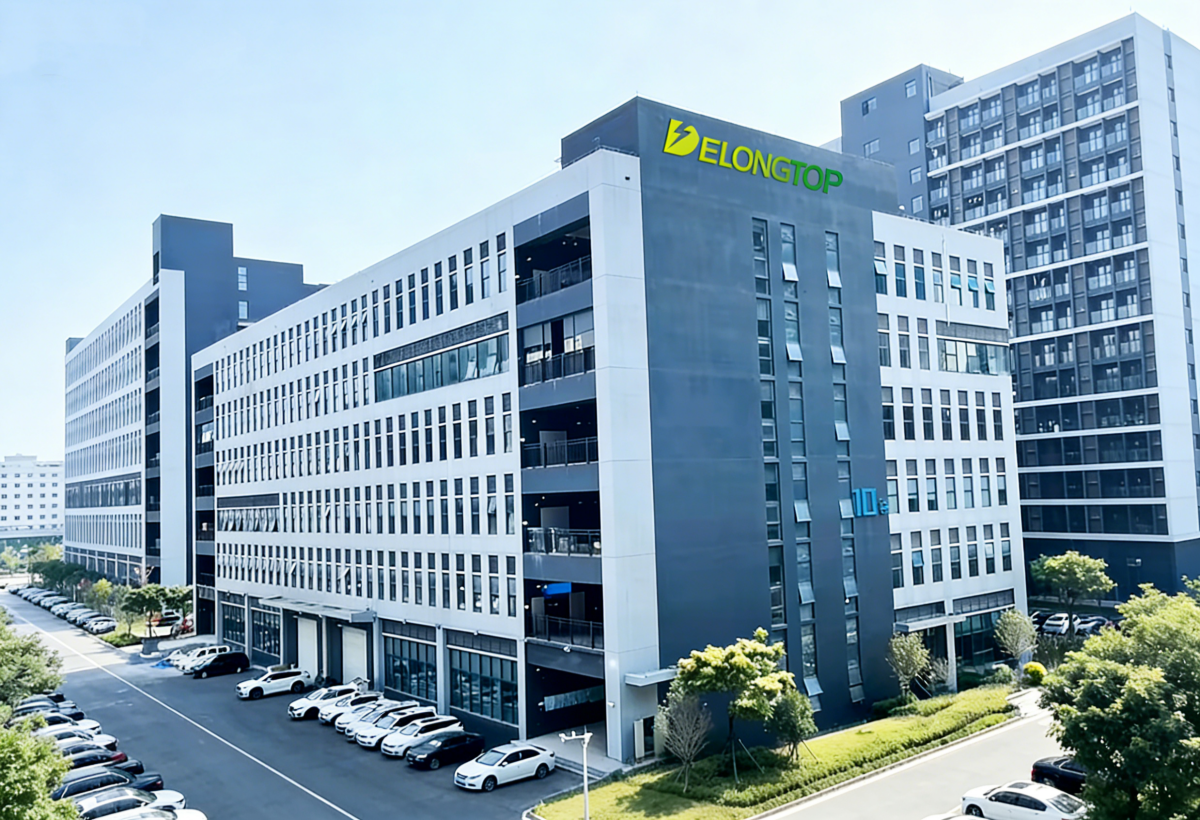

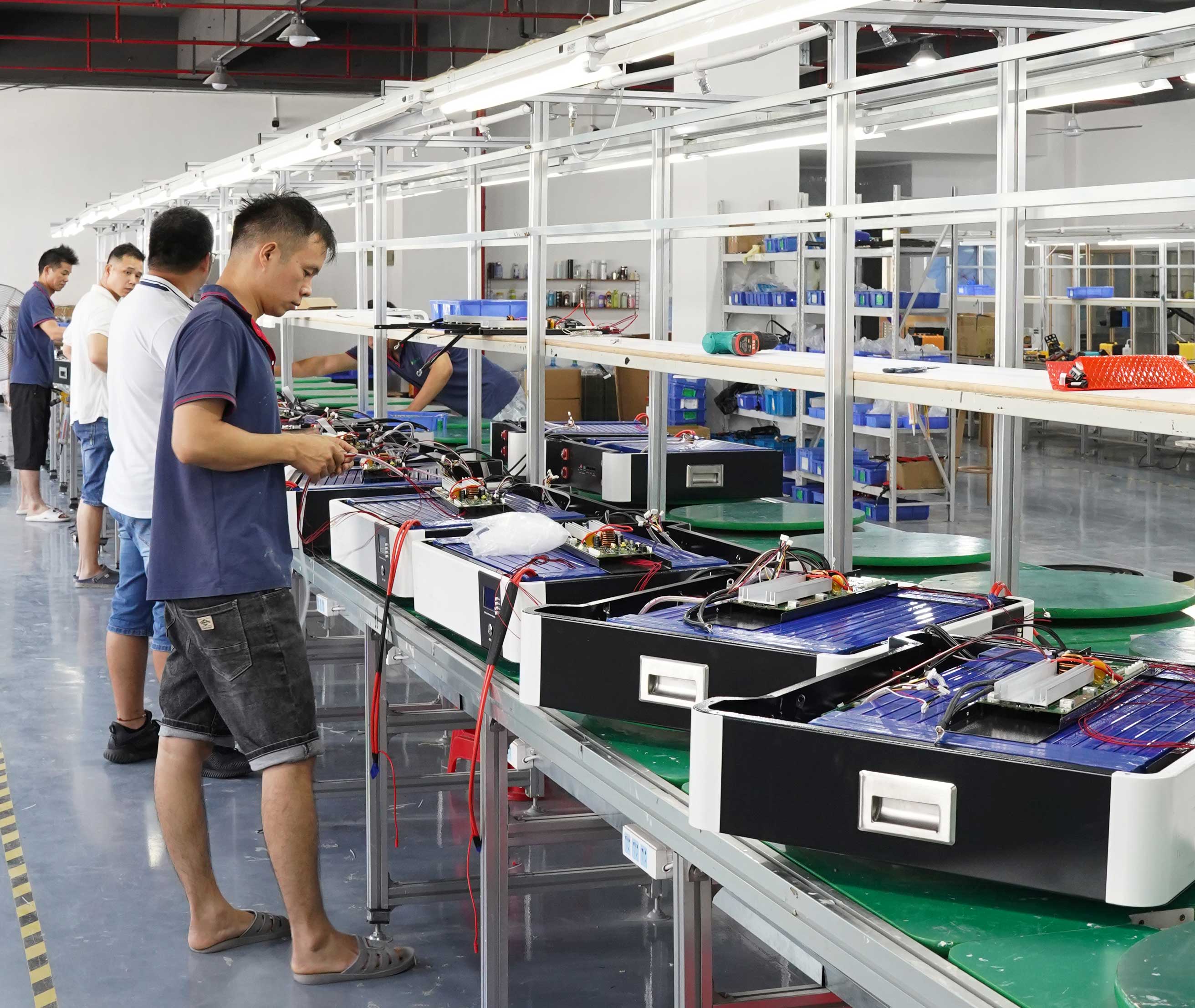

We are a forward-thinking high-tech enterprise built on our own trusted brand. We specialize in the R&D, production and global marketing of premium lithium energy storage battery packs. Driven by technical innovation and rigorous scientific management, we have assembled a world-class team spanning R&D engineers, product designers, quality assurance experts and customer service specialists—all dedicated to delivering reliable, high-performance lithium battery solutions.
Holding authoritative certifications including CE, ROHS, FCC, UN38.3, MSDS, IEC 60335 and IEC 62368, we focus on the design and development of LiFePO4 batteries, lithium-ion batteries and integrated energy storage systems. We provide end-to-end technical support and efficient global shipping to partners worldwide. Our lithium battery products are widely applied across diverse scenarios: home energy storage systems, UPS backup power, power substations, golf carts, electric motorcycles, RVs and industrial power tools, among others.
As one of the rapidly growing, experienced battery assembly suppliers, we stand for innovation, reliability and agility. We are committed to advancing breakthrough technologies and developing next-generation energy storage products, striving to deliver tailored, integrated energy solutions to every customer. By leveraging cutting-edge lithium battery technologies, we aim to provide higher-value products and exceptional service, empowering a better, more sustainable quality of life for people around the globe.

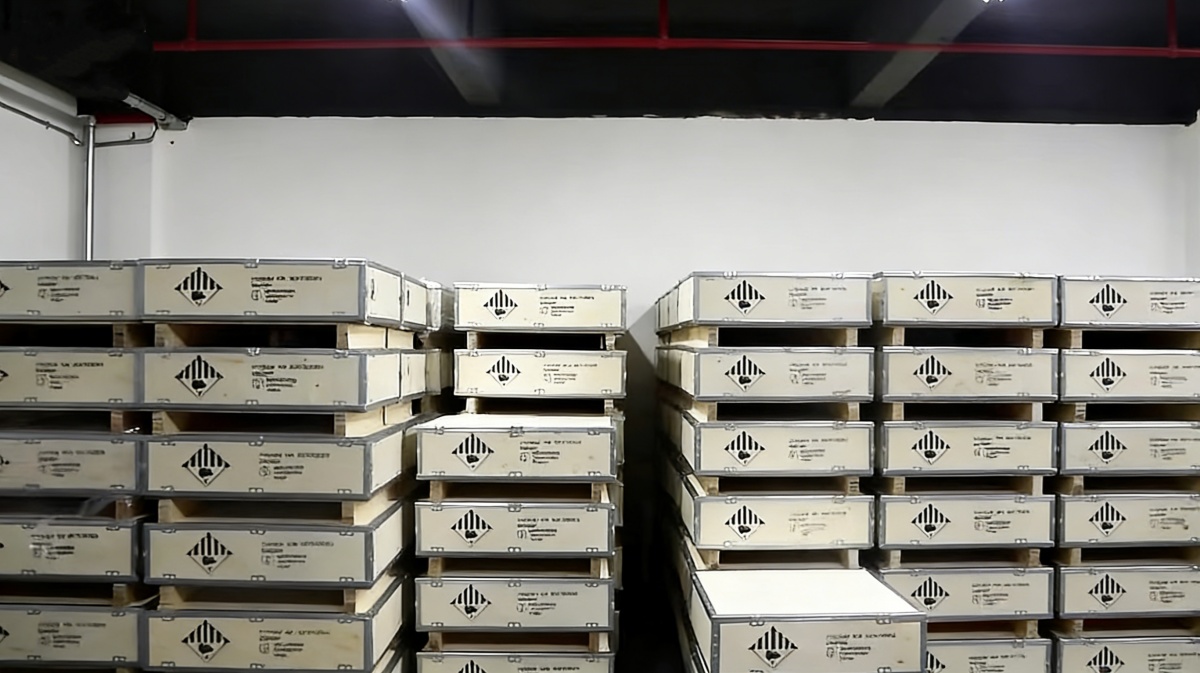

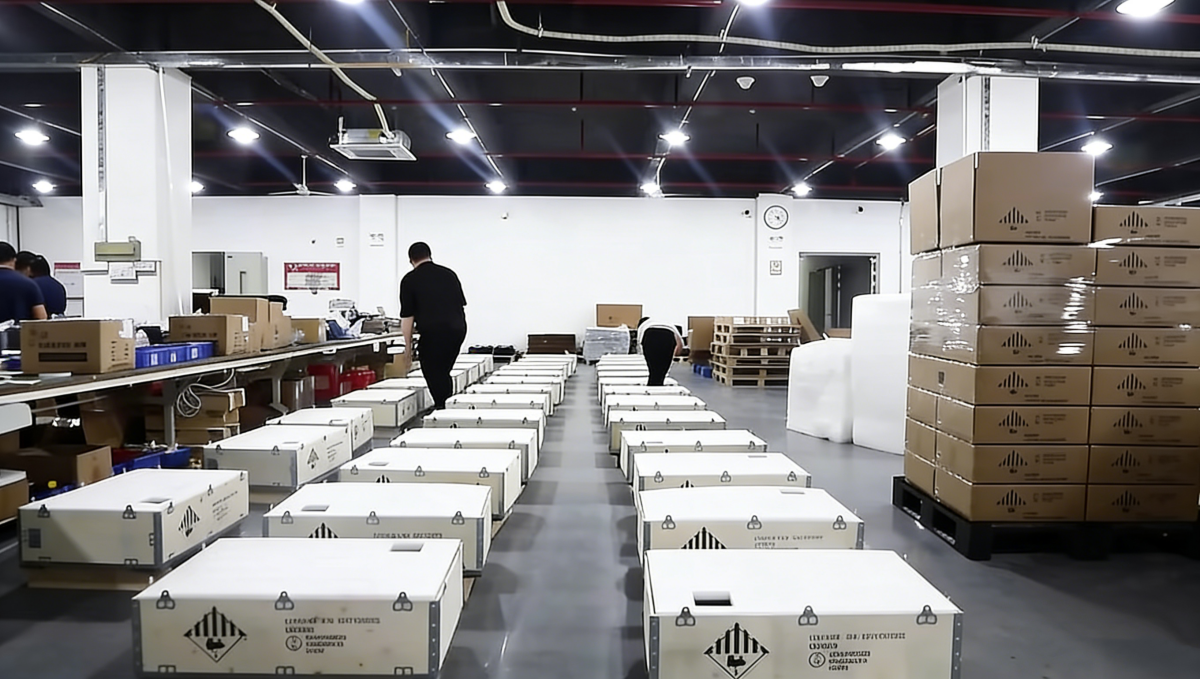

Carton + Wooden + Pallet or Customized Packaging for secure shipping.
Our products are certified with KC, CE, RoHS, UL, FCC, and also equipped with MSDS and UN38.3 for lithium-ion batteries, fully meeting diverse certification requirements of different countries and regions. Our products have been exported to over 200 countries and regions worldwide, and we have participated in numerous key governmental projects across the globe.
