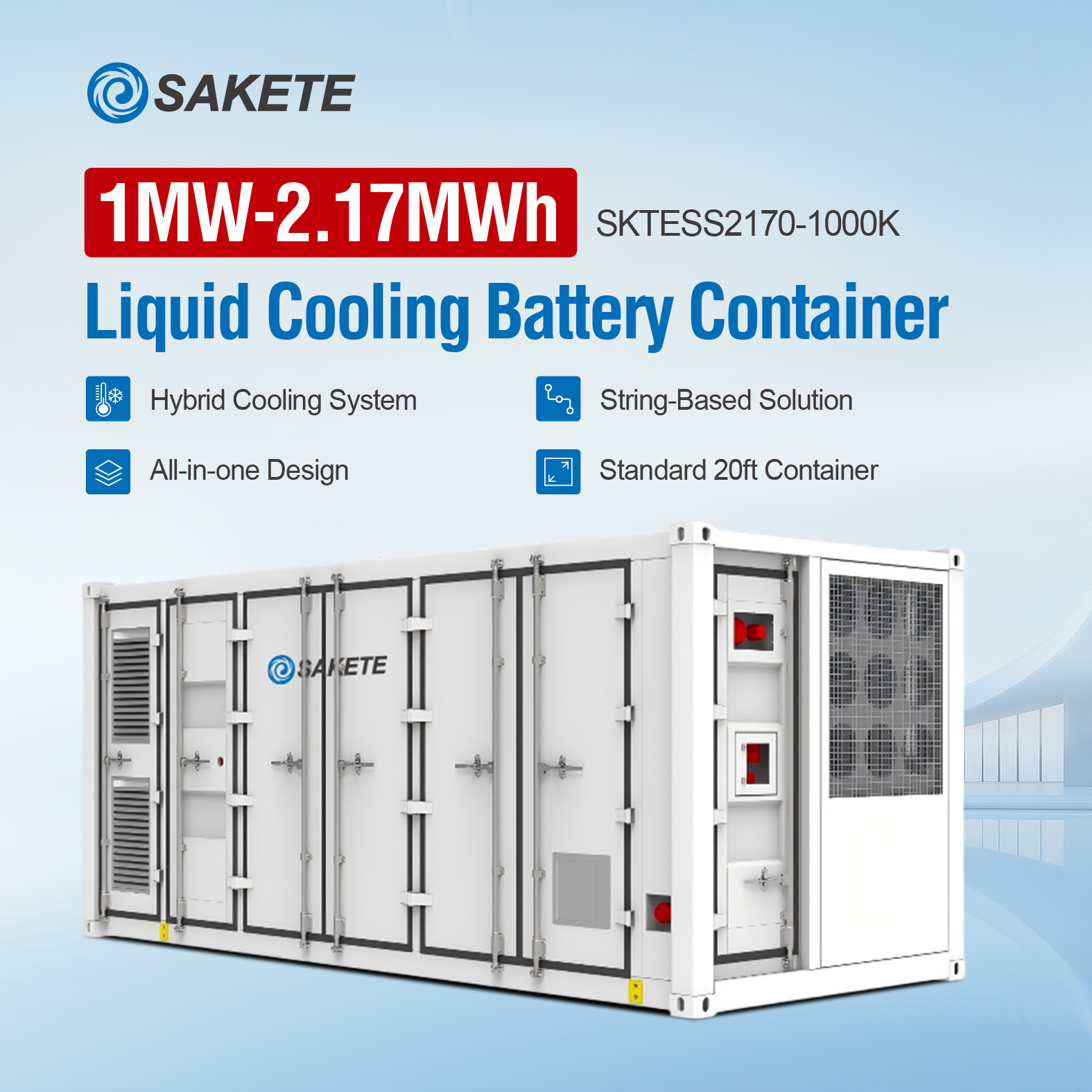

| Parameter Item | Model: SKTESS2170-1000K | |
| DC Side | Cell Type | LFP / 314 Ah |
| Pack Configuration | 48.2 kWh / 1P48S | |
| System Configuration | 2170 kWh / 9P240S | |
| Rated DC Voltage | 768 V | |
| DC Voltage Range | 672 ~ 864V | |
| Max. Charge / Discharge Rate | 0.5 P | |
| Max. Depth of Discharge | 100% (25±2°C) | |
| AC Side | Rated Output Power | 1000 kW |
| Max. Apparent Power | 1100 KVA | |
| Rated AC Voltage | 400V | |
| AC Voltage Range | ±15% | |
| Grid Type | 3W+N+PE | |
| Rated Frequency | 50 Hz / 60 Hz | |
| Power Factor | 0.99 / -1 ~ +1 | |
| THDi | ≤ 3% | |
| DC Ratio | < 0.5% In | |
| General | Round Trip Efficiency | ≥ 87% |
| Cycle Life | ≥ 8000 cycles | |
| Communication | Modbus TCP / IP | |

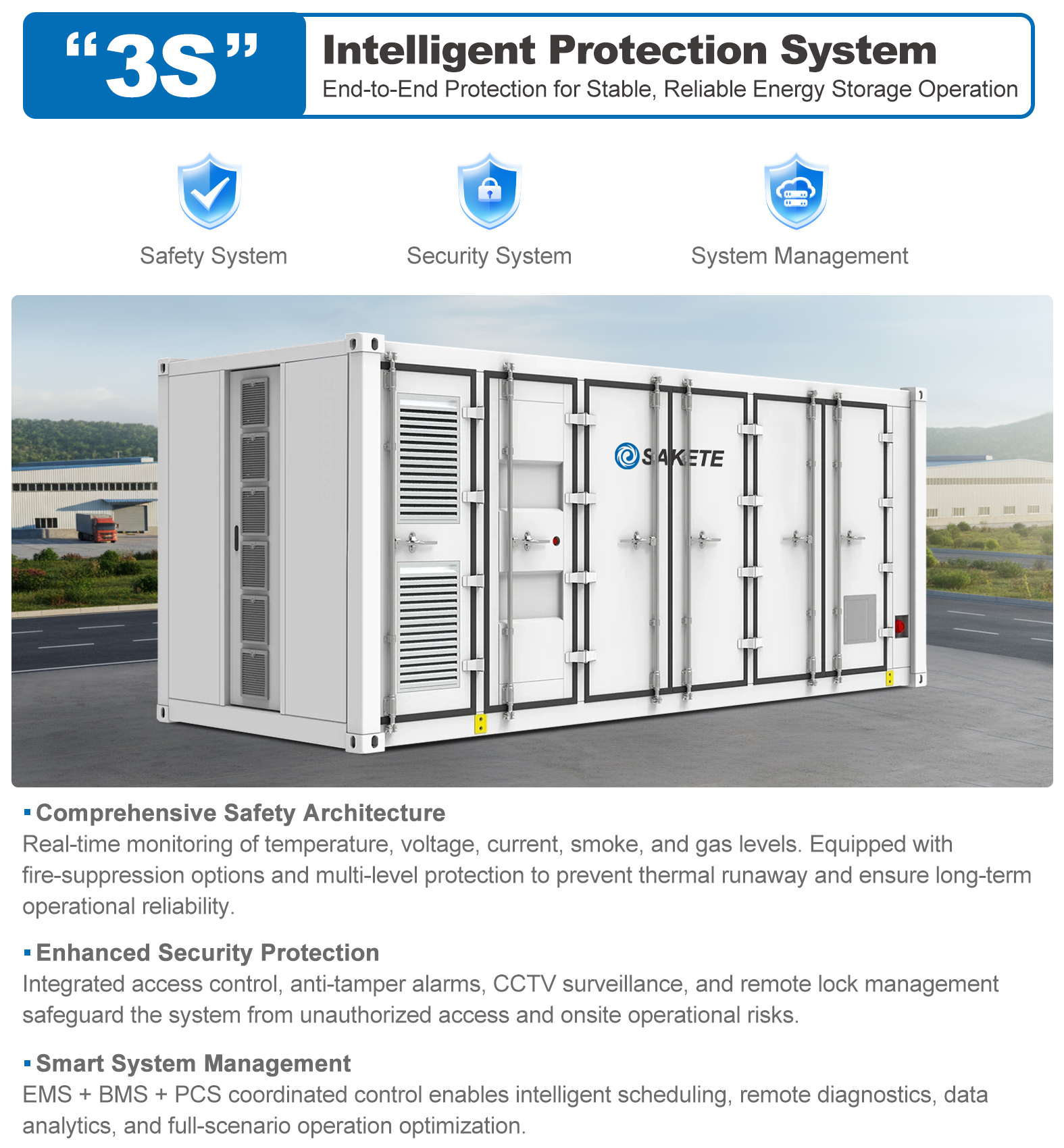

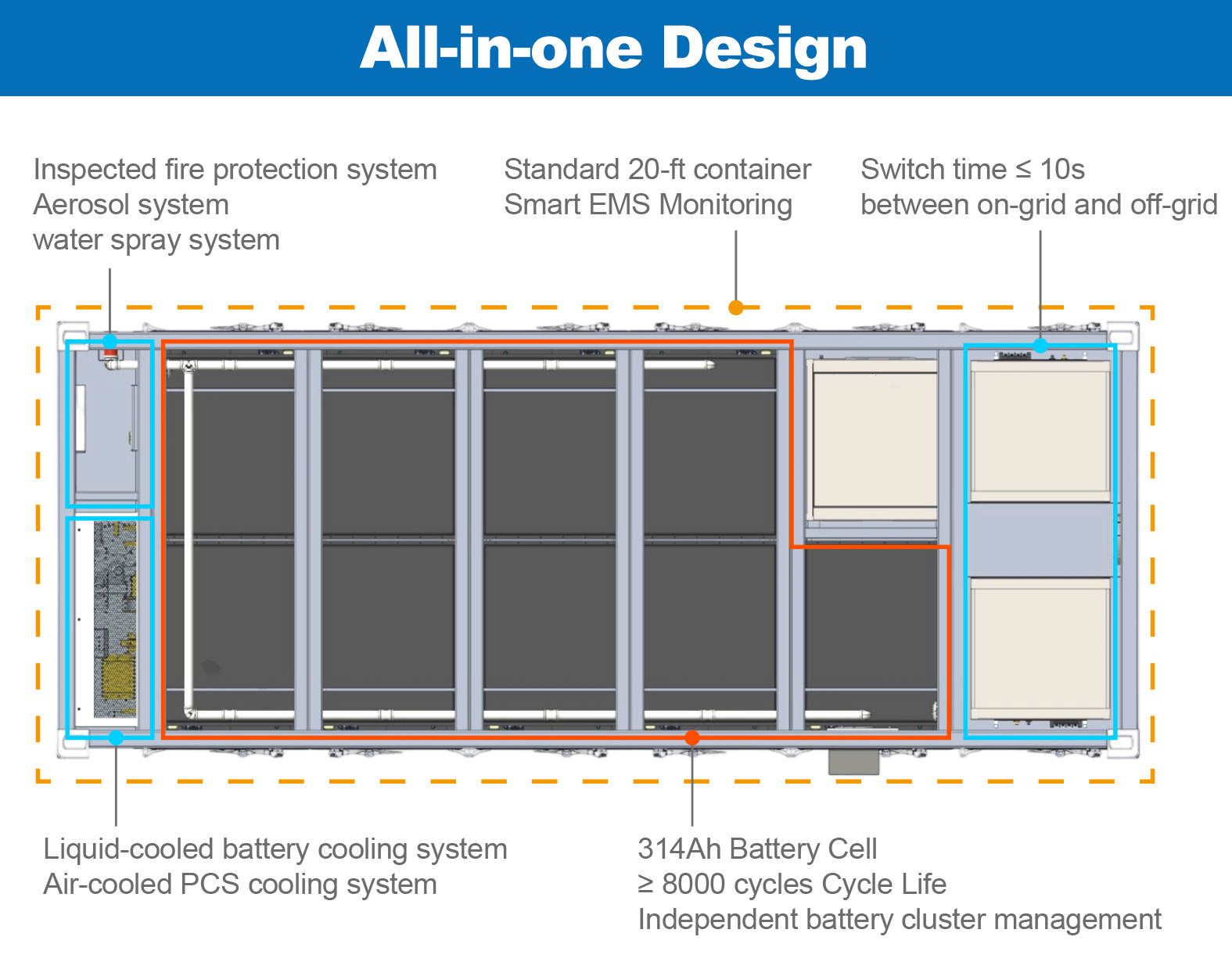

| Fire Suppression System | Aerosol system (pack level and container level), water spray system | |
| Ingress Rating | IP55 | |
| Cooling | Liquid cooling + Forced air cooling | |
| Operating Temperature | -25°C ~ 55°C (Derating after 45°C) | |
| Anticorrosion Rating | C4 (C5 optional) | |
| Humidity | 5 ~ 95% RH (non-condensing) | |
| Noise | ≤ 80 dB | |
| Altitude | 4000m (Derating above 2000m) | |

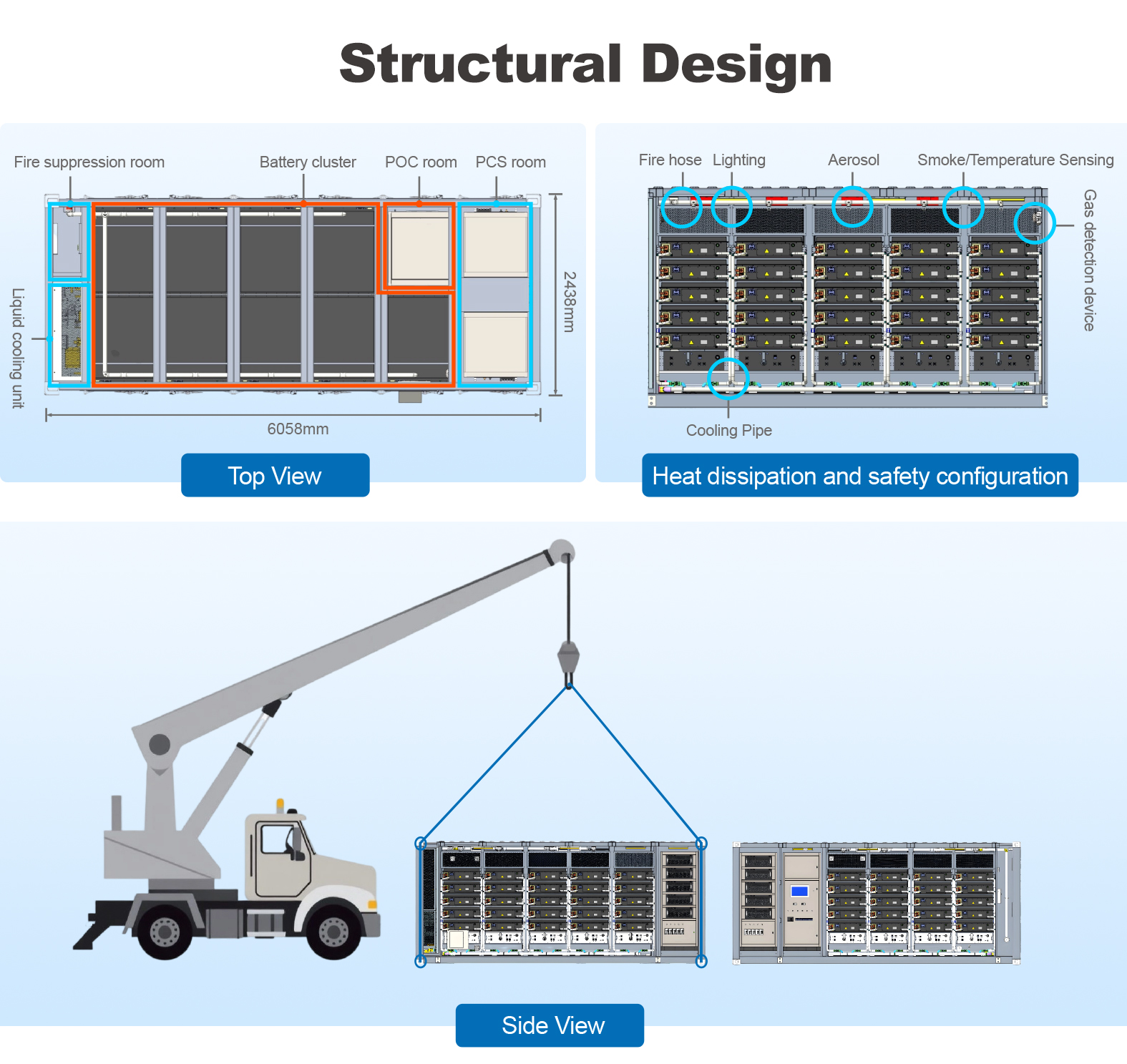

| Dimensions (W*D*H) | 6058 × 2438 × 2591 mm | |
| Weight | 28T | |

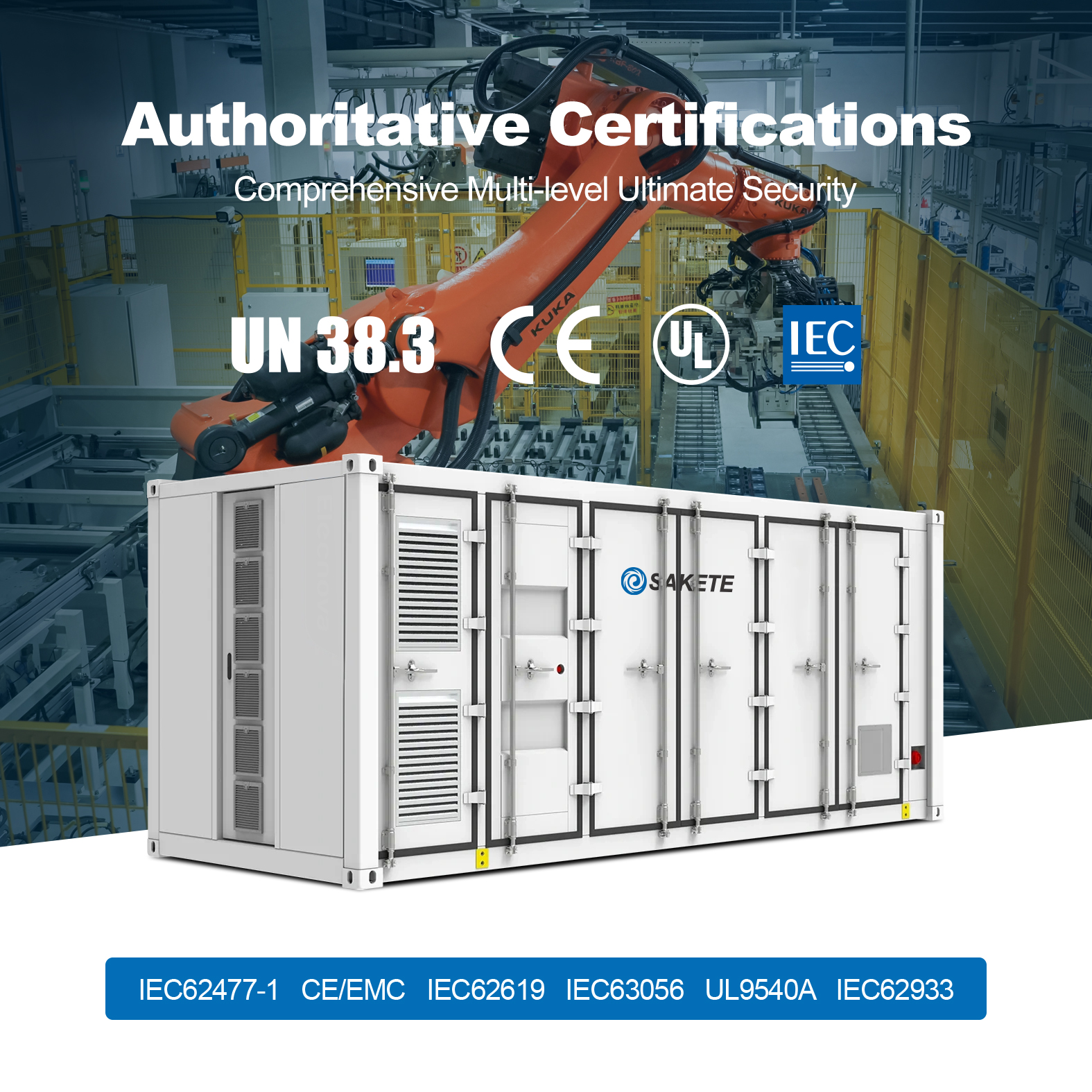

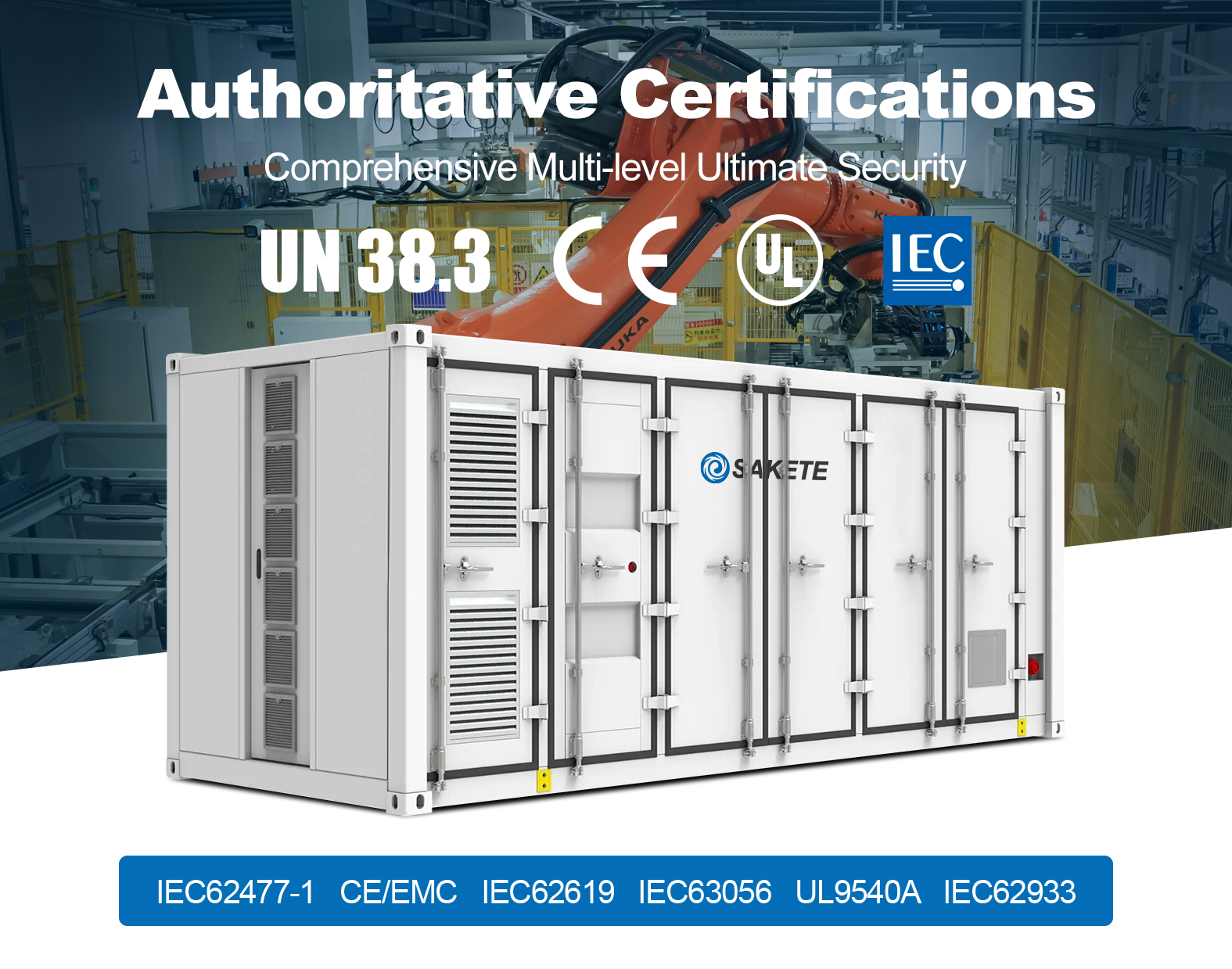

| Certification | UN38.3, IEC62477-1, CE/EMC, IEC62619, IEC63056, UL9540A, IEC62933 EN50549 | |
