100kwh 200kwh 300kwh 500kwh 200kwh Lifepo4 Battery Energy Storage System for Solar Lithium Battery 288V 300V 400V 480V 600V

What is Energy Storage System?

100kwh 200kwh 300kwh 500kwh 200kwh Lifepo4 Battery Energy Storage System for Solar Lithium Battery 288V 300V 400V 480V 600V

Solar & Battery Hybrid ESS is a high integrated solar generation and battery storage system. PV panels can be connected to solar PCS directly and work with batteries to achieve renewable energy generation and self-consumption, load shifting and load shading by islanding functional control.

Specification

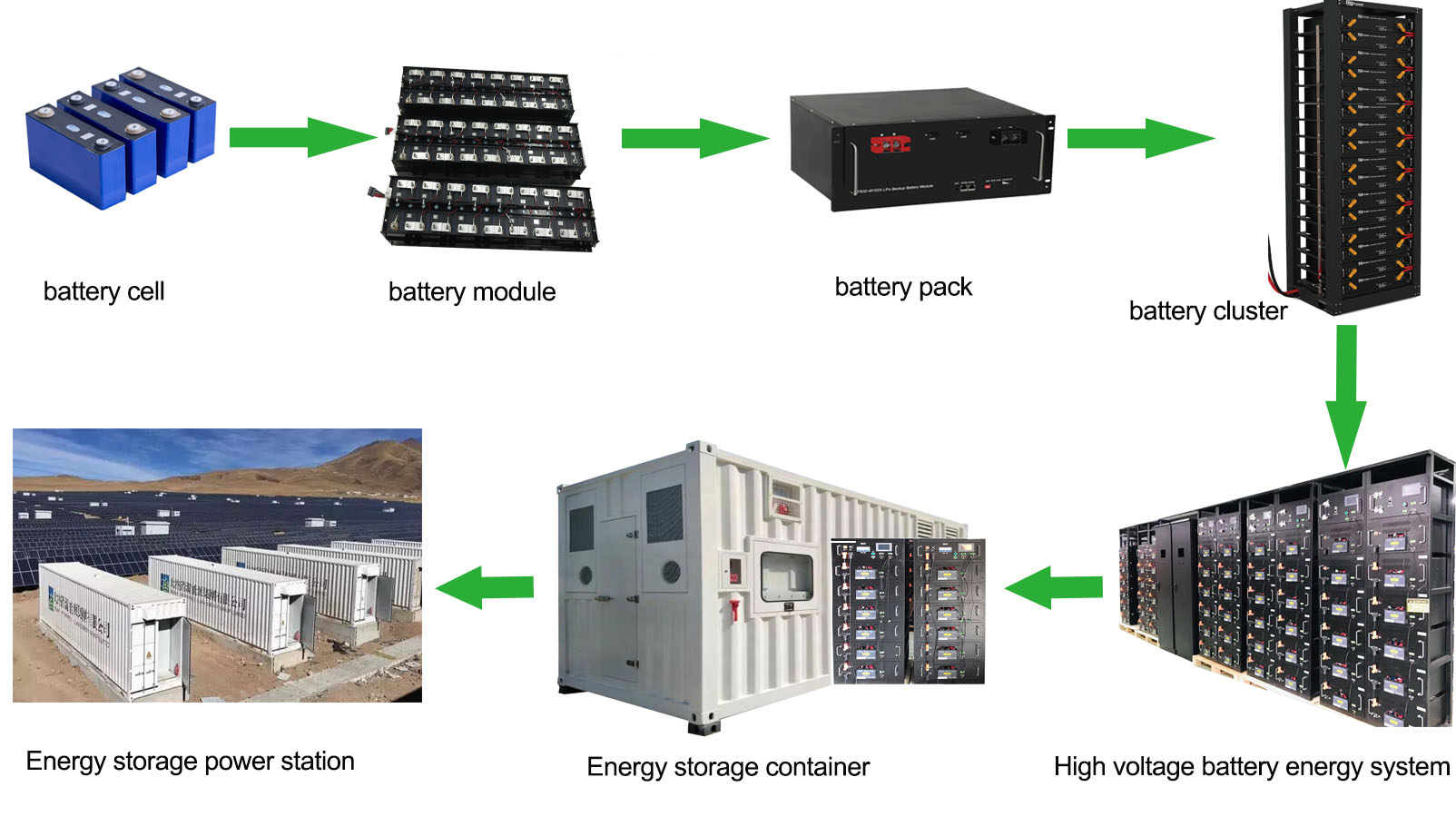

💡 What is a High Voltage Battery System?

For the lithium iron phosphate battery cells, the single cell voltage is always 3.2V, all voltage, current, power (kW) and energy (kwh) applications are based on this.
High voltage lithium battery system usually refers to the battery system voltage is greater than or equal to 96V, for example, 192V 50Ah battery system is 1P60S (60 cells series connected) cell connection based on 50Ah single cell.
For high voltage, in the single-cluster battery system, the batteries are always connected in series to achieve a higher voltage. Moreover, there is a high voltage DC main unit needed to manage this high voltage cluster.
The main function of the high voltage DC main unit is to manage all the BMU units of this cluster through the master BMS, meanwhile to provide start-stop, protection and other functions for this cluster.

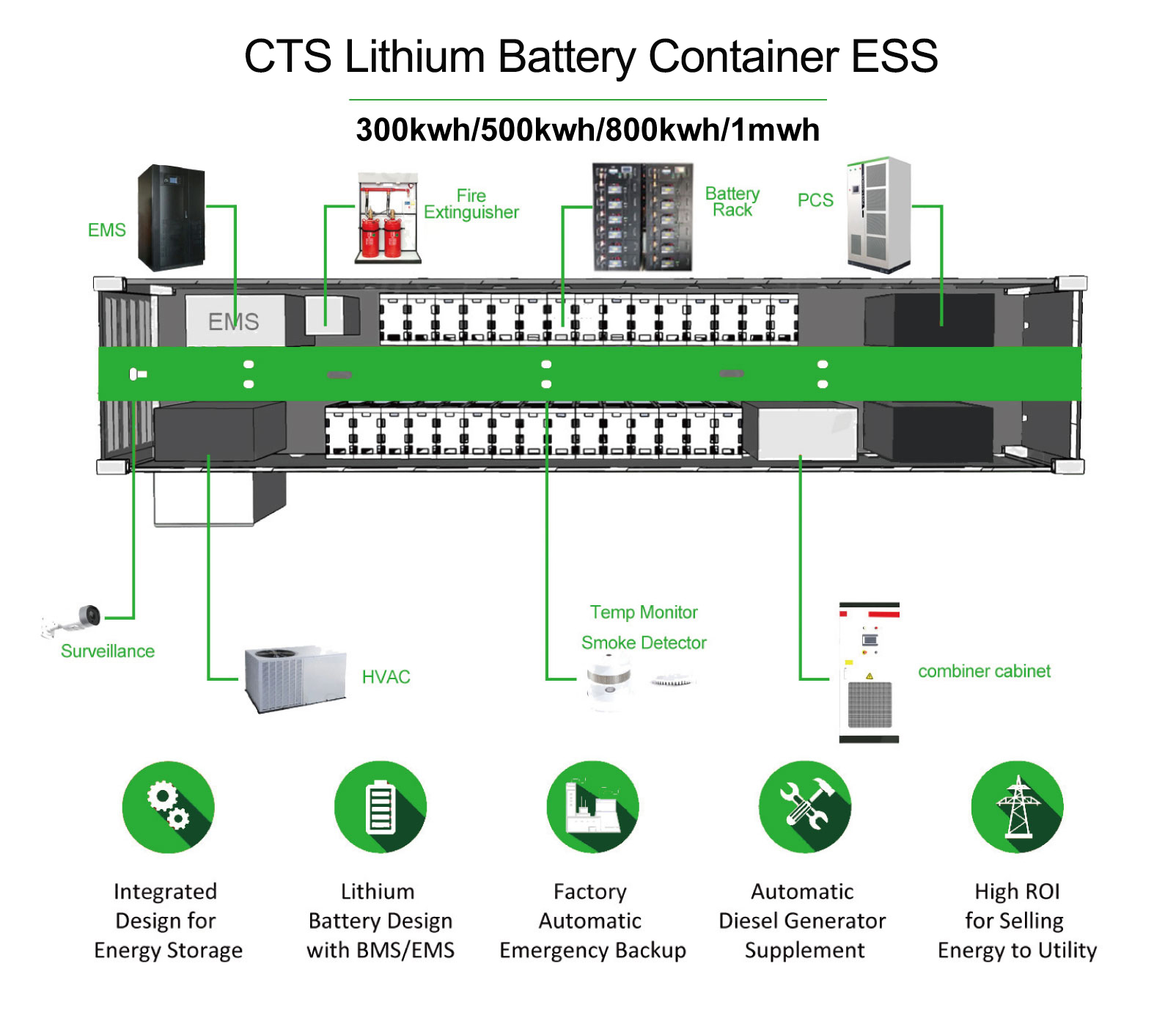

Lithium Battery Energy Storage System Container Specifications
Model	300KWH	500KWH	800KWH	1MW
Solar Panel	300KW	500KW	800KW	1MW
PV Combiner Box	Customized	Customized	Customized	Customized
Hybrid Solar Inverter	300KW PCS	500KW PCS	800KW PCS	1MW PCS
Utility Voltage Range	380V/360V-440Vac; 480V/432V - 528Vac 45-55/55-65Hz
Solar Battery Packs	Lithium Battery Packs BMU/CBMS/GBMS/EMS Protection
Battery Racks	2~3 Racks	3~4 Racks	4~6 Racks	5~8 Racks
Data Monitor	Ethernet/Wifi Monitor/4G Terminal Monitor
PV Cable	4/6mm²	4/6mm²	4/6mm²	4/6mm²
Installation Brackets	Aluminium Alloy, Stainless Steel, Hot-dip Galvanized Steel, Ground Screw Mounting, Adjustable Brackets, Solar Tracker

Notice regarding system borders & installations:

* For output Distribution connections, input Grid connections, site civil work, and site Comms Interconnections, we do not provide these services.
* For installation manual, technical datasheet, and inverter adjustment/testing, please send us an inquiry.

Details and features

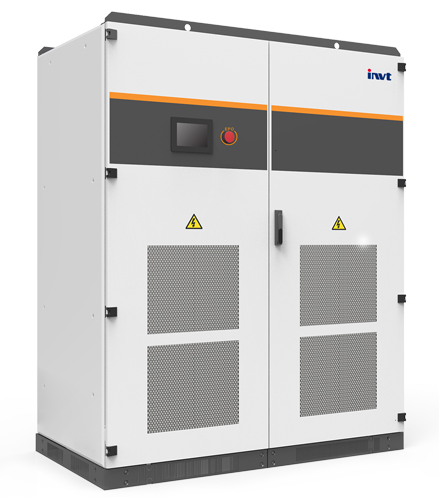

⚡ Hybrid Inverter

380-480V 50/60Hz. EU / USA Standard. Automatic Switch to charge loads, batteries or from Grid backup with priority setting function. Built-in Transformer. WiFi/GPRS Monitoring system integrated.

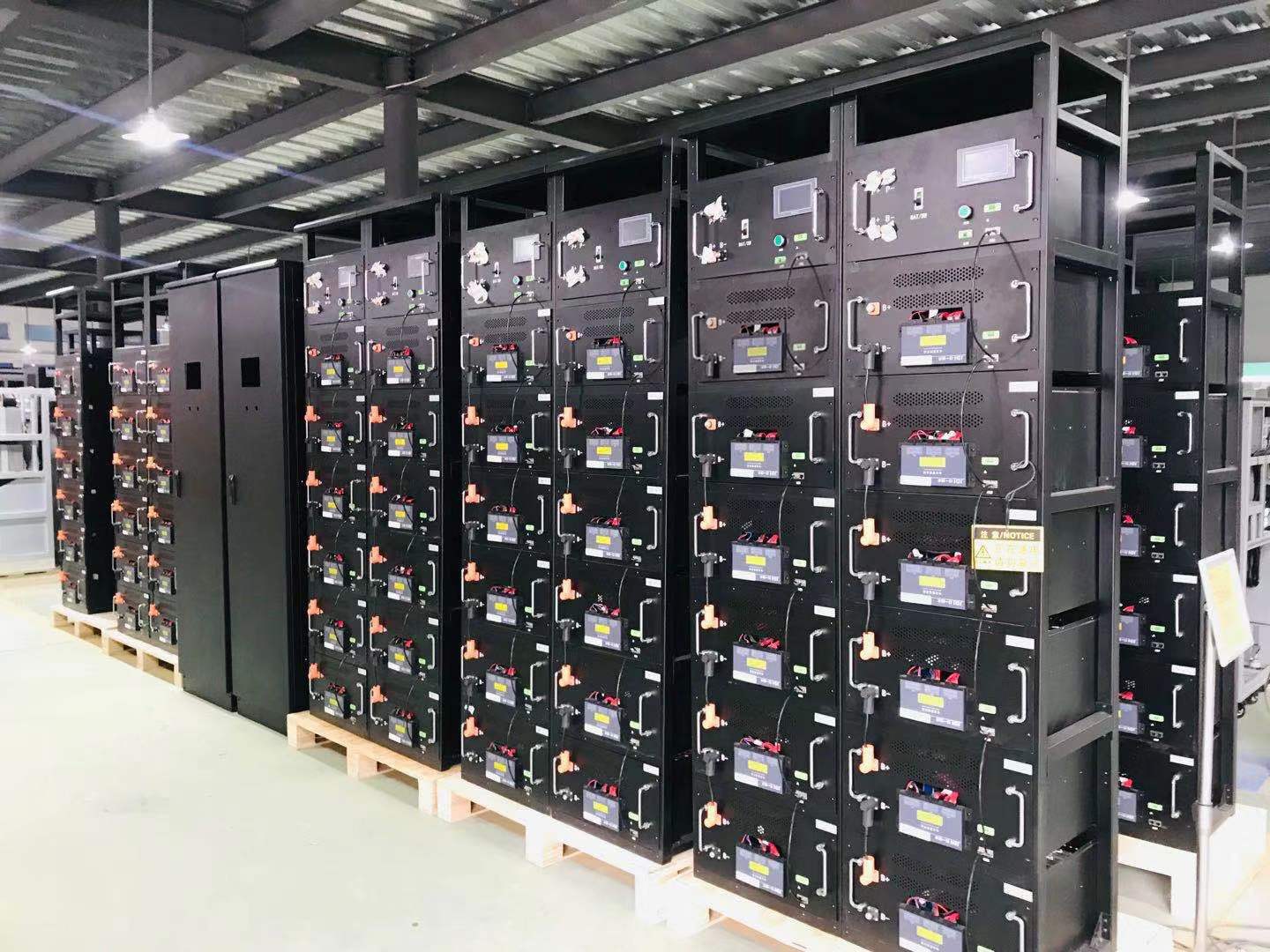

🔋 Lithium Battery Pack

The battery module consists of a battery rack and CBMS.

LFP single battery cells featuring long life, maximum safety, and a wide temperature operating range.
High energy density, small size, light weight, and no pollution.
Multi-standard modules customized from 5-12kwh, configurable into wide voltage 50-250kwh battery clusters.
CBMS-BMU design for detailed protection of voltage, current, and temperature.
Integrated communication interface supporting CAN2.0 and Modbus protocols.
15-year design life, stable performance, and completely maintenance-free.

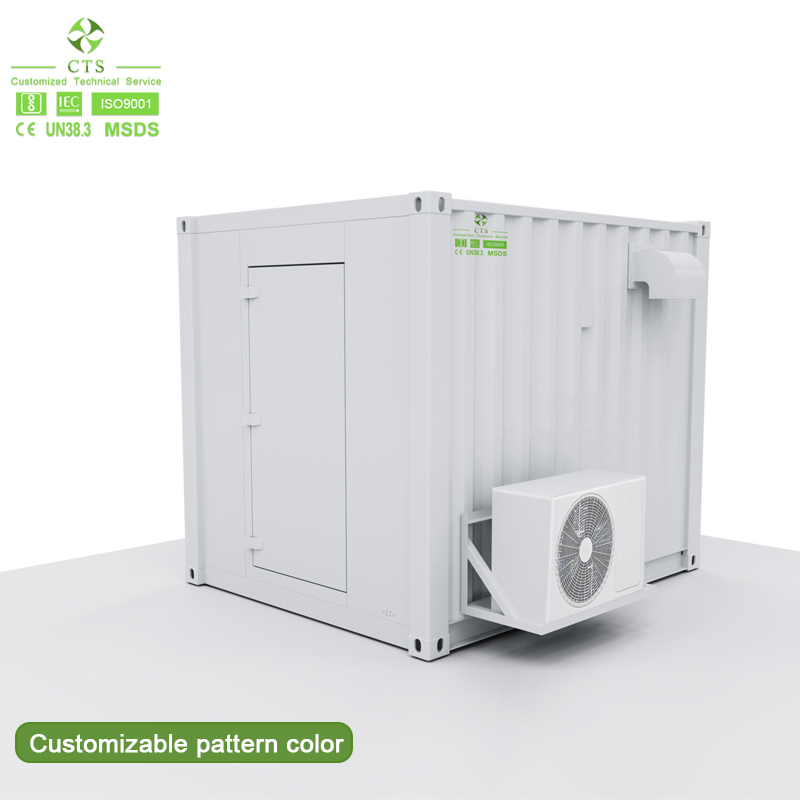

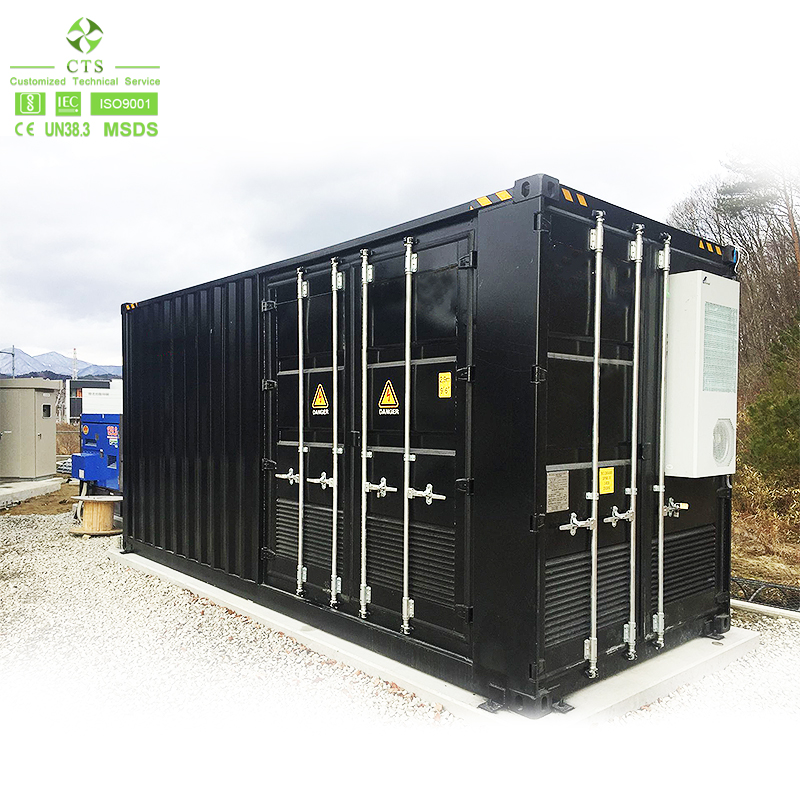

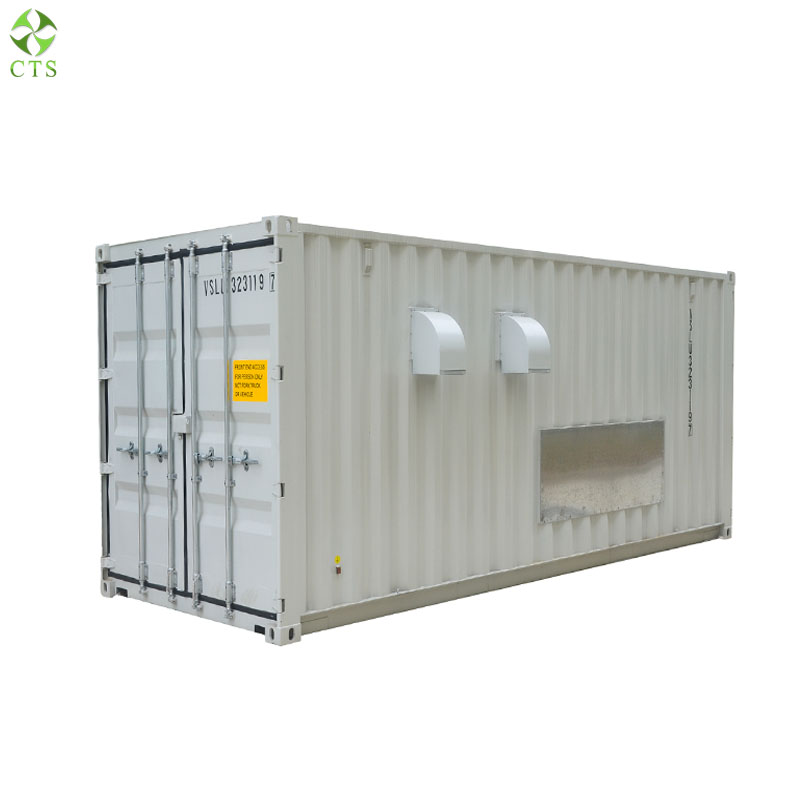

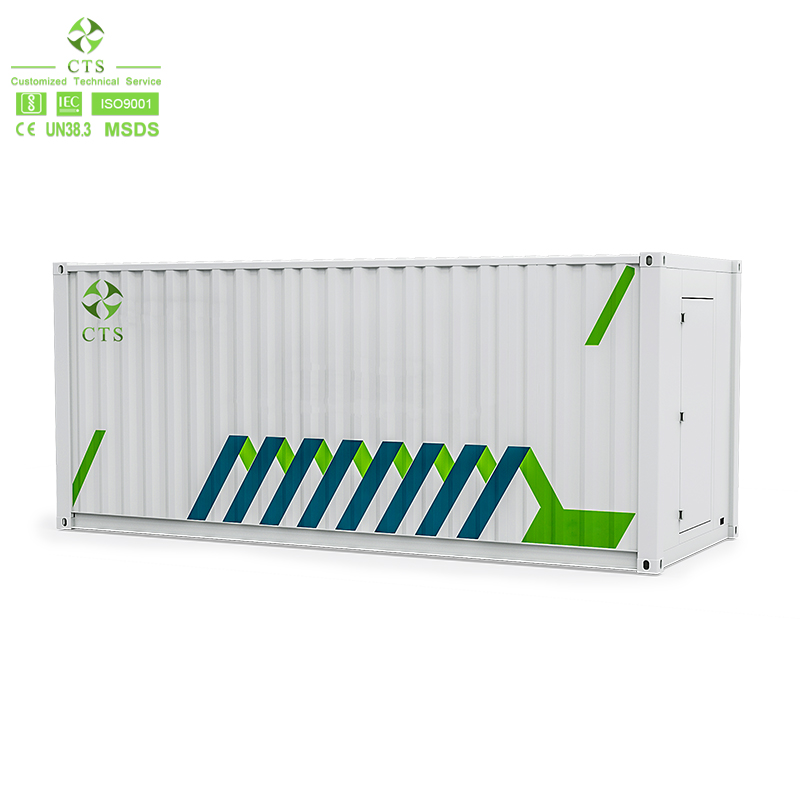

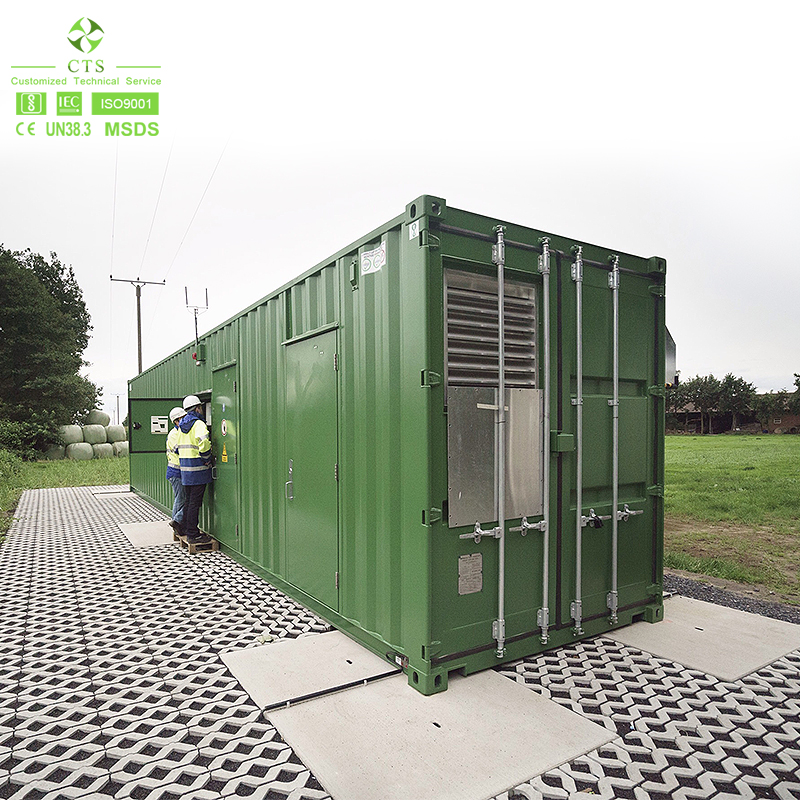

📦 20H/40H Outdoor Container

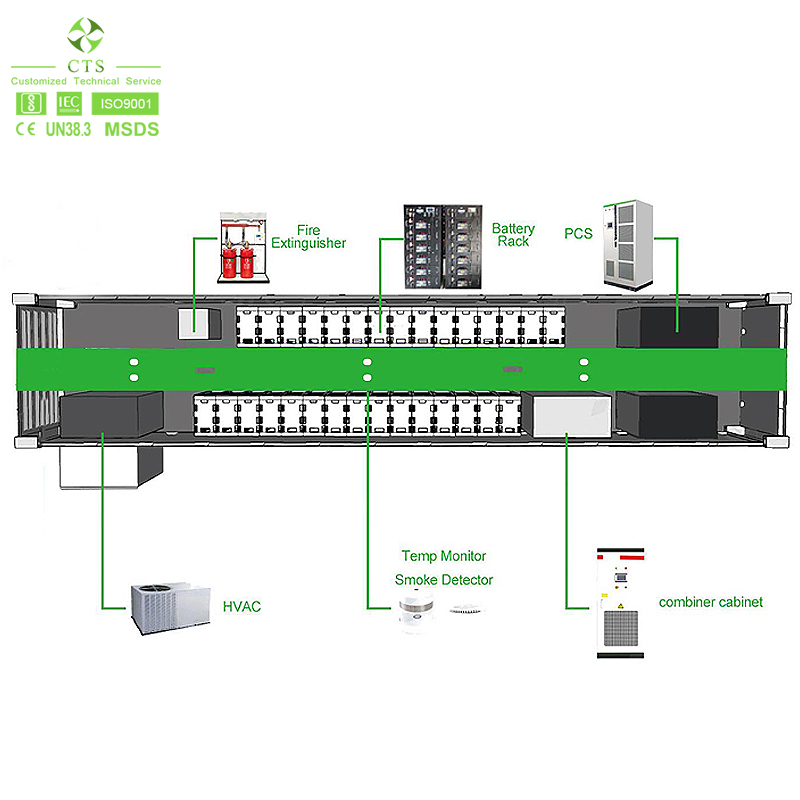

The solar container includes lighting, access control, fire protection, and climate control air conditioning systems.

20H design can hold 100kwh battery units and other equipment.
Configurable for indoor or outdoor placement, designed with premium heat insulation.

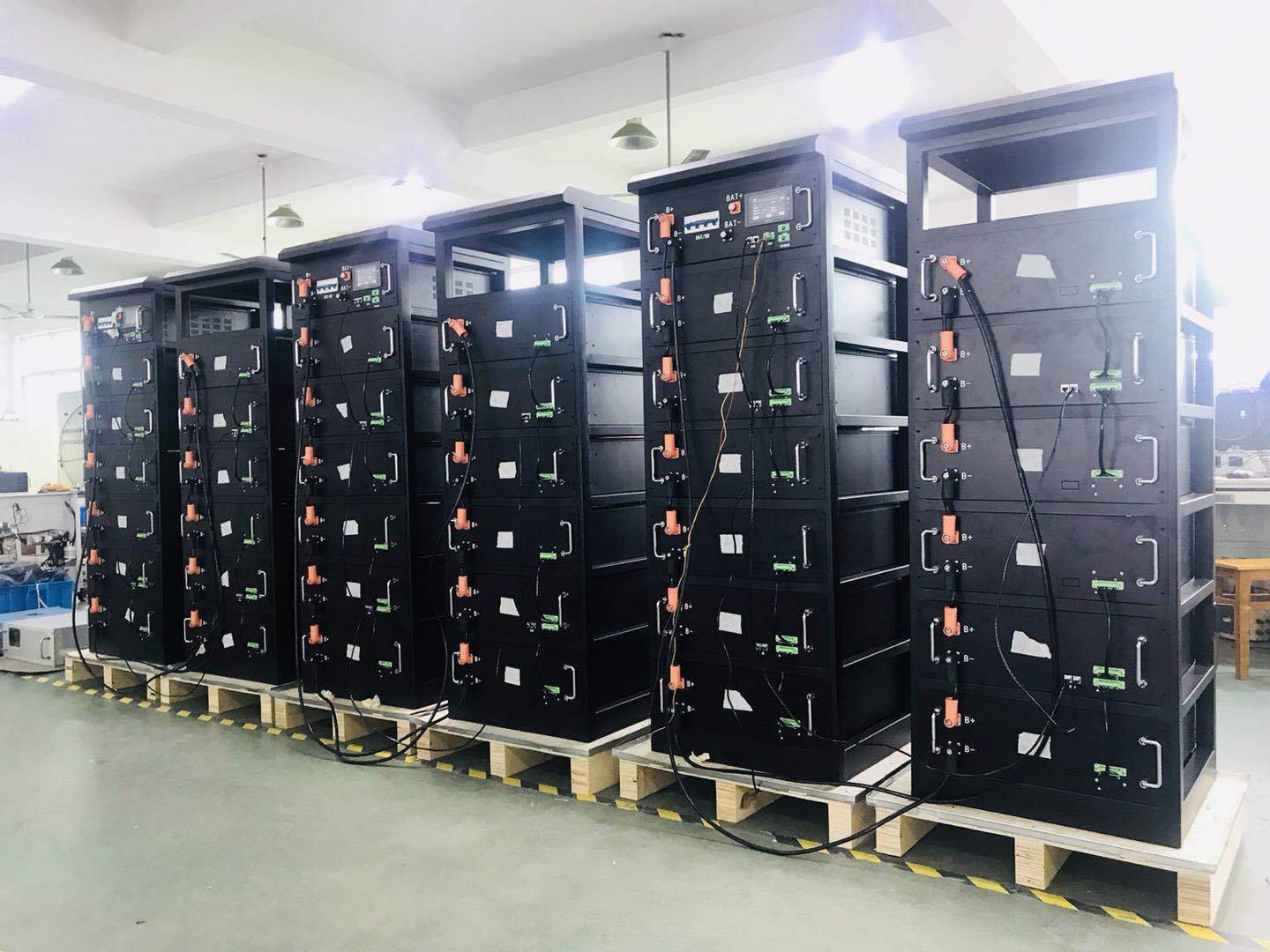

🌟 Advantages

Various working modes can be set flexibly.
Flexible Battery Type compatibility (Li-ion, Lead-acid).
PV controller can be expanded to facilitate flexibility.
Integrated CAN and RS485 communication interfaces with Modbus protocol support.
Integrated EMS (Energy Management System) functionality.
Strong load adaptability.
Perfect protection functions to safeguard both inverters and batteries.

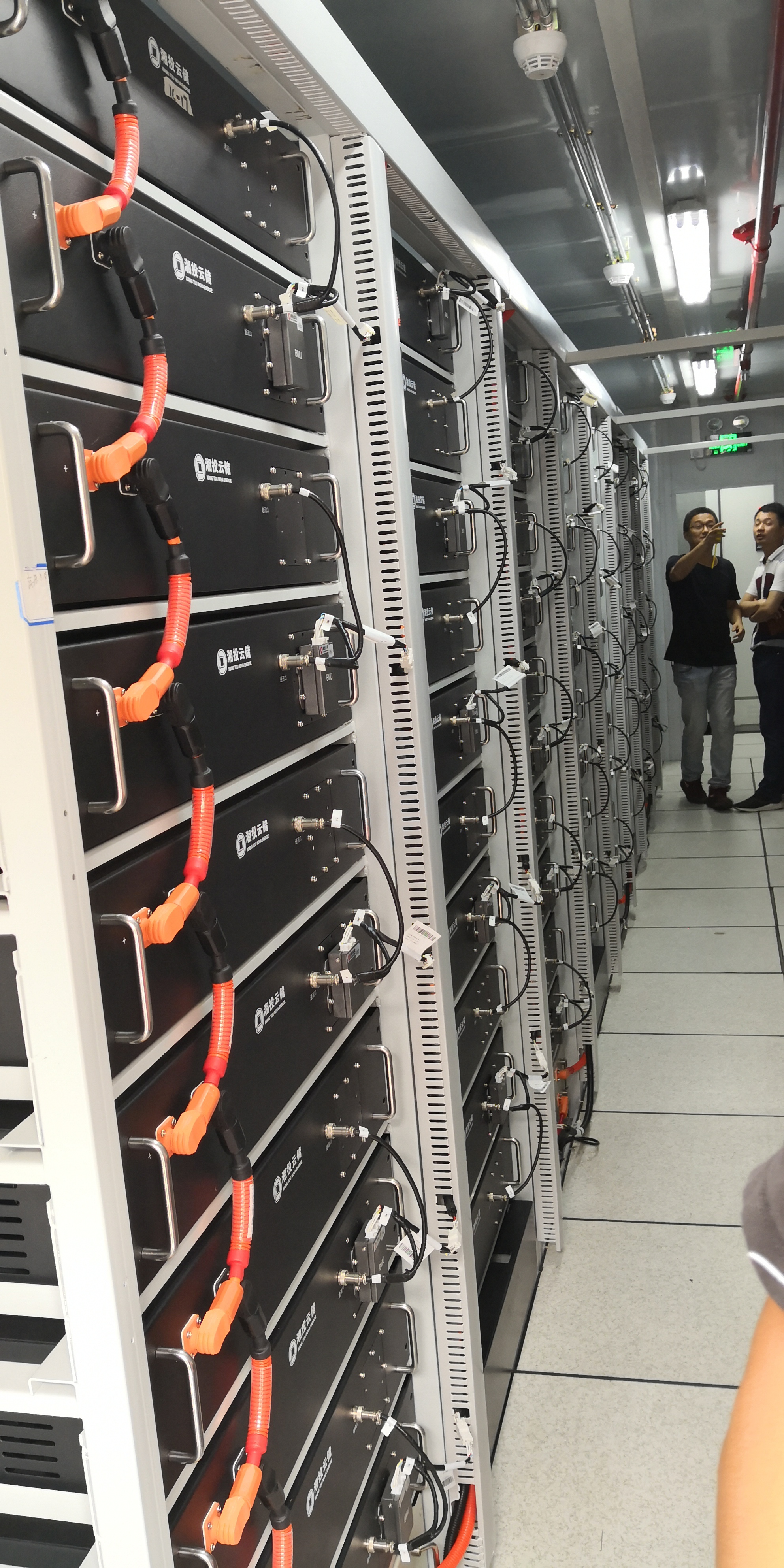

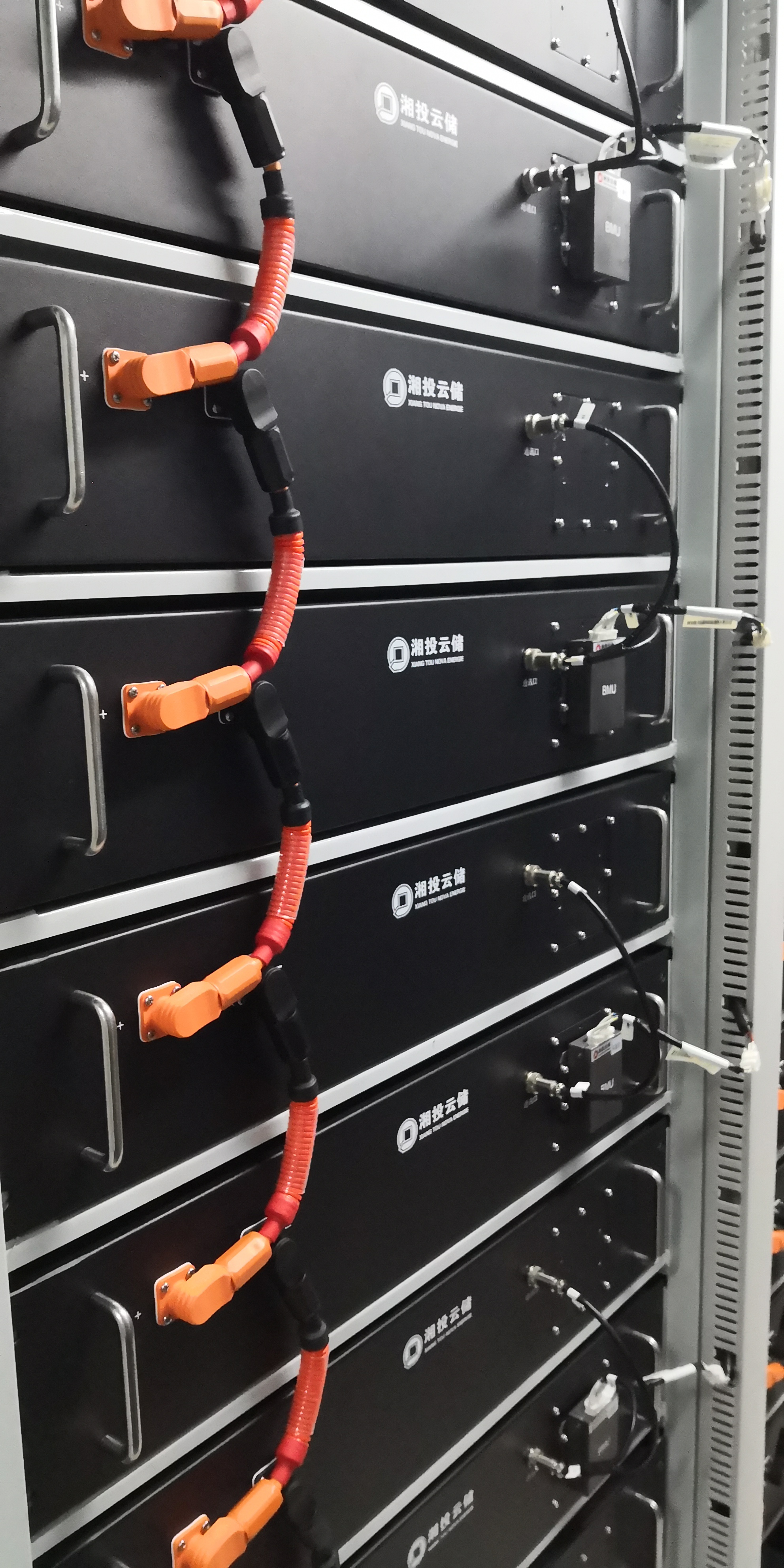

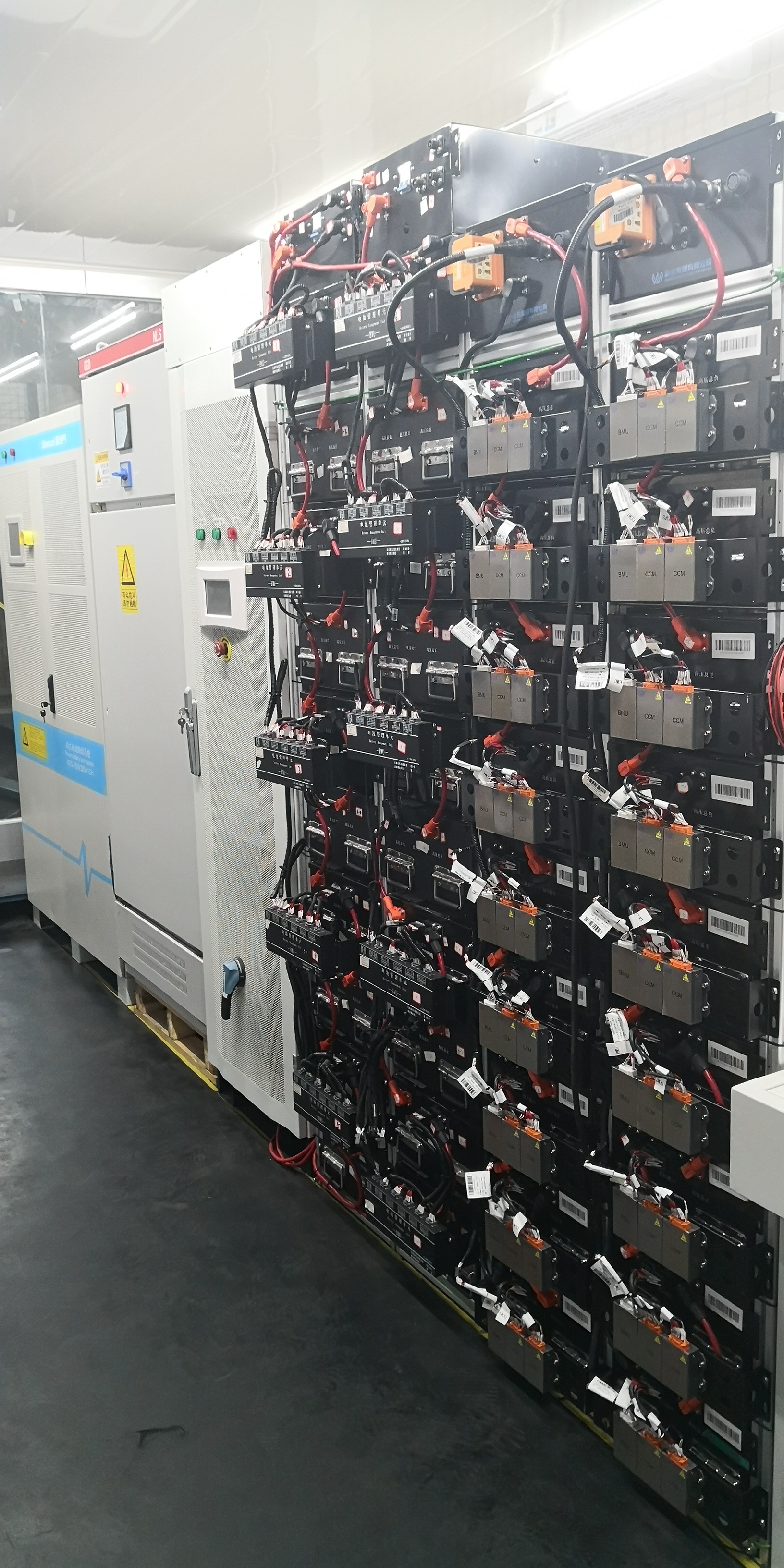

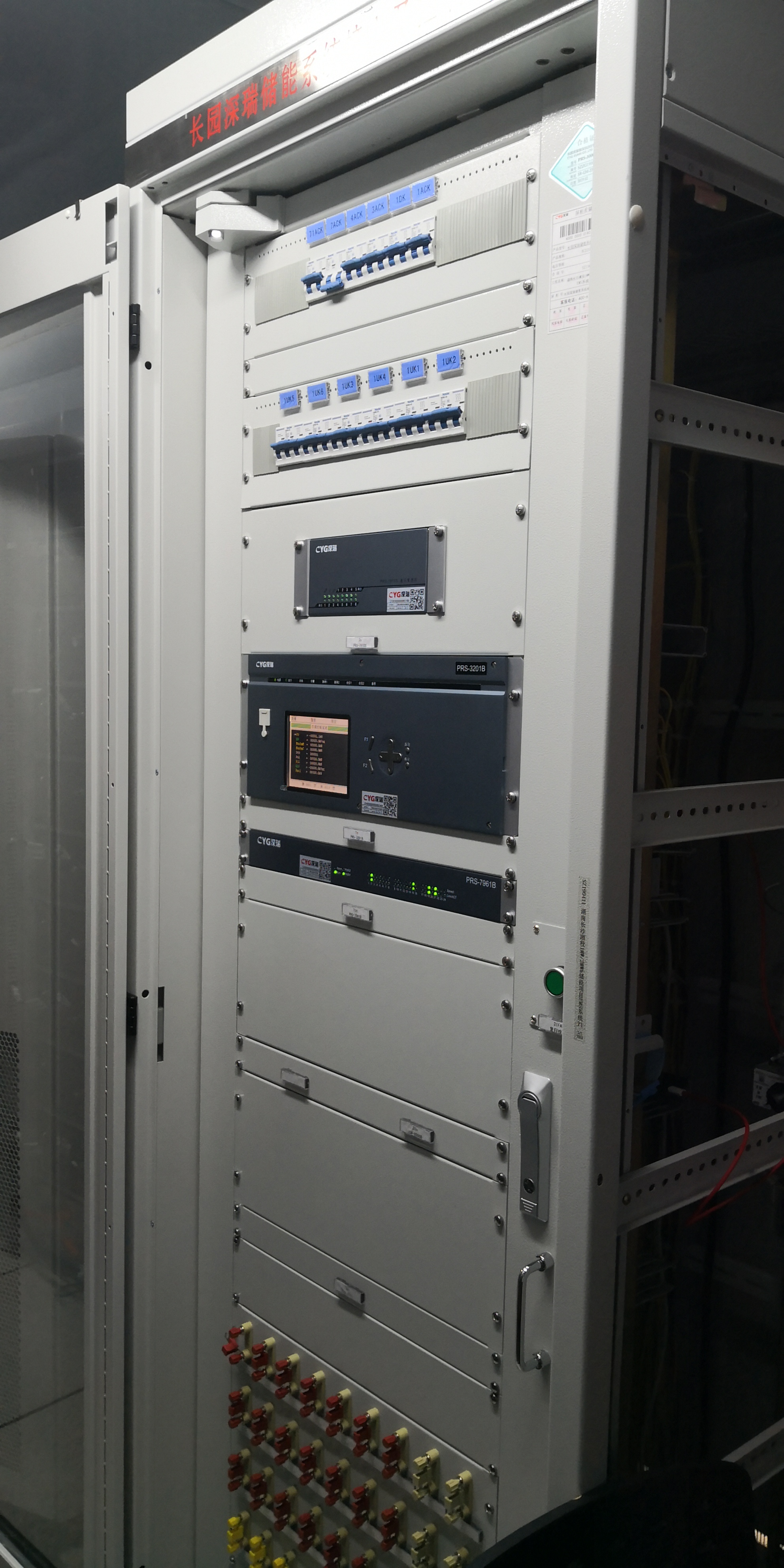

Application Showcase

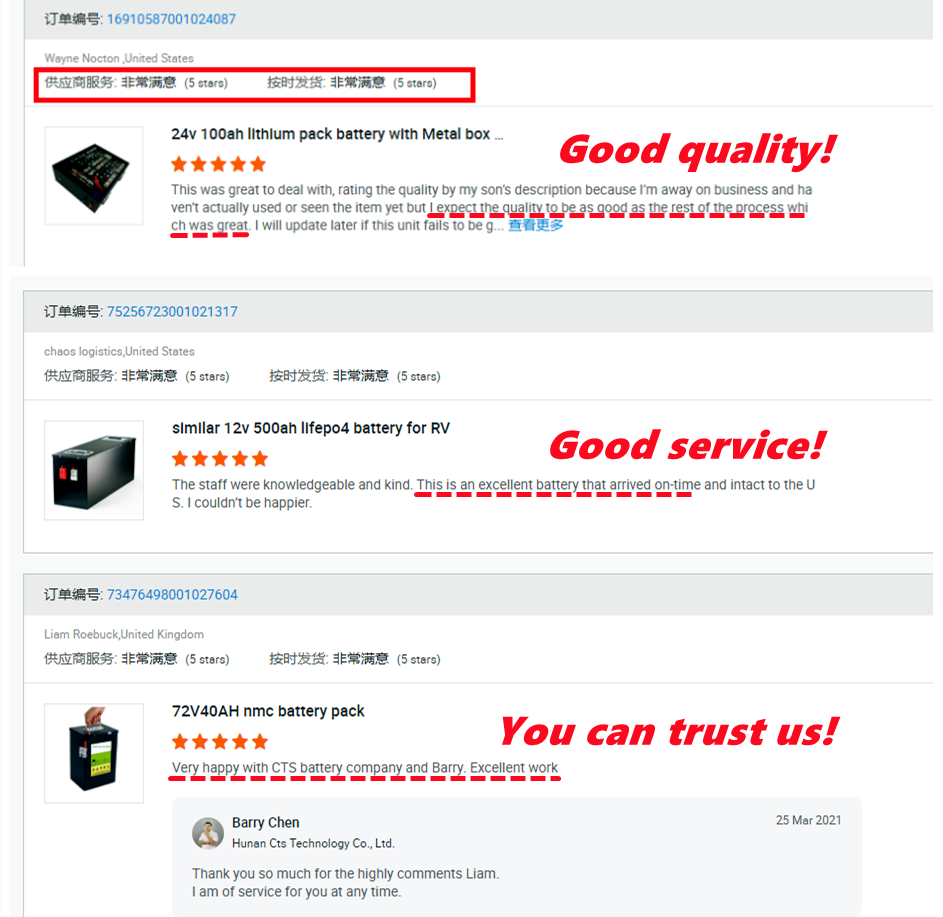

Customer feedback

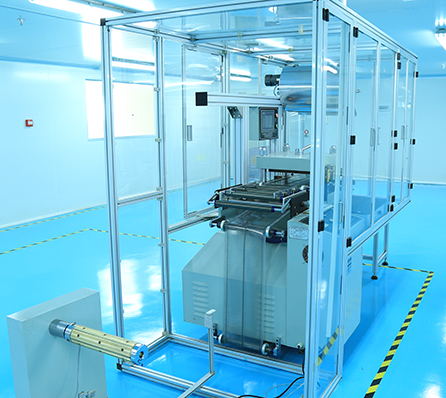

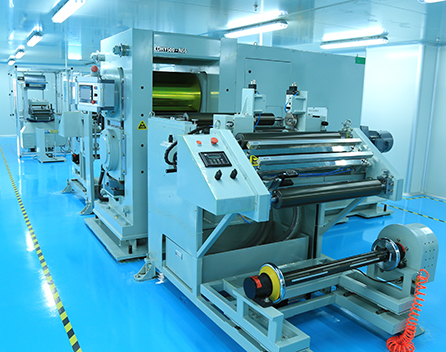

Manufacturing and R&D Capabilities

We are a professional manufacturer engaging in the research, development, production, marketing, and service of lithium-ion pouch battery cells, battery packs, and battery management systems. These products are widely used in EV, HEV, UPS, solar and wind systems, and remote control equipment.

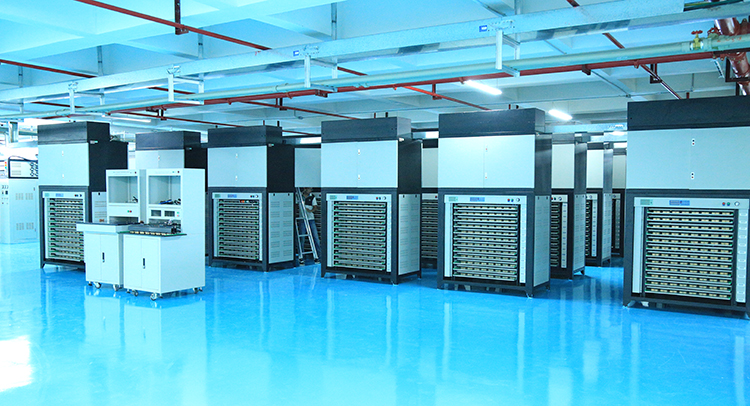

Located in the National Economic Development Zone, the facility operates with advanced management personnel and development engineers across multiple production lines, prioritizing full automation through advanced manufacturing equipment and testing technologies.

⚙️ Why Choose Us?

Approximately 10 years of experience in the lithium battery field, supported by a large 15,000 square meter factory space.
Dedicated R&D team consisting of structural, software, and hardware engineers with 5-10 years of specific experience in lithium batteries.
Proven experience executing large-scale project installations across international markets, including Canada, Australia, and the Netherlands.
Collaboration with top-tier BMS suppliers to ensure cutting-edge technology and premium service standards.

Frequently Asked Questions

What capacity options are available for the Lithium Battery ESS Container?

We offer standard systems with capacities of 300KWH, 500KWH, 800KWH, and 1MW (1000KWH). Customized battery configurations ranging from 50kwh to 250kwh can also be designed.

What are the primary applications of this Hybrid ESS?

This system is ideal for self-consumption of renewable energy, load shifting, peak shaving, and backup power during grid failures using islanding control functions.

What safety mechanisms are built into the battery systems?

The system utilizes high-safety Lithium Iron Phosphate (LiFePO4) cells and is managed by a multi-level management architecture including CBMS, BMU, GBMS, and EMS to protect against overvoltage, overcurrent, and extreme temperatures.

Can these storage containers be installed in outdoor environments?

Yes, the 20H and 40H containers are fully rated for outdoor use, built with heavy insulation, and fully equipped with internal lighting, access control, fire protection systems, and temperature-regulating air conditioning.

What third-party components or site tasks are not provided?

We do not provide site civil work, input grid connections, output distribution connections, or site communications interconnections. However, complete installation manuals and technical datasheets are available upon inquiry.

What communication protocol does the ESS support?

The integrated BMU and BMS systems feature native support for CAN2.0 and Modbus protocols through physical CAN and RS485 communication interfaces.
