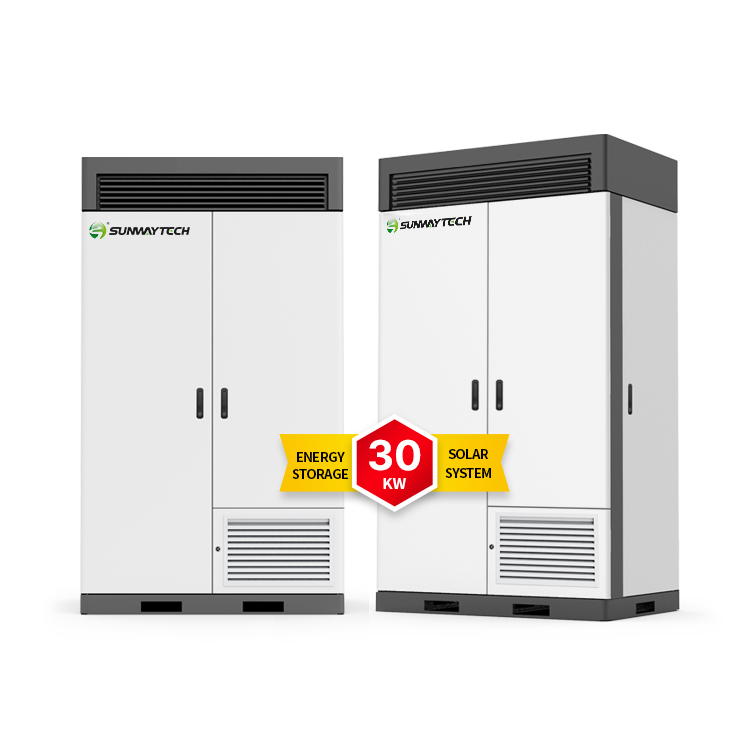

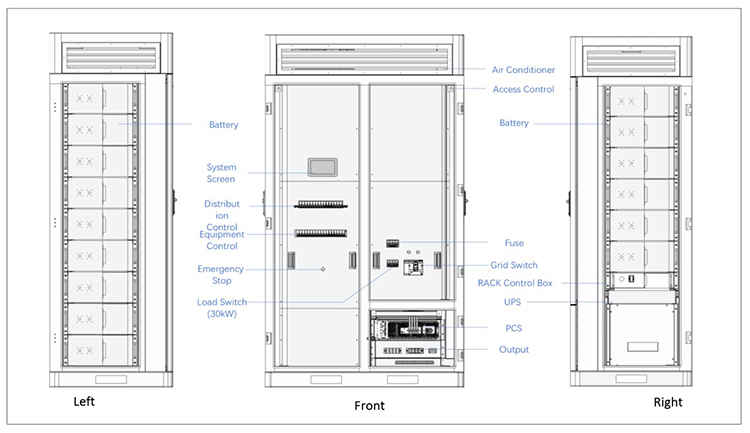

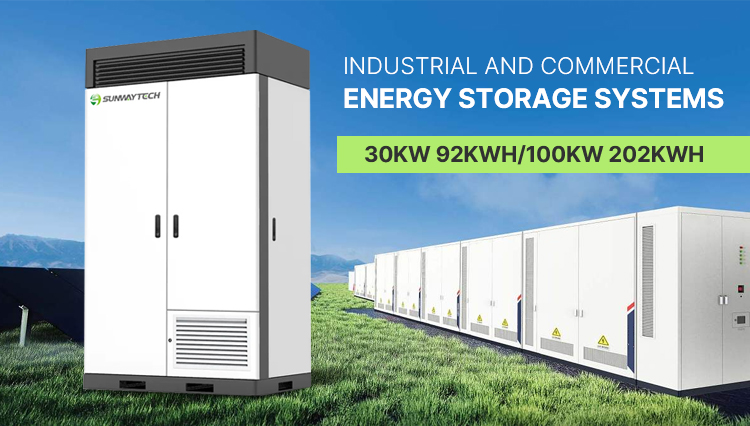

This product is used for power storage in power energy storage systems. The battery route is an aluminum-shell lithium iron phosphate battery. The modular design of the battery pack makes it easy to transport, install, and maintain. The battery pack can monitor and store battery pack parameters in real time to achieve local protection. Meets applications such as peak shaving, peak shaving and valley filling, and off-grid backup power supply for power energy storage systems.
| Total energy | 92kWh, 25°C @ 0.5C rated |
| Rated DC side voltage | 768V |
| DC side working voltage | 672 ~ 864V |
| Sustainable charging power | 30kW |
| Sustainable discharge power | 30kW |
| Conversion efficiency | DC side ≥94% (25°C, 0.5C) |
| AC maximum discharge current | 45A |
| Weight | Approx 1.6T |
| Operating environment | Below 2000 meters above sea level |
| Thermal management | HVAC 3.5kW forced air cooling |
| On grid/Off-grid mode | Manual/automatic (STS) |
| AC output | 1P+N / 3P+PE / 3P+N+PE |
| Rated AC voltage | 380V |
| Output harmonics | ≤3% |
| Voltage range | -15% ~ +15% |
| Frequency range | Rated frequency ±3Hz |
| Unbalanced load carrying capacity | 1 |
| Power factor adjustable range | -1 ~ 1 |
| Fire extinguishing method | Aerosol automatic fire extinguishing |
| System protection level | IP54 |
