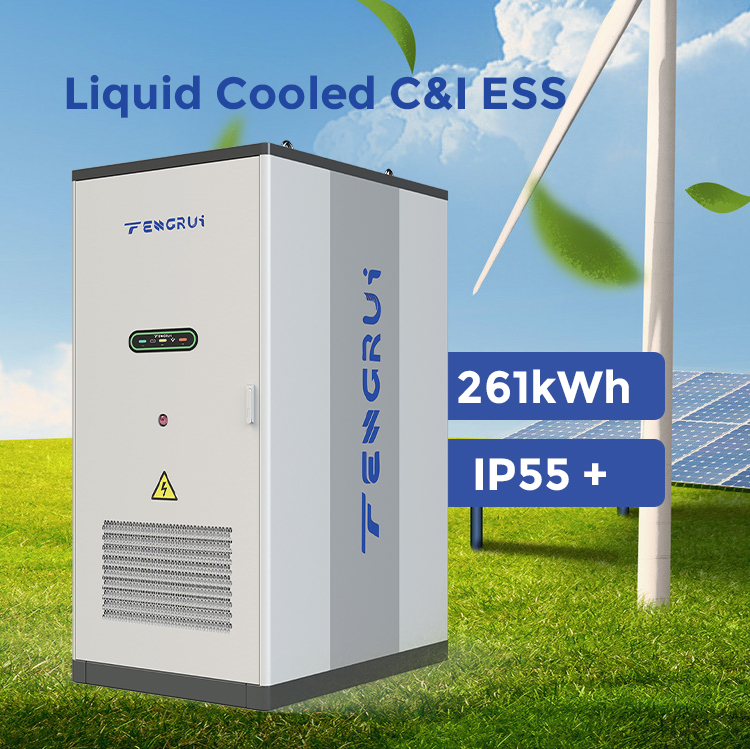

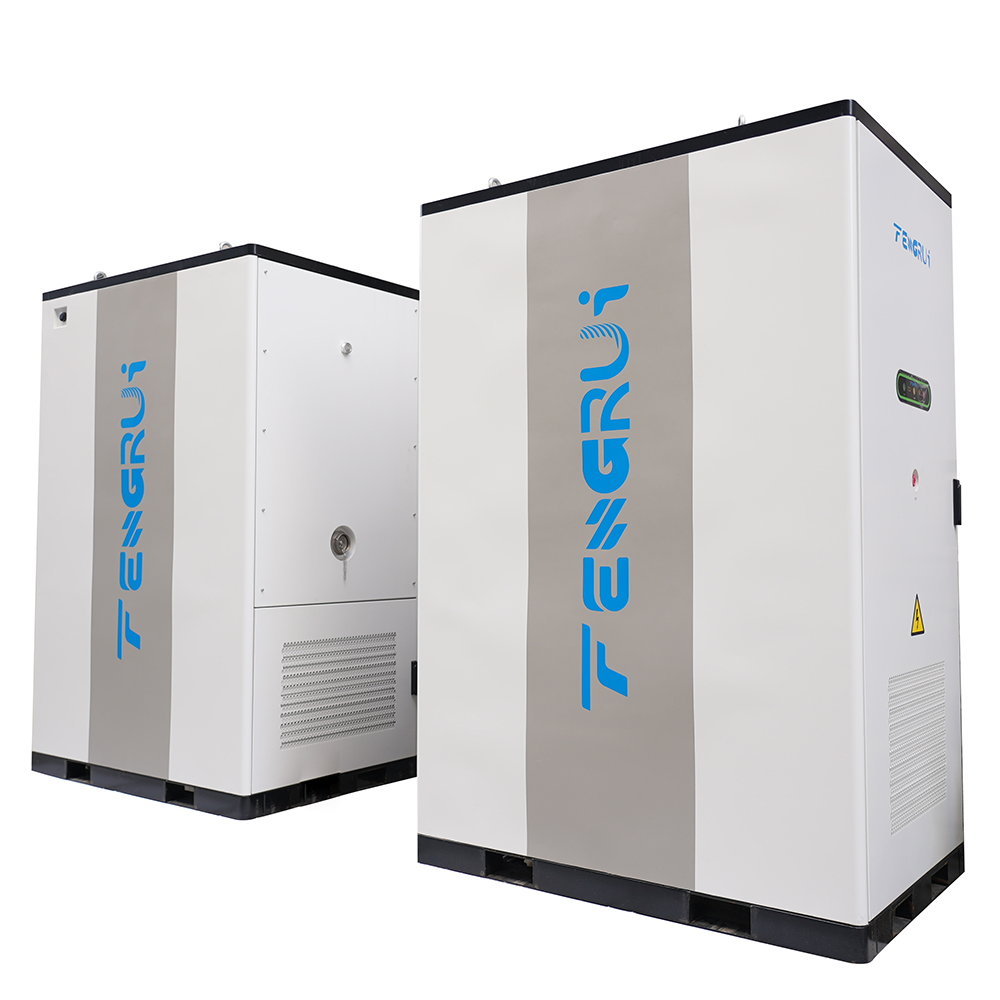

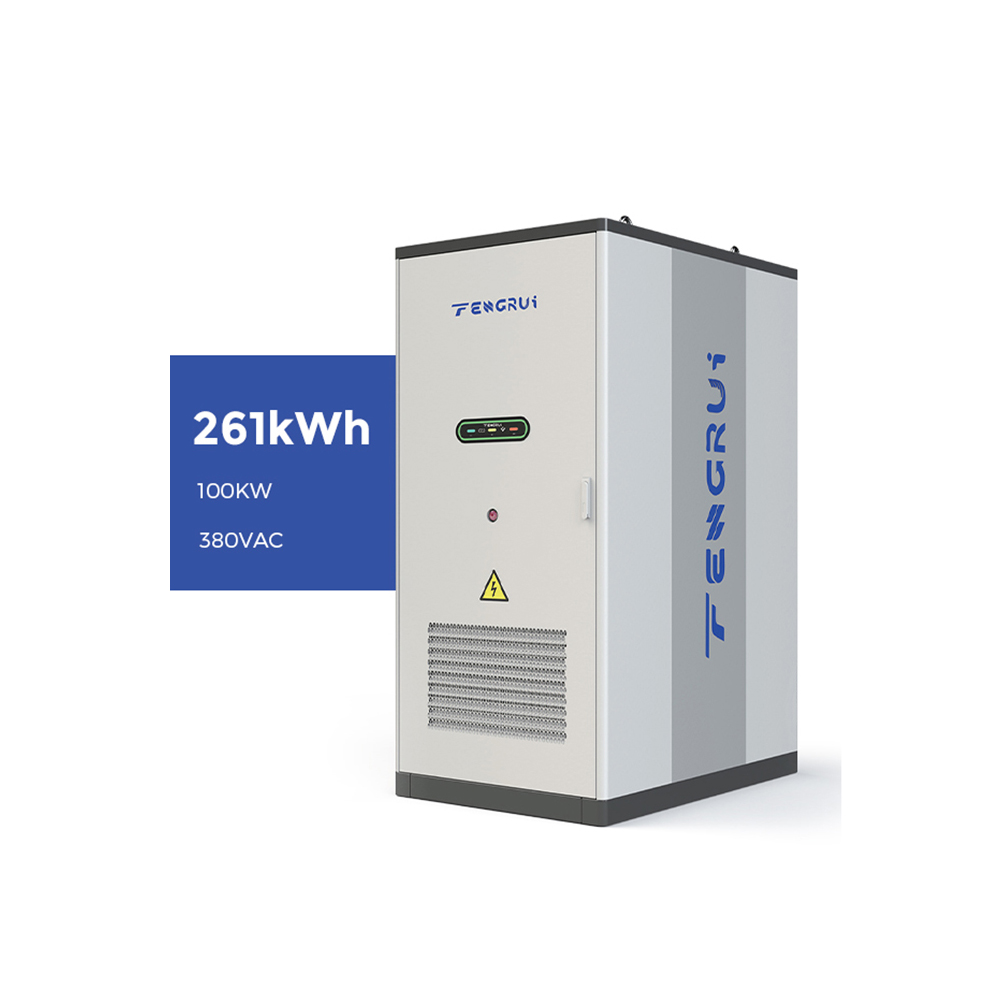

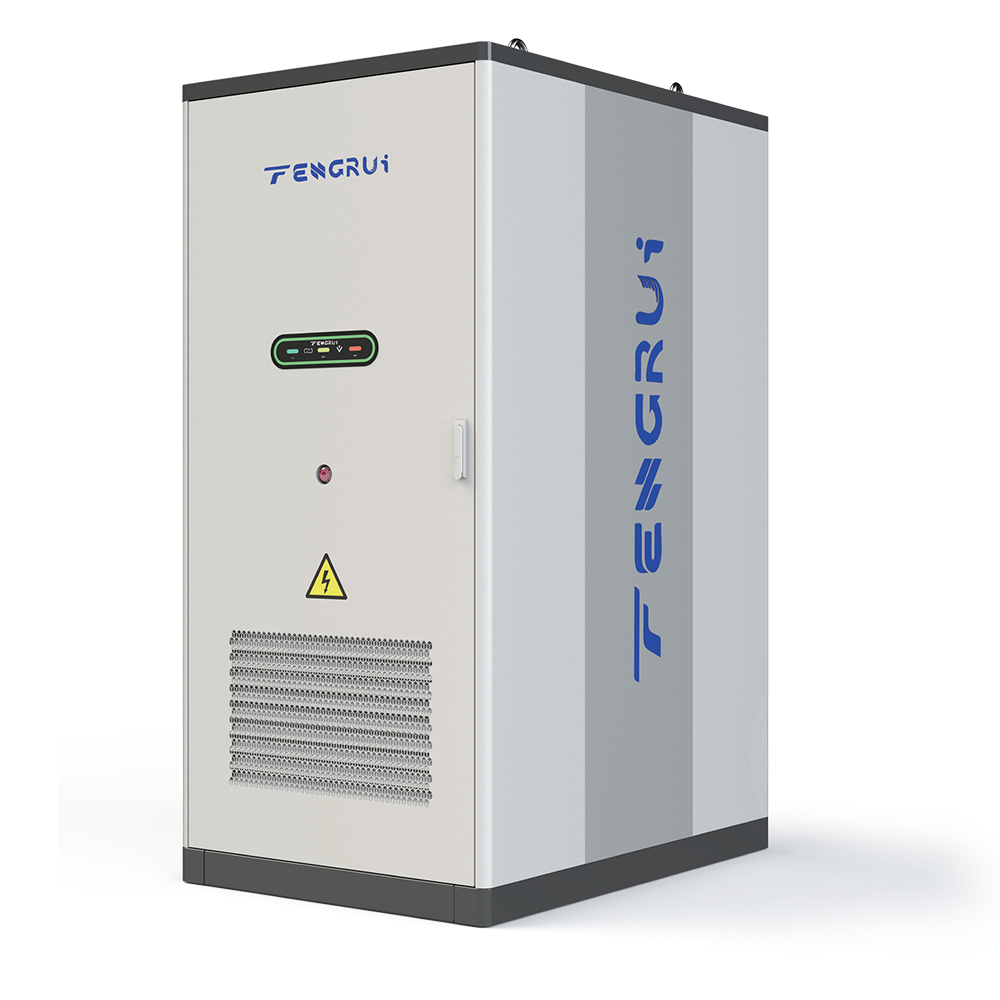

Load Shifting Industrial Energy Storage System 125kW 261kWh LiFePO4 Battery Energy Storage System Factory Peak Shaving

1 / 5

Load Shifting Industrial Energy Storage System 125kW 261kWh LiFePO4 Battery Energy Storage System Factory Peak Shaving

Send Inquiry

Product Description

Products Description

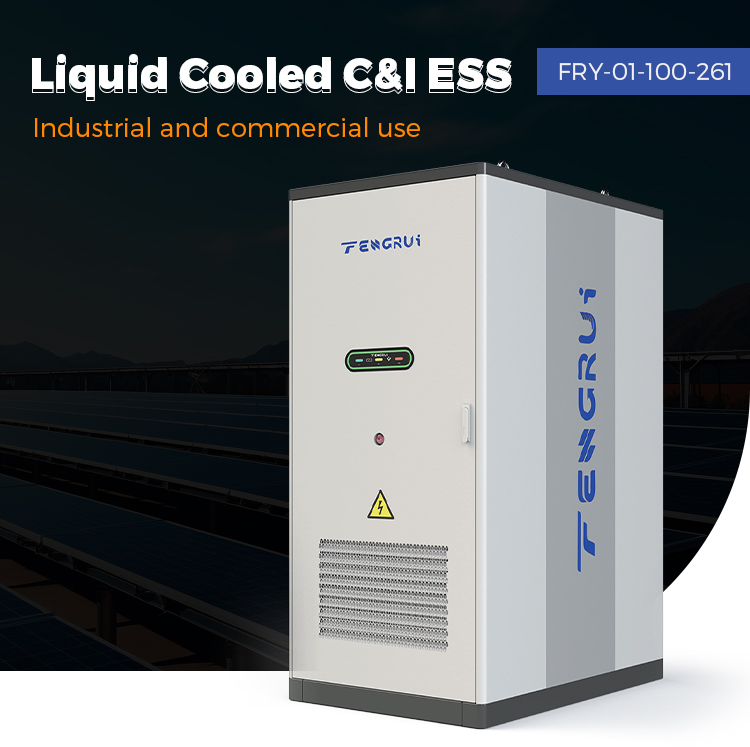

Model	FRY-01-100-261
Cell Capacity	314Ah
Battery Pack	52S
Nominal Capacity	52.2kWh
Nominal Voltage	166.4V
Cooling Method	Coolant: 50% Ethylene Glycol Aqueous Solution, -35°C
Fire Suppression	Aerosol Fire Suppression

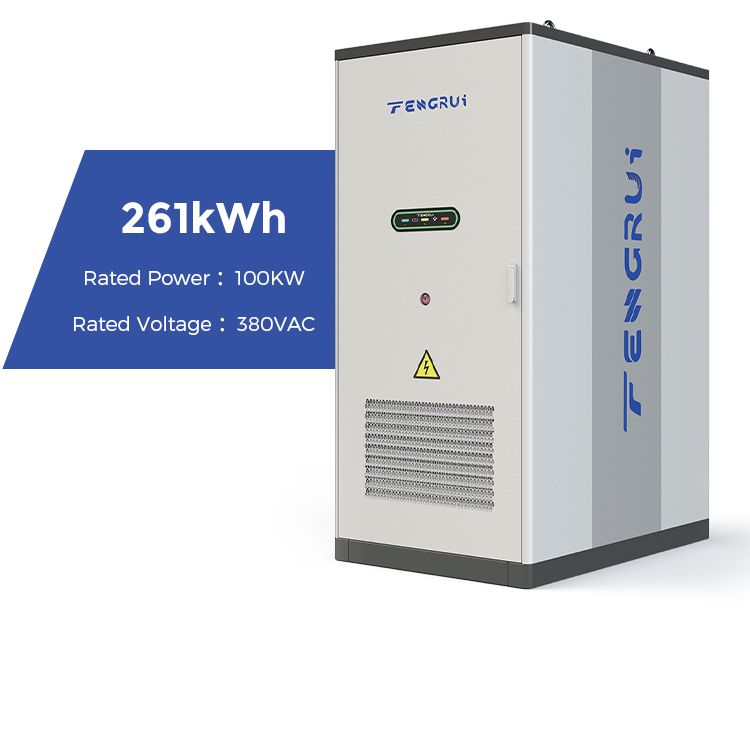

Rated Power	100kW
Max. Power	110kW
Rated Voltage	380VAC
Frequency	50/60Hz
Grid Frequency Range	45-55Hz / 55-65Hz
Voltage Tolerance	±15%
THD	<3%
System Capacity	261kWh

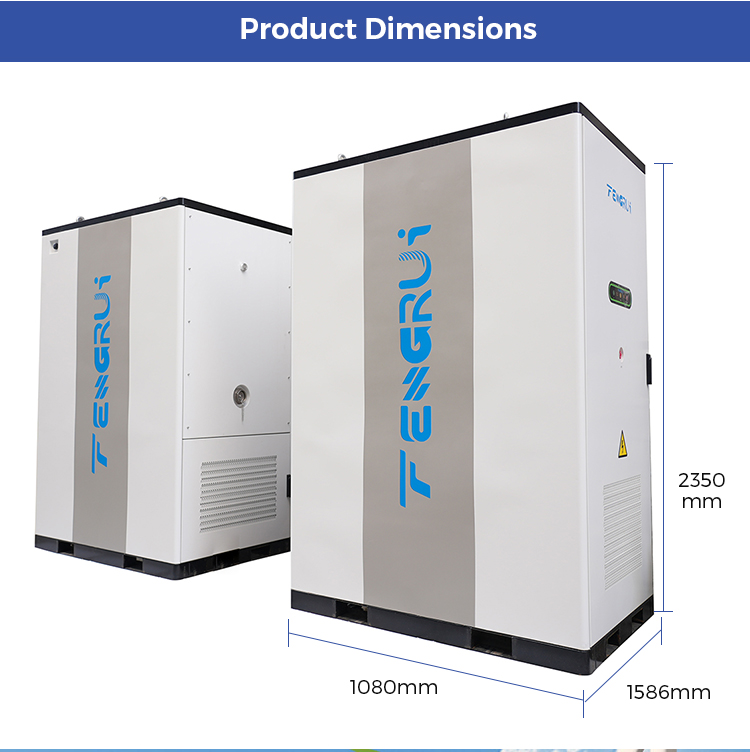

Dimensions (LDH)	L1080×D1586×H2350mm
Weight	2.8T
Protection Class	IP55
Operation Temperature	-20°C ~ 50°C
Max. Altitude	3000m
Fire Suppression	Aerosol / Water Fire Fighting
Communication	RS485/CAN/4G

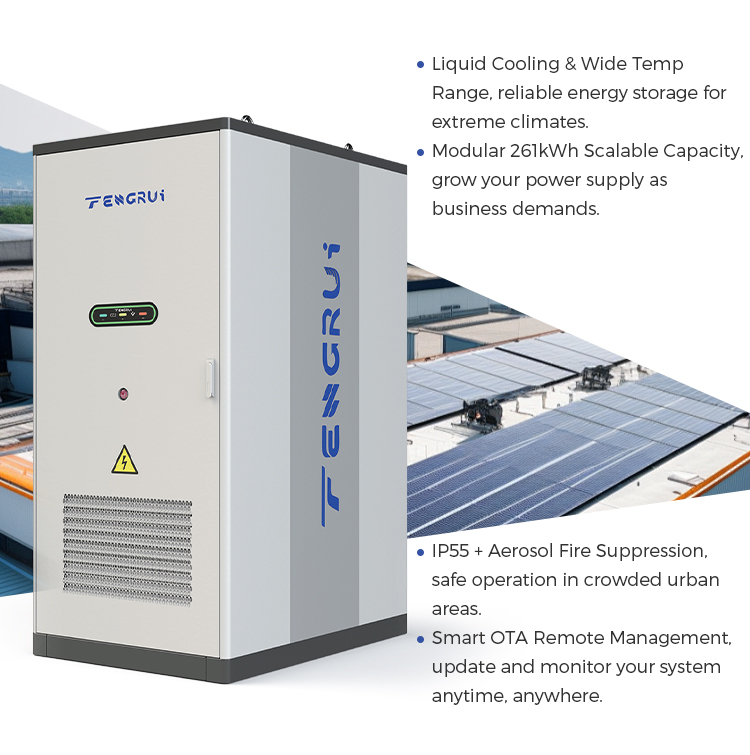

Liquid Cooling & Wide Temp Range, reliable energy storage for extreme climates.

Modular 261kWh Scalable Capacity, grow your power supply as business demands.

IP55 + Aerosol Fire Suppression, safe operation in crowded urban areas.

Smart OTA Remote Management, update and monitor your system anytime, anywhere.

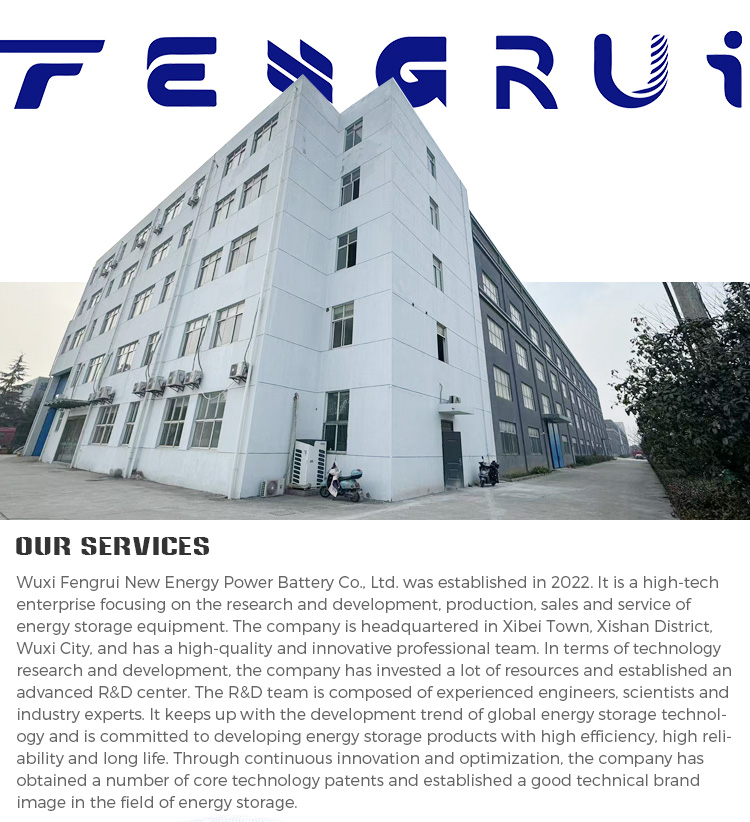

Company Overview

Frequently Asked Questions

Q1 What are the main functions and businesses supported by this equipment?

The business scope covers the development, production, and supply of energy storage systems, primarily used in residential energy storage, commercial energy storage, industrial energy storage, and renewable energy integration.

Q2 How does the liquid cooling system benefit the energy storage unit?

It uses a 50% Ethylene Glycol Aqueous Solution coolant operating efficiently down to -35°C, ensuring active thermal management, wide temperature range stability (-20°C ~ 50°C), and improved longevity of the battery cell capacity.

Q3 What integrated fire safety measures are deployed?

The system boasts an IP55 protection standard and incorporates multi-level protection features, utilizing both Aerosol fire suppression and Water fire fighting integration for secure operation.

Q4 Is there a Minimum Order Quantity (MOQ)?

No, we have no MOQ limit. Small and prototype orders are welcome. Volume-based pricing is available for larger quantities.

Q5 What delivery terms and shipment options do you support?

We support various terms, including DDP (Delivered Duty Paid) and Express Delivery options.

Q6 What are the accepted payment methods and currencies?

Accepted payment currencies include USD, EUR, and CAD. Accepted payment methods include T/T, D/P, D/A, Credit Card, PayPal, and Cash.
