215kwh Commercial/Industrial Energy Storage System All in One 215kw Hybrid Solar Energy System with Lithium Ion Battery
Still deciding? Get samples of $ !US$ 100000/Piece

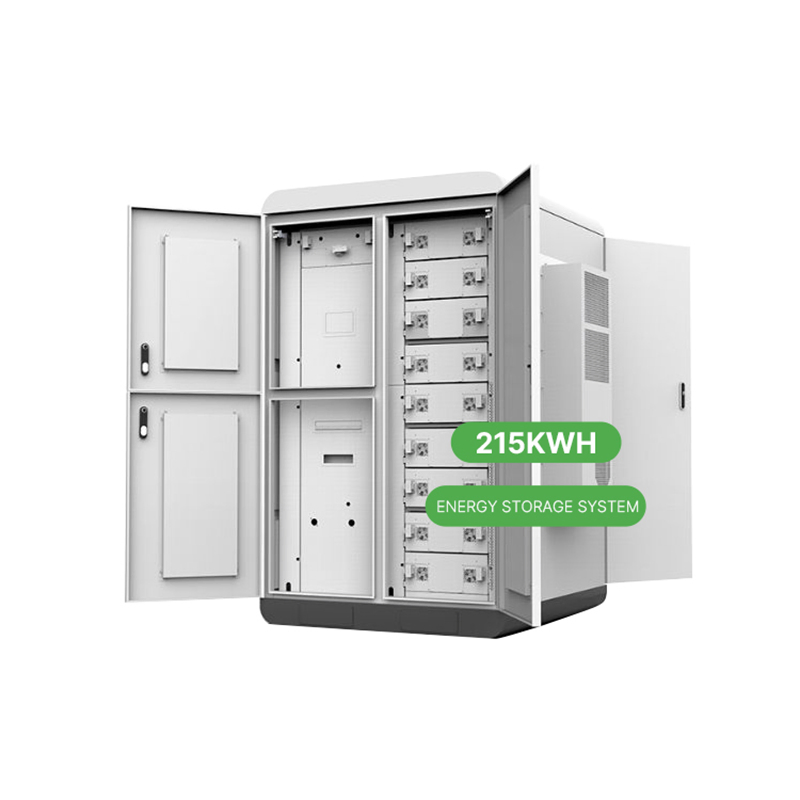

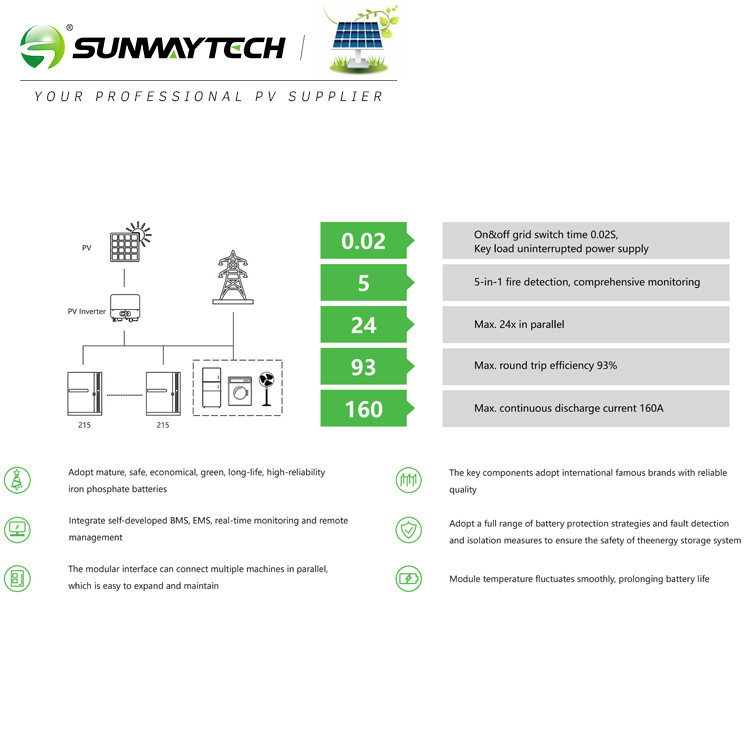

The 215 commercial & industrial energy storage system adopts the all in one design concept. The cabinet is integrated with battery management system (BMS), energy management system (EMS), modular power conversion system (PCS), and fire protection system. The system's capacity is up to 215 kwh and the power is up to 100 kw. The modular design allows for flexible expansion, adapting to various scenarios such as power expansion, backup power supply, and black start (The ability to restore power without relying on the help of other networks after the power system is out of service due to a fault).
Product Parameters
Parameter Item
Specification Details
Rated Battery Capacity(kWh)
215kWh
Rated Voltage(V)
768V
Voltage Range(Vdc)
720-840V
Charge and Discharge Rate(P)
≤0.5
Max. Round Trip Efficiency
93%
DOD
95%
Cooling Strategy
Industrial Air Conditioning
Cycle Lifetime at EOL 80%
≥8000cycles
Fire Fighting System
Perfluorohexanone
Rated Power(kW)
100
Rated AC Voltage(Vac)
380/400
AC Voltage Range
-15%~+10%
Size(W*D*H mm)
1520*1270*2117
Weight(T)
2.6
Enclosure Protection Rating
IP55
Operating Temperature Range(°C)
-20-+55 (>45 drop)
Operating Humidity Range
0-95%
Maximum Working Altitude(m)
≤4000 (>2000 drop)
Communication Interface
RS485, Ethernet
Protocol
Modbus RTU, Modbus TCP, IEC 104
Product Display

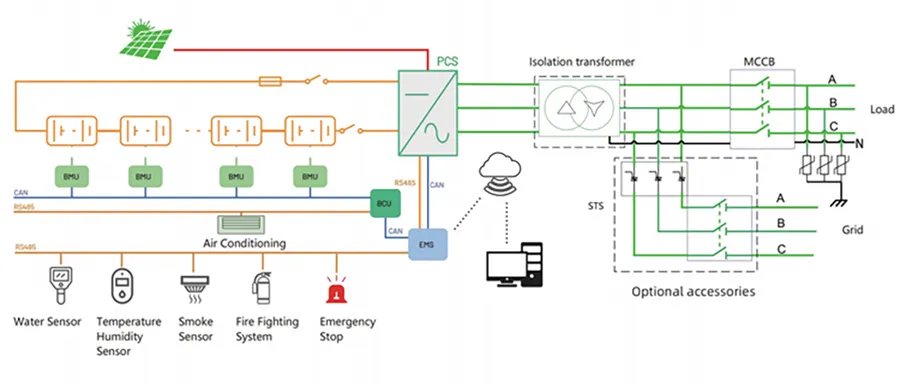

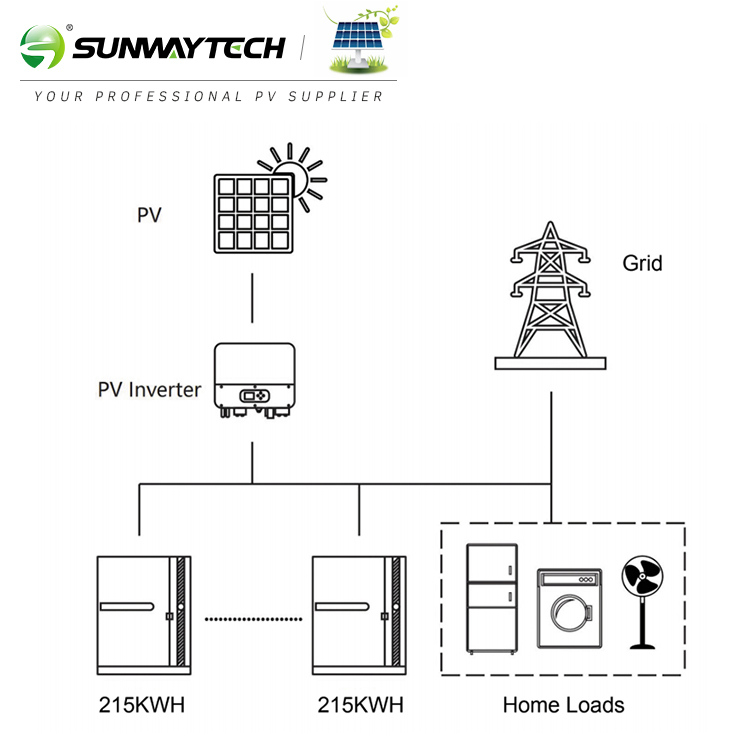

A commercial energy storage system works by storing excess energy generated by the solar panels during the day in a battery storage system. This stored energy can then be used during times when the sun is not shining, such as at night or during cloudy weather. The power conditioning system (PCS) is responsible for converting the direct current (DC) electricity generated by the solar panels into alternating current (AC) electricity that can be used by household appliances. The isolation transformer is used to isolate the AC output of the PCS from the grid, ensuring that the system is safe and compliant with regulations. The MCB is used to connect the system to the grid and the load. The optional accessories are used to monitor the system and ensure that it is operating safely and efficiently.

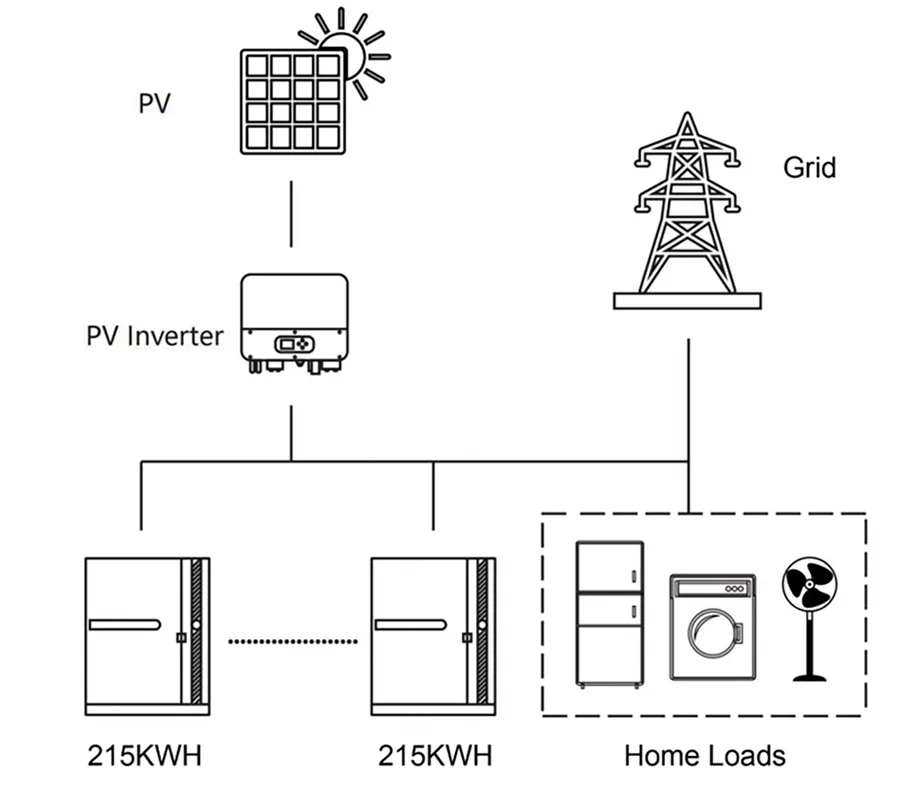

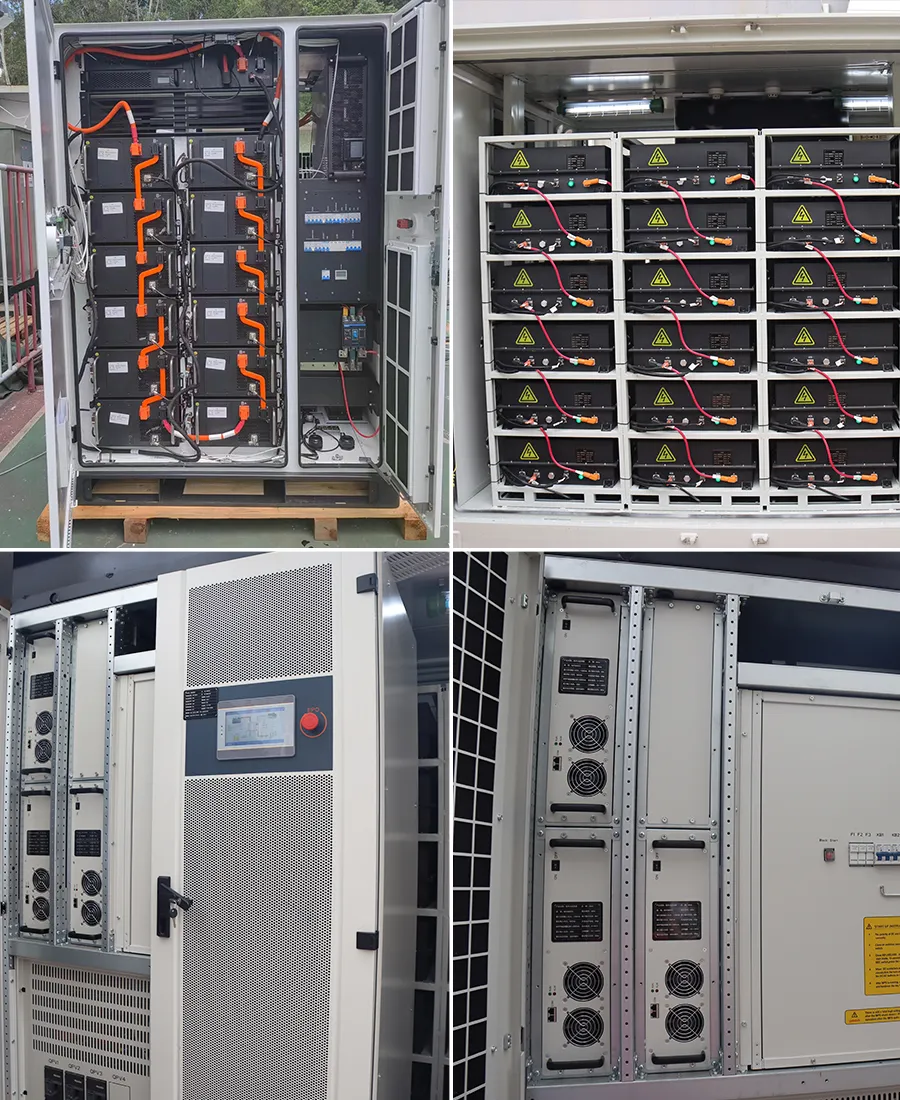

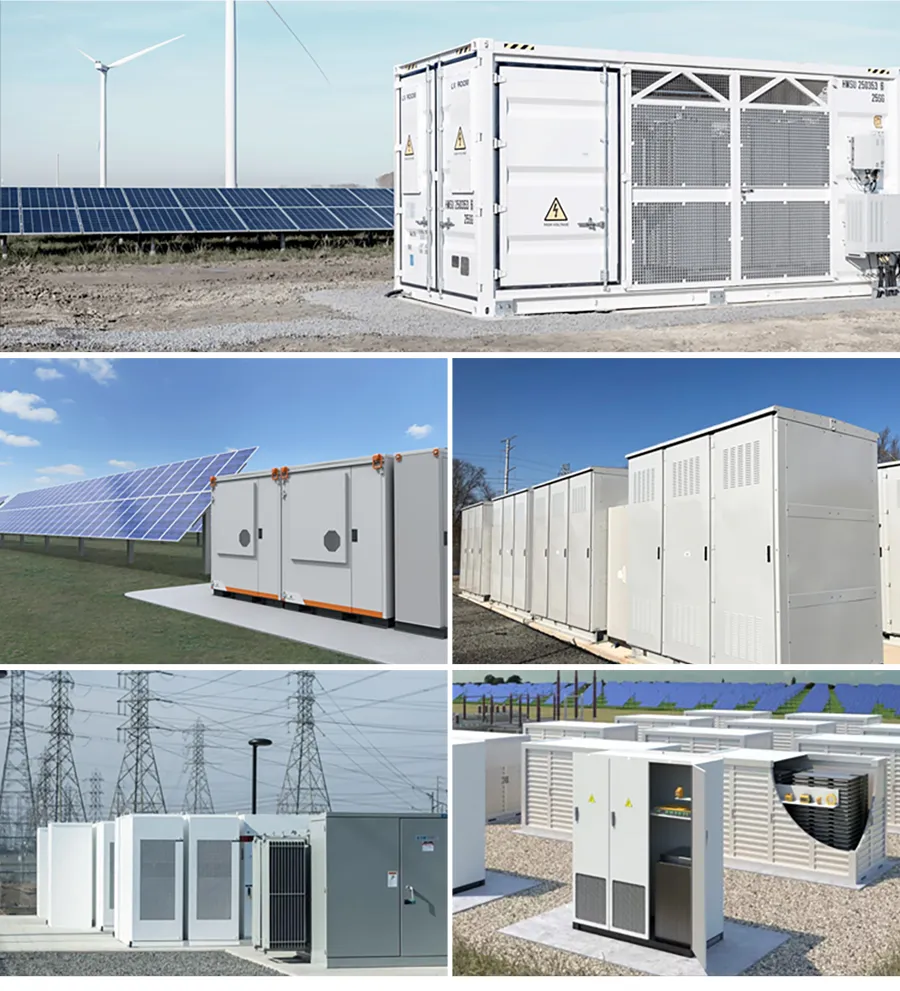

Application Scenario
Certifications
Recommended Products
Frequently Asked Questions
Q1: What is the rated capacity and power output of this industrial energy storage system?
A1: The system features a rated battery capacity of up to 215 kWh and delivers a rated power output of up to 100 kW.
Q2: How does the integrated cooling system manage internal temperatures?
A2: The cabinet utilizes a dedicated industrial air conditioning cooling strategy to actively regulate operating temperatures, supporting reliable operations from -20°C to +55°C.
Q3: What safety mechanisms are built into the cabinet structure?
A3: Safety is prioritized through an integrated IP55 protection-rated enclosure paired with a specialized Perfluorohexanone fire suppression system.
Q4: What is the expected cycle lifetime and discharge performance of the battery unit?
A4: The lithium-ion battery system supports over 8,000 cycles at 80% EOL (End of Life) with a Depth of Discharge (DOD) rate of 95% and a round-trip efficiency of 93%.
Q5: Which protocols and communication systems are supported for network integration?
A5: The system supports Modbus RTU, Modbus TCP, and IEC 104 protocols, communicating via standard RS485 and Ethernet interfaces.
Q6: What main hardware elements are integrated into this all-in-one cabinet?
A6: The all-in-one system seamlessly integrates a Battery Management System (BMS), an Energy Management System (EMS), a modular Power Conversion System (PCS), and isolation transformer components inside a unified space.
