Indoor 50kw 100kwh Lithium Battery Solar Energy System 100kw 100kwh Energy Storage System 80kw Hybrid Solar Power Storage System for Commercial Use

1 / 5

Indoor 50kw 100kwh Lithium Battery Solar Energy System 100kw 100kwh Energy Storage System 80kw Hybrid Solar Power Storage System for Commercial Use

Customization:	Available
After-sales Service:	Support
Warranty:	25years

Send Inquiry

Product Description

Overview

Model NO.

SAS50KW-100KWH-HY

Condition

New

Certification

Application

Industrial, Commercial

Specification

Normal, solar panel, inverter, bracket, etc

Solar Panel Type

Monocrystalline Silicon, Polycrystalline Silicon

Mounting Type

Ground/Rooftop

Load Power (W)

50kw

Work Time (H)

24 Hours

Function

Power Support

Solar Panel

Mono/Poly 158.75/166/182/210mm

Output Frequency

50Hz/60Hz

Transport Package

Wooden Pallet and Carton Box

Production Capacity

1000 Piece/Pieces Per Month

Packaging & Delivery

Package Size

78.00cm * 46.00cm * 24.00cm

Package Gross Weight

120.000kg

Product Description

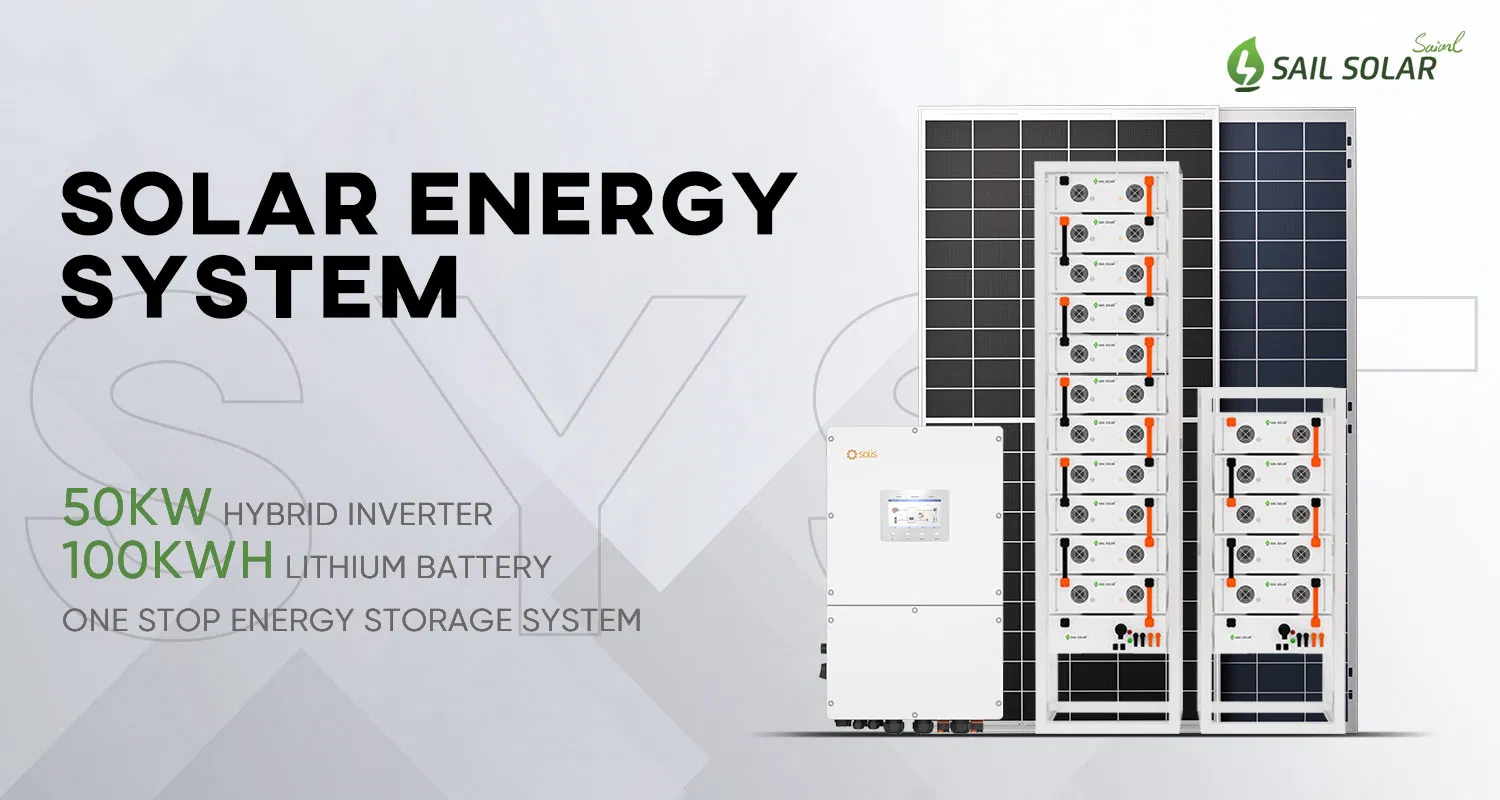

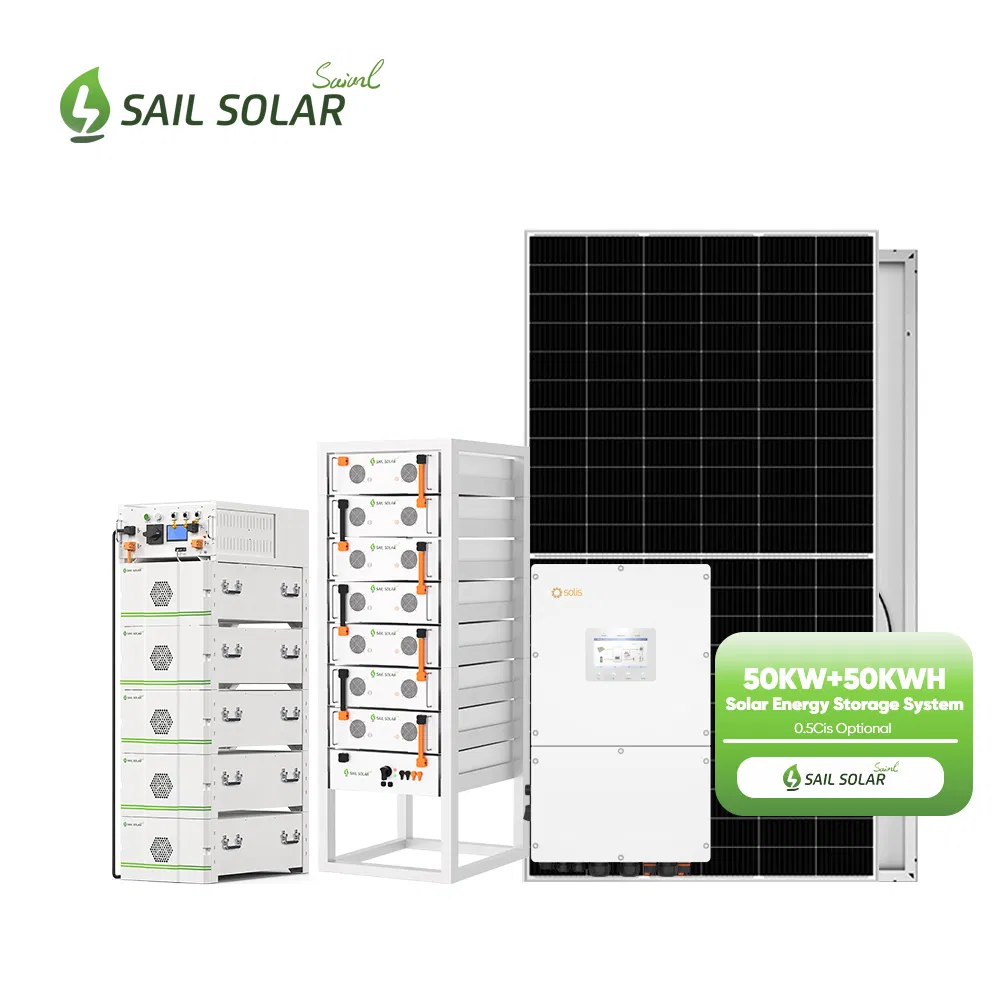

Indoor 50kw 100kwh Lithium Battery Solar Energy System

Product Specification

50KW Solar Energy System
Model	SAS50KW-HY
590W Solar Panel	85 pieces
Hybrid Inverter	50KW
Lithium Battery	100KWH Customized Lithium (Lifepo4) Battery Storage System with BMS Monitoring
DC Cable 4mm2	200 Meters
MC4 Connector	150 Pairs
Mounting System	Customized for Rooftop or Ground
Optional Accessories	Lightning protection/grounding device, AC/DC Combiner box, AC Cable, Smart Meter

Storage Battery Specification
Battery Type	LiFePO4 battery
Efficiency of Charge	99.5%@0.2C
Configuration	4 battery modules+1 BPU(204.8V 280Ah)
Energy	57.34Kw/h
Discharge Cut-Off Voltage(V)	176
Charge Cut-Off Voltage(V)	227.2
Recommend Charge/Discharge Current(A)	100
Max.Charge/Discharge working Current(A)	200

Solar Inverter Specification
AC input/output nominal power(Grid)	100kW /50kW
Max. AC input/output apparent power(Grid)	110kVA /55kVA
Max. input/output current(Grid)	166.7A/83.3A
Max. input current(GEN/AC couple)	166.7A/75.7A
Max. continuous AC passthrough current	200A
Nominal AC voltage/range	380/400V -15%~10%
Nominal AC grid frequency/range	50Hz/60Hz, 45-55Hz/55-65Hz
AC grid connection type	3P3W+PE/3P4W+PE

Product Details

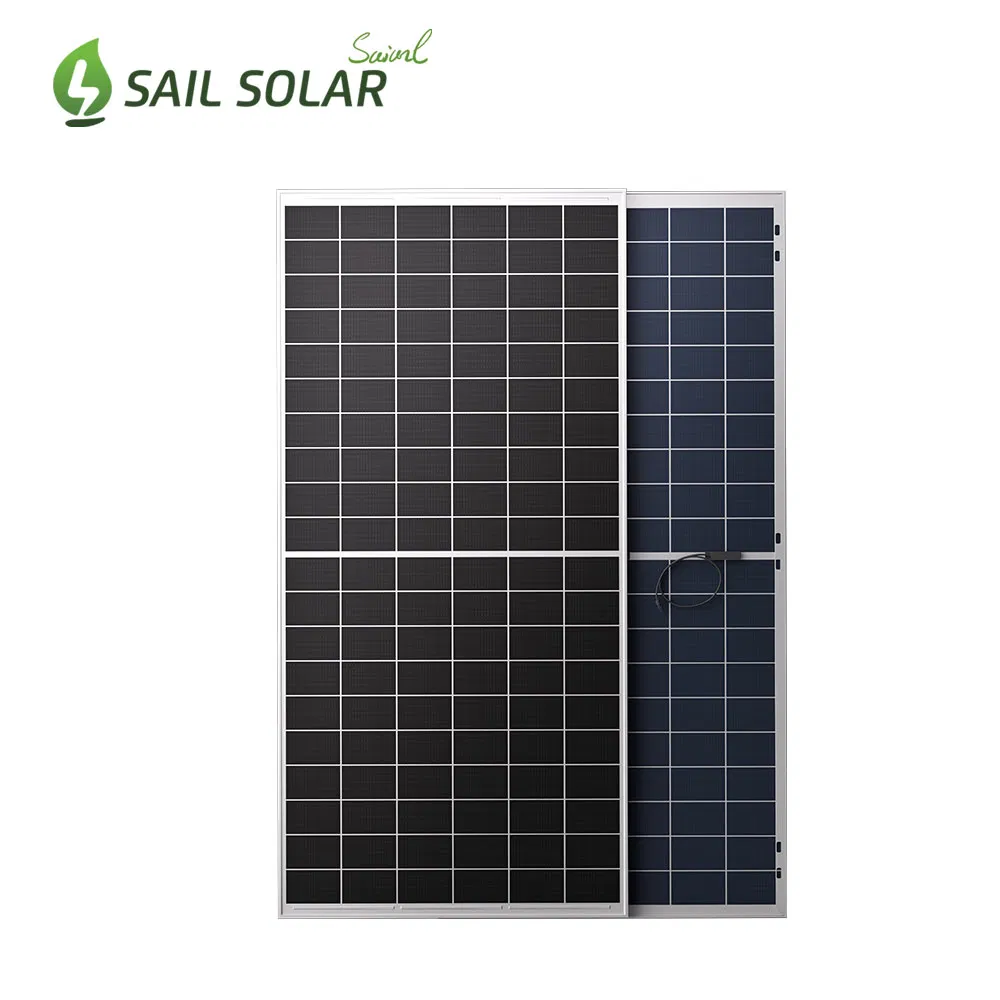

Solar Panel

Mono/Poly/Black etc all type solar panel High Efficiency half cell/bifacial solar modules
25 years Warranty
Highest conversion efficiency over 21%
Anti-reflective and anti-soiling surface power loss from dirt and dust
Excellent mechanical load resistance
PID Resistant, High salt and ammonia resistance

Solis Hybrid Inverter

Supports Peakshaving features in "self-use" and "generator" modes
Support 200% DC/AC ratio, make full use of PV charging, provide long backup hours
Battery real-time monitoring, remote upgrade, and battery healing function to prolong battery life
Supports a maximum input current of 20 A, making it ideal for all high-power PV modules from any brand
Battery charging/discharging current 140A/70A+70A, suitable for 280Ah cell standard 0.5C application condition

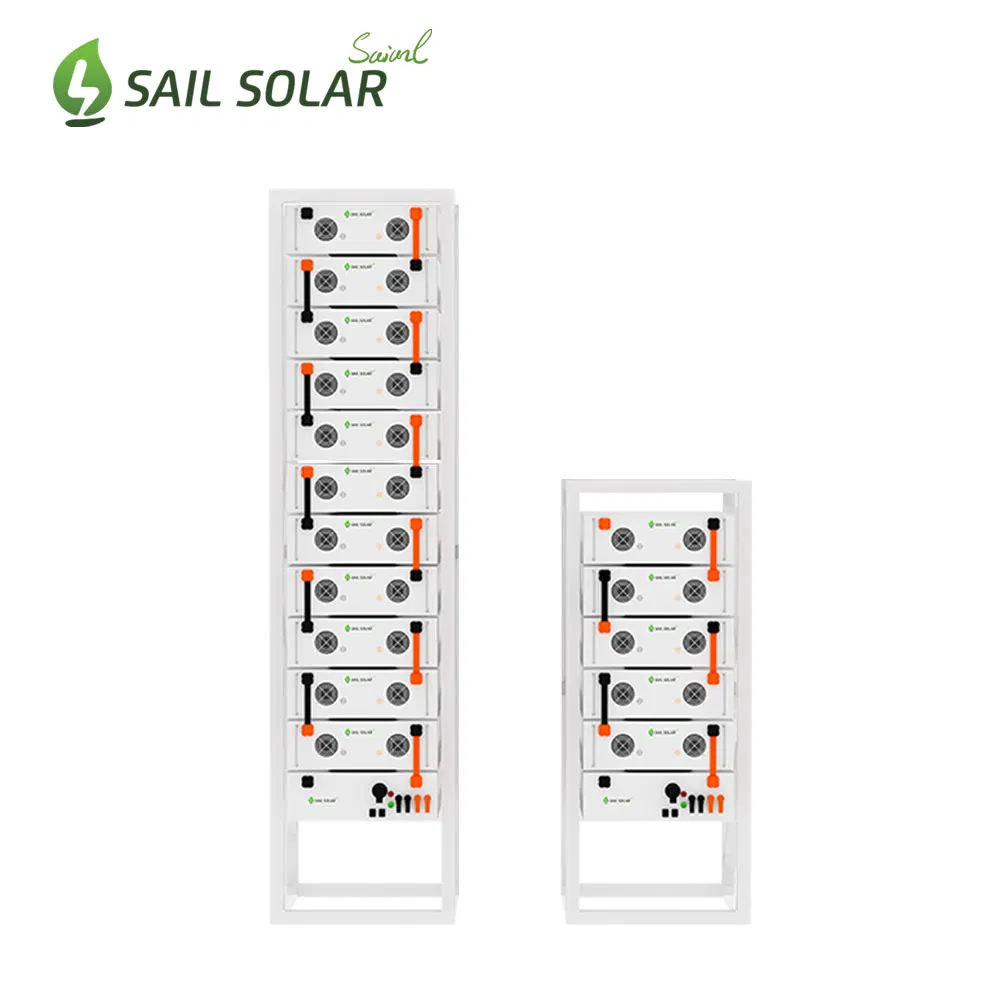

Lithium Battery

Lifepo4 battery cells-Flexible and customized capacity options
EU, America market standard
Built-in BMS, connect in parallel
More than 6000 times cycle

Mounting Rackets

Residential Roof(Pitched Roof)
Commercial Roof(Flat roof & workshop roof)
Ground Solar Mounting system
Vertical wall solar mounting system
All aluminum structure solar mounting system
Car parking solar mounting system

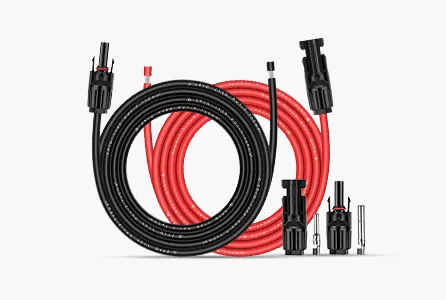

Accessories

- PV DC Cable 4mm2 6mm2 10mm2, etc
- AC Cable
- MC4 solar compatible connectors

DC Isolating Switch

- Rated Voltage: 1000VDC to 1200VDC
- Rated Current: 10A/16A/20A/25A/32A
- IP66 Waterproof degree
- Certificates: CE/CB/TUV/IEC/SAA

Installation Tools

- Whole set tools of Installing solar system, Crimping pv connector with cable.
- Solar Crimper
- Connector Wrench

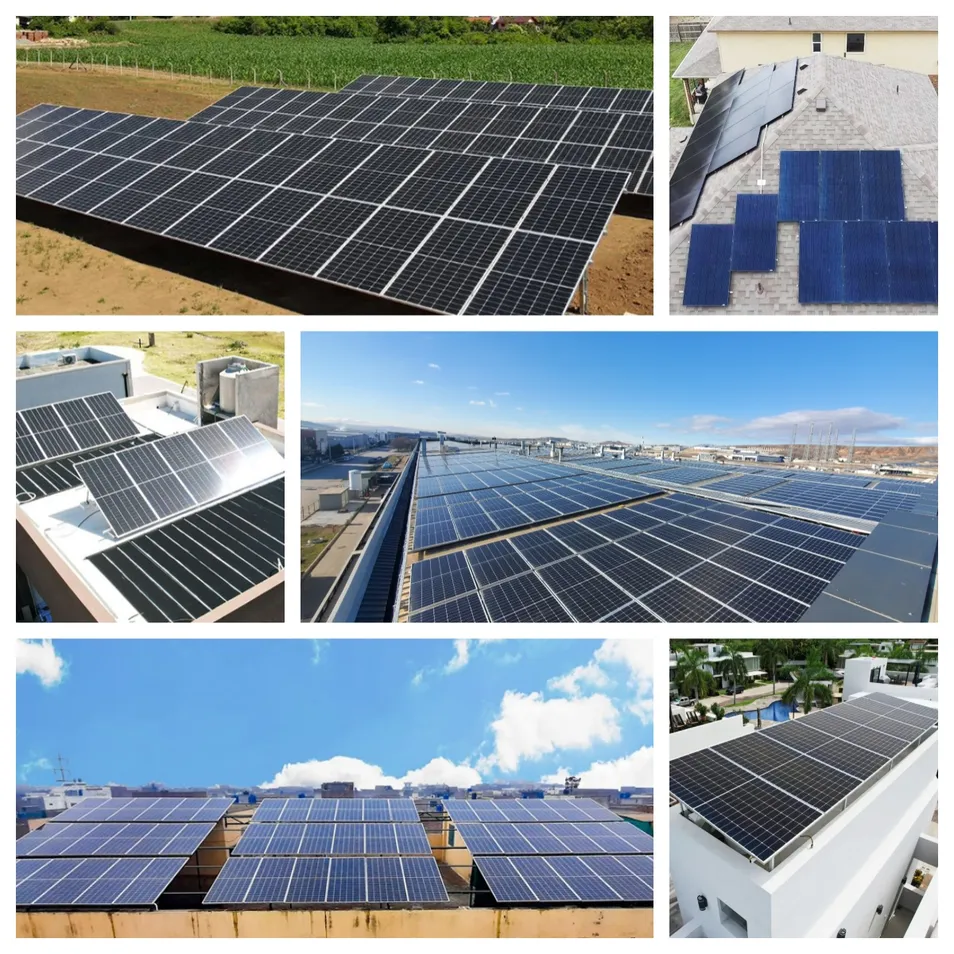

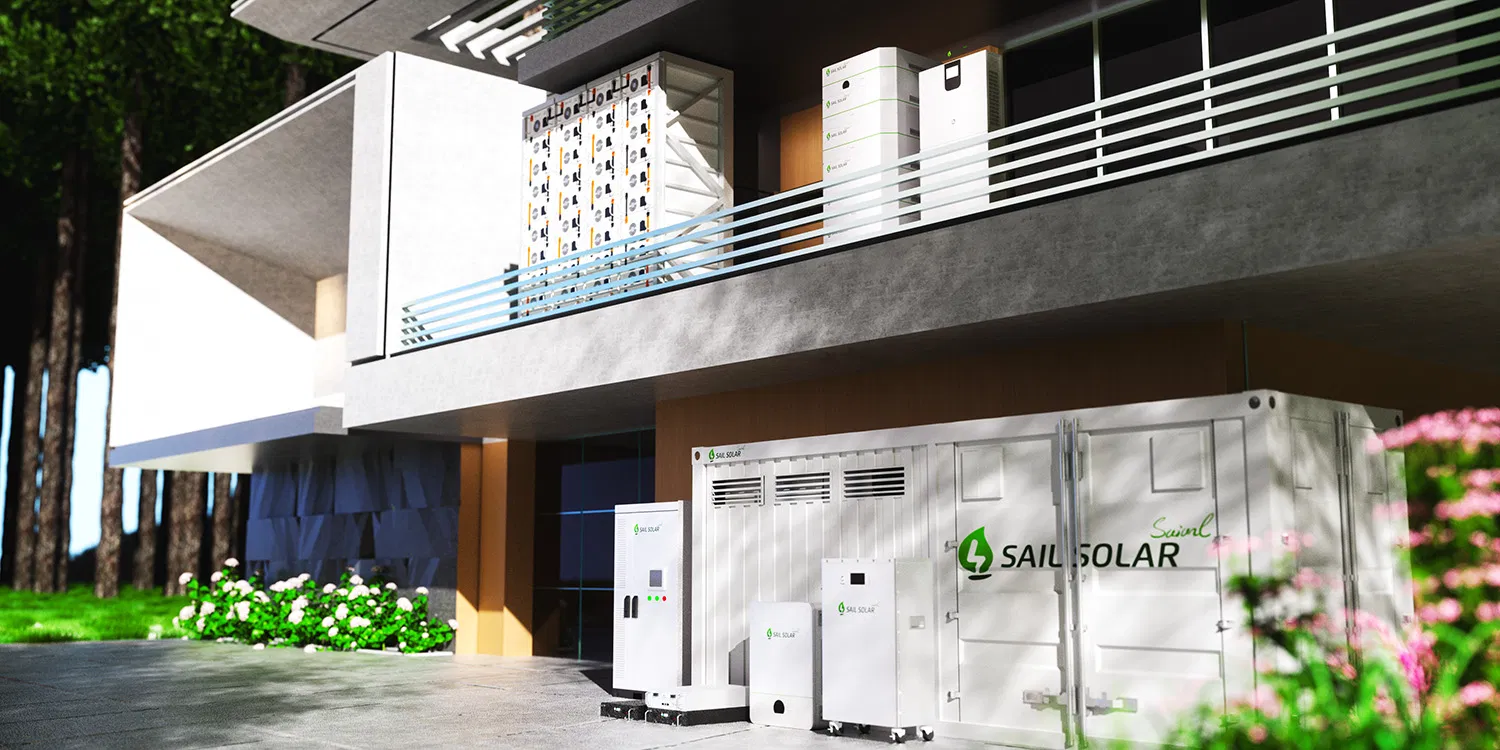

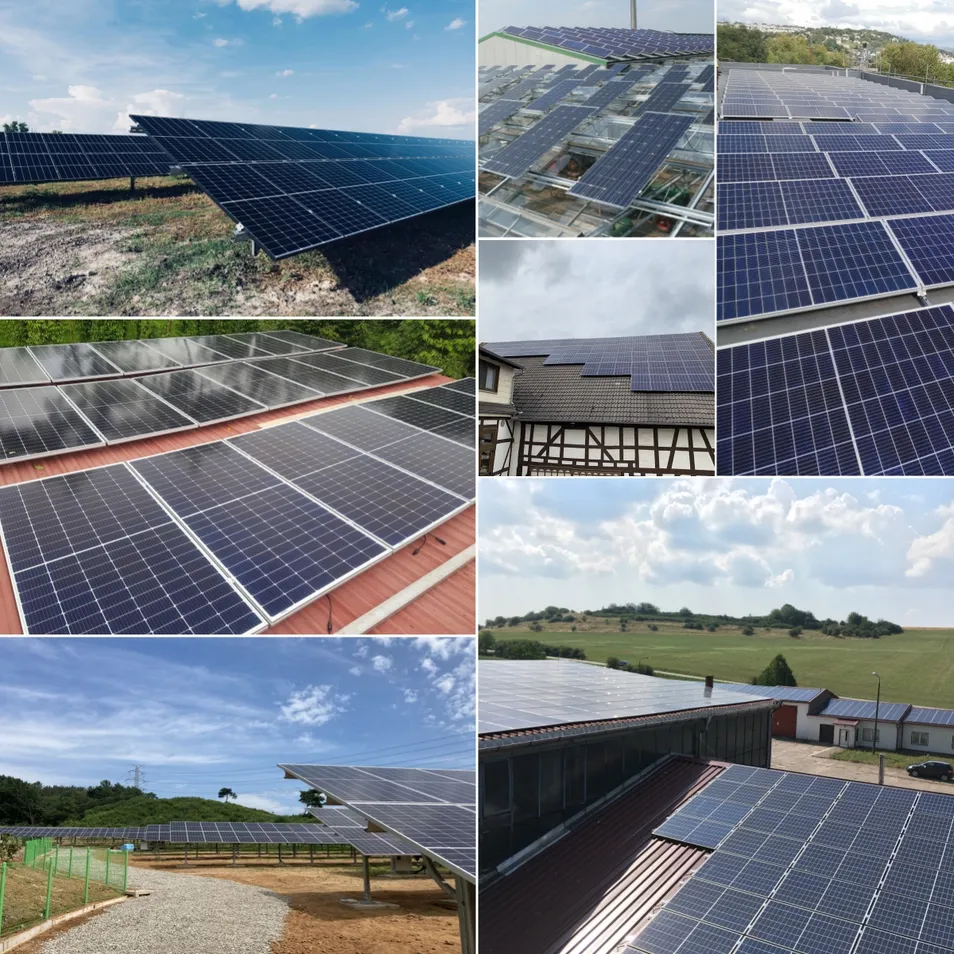

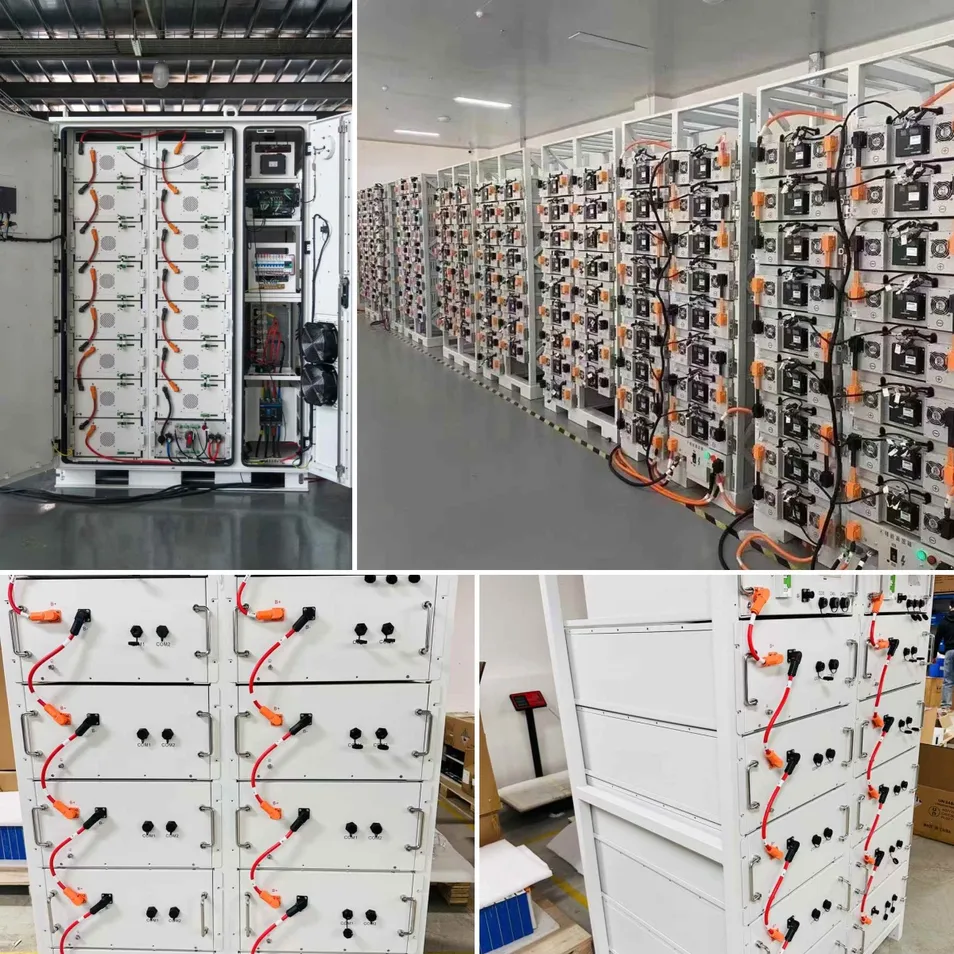

Product Application

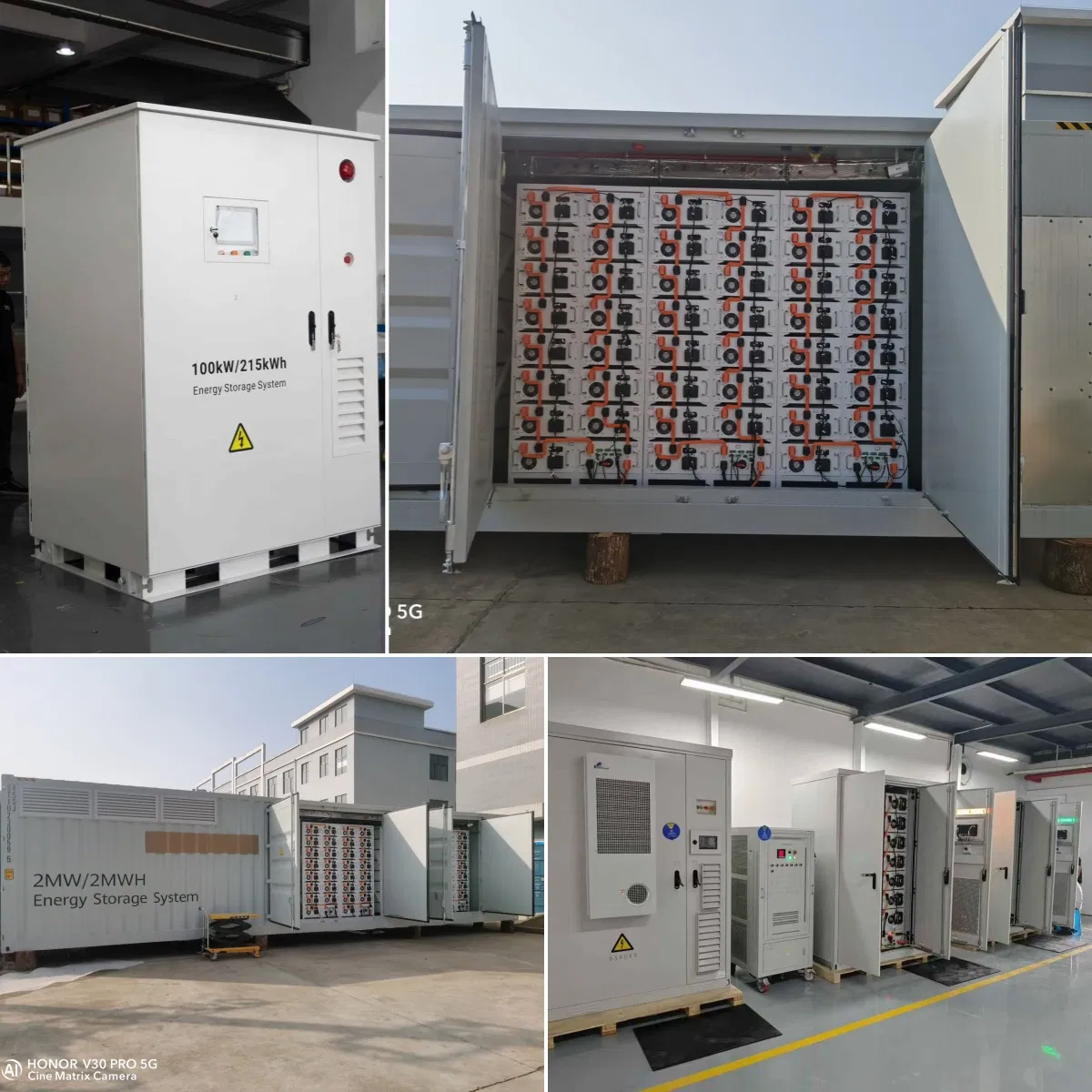

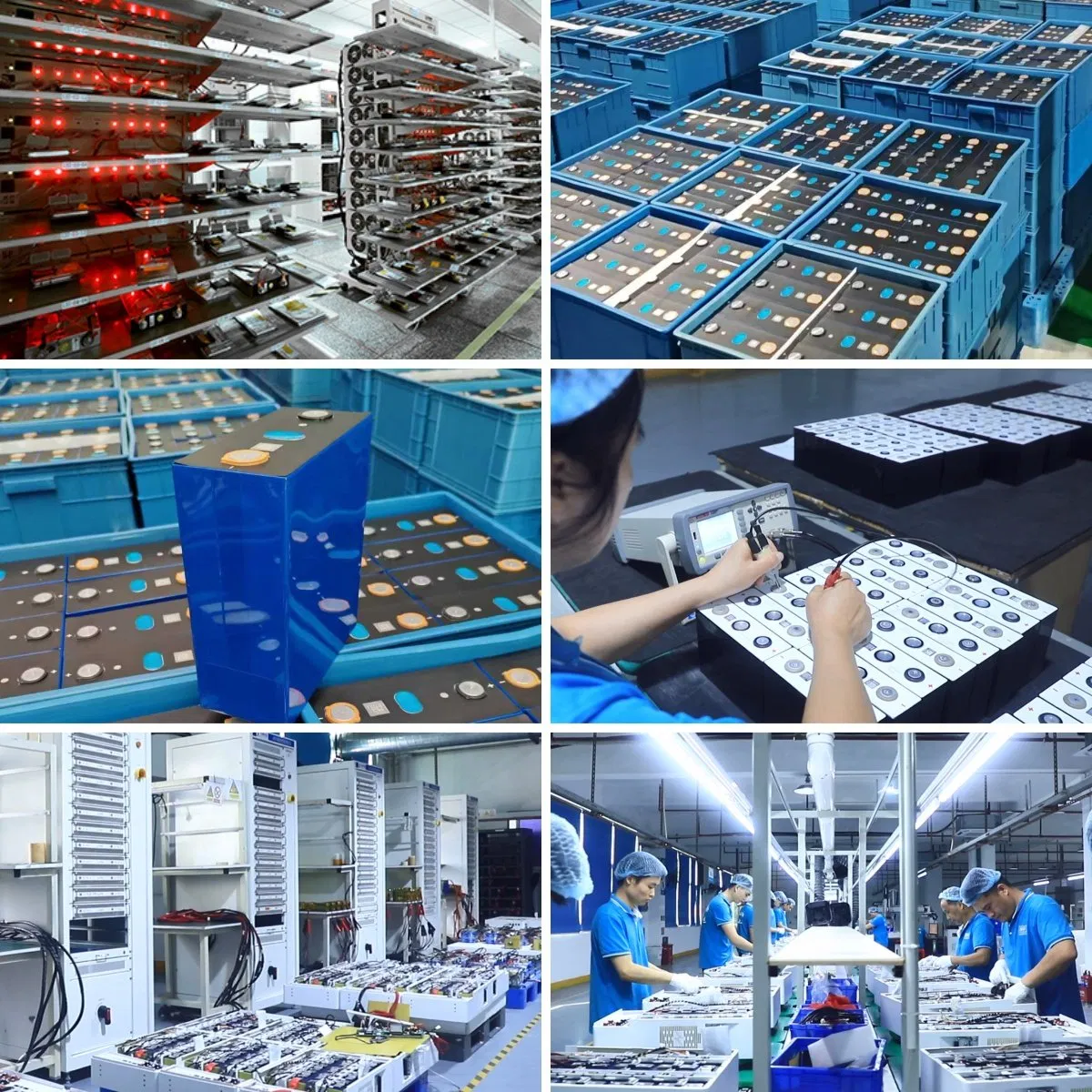

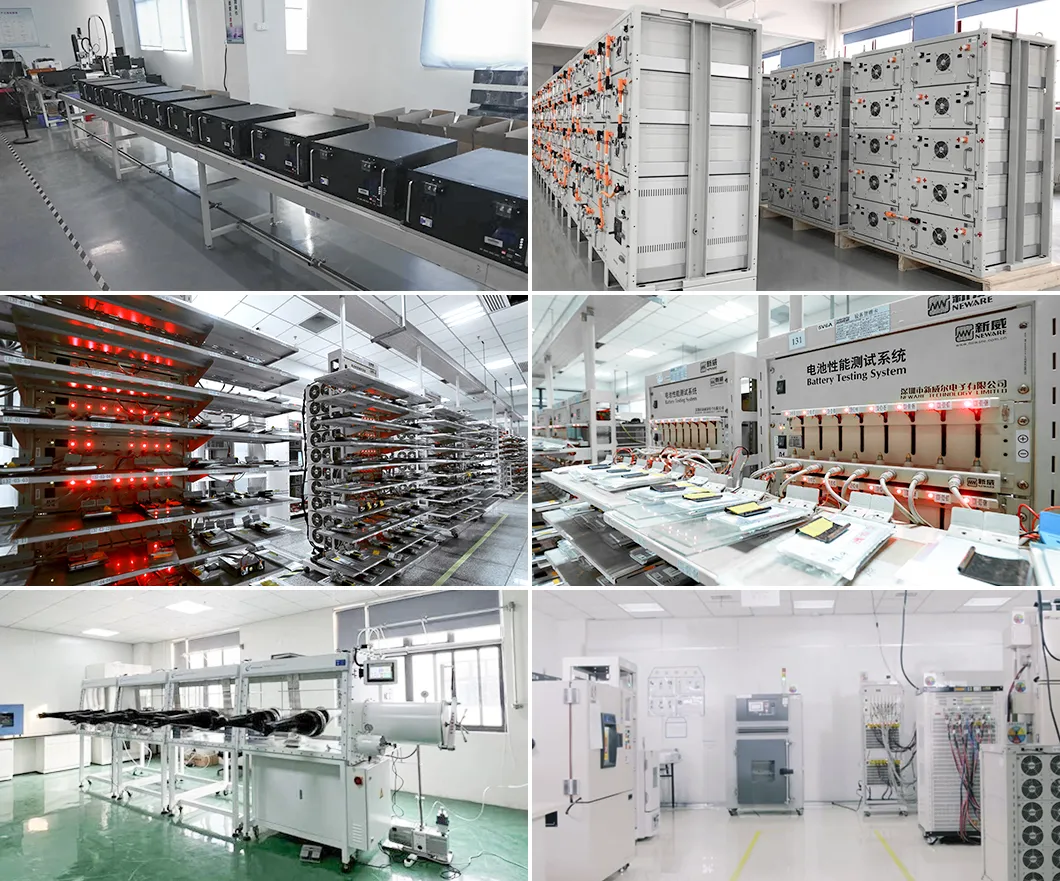

Our Factory

Certification & Exhibition

Packaging & Shipping

Frequently Asked Questions

What type of battery is included in the 50KW Solar Energy System?

The system is equipped with a high-performance LiFePO4 (Lithium Iron Phosphate) battery system, offering a customized capacity of 100KWH along with a built-in Battery Management System (BMS) for real-time monitoring and maximum safety.

Does the Solis Hybrid Inverter support grid peak-shaving?

Yes, the Solis hybrid inverter supports advanced peak-shaving features in both "self-use" and "generator" operation modes, optimizing energy consumption and utility bills.

How long is the service life of the solar panels and battery system?

The high-efficiency monocrystalline/polycrystalline solar panels come with a 25-year warranty. The LiFePO4 battery storage system offers exceptional durability with a cycle life of more than 6,000 charge/discharge cycles.

What kind of roofs or surfaces are the mounting brackets compatible with?

The mounting brackets can be fully customized to suit various installation types including residential pitched roofs, commercial flat roofs or workshop roofs, ground arrays, vertical walls, car parks, and all-aluminum structures.

Are the electrical accessories and switches suitable for outdoor installations?

Yes, the included DC isolating switch is IP66 waterproof and has obtained rigorous industry certifications such as CE, CB, TUV, IEC, and SAA, ensuring safe and reliable outdoor performance under extreme weather conditions.

Can the battery system be expanded or monitored remotely?

Yes, the battery system features real-time monitoring, remote system upgrades, and battery healing functions to prolong lifespan. Its modular design also supports connection in parallel for flexible capacity options.
