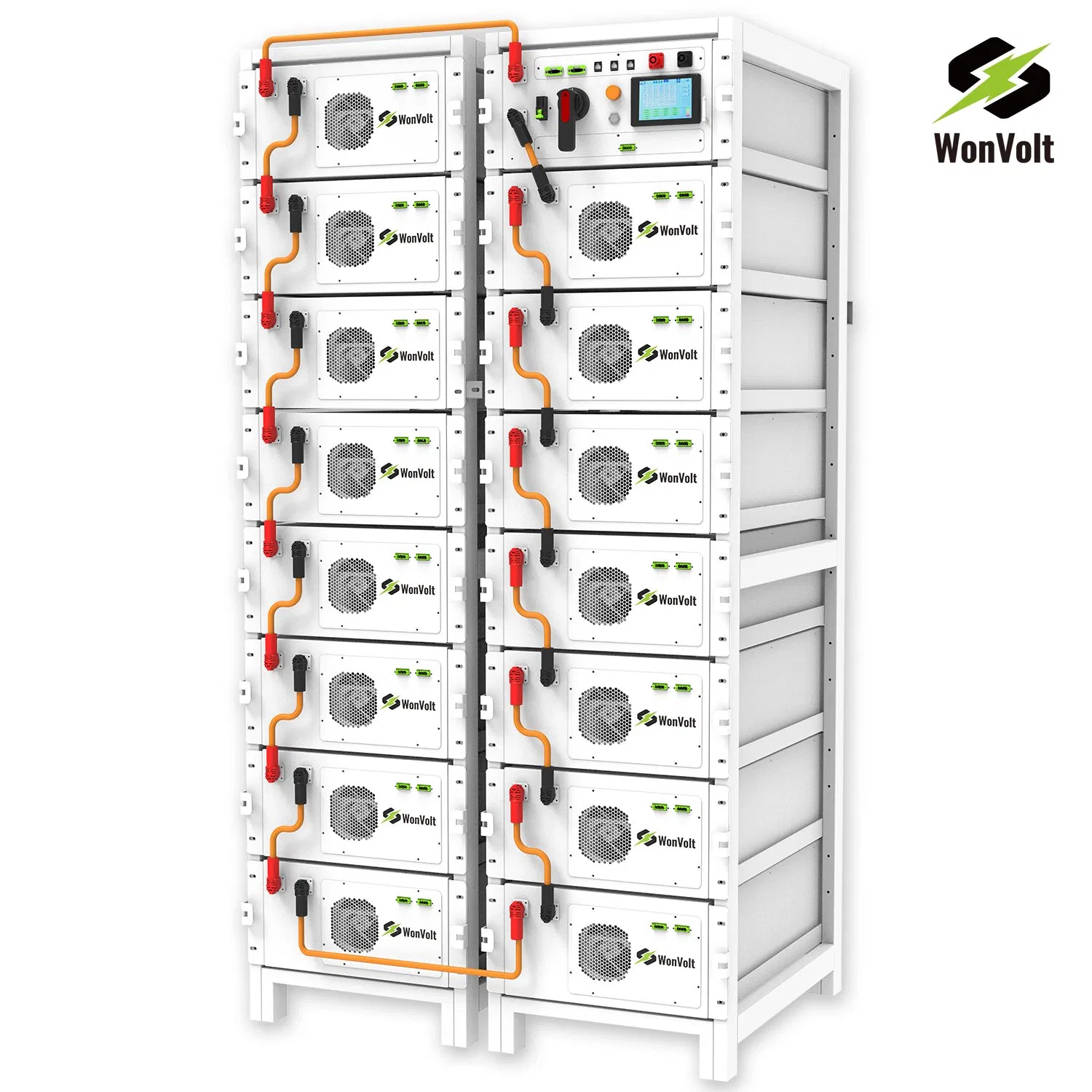

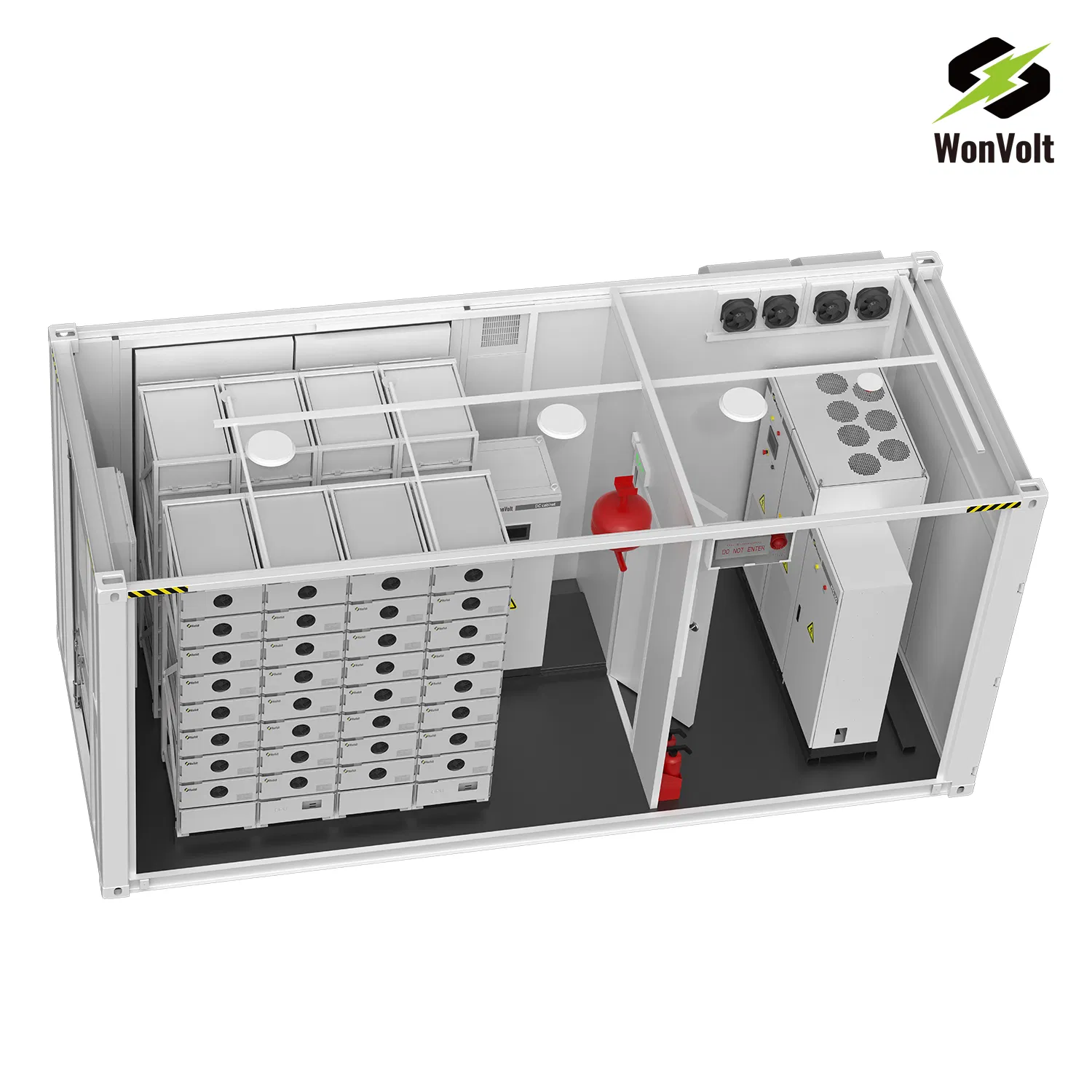

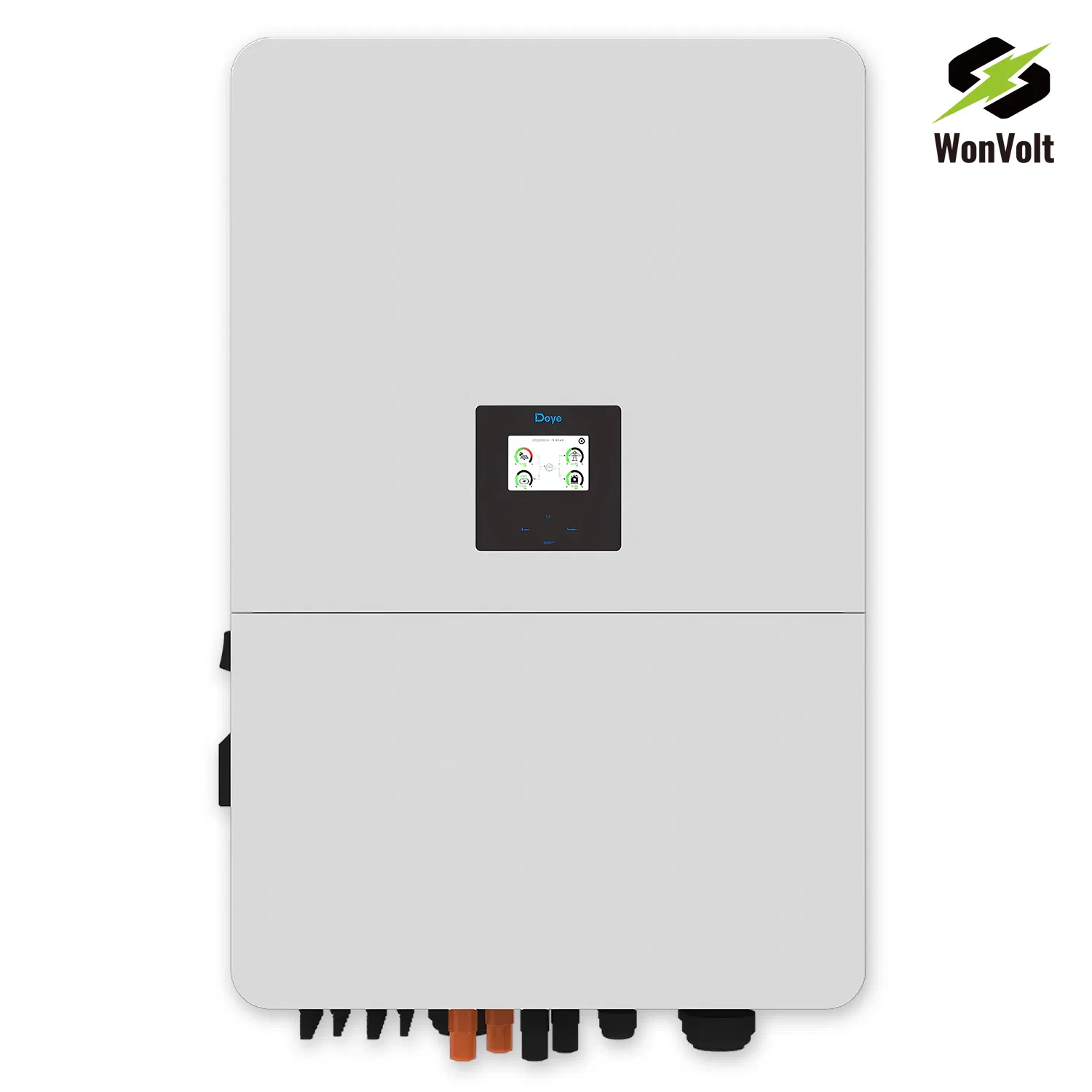

Wonvolt 300kw Home-Energy-Storage-System 50kw 100kw 150kw 200kw 250kw Hybrid Solar Power System for Commercial with Bess 300kwh 500kwh 1mwh

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info.

Model NO.
ESS-100KW-200.7KWh-EU
Condition
New
Certification
ISO, CB, CE, TUV /IEC
Application
Home, Industrial, Commercial, Micro Grid
Specification
Normal, N type
Cycle Life
10000 Times
Nominal Capacity
300kw/723kwh+
AC Output
380V/400V/415V
Battery Type
LiFePO4/Lithium
Cooling
Smart Air Cooling
Support
UPS/Black Start/Dg
PV Inputs
10 Mppts
PV Cable
4mm2 or 6mm2
Solar Panel
A Grade 660W 750W Solar Module
Mounting
Metal Rooftop, Tile Rooftop or Ground
Customized
Customize Energy Storage System
Certificate
CE Un38.3 IEC En50549
Training
Solar System Installation
Parallel
Yes, up to 10 Units
Origin
China
HS Code
8501723000
Production Capacity
50000sets/Year

Commercial ESS

300kw Home Energy Storage System 50kw 100kw 150kw 200kw 250kw Hybrid Solar Power System for Commercial with Bess 300kwh 500kwh 1mwh

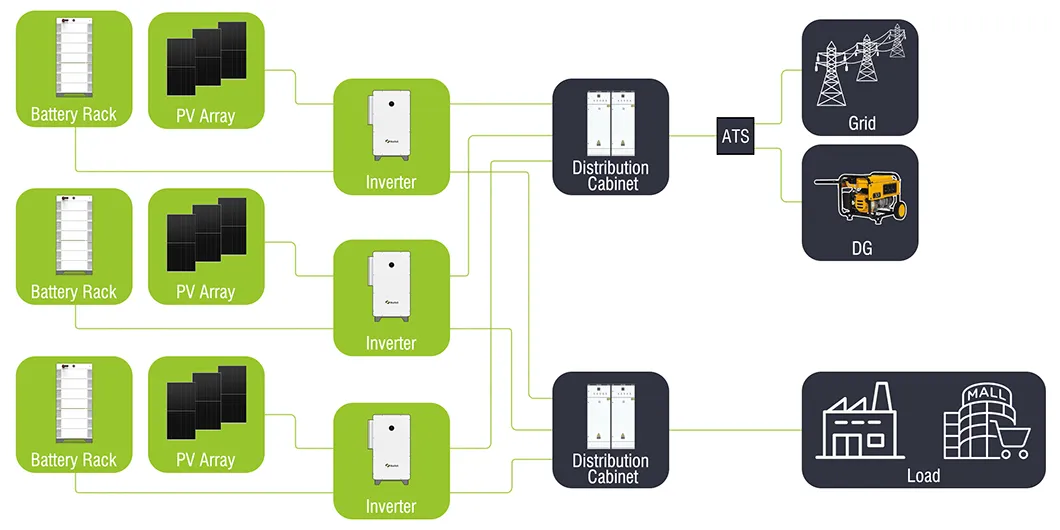

System Configuration

Equipment Model ESS-100KW-193KWh-C ESS-200KW-386KWh-C ESS-300KW-579KWh-C
PV Module PV-66KUN660-H12S 160 320 480
Inverter SUN-100K-SG02HP3-EU-GM8 1 2 3
Battery ESS-51314H 12 24 36
Rack 2*7 1 2 3
Control Box 1 2 3
Connector MC4 40 80 120
PV cable PV1-F 1*4mm2 500 1600 3200
ATS (opt) ATS300KW 1 1 1
AC Cabinet (opt) XL-1 0 2 2
Remote monitoring WIFI or SEM-X 1 1 1
Mounting Structure Roof/Ground 1 1 1

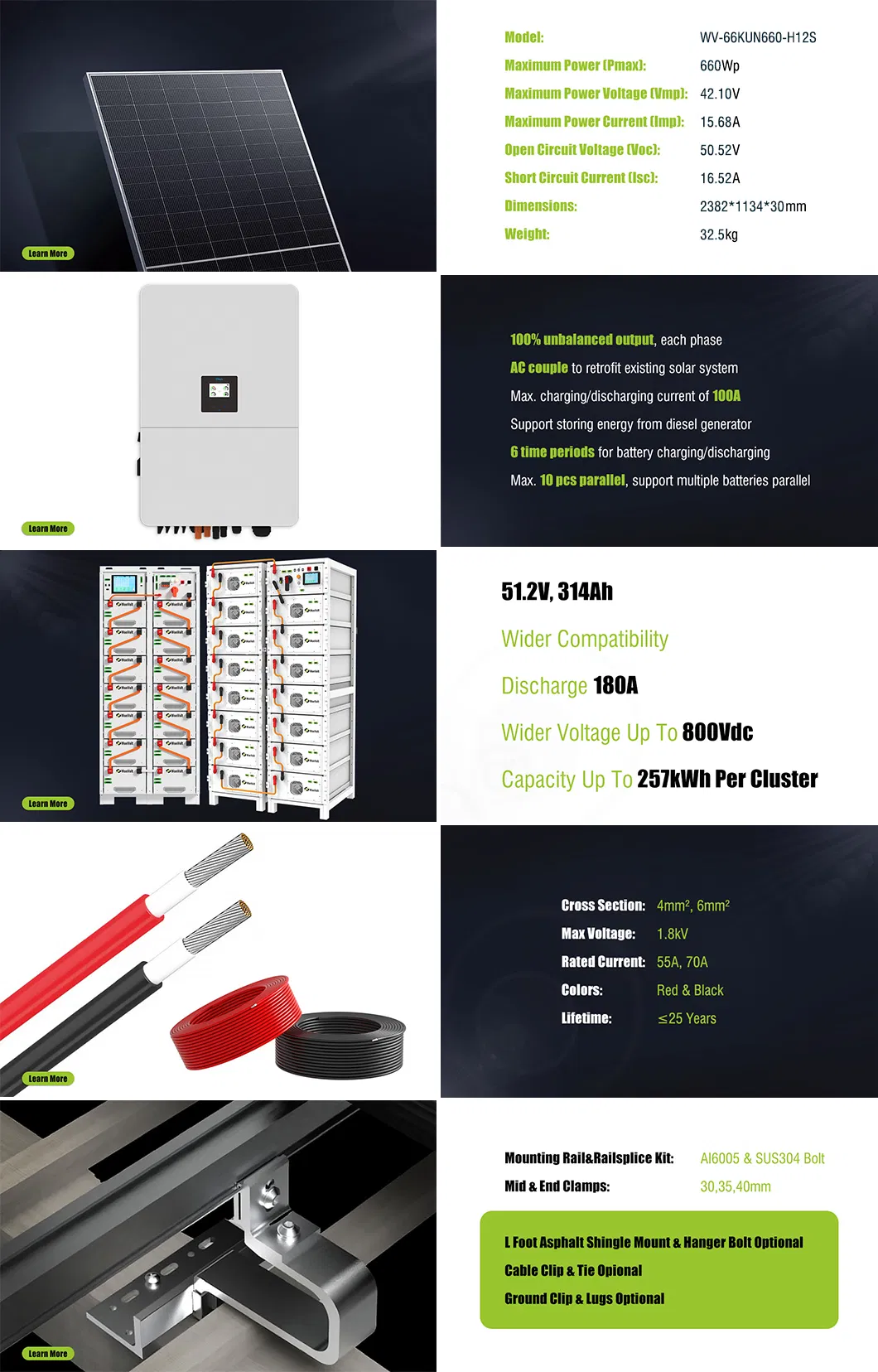

300kw Home Energy Storage System 50kw 100kw 150kw 200kw 250kw Hybrid Solar Power System for Commercial with Bess 300kwh 500kwh 1mwh

Product Description

300kw Home Energy Storage System 50kw 100kw 150kw 200kw 250kw Hybrid Solar Power System for Commercial with Bess 300kwh 500kwh 1mwh

Technical Support

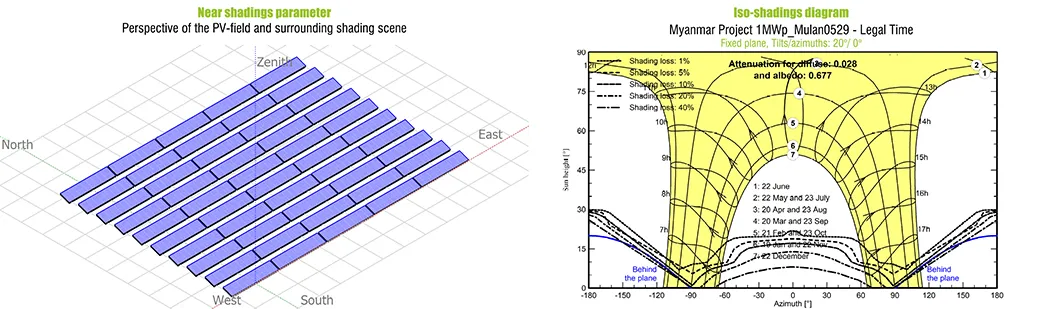

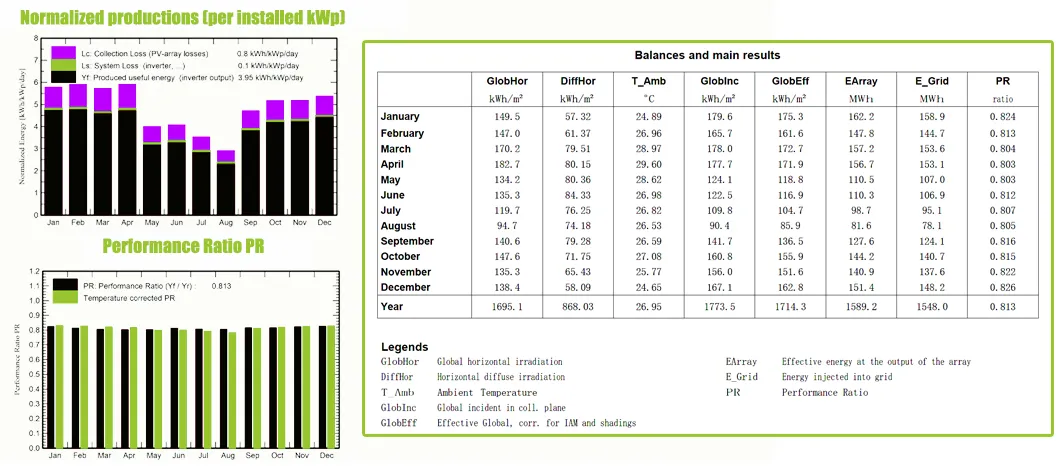

Technical Specifications Detail 1 Technical Specifications Detail 2 Technical Specifications Detail 3

Production Factory

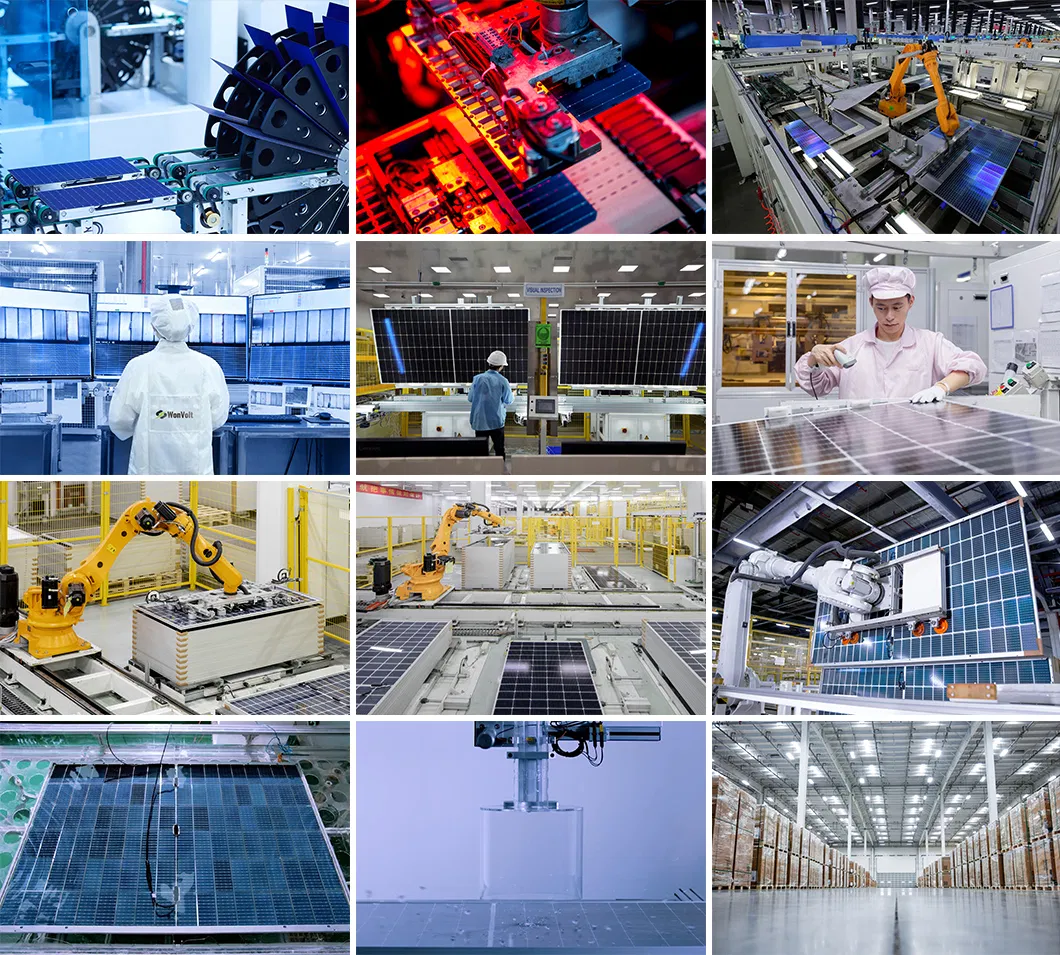

Production Factory Facility and Equipment

Packaging & Shipping

Safe Packaging and Logistics Shipping Management

Ref. Projects

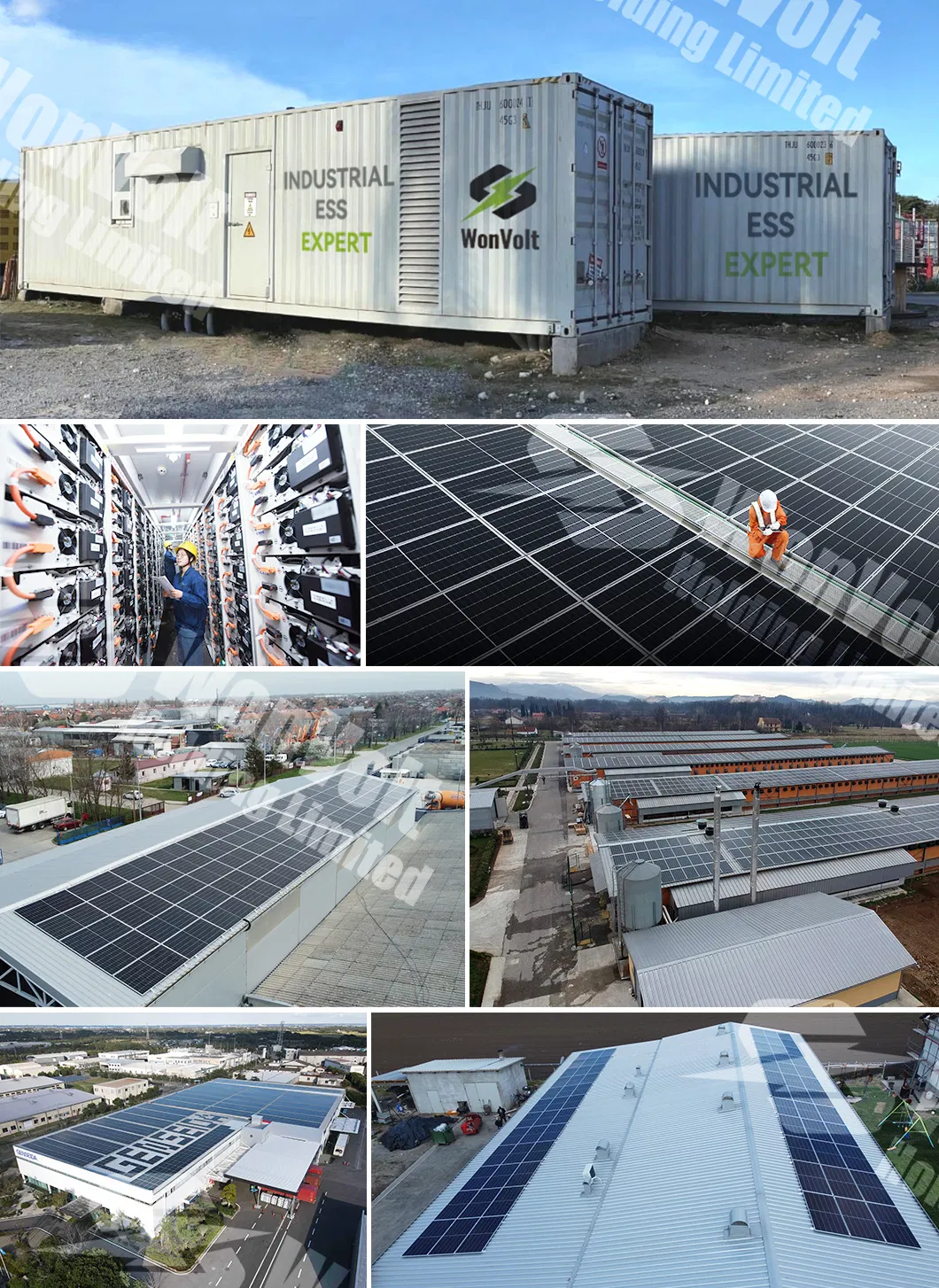

Successful Global Installation Projects Reference

Detailed Photos

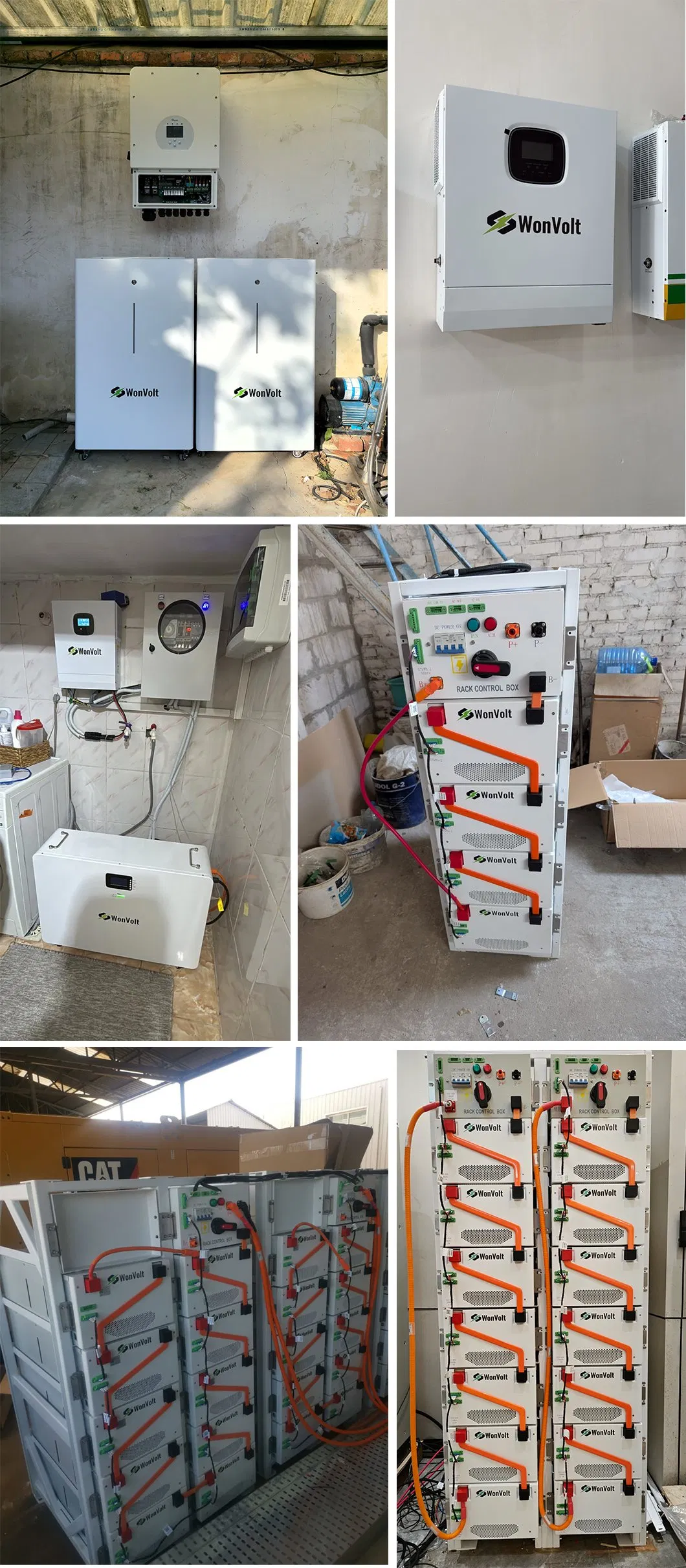

Detailed Component Construction Close-Up Photos
Commercial Energy Storage Integration 50kw 60kw Hybrid Inverter Solar System 60 Kw 80kw 100kw Solar Energy System with 50kwh 100kwh Solar Battery

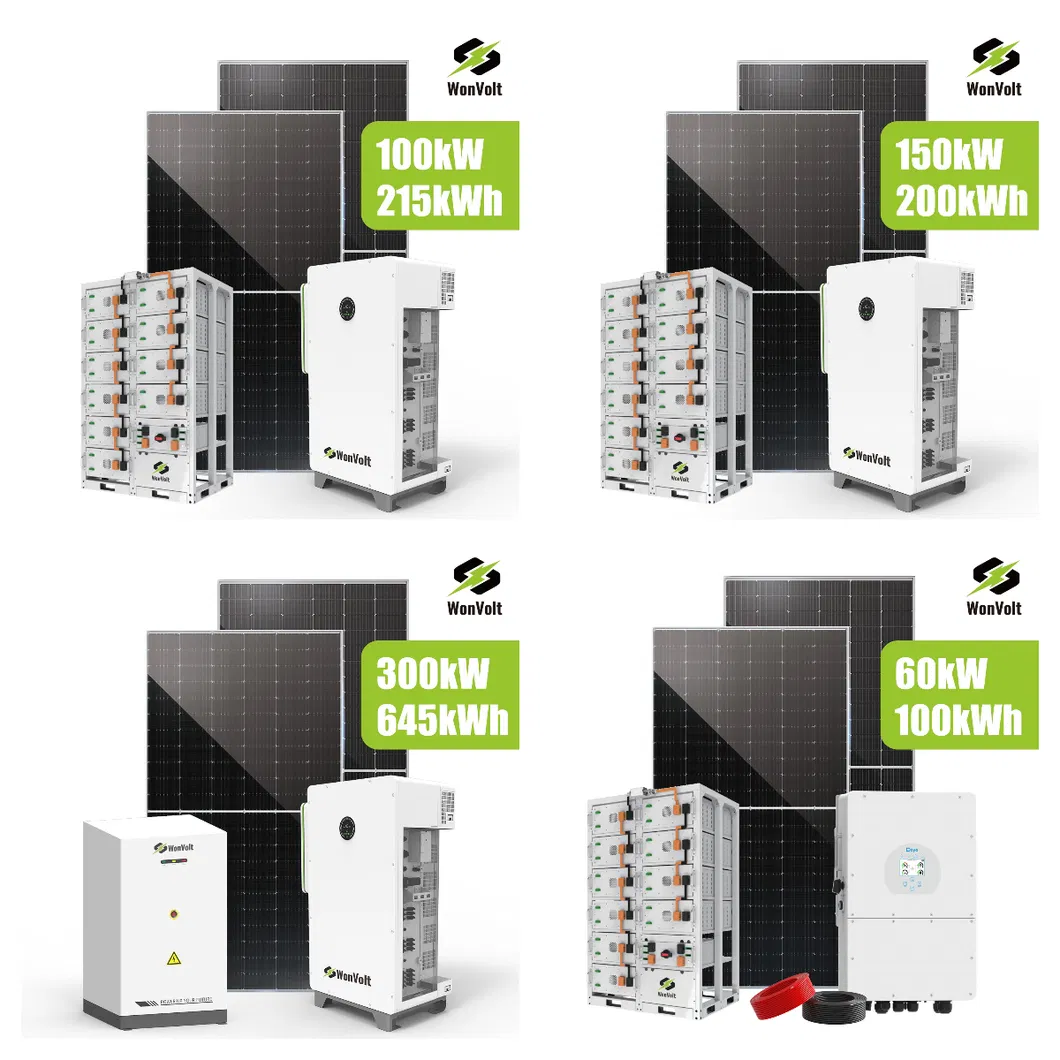

Commercial Energy Storage Integration System Configuration Display

Frequently Asked Questions

Q1: What is a Commercial Energy Storage System (ESS) and how does it work?

A1: A Commercial ESS stores excess electricity generated from solar panels or grid resources in high-capacity lithium battery packs (like LiFePO4). This stored energy is utilized during peak demand periods, emergency power outages, or to reduce electricity costs through peak-shaving practices.

Q2: Can the commercial solar energy storage system capacity be expanded?

A2: Yes, our commercial energy storage systems support parallel configurations. Depending on your system configuration requirements, you can connect up to 10 units in parallel to meet expanding power and capacity needs.

Q3: What type of batteries are used in this system, and what is their lifespan?

A3: The system utilizes premium A-grade LiFePO4 (Lithium Iron Phosphate) batteries, which are known for high safety standards, outstanding thermal stability, and an exceptional cycle life of up to 10,000 times.

Q4: Does the system support backup power and smart grid integration?

A4: Yes, it supports UPS (Uninterruptible Power Supply), Black Start capabilities, and diesel generator (DG) integration, ensuring continuous power supply and a seamless transition during power grid outages.

Q5: How is the system cooled to maintain safety and efficiency?

A5: The system features an intelligent smart air cooling design that automatically regulates interior temperature, preventing overheating and ensuring the battery modules operate within their optimal thermal range.

Q6: What certifications do these energy storage systems hold?

A6: The systems are certified to meet international quality and safety compliance standards, including ISO, CB, CE, TUV, IEC, UN38.3, and EN50549.
