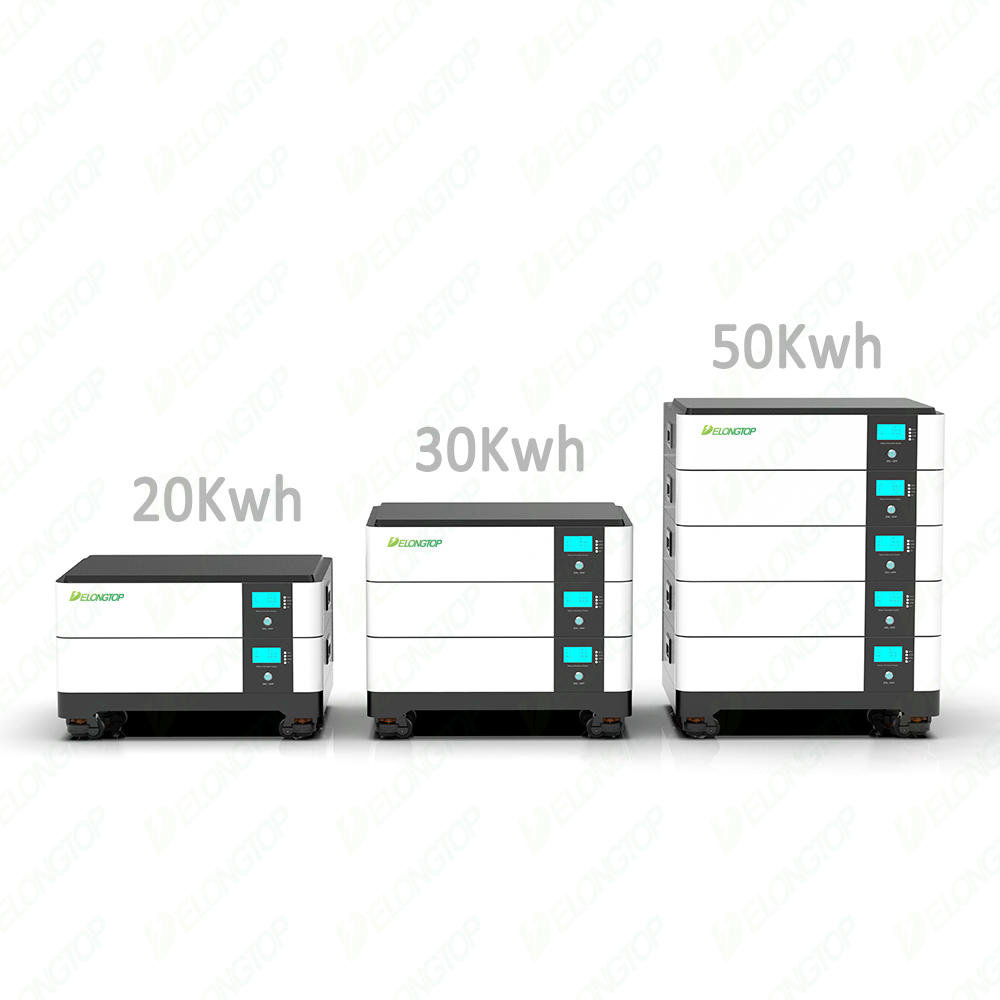

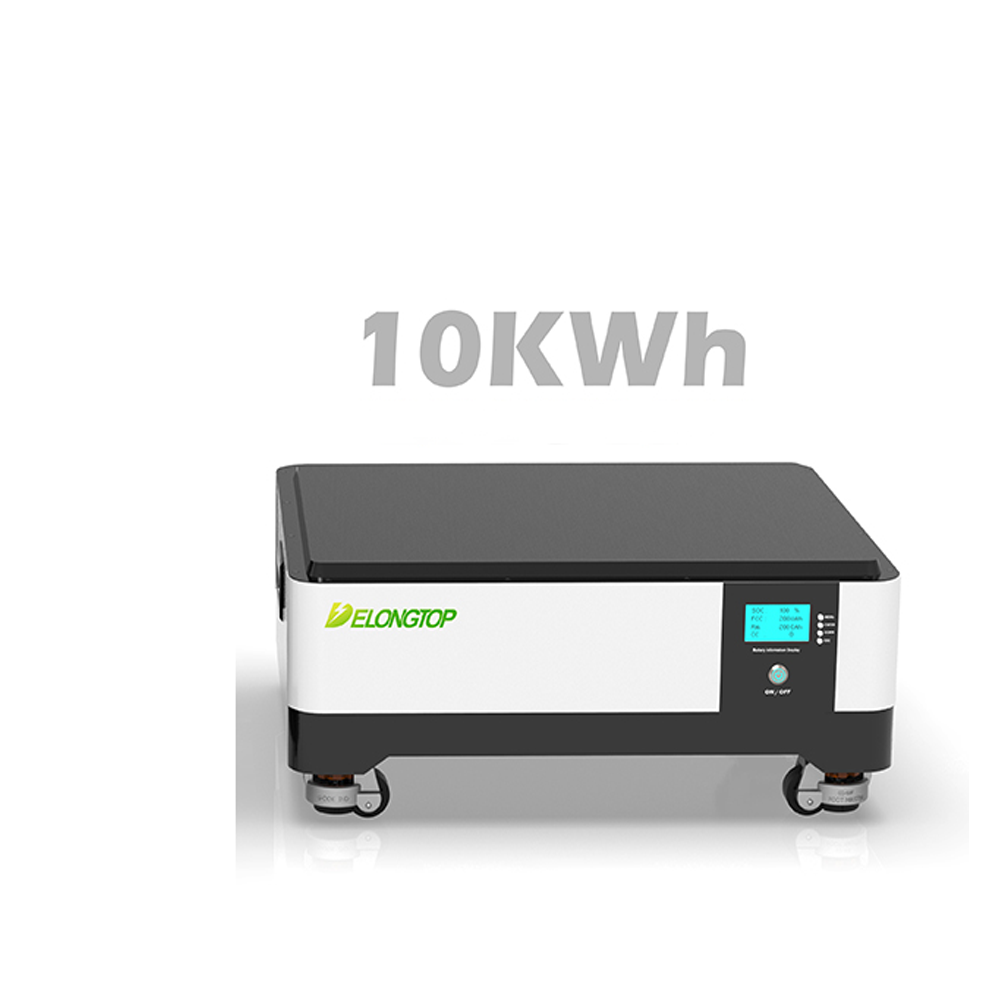

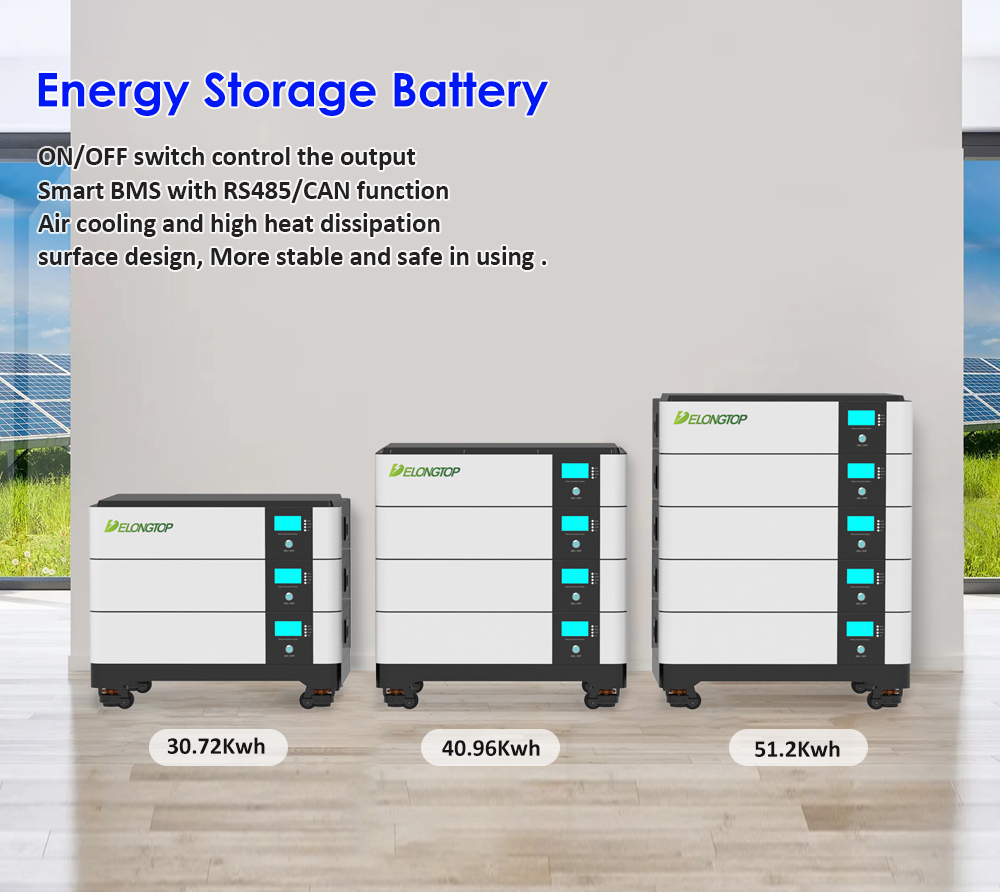

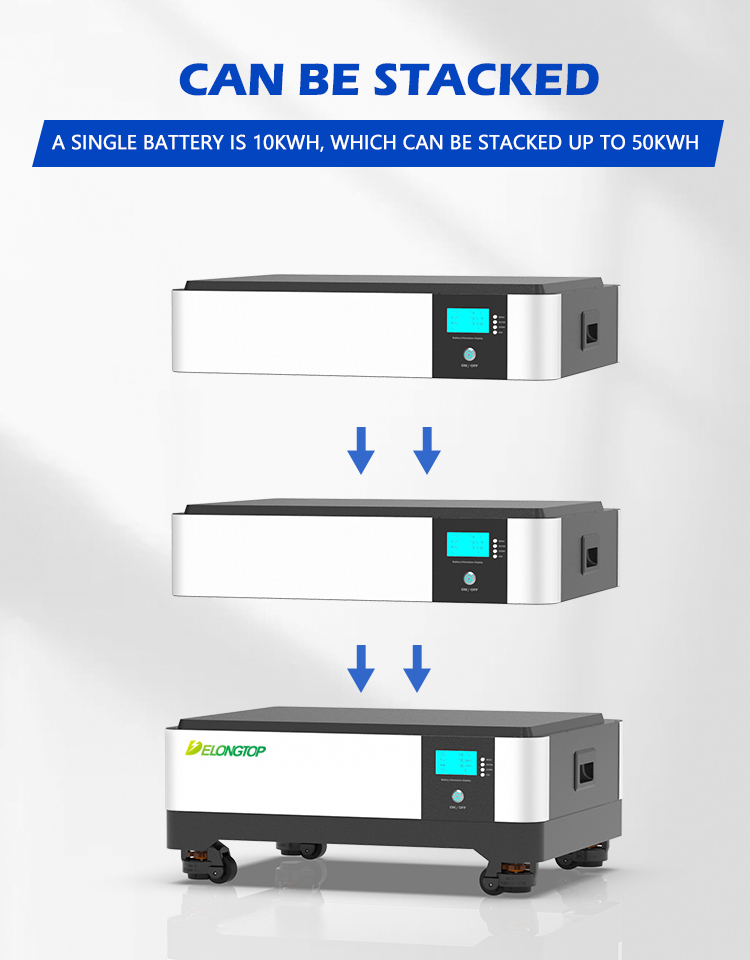

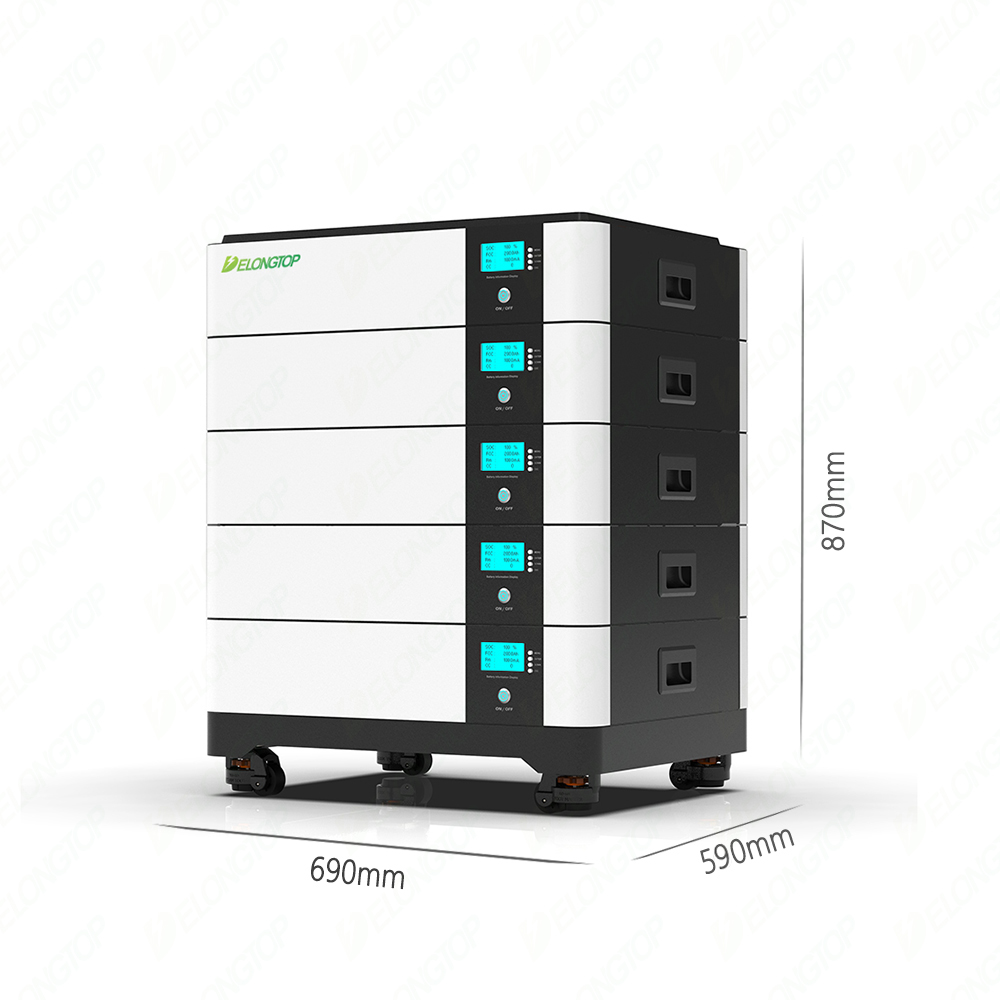

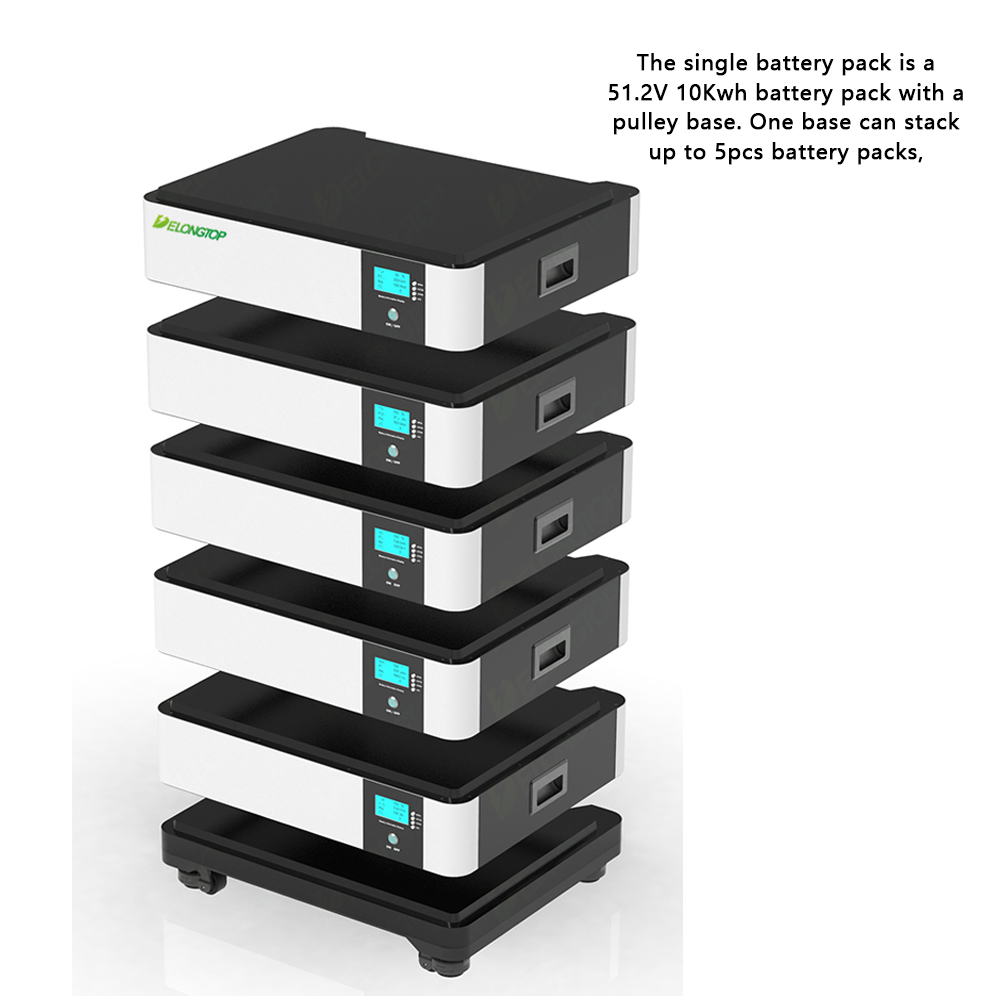

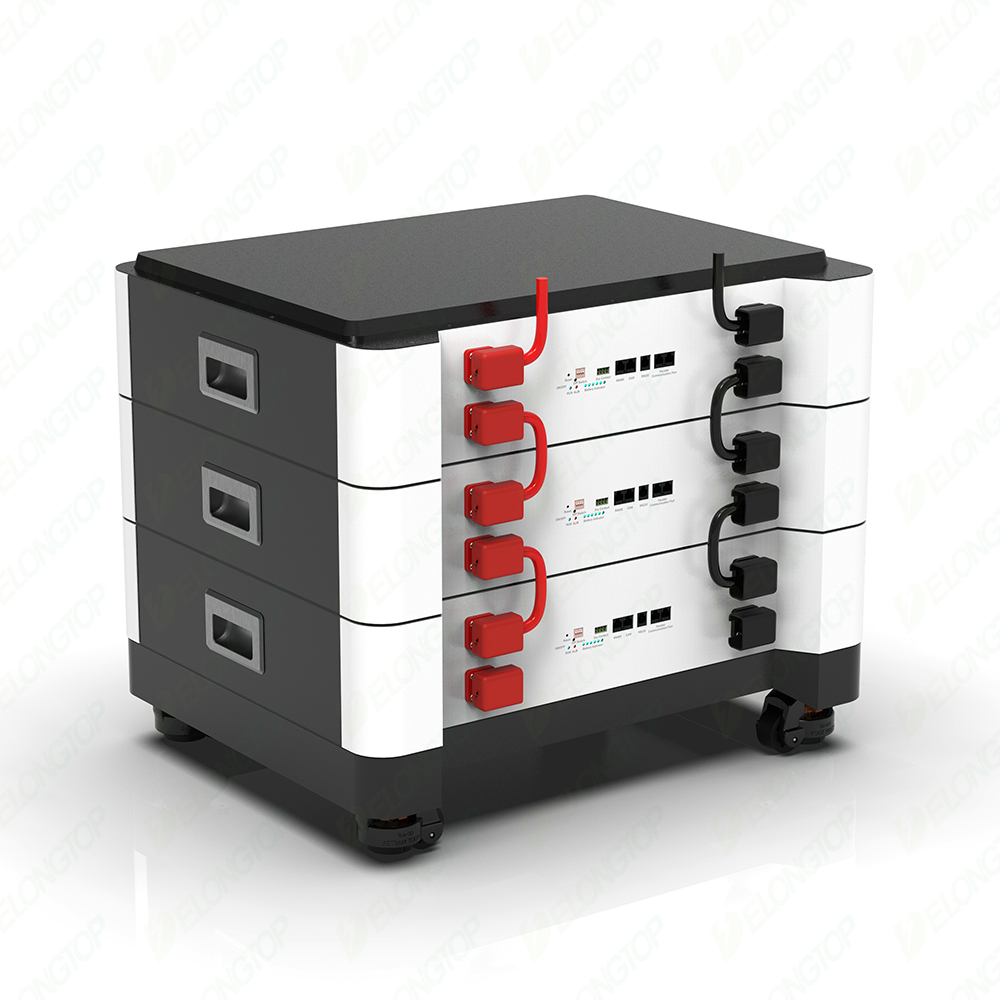

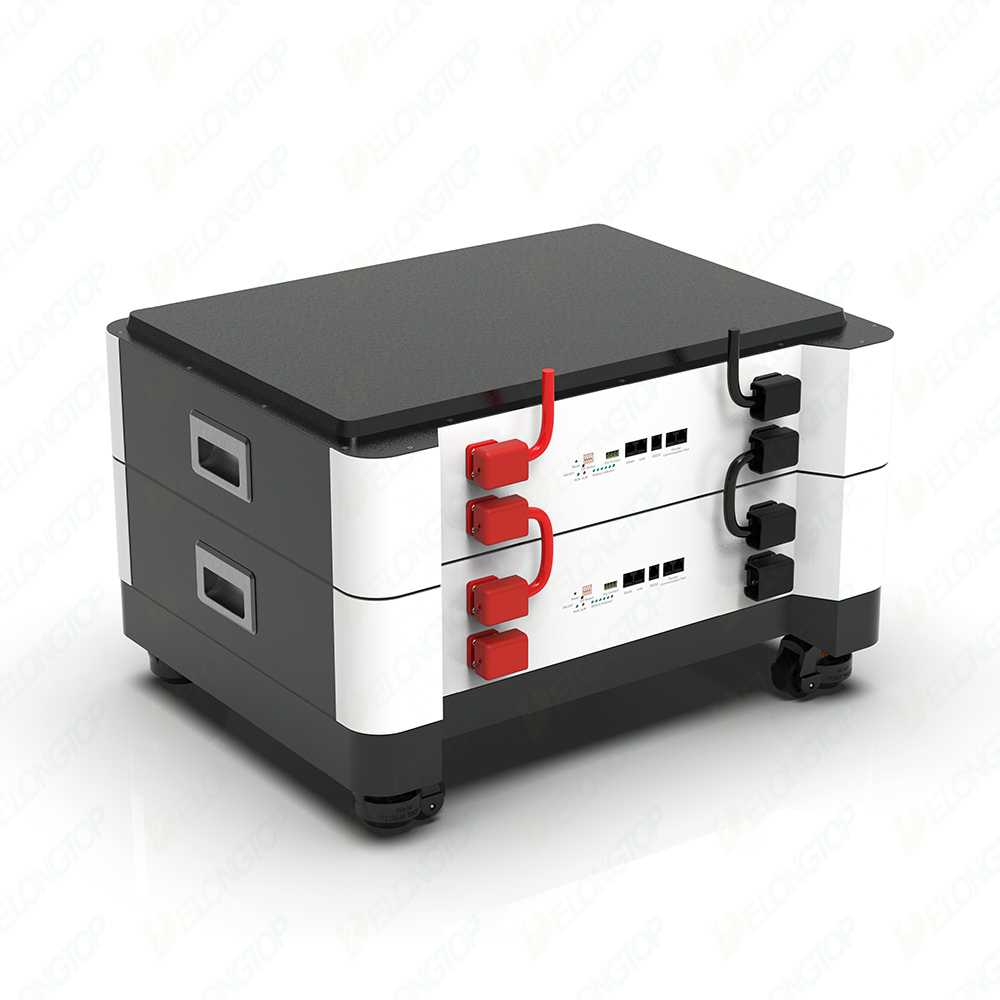

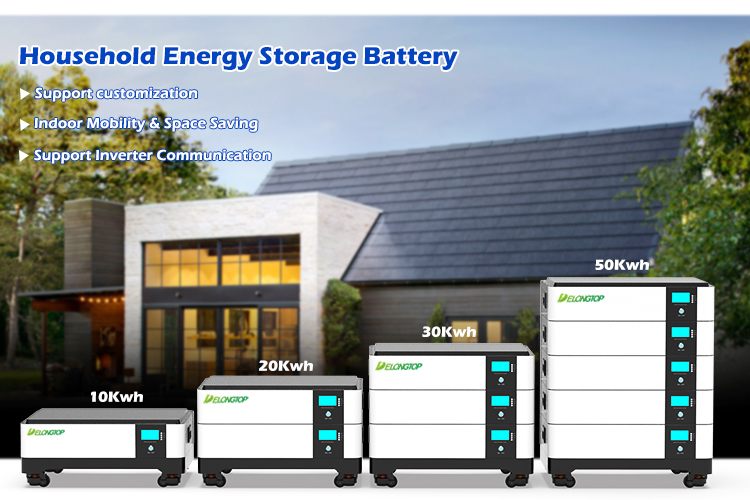

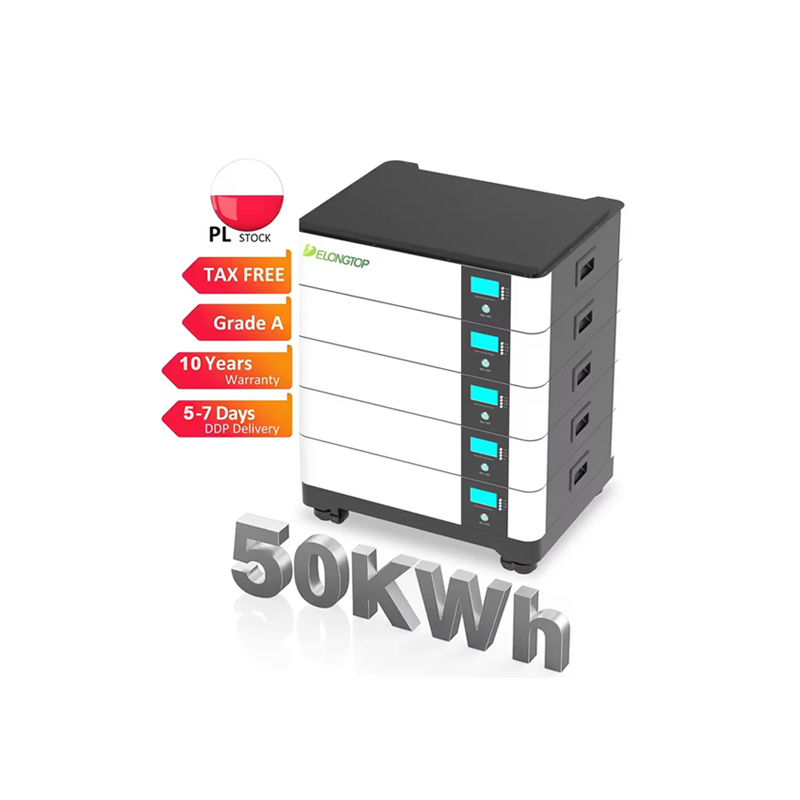

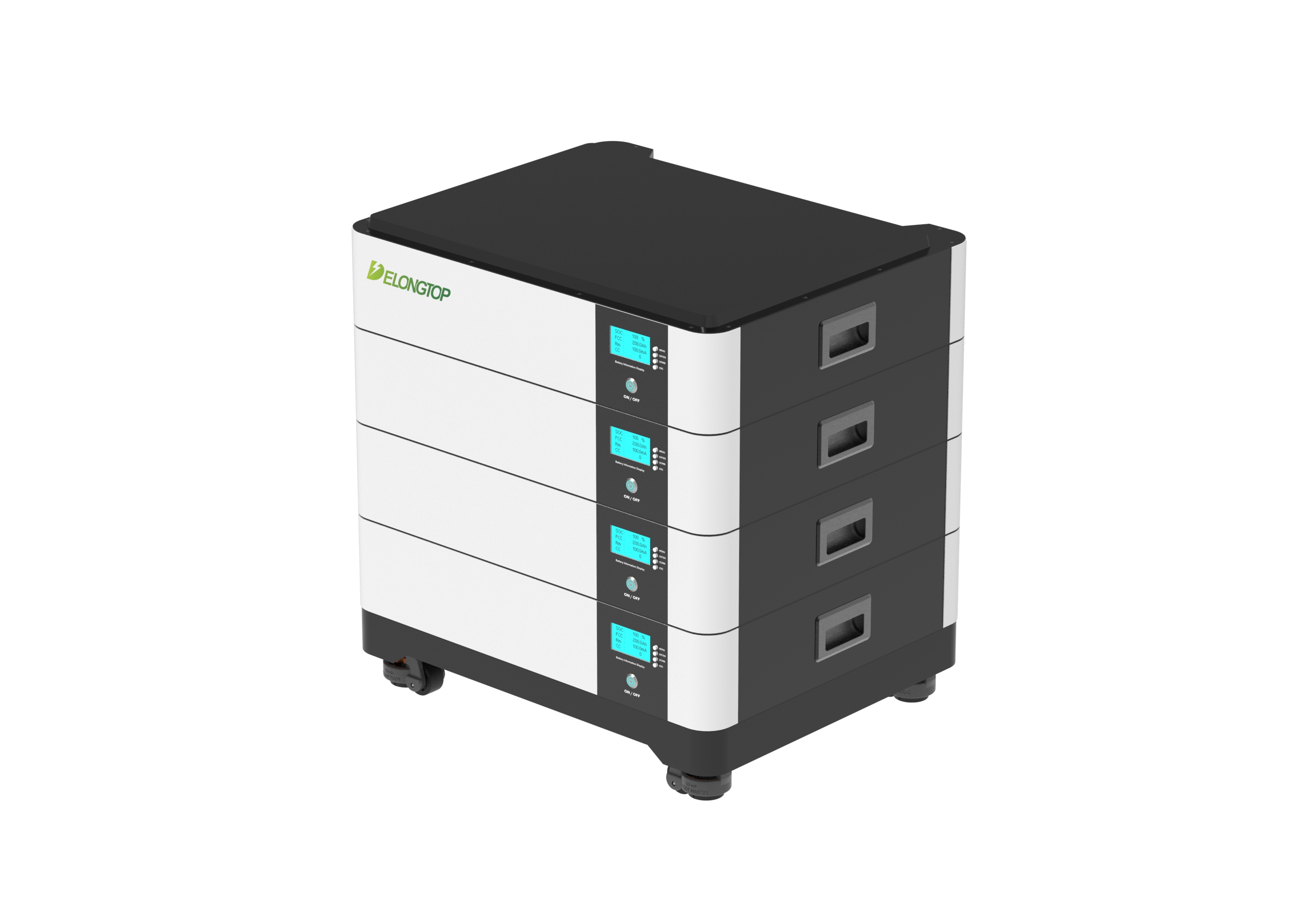

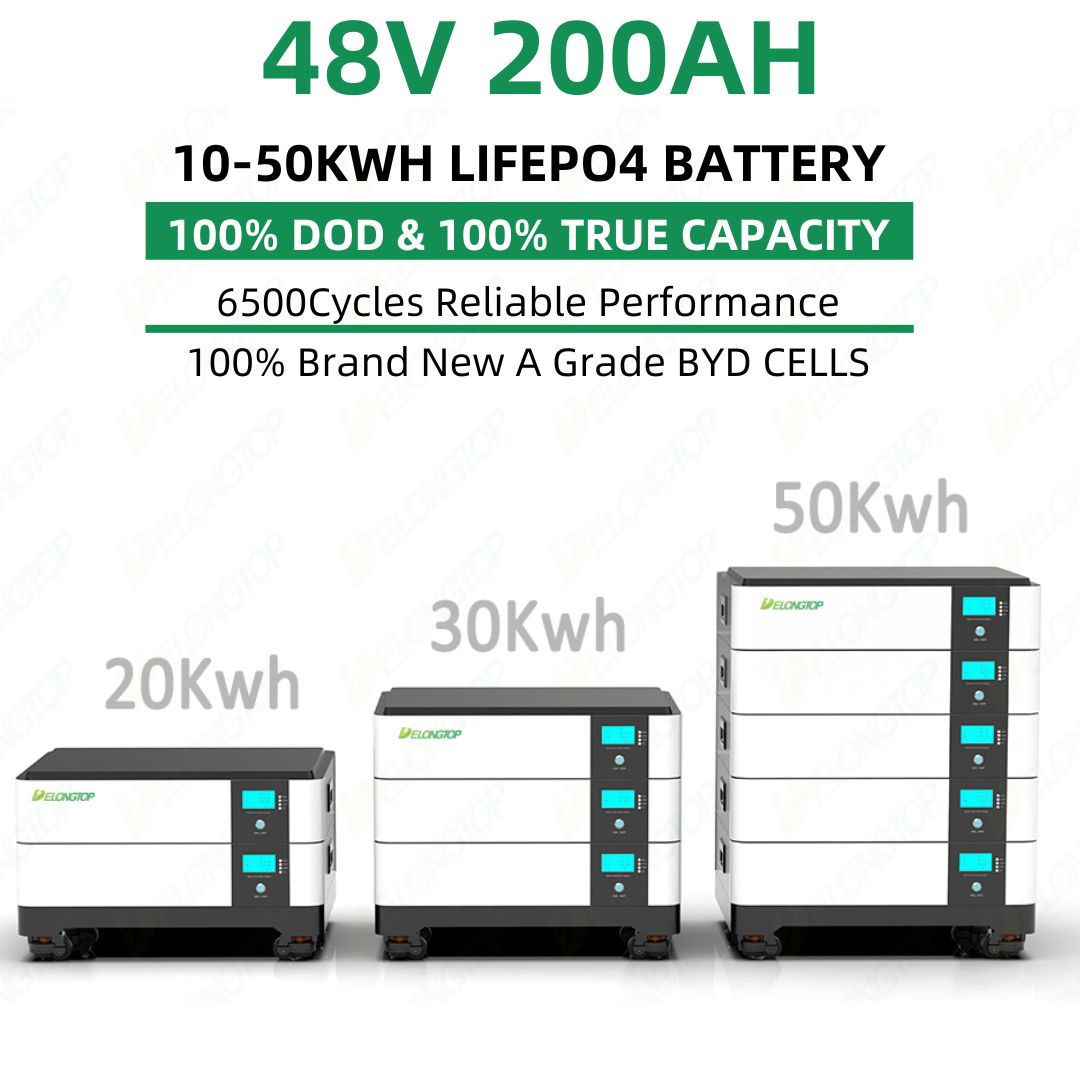

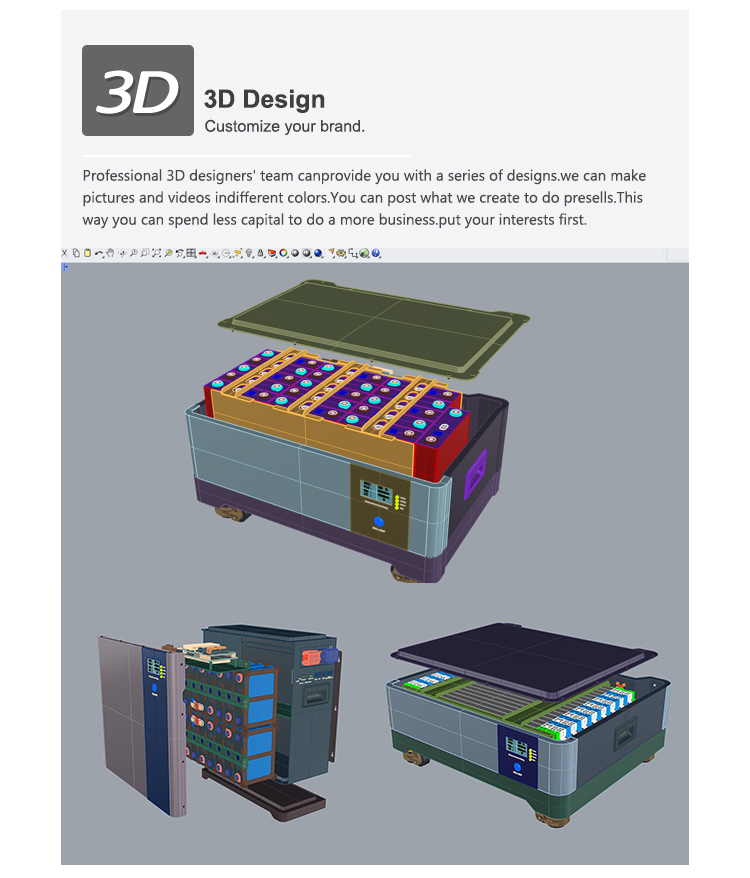

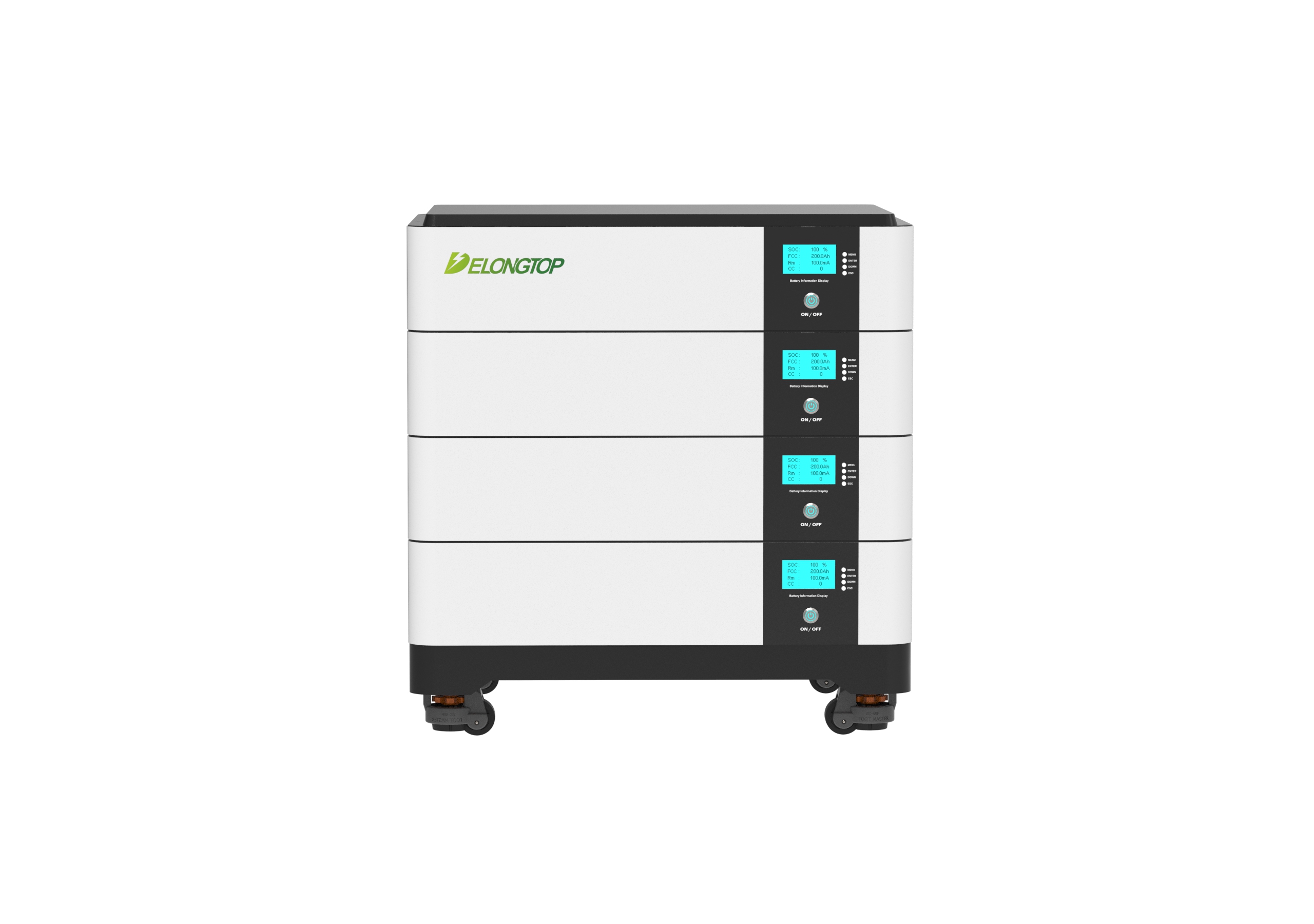

This 10kwh battery is a stackable home energy storage battery that can meet your different energy needs through simple stacking. This 10kwh battery can be stacked up to 5pcs. That is, you can stack from 10kwh to 20kwh, 30kwh, 40kwh, and 50kwh. Of course, we also provide battery customization services, which can be customized for you in size, capacity, voltage, and appearance.
| Nominal voltage | 51.2V | ||||
| Battery capacity | 200Ah | 400Ah | 600Ah | 800Ah | 10000Ah |
| Energy | 10kwh | 20kwh | 30kwh | 40kwh | 50kwh |
| Charging Cut-off voltage | 57.6V±0.2V | ||||
| Discharging Cut-off voltage | 44.8V±0.2V | ||||
| Charge Current | 80A | ||||
| Max Charge Current | 100A | ||||
| Disdischarge Current | 200A | ||||
| Max Discharge Current | 205A(100mS) | ||||

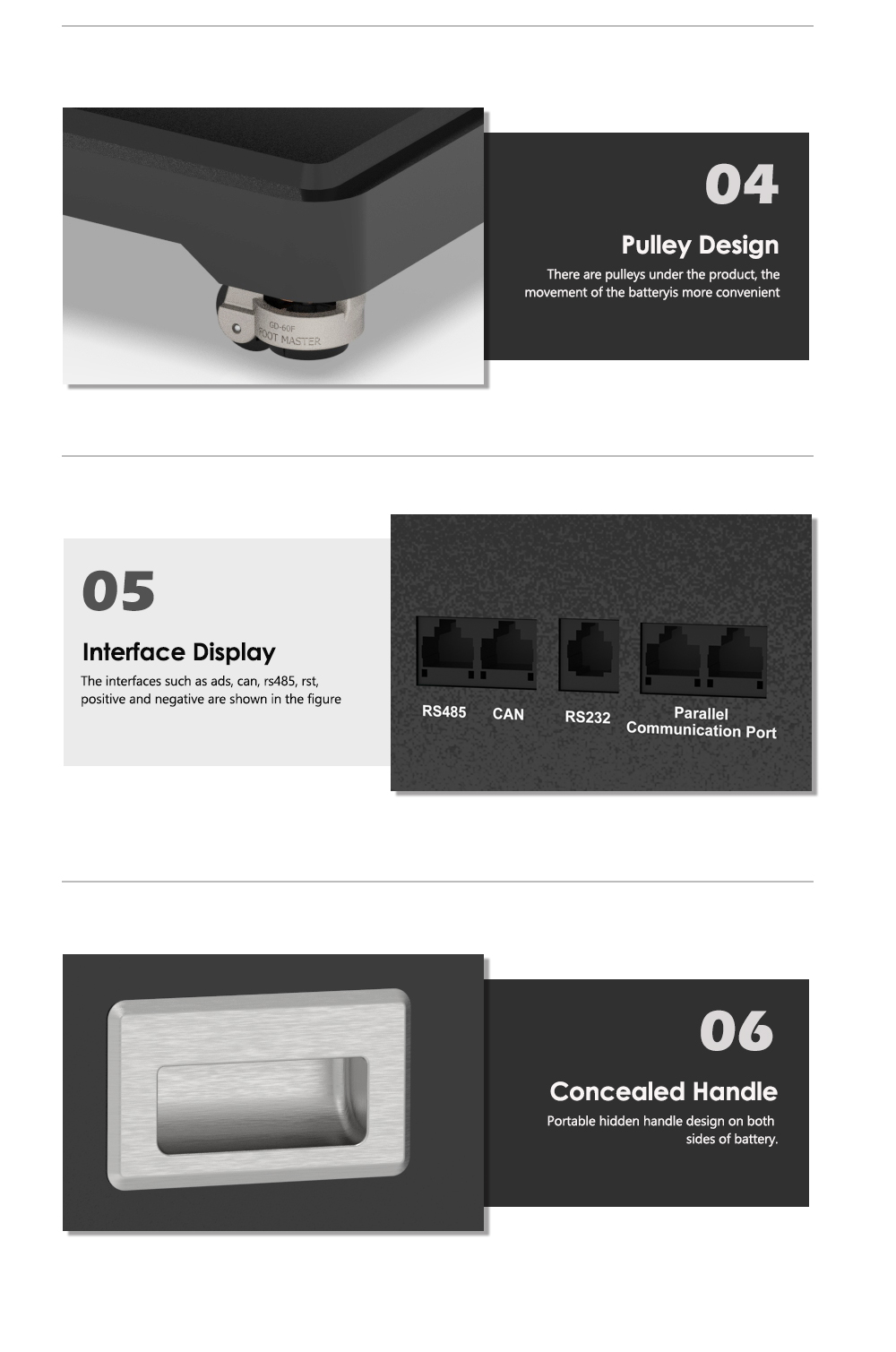

| Communication | RS485/RS232/CAN | ||||
| Weight | 85kg (single battery) | ||||

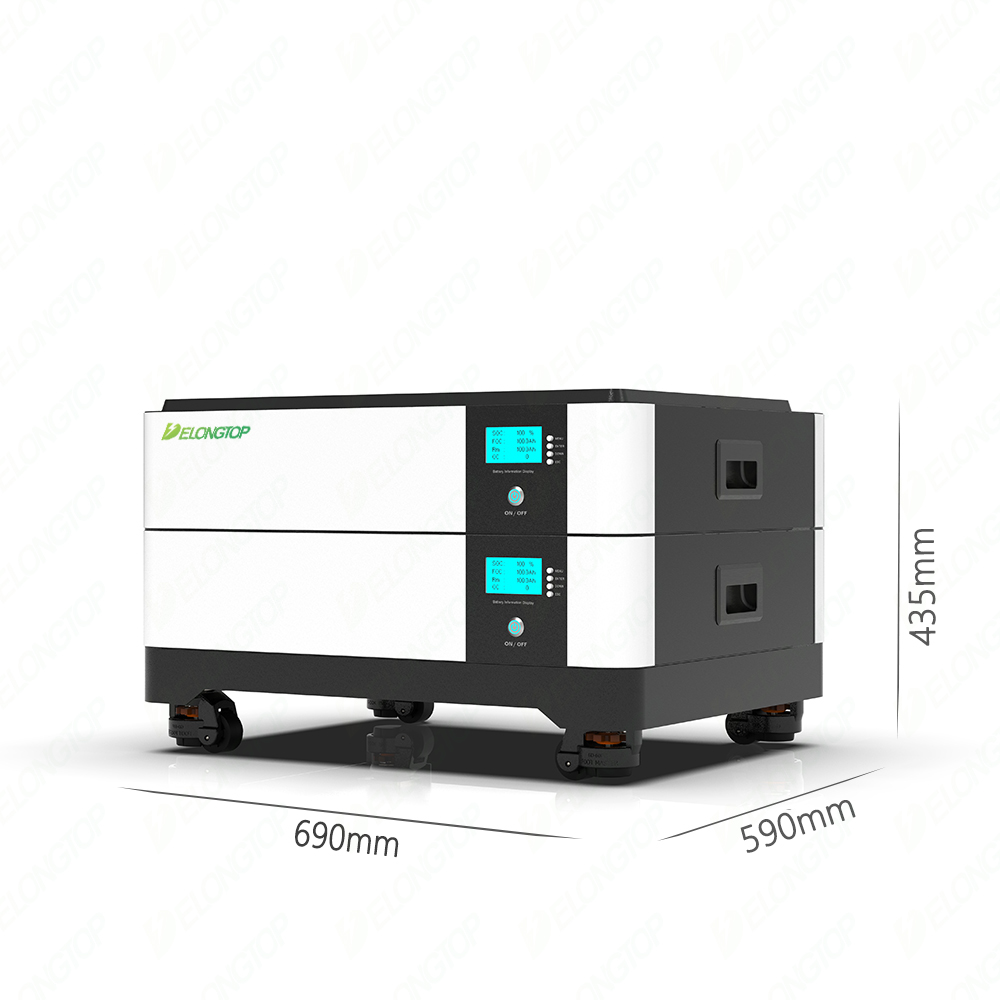

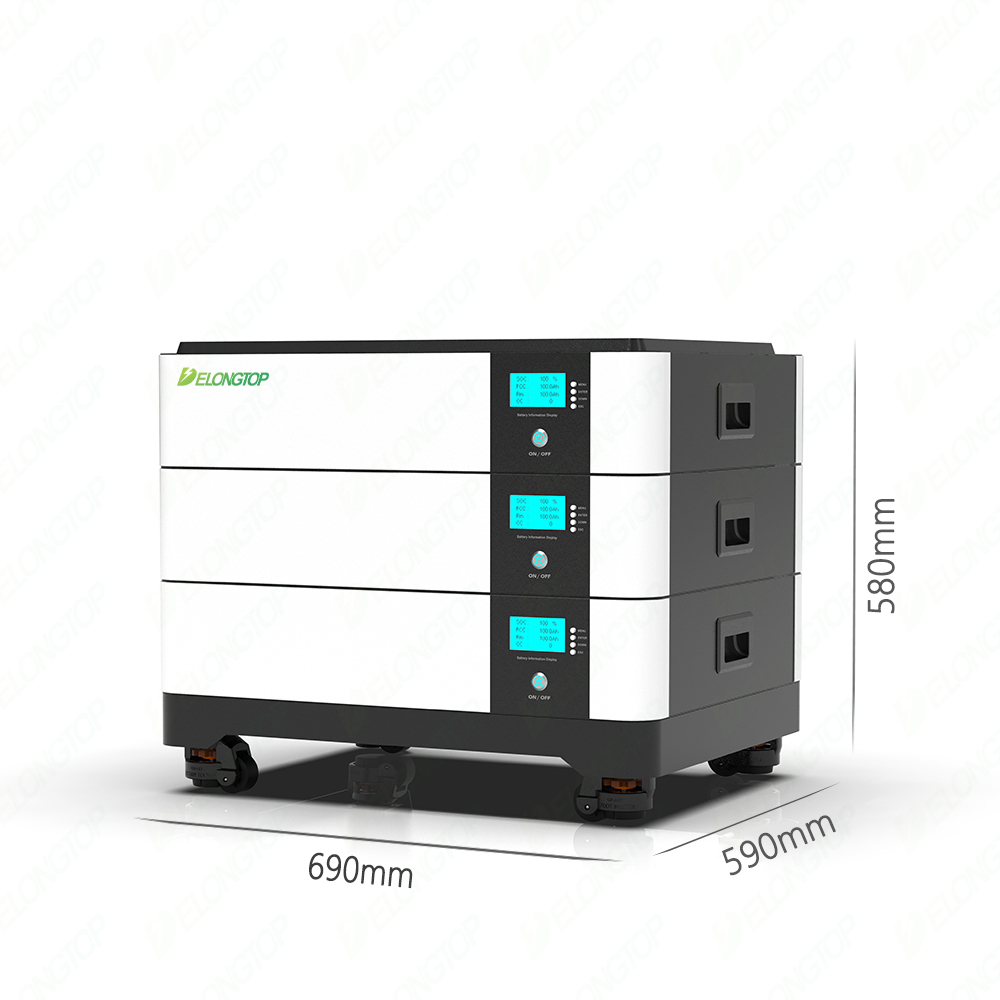

| Size | 690*590*160mm (single battery) | ||||

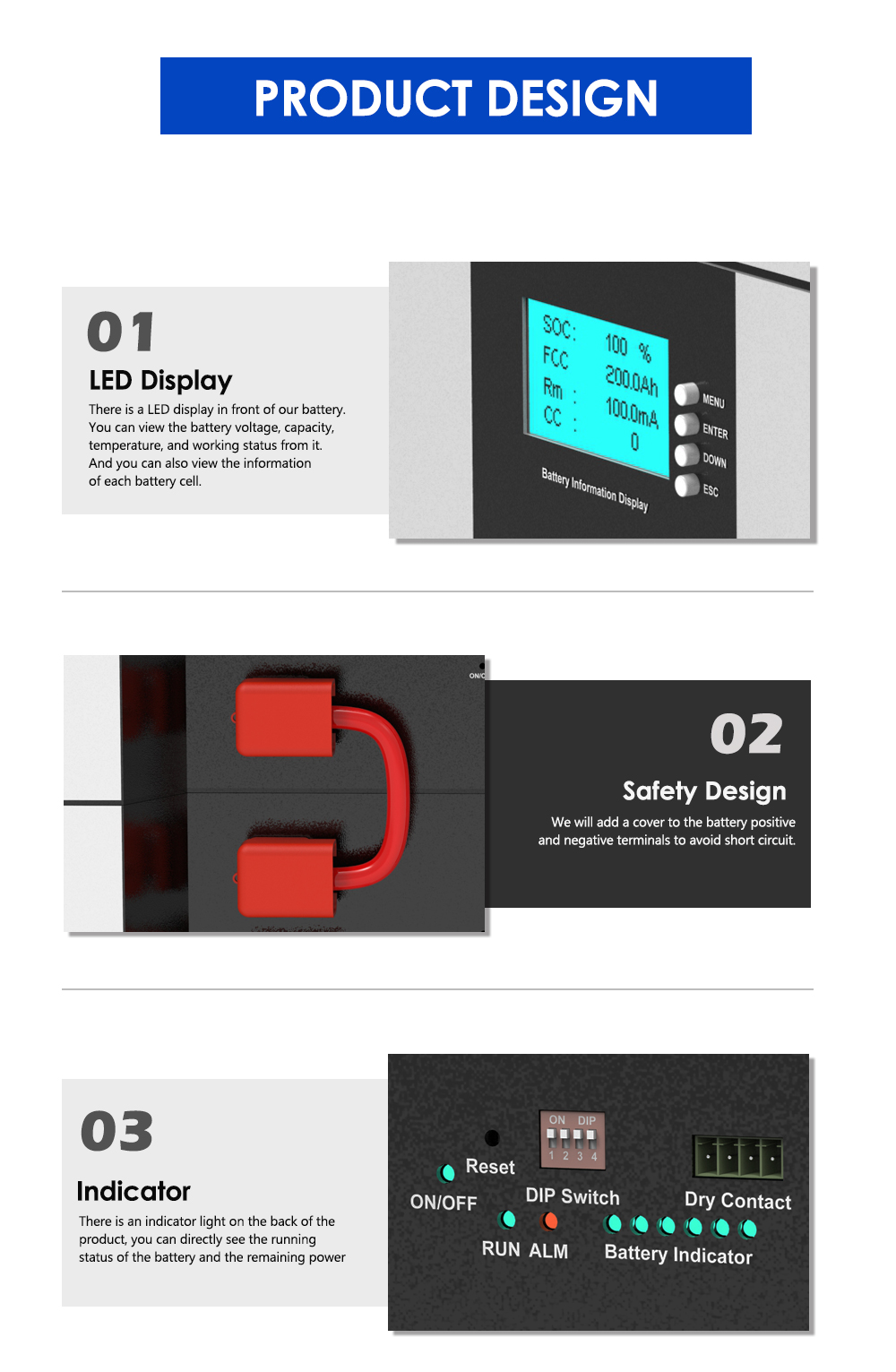

| Built in BMS | Charge Protection, Over charge Protection, Over Discharge Protection, Short Circuit Protection | ||||
| Certificate | CE, MSDS, UN38.3, Report for Sea Transport of Goods, Dangerous Goods Packaging Certificate | ||||

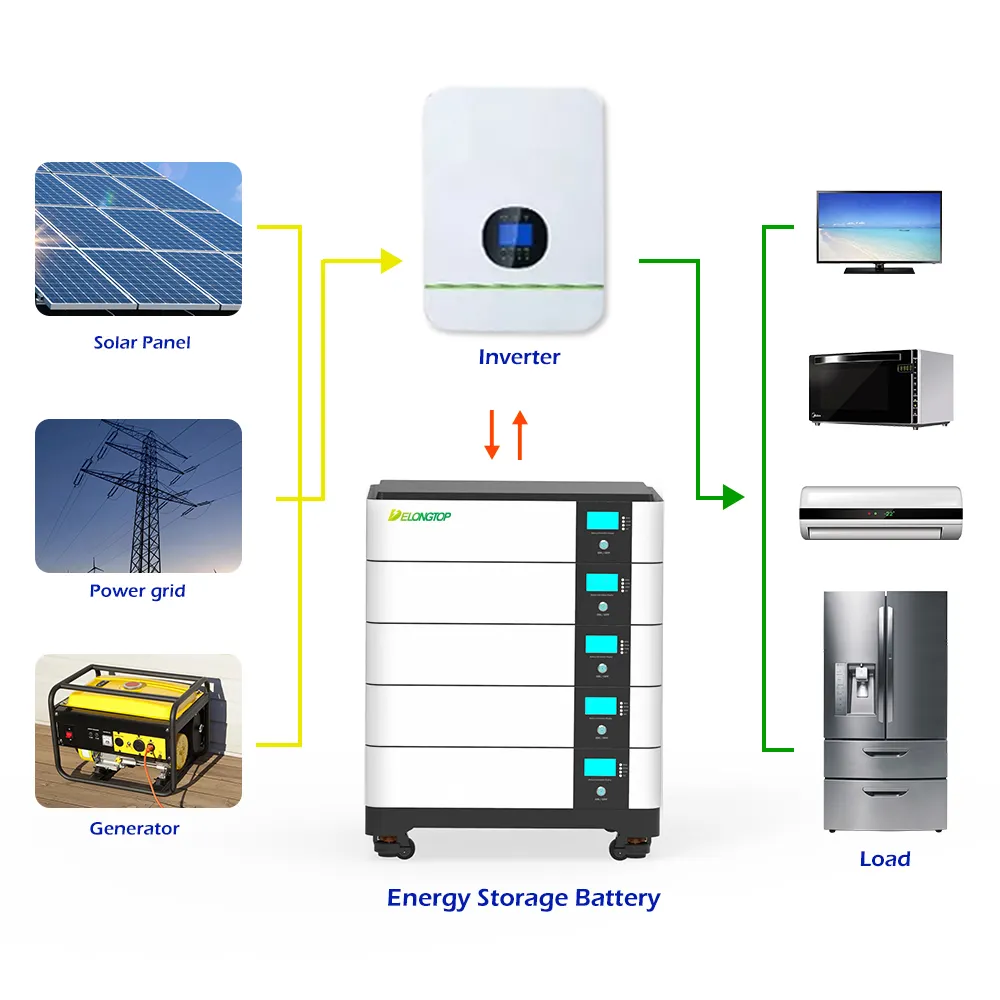

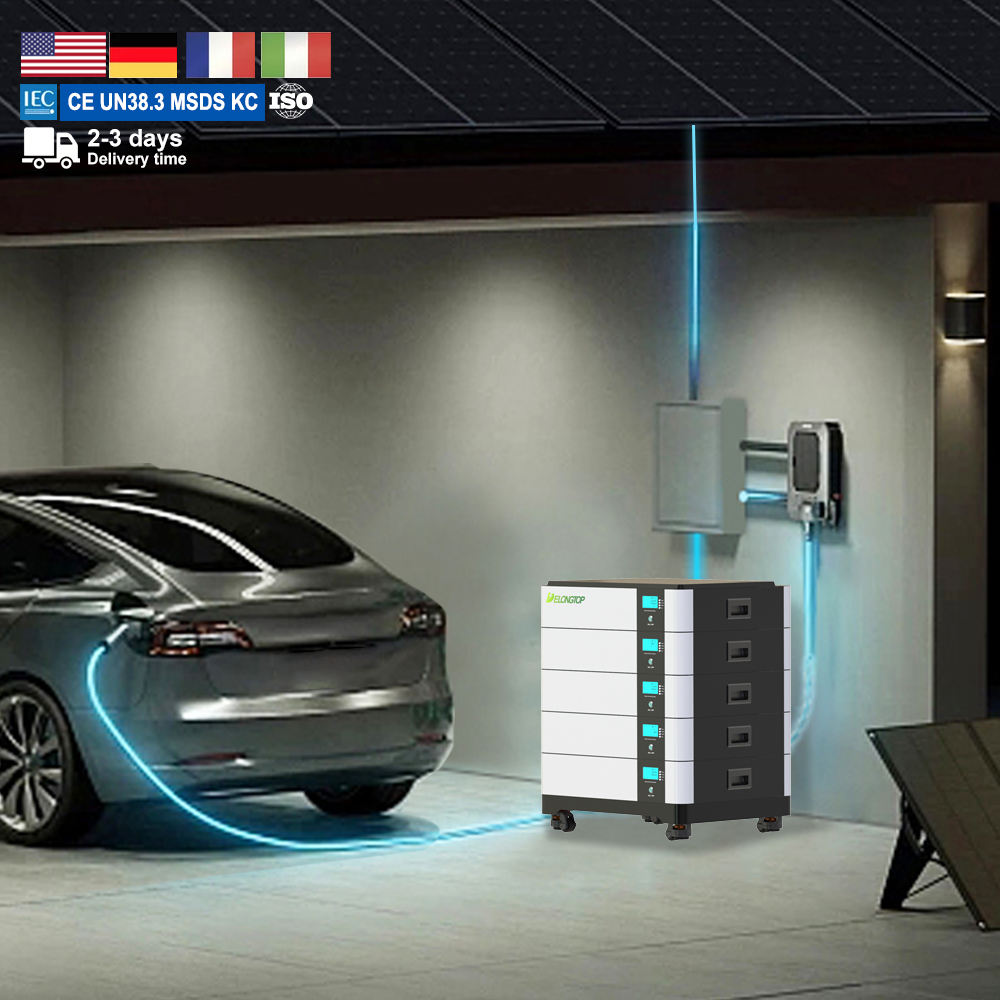

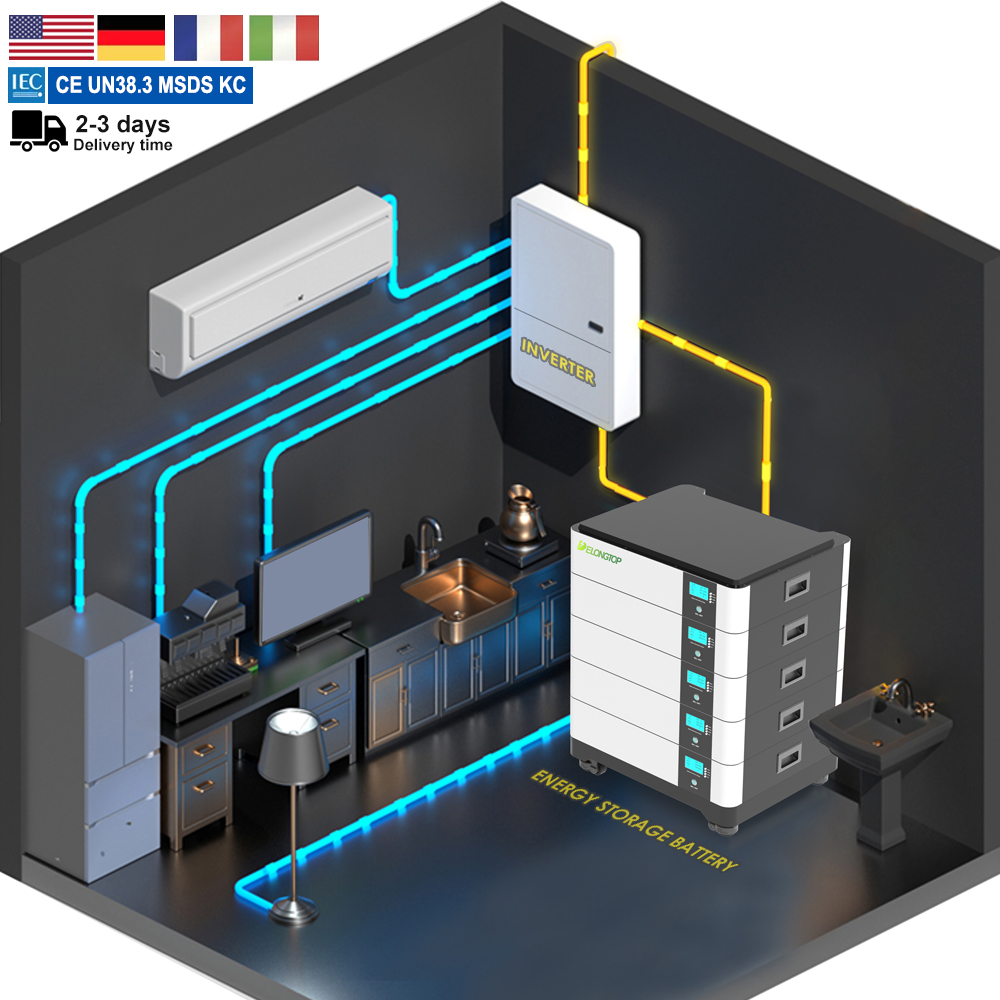

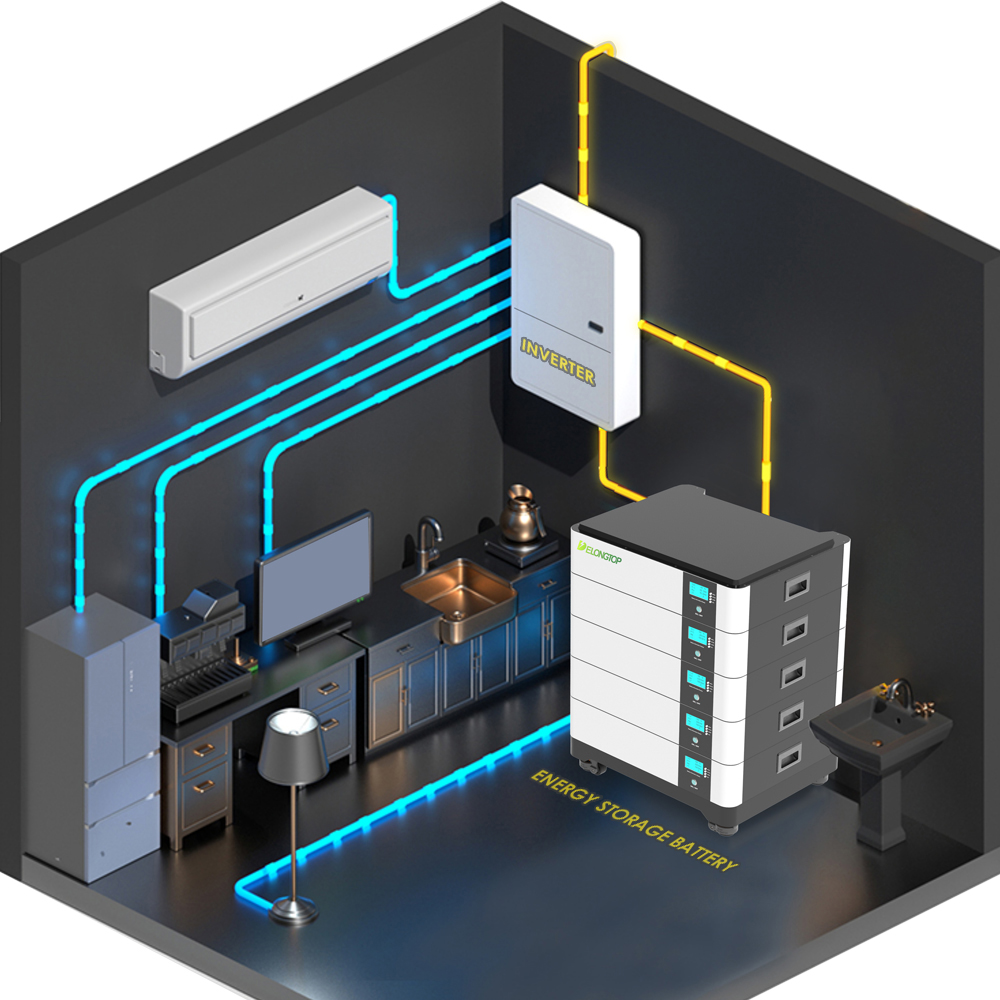

| Application | *Household Energy Storage *Solar Energy Storage System *commercial energy storage systems *UPS System *Central Office *Base Transceiver Station *Electric Power System *Telecommunication Systems *Communication Equipment *Switching Applications and More | ||||
Normally delivery within 7-20days, but can arrange in advance if order confirm or produce faster according to quanity or other reason.
1. We accept T/T, PAYPAL, Western Union, Cash and so on, as well as Trade Assurance orders.
2. FOB, EXW, and CIF are all available.
3. Samples can be paid via Paypal.
4. Credit cards (VISA, MasterCard) and e-checking are accepted for Trade Assurance orders.
DHL, UPS, Fedex, Special Line, Sea shipping, and Customer's own forwarder.

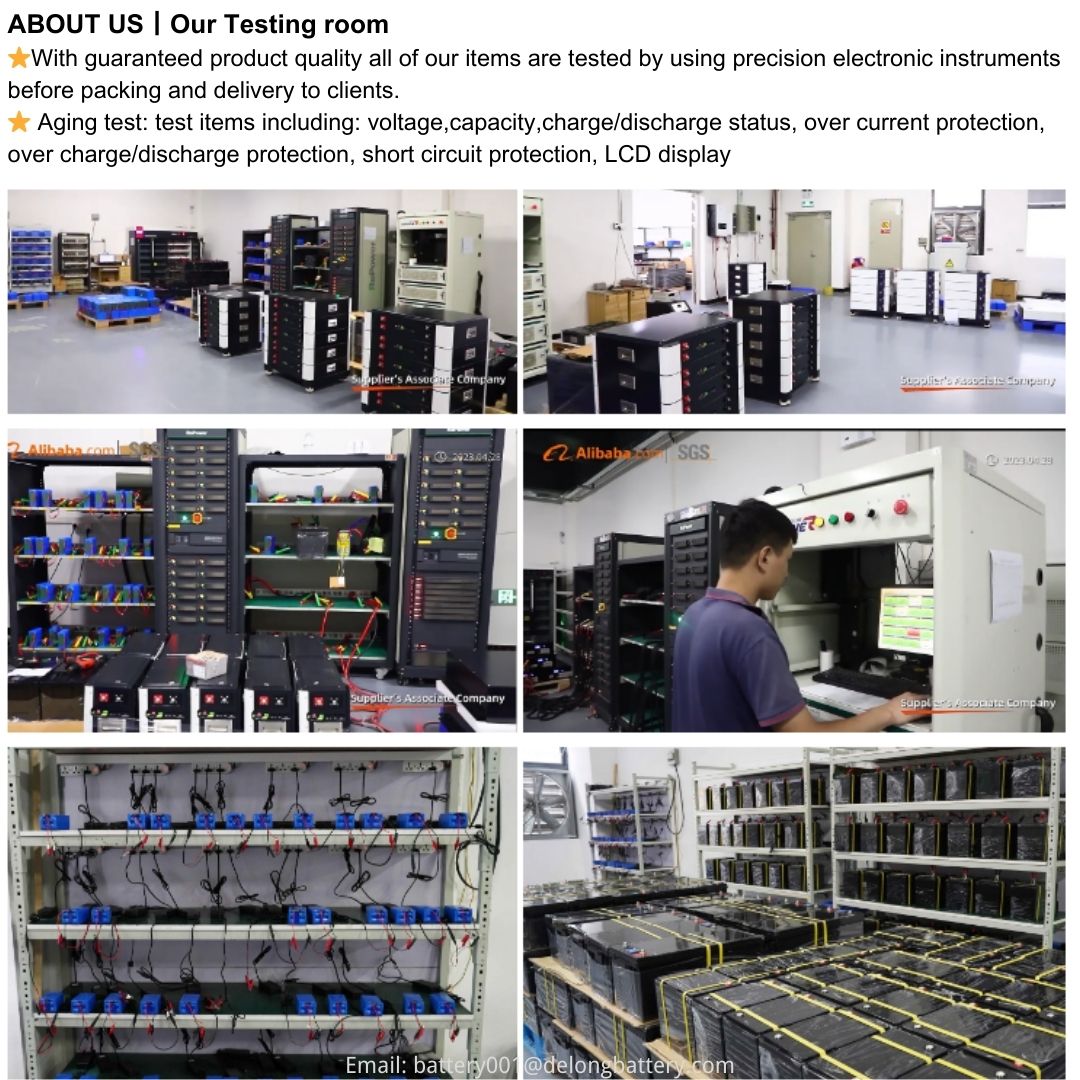

Aging test including battery pack voltage, capacity, charge/discharge status, over current protection, overcharge/over-discharge protection, short circuit protection.
