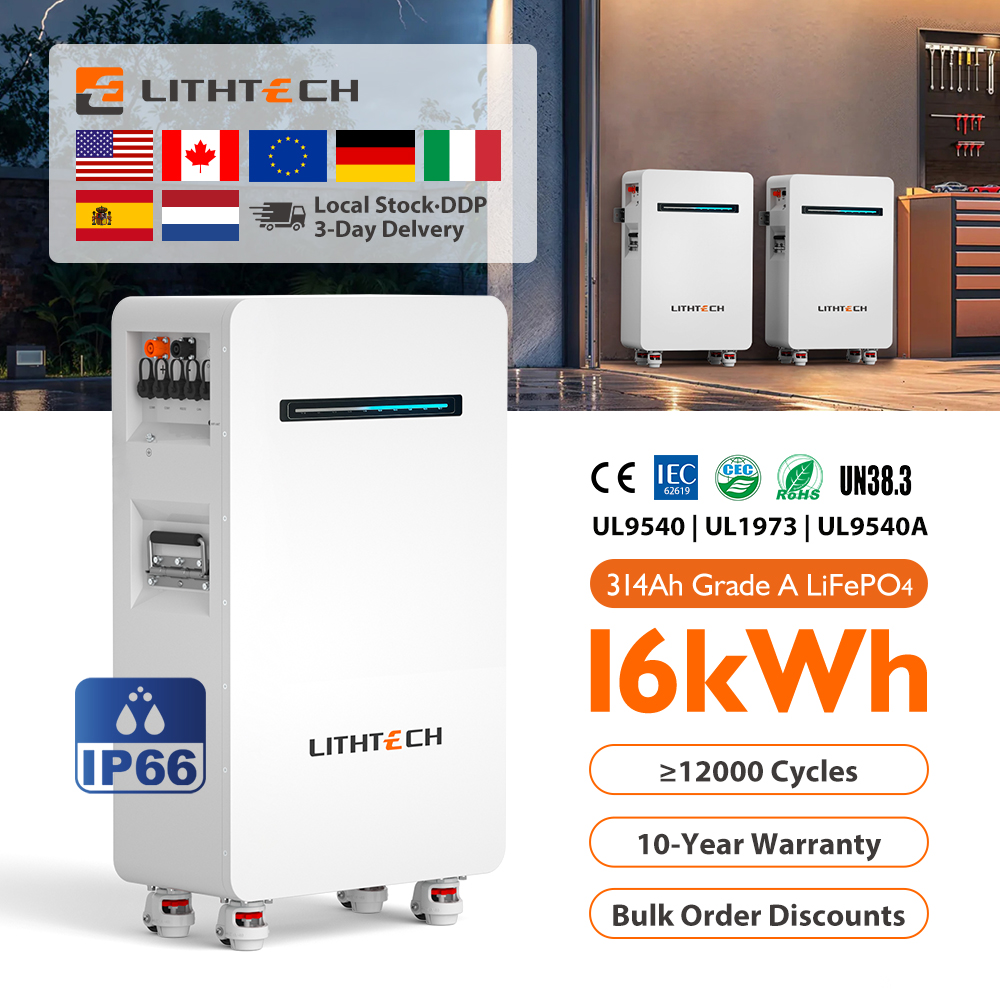

EU Stock 5kwh 10kwh 15kwh 16kwh 20kwh Wall Mounted Hybrid Solar Home Energy Storage System 48v 51.2v Pack Lifepo4 Battery

1 / 5

EU Stock 5kwh 10kwh 15kwh 16kwh 20kwh Wall Mounted Hybrid Solar Home Energy Storage System 48v 51.2v Pack Lifepo4 Battery

Send Inquiry

Product Description

Product Highlights

12,000+ Cycles Grade A brand cells deliver ultra-long lifespan and reliable performance for years of daily use.

IP66 Weatherproof Fully sealed against dust and water — built for both indoor and outdoor installation.

Full Global Certification CE, UL9540, UL9540A, UL1973, IEC62619, IEC61000, CEC Listed, RoHS, UN38.3, MSDS — ready for any market.

EU Warehouse, 3-Day Delivery In stock in Europe — fast dispatch, no long lead times.

WiFi & Bluetooth Dual Monitoring Real-time system status at your fingertips via smart app.

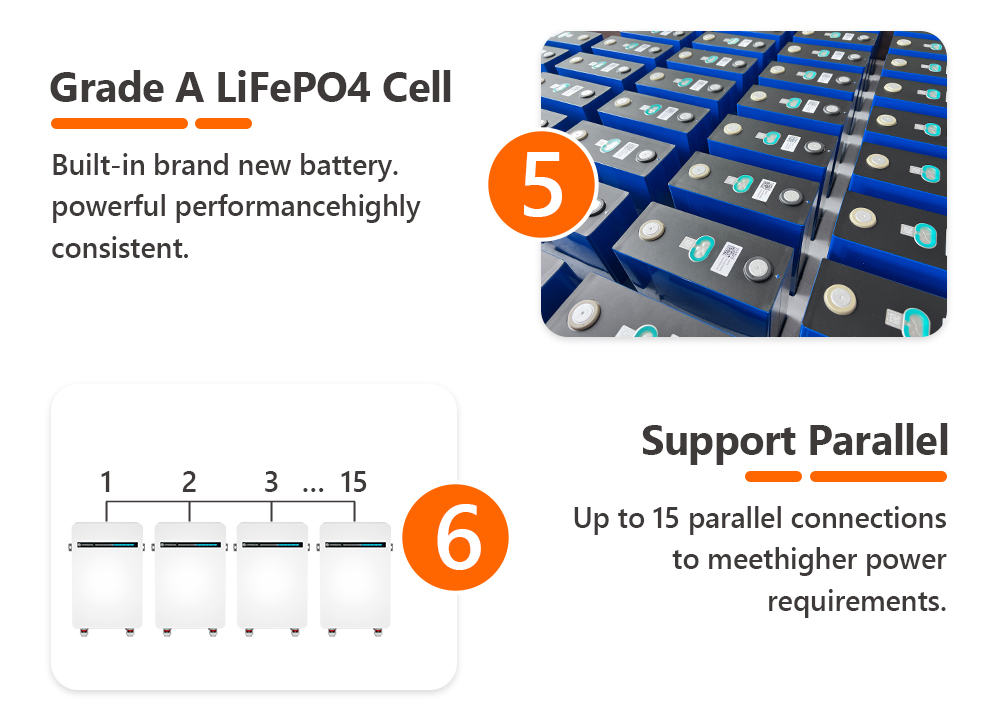

Scalable up to 240kWh Parallel up to 15 units for flexible residential or commercial expansion.

Built-in Heating System Battery heating function ensures optimal performance in cold climates.

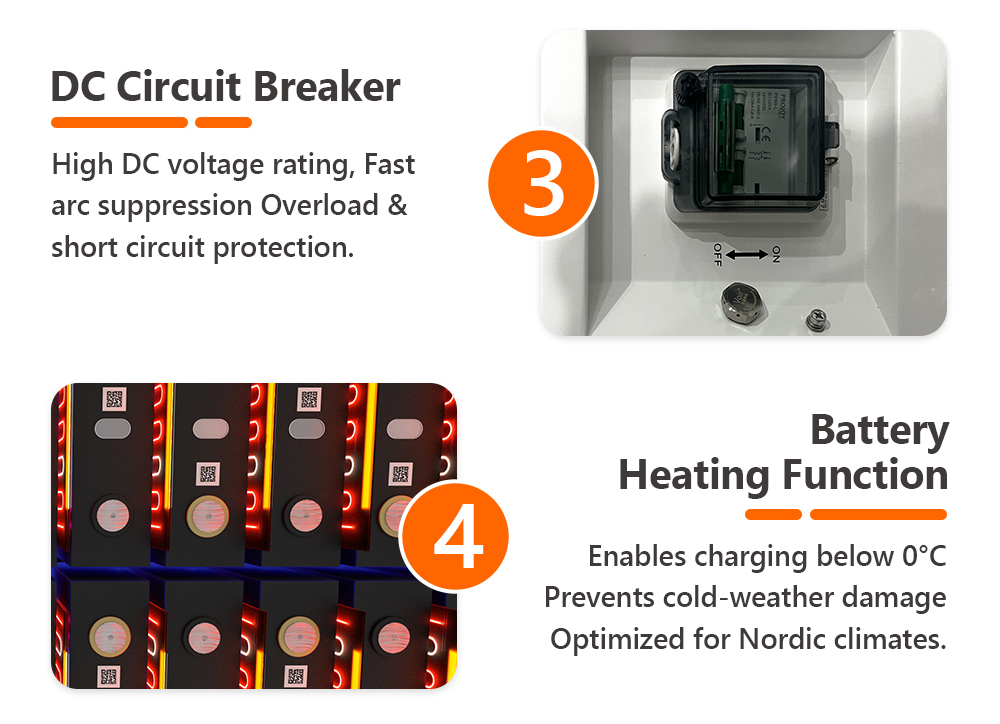

DC Breaker Included Integrated DC circuit breaker for enhanced safety and easy maintenance.

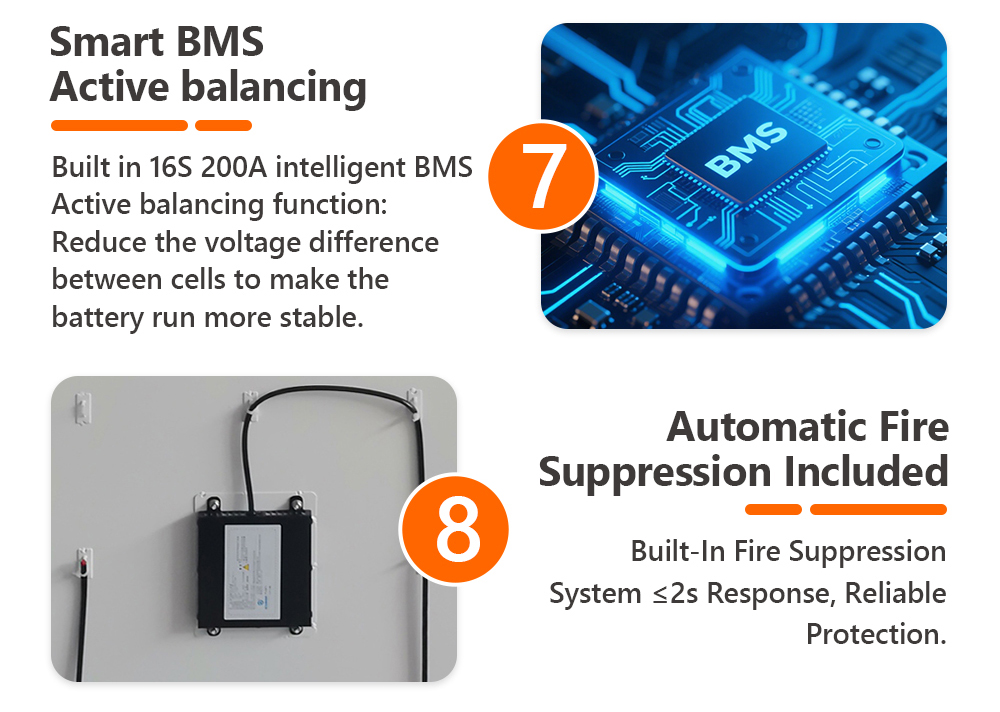

Aerosol Fire Suppression Built-in aerosol fire extinguishing system for maximum safety protection.

Plug & Play with Wheels Ready to install out of the box — universal casters for effortless relocation.

10-Year Warranty Industry-leading warranty for complete peace of mind.

EU Warehouse Stock

Seeking Global Partners

Delivery & After Sales response

Delivery Time
Item	1-50 PCS	50-100 PCS	1000+ PCS	5000+ PCS
Need Dangerous Goods Transport Certificate	5 days	10-15 days	20 days	30 days
Not Need Dangerous Goods Transport Certificate	5 days	7-15 days	15-20 days	30 days

After Sales Response Time
Beijing Time: 9:00-22:00	Weekday	Saturday	Sunday	Statutory Holidays
Sales Representative	≤ 1 Hour	≤ 2 Hours	≤ 4 Hours	/
Executive Support Team	≤ 1 Hour	≤ 2 Hours	≤ 4 Hours	≤ 1 Day

Competitive Advantages

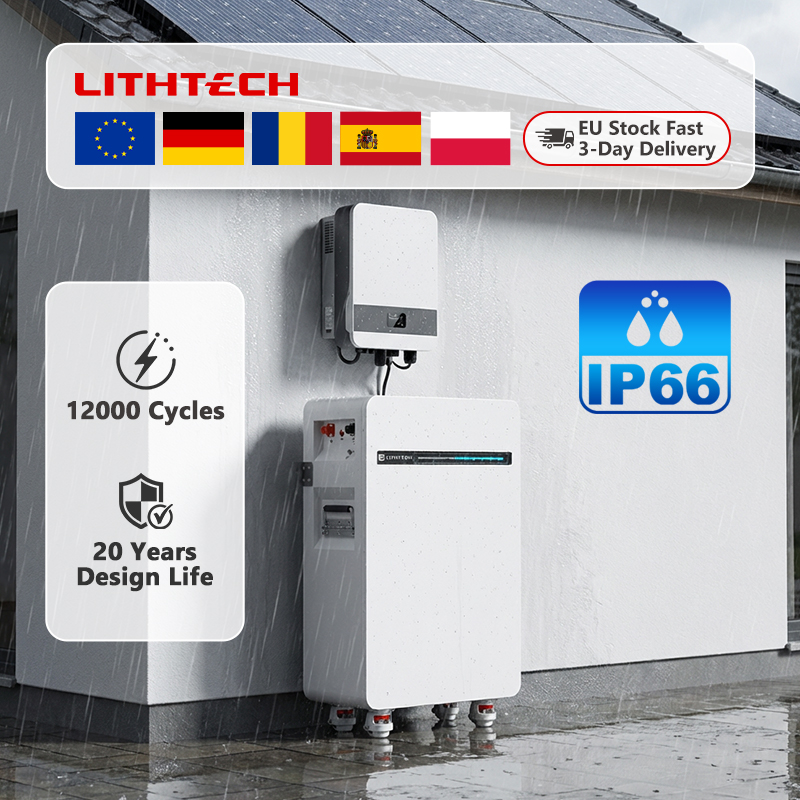

Scene Image

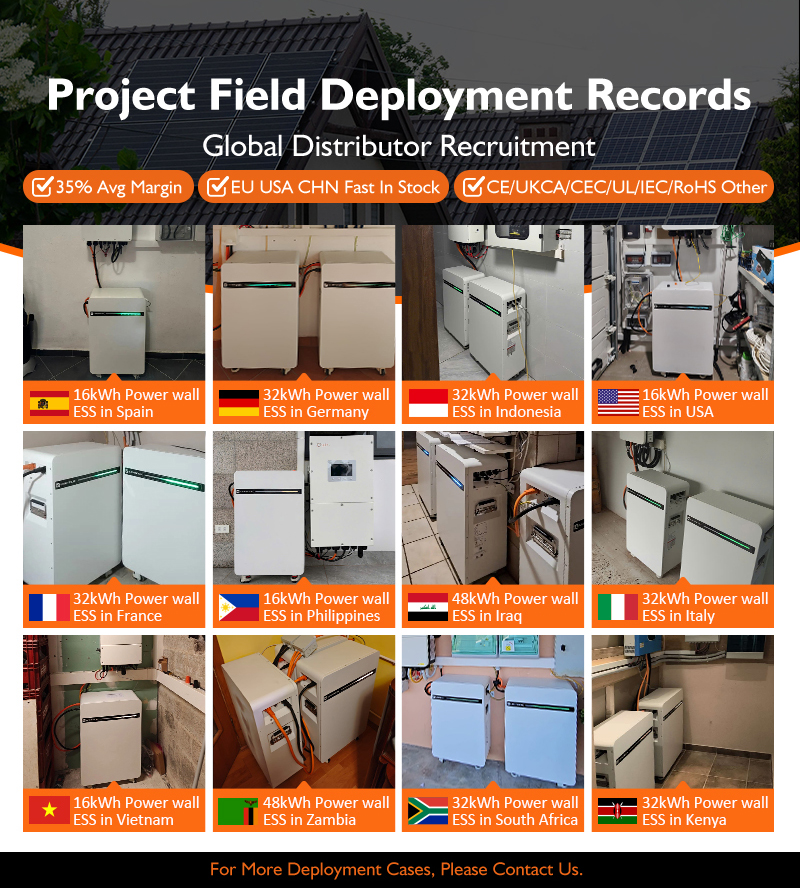

Global Success Stories

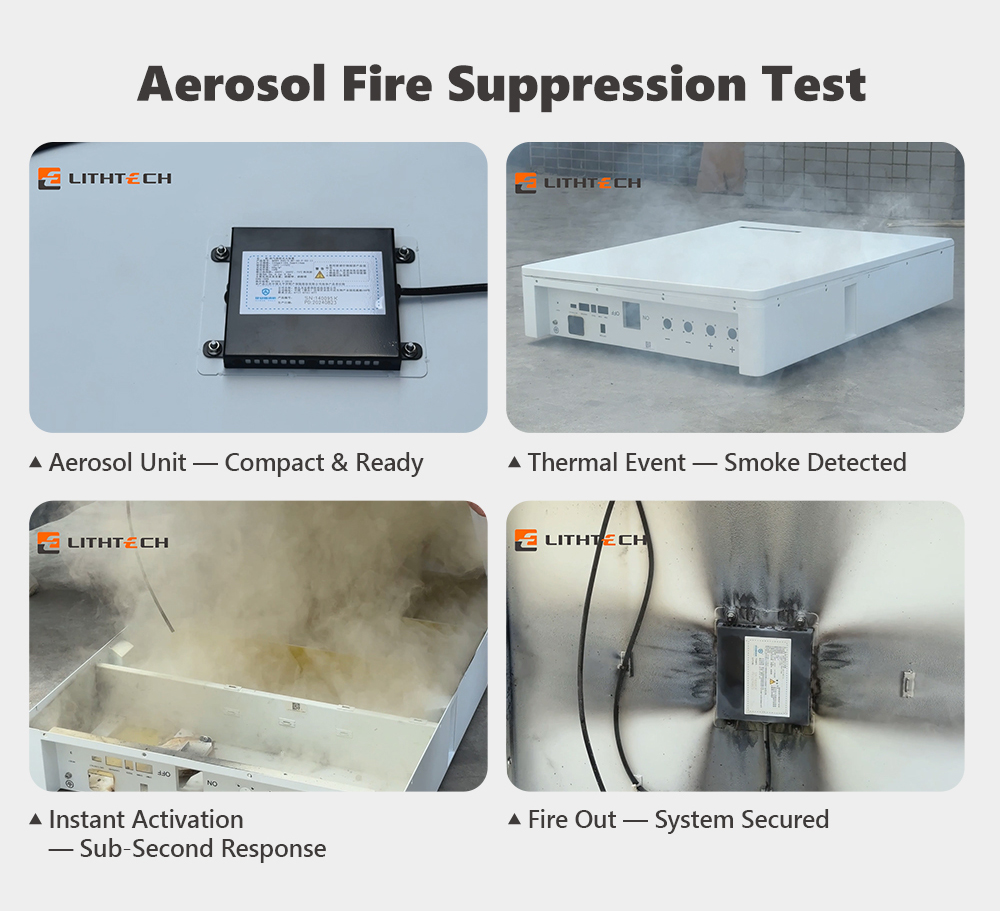

Certified Fire Protection

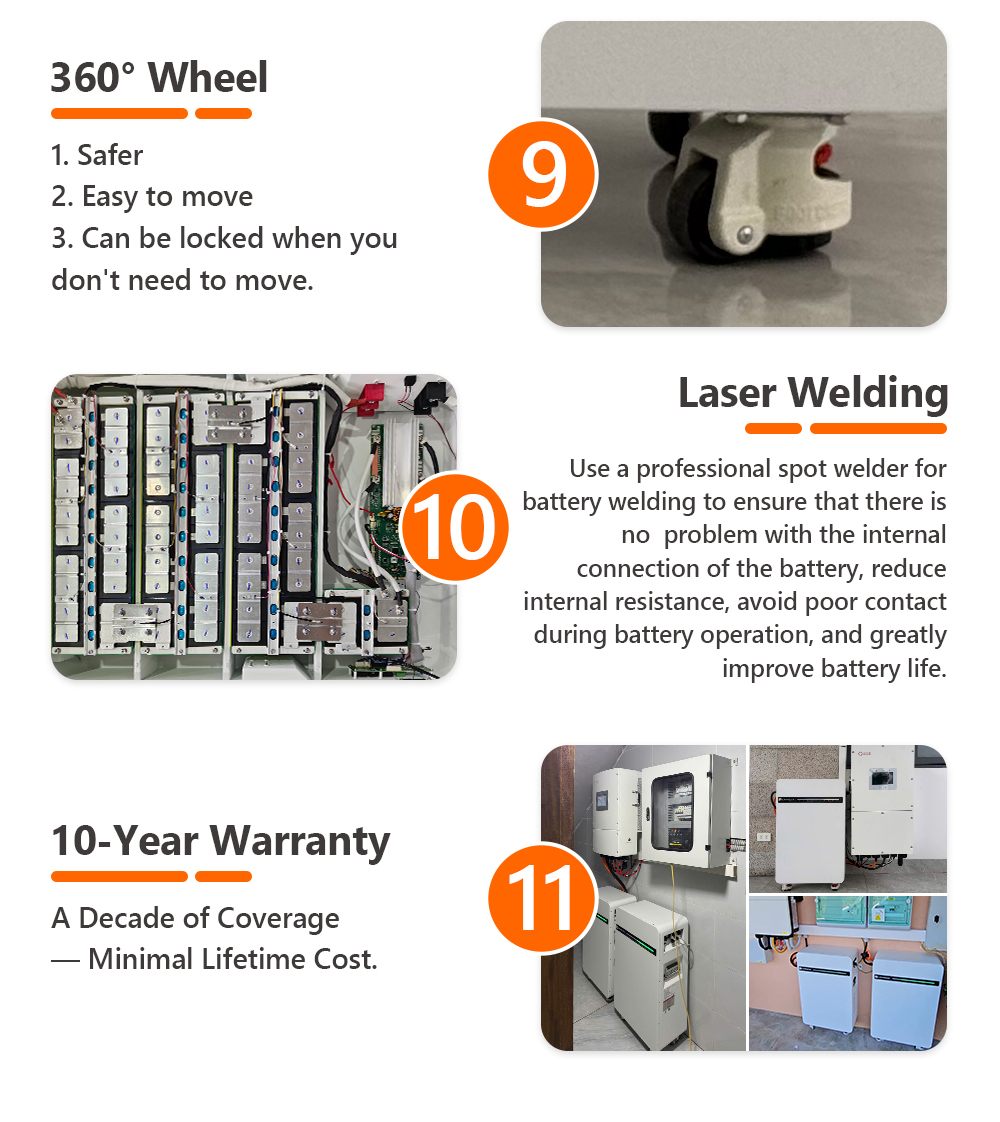

Product Advantages

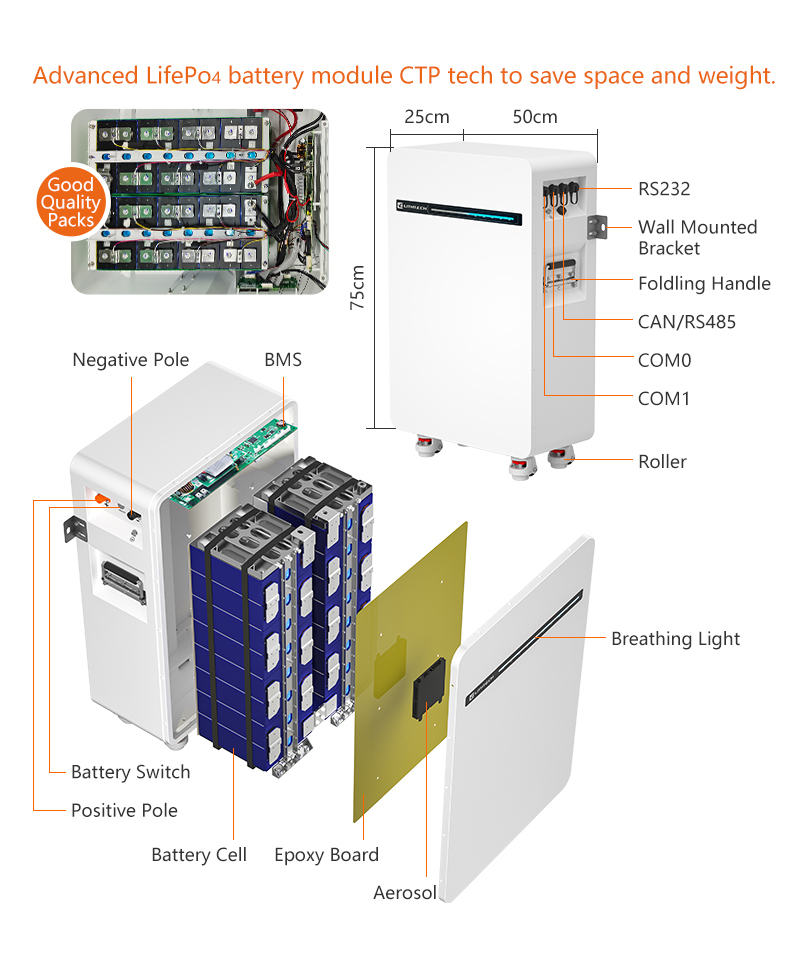

Detail Shot

Product Specifications

Performance Specifications
Model	TR8500WX-PRO
Rating Voltage	51.2V
Cell model/Configuration	3.2V314Ah/16S1P
Impedance	≤28mΩ
Rating Capacity	314Ah
Rated Energy (kWh)	16.07kWh
Max. Charge/Discharge Current (A)	200A
Voltage Range (Vdc)	44.8V~58.4V
Scalability	Up to 15 parallel
Communication	CAN/RS485/RS232/Bluetooth/WIFI
Cycle Life	≥12000 Cycles @25°C
Design Life	≥20 Years (25°C)
Display usage	LED light strip

Mechanical Specifications
Weight (Net/Gross)	≈120kg
Dimension (W/D/H)	500800250mm (±2.5mm)
Installation Mode	Wall Mounted
IP Grade	IP66

Security and Certification
Safety (Pack)	CE, UL1973, UL9540, UL9540A, IEC62619(CB), CE-EMC, IEC61000, UN38.3, MSDS, RoHS
Safety (Cell)	UN38.3, MSDS, IEC62619, CE, UL1973, UL2054
Protection	Smart BMS, Breaker and Aerogel Fireproofing

Environmental Specifications
Operating Temperature	Charge 0°C~55°C; Discharge -20°C~60°C
Altitude	≤3000m
Humidity	≤95% (Non-condensing)

About Our Profile

Who We Are

We are a global new energy system integrator specializing in residential, C&I, marine, AI data energy, and smart machine energy storage. Our mission is to safeguard a sustainable energy future.

Core Technology

Self-developed high-precision BMS with AI intelligent monitoring and dynamic optimization
Smart modular design with multi-level protection
Advanced fire-retardant materials for extreme environments
Full-scenario safety, full-cycle efficiency

Global Footprint

Subsidiaries in Germany (Frankfurt), USA (Los Angeles), Saudi Arabia, Nigeria
Fully certified: CE, UL, SASO and more
Serving 100+ countries with local support

By the Numbers

100+ Global Partners
25% R&D Investment Ratio
International Certifications: Full Coverage

Our Vision

Driving the evolution toward safer, smarter, and more inclusive energy systems — for a harmonious future between humanity and nature.

Factory Profile

Trade Show Participation

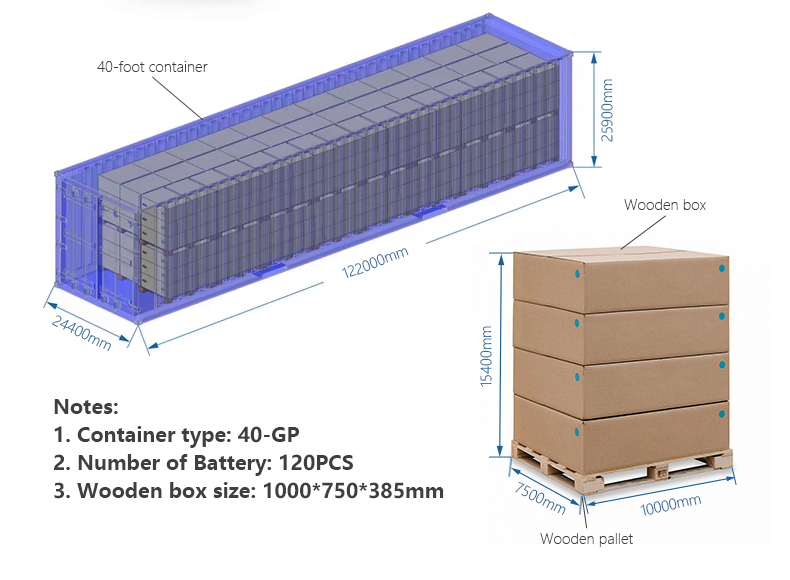

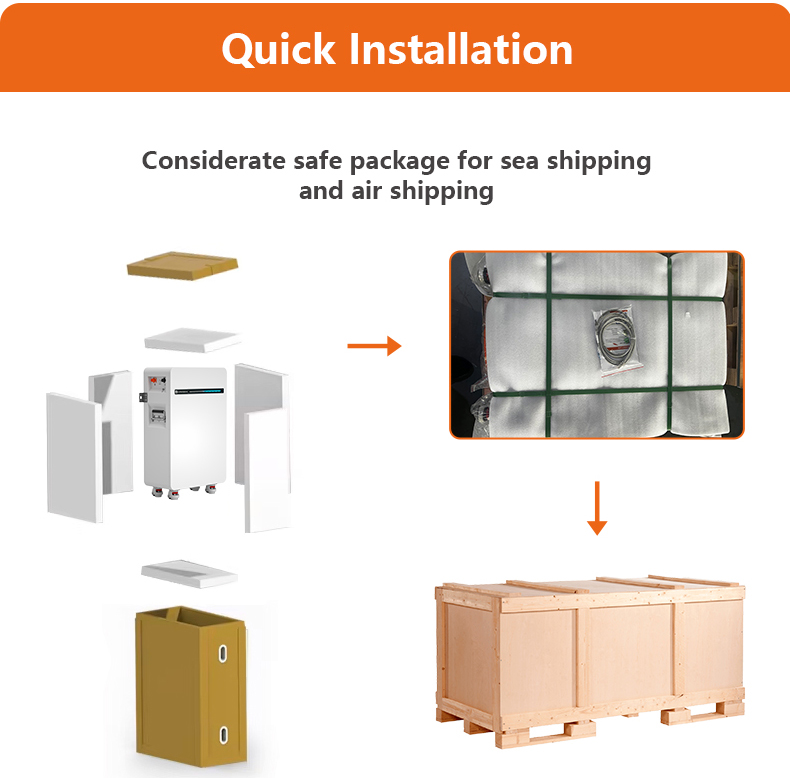

Packaging & Shipping Specifications

Support & Launch

Frequently Asked Questions

Q: How long is the delivery time of your products?

A: For models stocked in our overseas warehouses, delivery takes up to 3 days (usually 3-7 days to reach your place in the EU). For standard production orders shipped from our main factory, the lead time is usually about 30 days. Customized orders can take around 10-14 weeks depending on specific project scope.

Q: What kind of certificates do your products have?

A: Our energy storage battery products have acquired CE, UL, UN38.3, MSDS, CEC, RoHS and other global safety certifications, which fully satisfy the import compliance requirements of most countries.

Q: Are your batteries compatible with major inverters?

A: Yes. Our batteries are fully compatible with most major inverter brands in the market, including Solis, Deye, Sinexcel, and others.

Q: Do you have a Europe warehouse, and how do we check shipping costs?

A: Yes, we have functional European warehouses located in Germany, Poland, and Romania (ongoing) to support local dispatch. To check door-to-door delivery costs, please share your shipping address and zip code, and we will calculate the rate for you.

Q: Are your energy storage products manufactured in your own factory?

A: Yes, we have a 100% owned factory and offer direct factory sales. This ensures full quality control from production stages to shipping, and allows us to provide more competitive prices in the market by cutting out intermediaries.

Q: Do you provide OEM & ODM service and have an in-house R&D team?

A: Yes, we provide OEM & ODM services (minimum order quantity requirements apply). We have a dedicated, professional in-house R¢er team focused on product innovation, customization, and continuous performance optimization.
