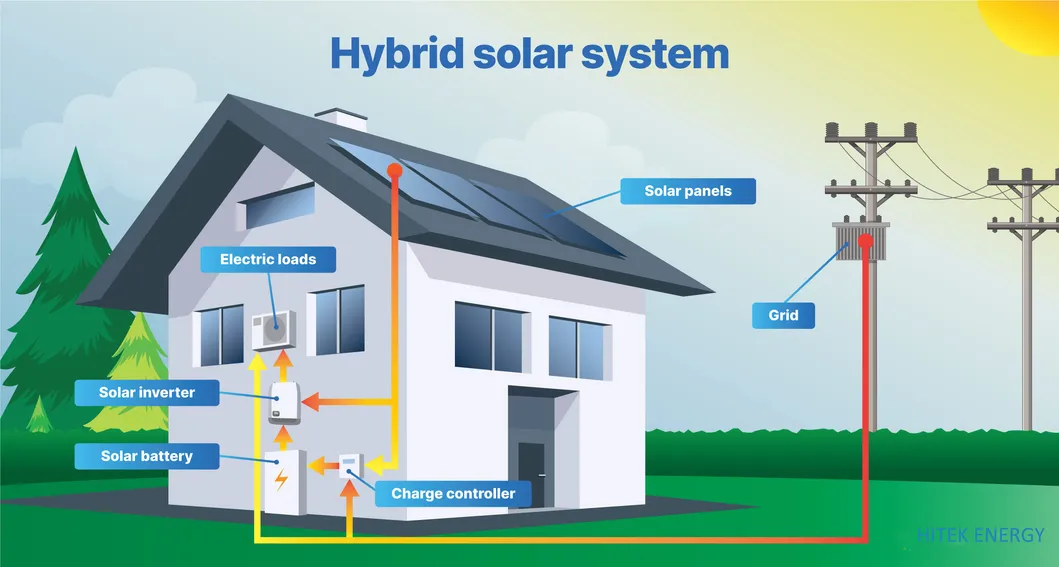

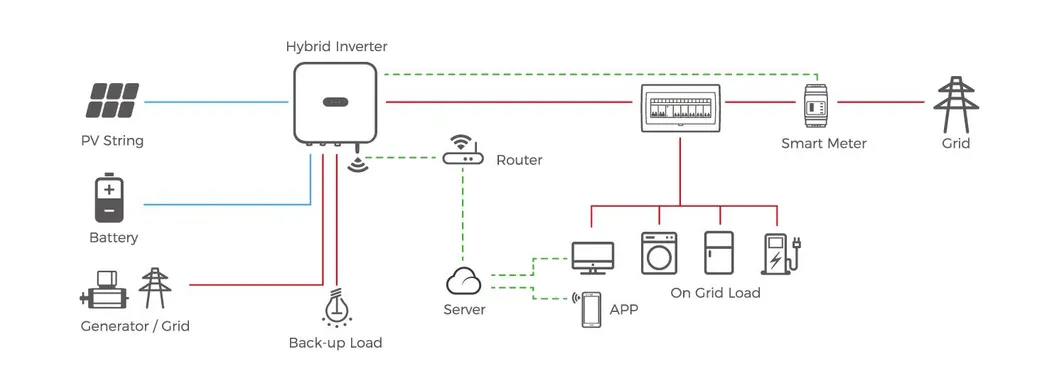

Hybrid system is a combination of solar energy storage with grid connection. It has battery backup to store power and has the ability to feed surplus electricity into main grid.

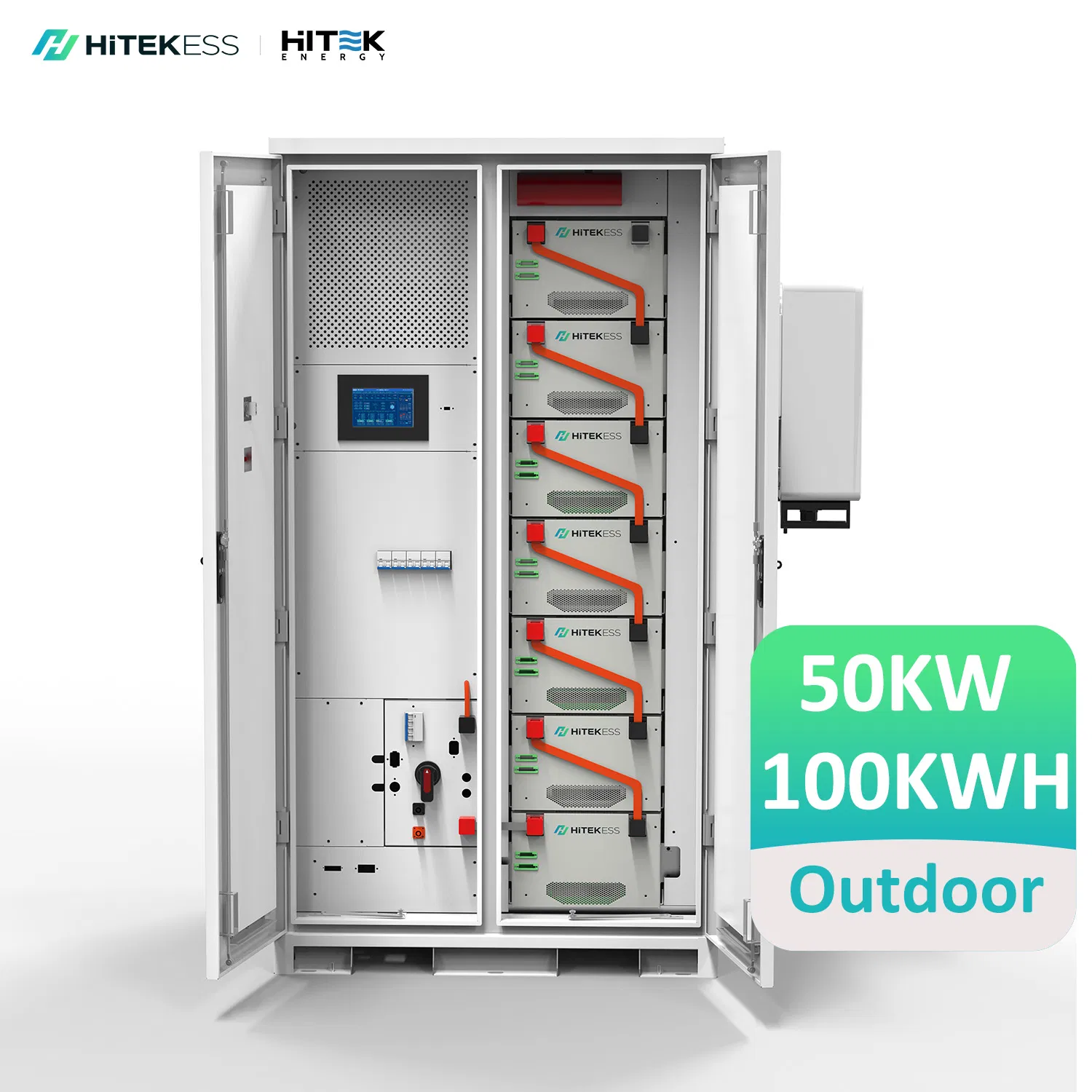

| 50KW SOLAR SYSTEM CONFIGURATION | |||||
|---|---|---|---|---|---|
| No. | Product name | Specification mode | Unit | Quantity | Remark |
| 1 | Solar Module | BSM560M10-72HPH | pcs | 96 | 16pcs per string, 6 strings totally; Totally 53.76KW |
| 2 | PV Combiner Box | 6 input and 6 output | pc | 1 | 1000V open circuit voltage, component short circuit current 14.14A |
| 3 | Hybrid Inverter | BSE50KH3 | pc | 1 | 3 Phase 400V 50Hz 4 groups of mppt 2 strings per group |
| 4 | Lithium Battery | 51.2V 280Ah (including BMU/Collecting harness/power cable) | pack | 7 | 7 pcs in 1 group, totally 100.352KWH |
| 5 | High Voltage Control box | piece | 1 | - | |
| 6 | Battery Rack | set | 1 | - | |
| 7 | Battery-inverter cable | piece | 2 | Estimated quantity: Current meets 100A, two batteries per cluster 35mm2 cable | |
| 8 | Remote Monitoring | WiFi Monitoring | set | 1 | equipped |
| 9 | MC4 Connectors | one-to-one correspondence | pair | 24 | - |
| 10 | PV Cable | PV1-F 1*4mm² | meter | 600 | - |
| 11 | Mounting Kits | Customized Designed Roof/ Ground Mounting Kits | set | 1 | - |
| Use ONLY Reliable Approved Equipment. | |||||
Save On your domestic and commercial utility bills. Make your new home more comfortable, more valuable, and a place to be proud of for a long time to come.

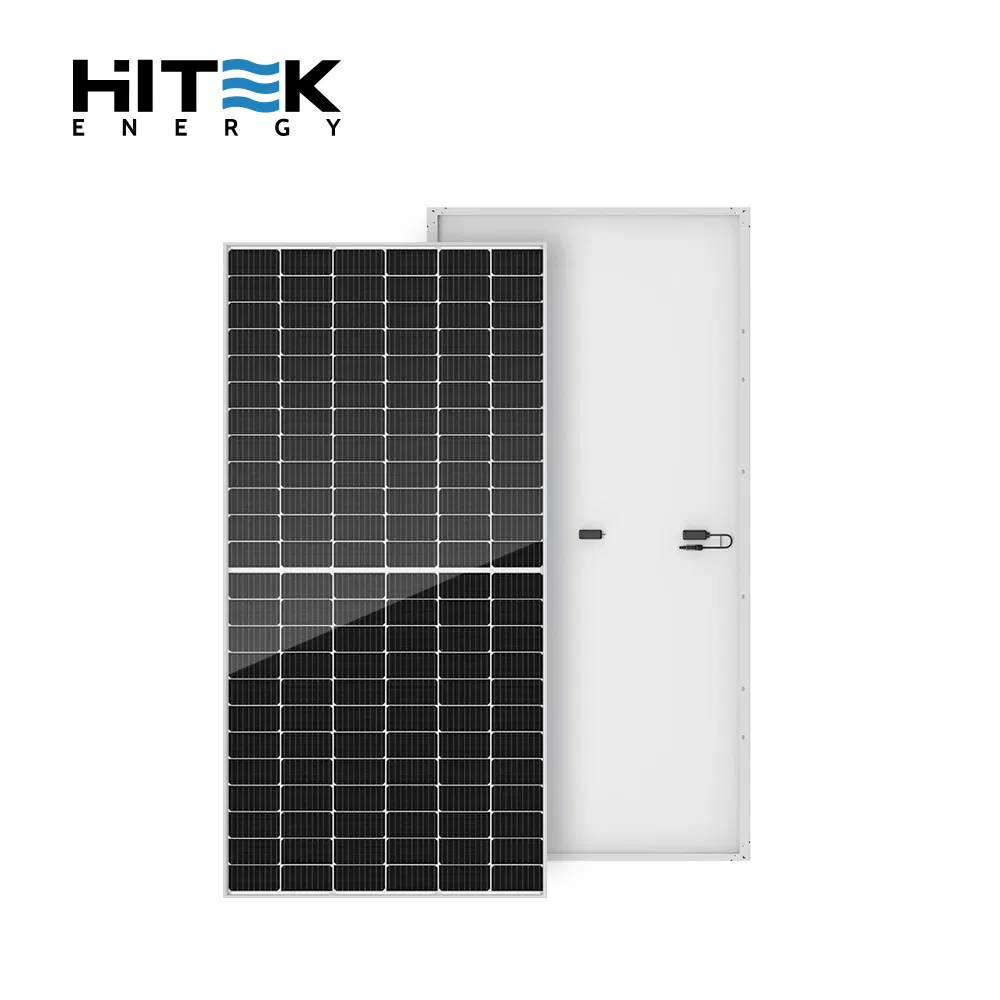

Model: HT560M-72
Peak Power Watt: 560Wp
Open Circuit Voltage (Voc/V): 49.84V
Short Circuit Current (Isc./A): 14.14A
Voltage at Maximum Power (Vmp./V): 41.08V
Current at Maximum Power (Imp./A): 13.64A
Dimensions: 2279*1134*35mm
Weight: 28.0±3% kg
All-in-one hybrid solar inverter, which increases energy independence for homeowners and commercial users.
Smart Monitoring & Remote Firmware Upgrade
Built-in Anti-feed-in Function
AFCI (Optional) & Rapid Shutdown Ready
Support for Time-of-use Optimization
Configurable Operation Modes
Open Station Supports one-click Installation and registration.
Support one-click dispatch and navigation.
Safe operation, traceable logs, etc.
Support full lifecycle data storage to ensure data security and reliability.

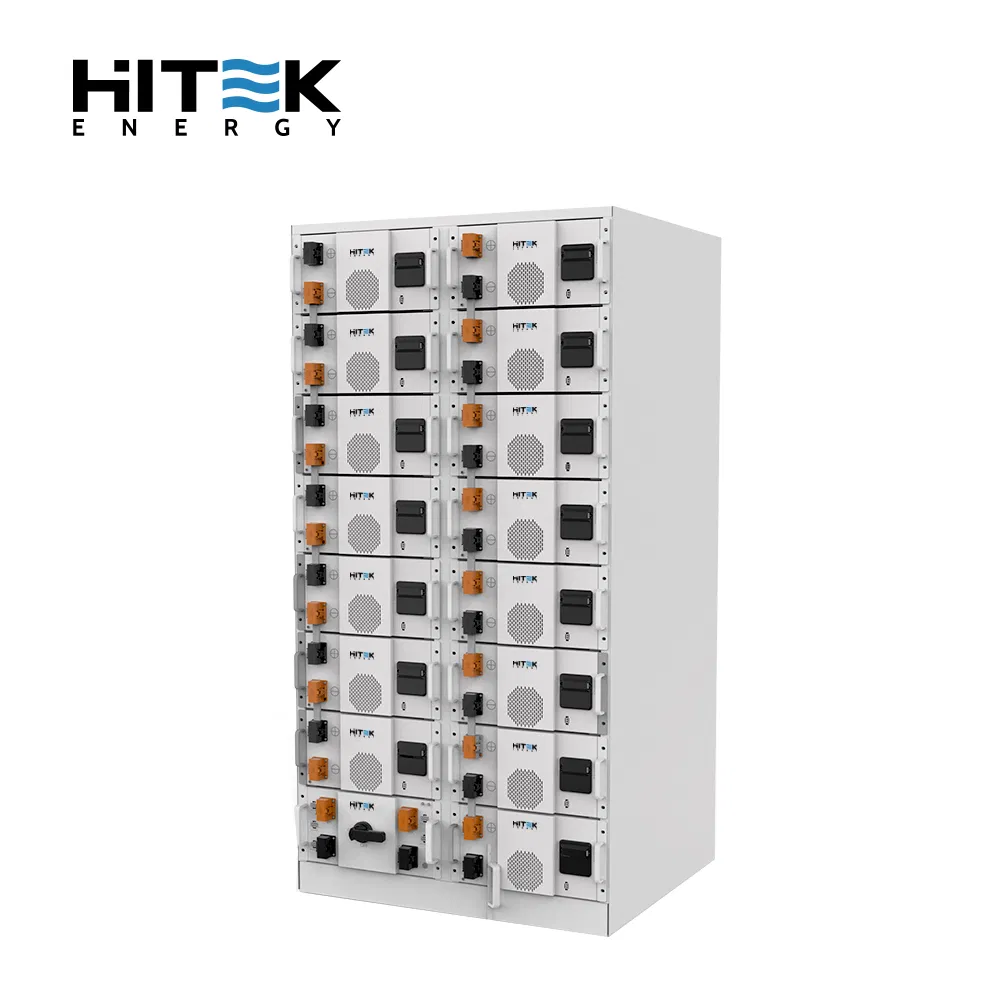

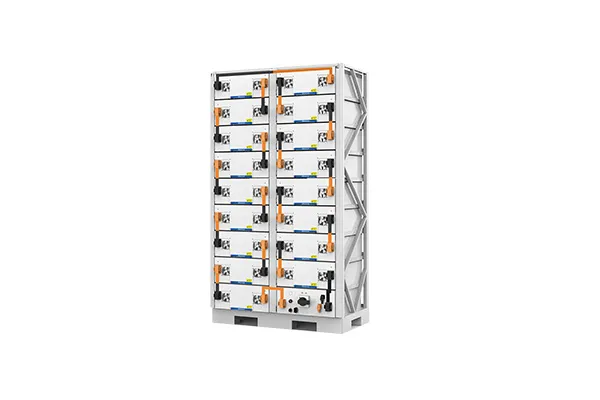

Rack mounted, deep cycle long lifespan.
High discharge performance.
Easy installation and Maintenance-free.
AGM/GEL/LiFePO4 Lithium Ion Battery Type.
2V/12V/48V/High Voltage Battery.
More than 6000 times, up to 90% DOD.
Wide suitability of ambient temperature range.

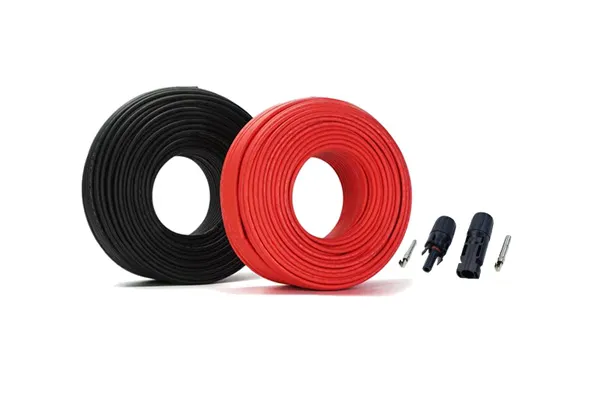

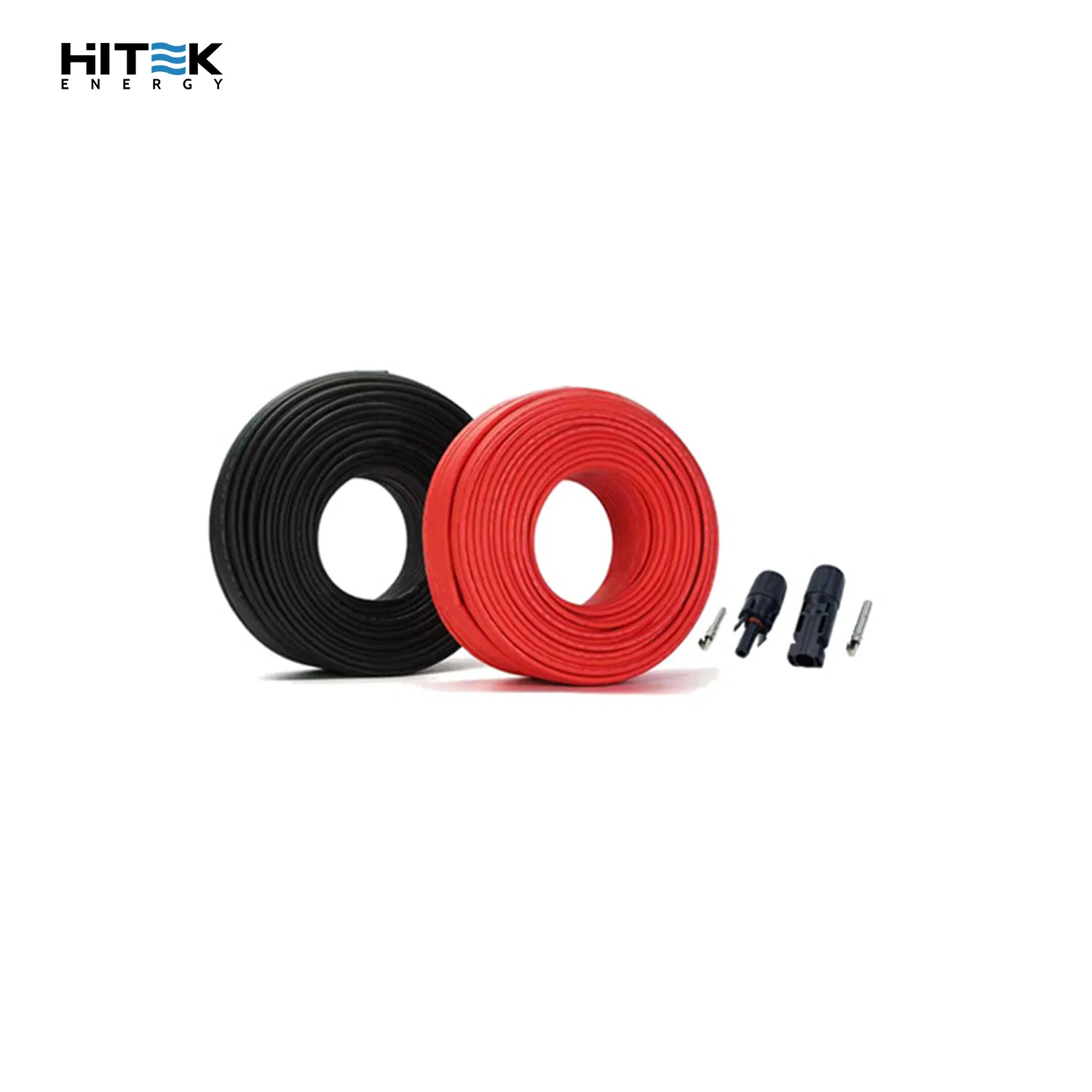

Rated Voltage: 1000VDC
Connection Type: M20, M25, MC4
Rated Current: 16A, 20A
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC / 1000VDC (TUV)
Rated Current: 55A, 70A
Colors: Black For STD, Red Optional.
Lifetime: ≤25 Years

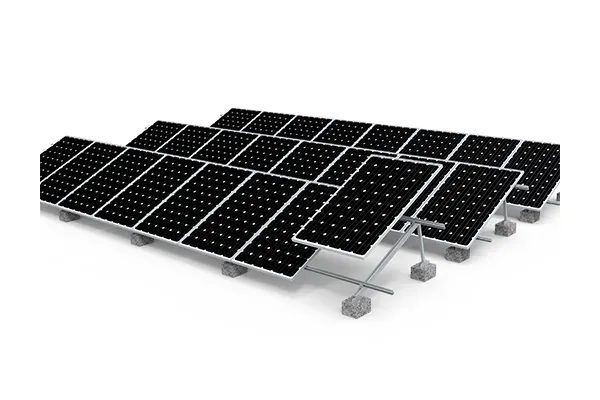

Mounting Rail & Rail Splice Kit: AI60O5 & SUS304 Bolt
Mid & End Clamps: 30, 35, 40MM
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clips & Tie Optional
Ground Clips & Lugs Optional

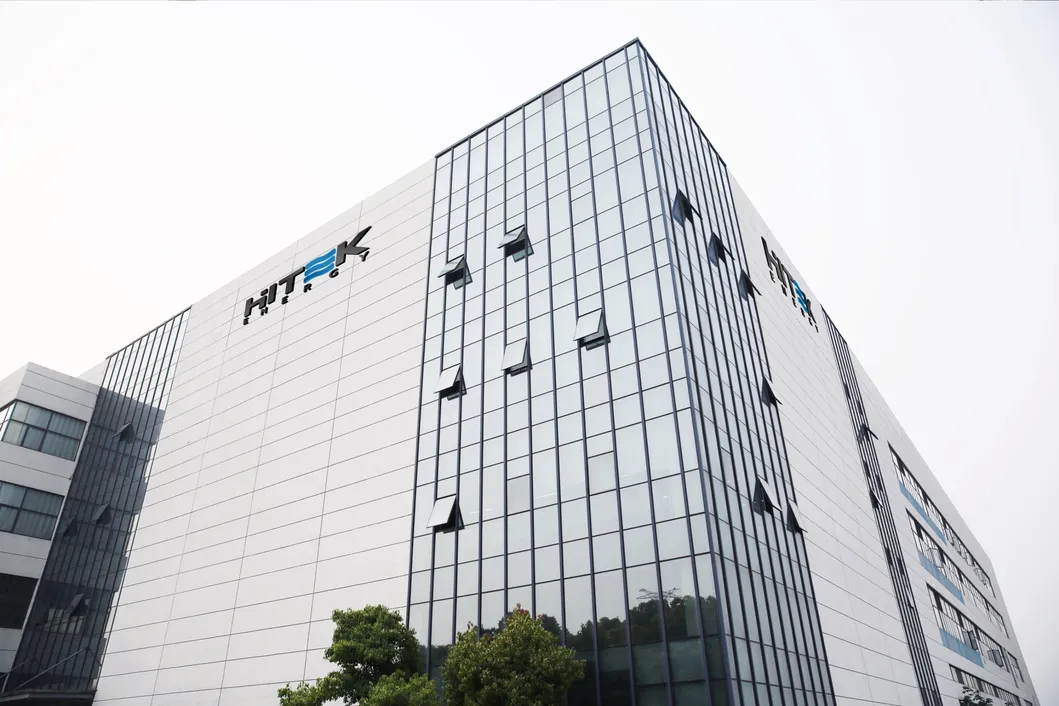

Founded in 2018. As a superior photovoltaic manufacturer, we are dedicated to providing sustainable and renewable energy solutions to strengthen homes, businesses, and factories.
We provide tailored solar energy solutions for backup, residential, and commercial needs, catering to your unique power requirements.
Your satisfaction is our top priority. We use ONLY Reliable Approved Equipment. Helping you save money on your electric bill is our responsibility. We take it seriously. We understand that you need a brand that you can partner with for life.
Let's work together for a better, brighter and greener future.
The system supports high-performance Lithium Ion (LiFePO4) batteries as well as traditional Lead Acid options, providing flexible choices based on storage and lifecycle demands.
Yes. The system utilizes a hybrid inverter that allows you to store power for off-grid operations during outages while retaining the ability to feed surplus energy back into the main grid when connected.
The high-voltage Lithium Ion battery packs offer more than 6,000 cycles at up to 90% Depth of Discharge (DOD), ensuring long-term reliability and minimal maintenance.
The system features a built-in Online Monitoring System supporting WiFi, LAN, or GPRS. Users can track performance data, run diagnostics, and execute one-click system dispatch remotely.
All main equipment meets strict international safety and quality standards, backed by ISO, CE, TUV, Un38.3, and En50549 certifications.
