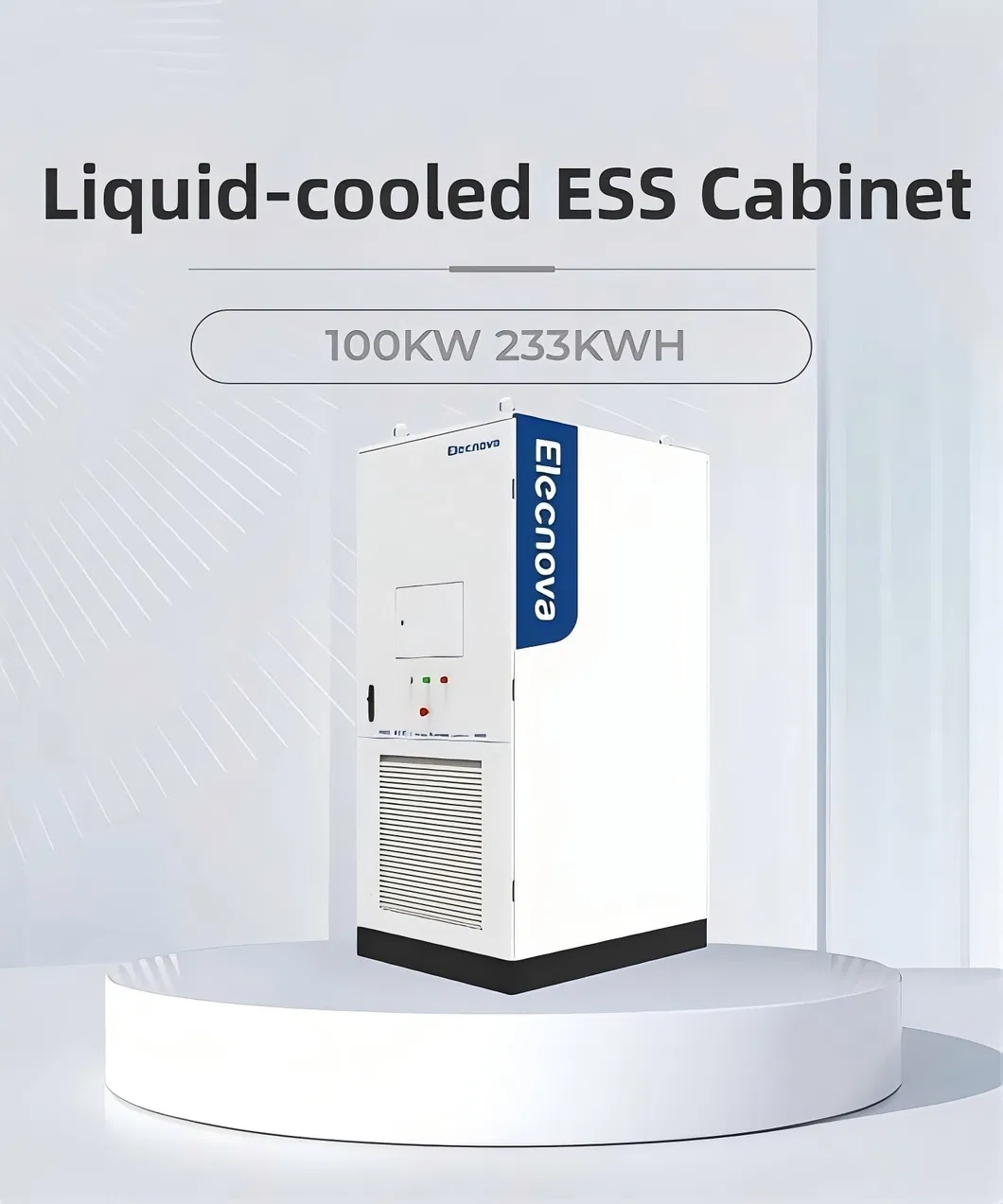

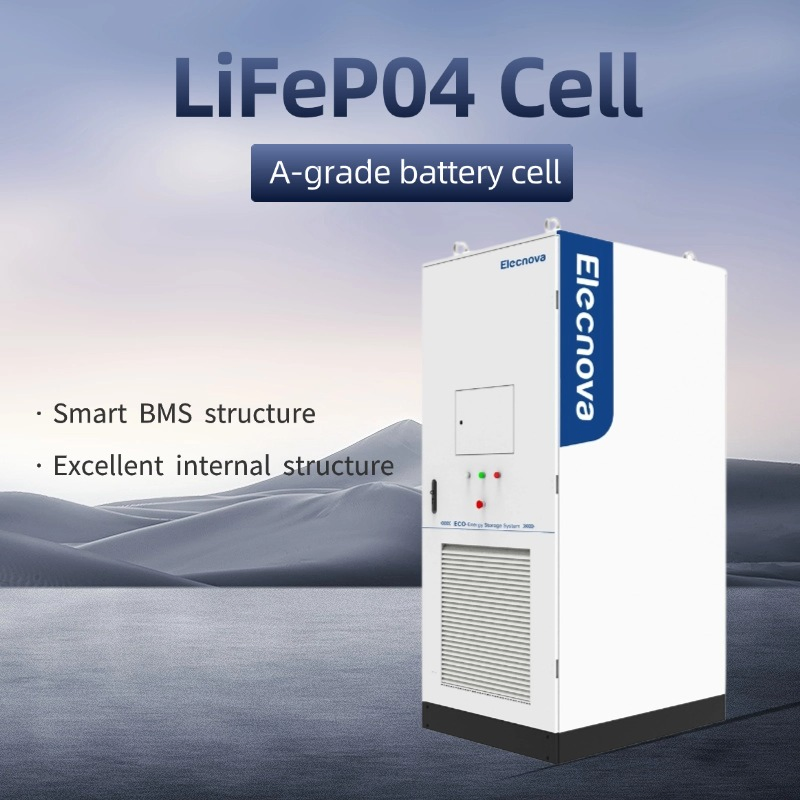

This 233KWH commercial & industrial energy storage system adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.
Technical Highlights: Conversion efficiency 99%, IP65 rating, and ms-level on-/off-grid switching. Suitable for various scenarios such as C&I ESS, microgrid energy storage, and PV-plus ESS.
| DC Side | |
|---|---|
| Cell Type | LFP280Ah |
| Battery System | 232.96kWh/1P260S |
| Voltage Range | 728~936Vdc |
| AC Side | |
| Rated Power | 100kW |
| Nominal Voltage | 400Vac/3P+N+PE |
| General | |
| Cycle Life | ≥8,000 times |
| Cooling | Active liquid cooling |
| Dimensions | 1,050*1,350*2,400 (mm) |
| Weight | 2,570kg |
Compact: 1.4m² footprint only, easy transportation & fast installation.

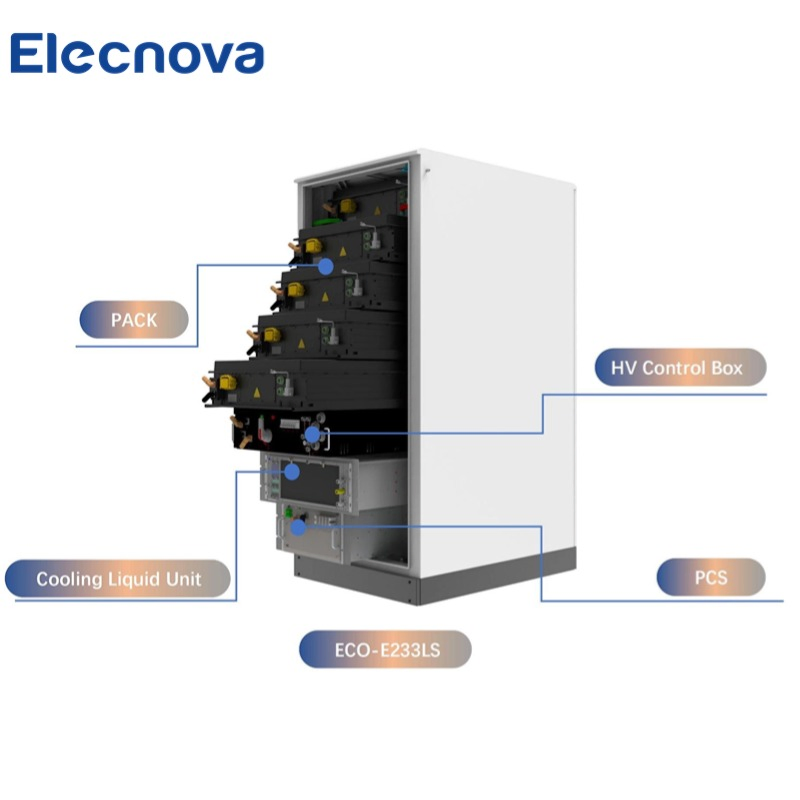

High Integration: 233kWh energy in one cabinet and ensure long-term endurance.

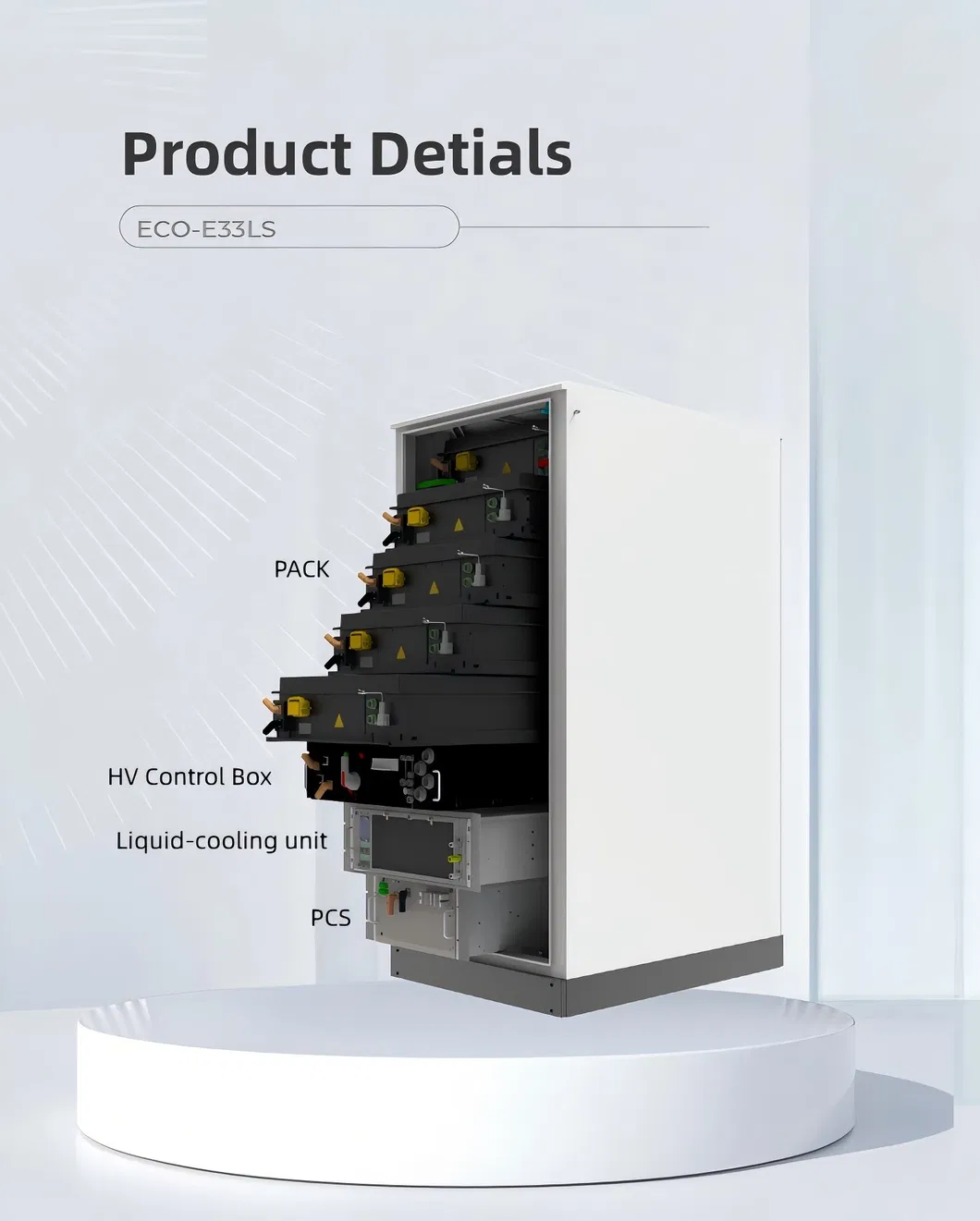

Efficient Cooling: Optimal in-PACK duct design, achieve high-efficient cooling and low energy consumption.
Ultimate Safety: In-PACK fire warning and protection with NOVEC1230/aerosol, prevent heat diffusion and runaway.
