| Performance Parameter | |
|---|---|

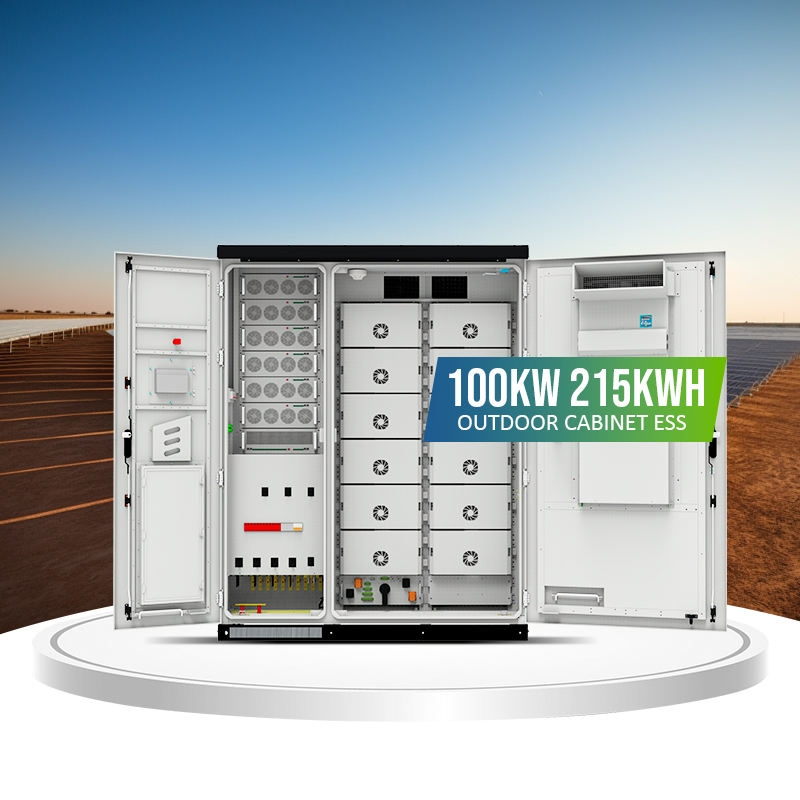

| Energy Storage System | Monet-100TS(215kWh) |
| Battery Rated Energy Storage Capacity | 215kWh |
| System Rated Voltage | 768V |
| System Voltage Range | 672V~864V |
| Battery Type | Lithium iron phosphate battery(LFP) |
| Battery Pack Series and Parallel Connection | 1P*20S*125 |
| Maximum Charge and Discharge Current | 81A |
| Rated AC Power | 100kW |
| Rated AC Current | 140A |
| Rated AC Voltage | 400V,3W+N+PE/3W+PE |
| Rated AC Frequency | 50/60Hz |
| Current Total Harmonic Distortion Rate THDI | <5%(rated power) |
| Power Factor | -1 lead~+1 lag |
| Voltage Total Harmonic Distortion THDU | <3%(linear load) |
| Degree of Protection | IP54 |
| Protection Level | / |
| Isolation Method | Transformer isolation |
| Power Consumption During Shutdown | <100W(without transformer) |
| Show | LCD |
| Relative Humidity | 0~95%(no condensation) |
| Noise | <70dB |
| Ambient Temperature | -25°C~60°C(Derating above 45°C) |
| Cooling Method | Intelligent air Cooling |
| Altitude | 2000m(>2000m derating) |
| BMS Communication | CAN |
| EMS Communication | Ethernet/485 |
| Dimensions(W*D*H) | 1800*1200*2300mm |
| Weight(approx.) | 3000kg |
Peak Power Watts: 455-690Watt
Weight: 18.6 kg - 35 kg
Tier 1 standard
12 years warranty quality
30 years warranty power

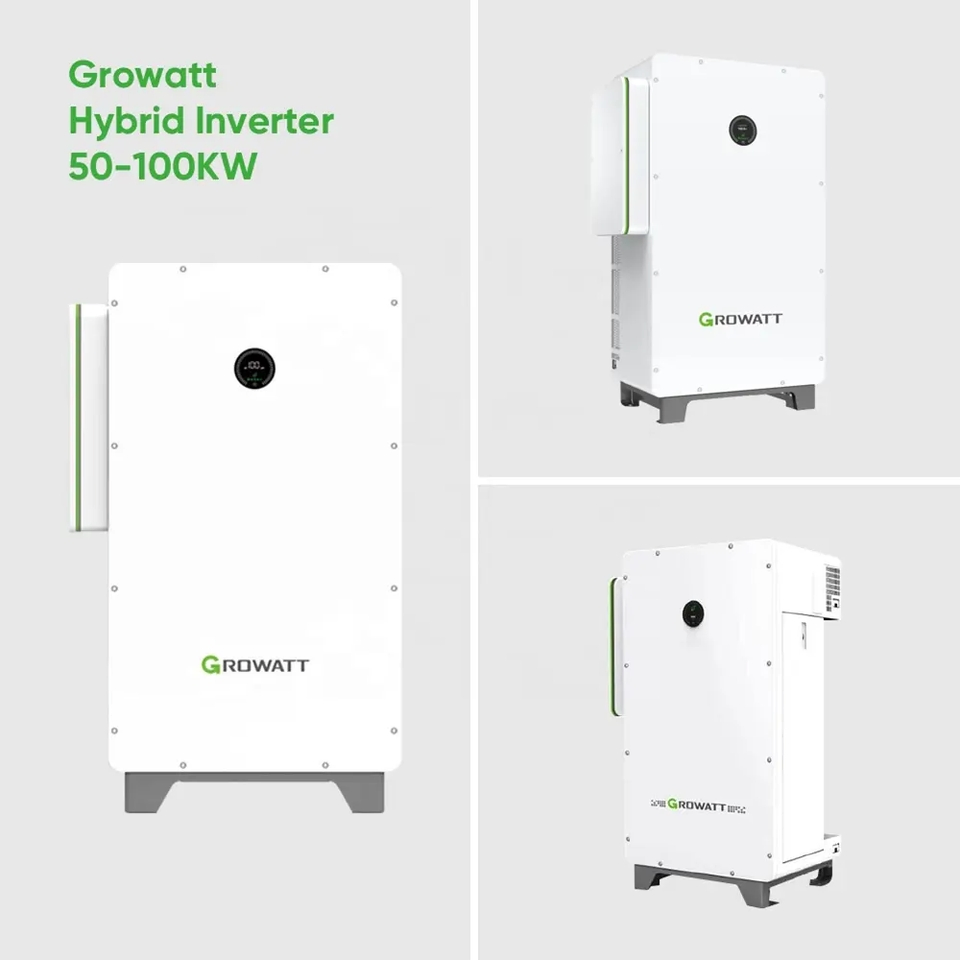

Max.DC Input Power: 1000KW*2
Max. DC Input Voltage: 1200V
MPPT Voltage Range: 90-1000V
Rated Grid Voltage: 208/240V(US); 230V(EU); 380V; 400V
Warranty: 5 Years (EU) 10 Years (US)
Wifi Stick For STD, Lan & GPRS Optional.

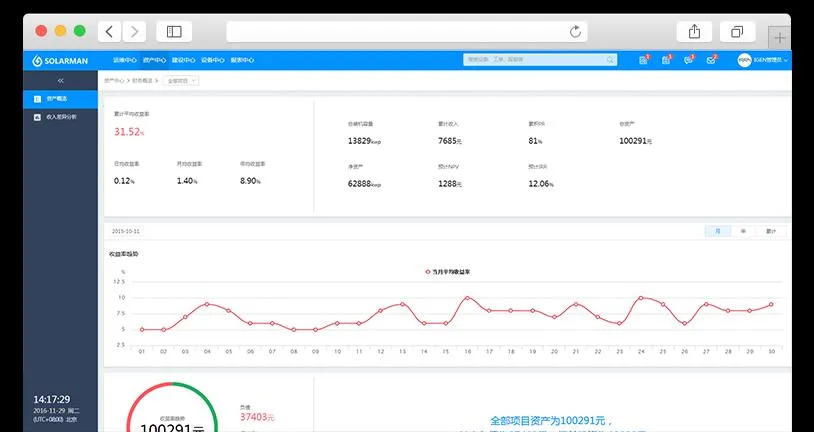

Data Logging Stick allows you to receive information from the solar power system, keeping you informed about the situation of your PV system and the atmospheric conditions everywhere and every time via web server, accessible via Wi-Fi, Lan or GPRS.
App Available for PC, IOS & Android.

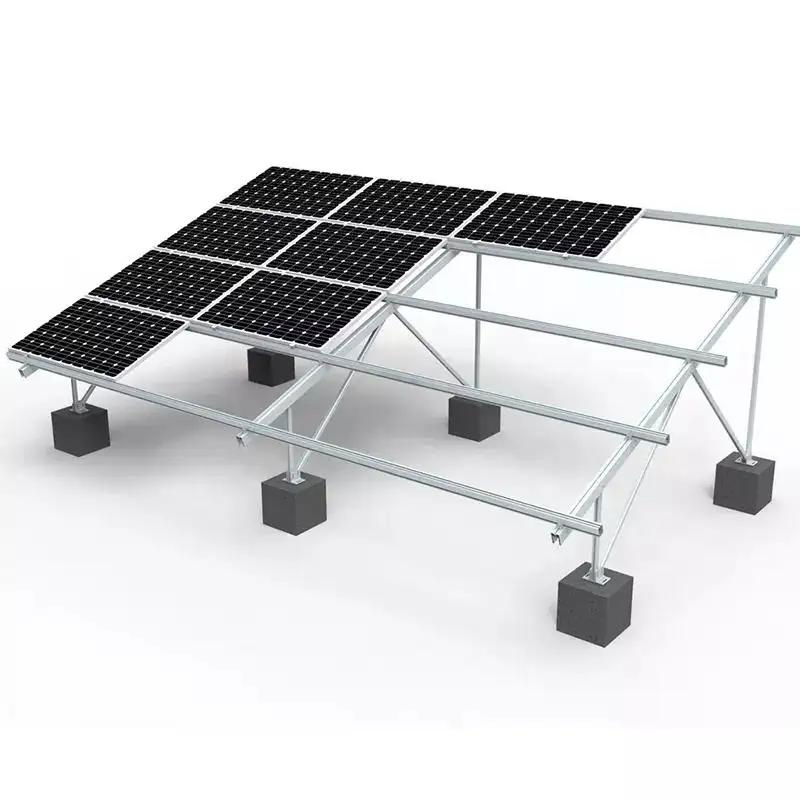

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35, 40, 45, 50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

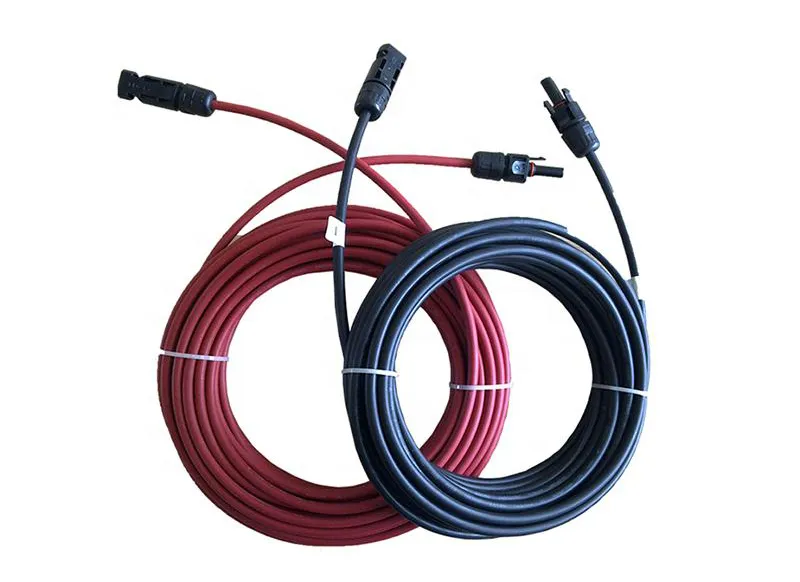

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC/1000VDC(TUV)
Rated Current: 55A, 70A
Colors: Black For STD, Red Optional.
Lifetime: ≤25 Years
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool

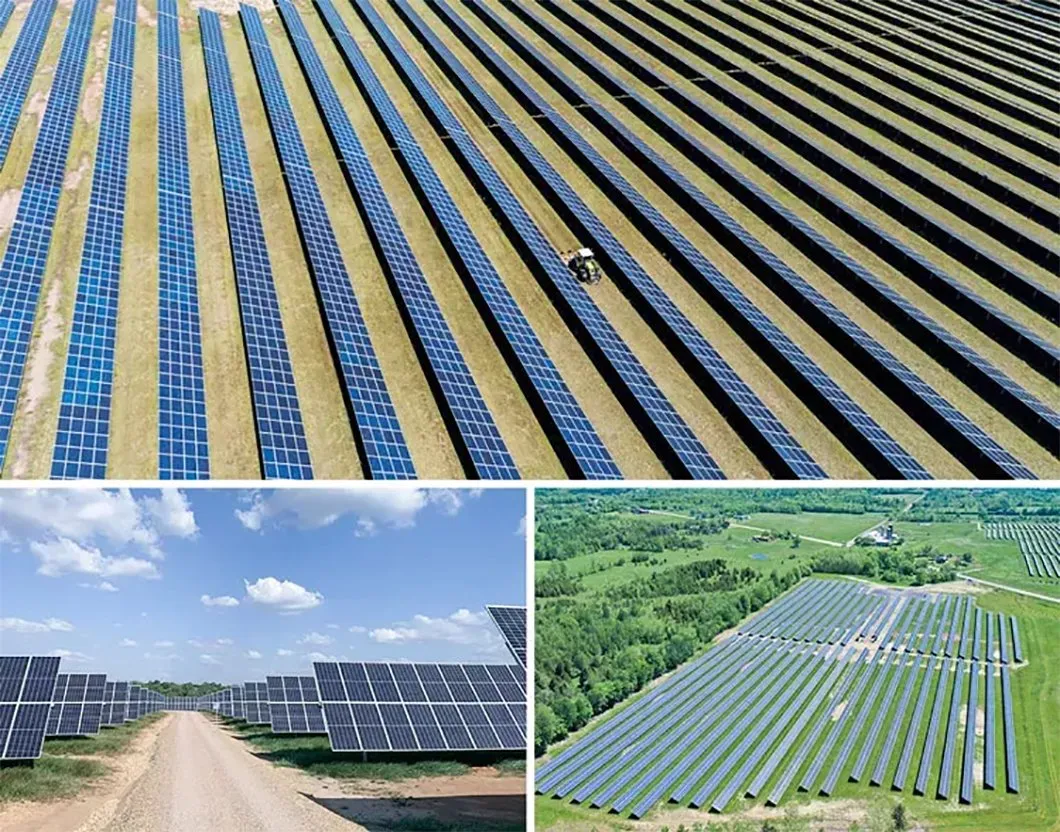

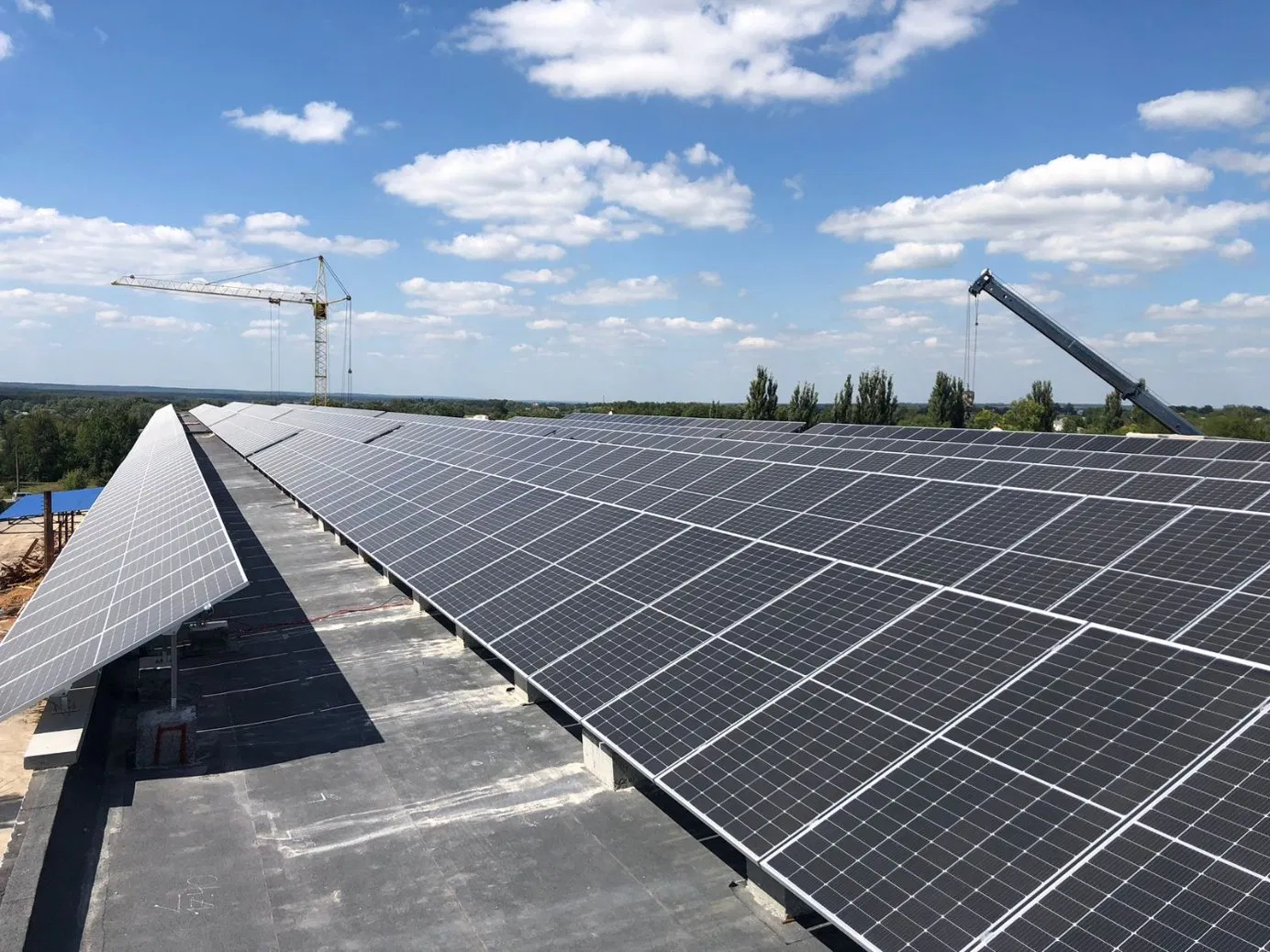

With years of professional experience, we provide high-quality module products for utility-scale projects to maximize investment benefits.

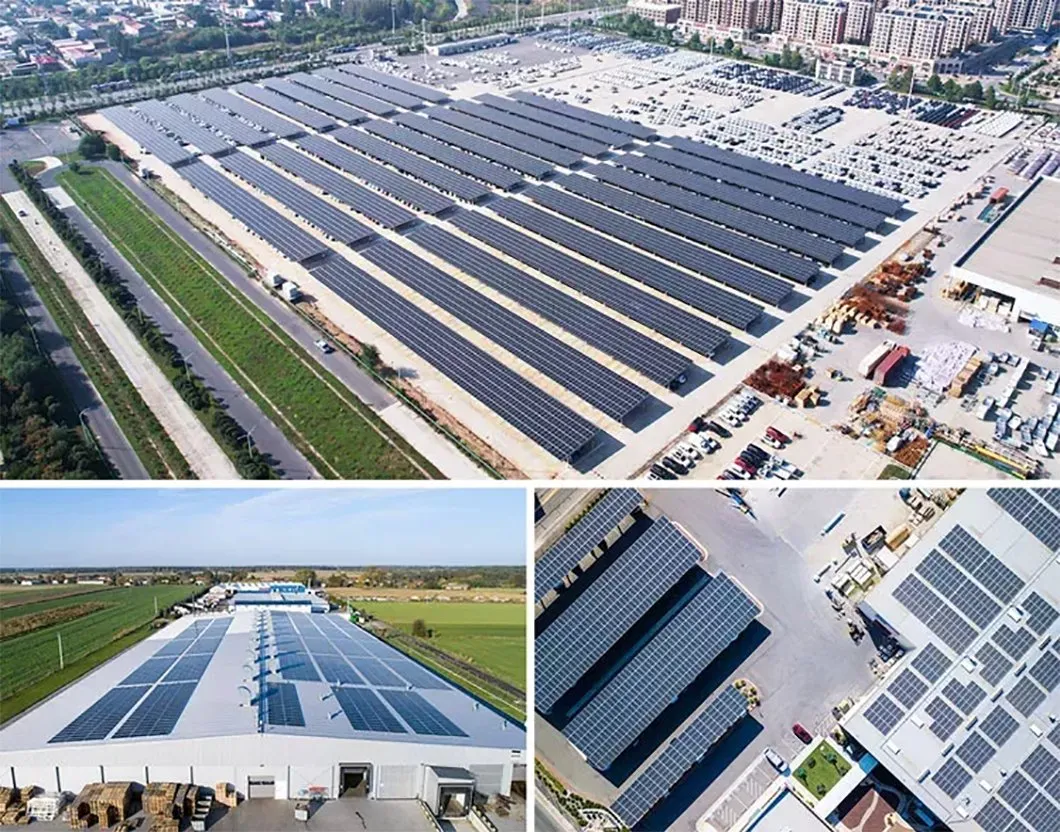

Either self-consumption or selling to the grid, commercial projects provide system owners with a new way of investment, in which the module plays a key role. We will always be a reliable partner.

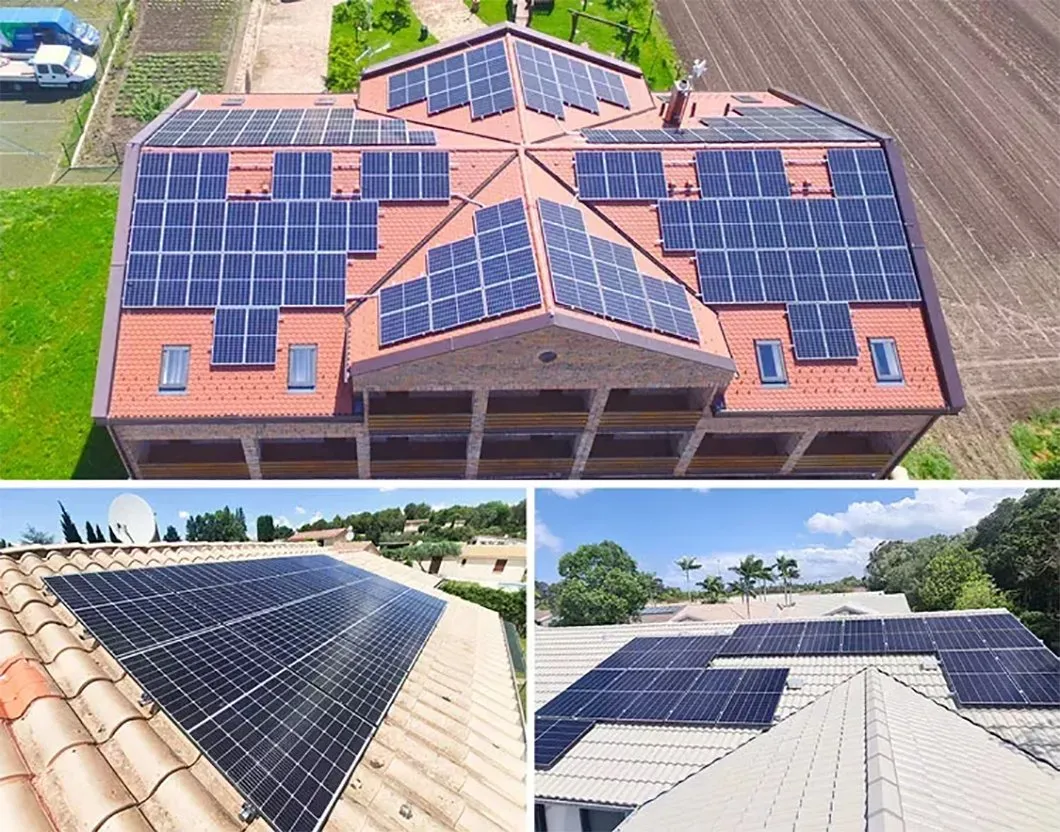

Thousands of houses around the globe are equipped with advanced solar panel systems, allowing residents to enjoy clean power with lower electricity bills and make profits over time.
A1: The system has a rated battery energy storage capacity of 215kWh and a rated AC power output of 100kW, making it ideal for industrial and commercial load demands.
A2: The system uses high-safety Lithium Iron Phosphate (LFP) batteries. The battery pack configuration is designed in a 1P*20S*125 connection format.
A3: The system supports BMS communication via CAN and EMS communication via Ethernet or RS485. A data logging stick enables remote monitoring over Wi-Fi, LAN, or GPRS with companion applications for PC, iOS, and Android.
A4: Yes, the container has a protection level rated at IP54 and features an intelligent air cooling system. It operates efficiently within an ambient temperature range of -25°C to 60°C (with derating above 45°C).
A5: The system holds major global safety and quality certifications, including ISO, CB, and CE. The monocrystalline solar panels also hold CE/TUV/ISO/Inmetro certificates.
A6: The system supports both roof mounting and ground mounting configuration designs to suit utility-scale, commercial, and residential projects.
