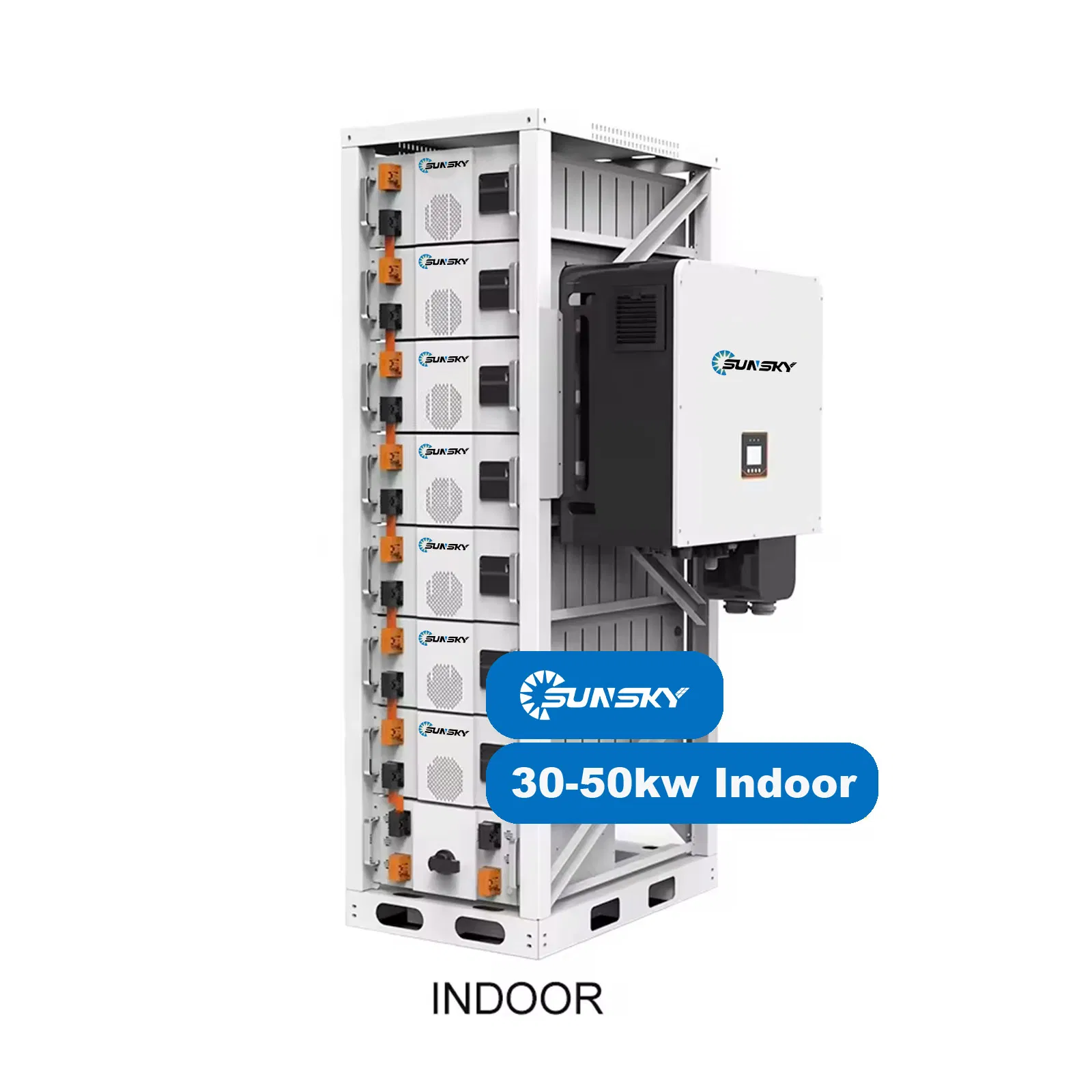

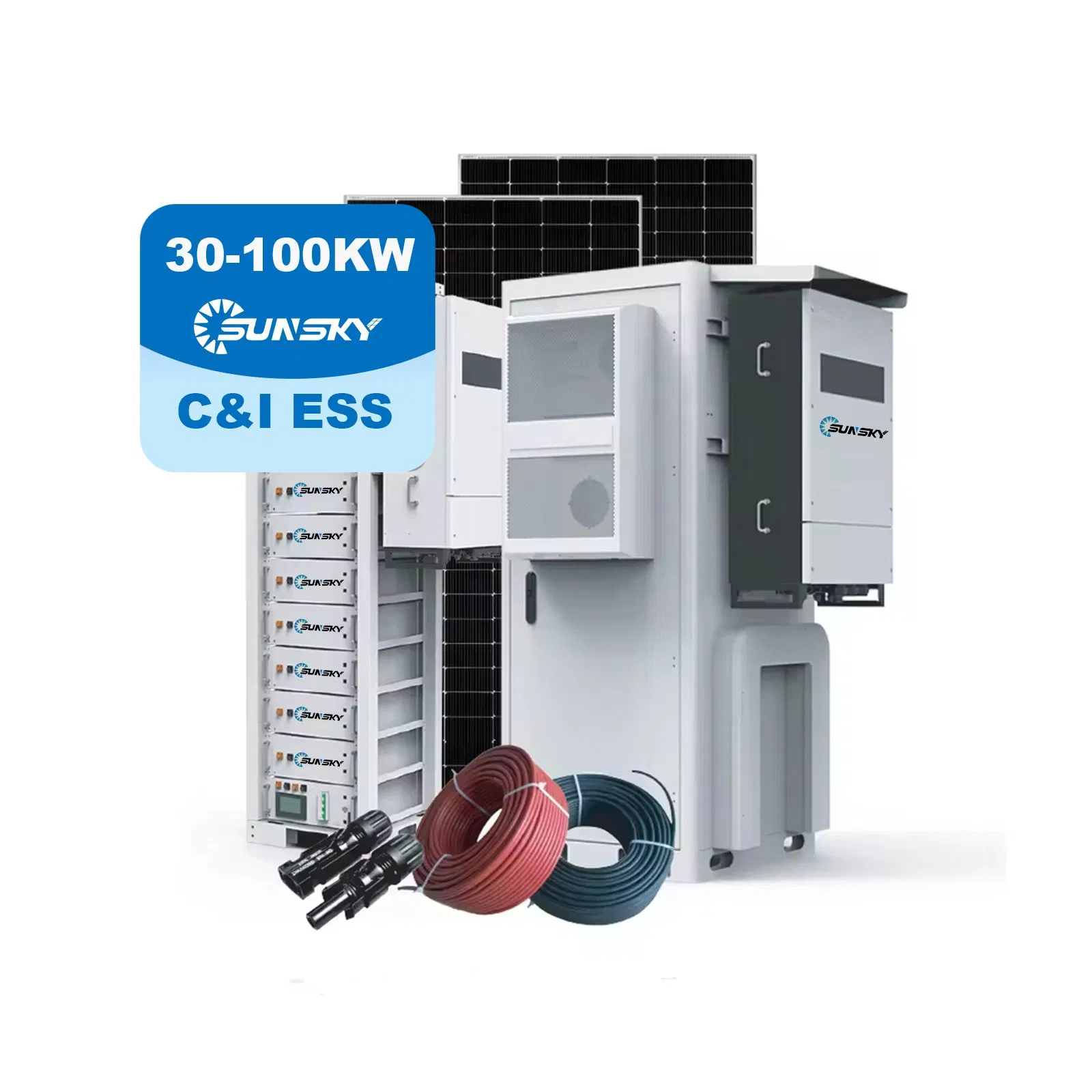

Commercial and Industrial 30kw 50kw 100kw off Grid 50kVA Hybrid Solar Energy 50kwh 100kwh 200kwh Storage LiFePO4 Lithium Battery Backup Power System for Factory

Overview

Basic Information

Model NO.SUN50KW3-ESS

ConditionNew

CertificationISO, CE

ApplicationHome, Industrial, Commercial

SpecificationNormal, 30KW-100KW

Product Name30kw 50kw 100kw Solar Storage System

System TypeSolar Energy System

Solar System PowerHybrid Solar Inverter

Cycle Life6000 Times and up Lithium Battery

Output Voltage380V/400V/480V

Technical & Logistics

Solar Panel TypeTopcon N Type Solar Panel

Battery TypeLithium Ion, LiFePO4 Battery

Solar Panels System100kw Solar System off Grid Home

Technical SupportComplete Professional Guidance

Online MonitoringWiFi/LAN/GPRS

Efficiency99.8%

System Life Span30 Years

Package Size128.00cm * 89.00cm * 280.00cm

Gross Weight3900.000kg

Transport PackageWooden Box

Recommend Products

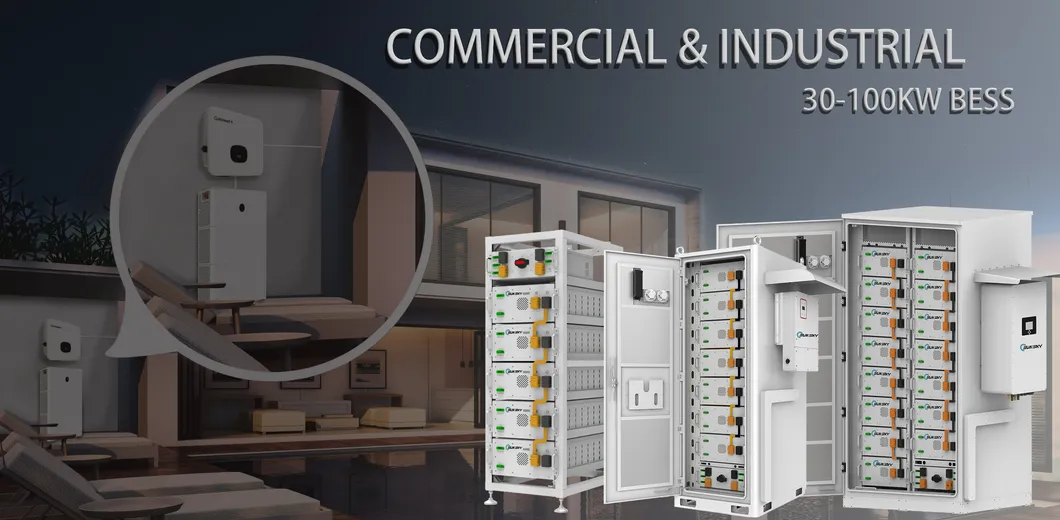

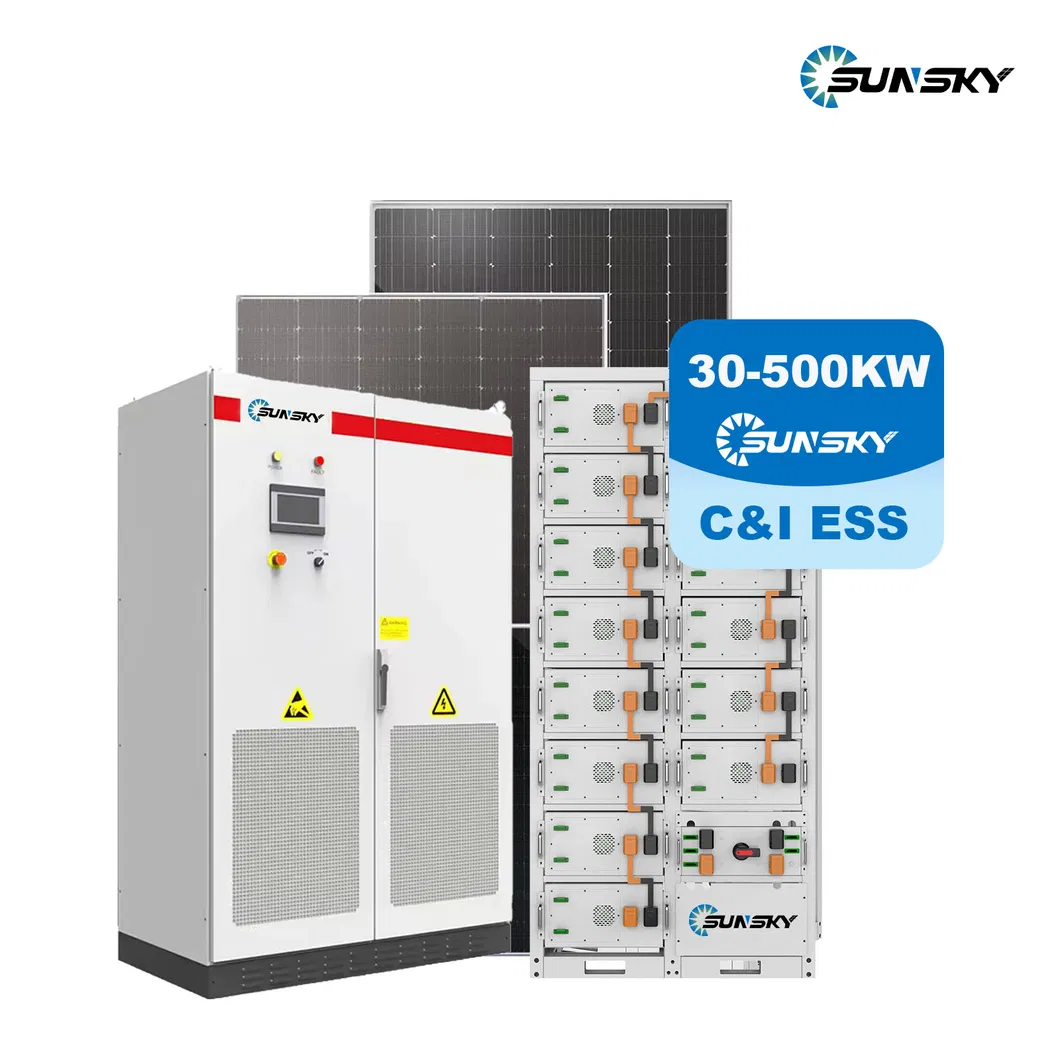

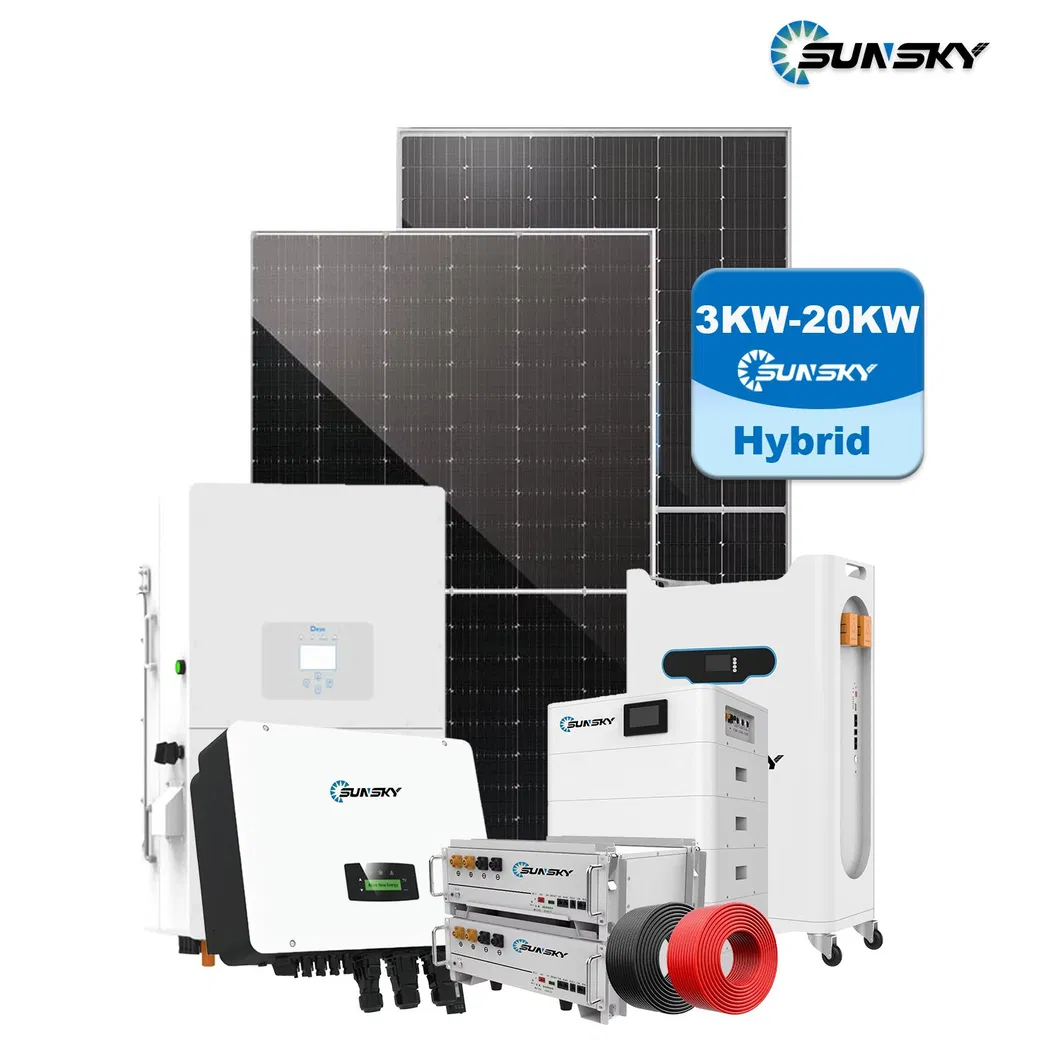

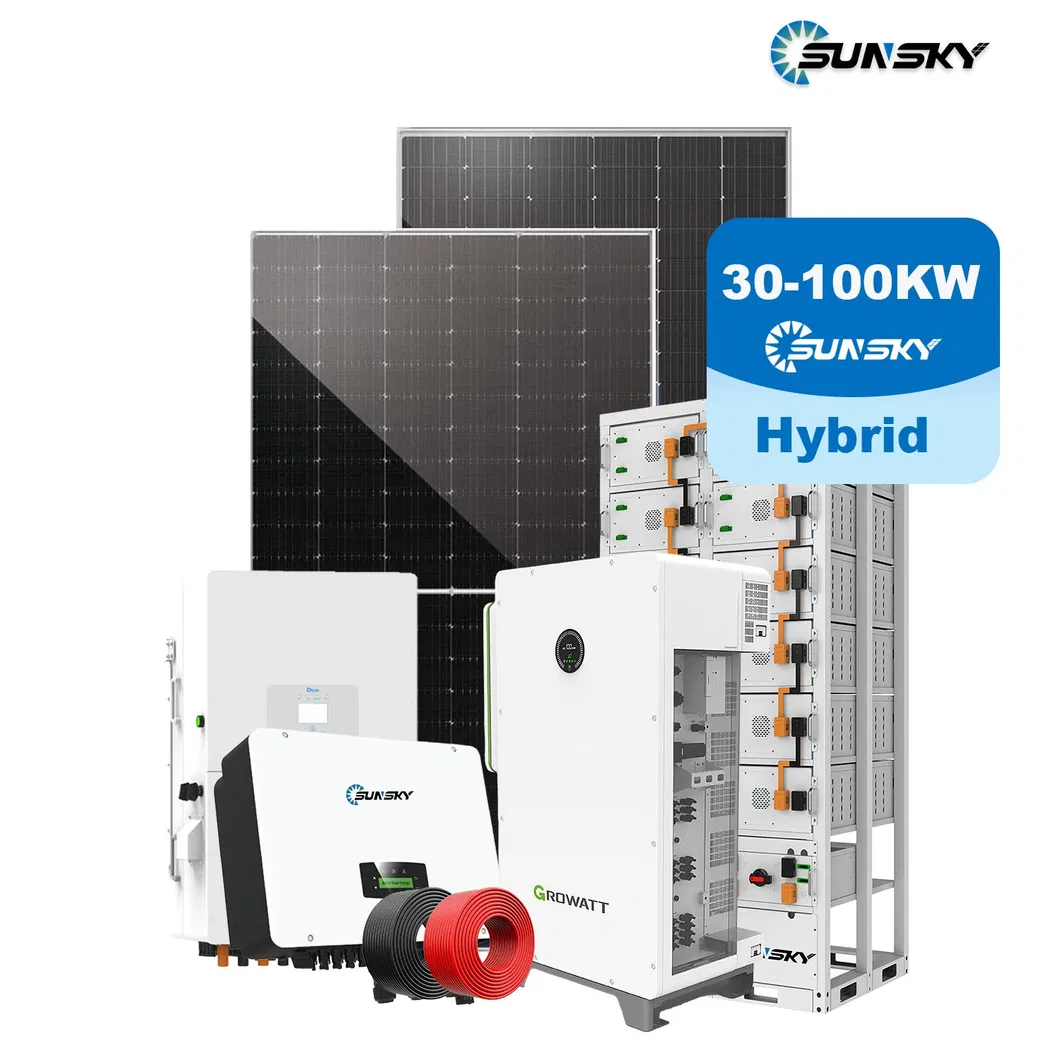

Commercial and Industrial Solar Energy Storage System

Higher Power Output In Off-Grid Model

Support Diesel Generator Access

Pre-Wired & Easy Installation

Tested Operating Conditions

Product Parameters

SOLAR SYSTEM DESIGN SPECIFICATIONS
Model	SUN30KW3E-SS	SUN50KW3-ESS	SUN100KW3-ESS
SYSTEM PARAMETERS
Rated output power	30KW	50KW	100KW
System capacity	54.2KWH	100.3KWH	200.6KWH
Battery type	LiFePO4
Class of protection	IP32 / IP56 (outdoor)
Quality guarantee	10 Years
INVERTER TECHNICAL PARAMETERS
Model	SUN30KW3	SUN50KW3	SUN100KW3
Max. PV input power	45KW	75KW	1set
MPPT Voltage	250-850VDC
Rated current (A)	43A	72A	144A
Battery Inverter	In-Build	In-Build	In-Build
Communication mode	Wi-Fi/GPRS/4G
BATTERY TECHNICAL PARAMETERS
Configuration Specification	51.2V 106AH	51.2V 280AH	51.2V 120AH
Battery Bank Capacity	54.2KWH	100.03KWH	200.6KWH
Discharge depth	90%
Operating temperature	0~55℃ / -10~55℃ (outdoor)
Cycle number	>6000 cycles

Product Details

TOPcon Solar Panel

High efficiency up to 22.84%
Complies with European standards IEC61215 and IEC61730
SMBB + Half-cell technology, reducing internal current loss and minimizing micro-crack impacts
Lower temperature coefficient (-0.29%/ºC) for increased power generation
Bifaciality rate up to 80-85%, providing up to 30% power gain from the back side
25 or 30 years warranty options

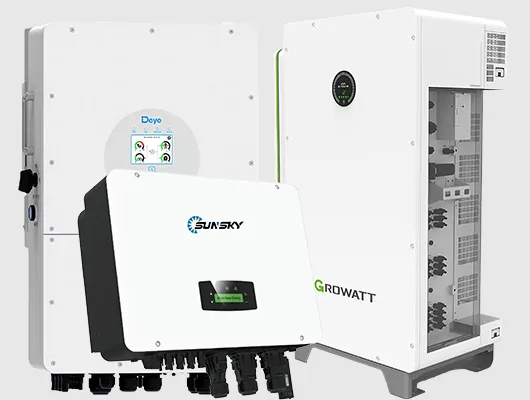

All In One Hybrid Solar Inverter

Intelligent IC control integration
Multiple protection functionality
Pure sine wave output
Buzzer alarm indicators
Clear work instruction system
Double-Sided PCB with premium import zero components
Aluminum alloy protective shell
Warranty: 10 Years

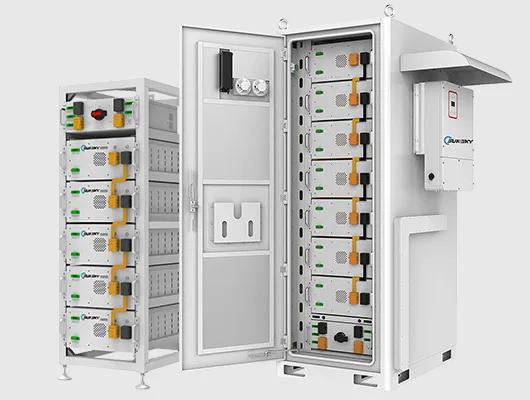

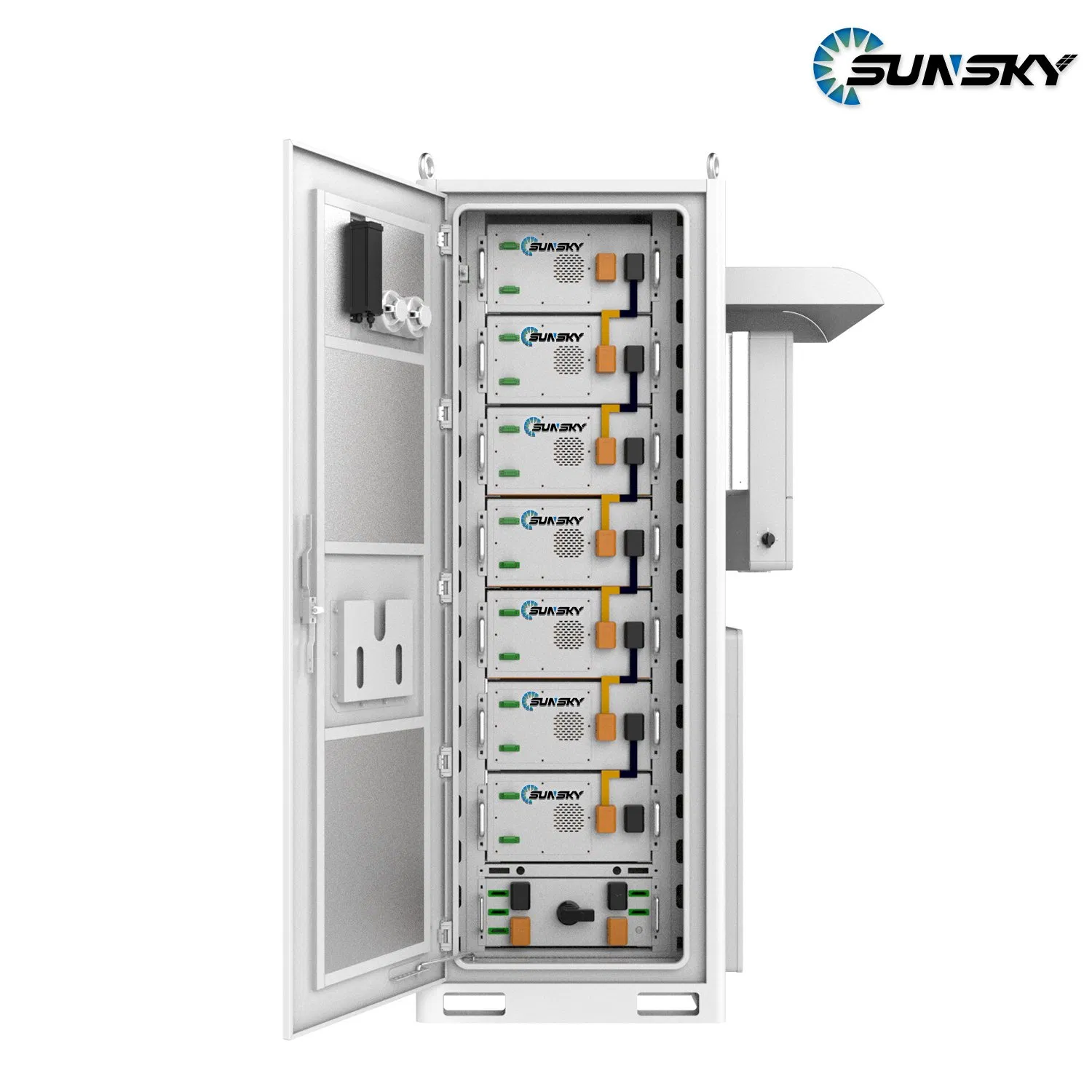

Battery Rack System

Safe and reliable with self-designed BMS
Easy installation and simple front maintenance
Standard rack and module scalability
High power density LFP battery (≥160Wh/kg)
Flexible customization for different applications

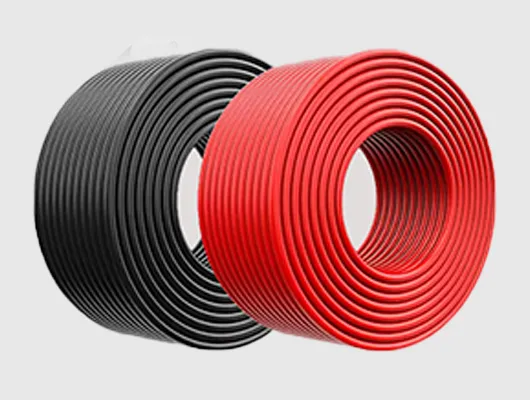

DC Cable & MC4 Connector

Cross Section Options: 4mm², 6mm², 10mm²
Rated Voltage: 600VDC / 1000VDC (TUV)
Rated Current: 55A, 70A
Color Options: Standard Black, Red optional
Warranty: 30 Years

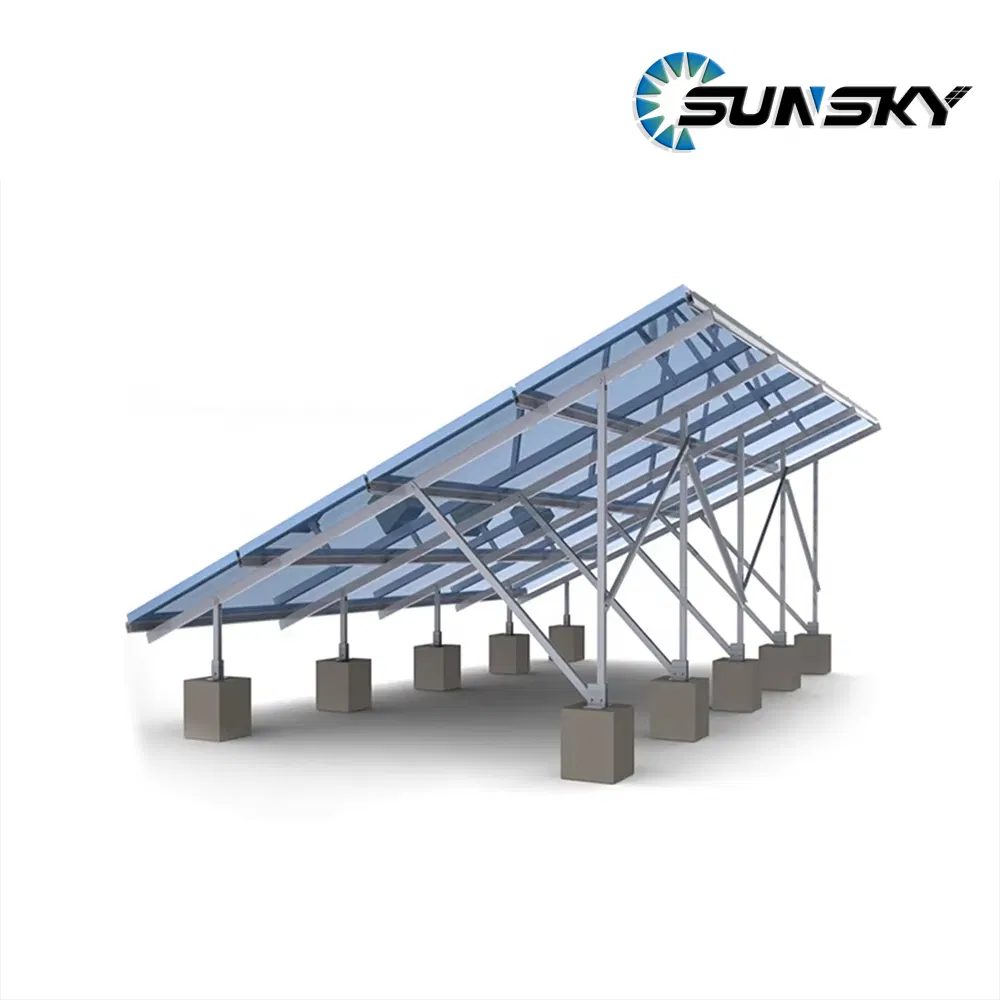

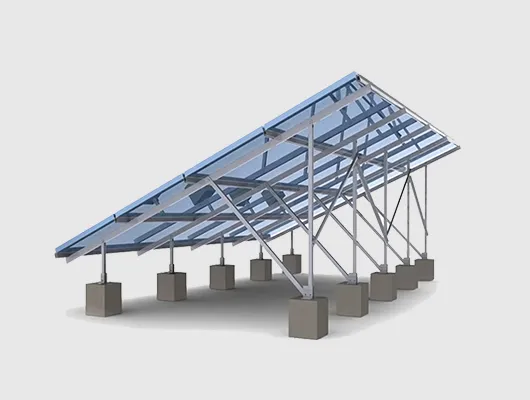

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt
Mid & End Clamps: 35mm, 40mm, 45mm, 50mm
L Foot Asphalt Shingle Mount & Hanger Bolt optional
Cable Clips, Ties, Ground Clips & Lugs optional

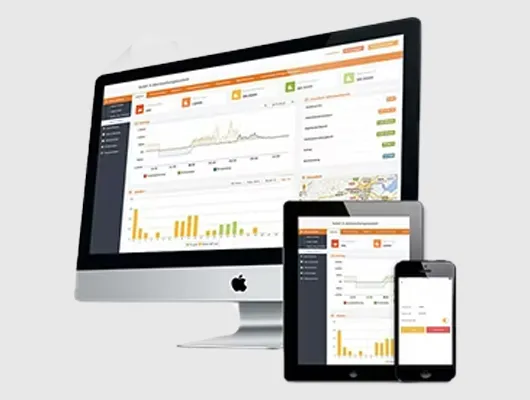

Online Monitoring System

One-click station deployment
Simplified registration and troubleshooting
Supports convenient dispatch and navigation
Safe operation with traceable execution logs
Full lifecycle data storage for enhanced security

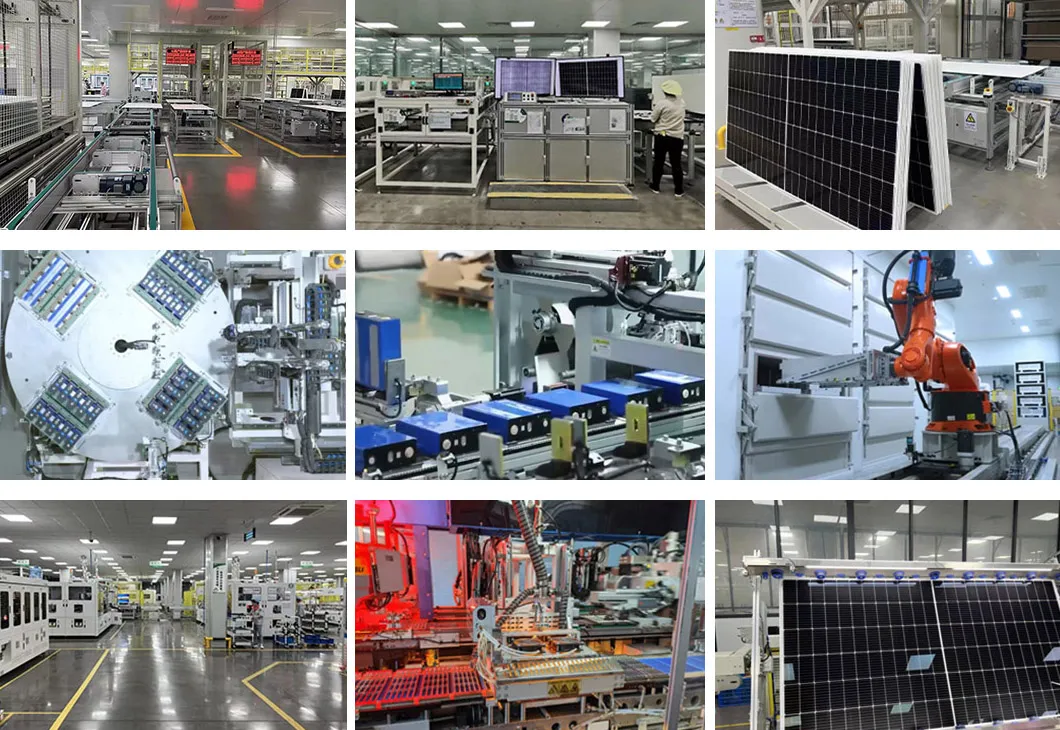

Factory Overview

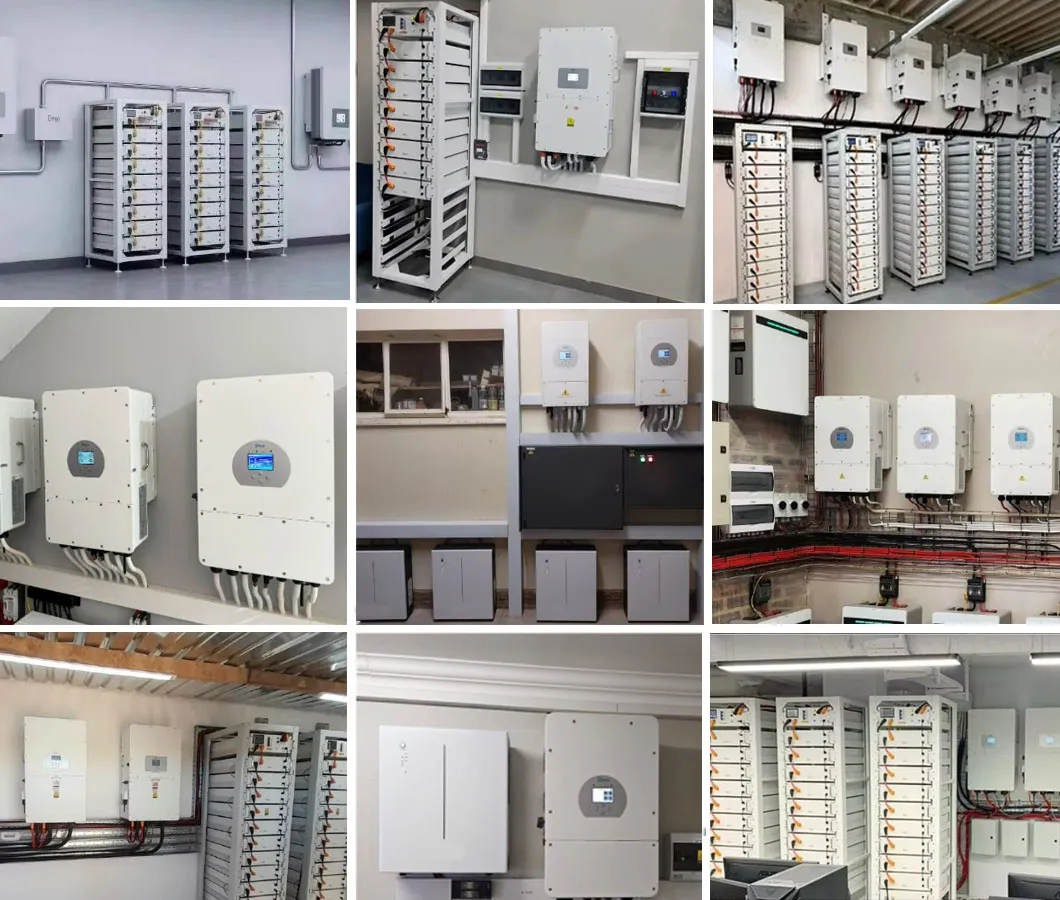

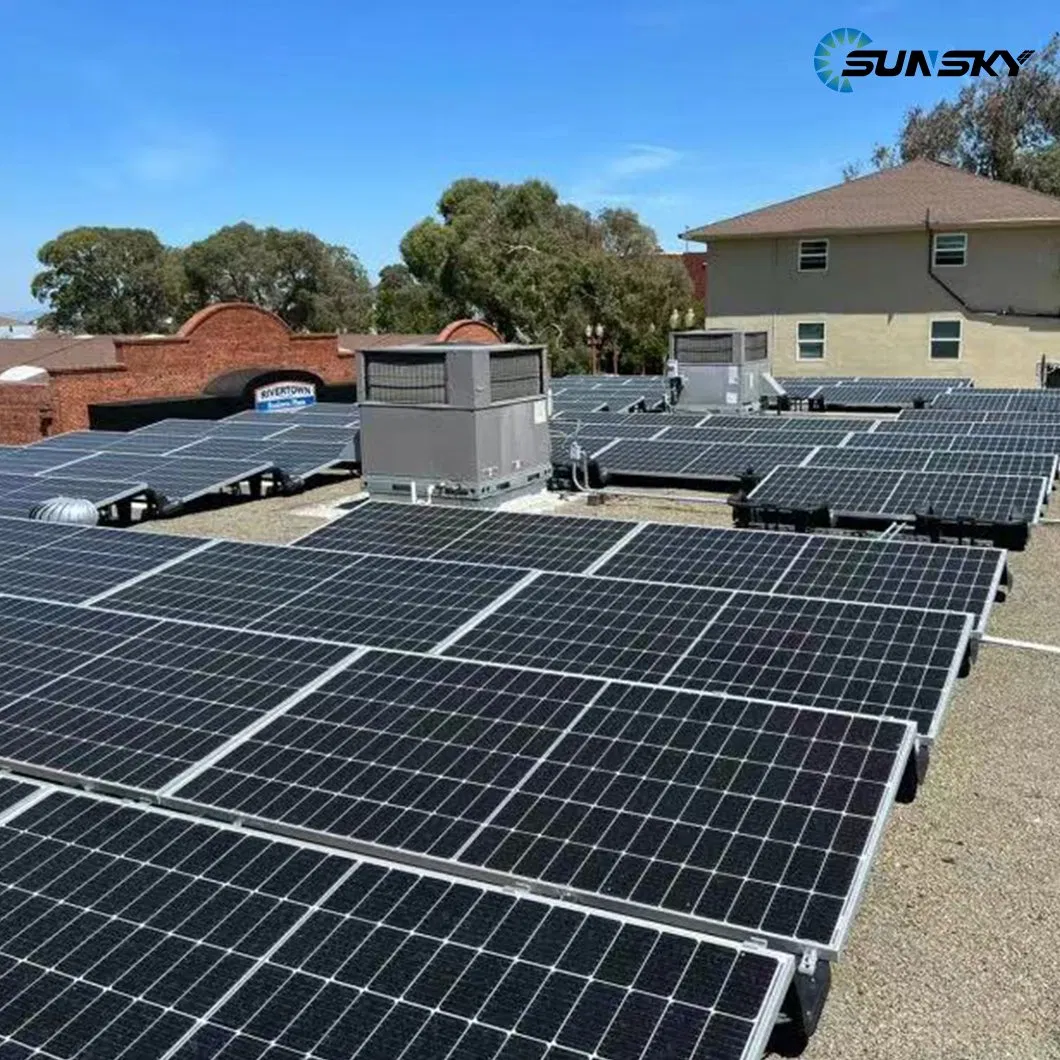

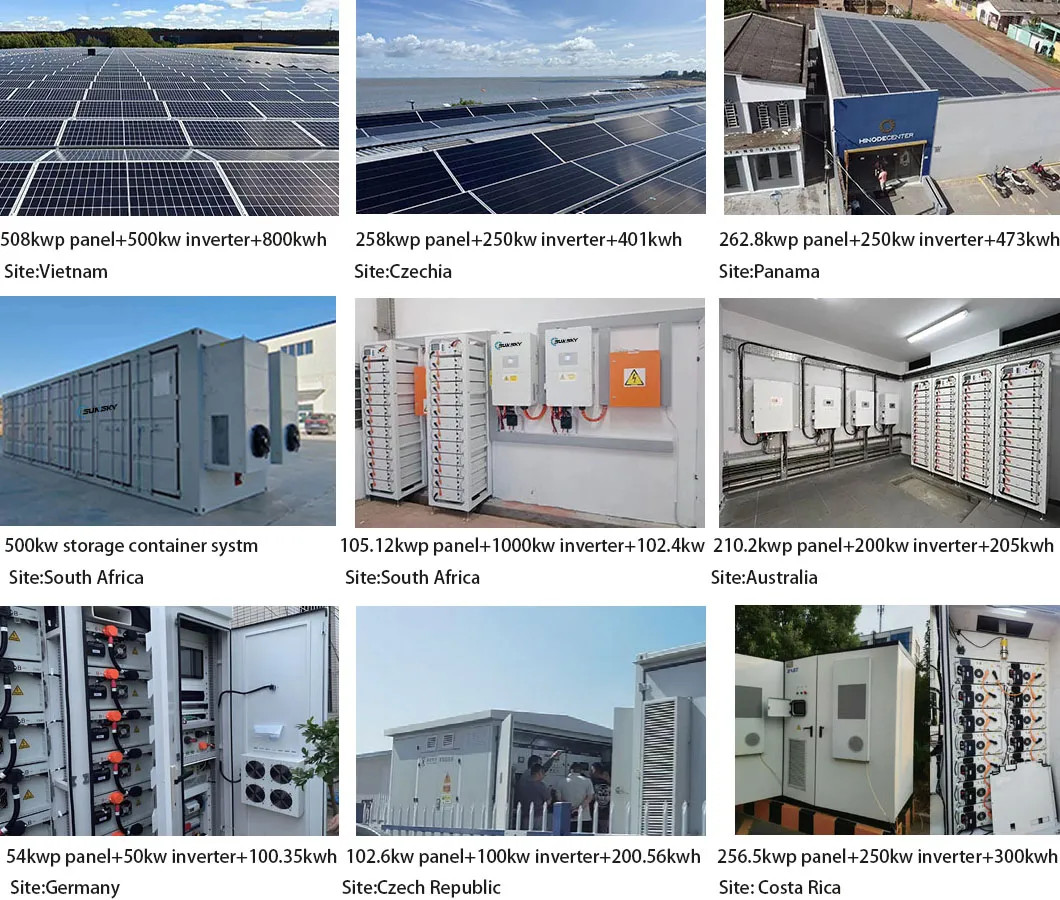

Projects & Systems

Certifications

Professional Support

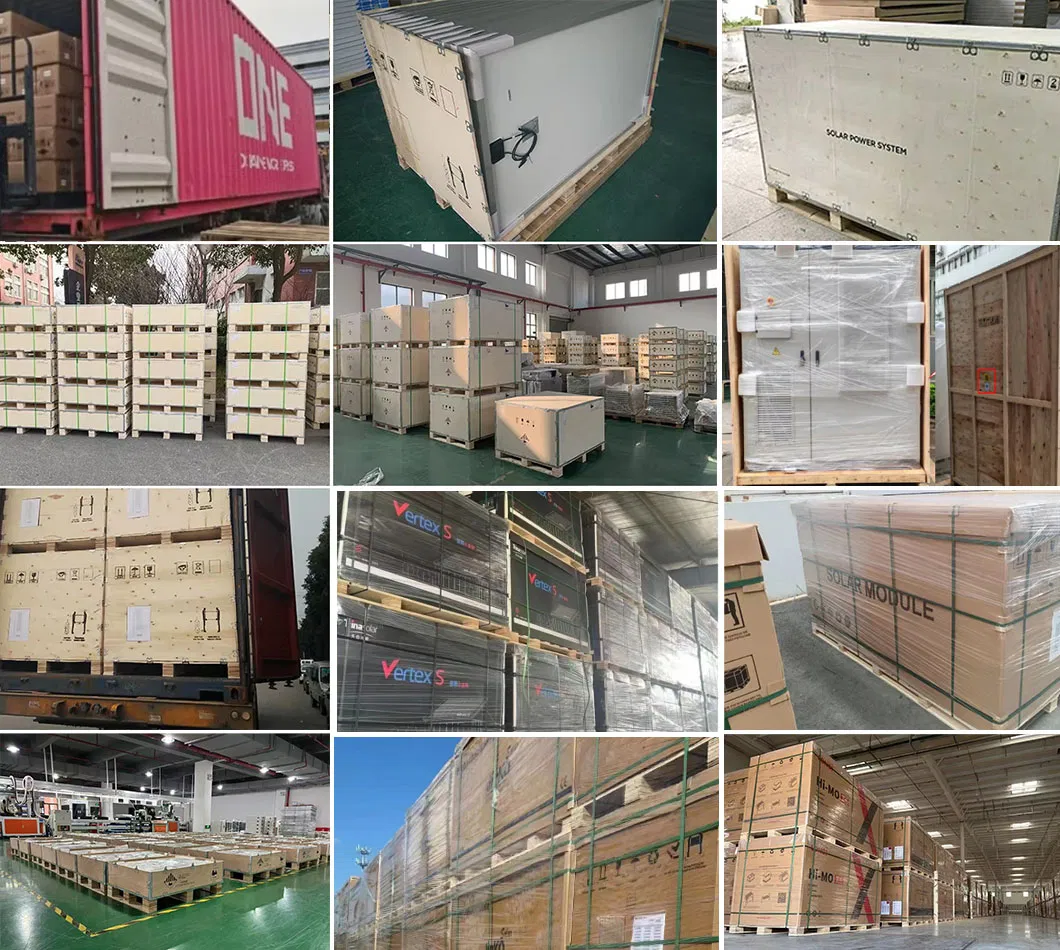

Packaging & Shipping

Our Advantages

Why Choose Our Solutions?

We specialize in the production, R&D, and structural design of high-performance solar panels, inverters, storage batteries, and complete energy systems.

Factory-direct access for competitive market solutions

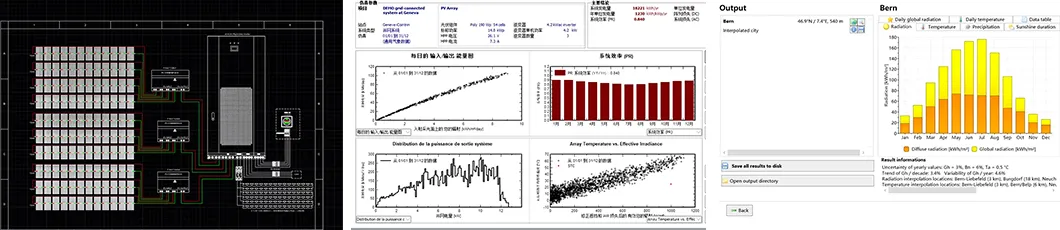

Professional technical team specializing in custom configuration design
24-hour technical online response
Dedicated after-sales support resolving installation queries
Strict adherence to quality-first and reliability principles
Comprehensive 10 to 30-year quality assurance

Frequently Asked Questions

Q: What are your main products?

A: We provide high-efficiency Solar Panels, Solar Inverters (On-Grid / Off-Grid / Hybrid), Rack/Stack/Wall Mounted Lithium Batteries, Energy Storage Systems (ESS), and complete Solar Energy System packages optimized for residential and commercial usage.

Q: What is the delivery time?

A: Generally, orders are dispatched within 5-7 days. Delivery times vary based on the specific products ordered. Please reach out to our service team to receive a detailed shipping schedule.

Q: What kind of payment terms are acceptable?

A: We support flexible payment conditions to meet different import requirements and customer convenience.

Q: How can I access technical support if I have questions?

A: You can connect with our support specialists online. Our team responds promptly, generally providing feedback within 10 minutes.

Q: What are the main technical advantages of your services?

A: We manage dedicated production facilities, collaborate directly with major Tier 1 supply lines, offer 24/7 technical online advice, and guarantee long-term warranty policies ranging from 10 up to 30 years depending on the components.

Q: Do you offer customizable OEM configurations?

A: Yes, OEM and ODM customization requests are welcome. We adapt system sizing, battery rack capabilities, protection ratings, and output layouts to match commercial requirements.
