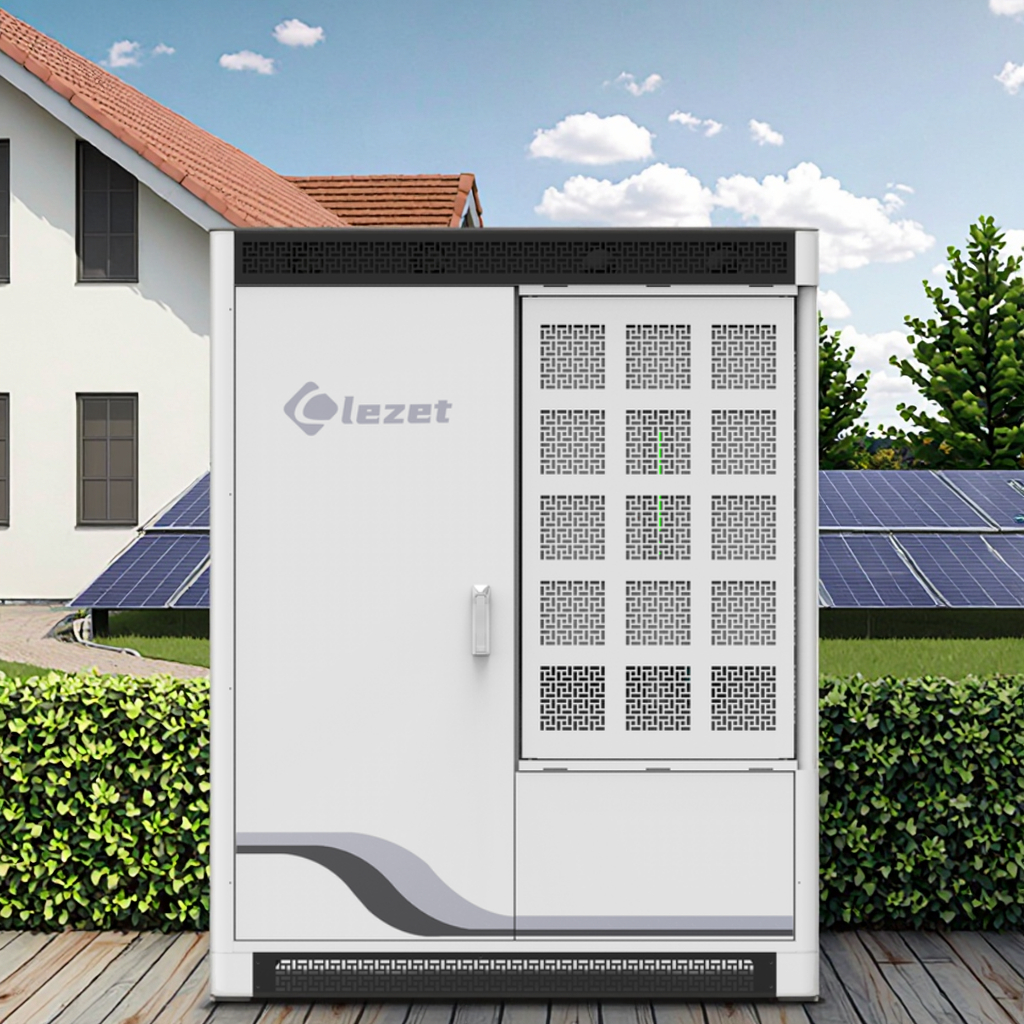

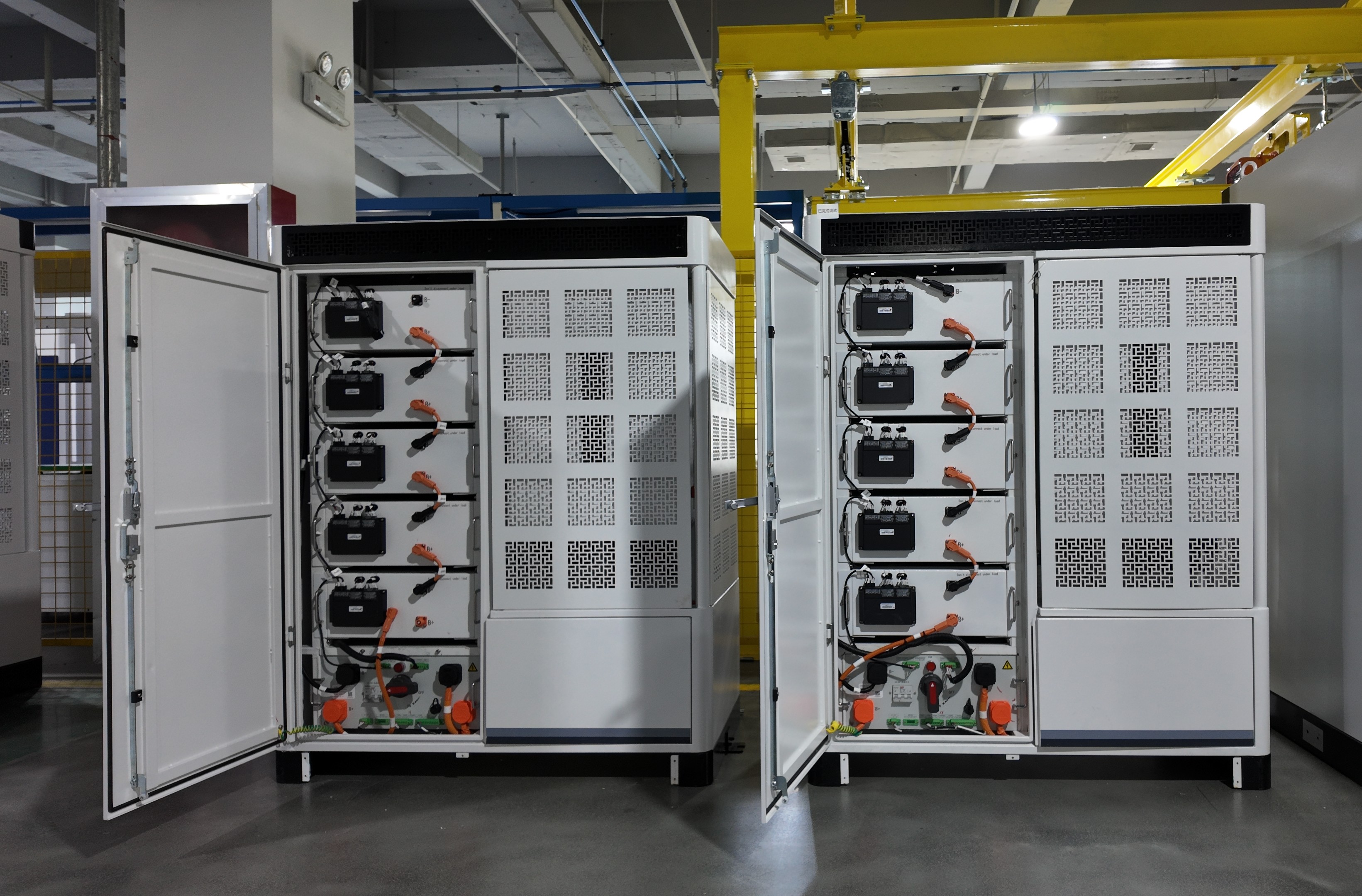

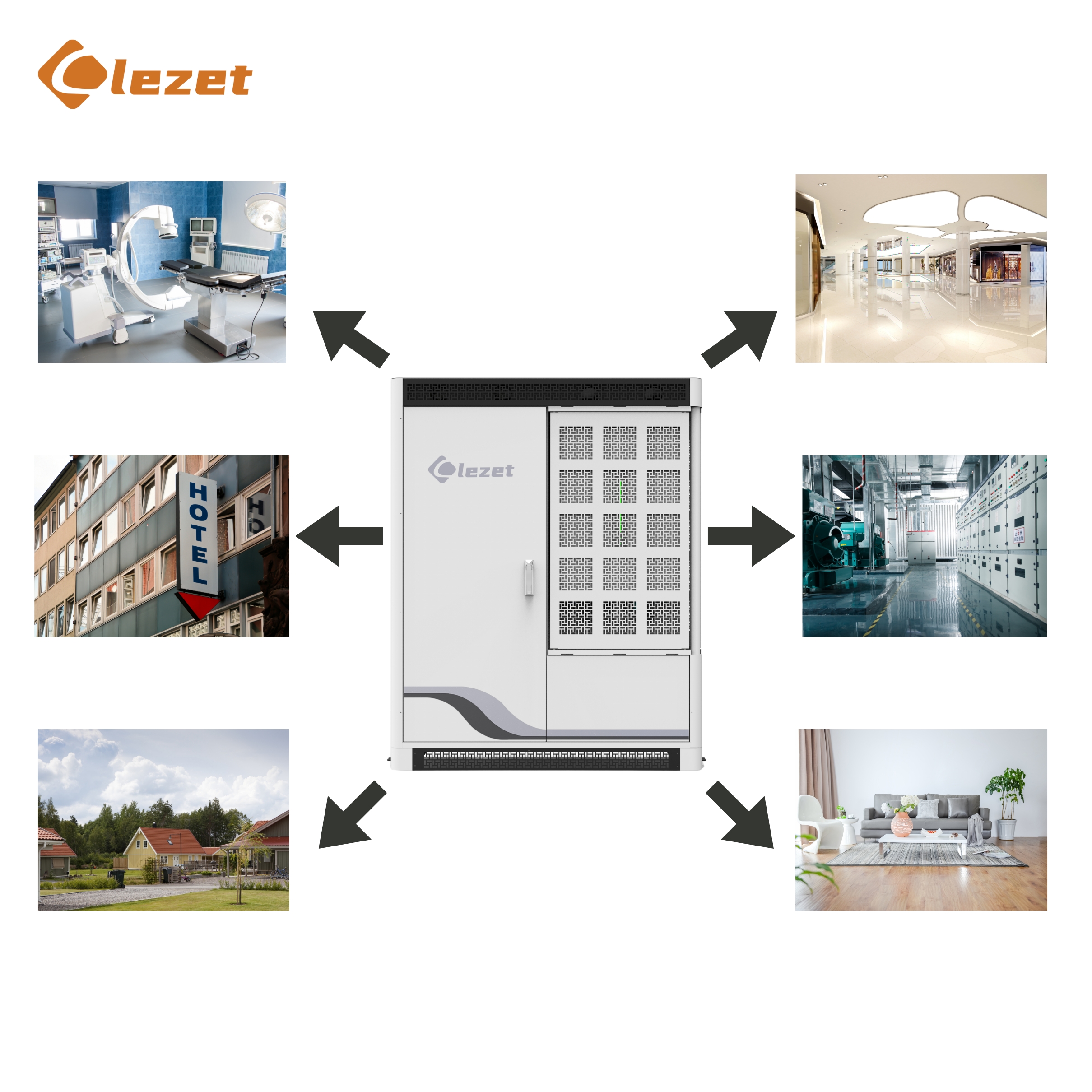

Lezet All-In-One Home Energy Storage System AC Solar Diesel Compatible E45S20 45kWh Lithium Battery Hybrid Grid IP54 Protection
Lezet All-In-One Home Energy Storage System AC Solar Diesel Compatible E45S20 45kWh Lithium Battery Hybrid Grid IP54 Protection
Lezet All-In-One Home Energy Storage System AC Solar Diesel Compatible E45S20 45kWh Lithium Battery Hybrid Grid IP54 Protection
Lezet All-In-One Home Energy Storage System AC Solar Diesel Compatible E45S20 45kWh Lithium Battery Hybrid Grid IP54 Protection
Lezet All-In-One Home Energy Storage System AC Solar Diesel Compatible E45S20 45kWh Lithium Battery Hybrid Grid IP54 Protection
1 / 5
Lezet All-In-One Home Energy Storage System AC Solar Diesel Compatible E45S20 45kWh Lithium Battery Hybrid Grid IP54 Protection
Lezet All-In-One Home Energy Storage System AC Solar Diesel Compatible E45S20 45kWh Lithium Battery Hybrid Grid IP54 Protection
Lezet All-In-One Home Energy Storage System AC Solar Diesel Compatible E45S20 45kWh Lithium Battery Hybrid Grid IP54 Protection
Lezet All-In-One Home Energy Storage System AC Solar Diesel Compatible E45S20 45kWh Lithium Battery Hybrid Grid IP54 Protection
Lezet All-In-One Home Energy Storage System AC Solar Diesel Compatible E45S20 45kWh Lithium Battery Hybrid Grid IP54 Protection

Lezet All-In-One Home Energy Storage System AC Solar Diesel Compatible E45S20 45kWh Lithium Battery Hybrid Grid IP54 Protection

Send Inquiry

Product Description

Product Overview
Products Description

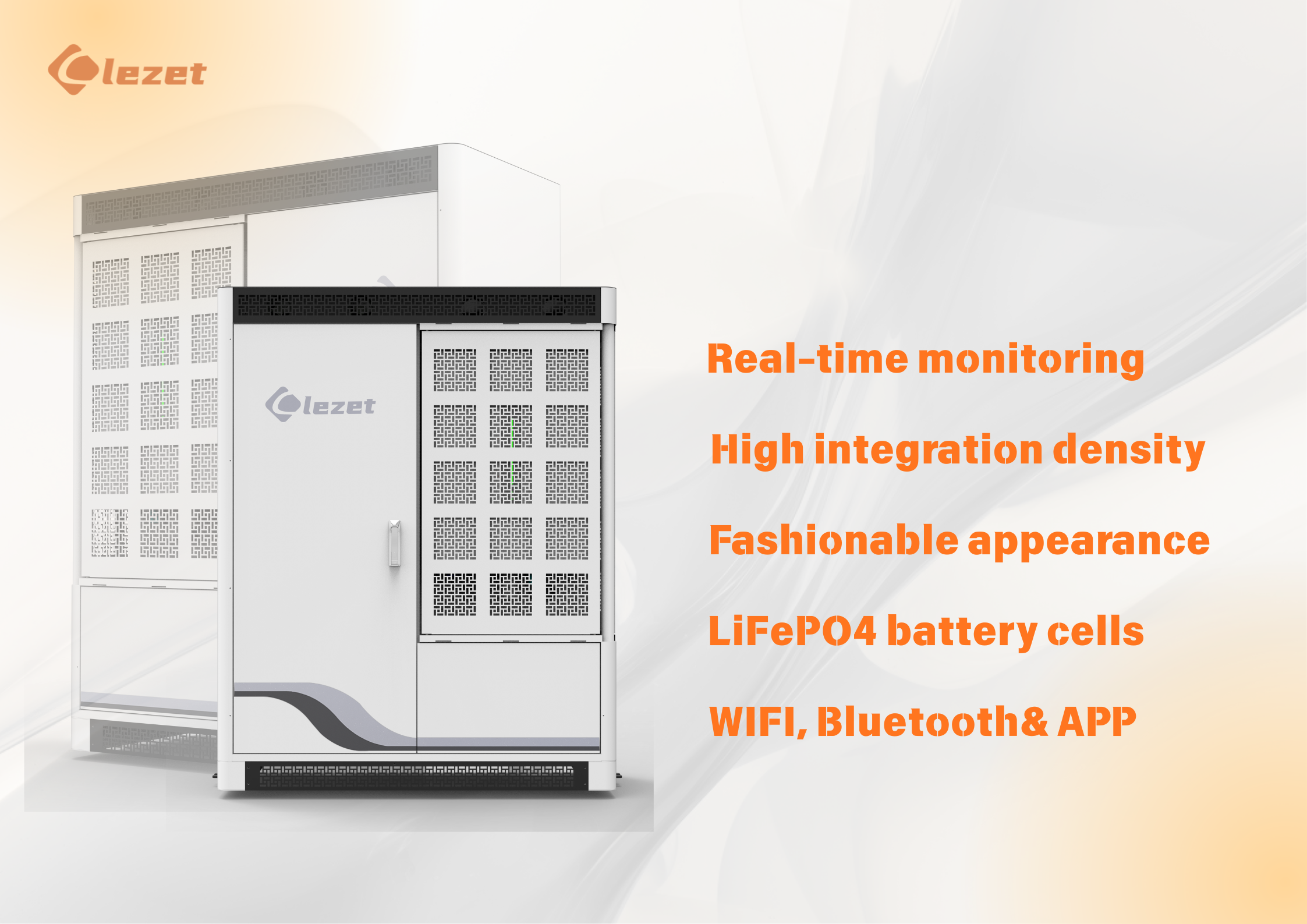

Product Details
  • High Integration System
  • Intelligent Monitoring & Management
  • High-safety Cells & Isolation System
Product Parameters
Model E45S20 Battery Pack Configuration 119Ah*1P24S*5S
Battery type Prismatic LiFePO4 battery cell The Number of Battery Packs 5
Nominal Voltage 384V Rated Capacity of the Battery Cabinet 45kWh
Rated AC Power 20kW Working Voltage Range 336V-438V
Rated Current 30.4A Rated Voltage and Frequency of the Power Grid AC400V 3W+N+PE 50/60Hz
Rated Power 20kW Rated Frequency 50/60Hz
Rated Voltage 3/N/PE，400Vac Rated Current 30.4A
Dimensions 1260*643*1580mm Maximum Input Power 30kW
Weight 620kg MPPT Input Voltage Range 620~850VDC
Installation Location Outdoor/Indoor Battery Temperature Control Mode Air cooling
Protection Level IP55 Operating Temperature Range -30 to 50℃
Number of Cycles ≥4000cycles，0.5P@25°/25°,80%DOD Maximum Operating Altitude 3000m
Communication CAN/RS485/LAN Communication Protocol Modbus TCP
Standard ICE62619, ICE61000 - -
Details Images

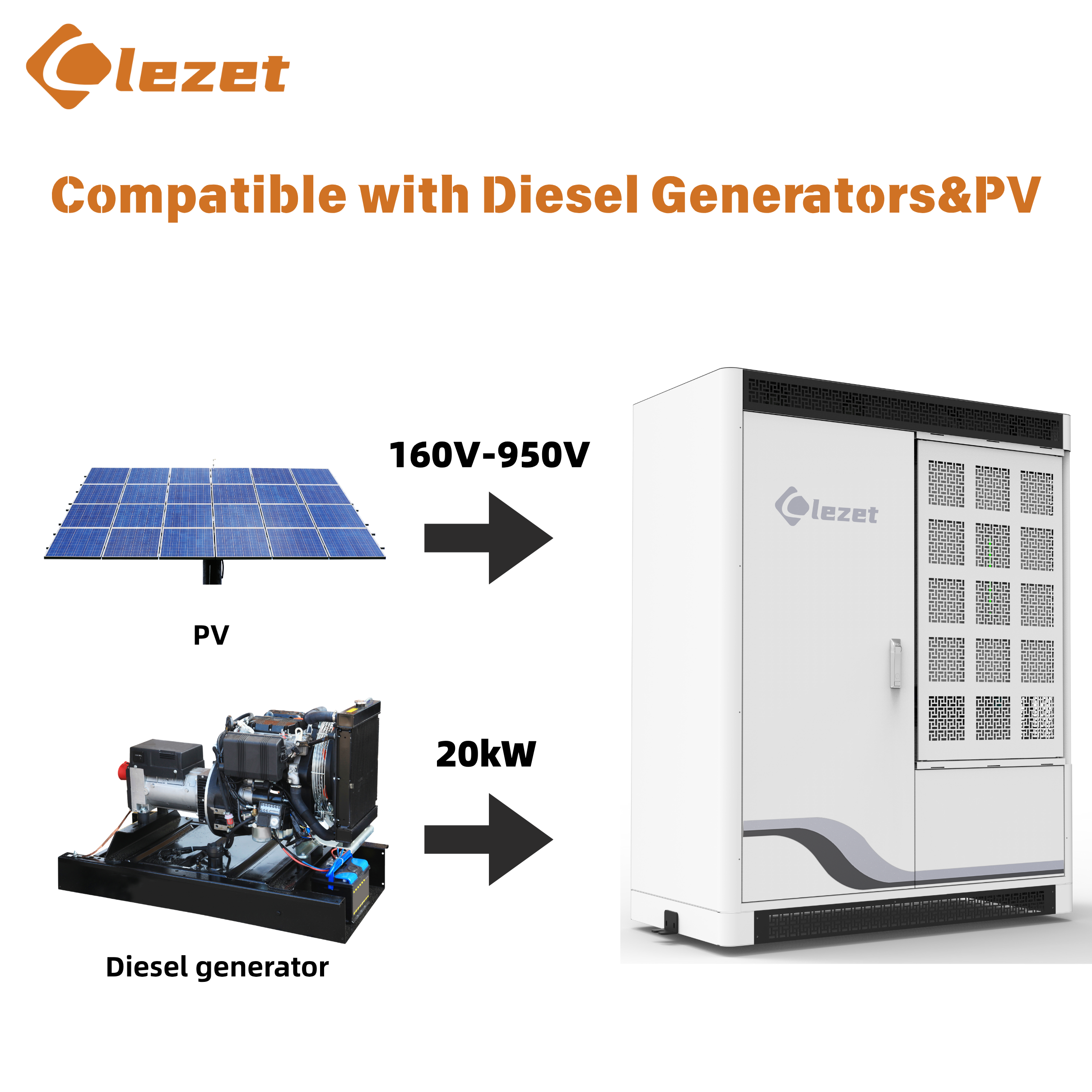

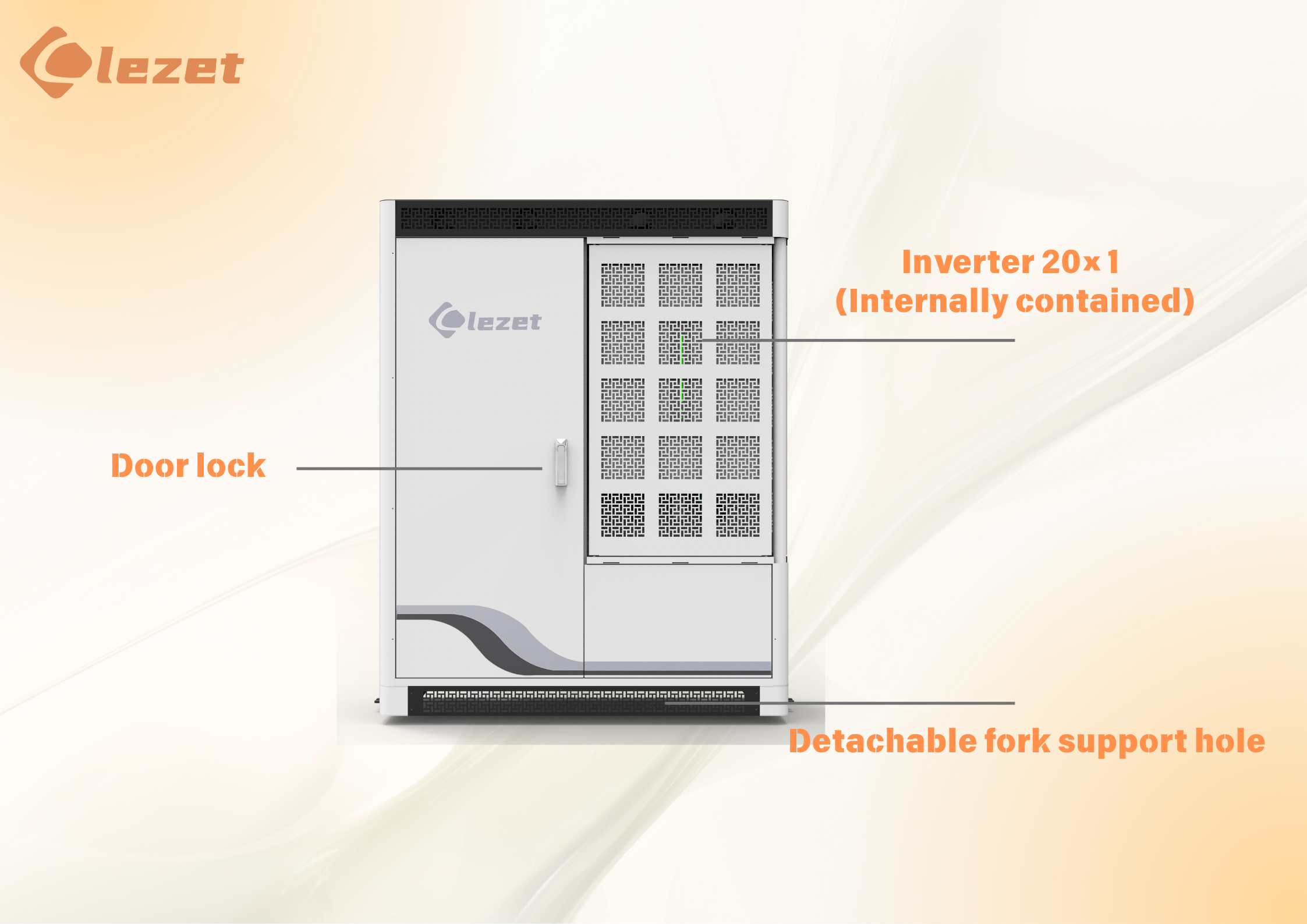

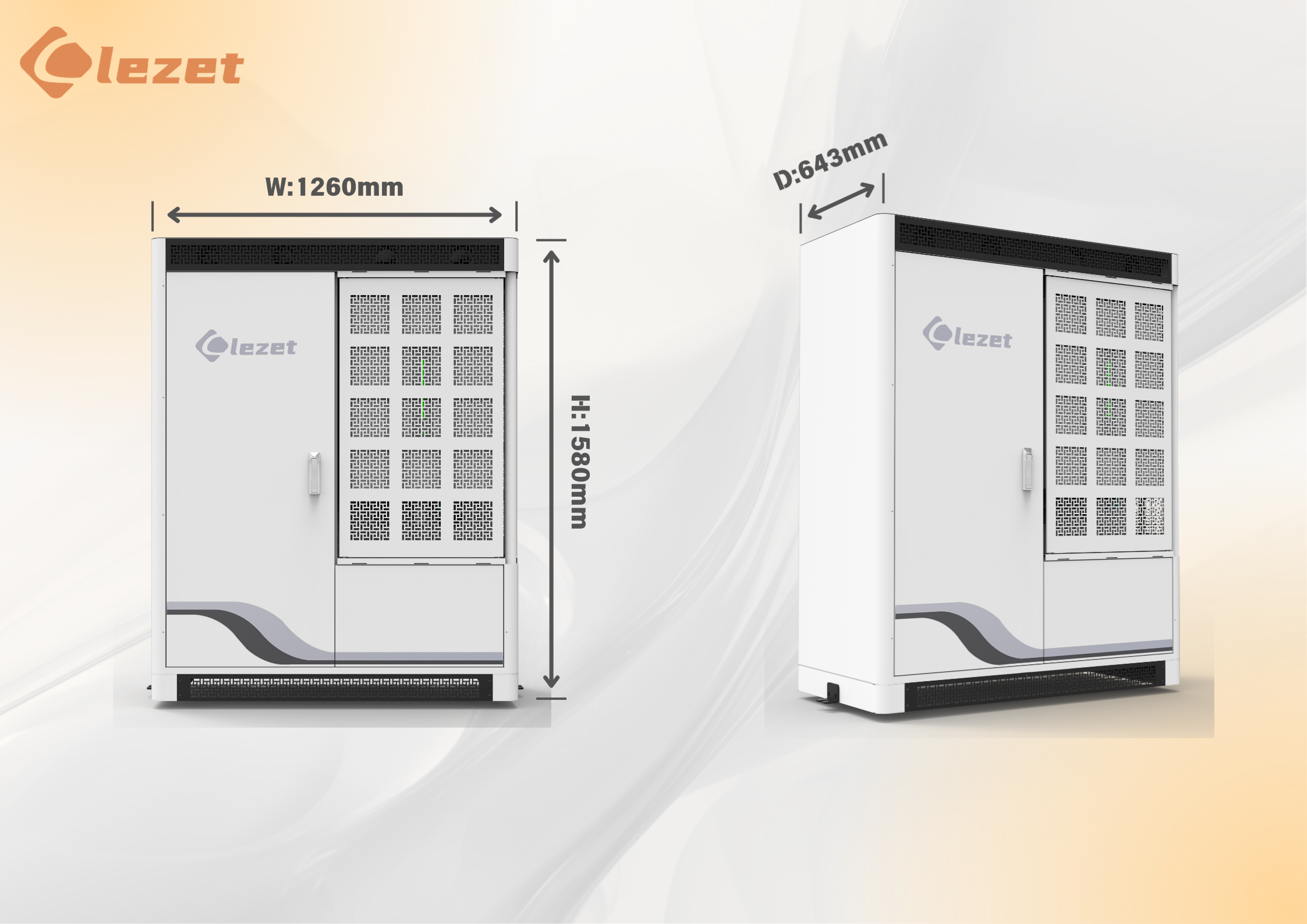

Detail View 1 Detail View 2 Detail View 3

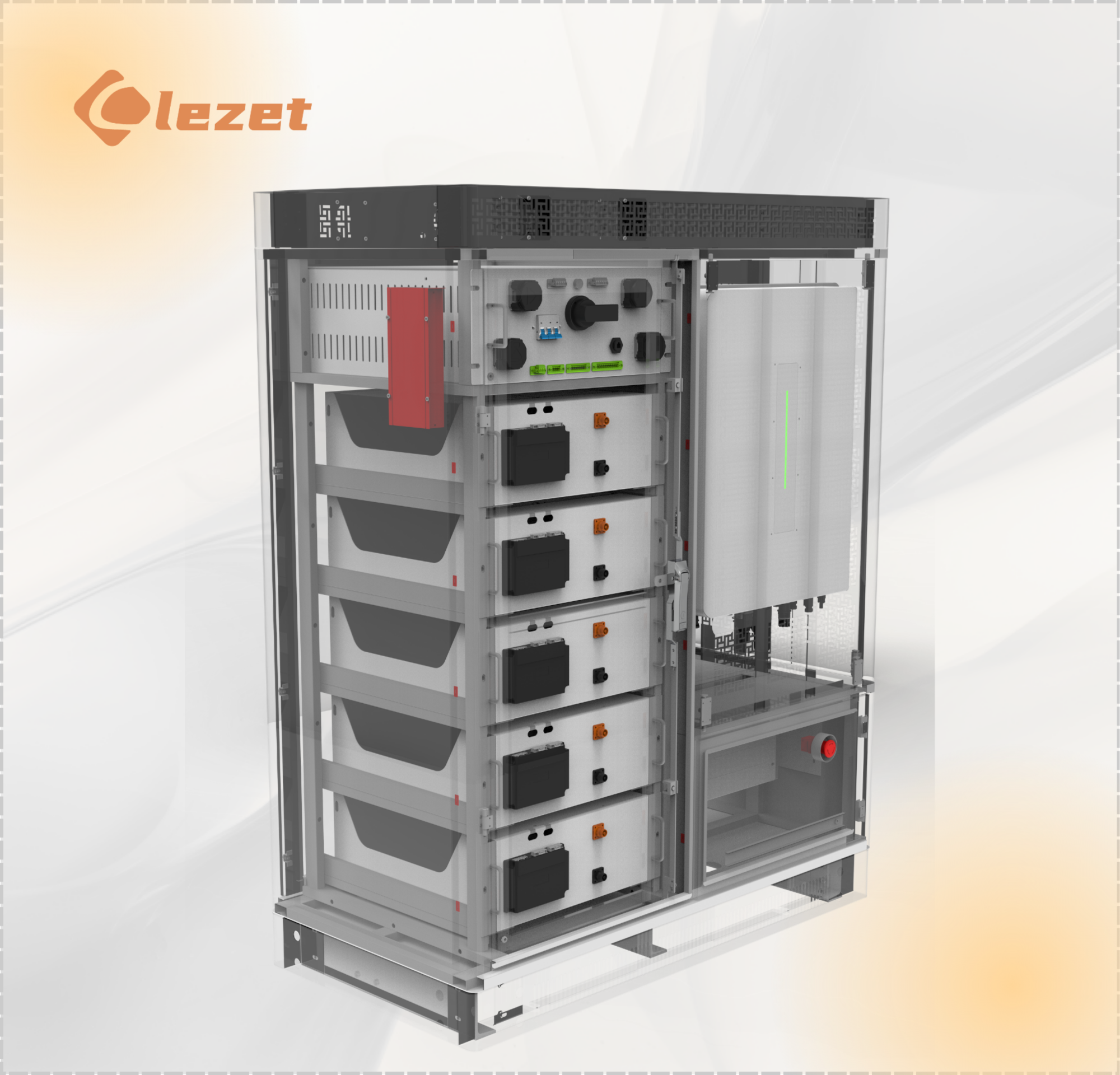

Detail View 4 Detail View 5
Our Project Scenario

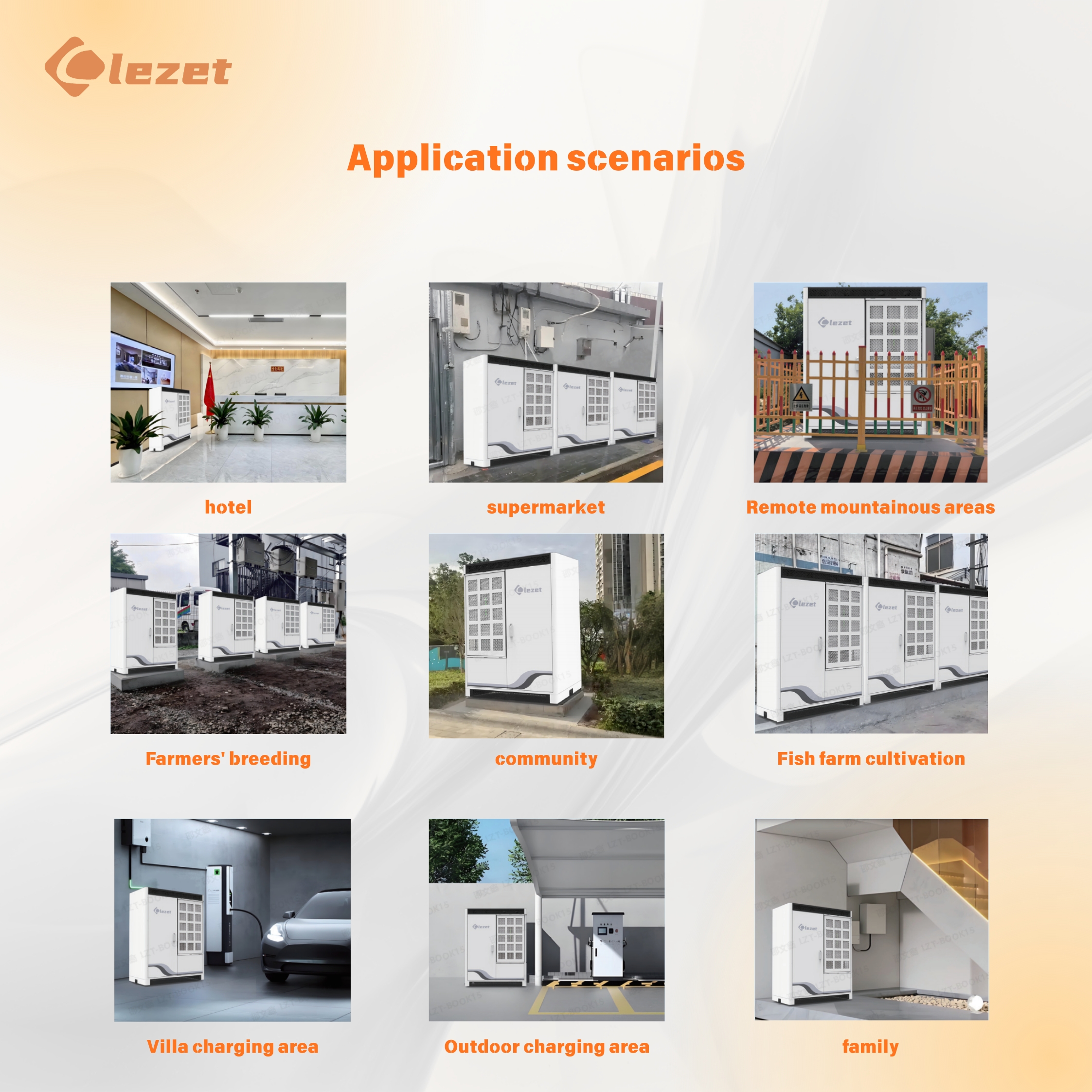

Project Scenario 1 Project Scenario 2
Company Profile
Company Introduction
Enterprise Overview
A national high-tech enterprise dedicated to the research and application of clean energy technology, committed to providing efficient, intelligent, and sustainable new energy solutions for global customers.
Product Range
We have deeply cultivated in the field of new energy, with a product line covering integrated solar-storage-diesel generators, two/three-wheeled electric vehicles, electric motorboats, mobile charging vehicles, industrial and commercial energy storage systems, and various types of portable power solutions, widely used in various fields such as industry, commerce, transportation, and people's livelihood.
We provide efficient and reliable energy solutions, delivering stable and clean power to every corner of the world.

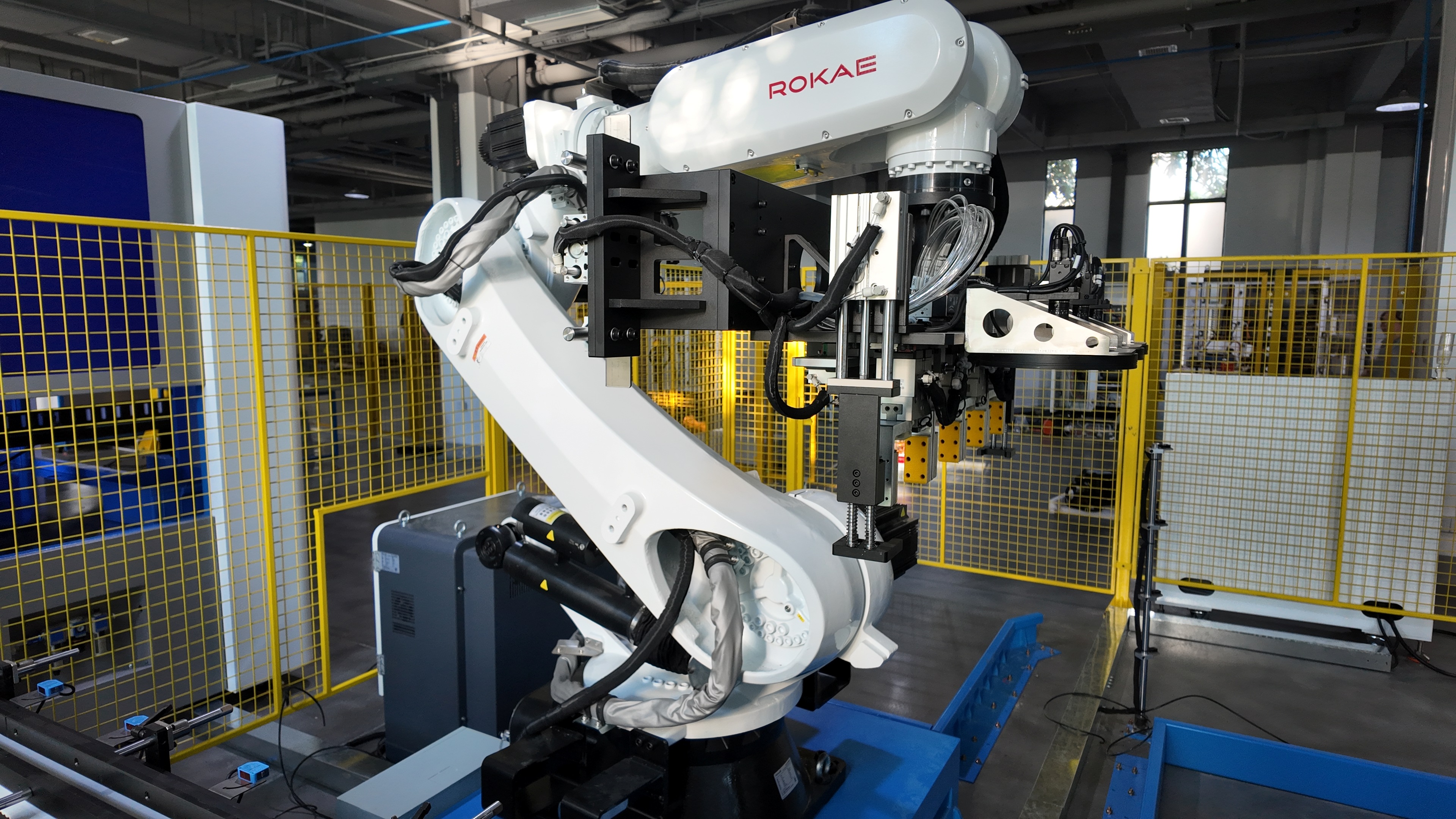

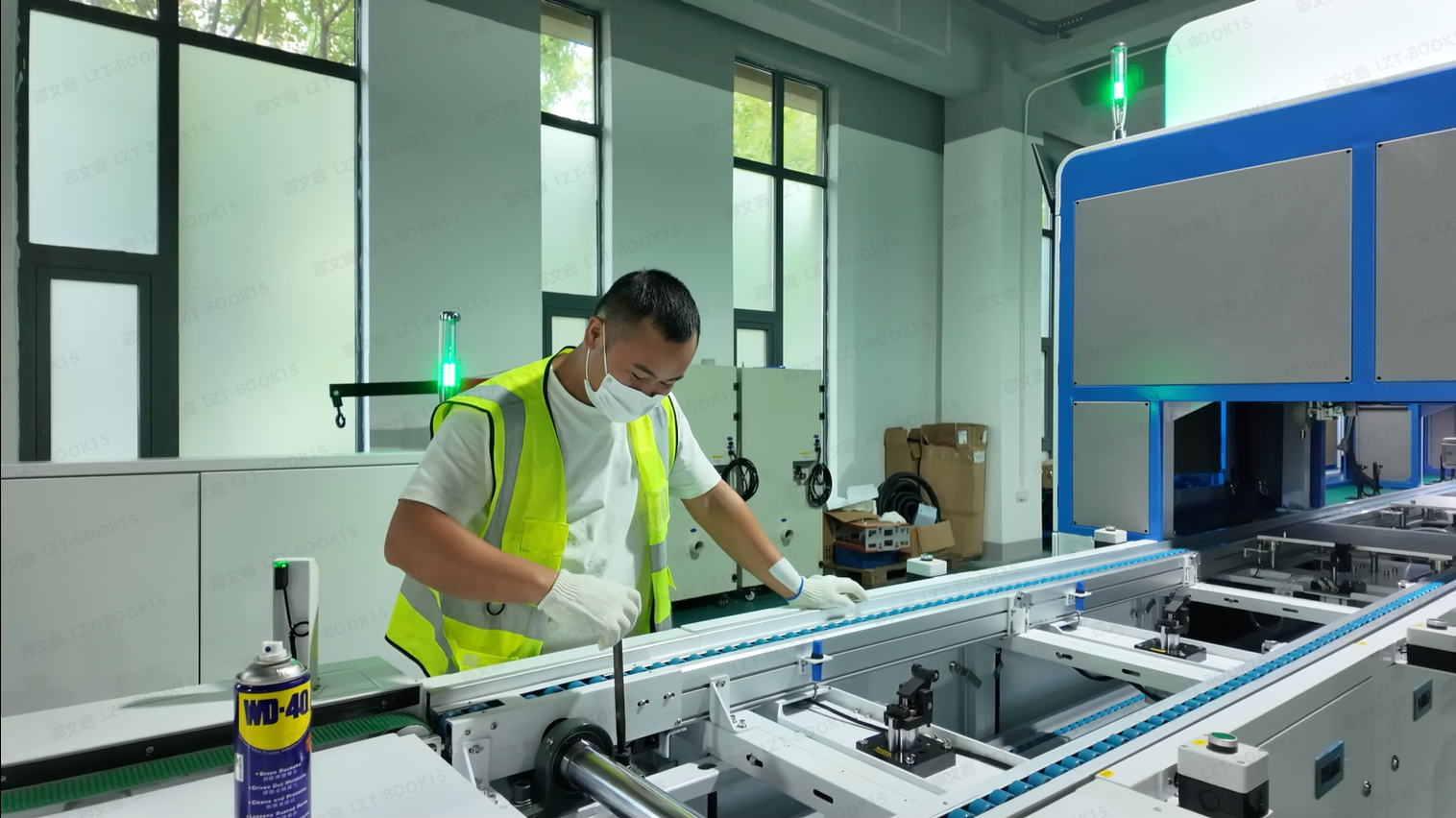

Factory View 1 Factory View 2

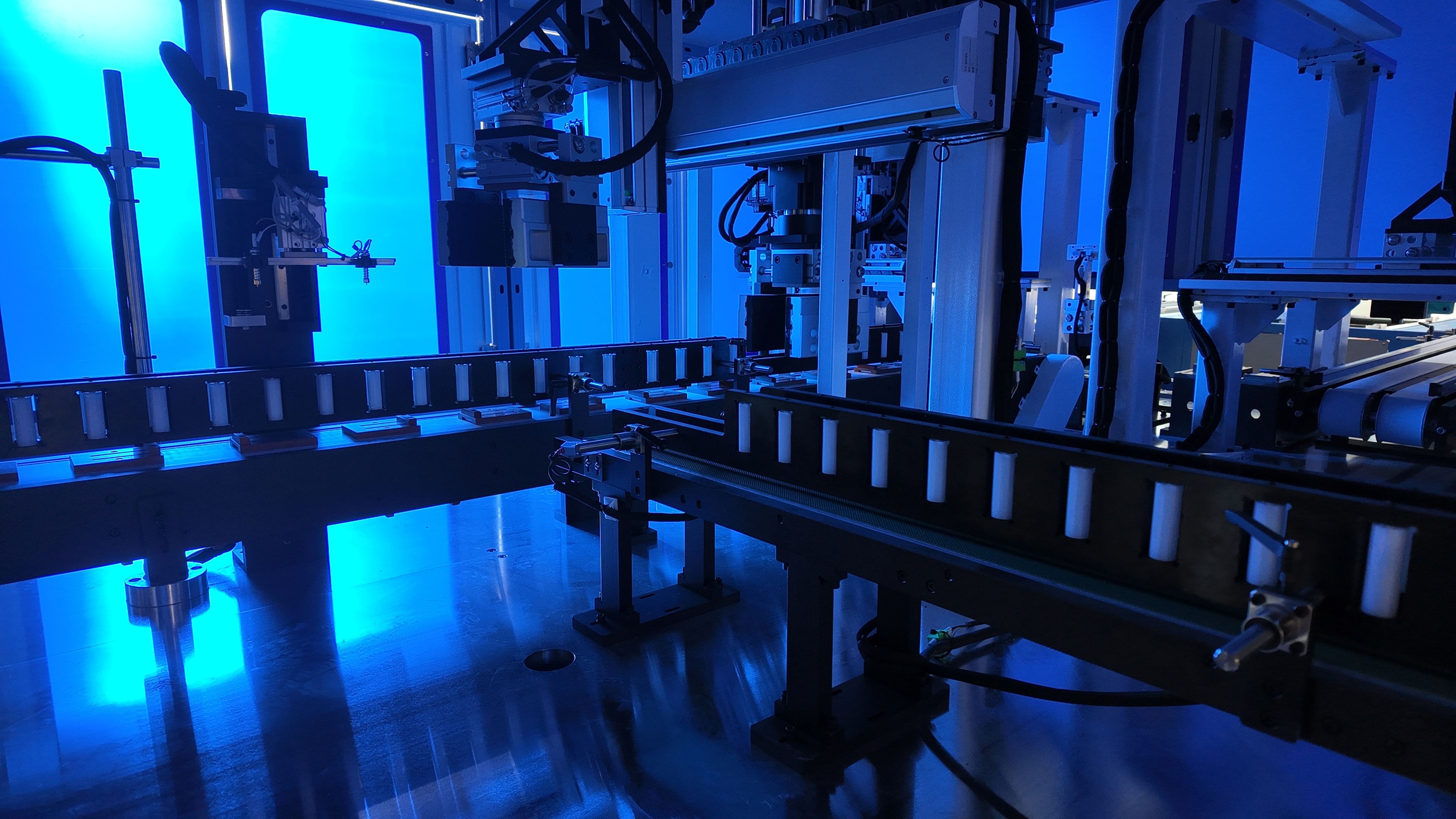

Certification Production Line
Our Project Scenarios

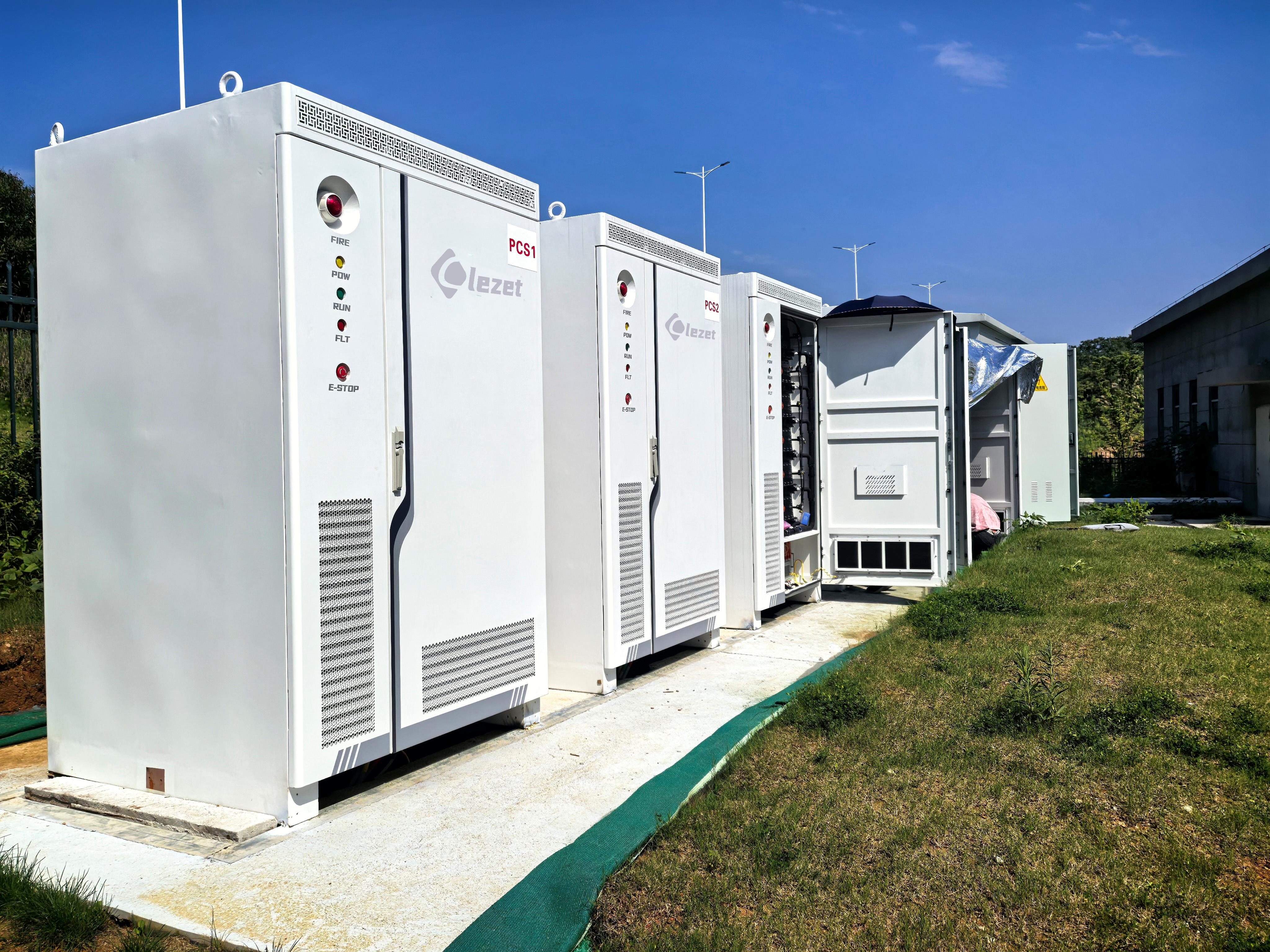

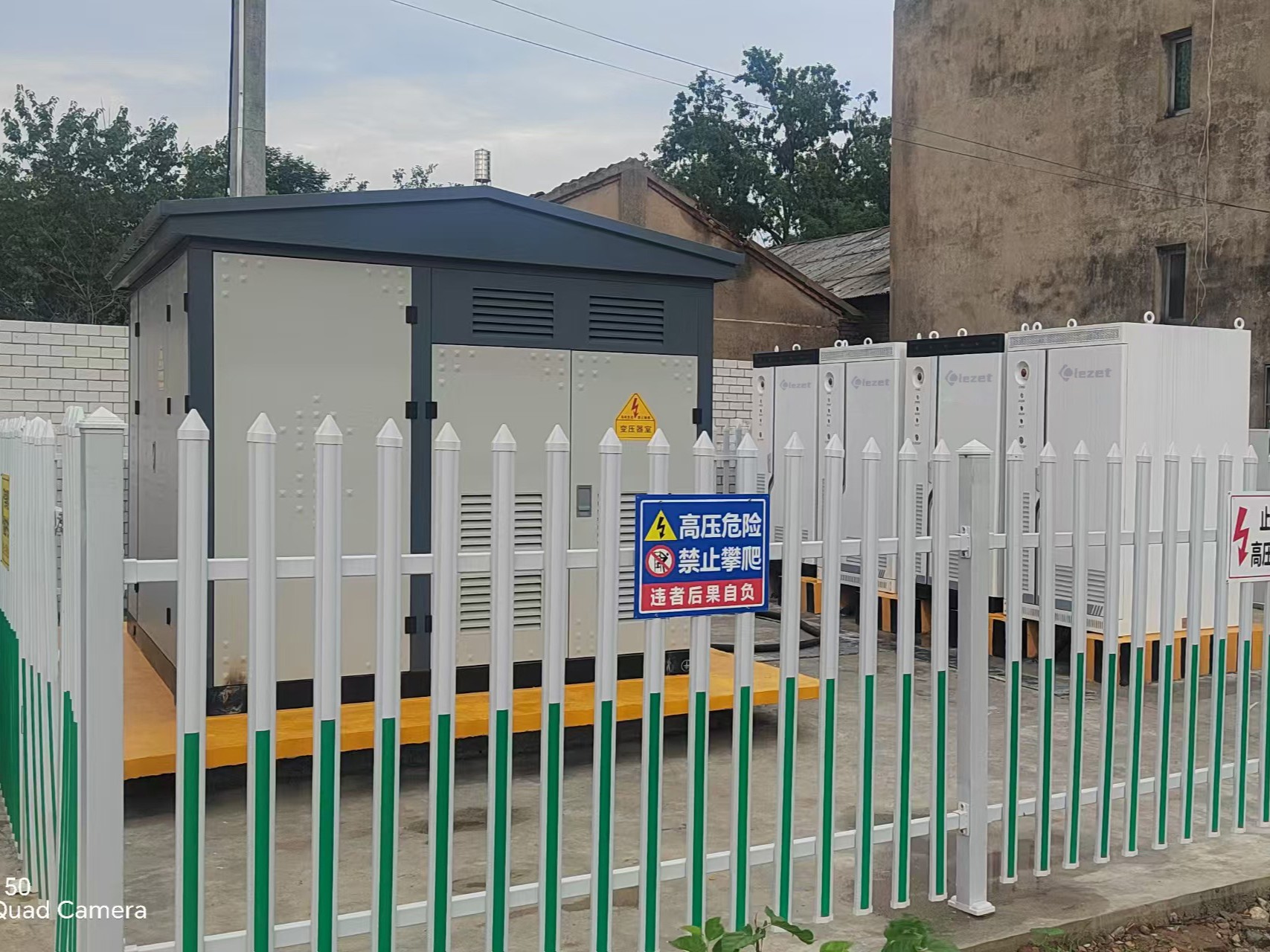

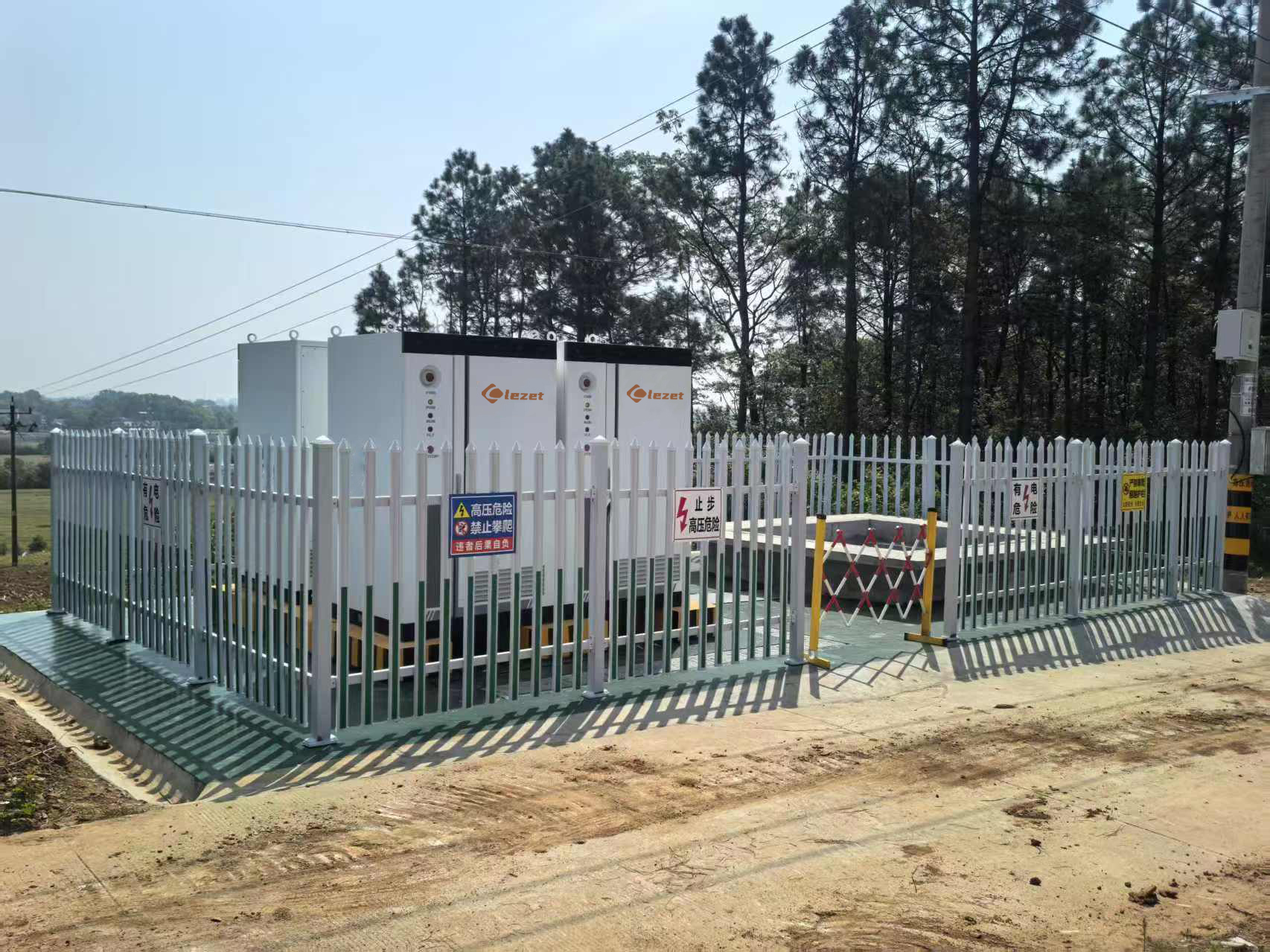

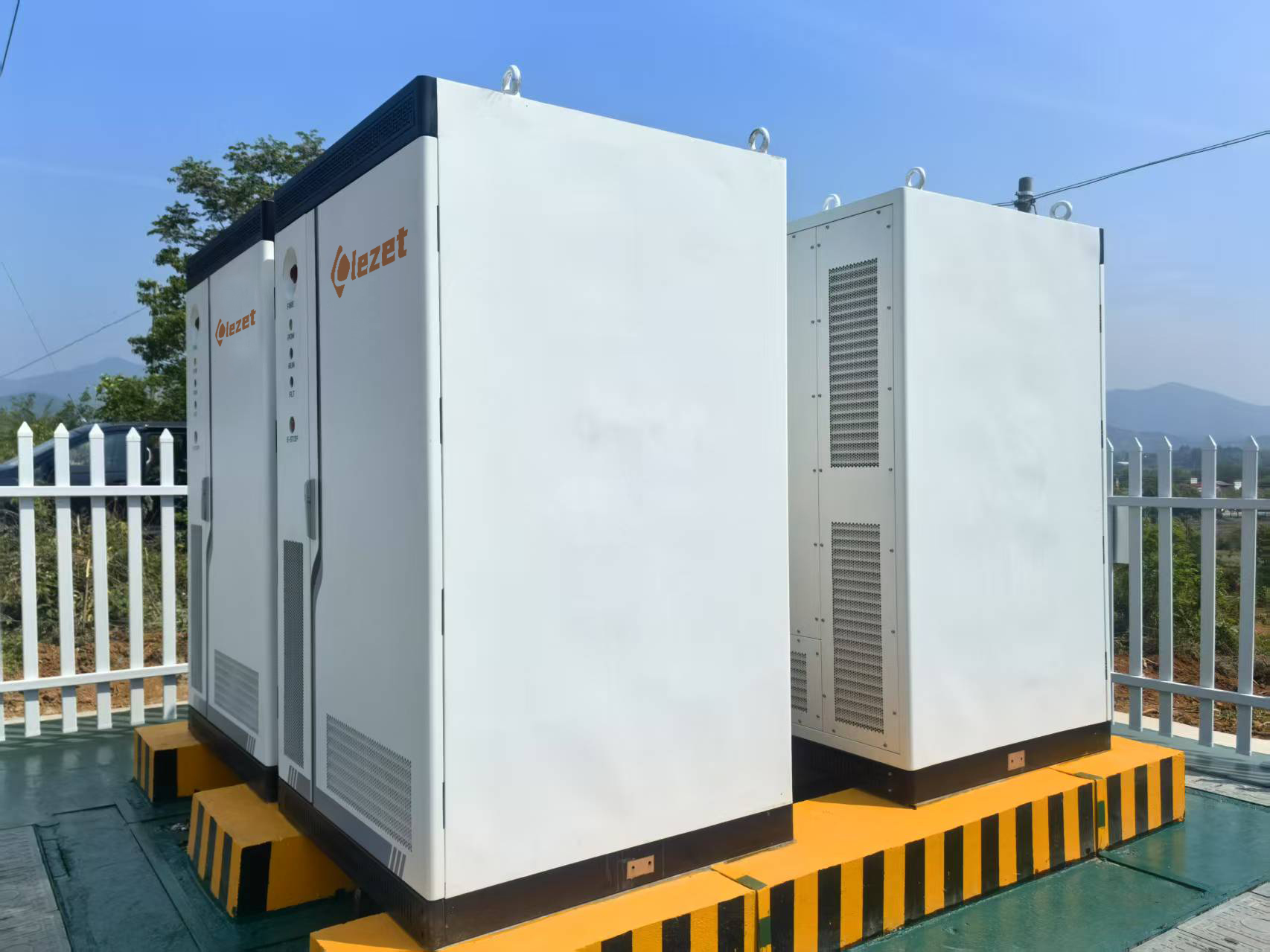

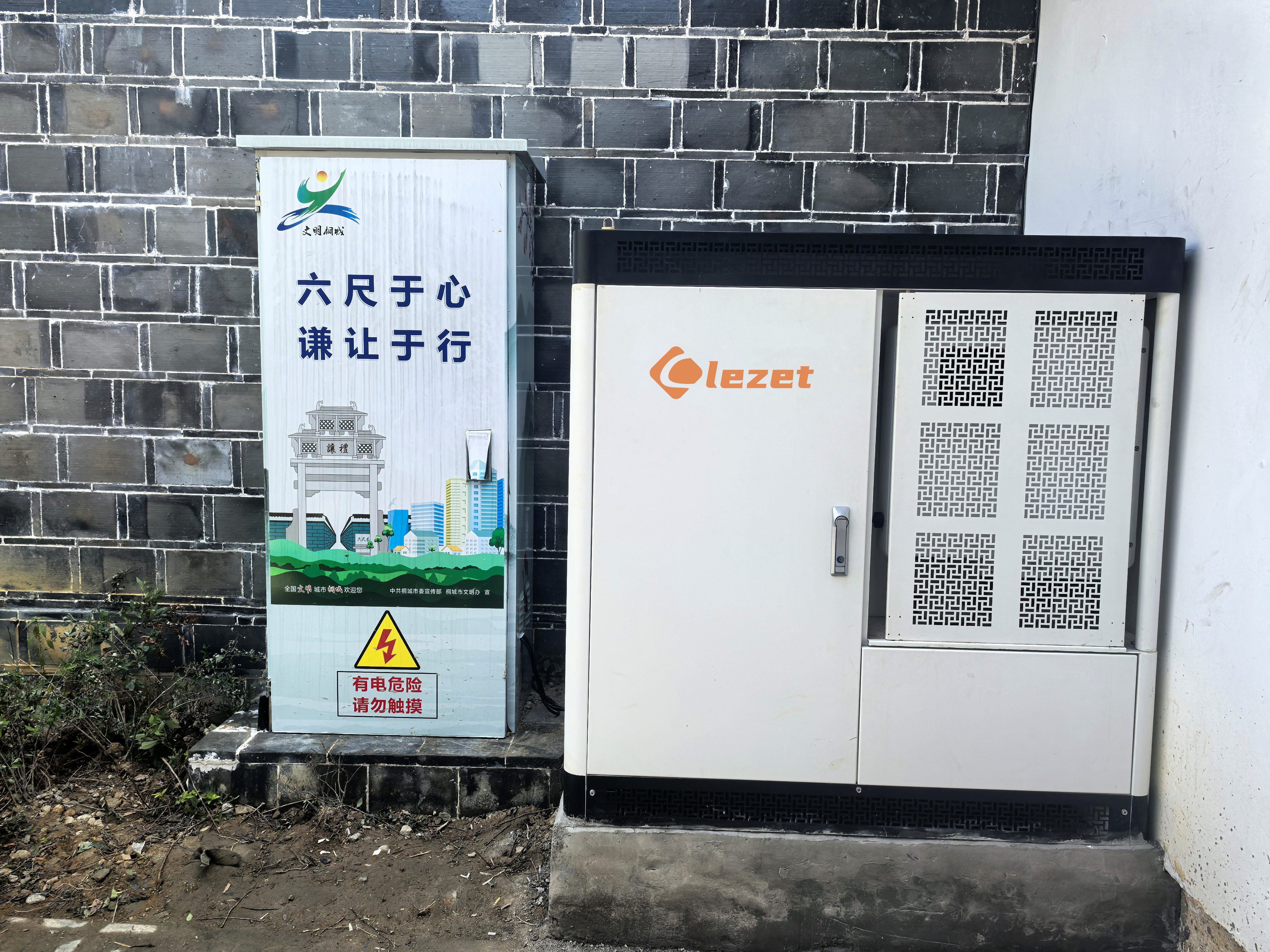

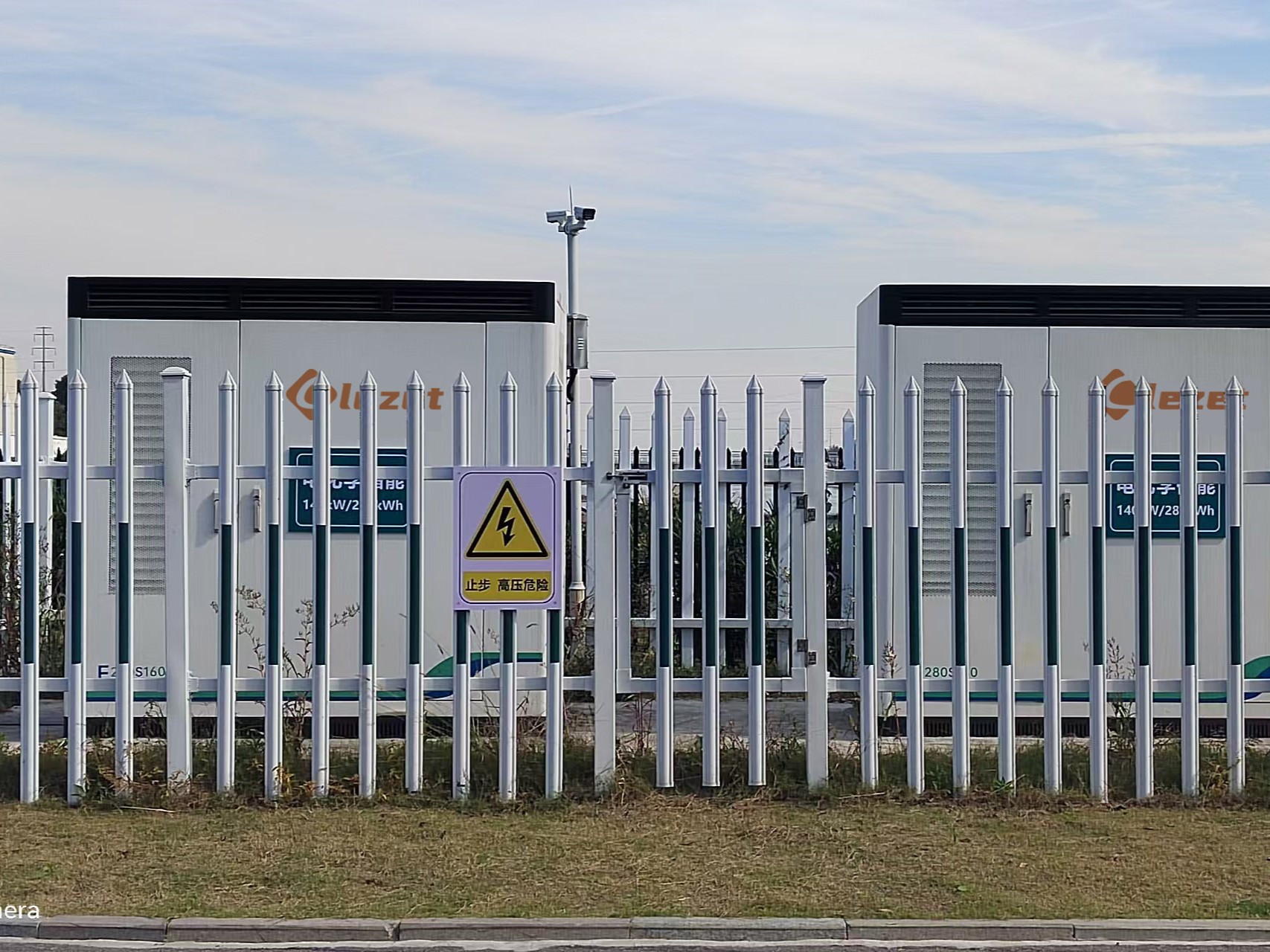

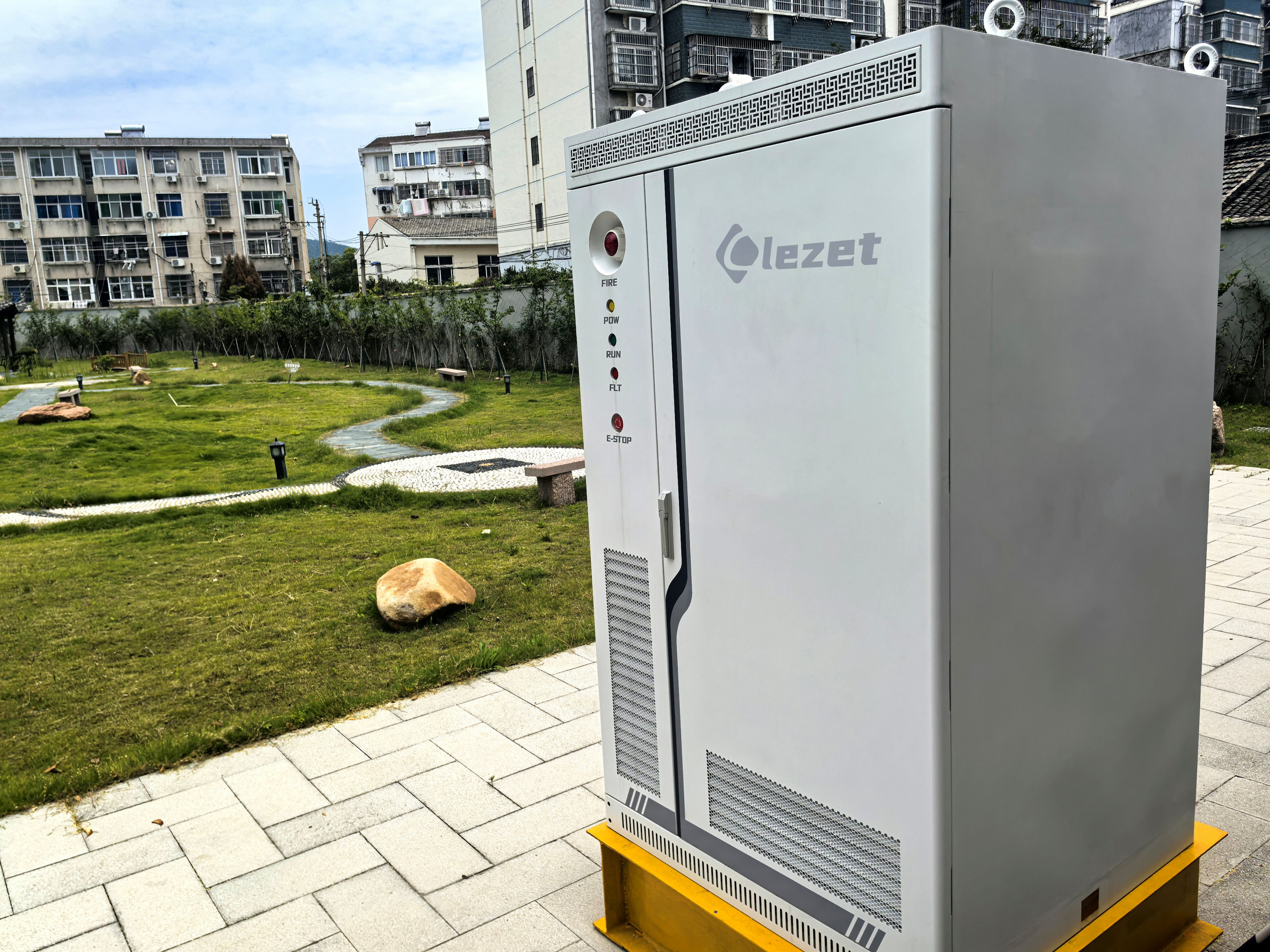

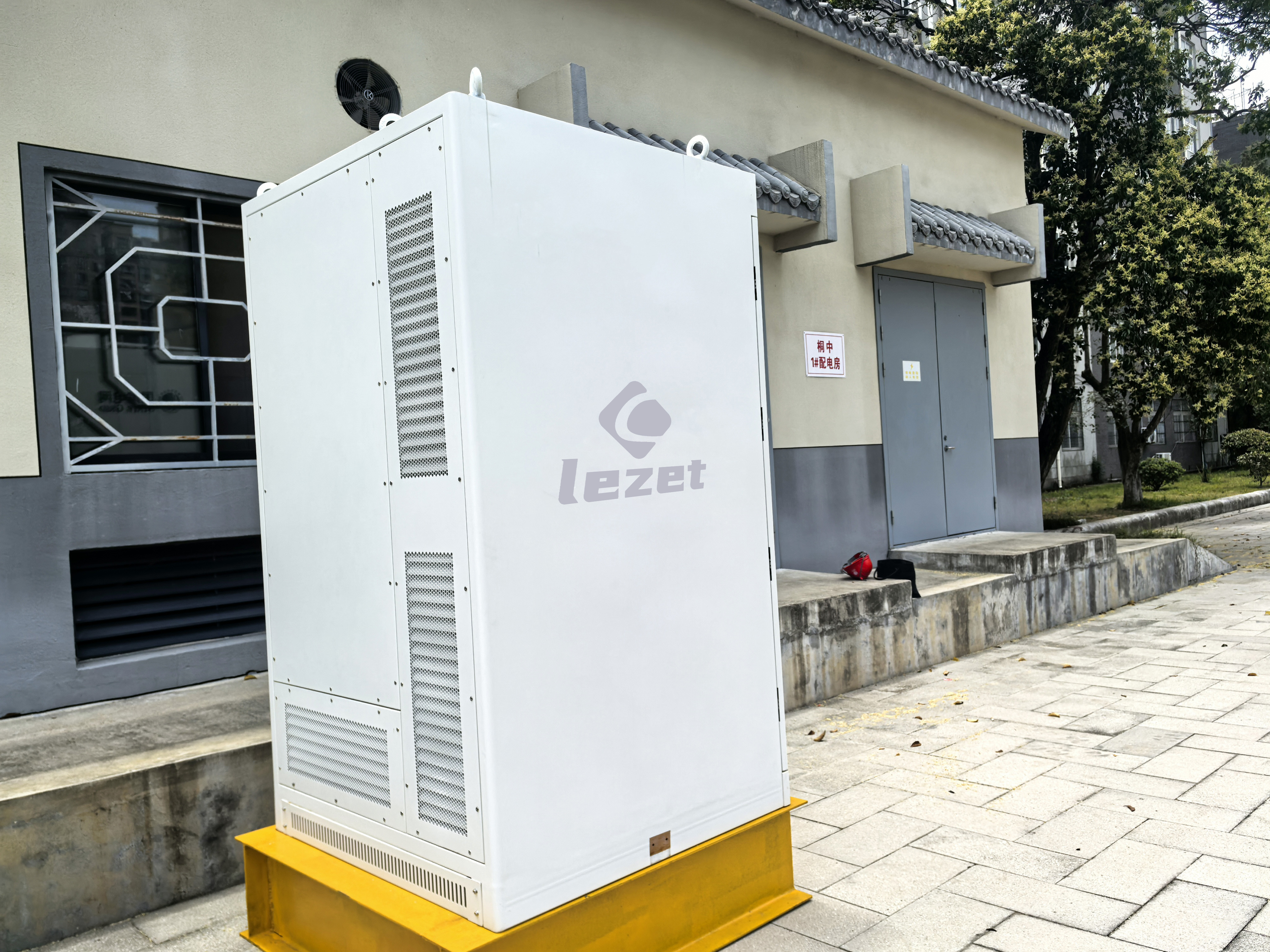

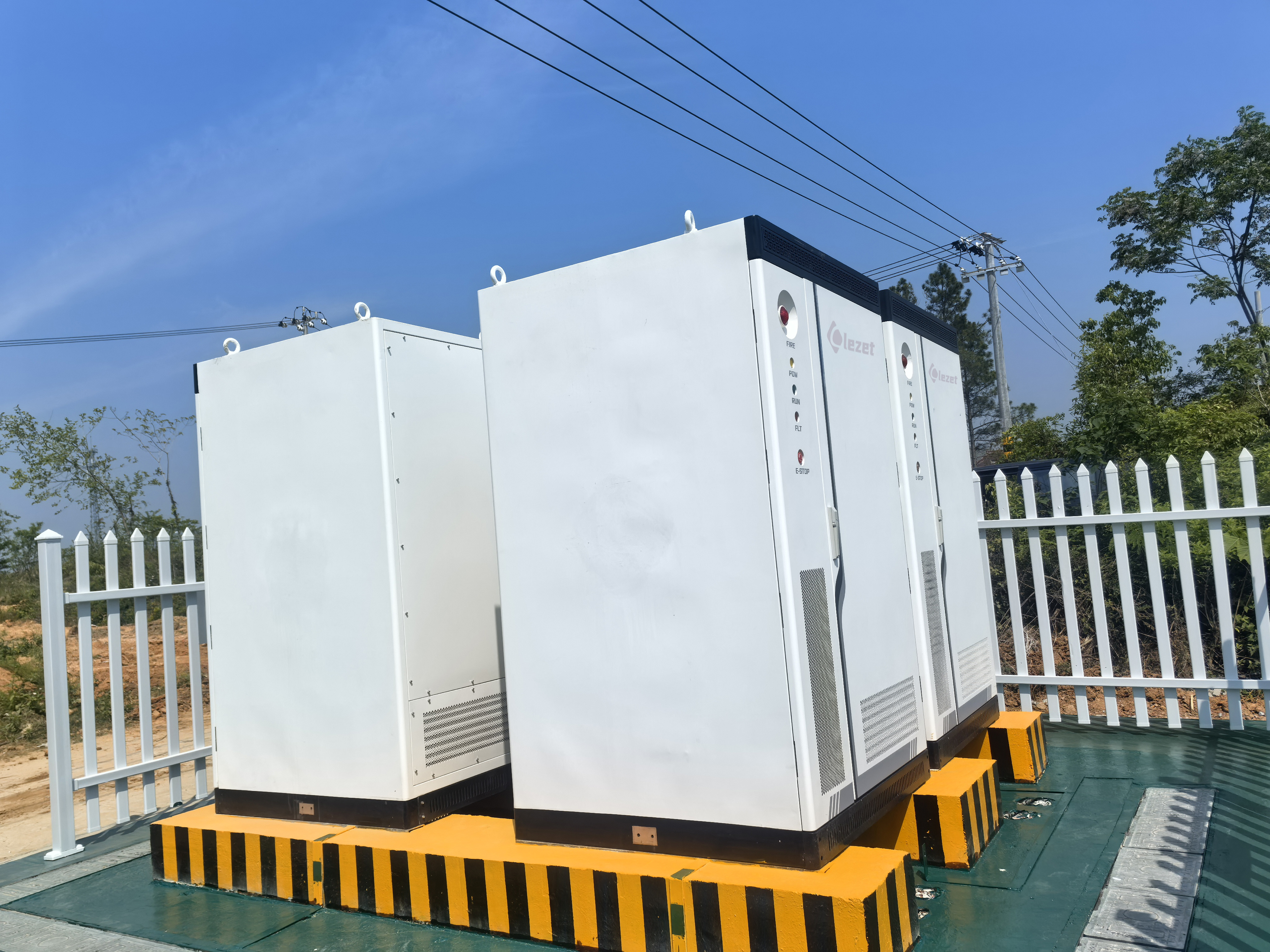

Scenario Grid 1 Scenario Grid 2 Scenario Grid 3 Scenario Grid 4 Scenario Grid 5 Scenario Grid 6 Scenario Grid 7 Scenario Grid 8 Scenario Grid 9
Grid Cover
FAQ
Q1: Who are we?
We are a strong production-oriented enterprise specializing in the new energy industry.
Q2: What can you purchase from us?
Portable power stations, commercial and industrial energy storage system, integrated home energy storage system, lithium battery and so on...
Q3: What are our advantages?
We have a professional R&D, production, sales, and after-sales service team that can customize products according to your needs and provide one-stop home and outdoor energy storage solutions.
Q4: Do you support small batch order transactions or soft customization of logos for immediate delivery, OEM, and ODM needs?
We support small batch product transactions and can deliver designs or customized products for individual items, with prices and minimum order quantities much lower than many factories.
Q5: How can we guarantee quality?
All of our products have passed certifications such as CE, FC, UL, and RoHS. Always a pre-production sample before mass production; Always final Inspection before shipment.
