The PCS 100kW to 630kW battery inverters offer various configuration options for commercial properties and industrial environments with high power requirements. They are highly compatible with AC/DC coupling, off-grid deployments, and hybrid power systems.

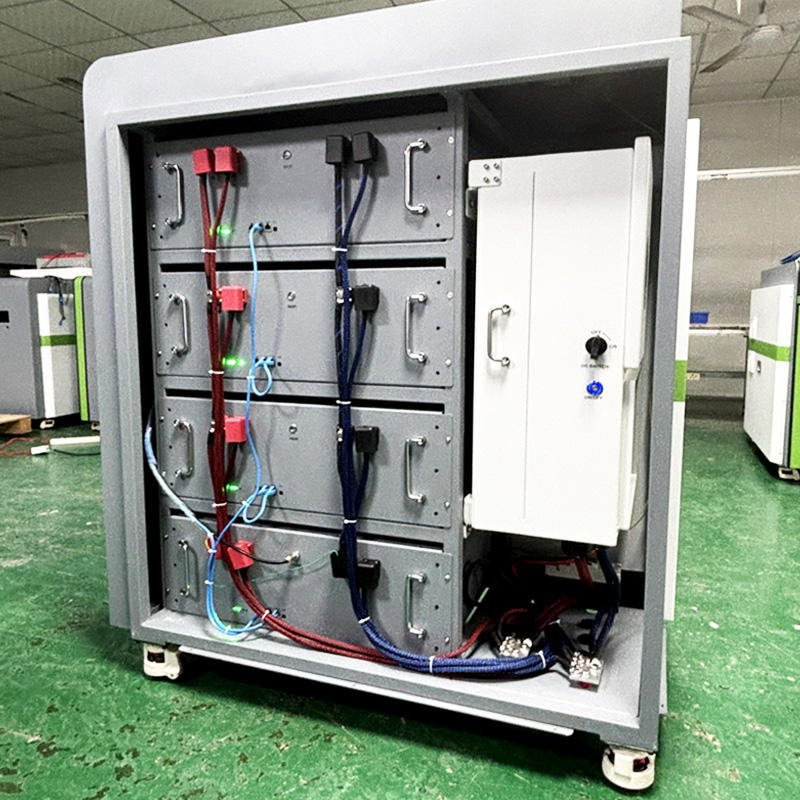

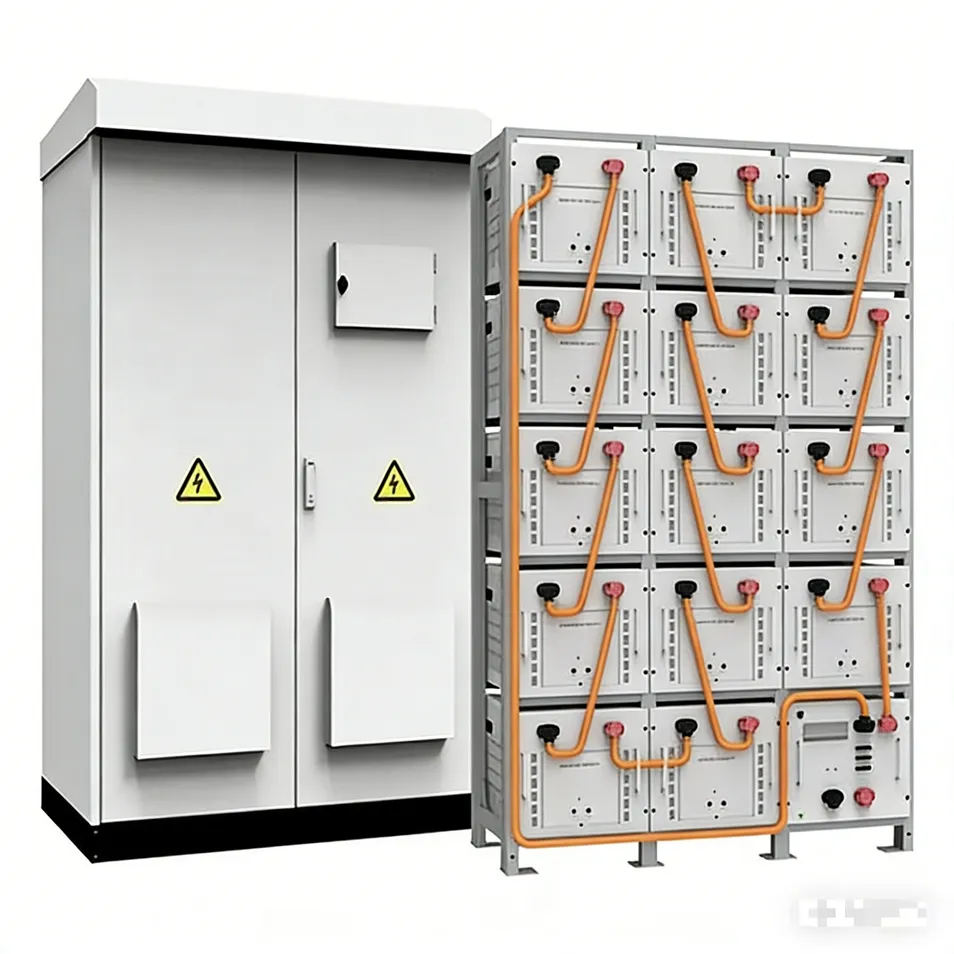

The DC cabinet serves to aggregate and balance current distribution across each connected battery rack. It facilitates comprehensive charge and discharge management operations and integrates essential DC circuit breakers, heavy-duty copper busbars, MBMS controls, and localized LCD status screens.

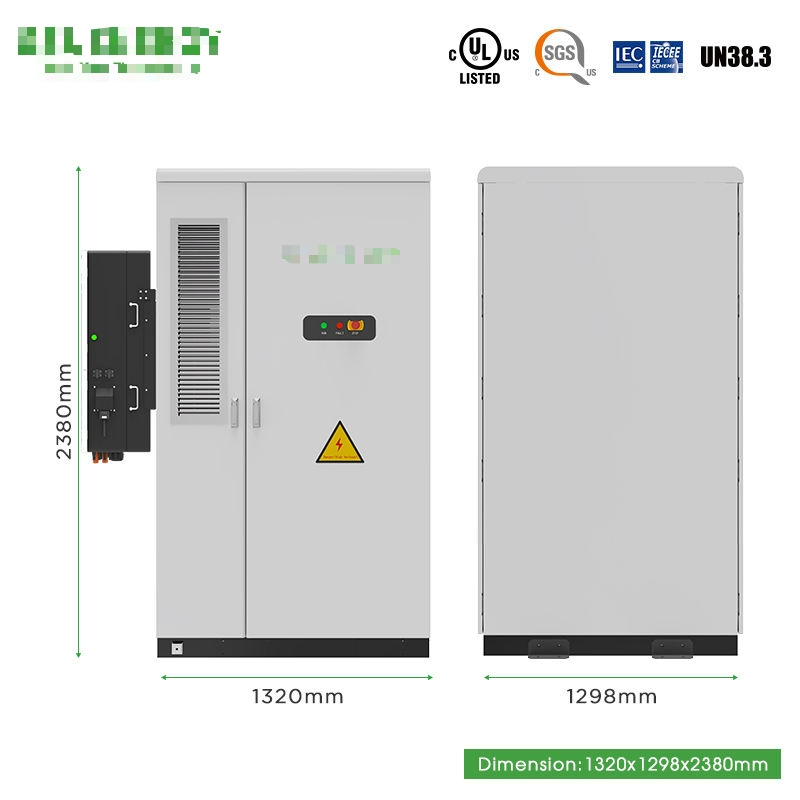

This product series features outdoor battery cabinets built to strict IP54 standards alongside IP20-rated indoor battery rack setups. Every unit contains high-capacity integrated lithium-ion cells combined with centralized BMS protection architecture.

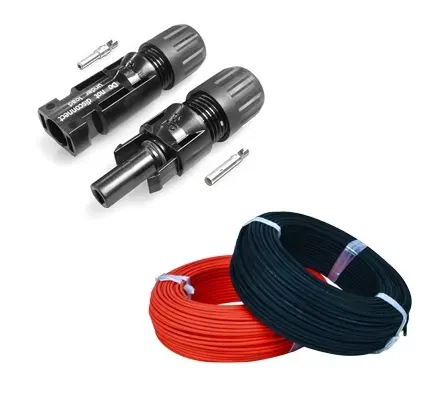

Includes high-quality solar cables (4mm²/6mm²), dedicated AC cables, safe DC isolator switches, and robust AC breakers. Offers customizable input circuitry for PV arrays, batteries, and AC outputs, coupled with high-grade anti-lightning SPD protection and IP65 enclosure ratings.

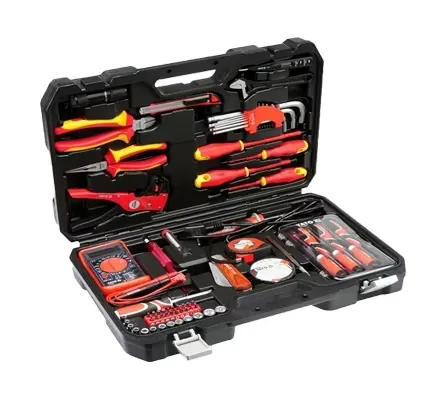

Provided with essential installation tools including MC4 spanners and heavy-duty wire crimpers. Systems feature IP68-rated PV combiner boxes and multi-gauge PV wire variants (4mm²/6mm²/10mm²/16mm²/25mm) customized for configuring serial or parallel solar arrays.
(Custom configurations available upon request.)

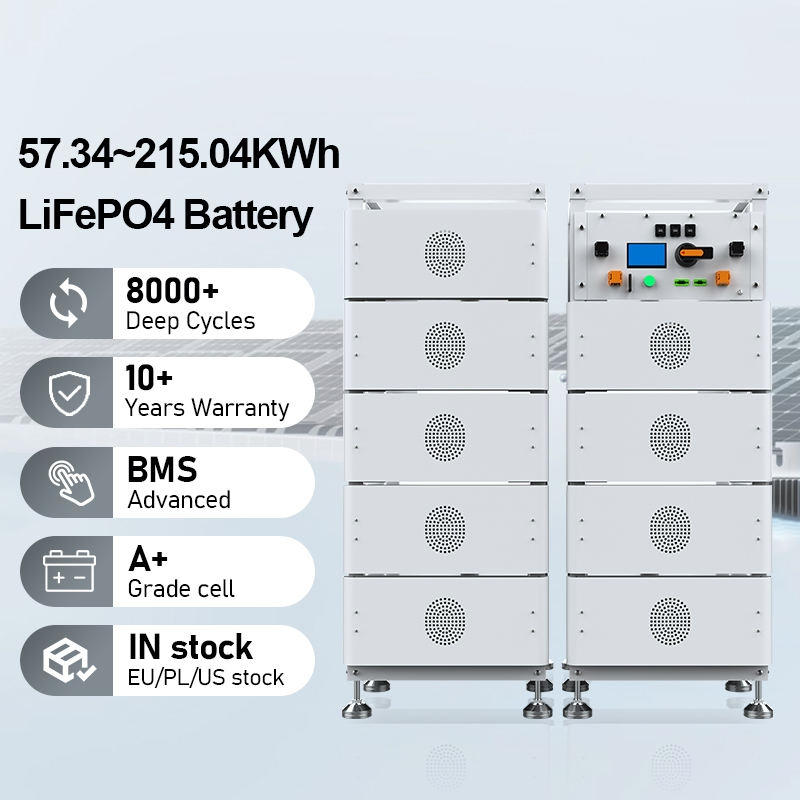

| Stackable Lithium LiFePO4 Battery 48V 51.2V 200Ah 10Kwh, Built-in A Grade Cells and 200A BMS, widely compatible with leading inverter systems, ideal for Home Energy Storage. | ||||
| Product Power | 10Kwh | 15Kwh | 30Kwh | 50Kwh |
| Nominal Voltage | 51.2V | 51.2V | 51.2V | 51.2V |
| Nominal Capacity | 200Ah | 300Ah | 600Ah | 1000Ah |
| Model Number | HS51200-10 | |||
| Cell Type | LiFePO4 Battery (Lithium Iron Phosphate Battery) | |||
| Standard Charge Voltage | 57.6V | |||
| Max Charge Current | 80A (Single Pack) | |||
| Discharge Cut-off Voltage | 44.8V | |||
| Max Discharge Current | 200A | |||
| Display | LCD Screen | |||
| Communication Interface | RS232 / RS485 / CAN | |||
| Cycle Life | ≥8000 cycles at 80% DoD | |||
| Charge Temp Range | 0°C to 55°C | |||
| Discharge Temp Range | -20°C to 60°C | |||
| Certification | UL/IEC62619, CE, MSDS, UN38.3, maritime safety classification reports. | |||
| Dimensions | 690*560*290mm | 690*560*390mm | 690*560*610mm | 690*560*930mm |
| Gross Weight | About 91Kg | About 135Kg | About 243Kg | About 395Kg |
| Optional Accessories | Movable Base / M8 Parallel Cables (30cm) / RS485 Communication Internet Cables for inverter and parallel connection. | |||
We are a specialized R&D and manufacturing enterprise focused on renewable energy storage systems. We prioritize providing reliable, global-scale solutions for residential, commercial, and industrial clients throughout Europe, North America, and Oceania. All storage configurations conform strictly to international CE, IEC, and FCC standards.
Stackable Model (5kWh): Modular expandable design supporting scaling up to 10/20kWh setups. Integrates an intelligent energy management system (EMS) for solar optimization, boasts IP65 protection for indoor/outdoor installations, and uses LiFePO4 chemistry with ≥6000 cycles.
Basic Model (16kWh): Large capacity optimization for medium-to-large households. Features ultra-fast 10ms transfer switching, low standby discharge rate (<3% monthly), and a plug-and-play profile to reduce setup times by up to 50%.
Basic Model (64kWh): Integrates solar inversion, storage, and EMS parameters. Ideal for small-to-medium retail or commercial properties. Supports peak-shaving functions (saving up to 20-30% on electric bills) and works on a safe 48V DC framework.
128kWh Model: Engineered for continuous 10kW+ loads, perfect for office spaces. Features cloud-connected 24/7 remote monitoring, modular expansion options, and reliable operations from -20℃ to 55℃.

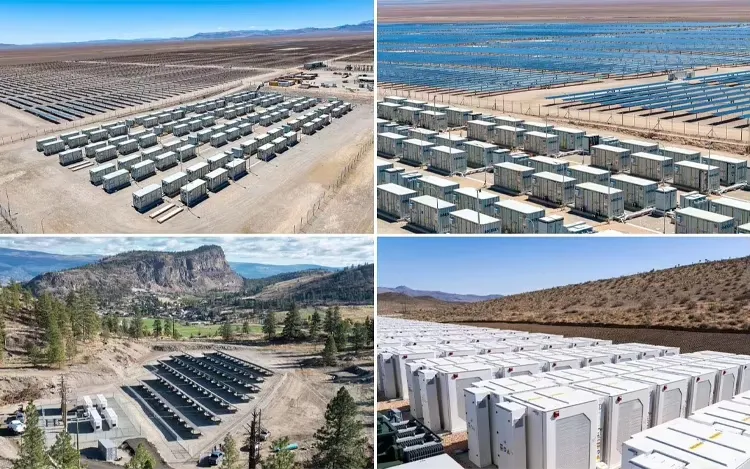

241kWh Model: High-performance utility scale storage for industrial plants, factories, and agricultural settings. Offers optional containerized enclosures for quick transport, >95% conversion efficiency, and multi-tier failsafe mechanisms.
Warranty Terms: 5-year global system warranty. 10-year warranty or 6000 cycles for individual battery cells (whichever occurs first, ensuring ≥70% remaining storage capacity).
Support Services: 24-hour technical support, reliable international service networks, and free replacement parts within the active warranty timeline.
